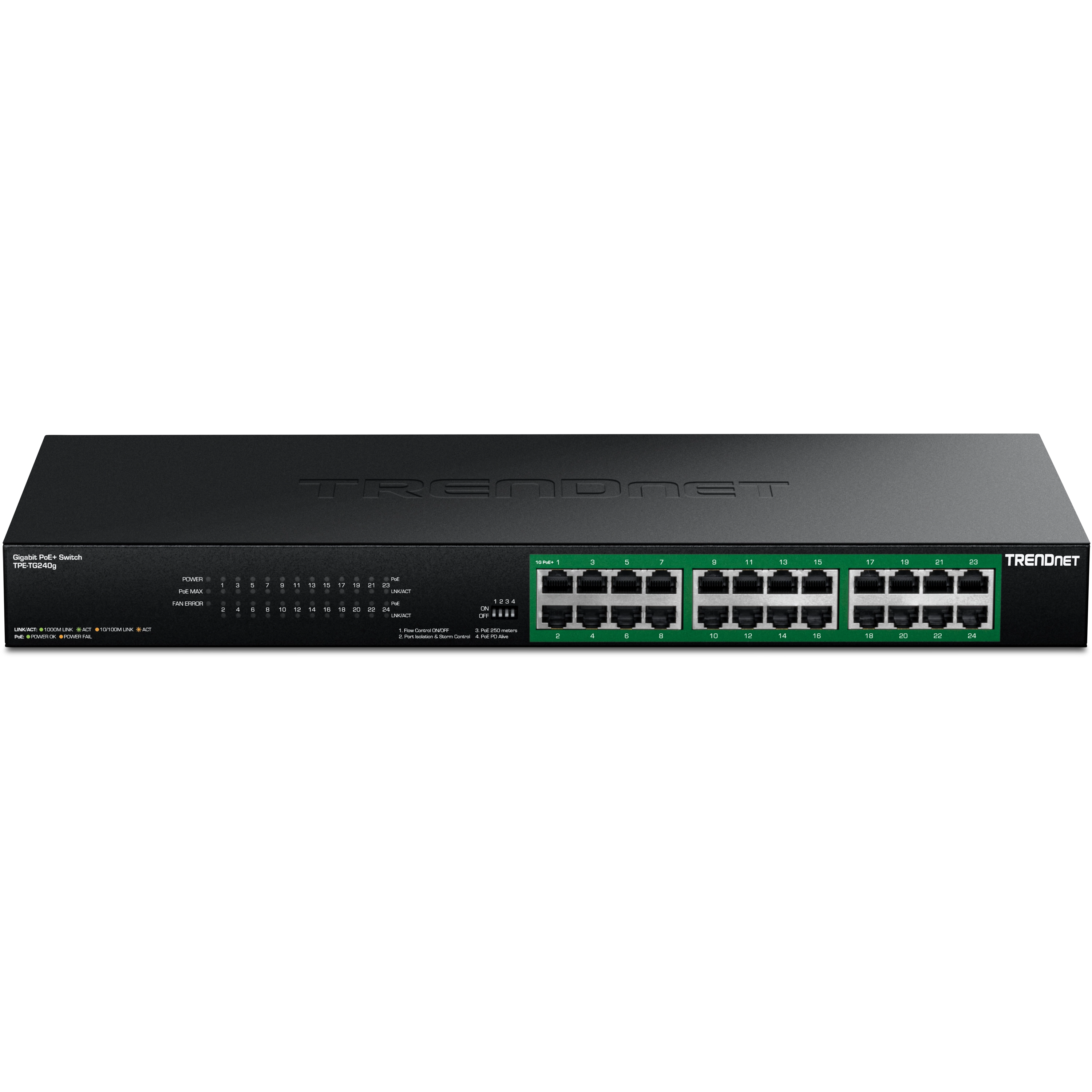

24-Port Gigabit PoE+ Switch

TPE-TG240g   (Version V4)

   Select Another Version
  • 24 x Gigabit PoE+ ports
  • 48Gbps switching capacity
  • 370W PoE power budget
  • Extend PoE+ signal up to 250m (820 ft.) at 10Mbps on ports 1 – 8
  • DIP switch supports VLAN port isolation and storm control
  • Smart Fans
  • Reduces equipment cost by delivering data and power over existing network cables
  • 1U 19” rack mountable metal housing with brackets included
  • Internal power supply
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 24 x Gigabit PoE+ ports (10Mbps/100Mbps/1000Mbps)
  • DIP switch
  • LED indicators
Performance
  • Data RAM Buffer: 512KB
  • Switch Fabric: 48Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 35.7Mpps (64-byte packet size)
  • Jumbo Frame: 9KB
Power

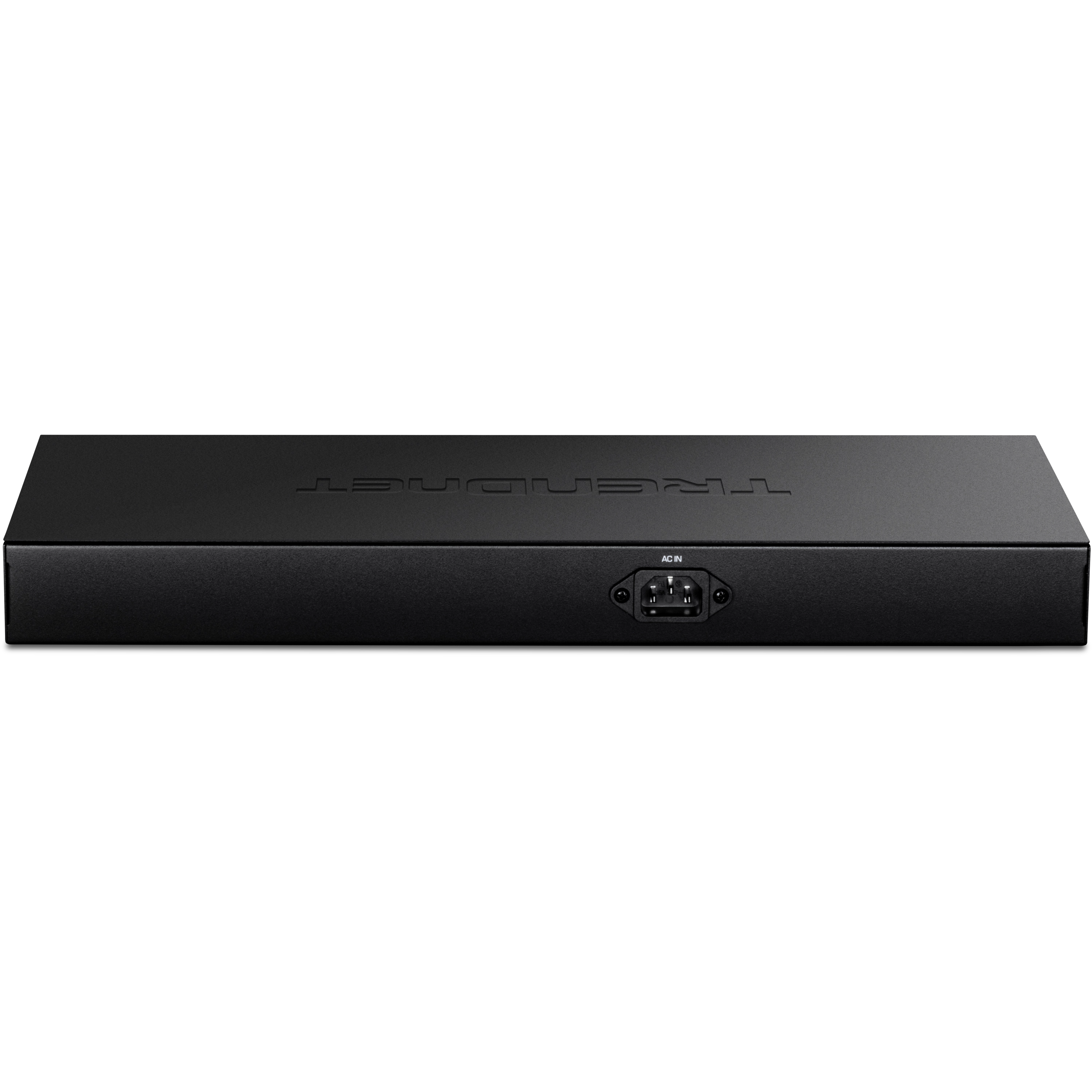

  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 36W (no PD)
PoE
  • PoE budget: 370W
  • PoE Mode A: Pin 1, 2 -; 3, 6 +
  • Over current protection
  • Short circuit protection
DIP Switch
  • Flow Control On (default) / Off
  • Port Isolation and Storm Control On / Off (default)
  • Long Range PoE+ On / Off (default)
  • PD Alive Alert On / Off (default)
Fan/Acoustics
  • Quantity: 2
  • Smart fans
  • Max. noise Level: 48.9dB
MTBF
  • 916, 712 hours @ 25° C
Operating Temperature
  • 0° – 50° C (32° - 122° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 440 x 210 x 44mm (17.3 x 8.3 x 1.8 in.)
Weight
  • 3kg (6.6 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty

PACKAGE CONTENTS
  • TPE-TG240g
  • Rack mount kit
  • Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
