| Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3z
|
|---|

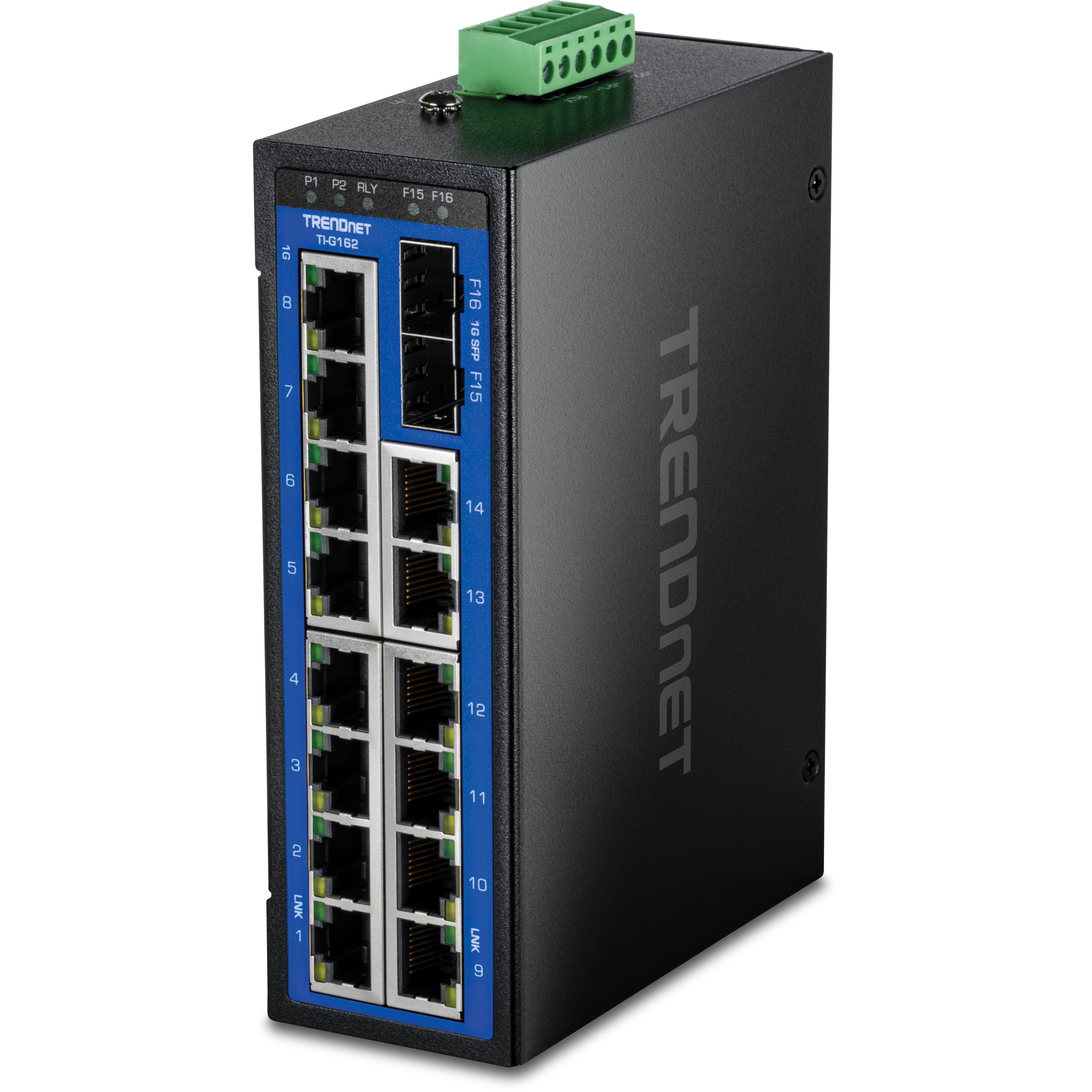

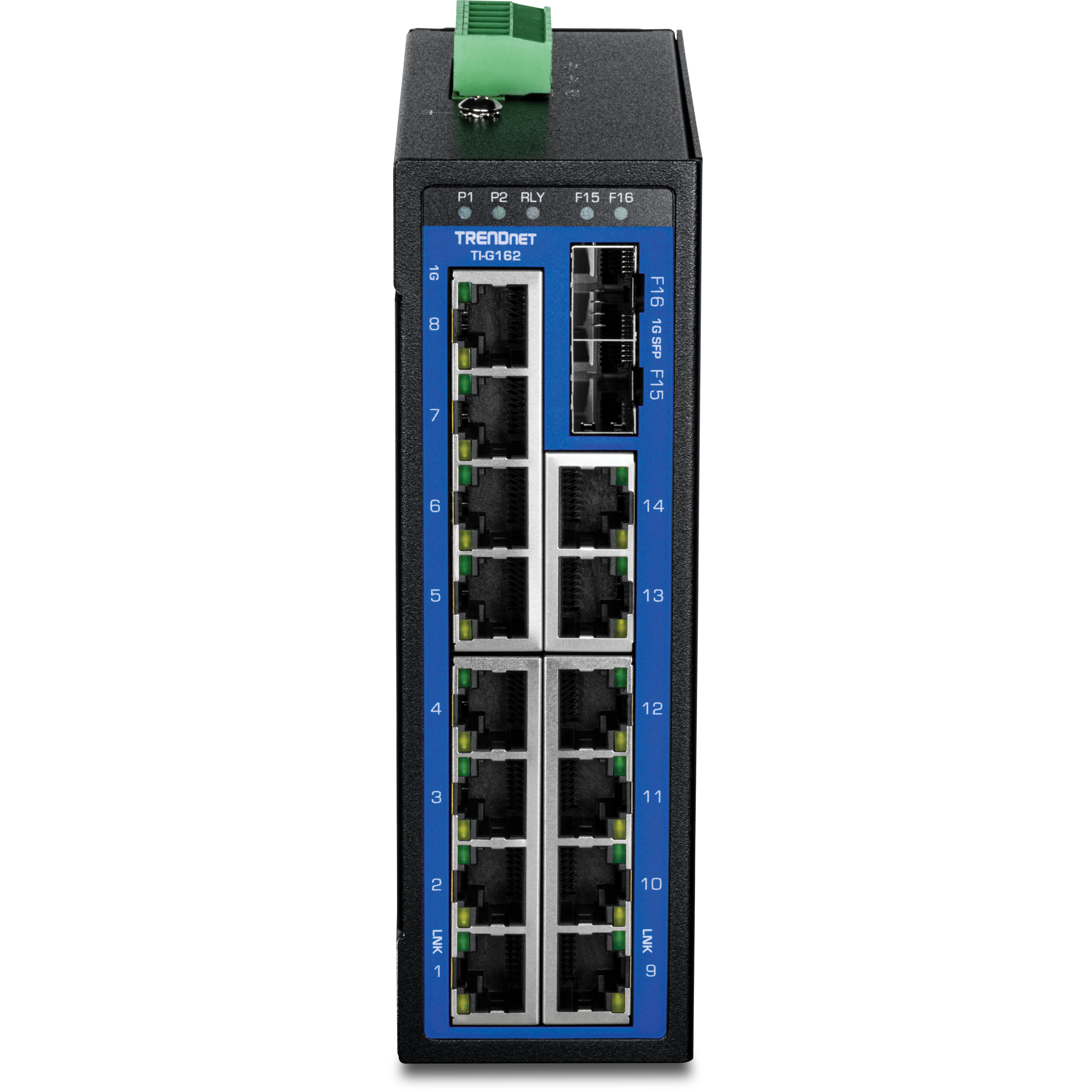

| Device Interface | - 14 x Gigabit ports (10/100/1000Mbps)
- 2 x Gigabit SFP ports (1000Mbps)
- 6-pin removable terminal block
- LED indicators
|
|---|
| Performance | - Data RAM Buffer: 512KB
- Switching Fabric: 32Gbps
- MAC Address Table: 8K entries
- Jumbo Frame: 9KB
- Forwarding rate: 23.8Mpps (64-byte packet size)
|
|---|
| DC Power | - Input: 12 – 56V DC
- Recommended power supply: TI-M6024 (sold separately)
- Max. consumption: 9W@56V DC
|
|---|

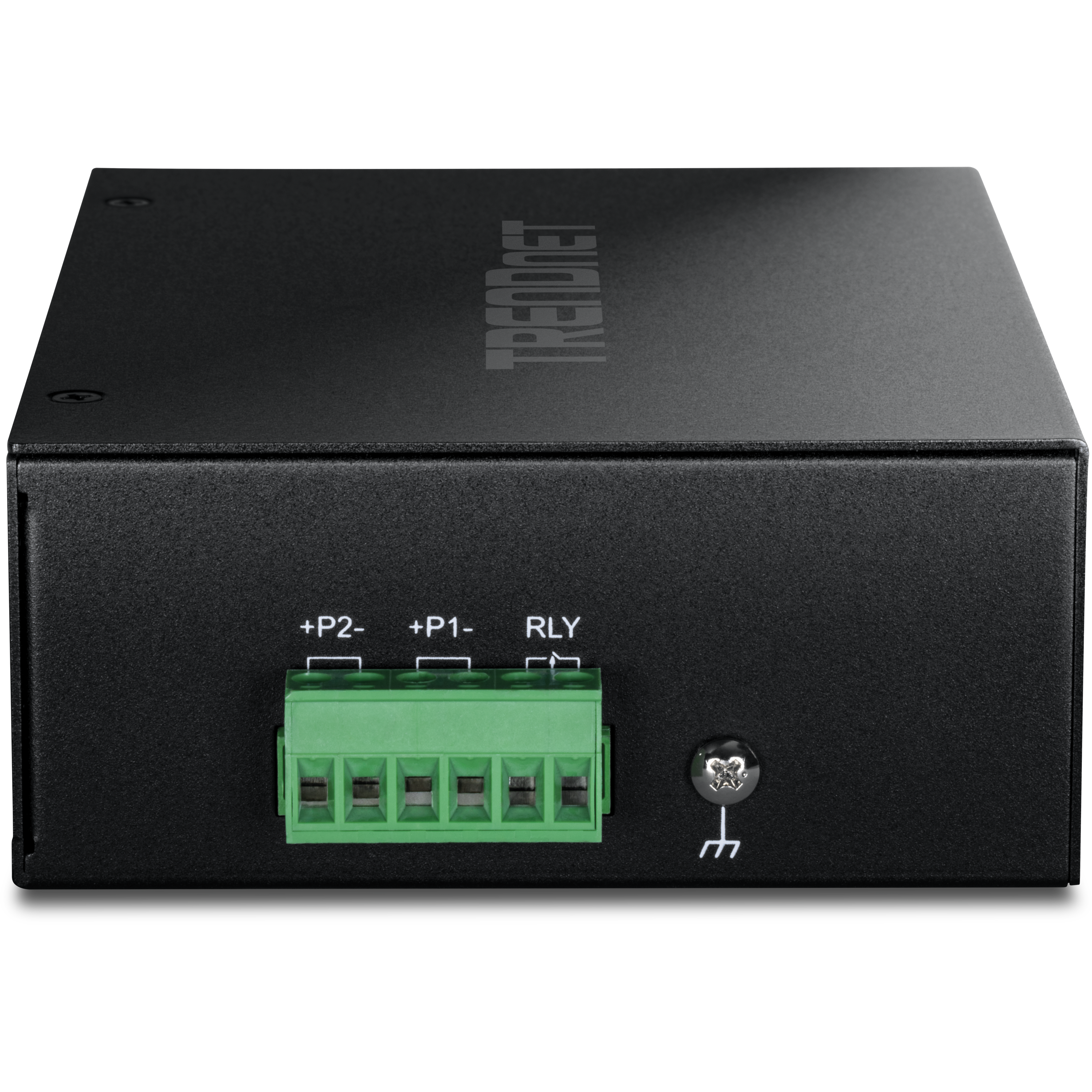

| Terminal Block | - 6-pin terminal block
- Alarm Relay: 1A@24V DC
- Wire range: 0.34mm² to 2.5mm²
- Solid wire (AWG): 12-24
- Stranded wire (AWG): 12-24
- Torque: 5 lb. – In / 0.5Nm / 0.56Nm
- Wire strip length: 7-8mm
|
|---|
| MTBF | |
|---|
| Housing | - IP50 metal case

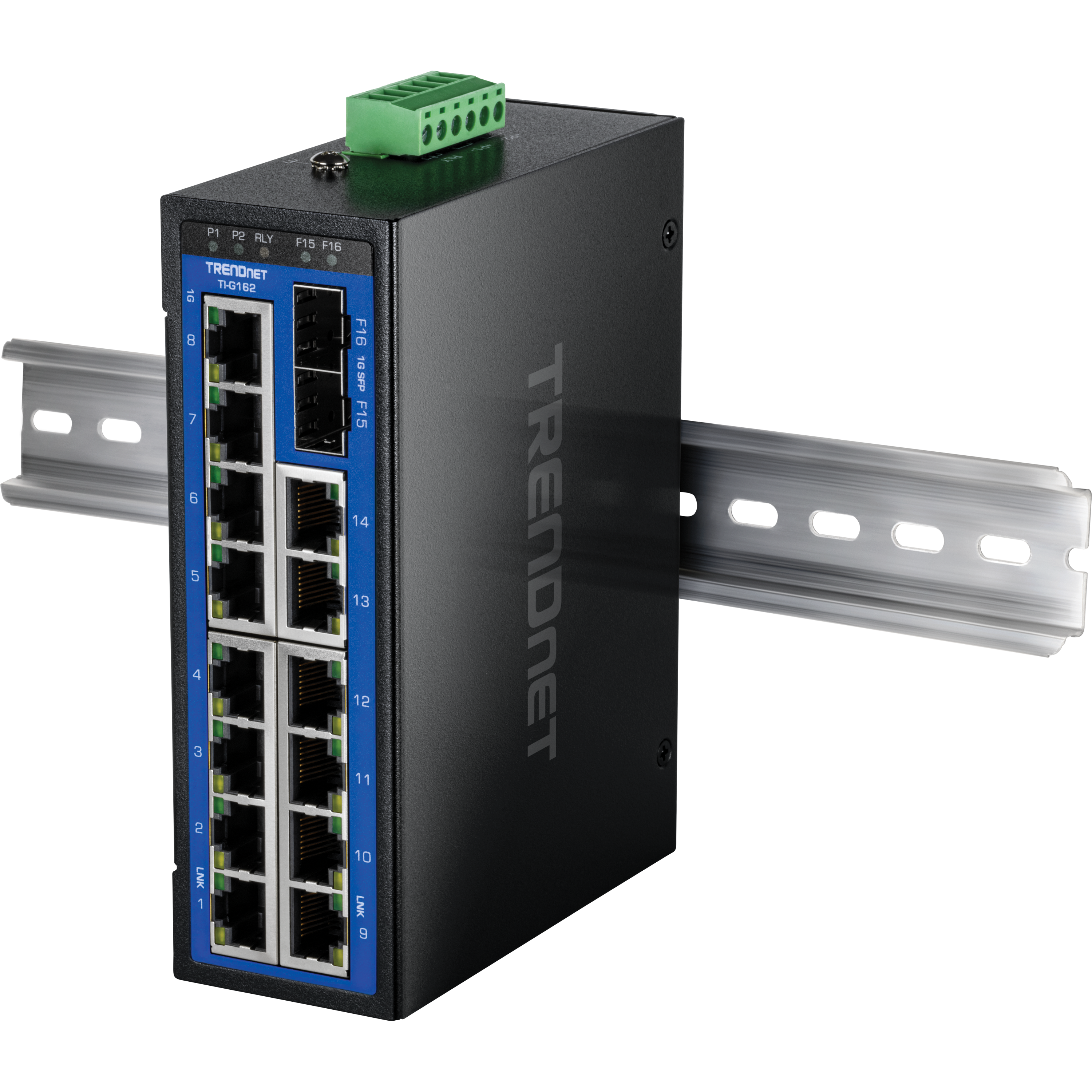

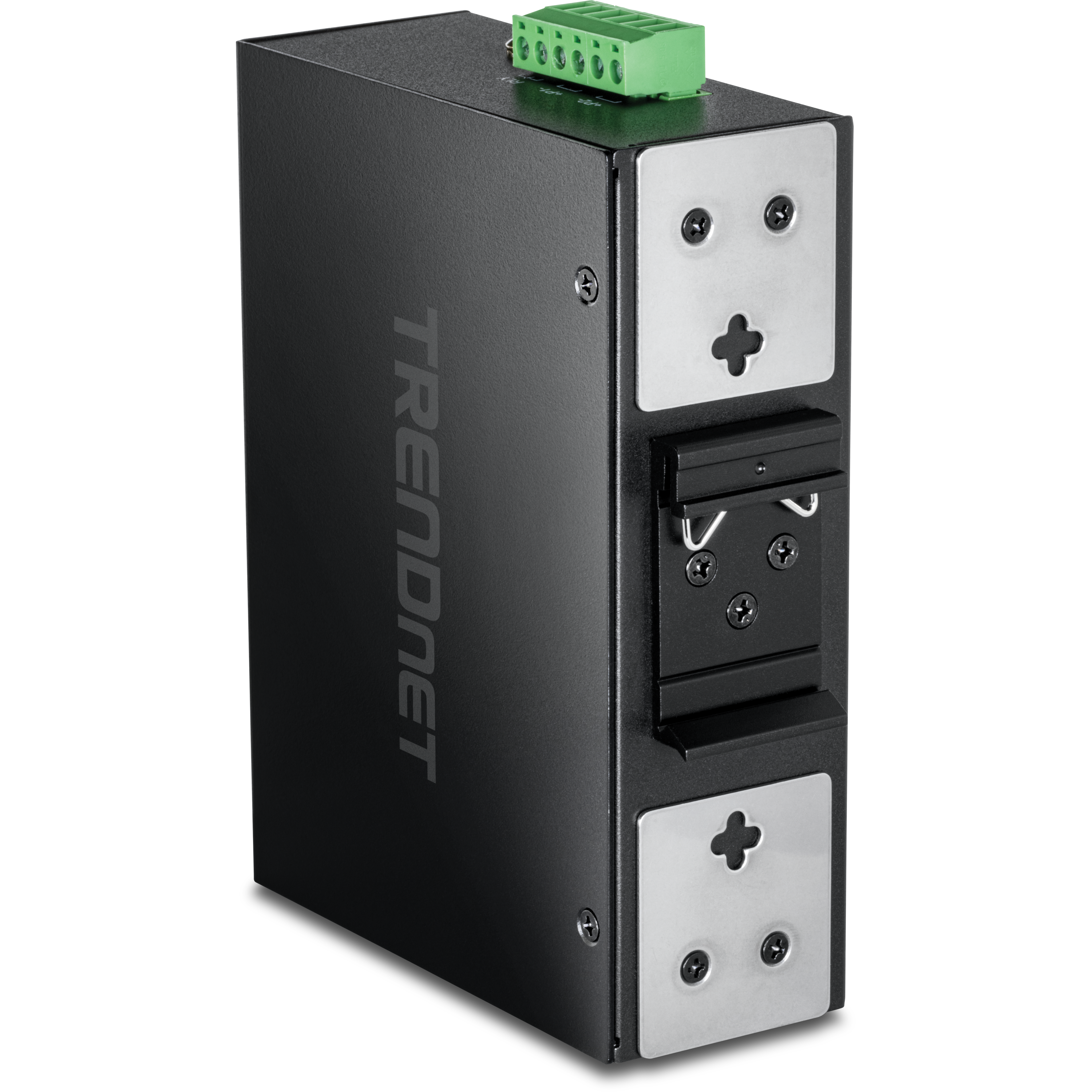

- DIN-Rail mount
- Wall mount
- Grounding point
- 6kV ESD protection
- 8kV Air protection
- 2kV Surge protection
|
|---|
| Operating Temperature | - -40° – 75° C (-40° – 167° F)
|
|---|
| Operating Humidity | |
|---|
| Dimensions (L x W x H) | - 142 x 105 x 45.5mm (5.6 x 4.1 x 1.8 in.)
|
|---|
| Weight | |
|---|
| Certifications | - CE
- FCC
- LVD
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
|
|---|
| Warranty | |
|---|
PACKAGE CONTENTS |
- TI-G162
- Removable terminal block
- DIN-Rail and wall-mount kit
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
