TRENDnetVIEW Wireless Network Camera

TV-IP212W   (Version A1.0R)

  • 2-way audio to listen and talk through the camera
  • No need for an Ethernet connection, video is transmitted over a encrypted wireless signal
  • Superb image quality with MPEG-4 compression
  • View streaming video, hear sounds, verbally respond and record from any Internet connection

DISCONTINUED PRODUCT

The TV-IP212W (Version A1.0R) has been discontinued. It has been replaced by the TV-IP326PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Filename: Utility_SecurView(V1.2.0.21).zip
SHA-1 Checksum: A1FA7F7428BB3D0D6772BFB8B0492A7AF9072794
Date: 9/8/2017
File Size: 50.83 MB

Firmware

DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: V1.1.1 build 51
Release Date: 4/2013
Notes:
  1. Upload.asp removed.
  2. Updated save configuration file encryption type.
  3. Set RTSP default authentication to "digest".

Note:

  • Please do not save the camera's configuration file from the old firmware and restore it after the firmware upgrade.
  • After a successful firmware upgrade, please reset the camera to factory default and reconfigure the camera. We strongly recommend that you change the camera's administrator's account password.
  • . Please ensure you update to firmware version 1.1.1 build 49 before you upgrade to version 1.1.1.51.

Filename: FW_TV-IP212W_A1(1.1.1.51).zip
SHA-1 Checksum: 58A4B78DD27C568EDF0BAC2D542EB9CE2F1C8454
Date: 7/25/2017
File Size: 4.46 MB
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: V1.1.1 build 49
Release Date: 2/2012
Notes:
  1. Required firmware in order to upgrade to V1.1.1 build 50




Filename: FW_TV-IP212W_A1(1.1.1.49).zip
SHA-1 Checksum: 1C1C08D7AFE75307213469D390A07858106330E9
Date: 7/25/2017
File Size: 3.17 MB

Datasheet

Filename: EN_Spec_TV-IP212W(A1.0R).pdf
Date: 8/23/2010
File Size: 586.70 KB
Filename: FR_Spec_TV-IP212W(A1.0R).pdf
Date: 8/23/2010
File Size: 607.56 KB
Filename: GE_Spec_TV-IP212W(A1.0R).pdf
Date: 8/23/2010
File Size: 599.77 KB
Filename: SP_Spec_TV-IP212W(A1.0R).pdf
Date: 8/23/2010
File Size: 770.90 KB
Filename: RU_Spec_TV-IP212W(A1.0R).pdf
Date: 8/23/2010
File Size: 1.70 MB
Filename: IT_Spec_TV-IP212W(A1.0R).pdf
Date: 8/23/2010
File Size: 580.14 KB

Quick Installation Guide

Filename: EN_TV-IP212_212W_312_312W.pdf
Date: 12/3/2007
File Size: 900.97 KB
Filename: FR_TV-IP212_212W_312_312W.pdf
Date: 12/3/2007
File Size: 902.57 KB
Filename: GE_TV-IP212_212W_312_312W.pdf
Date: 12/3/2007
File Size: 902.08 KB
Filename: PO_TV-IP212_212W_312_312W.pdf
Date: 10/6/2007
File Size: 976.11 KB
Filename: SP_TV-IP212_212W_312_312W.pdf
Date: 12/3/2007
File Size: 901.43 KB
Filename: RU_TV-IP212_212W_312_312W.pdf
Date: 12/3/2007
File Size: 1.02 MB
Filename: EST_QIG_TV-IP212_212W_312_312W.pdf
Date: 3/21/2008
File Size: 744.32 KB

User's Guide

Filename: UG_TV-IP212_212W(A1).pdf
Date: 3/11/2010
File Size: 3.33 MB

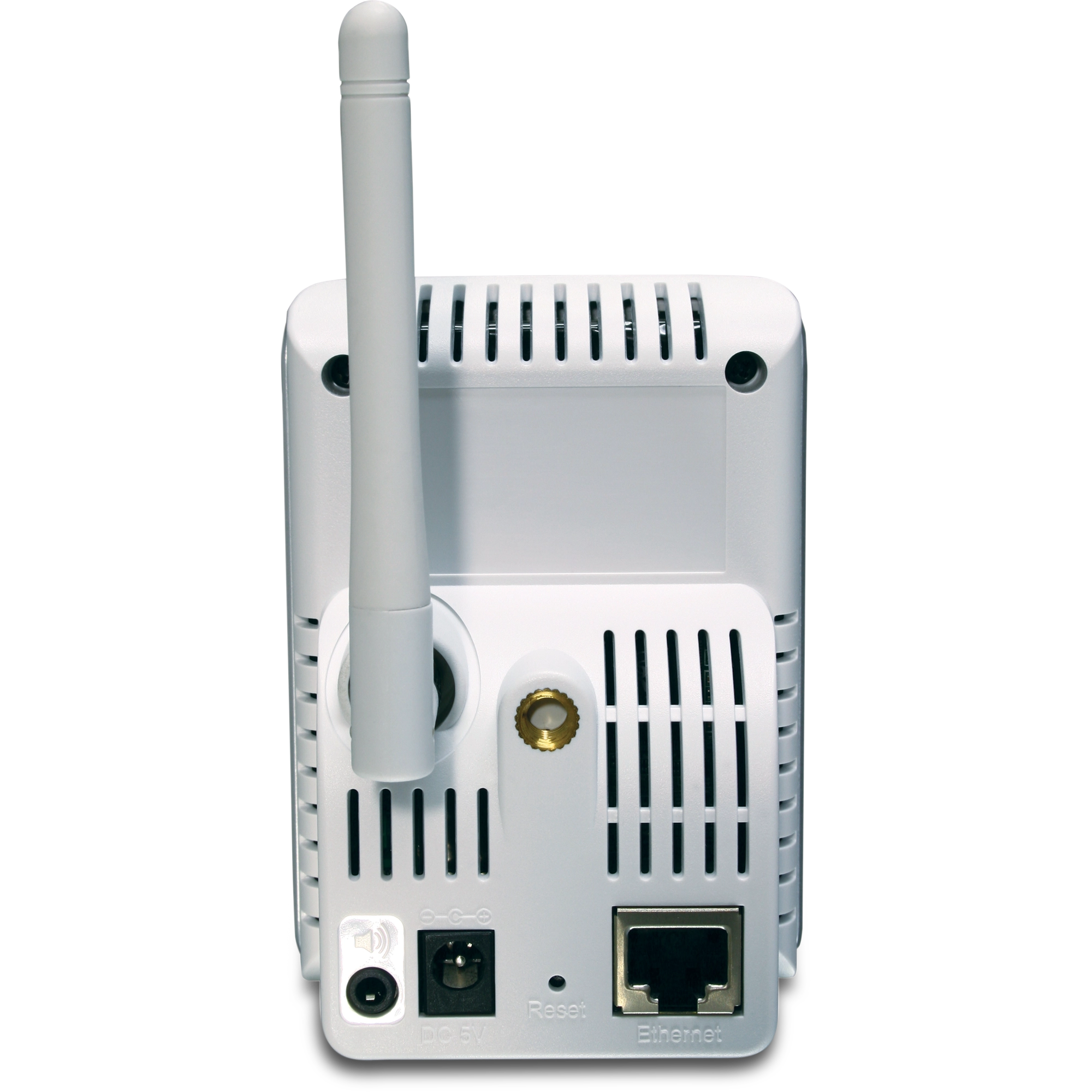

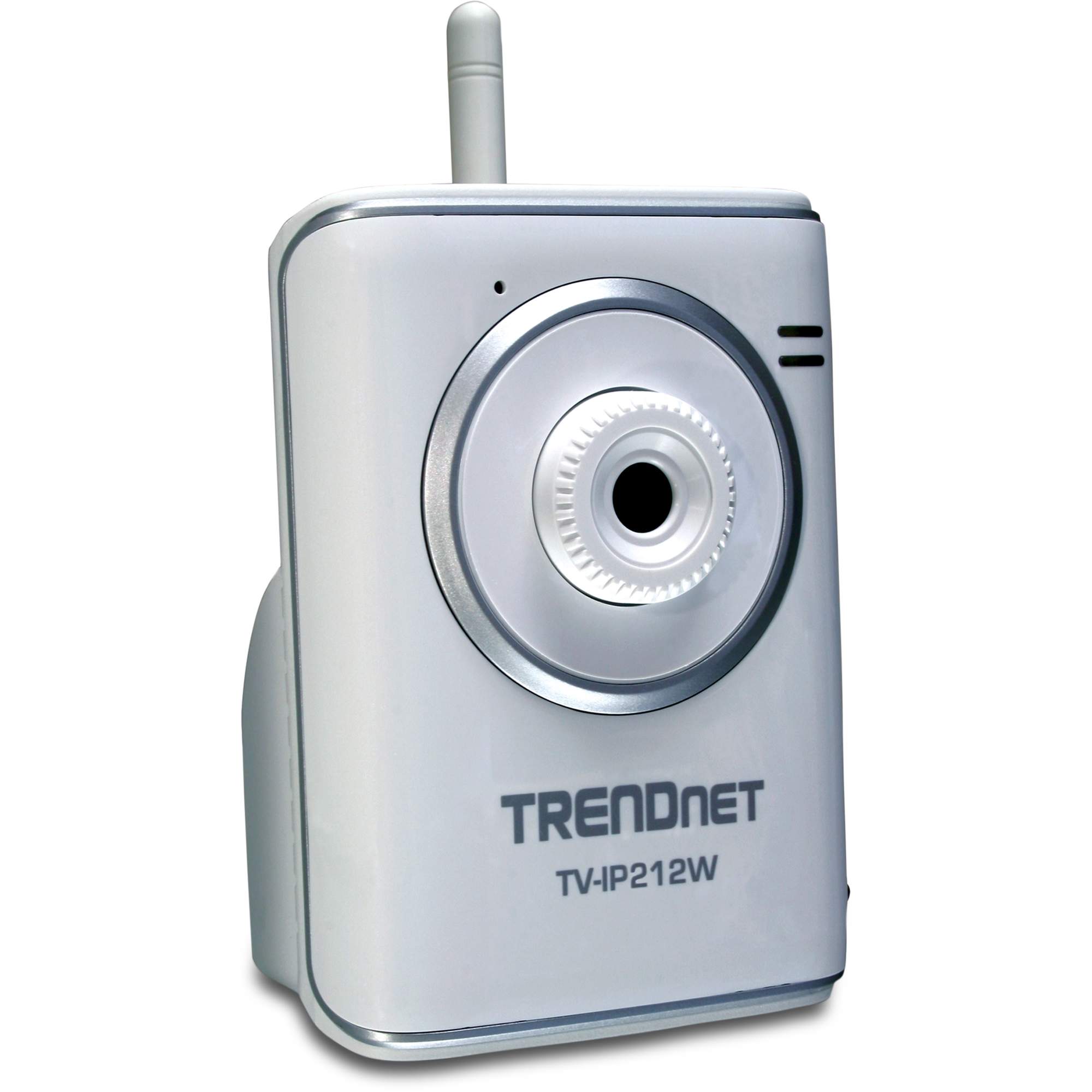

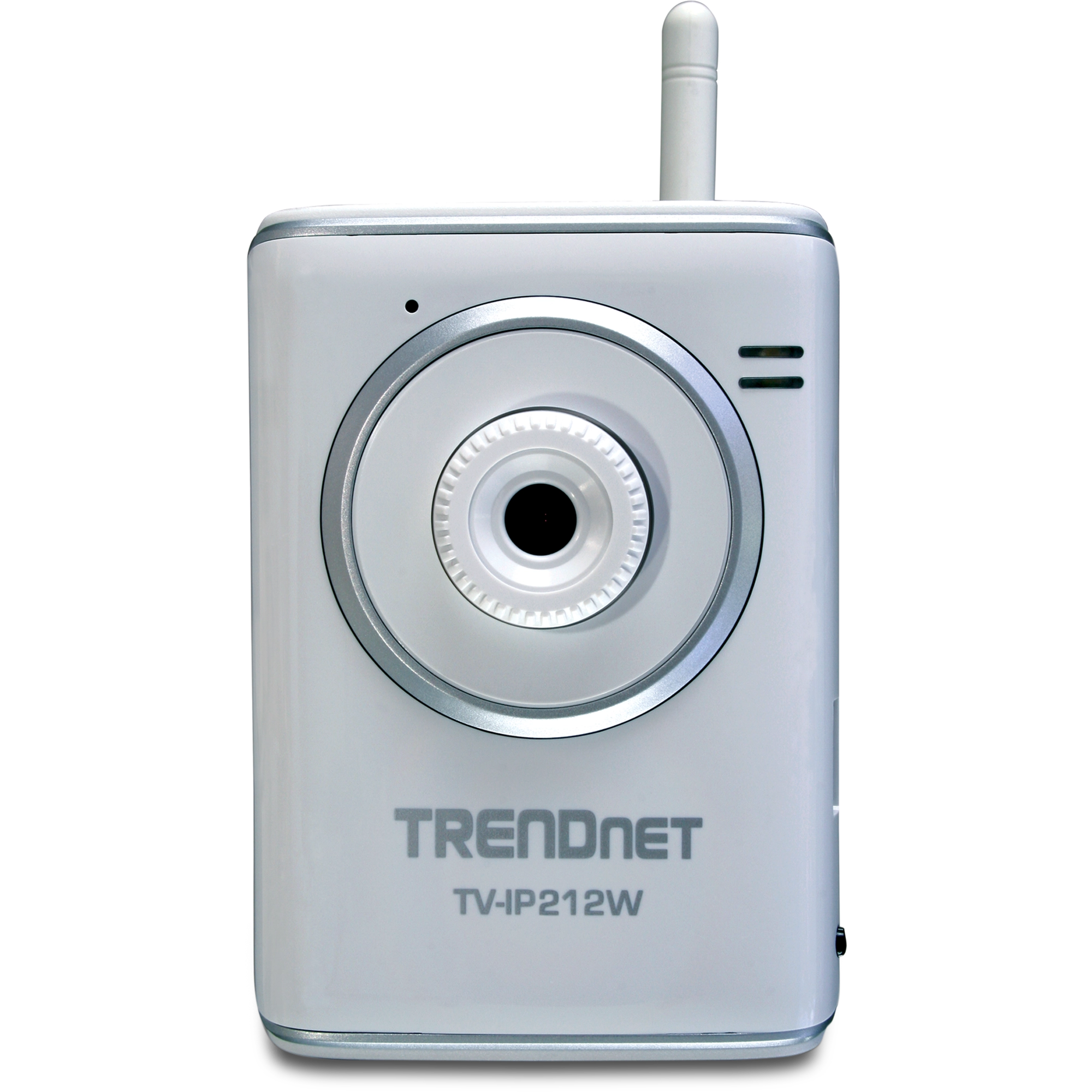

Product Images

JPEG Image
File Size: : 351.76 KB
Date: : 9/11/2007
JPEG Image
File Size: : 349.86 KB
Date: : 9/11/2007
JPEG Image
File Size: : 271.78 KB
Date: : 9/11/2007
TIFF Image
File Size: : 4.18 MB
Date: : 1/16/2008
TIFF Image
File Size: : 4.22 MB
Date: : 1/16/2008
TIFF Image
File Size: : 3.45 MB
Date: : 1/16/2008
ROHS compliant WEEE crossed-out bin symbol.
Camera Specifications
Image Sensor
Sensor 1/4” Color CMOS Sensor
Resolution 640 x 480 Pixel
Fixed Lens f: 4.6mm, F: 2.8 (Board Lens)
Viewing Angle 60 Degree
Minimum Illumination 0.5Lux @ F2.0
Audio
Microphone Input Internal Omni-Directional
Sensitivity: -48dB + 3dB
Response Frequency:50 ~ 16000Hz
Audio Output 3.5mm Speaker Output Jack
Format PCM/AMR (Mono)
Video/Image Setting
Video Format MPEG4(Simple Profile), MJPEG, 3GPP
Image Frame Rate 30fps @VGA, QVGA, QQVGA
Frame Rate Setting 1 ~ 30fps
Compression Ration Setting 5 Levels
Resolution 640 x 480, 320 x 240, 160 x 120
Exposure Control, White Balance, Gain Control Automatic
Image Setting Adjustable Brightness, Contrast, Saturation
Flip Images Vertical/Horizontal
Light Frequency 50Hz, 60Hz or Outdoor
Communication
LAN 10/100Mbps Auto MDIX
Protocol HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP, RTP, RTSP, RTCP
Hardware Specifications
System
CPU ARM9 base
RAM 32Mbyte SDRM
ROM 8Mbyte Nor Flash
OS Linux
System Requirement (Web Configuration)
CPU Pentium III 350MHz or above
Memory Size 128MB or above
Resolution 800 x 600 or above
Browser Internet Explorer 6.0 or above
Supported OS Windows 2000/XP/Vista/Windows 7
System Requirement (TRENDnetVIEW™ Software)
CPU Pentium 4 1GHz or above
Memory Size 512MB or above
Resolution 1024 X 768 or above
Supported OS Windows 2000/XP/Vista/Windows 7
Physical /Environment
Dimension 70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
Weight
  • Camera: 170g (6 oz.)
  • Stand: 135g (4.76oz.)
Power 5VDC, 2.5A External Power Adapter
Power Consumption 8 Watts (Max)
LEDs Power (Orange), Link (Green)
LED Enable/Disable Support
Temperature
  • Operation: 0°C ~ 45°C (32°F ~ 113°F)
  • Storage : -10°C ~ 60°C (14°F ~ 140°F)
Wireless
Standard IEEE 802.11b/g
Encryption 64/128-bit WEP, WPA-PSK, WPA2-PSK
Antenna 2dBi Detachable Reverse SMA Connector
Other
USB Port USB 1.1 (Type 1)
Up to 500mA power device with FAT16/32 format

PACKAGE CONTENTS

  • TV-IP212W
  • Multi-language quick installation guide
  • Utility CD-ROM
  • Camera stand
  • 1.8M Cat. 5 RJ-45 Ethernet Cable
  • Power adapter (5VDC, 2.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
