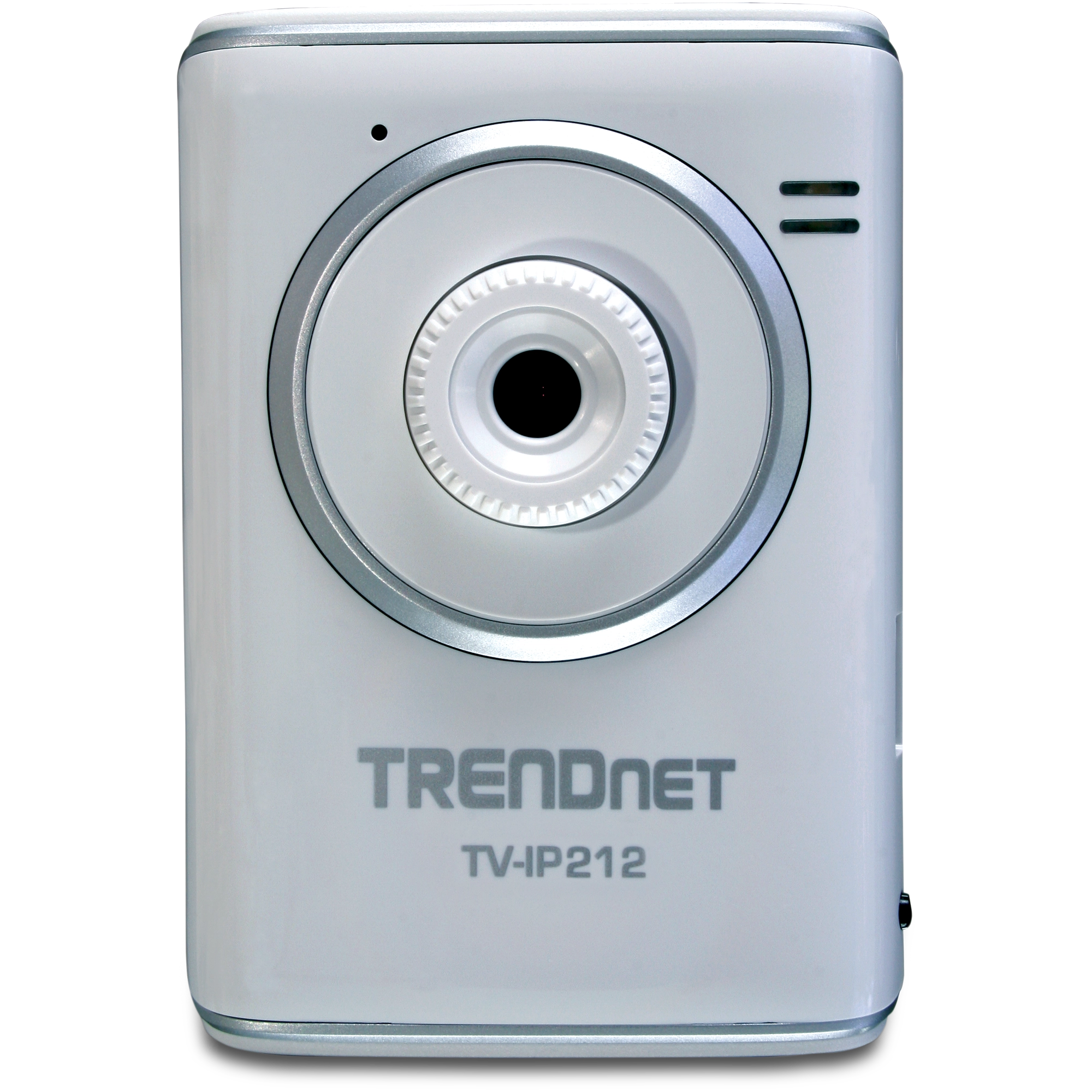

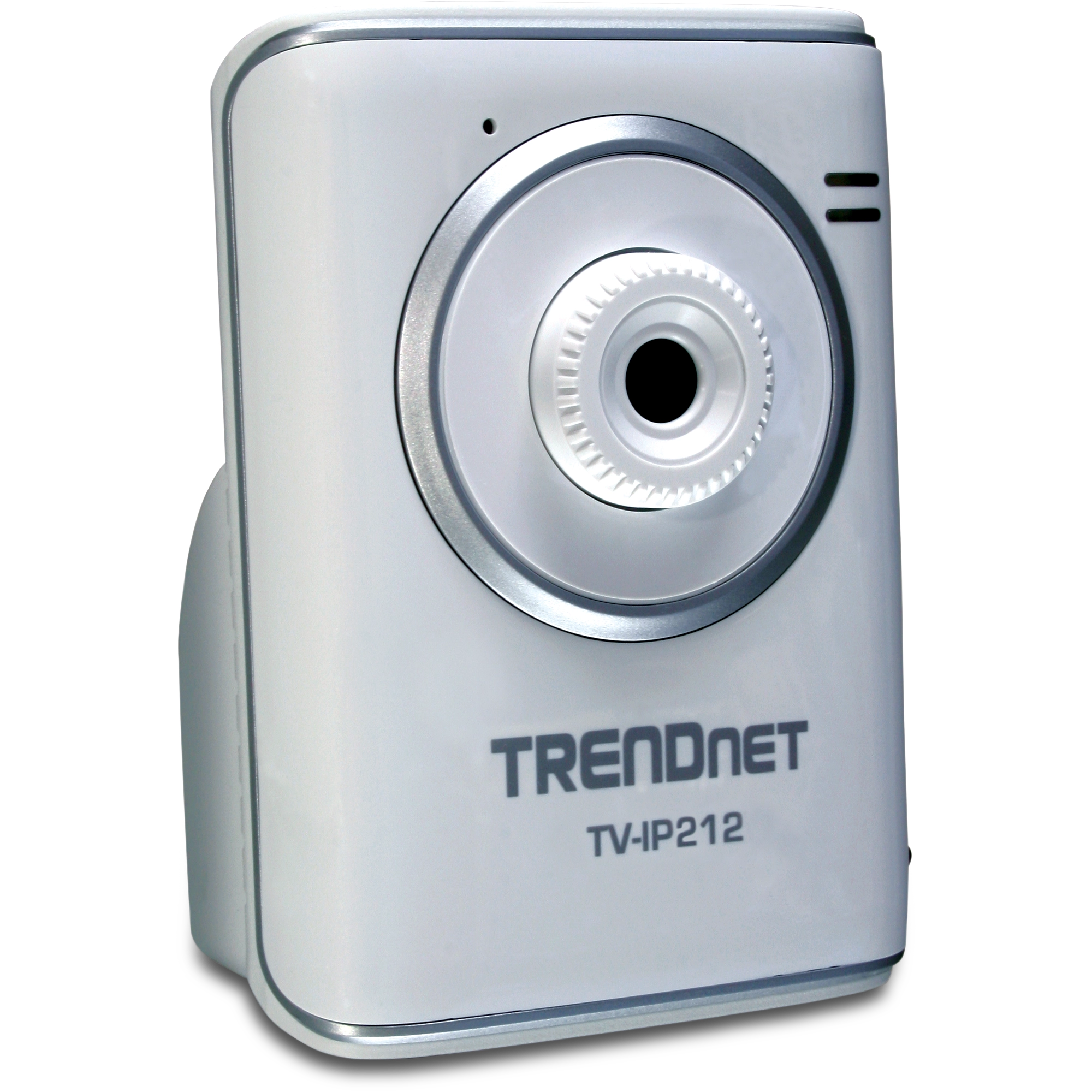

SecurView Network Camera

TV-IP212   (Version A1.0R)

  • 2-way audio to listen and talk through the camera
  • Superb image quality with MPEG-4 compression
  • View streaming video, hear sounds, verbally respond and record from any Internet connection

DISCONTINUED PRODUCT

The TV-IP212 (Version A1.0R) has been discontinued. It has been replaced by the TV-IP326PI (Version v1.0R). For a list of discontinued products, click here.

Firmware

DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version:V1.1.1 build 80
Release Date: 4/2013

Notes:
  1. Upload.asp removed.
  2. Updated save configuration file encryption type.
  3. Set RTSP default authentication to "digest".

Note:

  • Please do not save the camera's configuration file from the old firmware and restore it after the firmware upgrade.
  • After a successful firmware upgrade, please reset the camera to factory default and reconfigure the camera. We strongly recommend that you change the camera's administrator's account password.
  • Please ensure you update to firmware version 1.1.1 build 78 before you upgrade to version 1.1.1.80.

Filename: FW_TV-IP212_A1.x(1.1.1.80).zip
SHA-1 Checksum: BCEA393DFD1294E695CE1C71BEF41B63FB81FCF0
Date: 7/25/2017
File Size: 4.46 MB
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only
Firmware Version: V1.1.1 build 78
Release Date: 2/2012

Notes:
  1. Required firmware in order to upgrade to V1.1.1 build 79


Filename: FW_TV-IP212_A1.x(1.1.1.78).zip
SHA-1 Checksum: BE75395C29BC823F7490915FBC37AC56C8628758
Date: 7/25/2017
File Size: 3.17 MB

Datasheet

Filename: EN_Spec_TV-IP212(A1.0R).pdf
Date: 3/3/2009
File Size: 342.91 KB
Filename: FR_Spec_TV-IP212(A1.0R).pdf
Date: 3/3/2009
File Size: 345.60 KB
Filename: GE_Spec_TV-IP212(A1.0R).pdf
Date: 3/3/2009
File Size: 347.43 KB
Filename: SP_Spec_TV-IP212(A1.0R).pdf
Date: 3/3/2009
File Size: 347.41 KB
Filename: RU_Spec_TV-IP212(A1.0R).pdf
Date: 3/3/2009
File Size: 1.48 MB

Quick Installation Guide

Filename: EN_QIG_TV-IP212_212W_312_312W.pdf
Date: 10/5/2007
File Size: 806.02 KB
Filename: FR_QIG_TV-IP212_212W_312_312W.pdf
Date: 10/5/2007
File Size: 807.65 KB
Filename: GE_QIG_TV-IP212_212W_312_312W.pdf
Date: 10/5/2007
File Size: 807.12 KB
Filename: PO_QIG_TV-IP212_212W_312_312W.pdf
Date: 10/5/2007
File Size: 976.11 KB
Filename: SP_QIG_TV-IP212_212W_312_312W.pdf
Date: 10/5/2007
File Size: 807.38 KB
Filename: RU_QIG_TV-IP212_212W_312_312W.pdf
Date: 10/5/2007
File Size: 1.20 MB
Filename: EST_QIG_TV-IP212_212W_312_312W.pdf
Date: 3/21/2008
File Size: 744.32 KB

User's Guide

Filename: UG_TV-IP212_212W(A1).pdf
Date: 3/11/2010
File Size: 3.33 MB

Product Images

JPEG Image
File Size: : 468.05 KB
Date: : 9/11/2007
JPEG Image
File Size: : 490.55 KB
Date: : 9/11/2007
JPEG Image
File Size: : 418.02 KB
Date: : 9/11/2007
TIFF Image
File Size: : 5.48 MB
Date: : 1/16/2008
TIFF Image
File Size: : 5.82 MB
Date: : 1/16/2008
TIFF Image
File Size: : 5.00 MB
Date: : 1/16/2008
ROHS compliant WEEE crossed-out bin symbol.
Camera Specifications
Image Sensor
Sensor1/4” Color CMOS Sensor
Resolution 640 x 480 Pixel
Fixed Lens f: 4.6mm, F: 2.8 (Board Lens)
Viewing Angle 60 Degree
Minimum Illumination 0.5Lux @ F2.0
Audio
Microphone InputInternal Omni-Directional
Sensitivity: -48dB + 3dB
Response Frequency:50 ~ 16000Hz
Audio Output3.5mm Speaker Output Jack
Format PCM/AMR (Mono)
Video/Image Setting
Video Format MPEG4(Simple Profile), MJPEG, 3GPP
Image Frame Rate30fps @VGA, QVGA, QQVGA
Frame Rate Setting1 ~ 30fps
Compression Ration Setting5 Levels
Resolution 640 x 480, 320 x 240, 160 x 120
Exposure Control, White Balance, Gain ControlAutomatic
Image SettingAdjustable Brightness, Contrast, Saturation
Flip ImagesVertical/Horizontal
Light Frequency50Hz, 60Hz or Outdoor
Communication
LAN10/100Mbps Auto MDIX
ProtocolHTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP, RTP, RTSP, RTCP
Hardware Specifications
System
CPUARM9 base
RAM32Mbyte SDRM
ROM8Mbyte Nor Flash
OSLinux
System Requirement (Web Configuration)
CPUPentium III 350MHz or above
Memory Size128MB or above
Resolution800 x 600 or above
BrowserInternet Explorer 6.0 or above
Supported OSWindows 2000/XP/Vista/Windows 7
System Requirement (SecurView™ Software)
CPUPentium 4 1GHz or above
Memory Size512MB or above
Resolution1024 X 768 or above
Supported OS Windows 2000/XP/Vista/Windows 7
Physical /Environment
Dimension 70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
Weight
  • Camera: 140g (4.94oz.)
  • Stand: 135g (4.76oz.)
Power5VDC, 2.5A External Power Adapter
Power Consumption8 Watts (Max)
LEDsPower (Orange), Link (Green)
LED Enable/Disable Support
Temperature
  • Operation: 0ºC ~ 45ºC (32ºF ~ 113ºF)
  • Storage : -10ºC ~ 60ºC (14ºF ~ 140ºF)
Other
USB PortUSB 1.1 (Type 1)
Up to 500mA Power Device with FAT16/32 Format



PACKAGE CONTENTS

  • TV-IP212
  • Multi-language quick installation guide
  • Utility CD-ROM
  • Camera stand
  • 1.8m Cat. 5 Ethernet Cable
  • Power adapter (5VDC, 2.5A)
