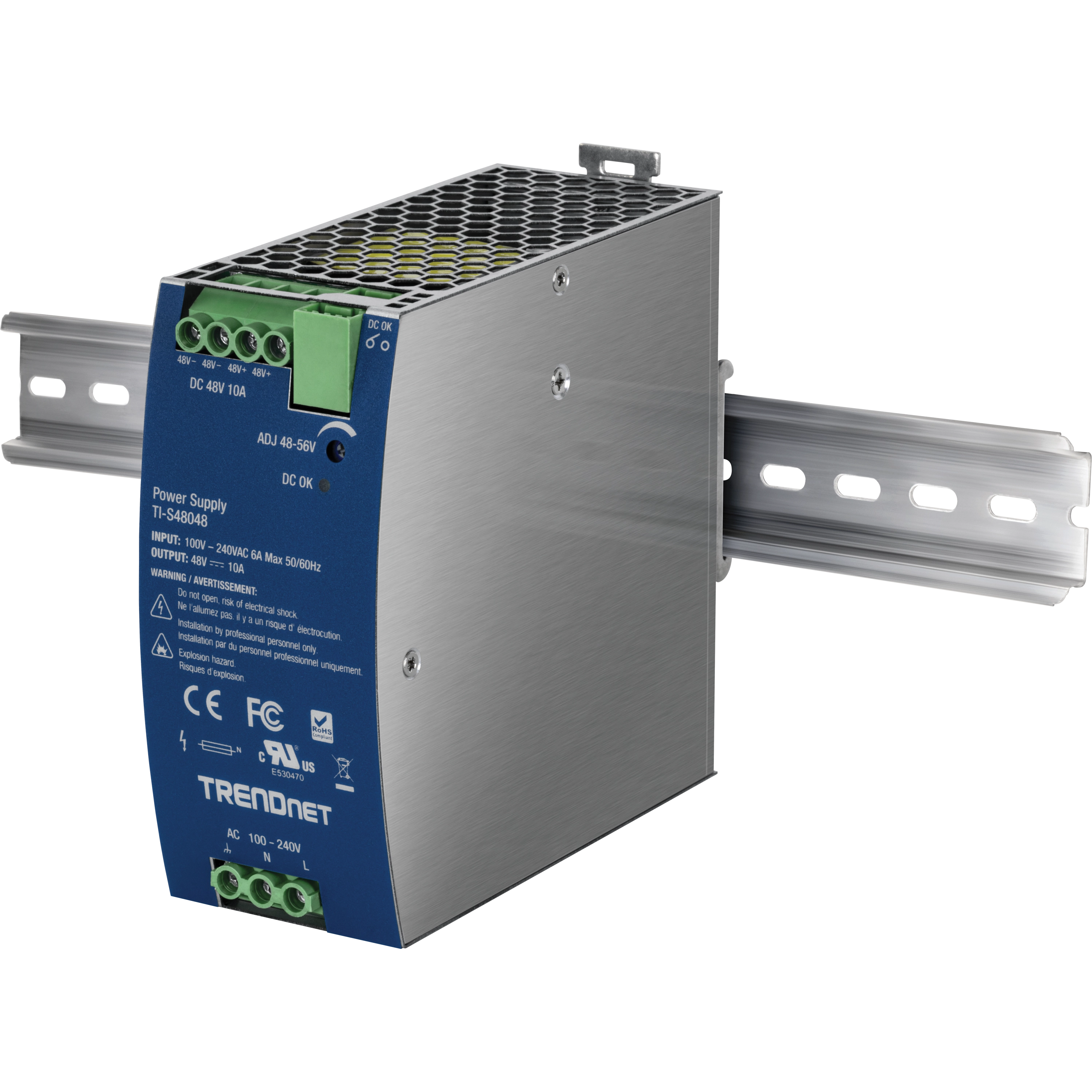

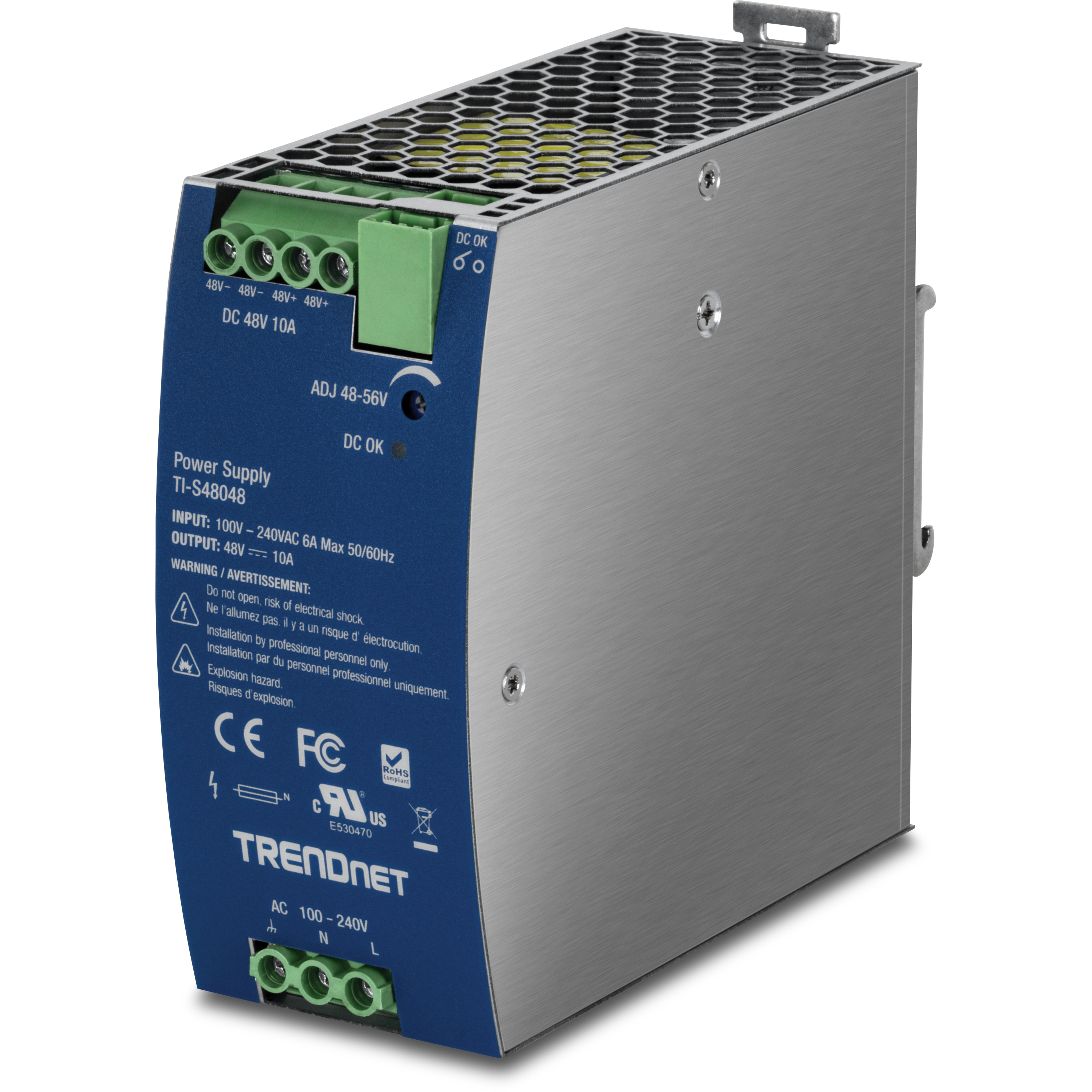

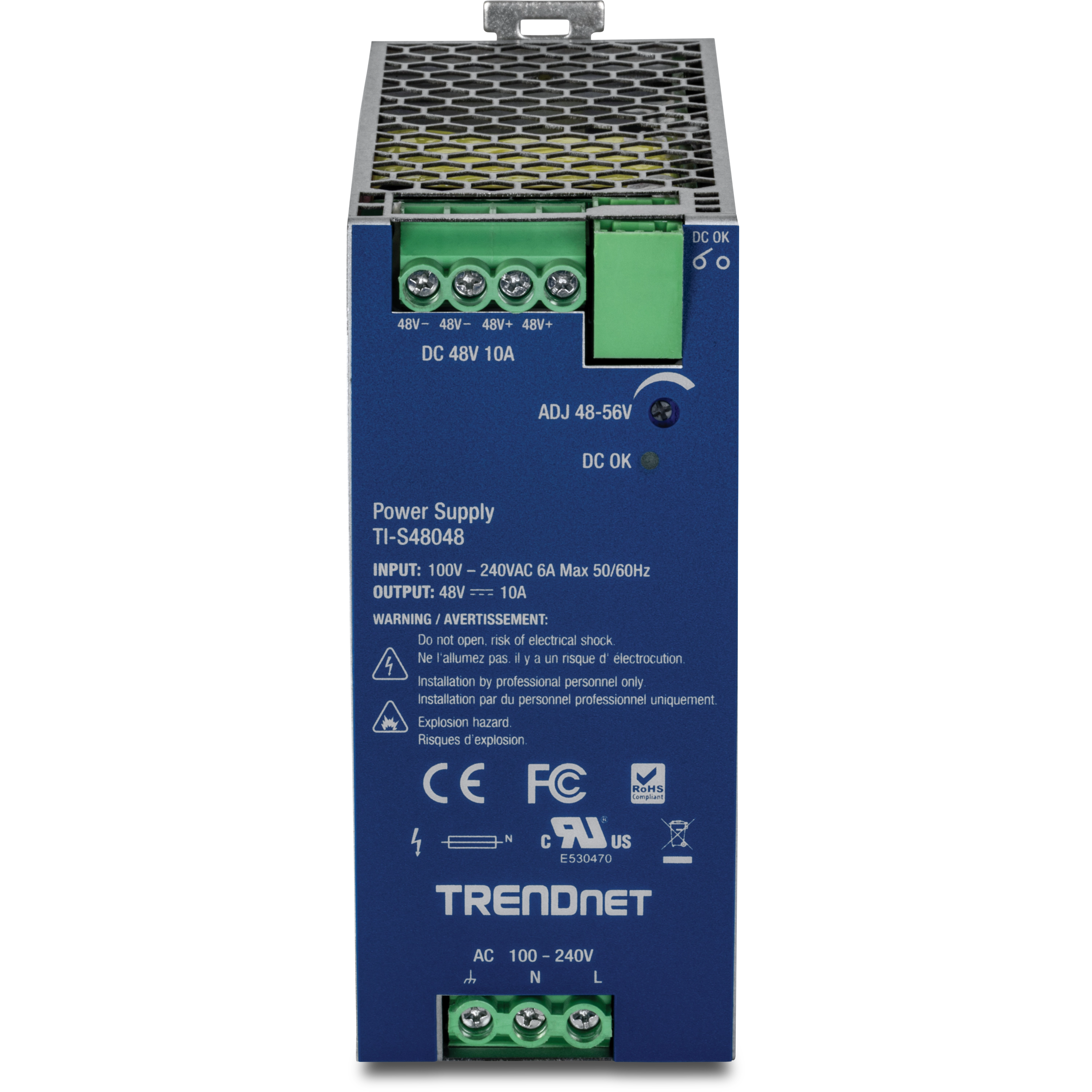

480W, 48 – 56V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function

TI-S48048   (Version V2)

   Select Another Version
  • Industrial power supply with integrated DIN-Rail mount
  • Provides up to 480W of power (48V DC, 10A)
  • Supported output voltage 48 – 56V DC
  • High efficiency 93% and low power dissipation
  • 150% peak load capability
  • Built-in active Power Factor Controller (PF > 0.96)
  • Cooling by natural air convection
  • Protections: Overload, short circuit, over power, over voltage, over current, over temperature
  • UL 62368 certified
  • Built-in DC OK relay contact
  • -25° – 70° C (-13° – 158° F) wide operating temperature range
Interface
  • AC Input: 90 – 264V AC, 47 – 63Hz, 6A
  • DC Input: 127 – 370V DC
  • Output: 480W, 48 – 56V, 0 – 10A

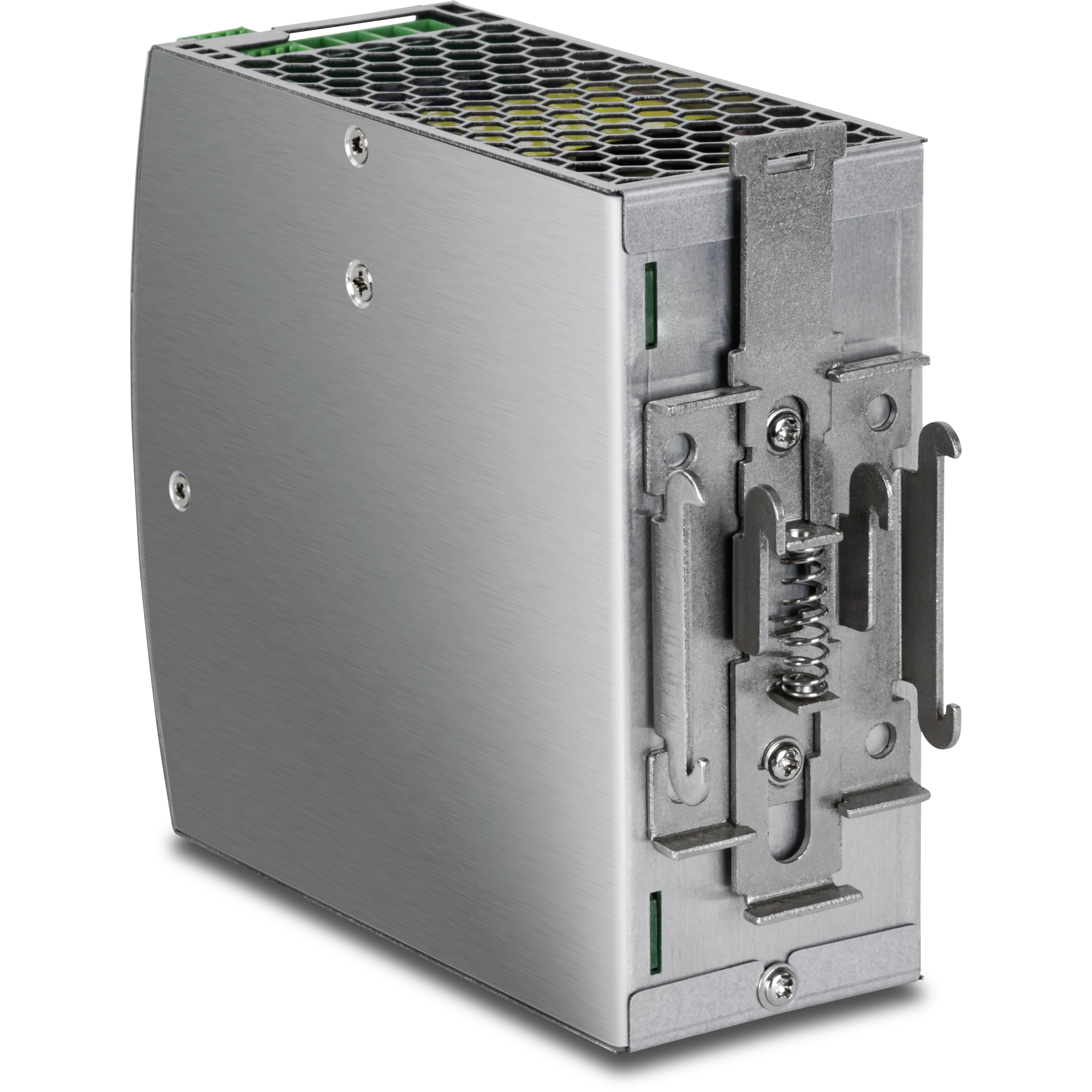

  • DIN-rail: TS-35/7.5 or 15
Housing
  • DIN-rail mount
  • Power LED indicator
Special Features
  • DC OK relay contact
  • 150% peak load capacity
  • Protection functions
    • Short circuit
    • Over power
    • Over voltage
    • Over current
    • Over temperature
  • Protection type: self-recovery when fault condition removed
Operating Temperature
  • -25° – 70° C (-13° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
MTBF
  • 387,301 hours @ 25° C
Dimensions
  • 54 x 122 x 130mm (2.1 x 4.9 x 5.1 in.)
Weight
  • 1.1kg (2.3 lb.)
Certifications
  • CE
  • FCC
  • LVD
  • UL 62368-1
  • CB IEC 62368-1:2018
Warranty
  • 1-year

PACKAGE CONTENTS
  • TI-S48048

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
