| Standards | - IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.1ax
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3az
|

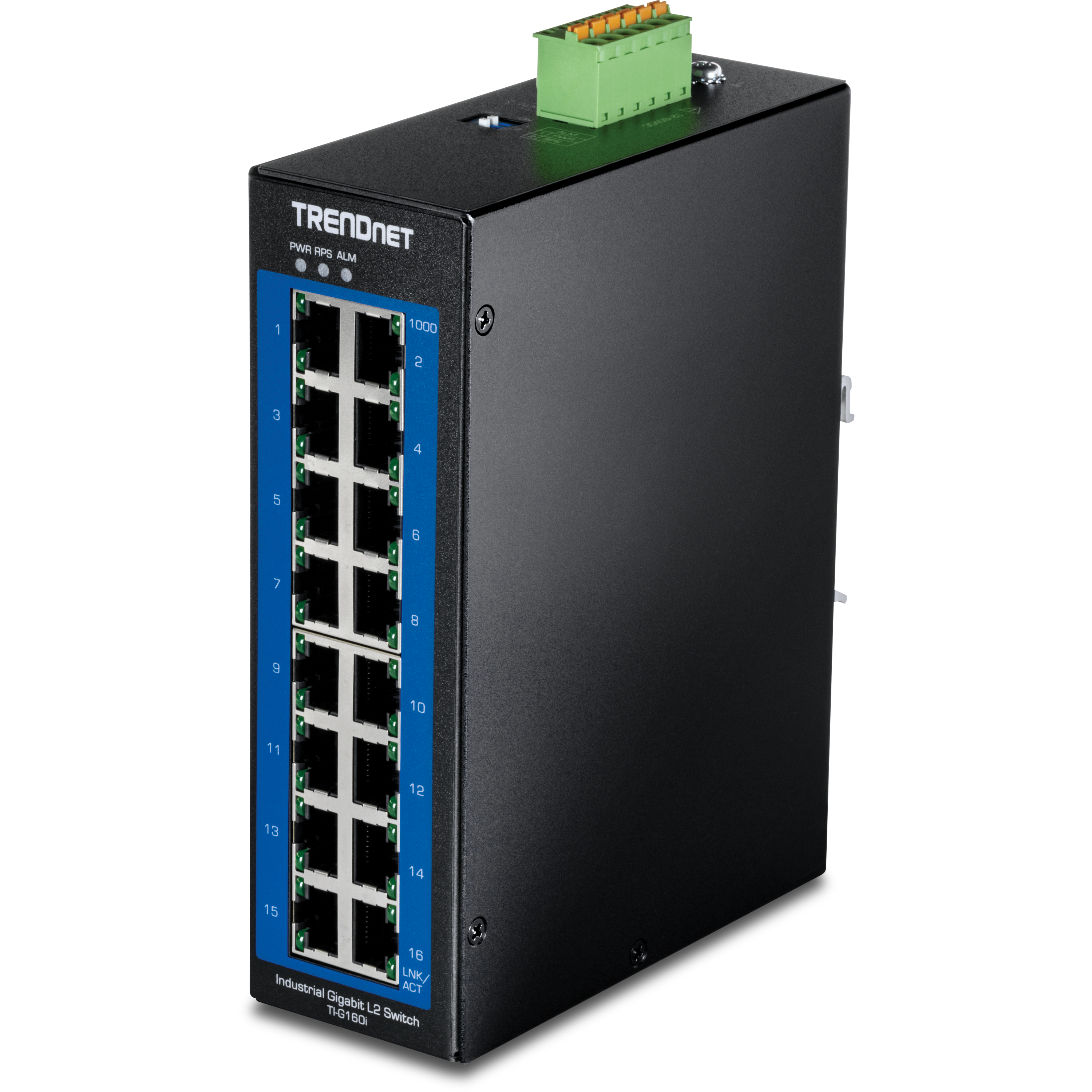

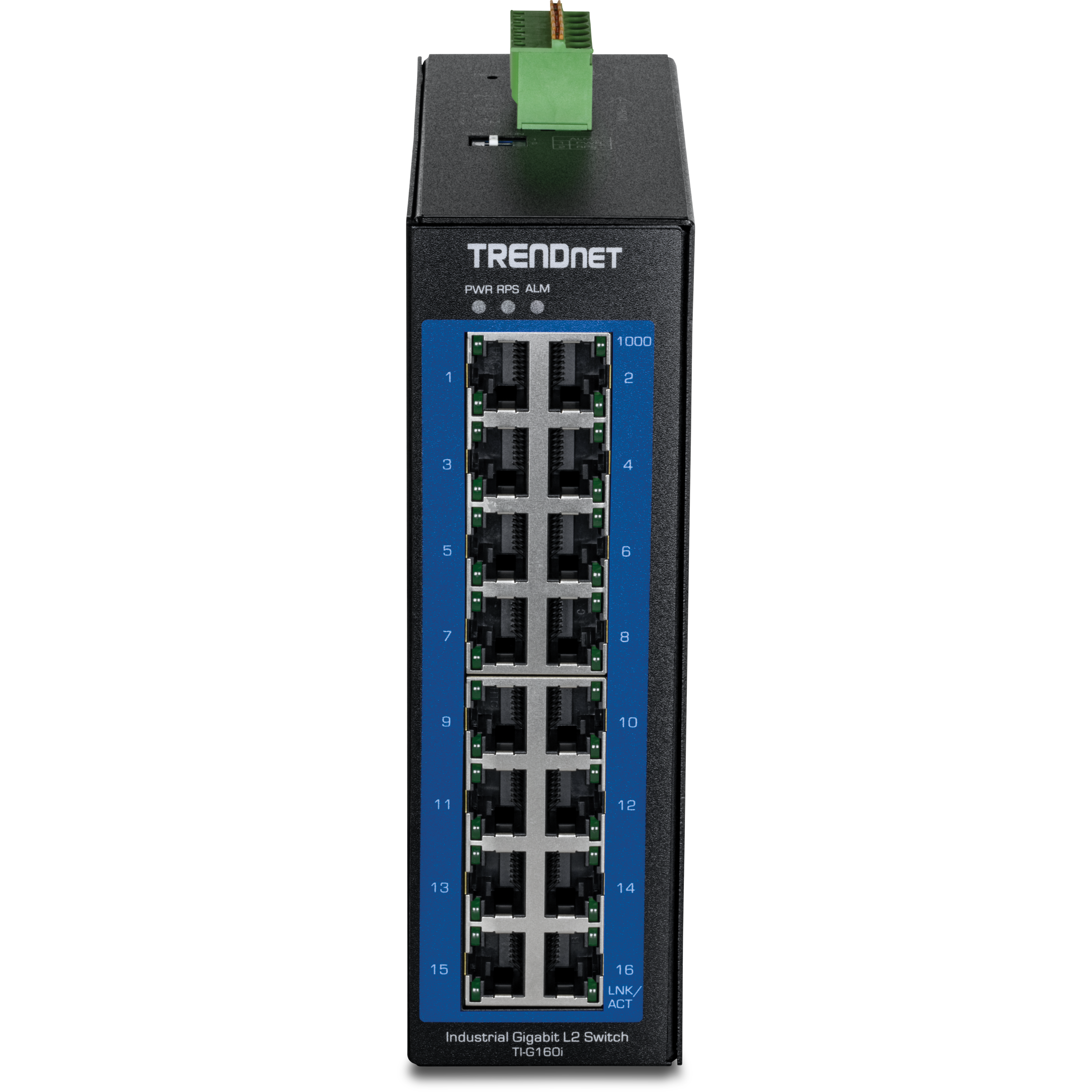

| Device Interface | - 16 x Gigabit ports

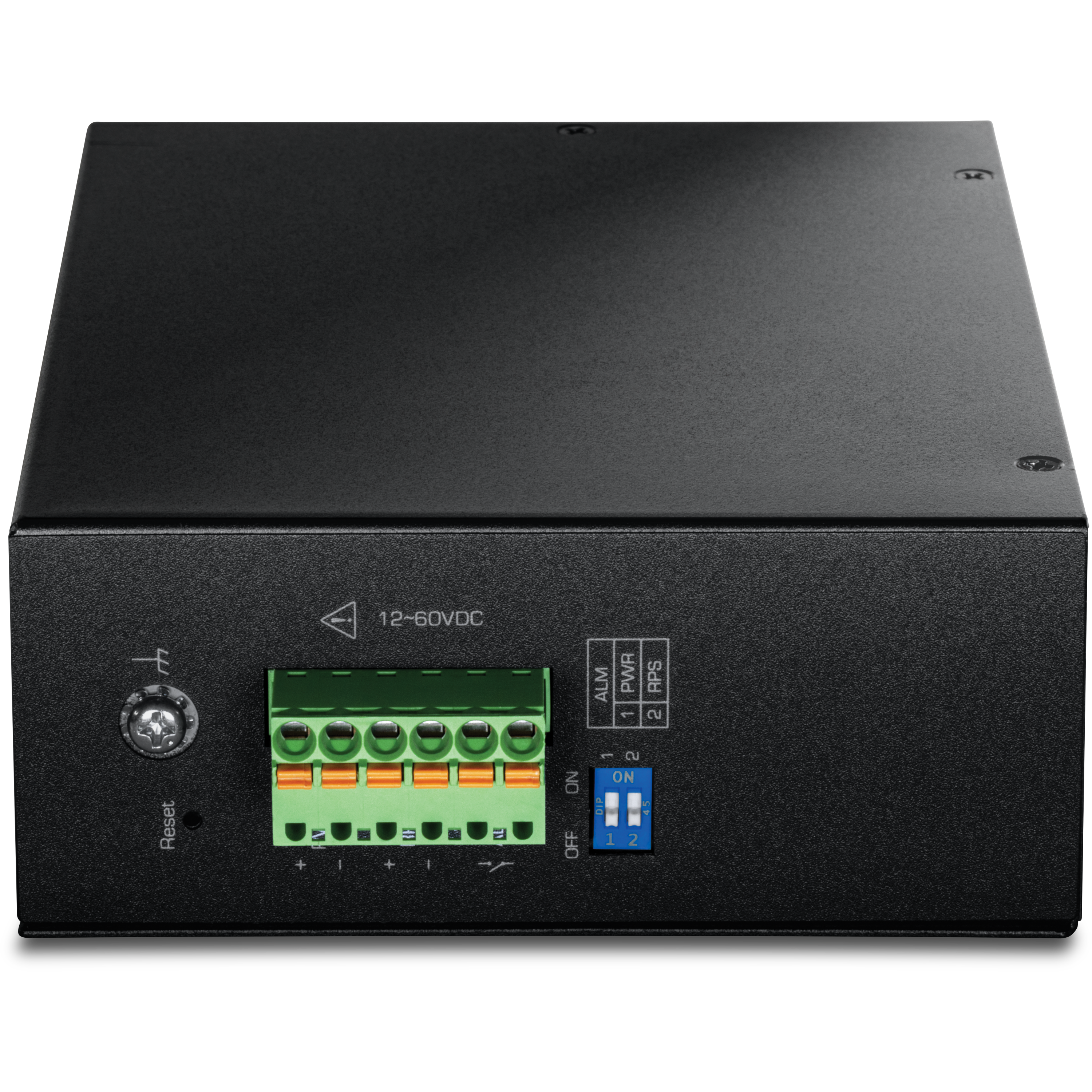

- 6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
- DIP switch (Alarm for Primary/RPS power)
- LED indicators
- Reboot button
|
| Performance | - Switch fabric: 32Gbps
- RAM buffer: 512KB
- MAC address table: 8K entries
- Jumbo frames: 10KB
- Forwarding rate: 23.8Mpps (64-byte packet size)
|
| Management | - HTTP/HTTPS (TLS 1.3) web-based GUI
- CLI: Telnet / SSHv2
- SNMP v1, v2c, v3
- SNMP trap (up to 5 receivers)
- RMON groups 1/2/3/9
- Modbus TCP/IP
- Device configuration backup & restore, upgrade firmware, reboot, and reset to default
- Multiple administrative or read-only user accounts
- Enable or disable power saving mode per port
- Static MAC entries
- LLDP (Link layer discovery protocol)
- Topology Map
- ONVIF device discovery
- SNTP
- SMTP alert
- Syslog
- Port statistics/utilization
- Traffic monitor
- Port mirror: one to one, many to one
- Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
- Loopback detection
- DHCP relay/option 82
- ERPS (Ethernet Ring Protection Switching) G8032v2
|
| Hive Cloud Management | - Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser
- Multi-device management
- Provisioning through scheduled batch or configuration updates for multiple switches
- Event/hardware network monitoring (CPU/memory utilization)
- Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
|
| MIB | - MIB II RFC 1213
- Bridge MIB RFC 1493
- RMON (Group 1,2,3,9) RFC 2819 RFC 1757
|
| Spanning Tree | - STP (spanning tree protocol)
- RSTP (rapid spanning tree protocol)
- BPDU filter, guard, and root guard
|
| Link Aggregation | - Static link aggregation and dynamic LACP (Up to 8 groups)
|
| Quality of Service (QoS) | - 802.1p Class of service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth control per port
- Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
|
| VLAN | - 802.1Q tagged VLAN
- MAC-based VLAN
- Protocol VLAN
- Port isolation
- Up to 256 VLAN groups, ID range 1-4094
|
| Multicast | - IGMP snooping v1, v2, v3
- IGMP querier
- IGMP fast leave
- Up to 256 multicast groups
- Static multicast entries
|
| Access Control | - 802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
- DHCP snooping/screening
- Trusted host/IP access list for management access
- Port Security/MAC address learning restriction (Up to 100 entries per port)
- Static/dynamic ARP inspection
|
| ACL | - Source/Destination MAC address
- Source/Destination IP address
- Source Interface
- VLAN ID
- EtherType
- TCP/UDP port 1-65535
|
| Power | - PWR (Primary) terminal input: 12 – 60V DC
- RPS (Redundant) terminal input: 12 – 60V DC
- Compatible power supply: TI-M6024 (60W) sold separately
- Max. Consumption: 18W
|
| Terminal Block | - Power inputs, alarm relay contact, 6 pin
- Wire range: 0.5 mm2 to 2.5 mm2
- Solid wire (AWG): 18-20
- Stranded wire (AWG):18-20
- Wire strip length: 10-11mm
|
| DIP Switch | - Switch 1
- Status: Off
- Function: Disable alarm relay for PWR power input
- Status: On
- Function: Enable alarm relay for power failure on PWR power input
- Switch 2
- Status: Off
- Function: Disable alarm relay for RPS power input
- Status: On
- Function: Enable alarm relay for power failure on RPS power input
|
| Alarm Relay Output | - Relay outputs with current carrying capacity of 1A, 24V DC
- Short circuit mode when one power source is connected
- Open circuit mode when two power sources are connected
|
| Enclosure | - IP40 rated metal enclosure
- Fanless passive cooling

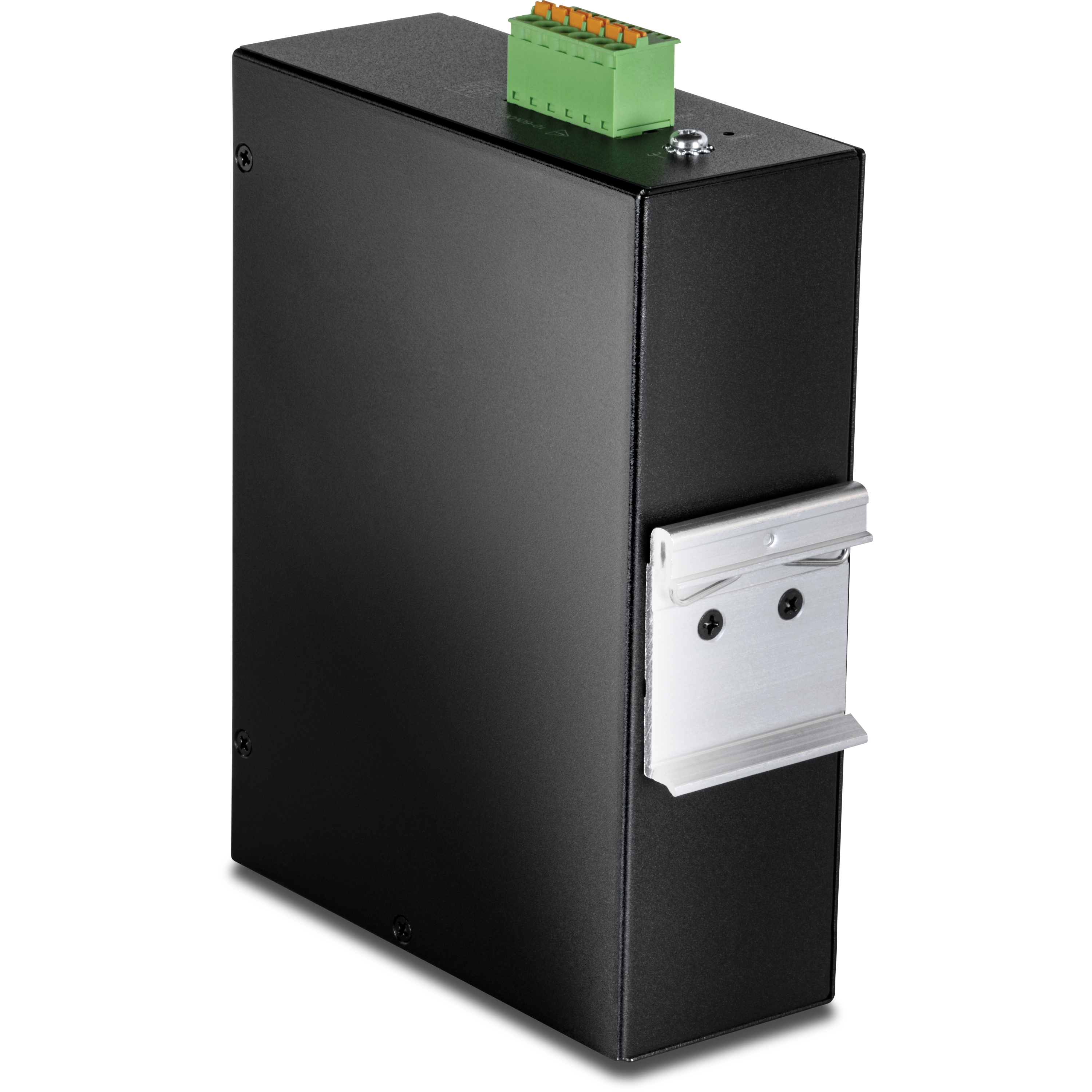

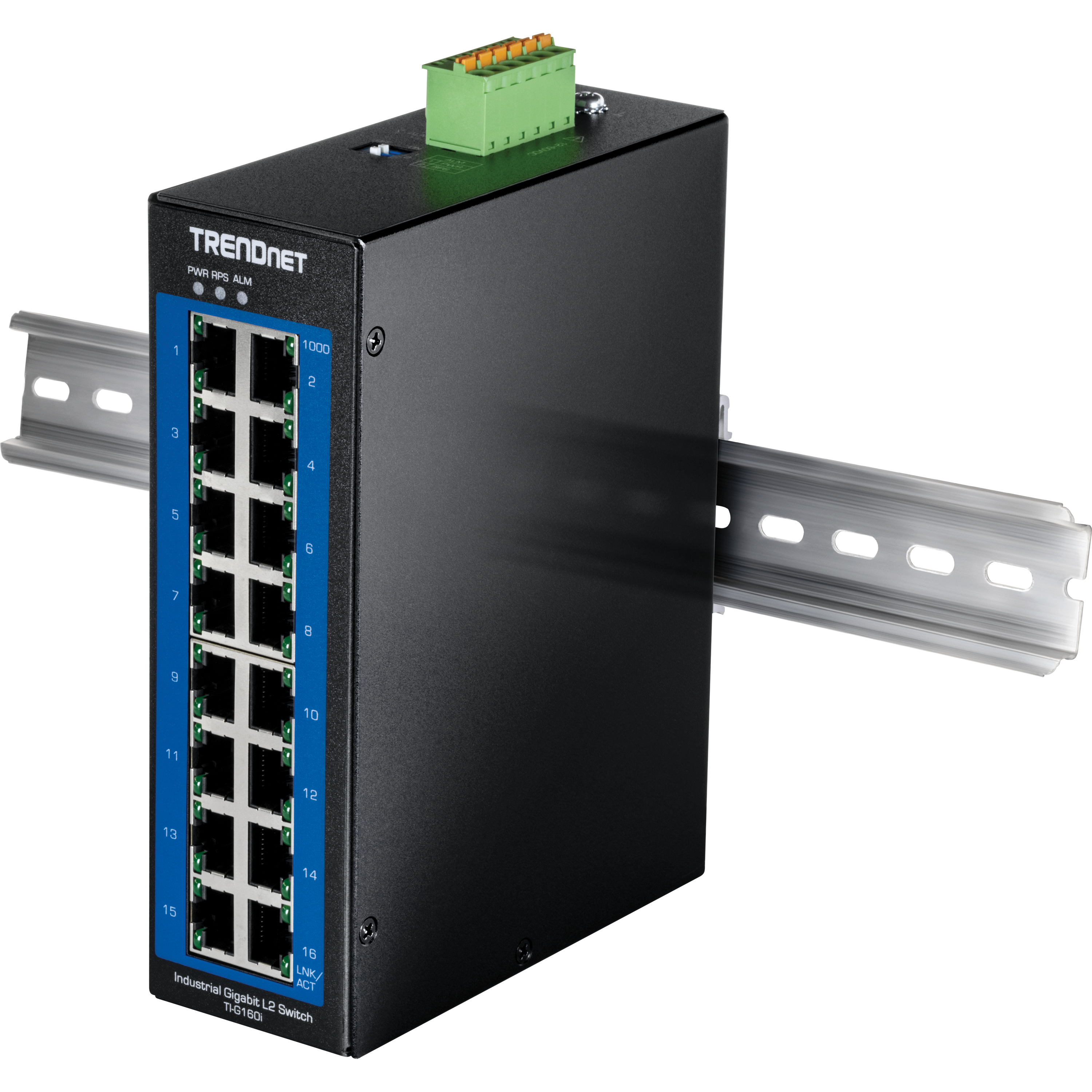

- DIN-Rail mount
- Grounding Point
- ESD (Ethernet) Protection: 8KV DC
- Surge (Data) Protection: 1kV DC
- Surge (Power) Protection: 1KV DC
|
| MTBF | |
| Operating Temperature | - -40° – 75° C (-40° – 167° F)
|
| Operating Humidity | |
| Dimensions | - 160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
|
| Weight | |
| Certifications | - CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
|
| Warranty | |
PACKAGE CONTENTS |
- TI-G160i
- Removable terminal block
- DIN-Rail mounting bracket
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
