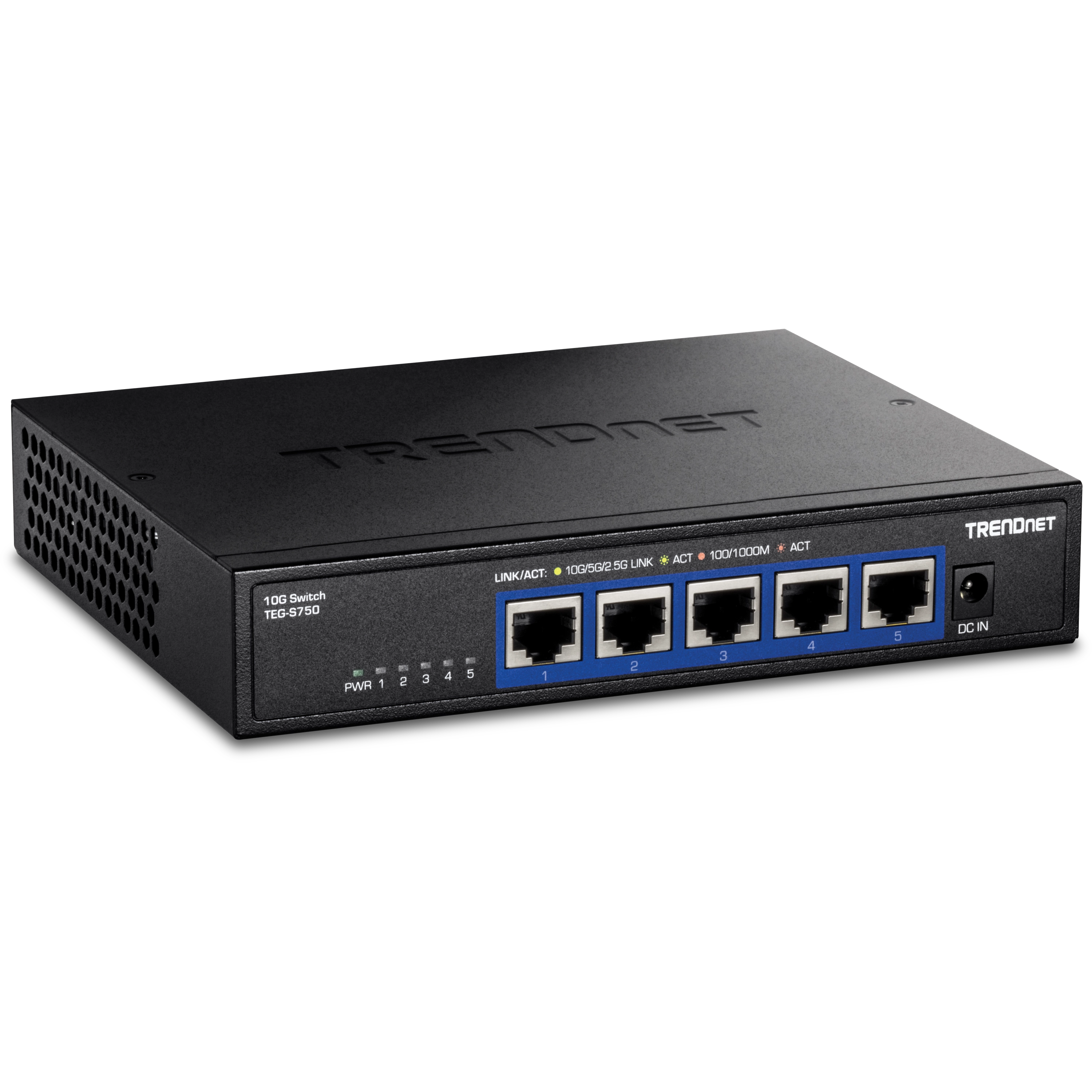

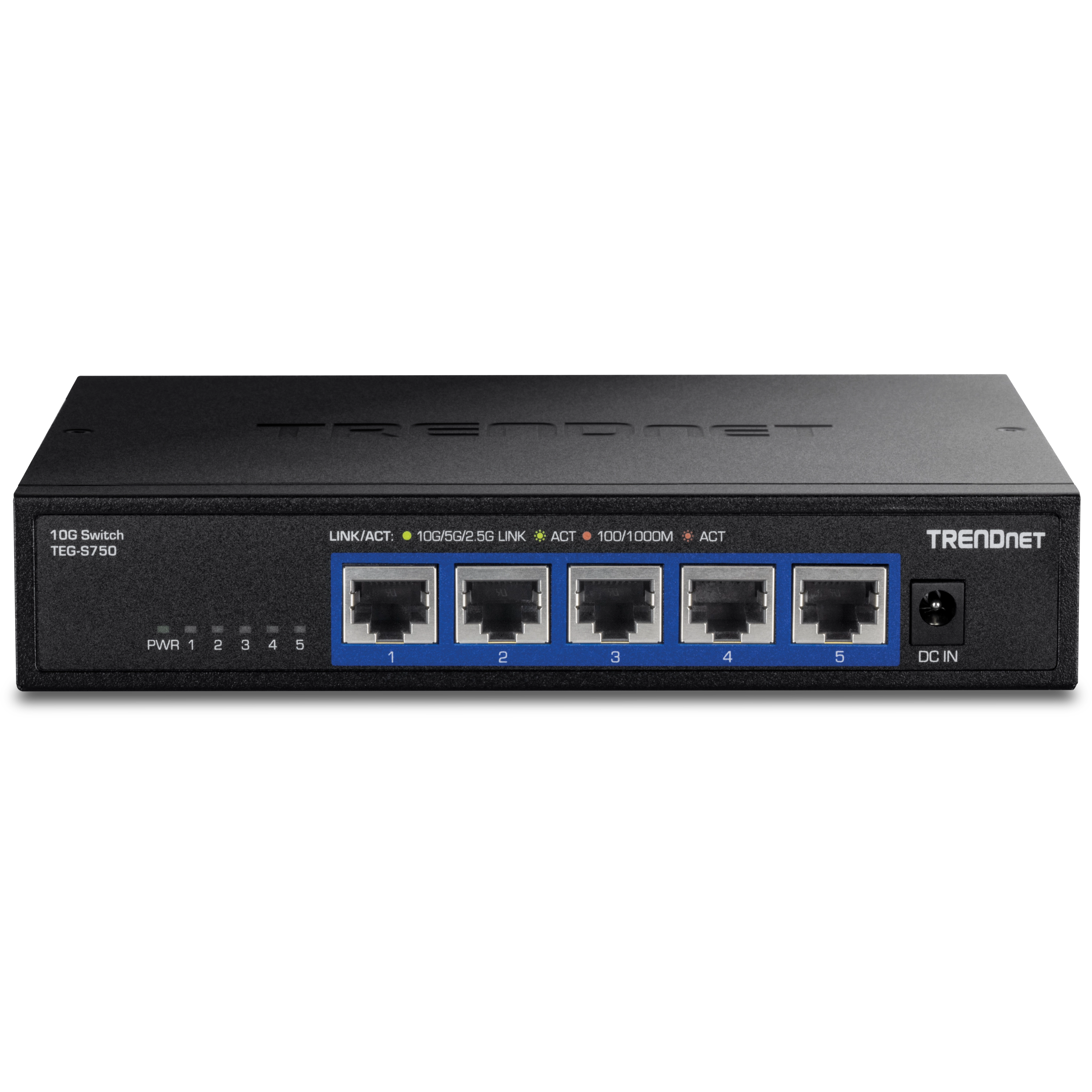

TEG-S750 Product Photo
TEG-S750 Product Photo TEG-S750 Product Photo TEG-S750 Product Photo TEG-S750 Product Photo

5-Port 10G Switch

TEG-S750   (Version V3)

   Select Another Version
  • 5 x 10G RJ45 ports
  • Compatible with existing Cat6A for 10Gbps
  • Backwards compatible Ethernet speeds of 1Gbps, and 2.5Gbps with Cat5e or better cabling
  • 100Gbps switching capacity
  • Supports 802.1Q VLAN and 802.1p CoS tag Passthrough
  • Fanless design for silent operation
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3bz
  • IEEE 802.3x
Device Interface
  • 5 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Performance
  • Switching fabric: 100Gbps
  • RAM buffer: 1.5MB
  • MAC address table: 16K entries
  • Jumbo frames: 12KB
  • Forwarding rate: 74.4Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz, 0.7A
  • Output: 12V DC, 2A
  • Max. consumption: 16.5W
MTBF
  • 621,515 hours @ 25° C
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° C – 40° C (-4° F – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 180 x 145 x 34mm (7 x 5.7 x 1.3 in.)
Weight
  • 865g (1.9 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TEG-S750
  • Power adapter (12V, 2A)
  • Wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
