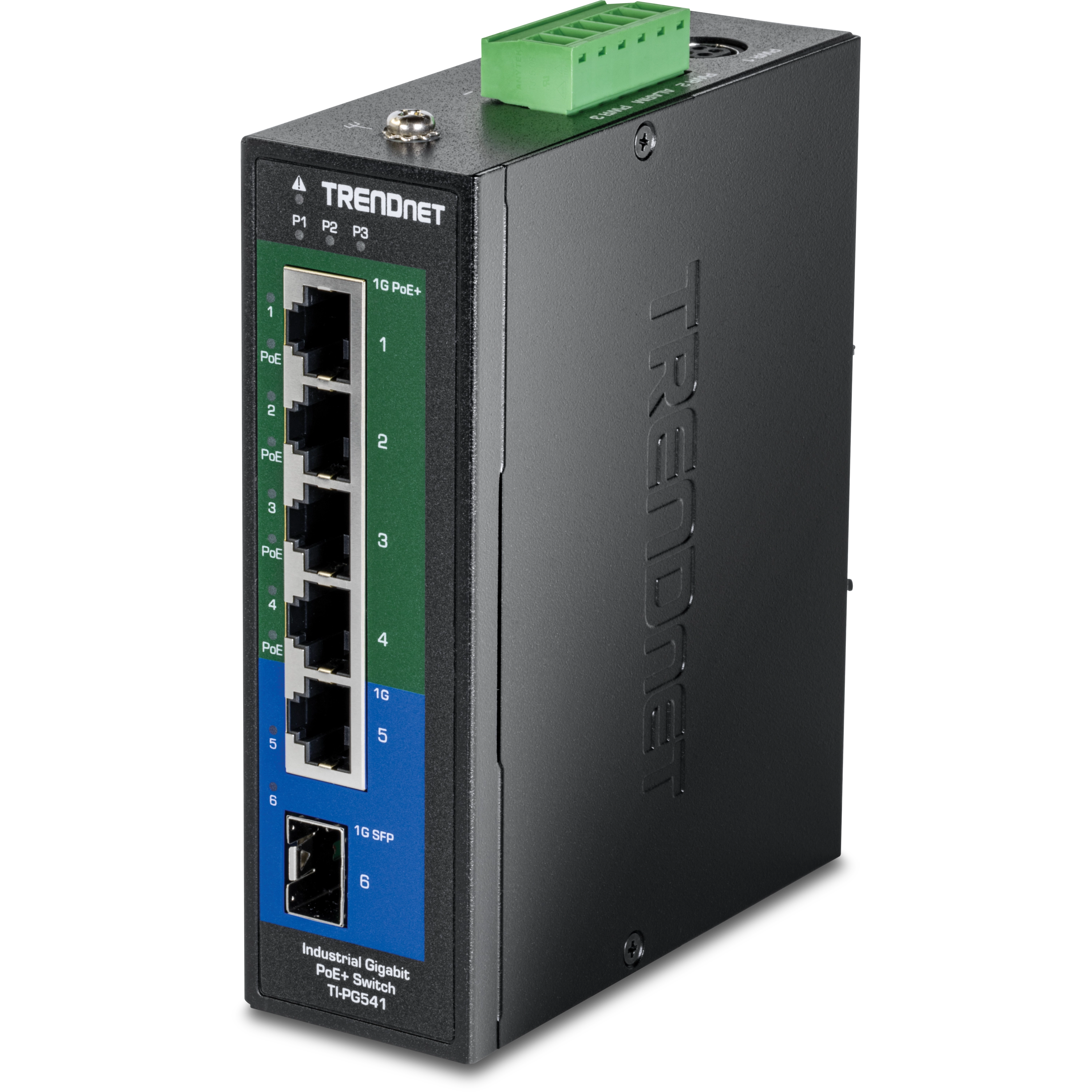

6-Port Industrial Gigabit PoE+ DIN-Rail Switch

TI-PG541   (Version v2.0R)

   Select Another Version
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 1 x 100/1000Mbps SFP port
  • Up to 120W PoE power budget
  • Hardened IP50 rated metal switch
  • Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
  • Dual inputs provide redundant power with overload current protection
  • Alarm relay triggered by power failure
  • 12Gbps switching capacity
  • Includes DIN-Rail mount and wall-mount brackets
  • Power supply sold separately (model: TI-S15052, TI-S12048)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at

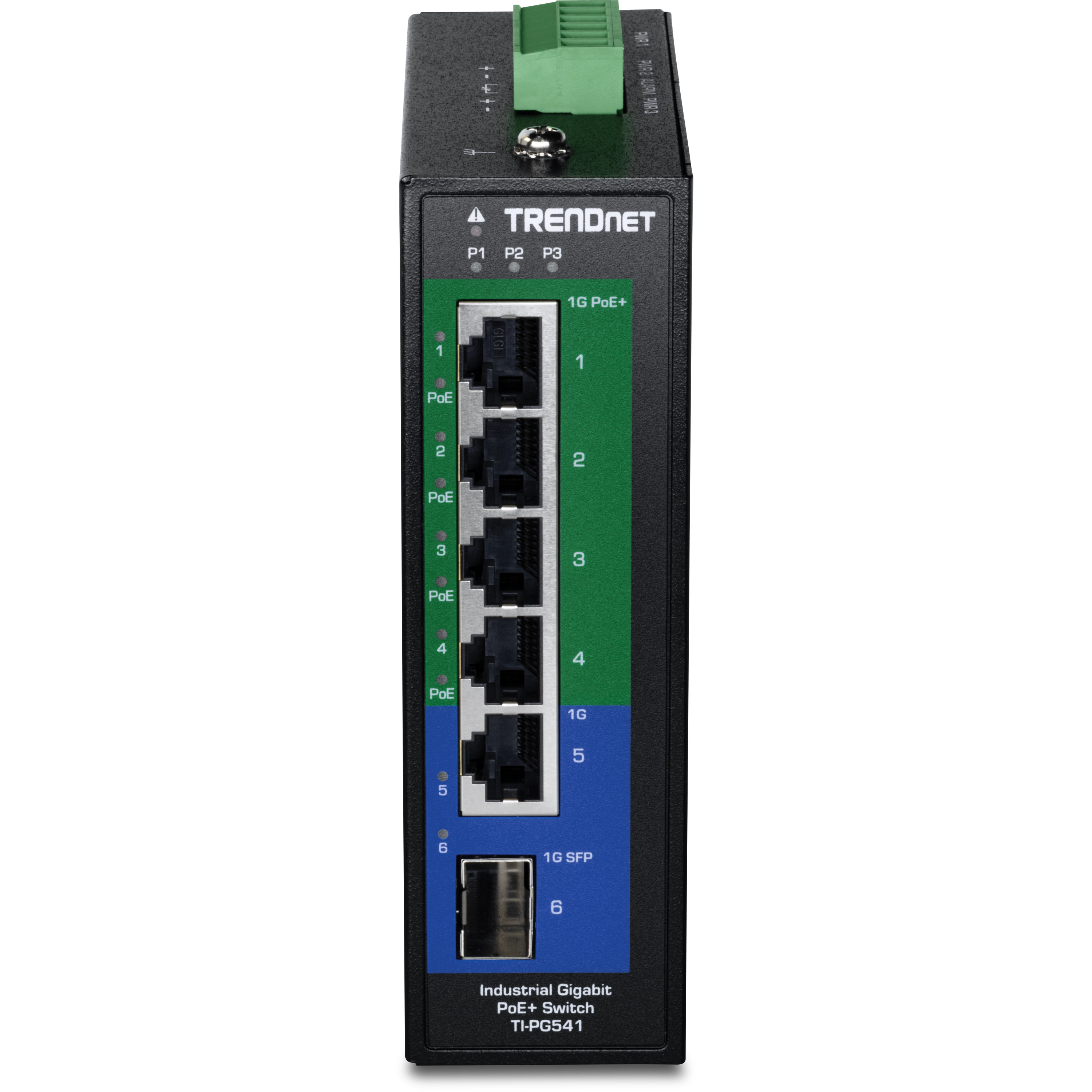

Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 1 x 100/1000Mbps SFP port
  • 6-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 256KB
  • Switching Fabric: 12Gbps
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 8.92Mpps (64-byte packet size)
DC Power
  • Input: 48 - 57V DC
  • Compatible power supply: TI-S15052, TI-S12048 (sold separately)
  • Max. consumption: 5.76W @ 48V DC (without PD)
PoE
  • 802.3af PoE: up to 15.4W per port
  • 802.3at PoE+: up to 30W per port
  • Power budget: 60W - 120W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power

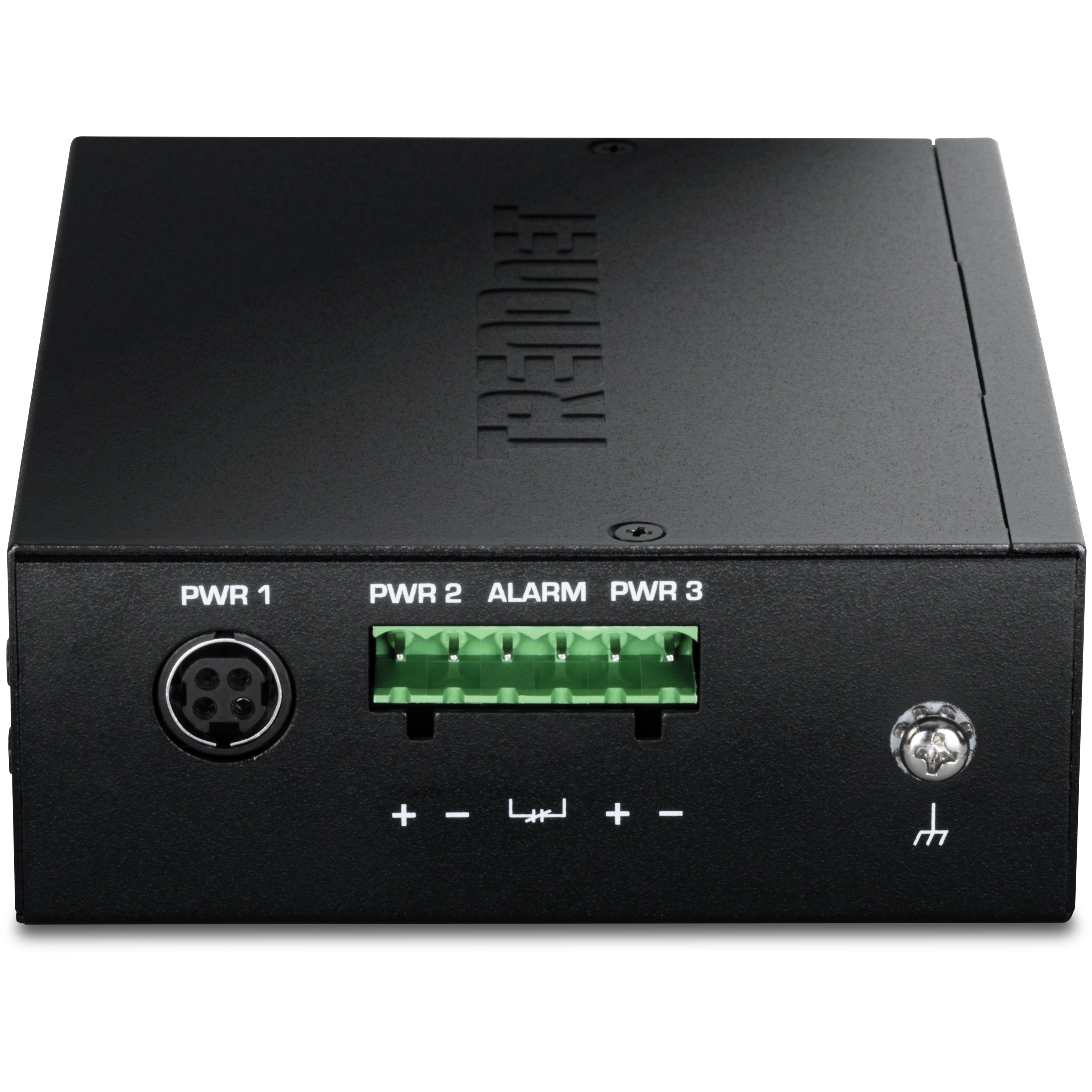

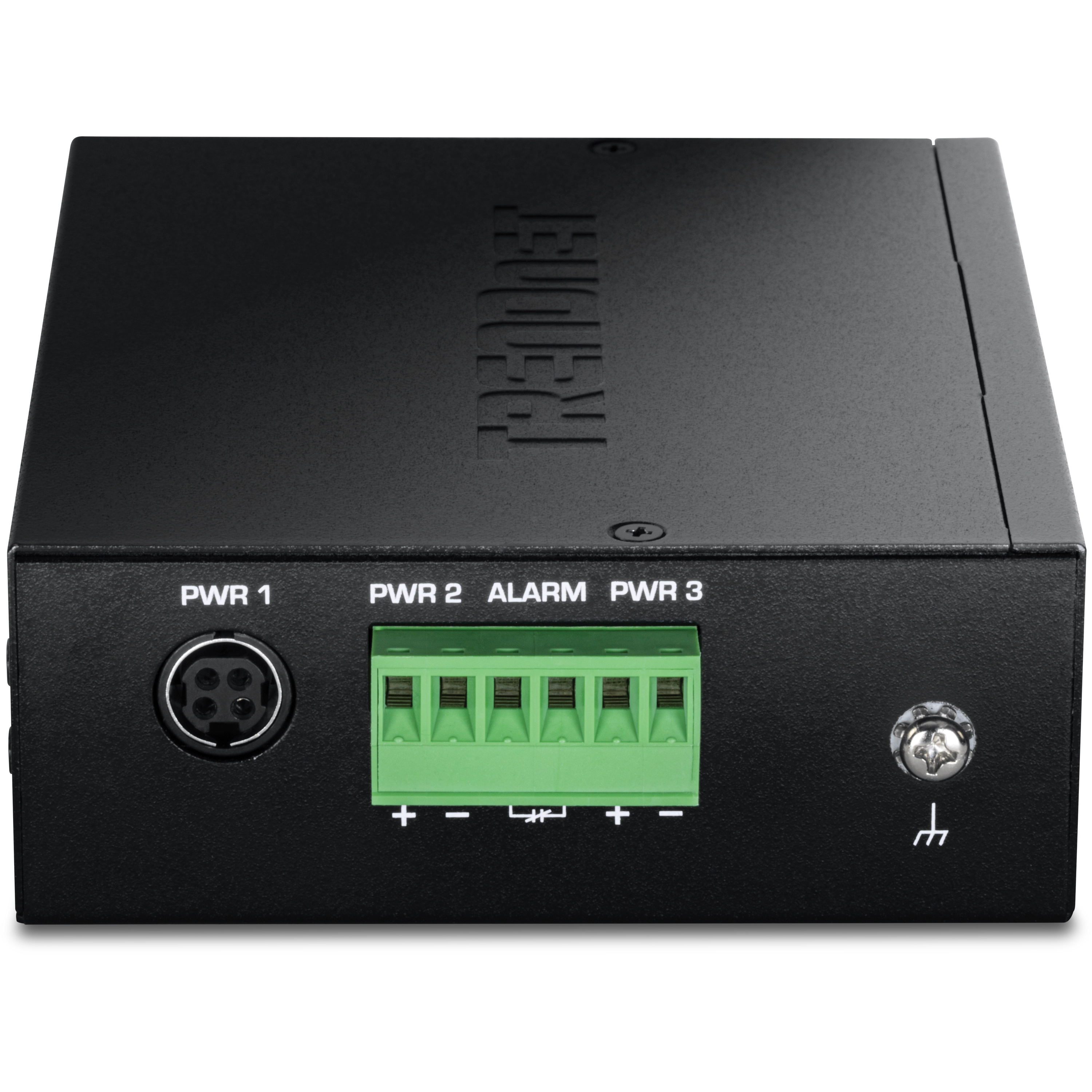

Terminal Block
  • 6-pin terminal block
  • Alarm Relay: 1A @ 24V DC
  • Wire range: 2.5mm2
  • Solid wire (AWG): 14-22
  • Stranded wire (AWG): 14-22
  • Torque: 4.4 lb. – In / 0.39Nm / 0.5 Nm
  • Wire strip length: 7-8mm
MTBF
  • 2,014,800 hours @ 25°C
Housing
  • IP50 metal case

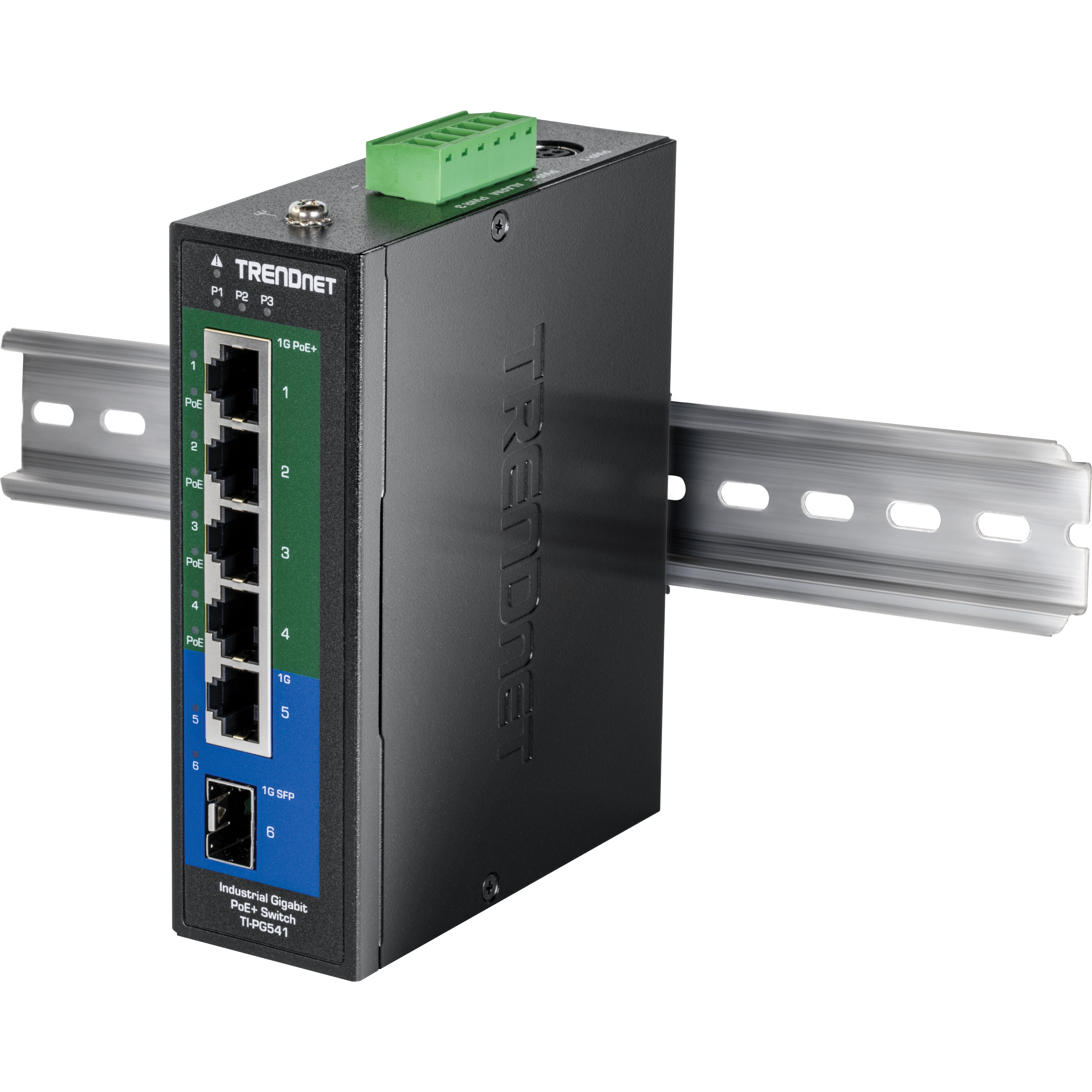

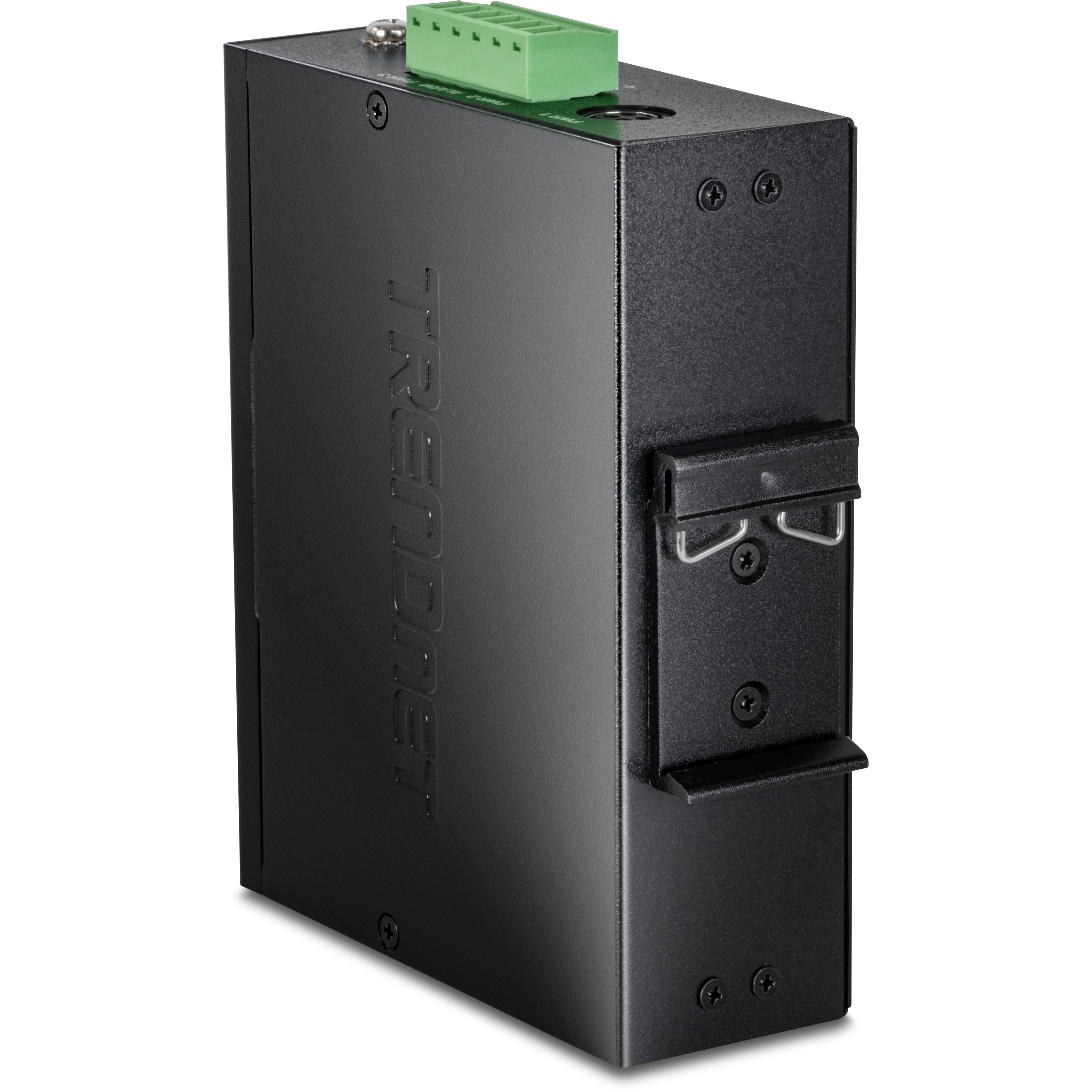

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 2kV surge protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 127 x 101 x 39mm (5 x 3 x 1.5 in.)
Weight
  • 546g (19.3 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-PG541
  • Removable terminal block
  • DIN-Rail / wall-mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
