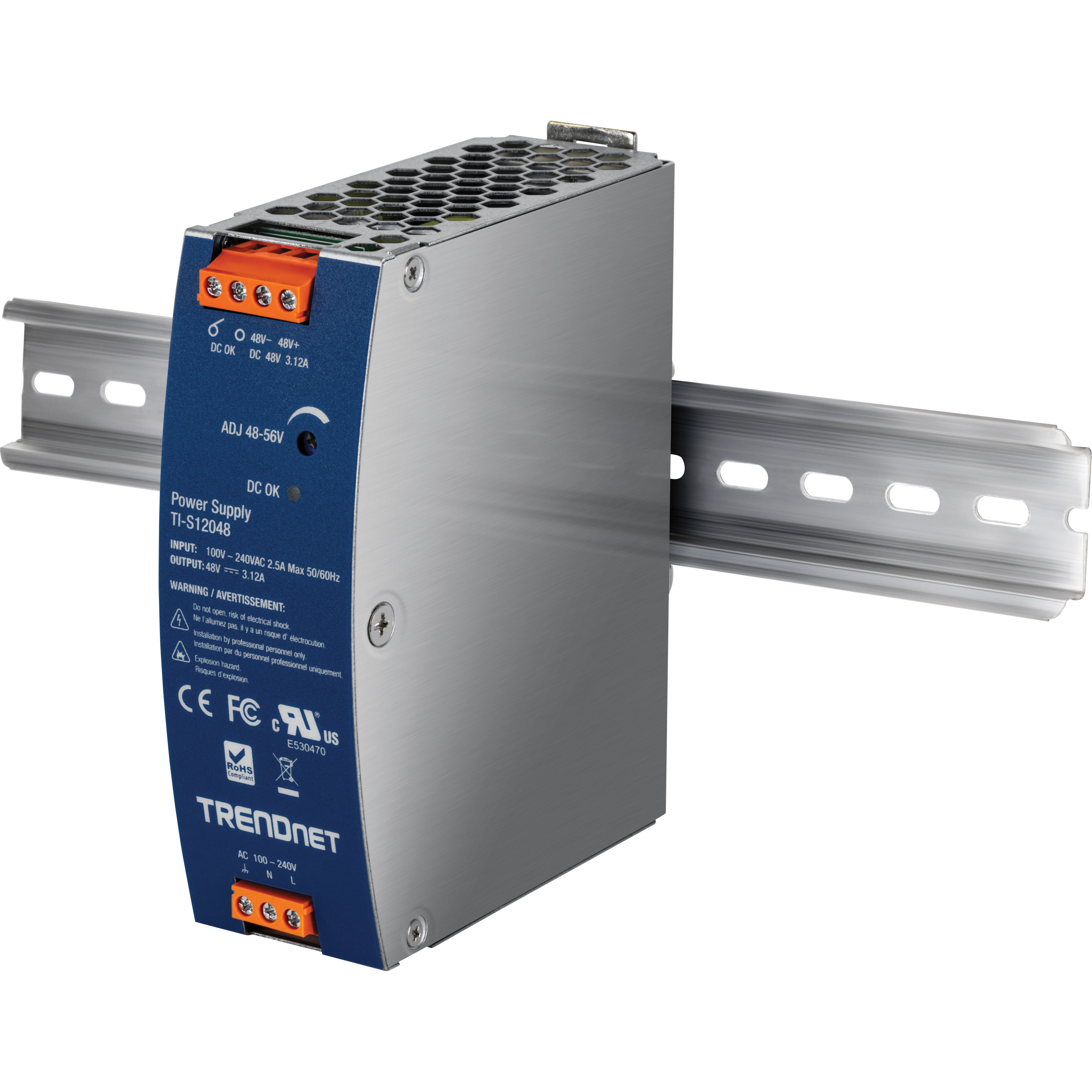

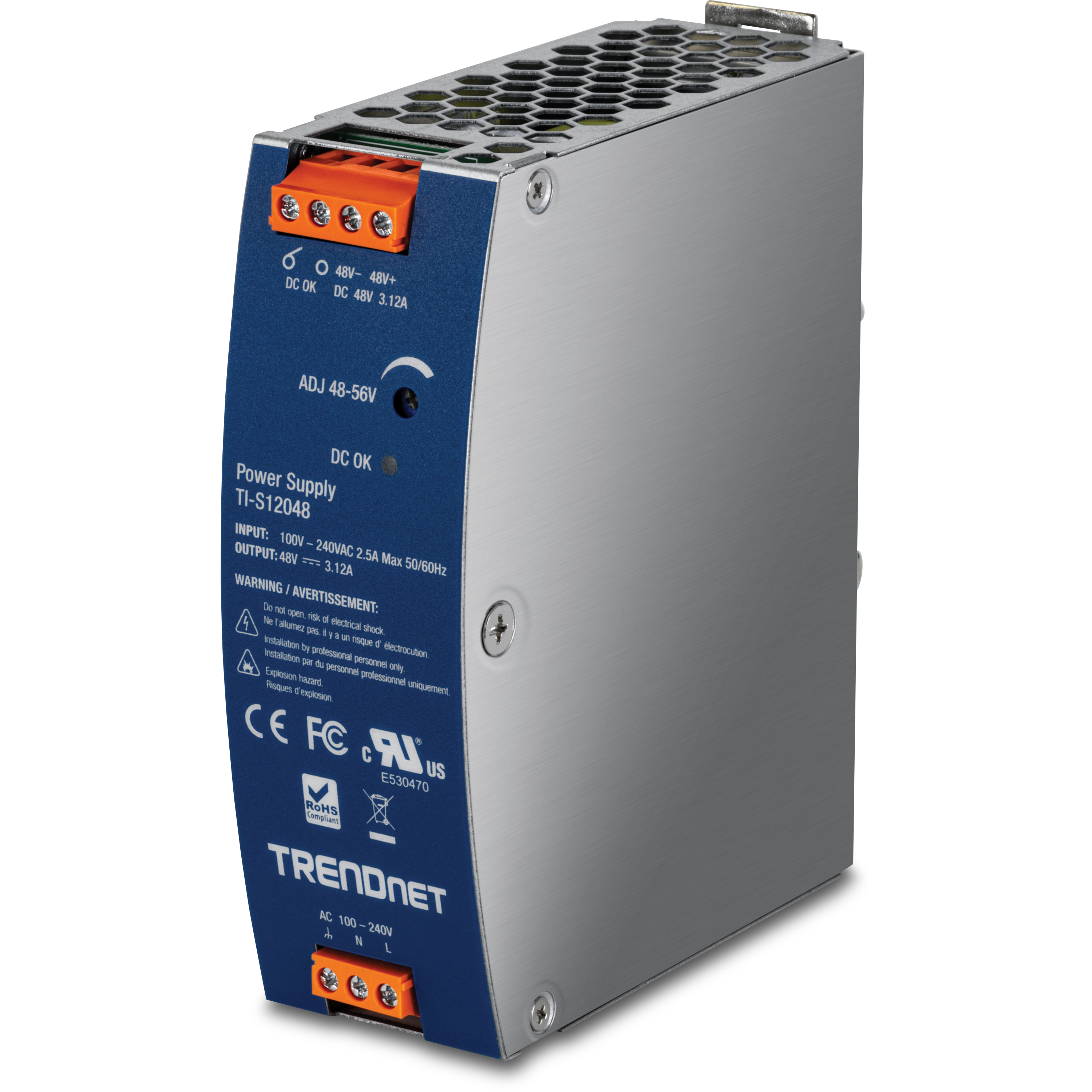

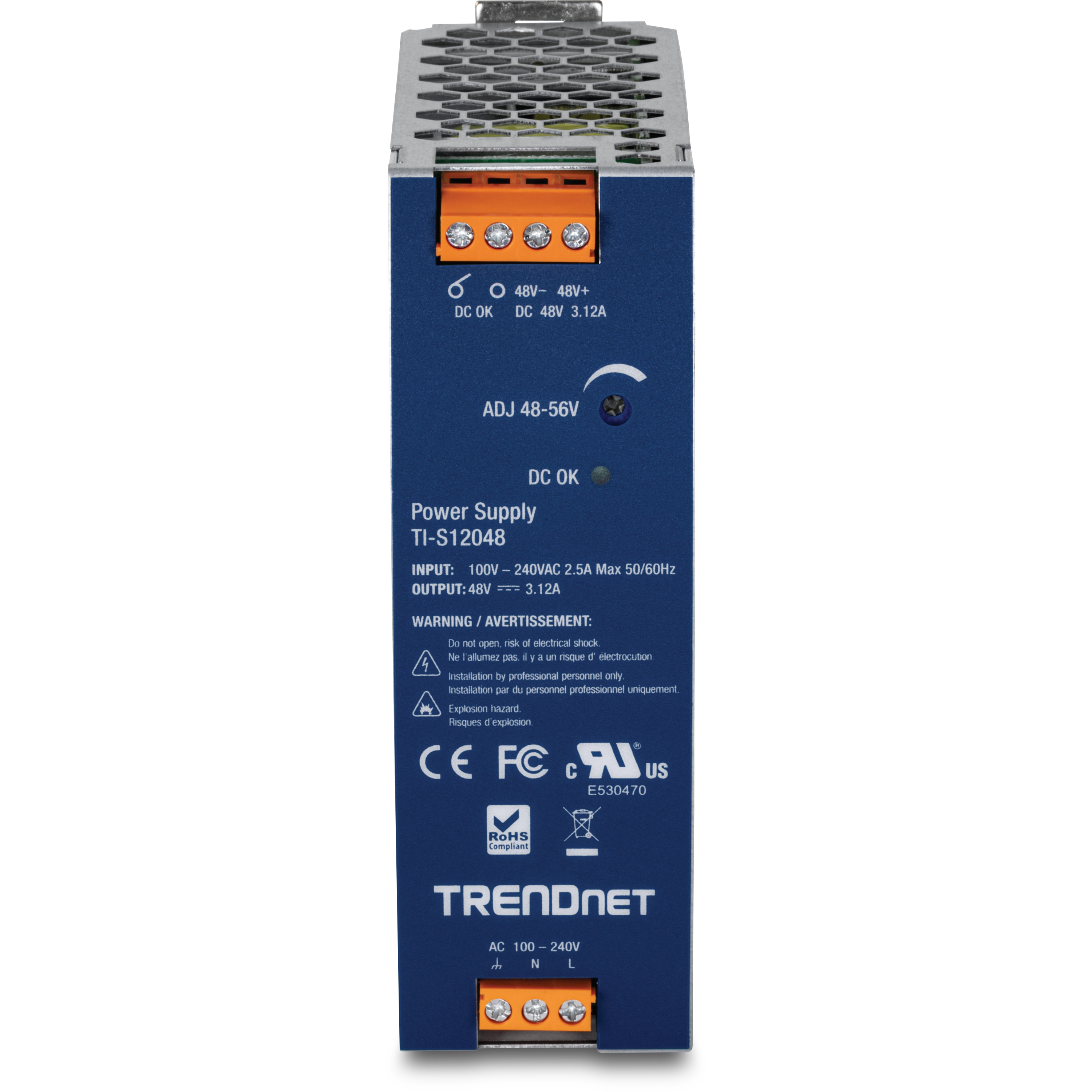

150W, 48 – 56V DC, 3.12A AC to DC DIN-Rail Power Supply with PFC Function

TI-S12048   (Version V2)

   Select Another Version
  • Industrial power supply with integrated DIN-Rail mount
  • Provides up to 150W of power (48V DC, 3.12A)
  • Supported output voltage 48 – 56V DC
  • High efficiency 93% and low power dissipation
  • 150% peak load capability
  • Built-in active Power Factor Controller (PF > 0.96)
  • Cooling by natural air convection
  • Protections: Overload, short circuit, over power, over voltage, over current, over temperature
  • UL 62368 certified
  • Built-in DC OK relay contact
  • -25° – 70° C (-13° – 158° F) wide operating temperature range
Interface
  • AC Input: 90 – 264V AC, 47 – 63Hz, 2.5A
  • DC Input: 127 – 370V DC
  • Output: 150W, 48 – 56V, 0 – 3.12A

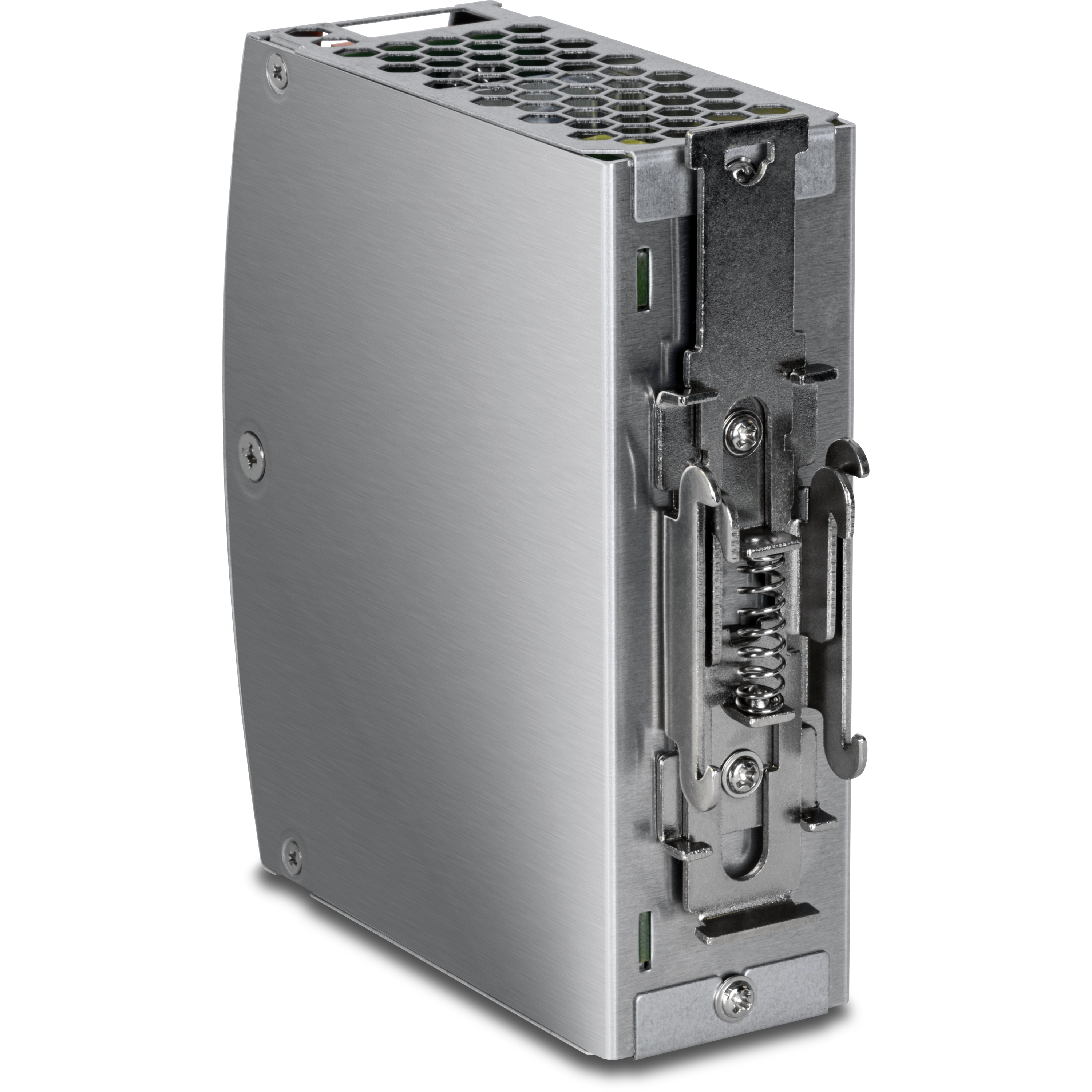

  • DIN-rail: TS-35/7.5 or 15
Housing
  • DIN-Rail mount
  • Power LED indicator
Special Features
  • DC OK relay contact
  • 150% peak load capacity
  • Protection functions
    • Short circuit
    • Over power
    • Over voltage
    • Over current
    • Over temperature
  • Protection type: self-recovery when fault condition removed
Operating Temperature
  • -25° – 70° C (-13° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
MTBF
  • 983,619 hours @ 25° C
Dimensions
  • 40.5 x 125 x 103.3mm (1.6 x 4.9 x 4 in.)
Weight
  • 556g (1.22 lb.)
Certifications
  • CE
  • FCC
  • LVD
  • UL 62368-1
  • CB IEC 62368-1:2014
Warranty
  • 1-year

PACKAGE CONTENTS
  • TI-S12048
