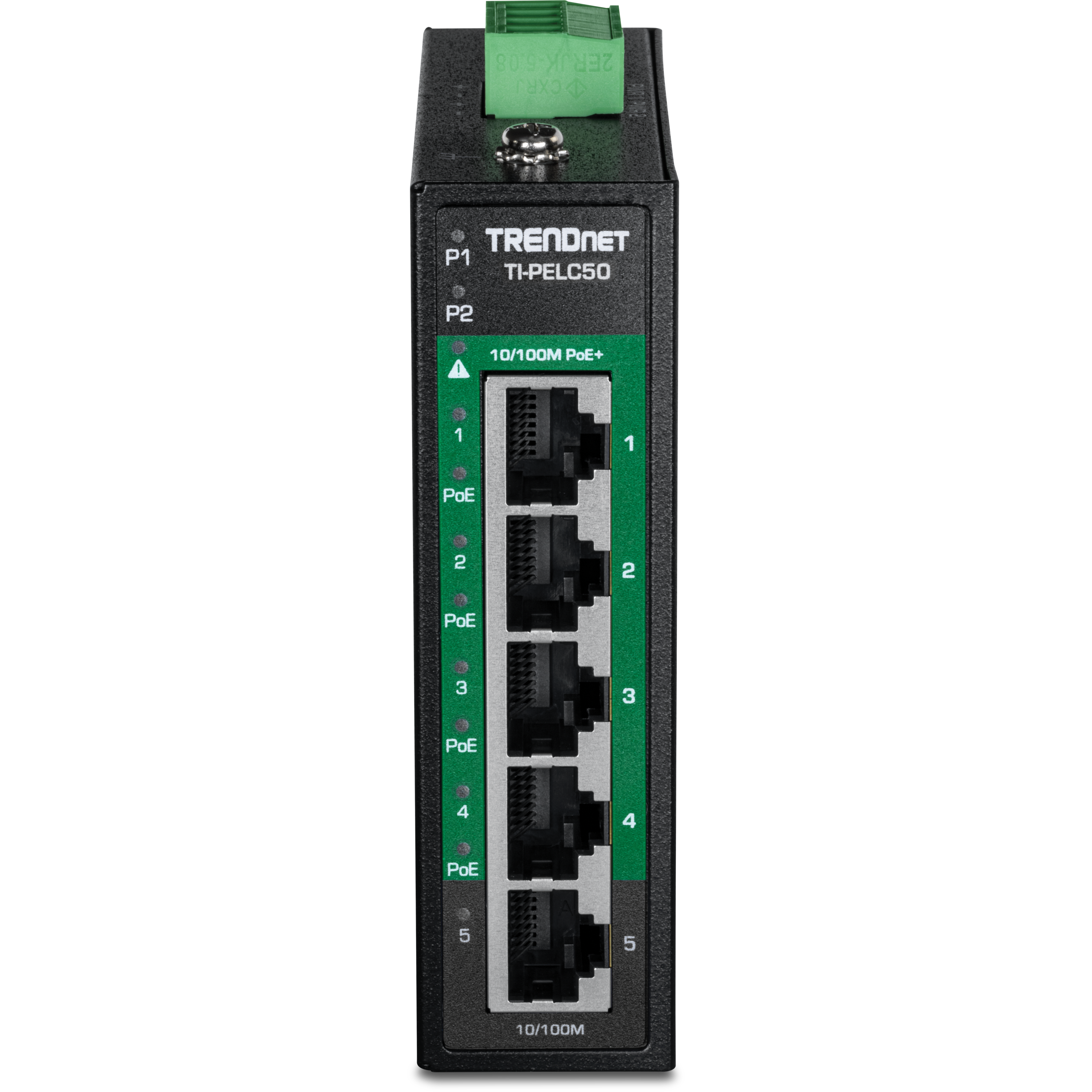

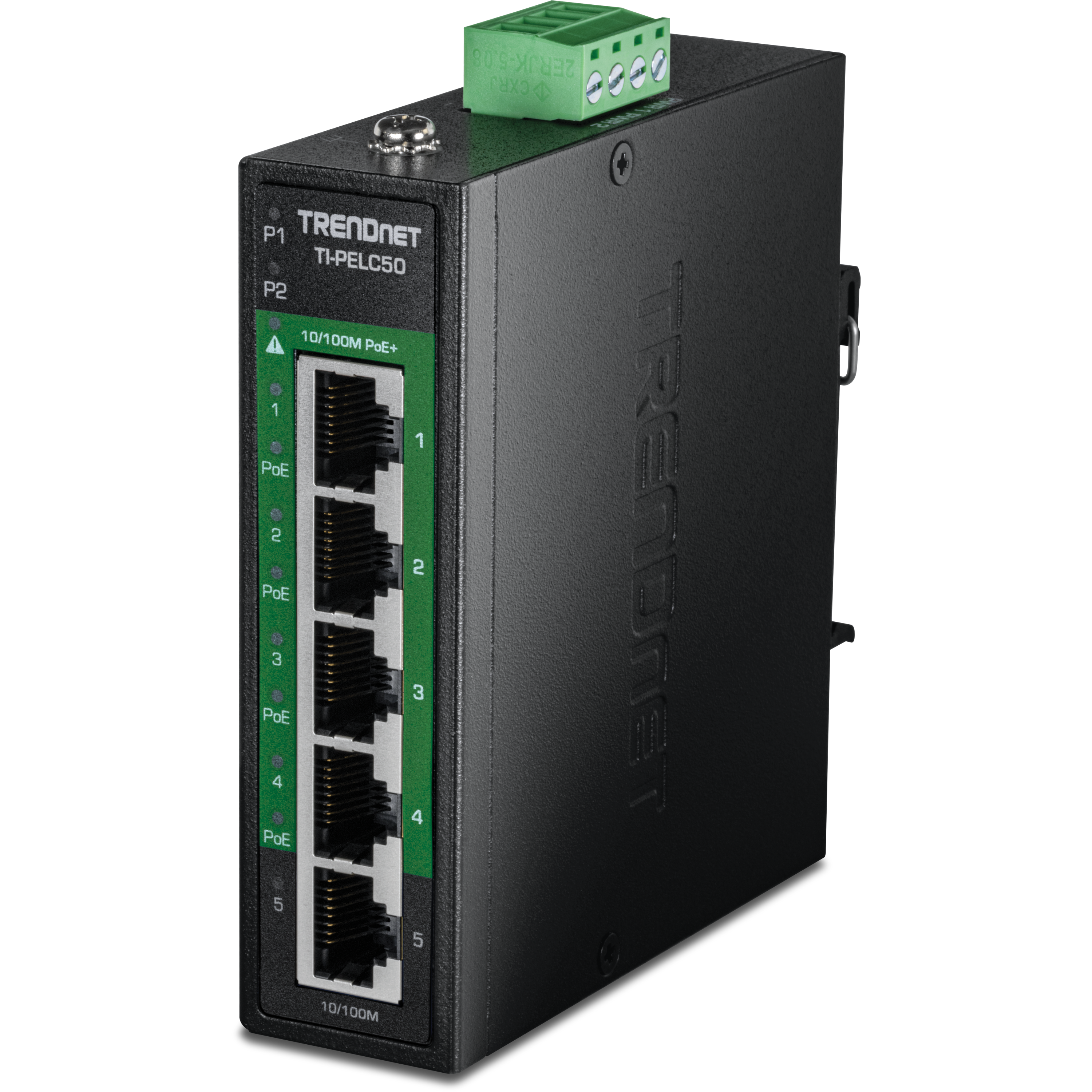

5-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch

TI-PELC50   (Version V2)

  • 4 x 10/100Mbps PoE+ ports
  • 1 x 10/100Mbps port
  • 120W PoE+ power budget
  • Hardened IP50 rated metal mini switch
  • Redundant power inputs with overload current protection
  • Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
  • 1Gbps switching capacity
  • Includes DIN-Rail mount and wall mount brackets
  • Power supply sold separately (model: TI-S24048, TI-S15052, TI-S12048)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-PELC50_(v2.xR).pdf
Date: 12/19/2025
File Size: 2.56 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-PELC50_(v2.xR).pdf
Date: 12/19/2025
File Size: 2.47 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-PELC50_(v2.xR).pdf
Date: 12/19/2025
File Size: 2.40 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-PELC50_(v2.xR).pdf
Date: 12/19/2025
File Size: 2.53 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-PELC50_(v2.xR).pdf
Date: 12/19/2025
File Size: 2.54 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-PELC50_(v2.xR).pdf
Date: 12/19/2025
File Size: 2.59 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: Lineart_qig_TI-PELC50.pdf
Date: 12/19/2025
File Size: 4.39 MB
Download

Product Images

TI-PELC50 Product Photo (PNG Image 1)
PNG Image
File Size: : 6.71 MB
Date: : 12/19/2025
Download
TI-PELC50 Product Photo (PNG Image 2)
PNG Image
File Size: : 3.76 MB
Date: : 12/19/2025
Download
TI-PELC50 Product Photo (PNG Image 3)
PNG Image
File Size: : 5.90 MB
Date: : 12/19/2025
Download
TI-PELC50 Product Photo (PNG Image 4)
PNG Image
File Size: : 6.82 MB
Date: : 12/19/2025
Download
TI-PELC50 Product Photo (PNG Image 5)
PNG Image
File Size: : 4.98 MB
Date: : 12/19/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x 10/100Mbps PoE+ ports
  • 1 x 10/100Mbps port
  • 4-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 56KB
  • Switching Fabric: 1Gbps
  • MAC Address Table: 1K entries
  • Forwarding rate: 0.744Mpps (64-byte packet size)
Power
  • Input: 48 – 57V DC
  • Compatible power supply: TI-S24048, TI-S12048, (sold separately)
  • Max. consumption: 1.97W (without PoE)
PoE
  • 802.3at: Up to 30W per port
  • PoE budget: 120W
  • Mode A: pin 1, 2 for power+ and pin 3, 6 for power-
Terminal Block
  • 4-pin terminal block
  • Wire range: 1.5mm^2
  • Solid wire (AWG): 16-17
  • Stranded wire (AWG): 16-17
  • Torque: 3 lb. – In / 0.56Nm
  • Wire strip length: 6-7mm
MTBF
  • 2,674,069 hours @ 25° C
Housing
  • IP50 metal case

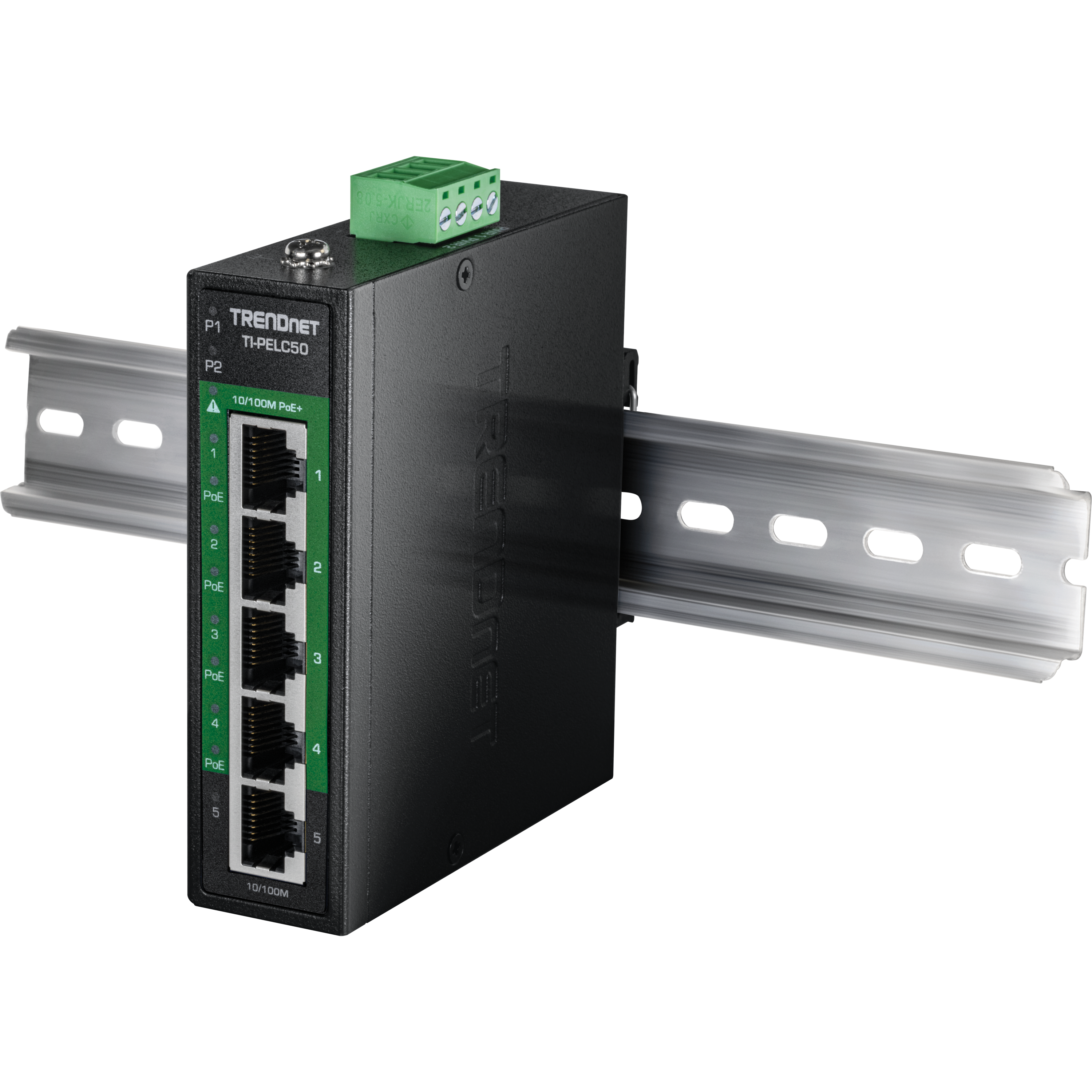

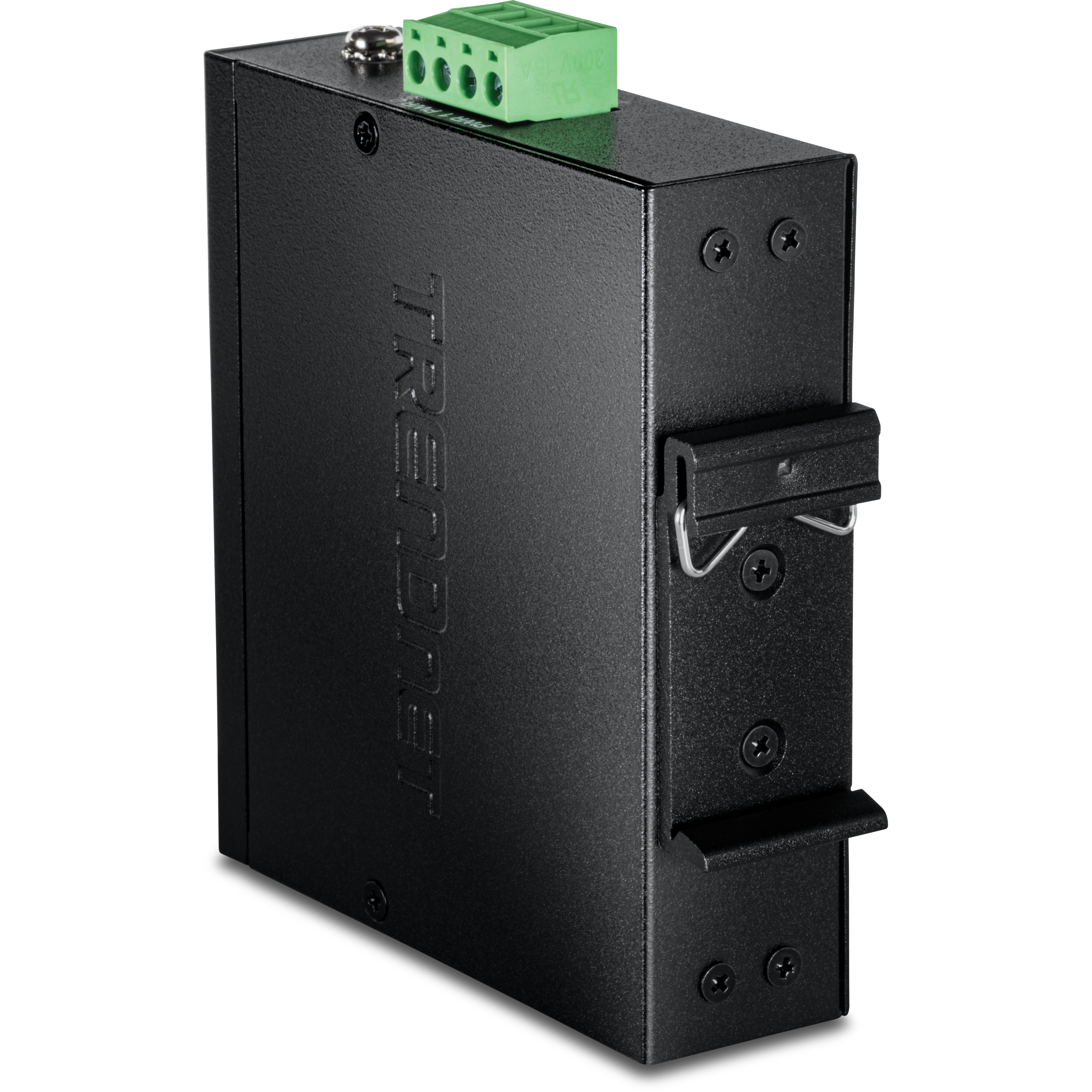

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 2kV Surge protection
  • 6kV Surge RJ45 protection
Operating Temperature
  • - 40° - 75° C (-40° - 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 99 x 90 x 28mm (3.9 x 3.54 x 1.1 in.)
Weight
  • 262g (9.25 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
Warranty
  • 2-year

PACKAGE CONTENTS
  • TI-PELC50
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
