Industrial 10G PoE++ Injector

TI-IG319   (Version v1.1R)

   Select Another Version
  • 1 x 10G PoE++ port (Data + PoE out)
  • 1 x 10G port (Data in)
  • 120W PoE power budget
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
  • Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
  • Network a PoE device located up to 100m (328 ft.)
  • Fanless design eliminates operating noise and lowers energy consumption
  • Extreme operating temperature range -40° – 75° C (-40° – 167° F)

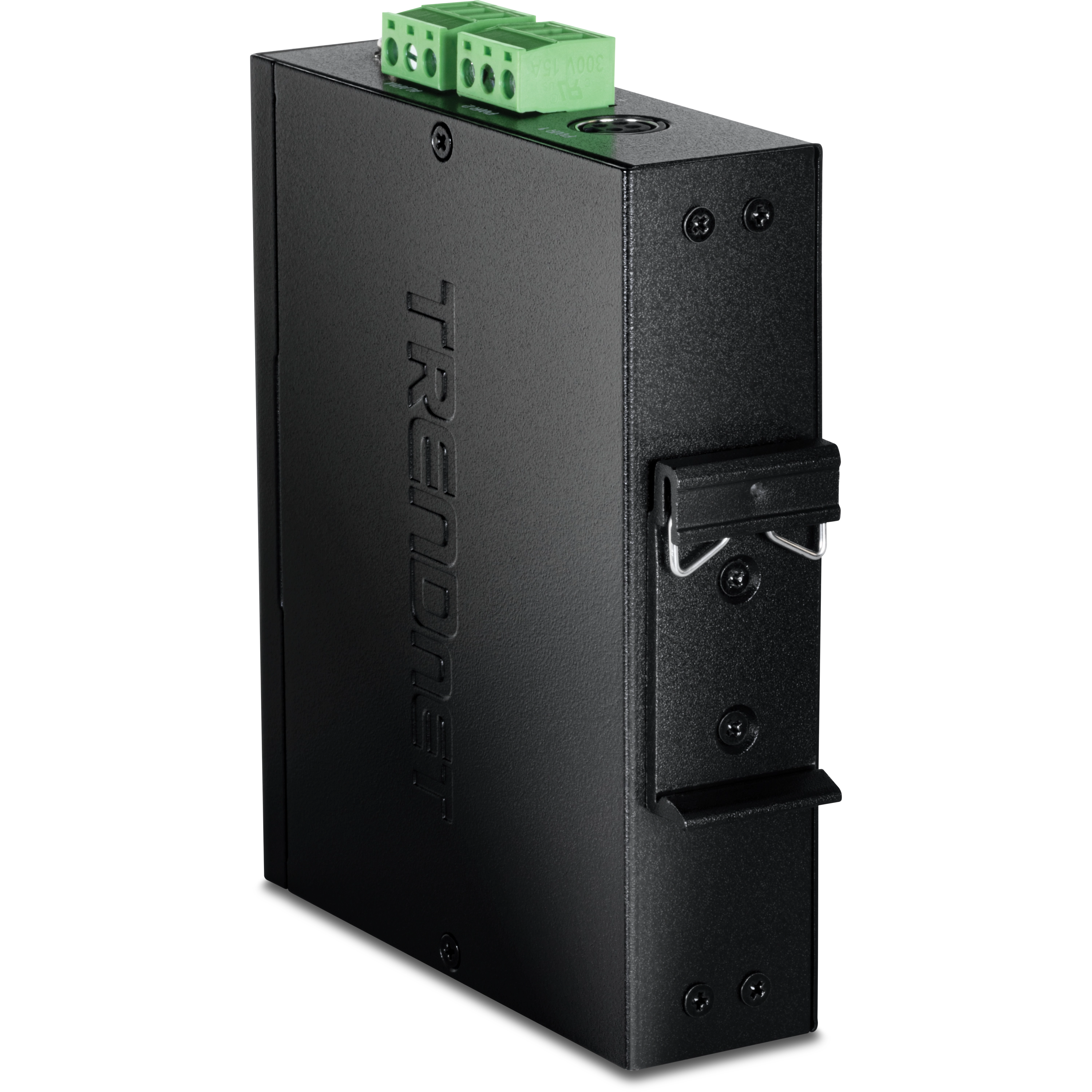

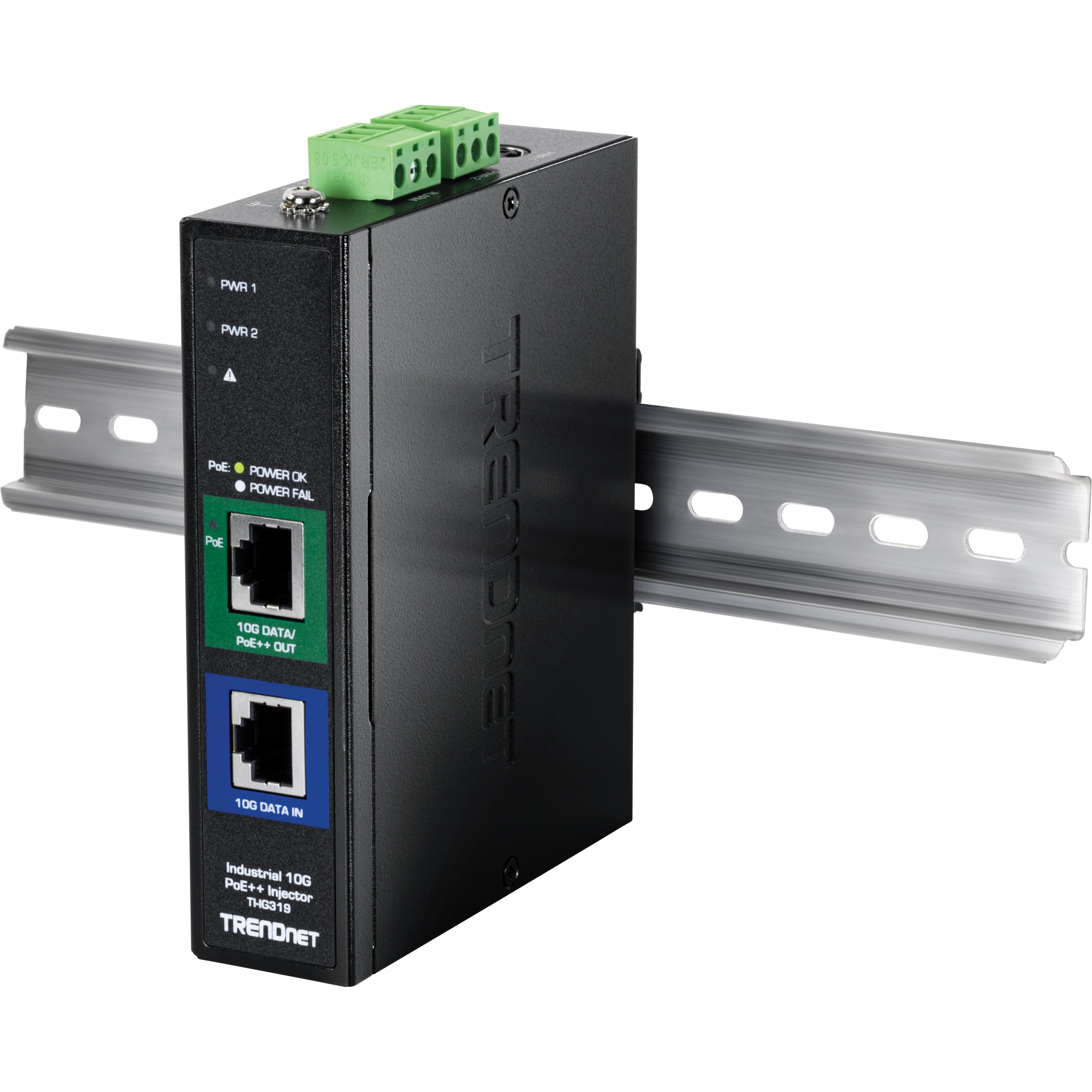

  • Includes DIN-Rail mount and wall mount
  • Power supply sold separately (model: TI-S15052)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-IG319_(v1.xR).pdf
Date: 4/16/2025
File Size: 3.56 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-IG319_(v1.xR).pdf
Date: 4/16/2025
File Size: 3.56 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-IG319_(v1.xR).pdf
Date: 4/16/2025
File Size: 3.55 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-IG319_(v1.xR).pdf
Date: 4/16/2025
File Size: 3.59 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-IG319_(v1.xR).pdf
Date: 4/16/2025
File Size: 3.60 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-IG319_(v1.xR).pdf
Date: 4/16/2025
File Size: 4.07 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: lineart_qig_TI-IG319_(v1.xR)_012325.pdf
Date: 4/16/2025
File Size: 4.86 MB
Download

Product Images

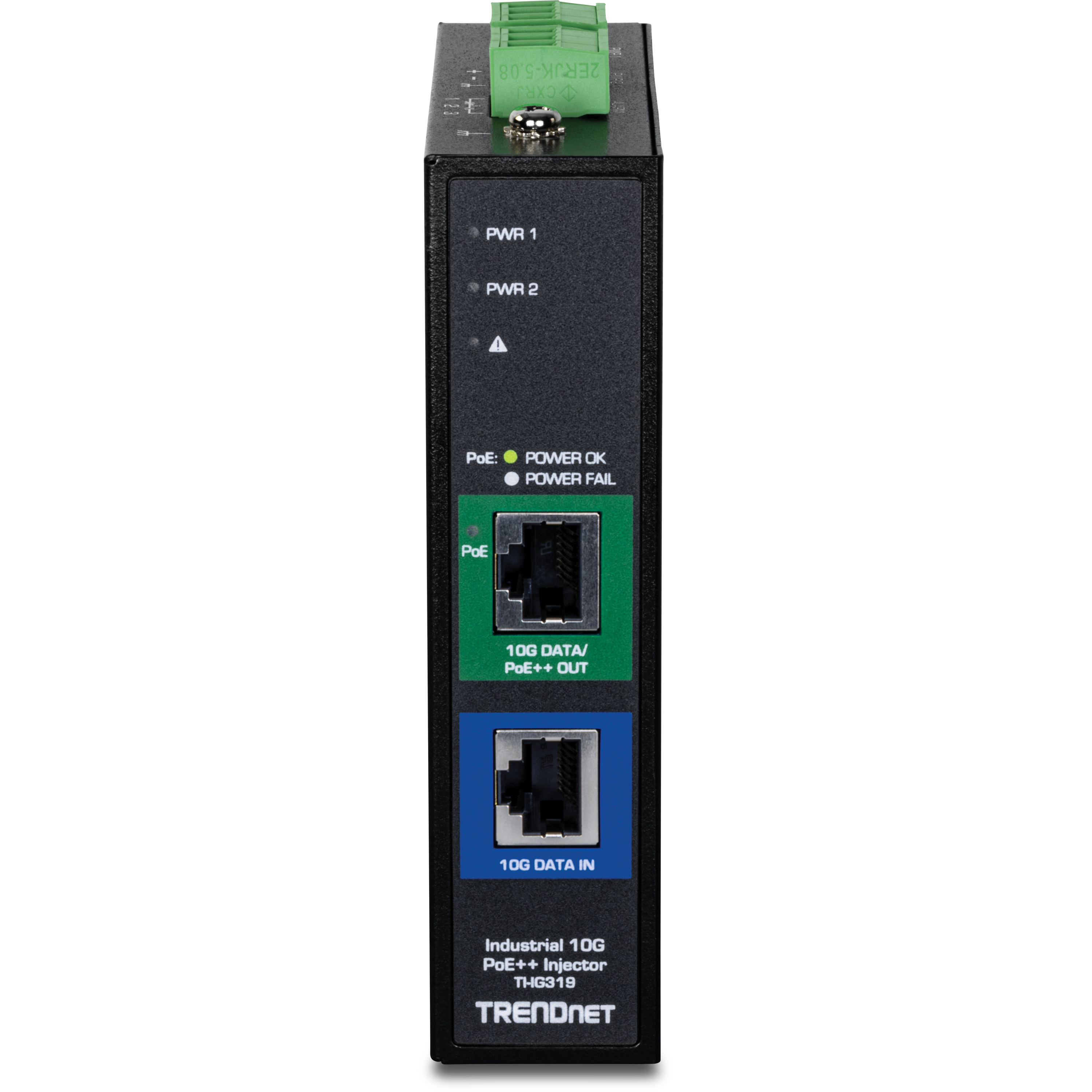

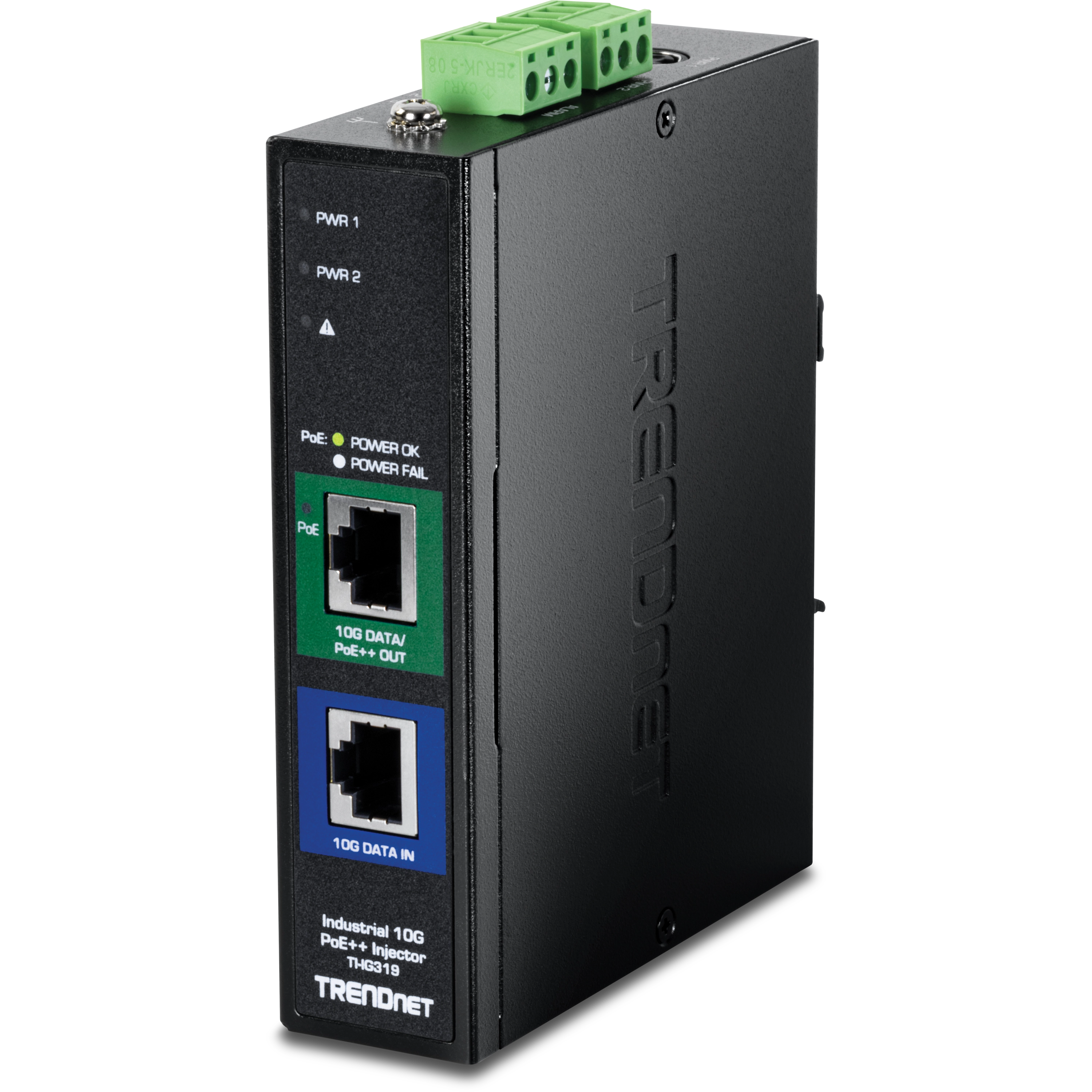

TI-IG319 Product Photo (PNG Image 1)
PNG Image
File Size: : 7.17 MB
Date: : 4/16/2025
Download
TI-IG319 Product Photo (PNG Image 2)
PNG Image
File Size: : 3.19 MB
Date: : 4/16/2025
Download
TI-IG319 Product Photo (PNG Image 3)
PNG Image
File Size: : 6.39 MB
Date: : 4/16/2025
Download
TI-IG319 Product Photo (PNG Image 4)
PNG Image
File Size: : 7.00 MB
Date: : 4/16/2025
Download
TI-IG319 Product Photo (PNG Image 5)
PNG Image
File Size: : 5.52 MB
Date: : 4/16/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3an
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 1 x 10GBASE-T port (10M/100M/1G/2.5G/10G)
  • 1 x 10GBASE-T PoE++ port (10M/100M/1G/2.5G/10G)
  • 2 x 3-pin removable terminal block
  • LED indicators
Power
  • Input: 48 – 57V DC
  • Compatible power supply: TI-S15052 (sold separately)
  • Max. consumption: 8.3W @ 57V DC (without PD connected)
PoE
  • PoE budget: 120W
  • Pin 1, 2, 7, 8 for power – and pin 3, 4, 5, 6 for power +

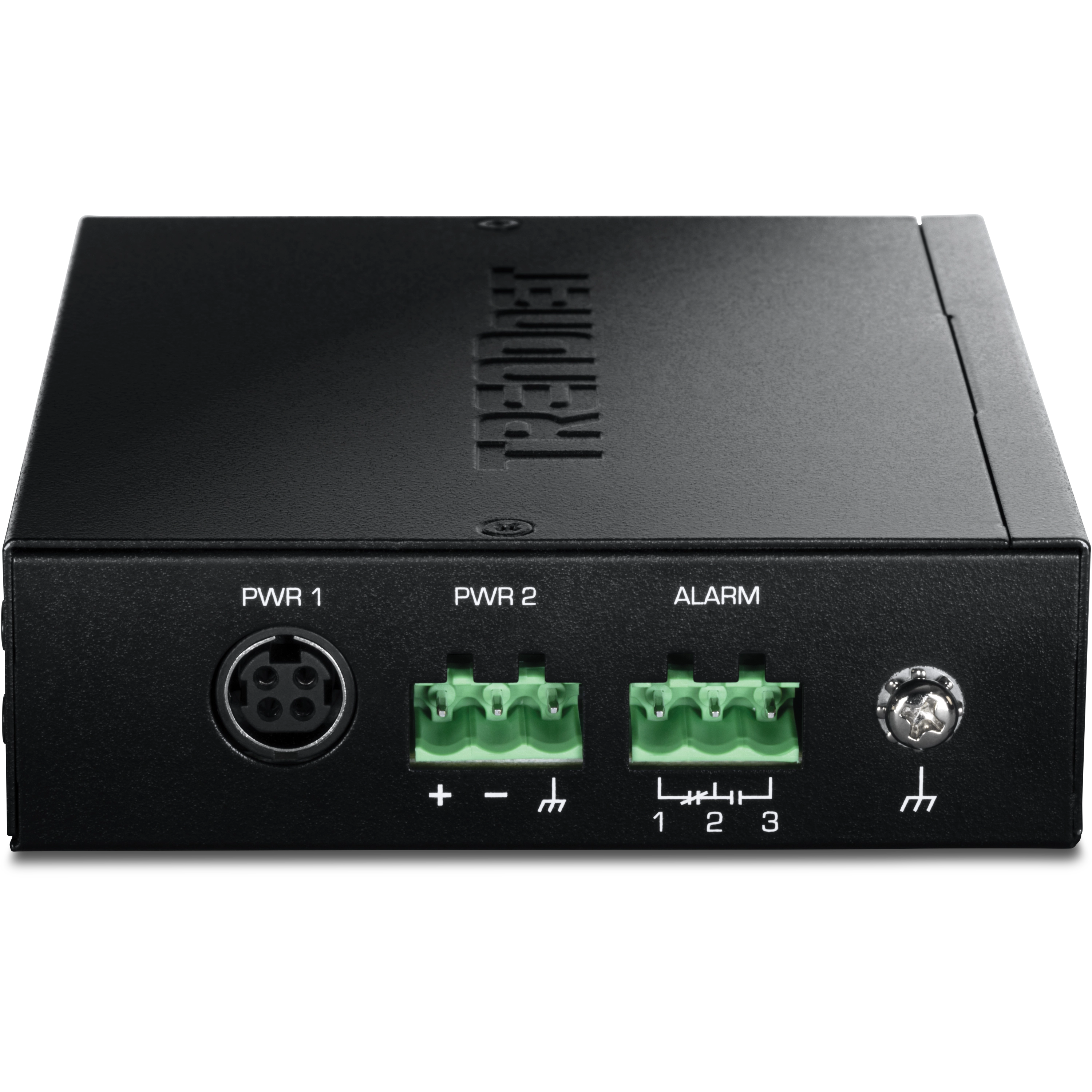

Terminal Block
  • 2 x 3-pin (power, ground, and alarm relay)
  • Alarm Relay: 1A @ 24V DC
  • Wire range: 0.34mm2 to 2.5mm2
  • Solid wire (AWG): 14-22
  • Stranded wire (AWG): 14-22
  • Torque: 5 lb. – In / 0.395Nm
  • Wire strip length: 7-8mm
MTBF
  • 3,000,000 hours @ 25° C
Housing
  • IP50 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • Contact 6kV/Air 8kV ESD protection
  • 6 kV RJ45 surge protection
Operating Temperature
  • - 40° — 75° C (-40° — 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 120 x 98 x 30mm (4.72 x 3.85 x 1.18 in.)
Weight
  • 406g (14.3 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty
  • 3-year

PACKAGE CONTENTS
  • TI-IG319
  • Removable terminal blocks
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
