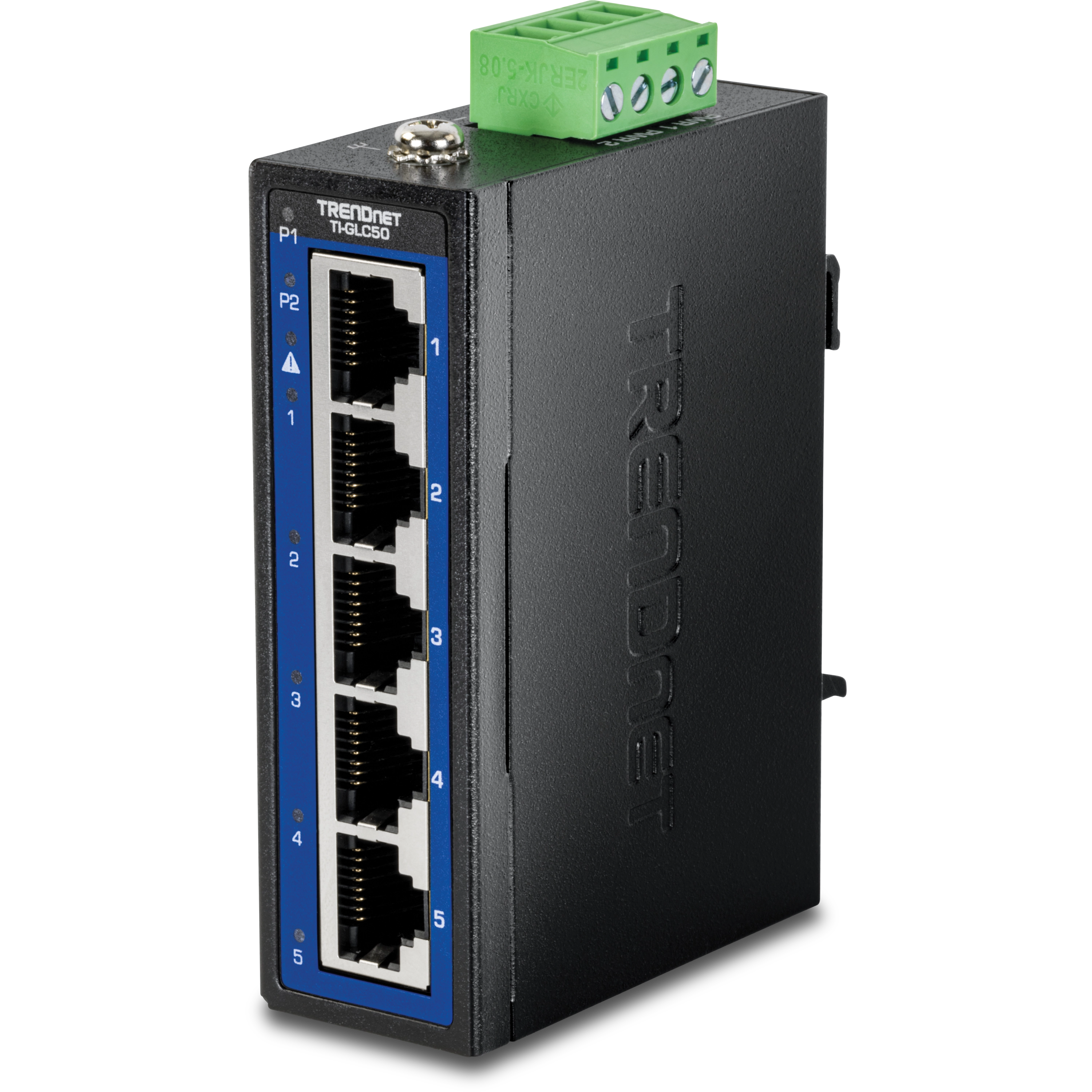

5-Port Industrial Gigabit DIN-Rail Mini Switch

TI-GLC50   (Version V2)

   Select Another Version
  • 5 x Gigabit ports
  • Hardened IP50 rated metal mini switch
  • Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
  • 10Gbps switching capacity

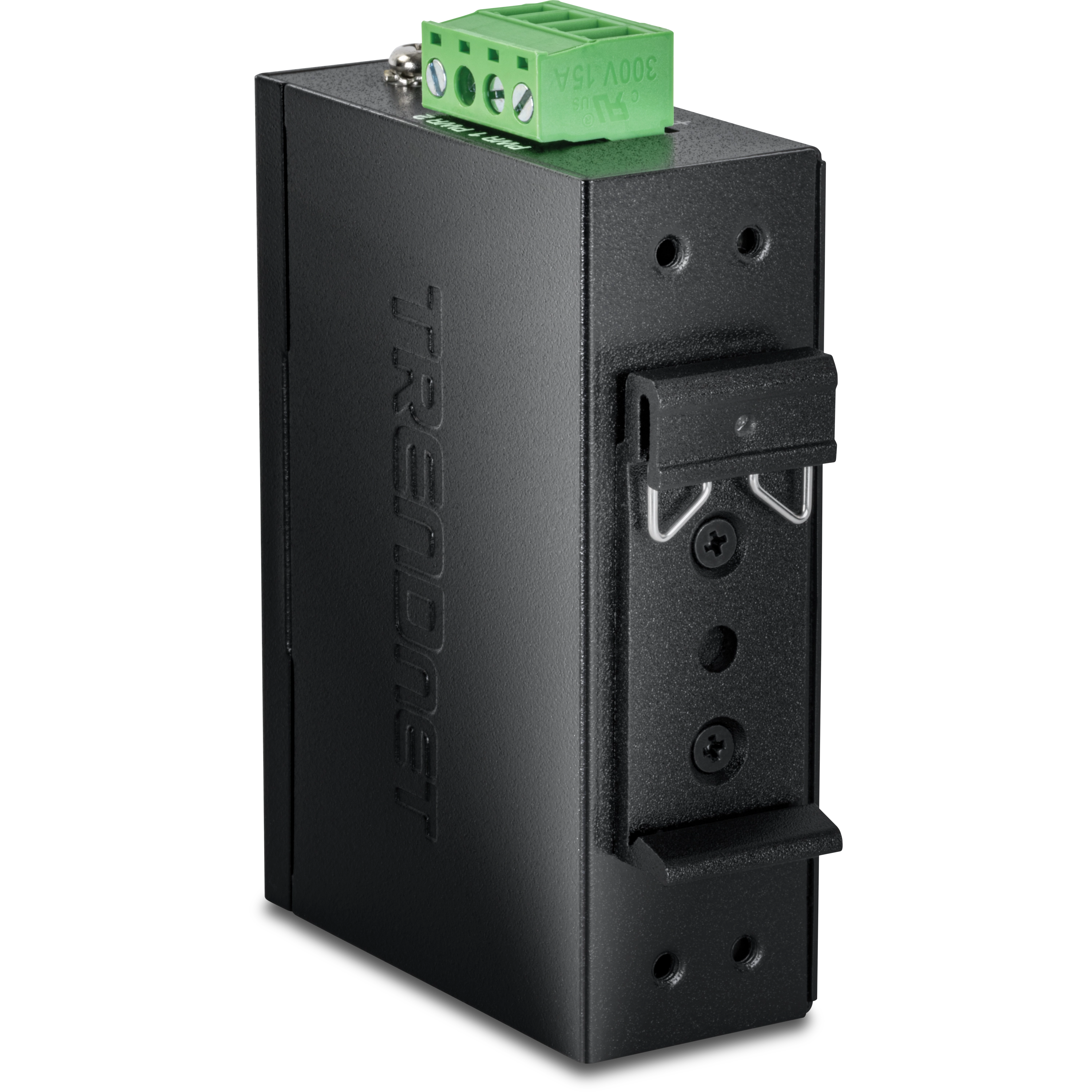

  • Includes DIN-Rail mount and wall mount brackets
  • Power supply sold separately (model: TI-M6024)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
Device Interface

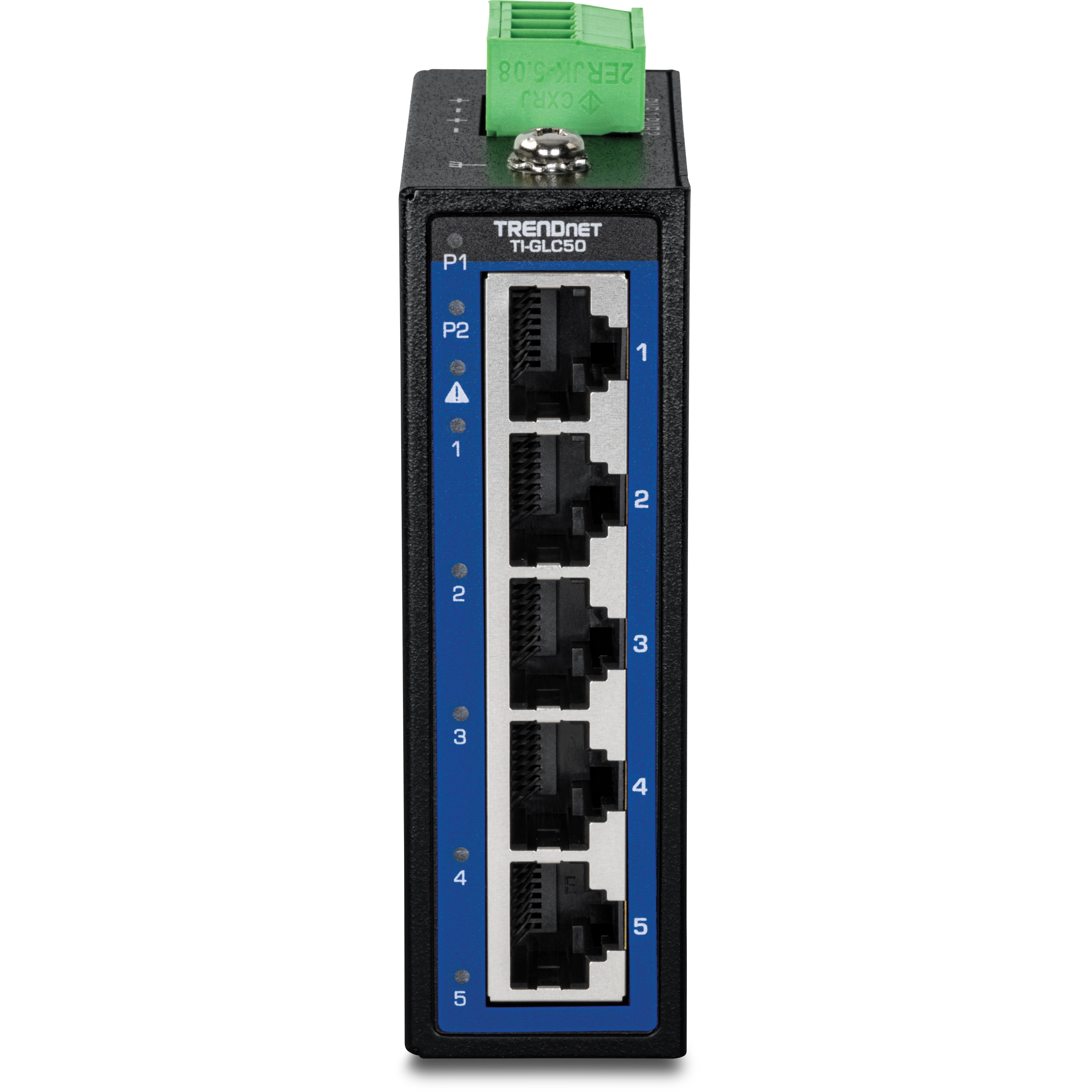

  • 5 x Gigabit ports (10/100/1000Mbps)
  • 4-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 7.44Mpps (64-byte packet size)
  • Jumbo Frame: 9KB
Special Features
  • Hardened components rated for extreme temperatures
  • VLAN Passthrough
Power
  • Input: 9 – 60V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Max. consumption: 3.21W @ 60V

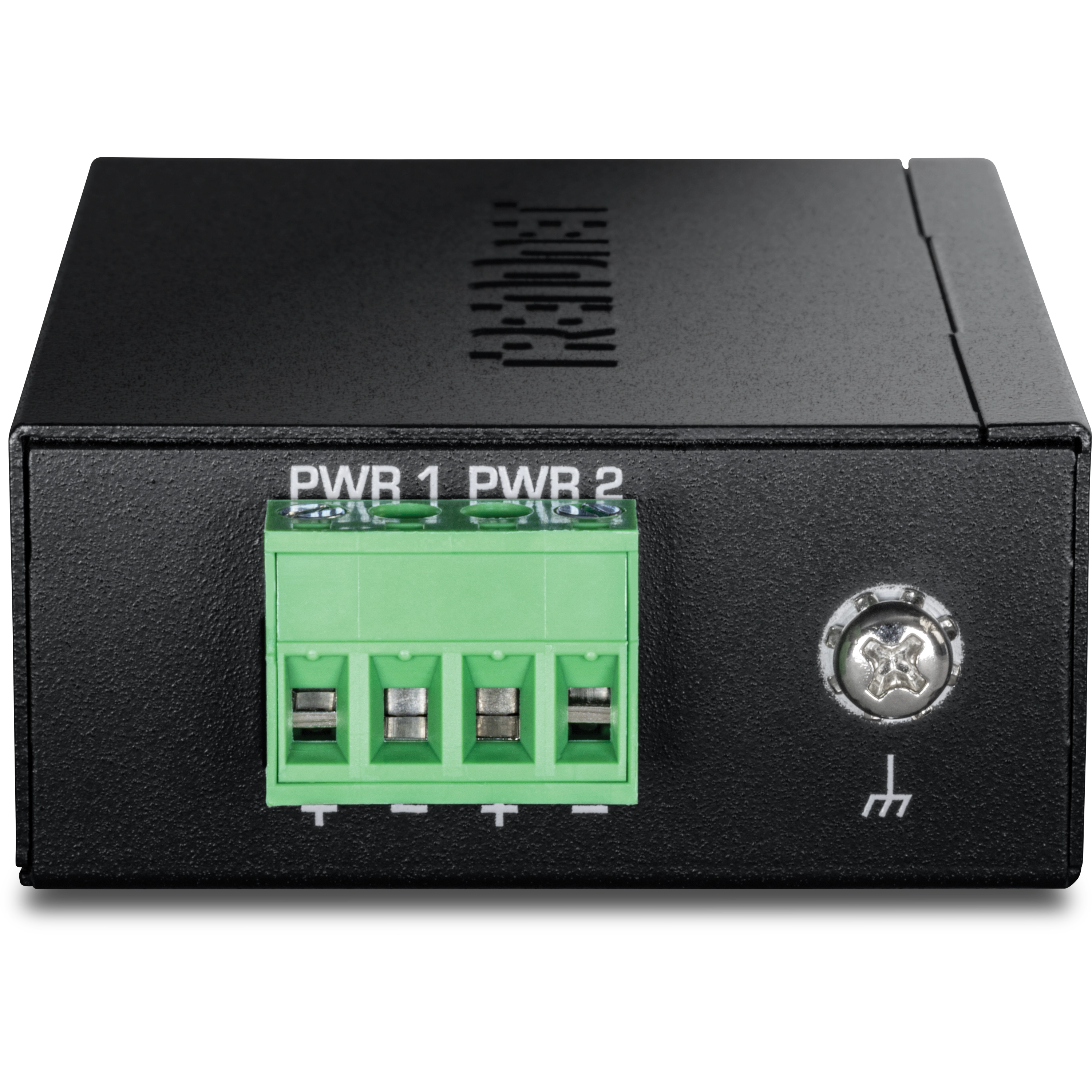

Terminal Block
  • 4-pin terminal block
  • Wire range: 1.5mm2
  • Solid wire (AWG): 16-26
  • Stranded wire (AWG): 16-26
  • Torque: 3 lb. – In / 0.2Nm / 0.56Nm
  • Wire strip length: 6-7mm
MTBF
  • 2,700,000 hours @ 25° C
Housing
  • IP50 metal case

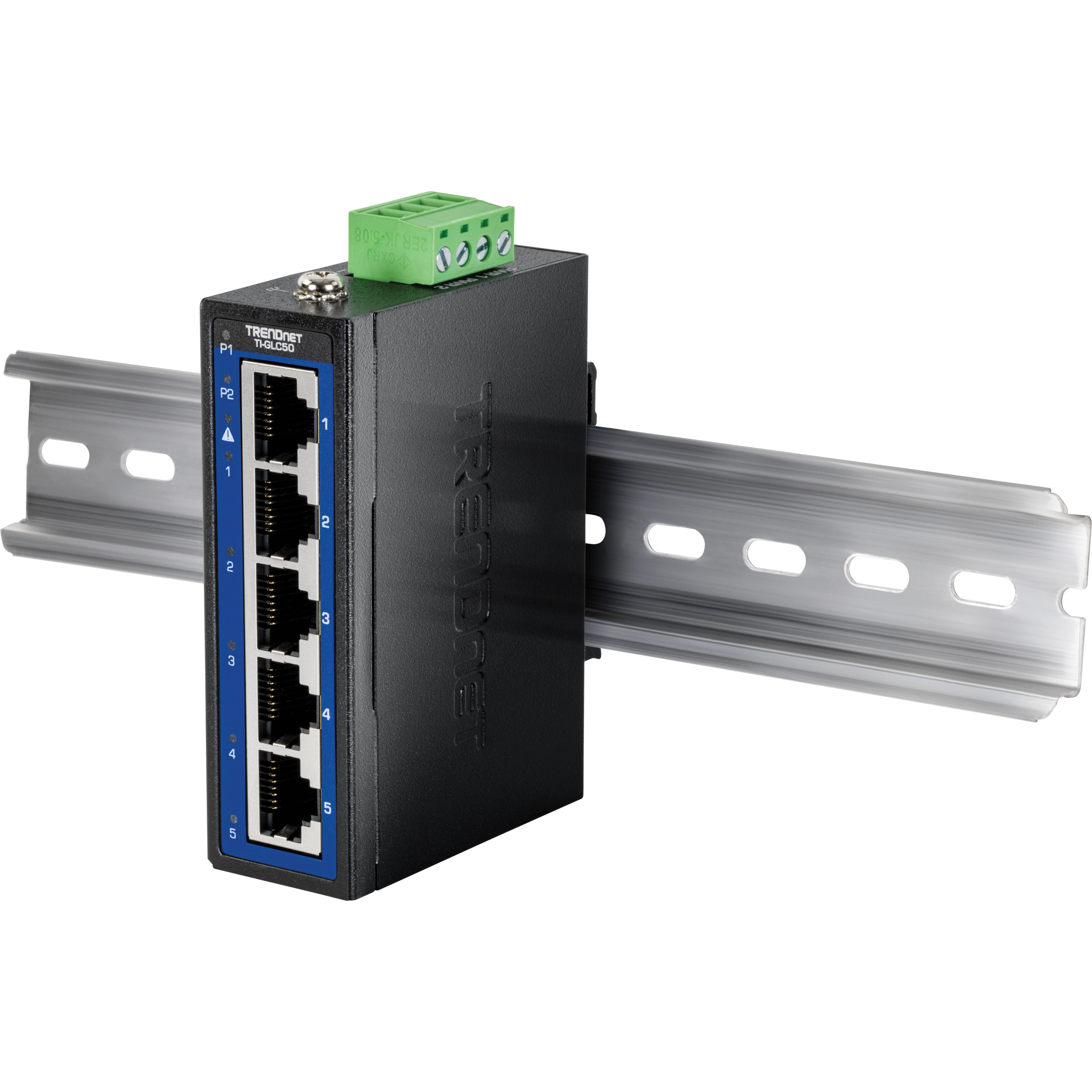

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • ESD 6kV protection
Operating Temperature
  • - 40° - 75° C (-40° - 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 85 x 60 x 27mm (3.34 x 2.36 x 1.06 in.)
Weight
  • 215g (7.58 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (EN 60068-2-27)
  • Freefall (EN 60068-2-31)
  • Vibration (EN 60068-2-6)
  • ESD 6kV
  • EFT 6kV
  • Surge 6kV
Warranty
  • 2 Years

PACKAGE CONTENTS
  • TI-GLC50
  • Removable terminal block
  • DIN-Rail mount and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
