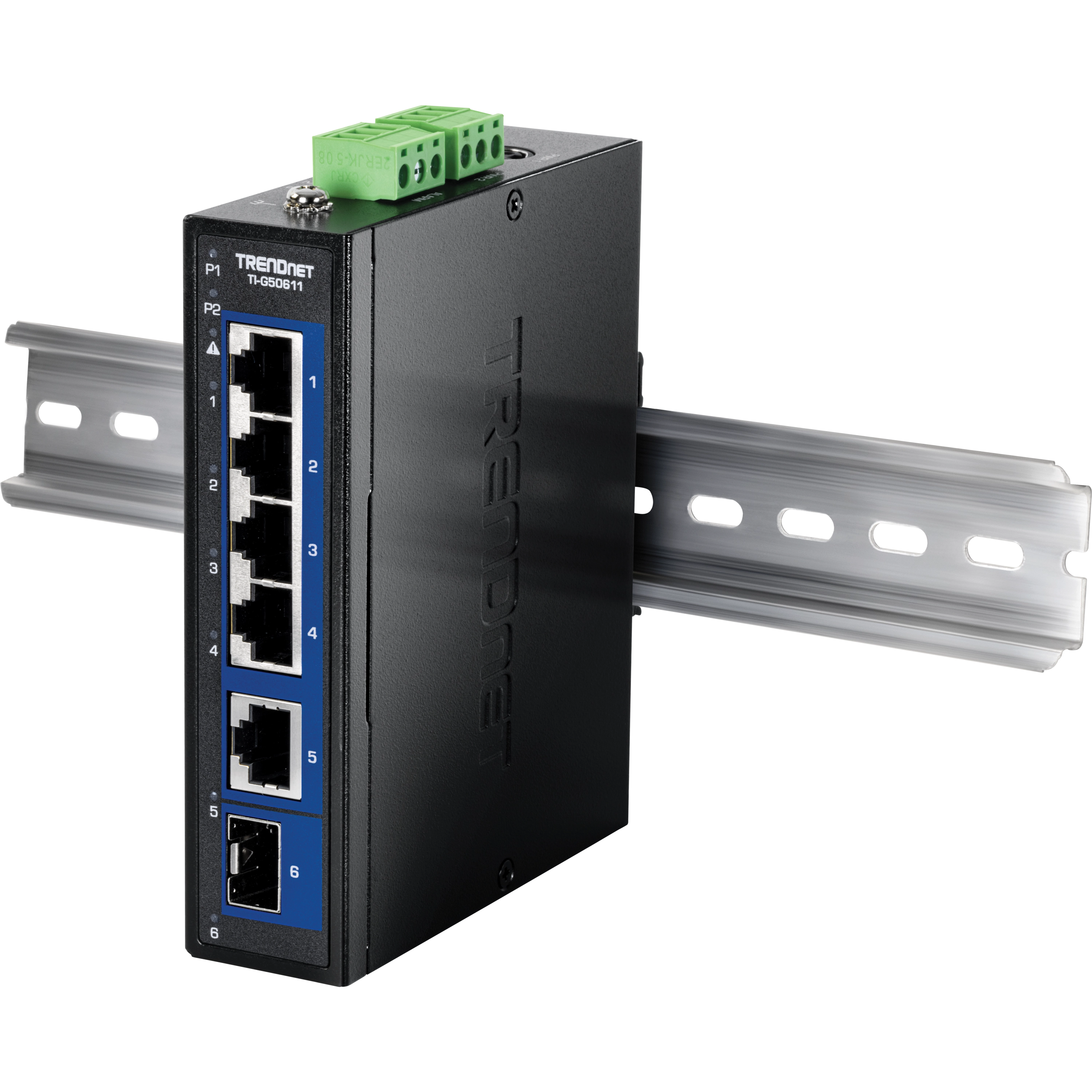

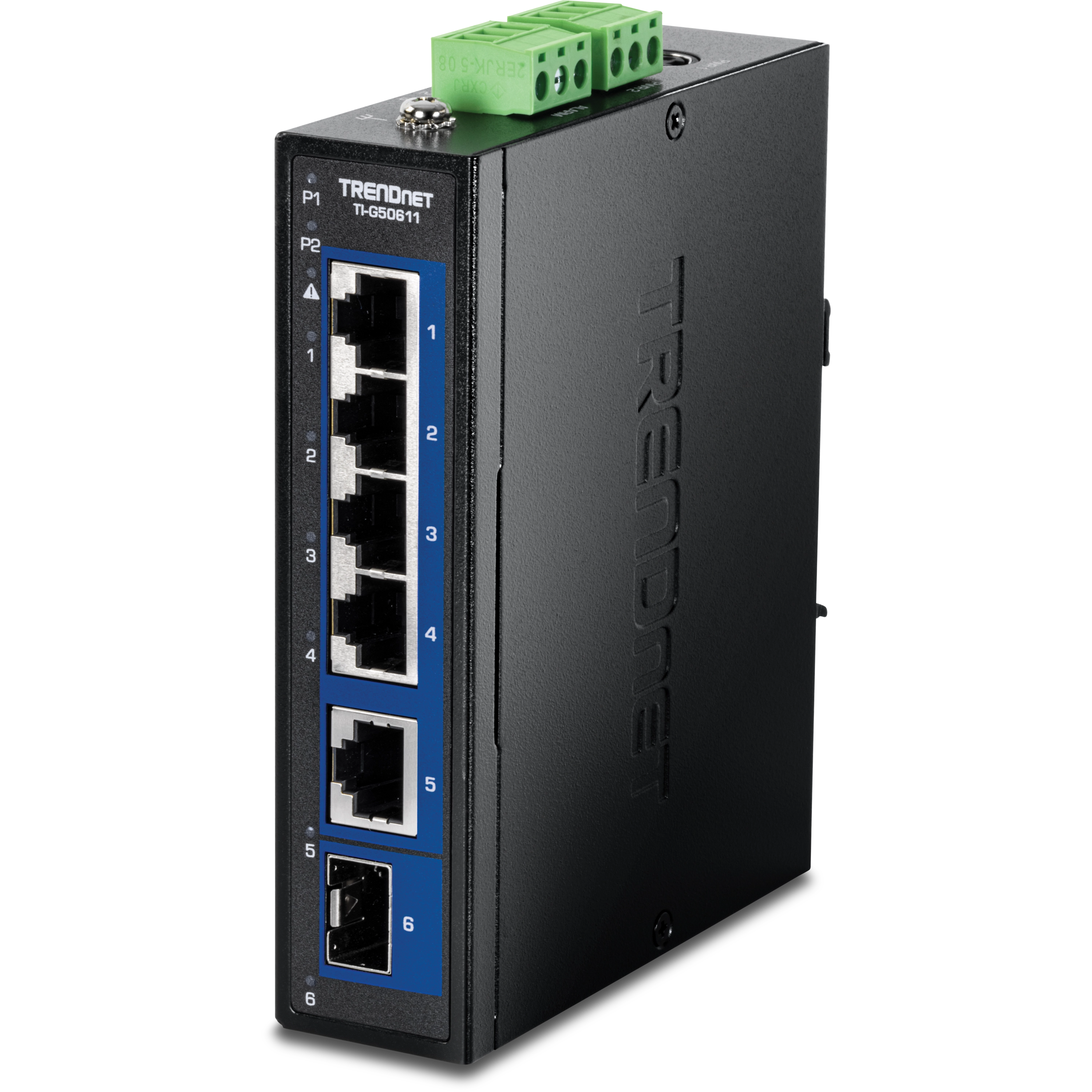

6-Port Industrial 2.5G DIN-Rail Switch with 1 x 10G Port

TI-G50611   (Version V2)

  • 4 x 2.5G ports
  • 1 x 10G port
  • 1 x 10G SFP+ port
  • Hardened IP50 rated metal switch
  • Extreme -40° – 75° C (-40° – 167° F) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • 60Gbps switching capacity
  • Includes DIN-Rail and wall mounts
  • Power supply sold separately (models: TI-M6024, 48VDC3000)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-G50611_(v2.xR).pdf
Date: 11/19/2025
File Size: 2.66 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-G50611_(v2.xR).pdf
Date: 11/19/2025
File Size: 2.55 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-G50611_(v2.xR).pdf
Date: 11/19/2025
File Size: 2.46 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-G50611_(v2.xR).pdf
Date: 11/19/2025
File Size: 2.50 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-G50611_(v2.xR).pdf
Date: 11/19/2025
File Size: 2.52 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-G50611_(v2.xR).pdf
Date: 11/19/2025
File Size: 2.51 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: lineart_qig_TI-G5062_TI-G50611_TI-G5091(v1).pdf
Date: 11/19/2025
File Size: 4.38 MB
Download

Product Images

TI-G50611 Product Photo (PNG Image 1)
PNG Image
File Size: : 6.11 MB
Date: : 11/19/2025
Download
TI-G50611 Product Photo (PNG Image 2)
PNG Image
File Size: : 3.19 MB
Date: : 11/19/2025
Download
TI-G50611 Product Photo (PNG Image 3)
PNG Image
File Size: : 5.84 MB
Date: : 11/19/2025
Download
TI-G50611 Product Photo (PNG Image 4)
PNG Image
File Size: : 6.21 MB
Date: : 11/19/2025
Download
TI-G50611 Product Photo (PNG Image 5)
PNG Image
File Size: : 5.60 MB
Date: : 11/19/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3an
  • IEEE 802.3bz
  • IEEE 802.3x
  • IEEE 802.3z

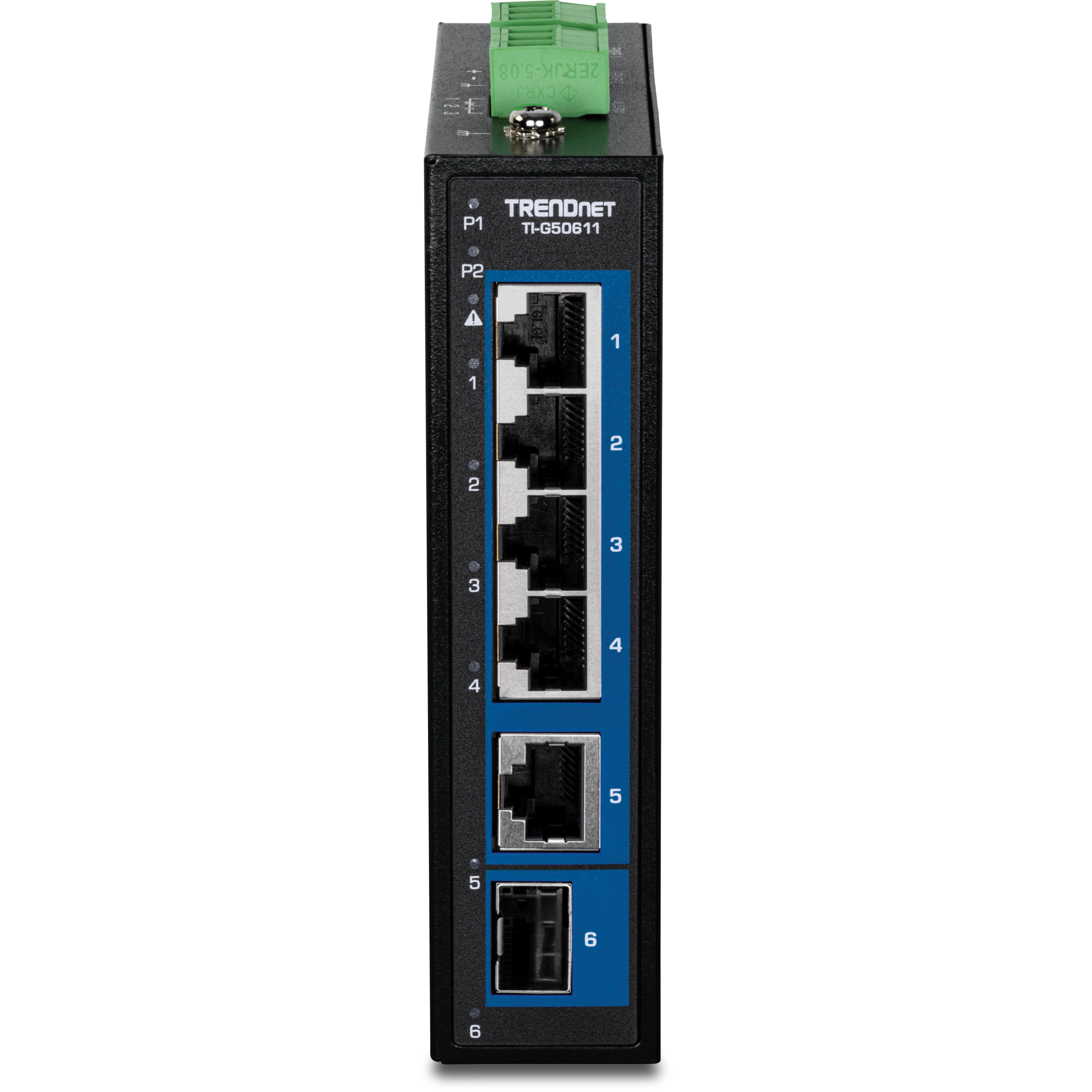

Device Interface
  • 4 x 2.5G ports (10Mbps/100Mbps/1000Mbps/2.5Gbps)
  • 1 x 10G port (10Mbps/100Mbps/1000Mbps/2.5Gbps/10Gbps)
  • 1 x 10G SFP+ ports (1000Mbps/10Gbps)

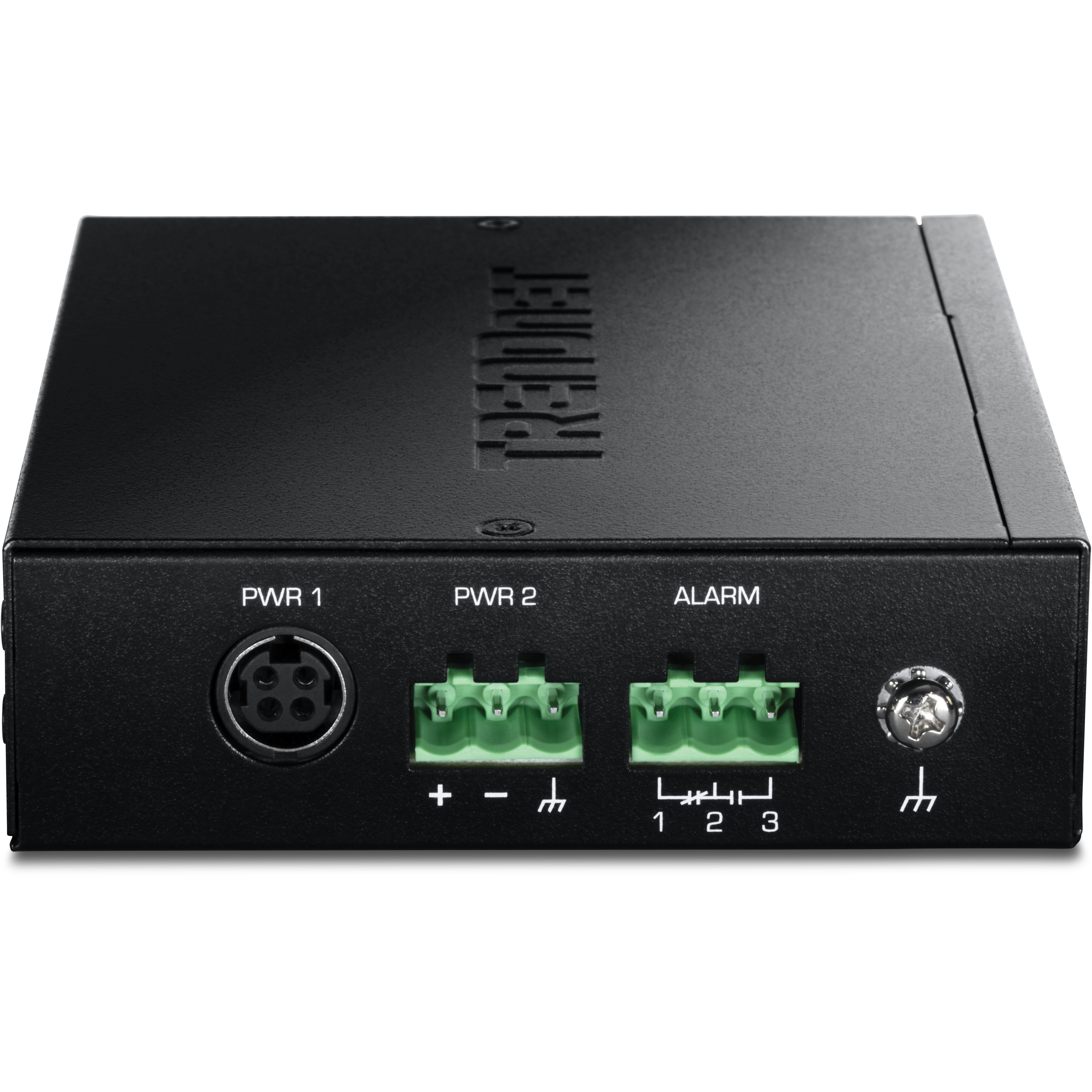

  • 3-pin power terminal block
  • 3-pin alarm relay terminal block
  • Power port
  • LED indicators
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5G Ethernet: 5Gbps (full duplex)
  • 10G Ethernet: 20Gbps (full duplex)
  • 10G SFP+: 20Gbps (full duplex)
Performance
  • Data RAM Buffer: 1MB
  • Switching Fabric: 60Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 12KB
  • Forwarding Rate: 44.64Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual power inputs
  • Auto negotiation
  • Support VLAN pass through
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 6kV protection
Power
  • Input: 9 - 60V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Compatible power adapter: 48VDC3000 (sold separately)
  • Max. consumption: 12.8W
Terminal Block
  • 3-pin terminal block
  • Wire range: 2.5mm^2
  • Solid wire (AWG): 16-28
  • Stranded wire (AWG): 16-28
  • Torque: 3 lb. – In / 0.3Nm / 0.33Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Short circuit mode when two power sources are connected
  • Open circuit mode when only one power source is connected
MTBF
  • 798,907 hours
Housing
  • IP50 rated metal case

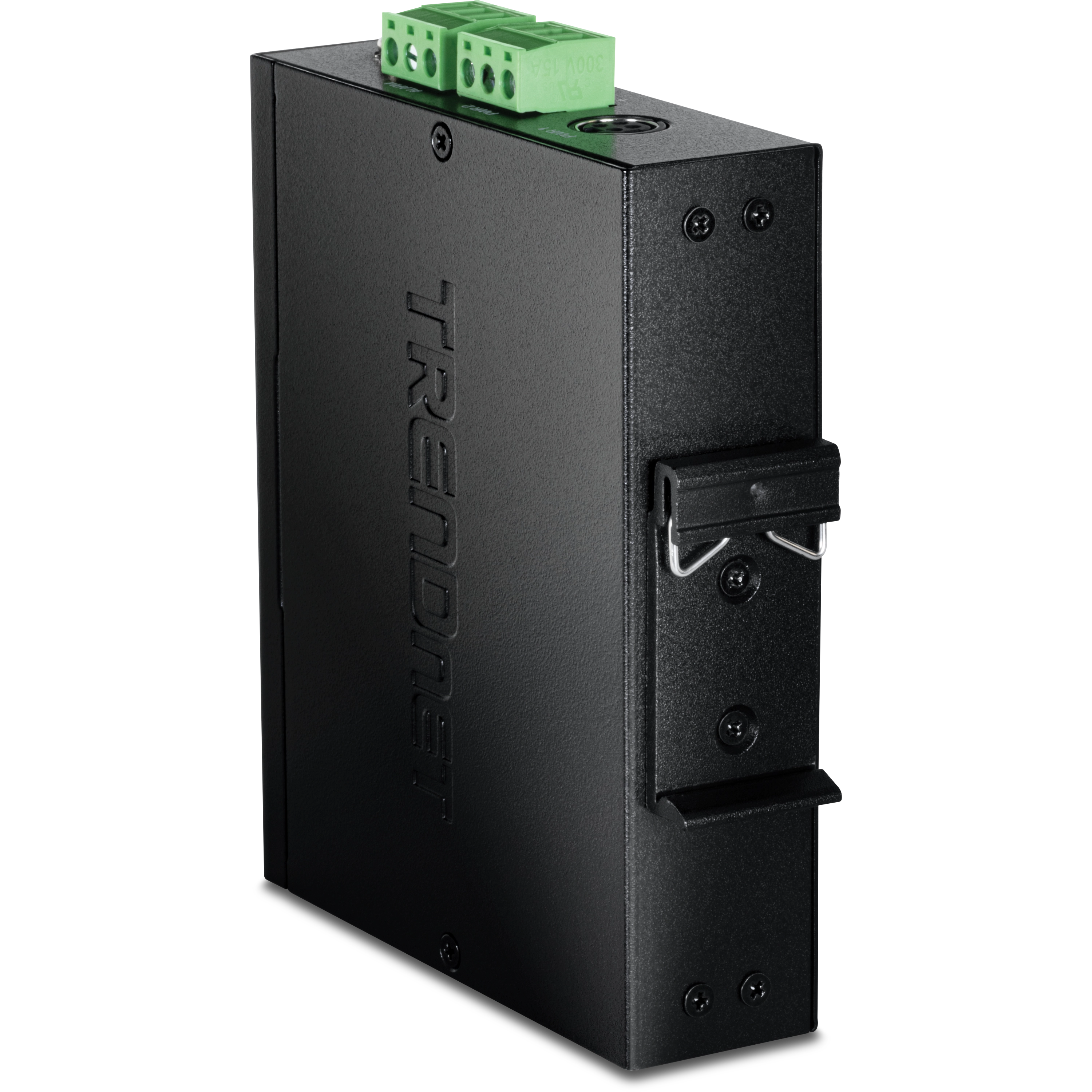

  • DIN-Rail mount
  • Wall mount
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 120 x 98 x 30mm (4.7 x 3.9 x 1.2 in.)
Weight
  • 496g (17.5 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-G50611
  • Quick Installation Guide
  • Removable terminal blocks
  • DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
