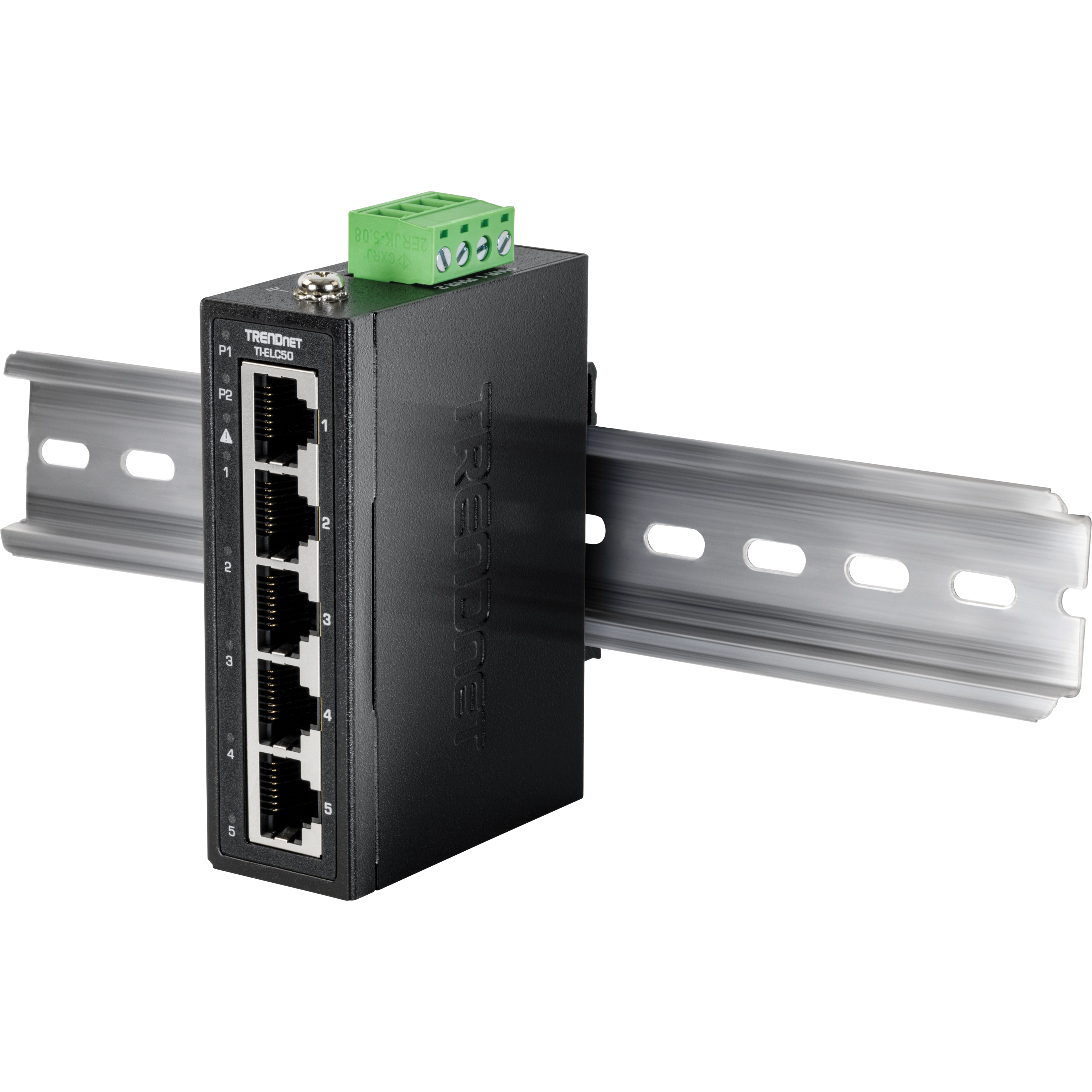

5-Port Industrial Fast Ethernet DIN-Rail Mini Switch

TI-ELC50   (Version V2)

   Select Another Version
  • 5 x 10/100Mbps ports
  • Hardened IP50 rated metal mini switch
  • Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
  • 1Gbps switching capacity
  • Includes DIN-Rail mount and wall mount brackets
  • Power supply sold separately (model: TI-M6024)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-ELC50_(v2.xR).pdf
Date: 10/21/2025
File Size: 3.64 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-ELC50_(v2.xR).pdf
Date: 10/21/2025
File Size: 3.67 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-ELC50_(v2.xR).pdf
Date: 10/21/2025
File Size: 3.68 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-ELC50_(v2.xR).pdf
Date: 10/21/2025
File Size: 3.70 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-ELC50_(v2.xR).pdf
Date: 10/21/2025
File Size: 3.67 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-ELC50_(v2.xR).pdf
Date: 10/21/2025
File Size: 3.69 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: Unmanaged_Industrial_Mini_Switch(v2.0R)_071625.pdf
Date: 10/21/2025
File Size: 2.19 MB
Download

Product Images

TI-ELC50 Product Photo (PNG Image 1)
PNG Image
File Size: : 6.11 MB
Date: : 10/21/2025
Download
TI-ELC50 Product Photo (PNG Image 2)
PNG Image
File Size: : 3.63 MB
Date: : 10/21/2025
Download
TI-ELC50 Product Photo (PNG Image 3)
PNG Image
File Size: : 7.74 MB
Date: : 10/21/2025
Download
TI-ELC50 Product Photo (PNG Image 4)
PNG Image
File Size: : 5.98 MB
Date: : 10/21/2025
Download
TI-ELC50 Product Photo (PNG Image 5)
PNG Image
File Size: : 4.52 MB
Date: : 10/21/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Device Interface

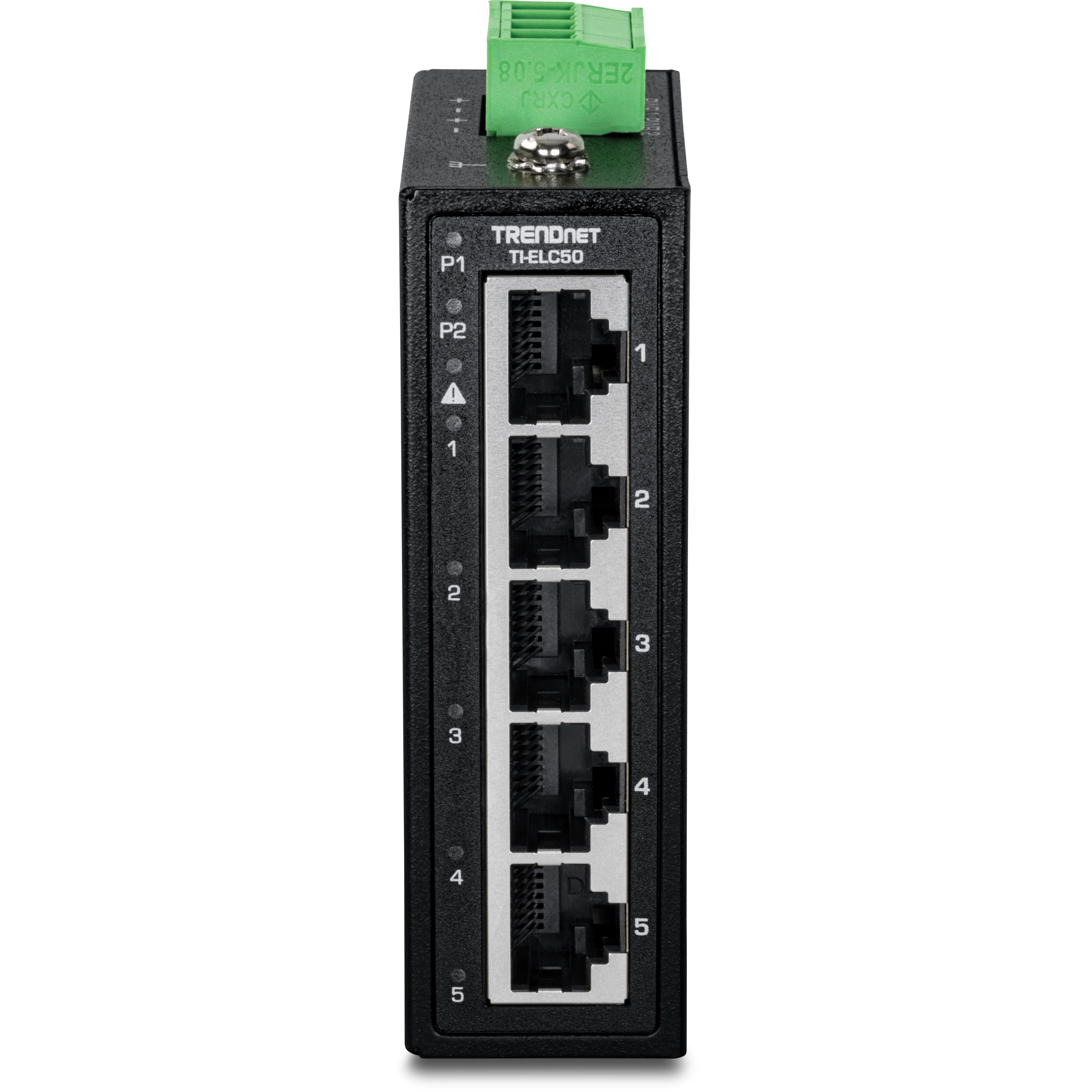

  • 5 x 10/100Mbps ports
  • 4-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 56KB
  • Switching Fabric: 1Gbps
  • MAC Address Table: 1K entries
  • Forwarding rate: 0.744Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • VLAN Passthrough
Power
  • Input: 9 – 60V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Max. consumption: 1.686W @ 60V

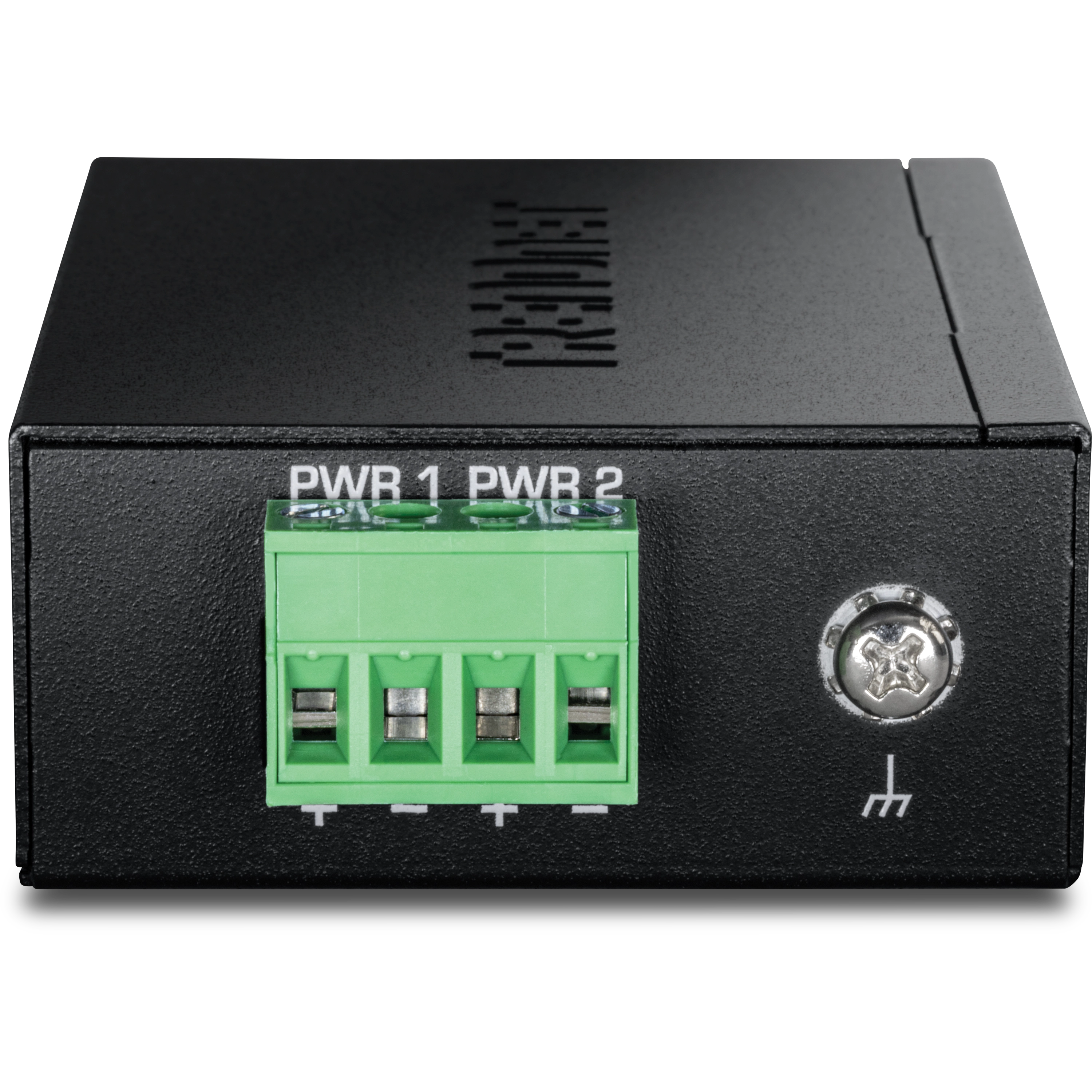

Terminal Block
  • 4-pin terminal block
  • Wire range: 1.5mm2
  • Solid wire (AWG): 16-26
  • Stranded wire (AWG): 16-26
  • Torque: 3 lb. – In / 0.2Nm / 0.56Nm
  • Wire strip length: 6-7mm
MTBF
  • 3,100,000 hours @ 25° C
Housing
  • IP50 metal case

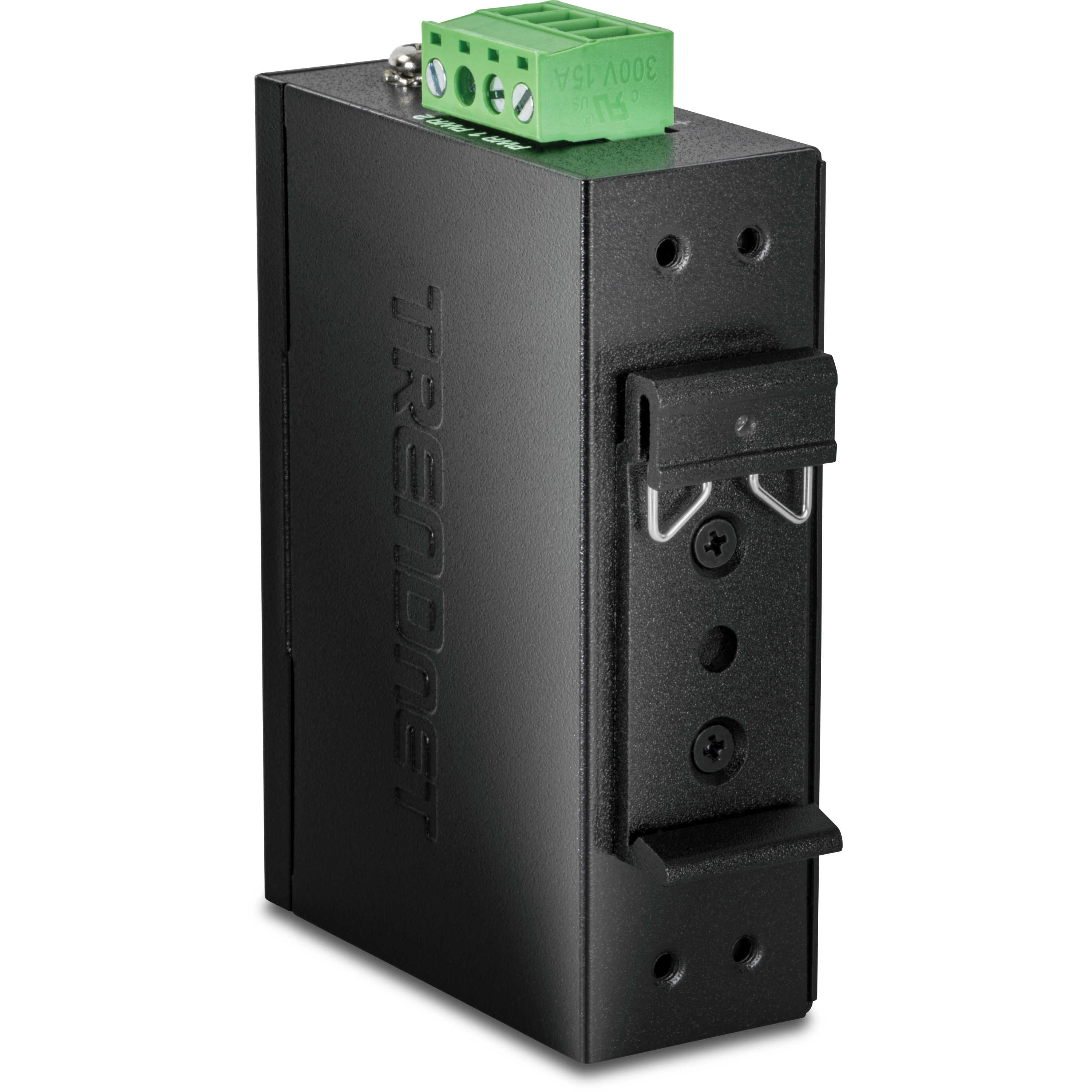

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • ESD 6kV protection
Operating Temperature
  • - 40° - 75° C (-40° - 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 85 x 60 x 27mm (3.34 x 2.36 x 1.06 in.)
Weight
  • 165g (5.82 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (EN 60068-2-27)
  • Freefall (EN 60068-2-31)
  • Vibration (EN 60068-2-6)
  • ESD 6kV
  • EFT 6kV
  • Surge 6kV
Warranty
  • 2-Year

PACKAGE CONTENTS
  • TI-ELC50
  • Removable terminal block
  • DIN-Rail mount and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
