1000BASE-T to SFP Fiber Media Converter

TFC-GSFP   (Version v1.1R)

   Select Another Version

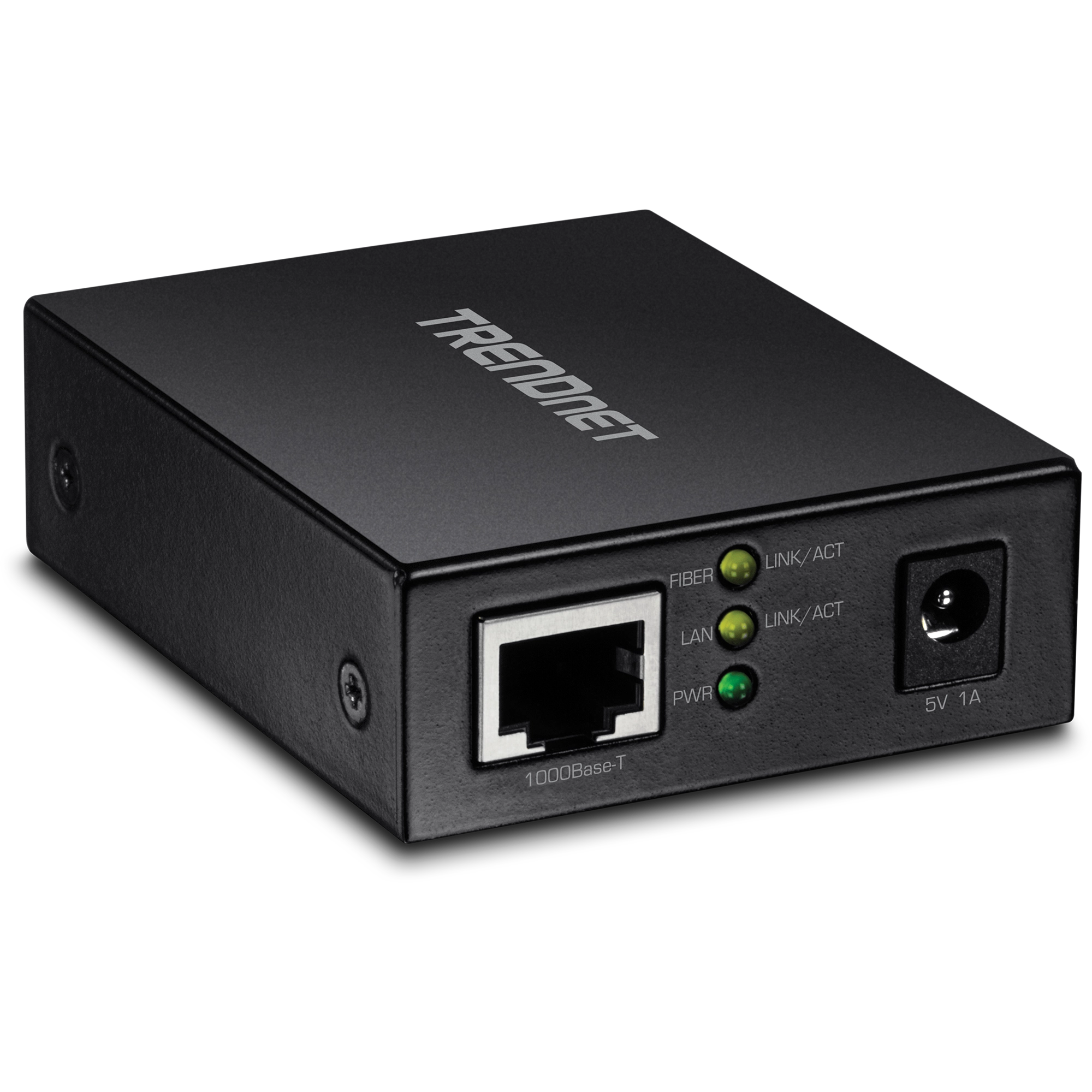

  • 1 x 100/1000BASE-T RJ-45 port

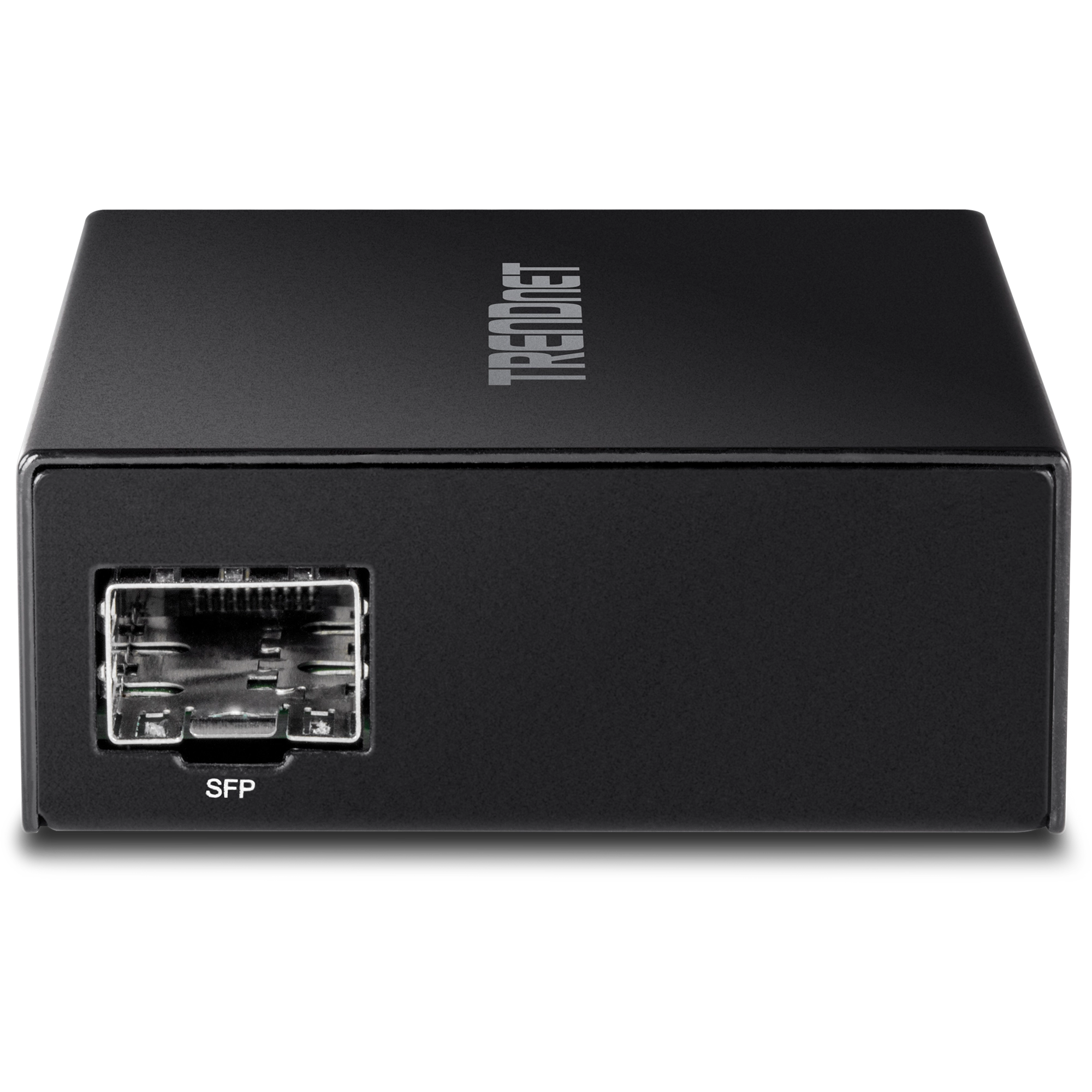

  • 1 x 100/1000BASE-SX/LX SFP slot
  • LFPT support (Link Fault Pass Through)
  • SFP slot accommodates multimode or single-mode modules
  • Auto-MDIX 1000BASE-T RJ-45 port supports full-duplex mode
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Datasheet
Datasheet (English)
Filename: EN_datasheet_TFC-GSFP_(v1.1R).pdf
Date
2/28/2019
File Size
574.12 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TFC-GSFP_(v1.1R).pdf
Date
2/28/2019
File Size
579.21 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TFC-GSFP_(v1.1R).pdf
Date
2/28/2019
File Size
576.81 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TFC-GSFP_(v1.1R).pdf
Date
2/28/2019
File Size
576.34 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TFC-GSFP_(v1.1R).pdf
Date
2/28/2019
File Size
575.19 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TFC-GSFP_(v1.1R).pdf
Date
2/28/2019
File Size
575.63 KB
Download Email
Quick Installation Guide
Quick Installation Guide
Filename: TFC-GSFP_TFC-FSFP.pdf
Date
2/28/2019
File Size
2.01 MB
Download
Product Images

PNG Image
File Size: 2.37 MB
Date: 12/20/2017
Download

PNG Image
File Size: 2.65 MB
Date: 12/20/2017
Download

PNG Image
File Size: 2.87 MB
Date: 12/20/2017
Download
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
Device Interface
  • 1 x Gigabit port
  • 1 x 100/1000 Mbps SFP slot
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Power
  • Input: 110 – 240 V AC, 50/60 Hz 0.2A
  • Output: 5V DC, 1A
  • Max. consumption: 2.61W
Operating Temperature
  • 0° C – 50° C (32° F – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 75 x 60 x 12 mm (3 x 2.4 x 0.5 in.)
Weight
  • 156 g (5.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3-year warranty
PACKAGE CONTENTS
  • TFC-GSFP
  • Quick Installation Guide
  • Power Adapter (5V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
