Important Note: It is required to reset the device to factory default after upgrading from firmware version 1.XX.
*(Firmware version 1.07B07 and above) TRENDnet AP models TEW-755AP(H/W:v1.XR) / TEW-821DAP(H/W:v1.XR) / TEW-825DAP(v1.XR) can now use the same firmware file image to upgrade any of the 3 models. (ex. 755AP FW: 1.07B07 firmware file can be used to upgrade TEW-821DAP/TEW-825DAP and vice versa)*
**Prerequisites: APs must be upgraded to firmware version 1.13B01 first before upgrading to version 2.02B01 or above. APs must be upgraded to firmware version 1.07B07 first before upgrading to version 1.08B04 or above.(Firmware 1.07B07 is included in this download)**
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only
187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.) per access point
408 g (14.4 oz.) per access point
3 year limited

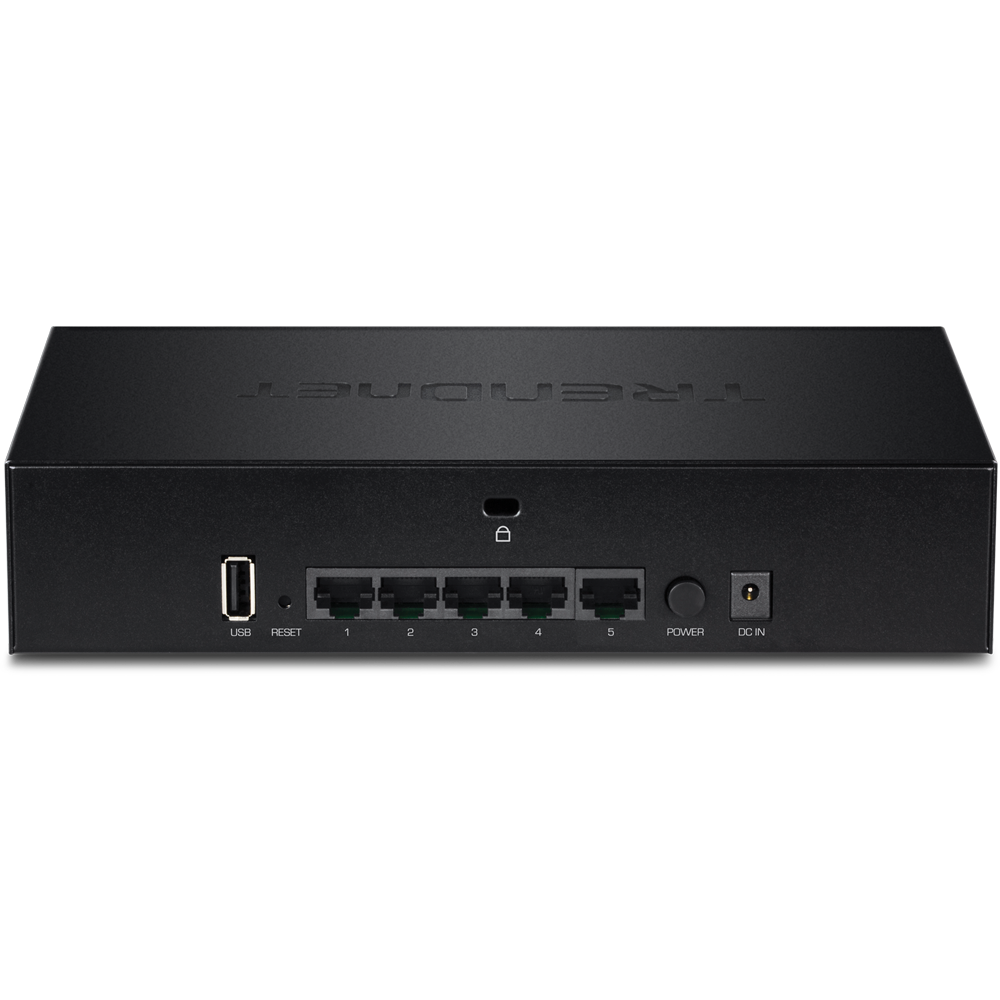

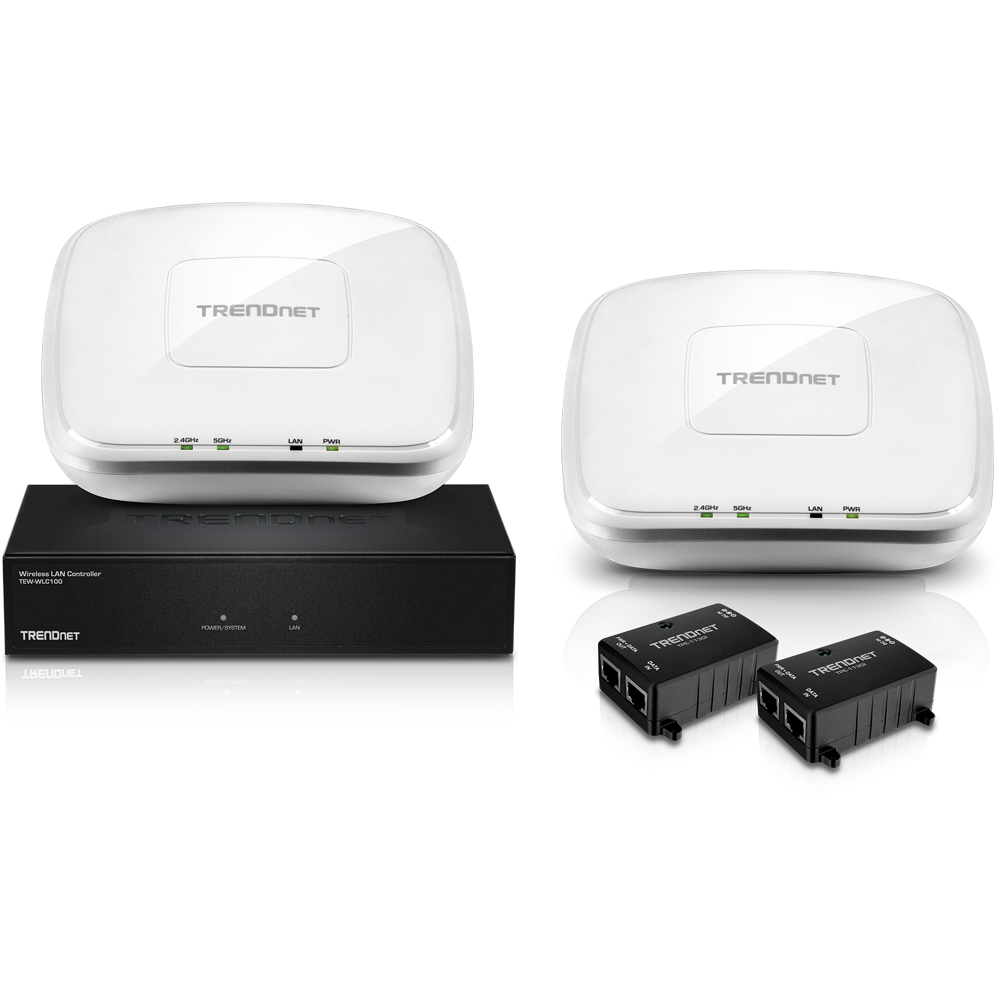

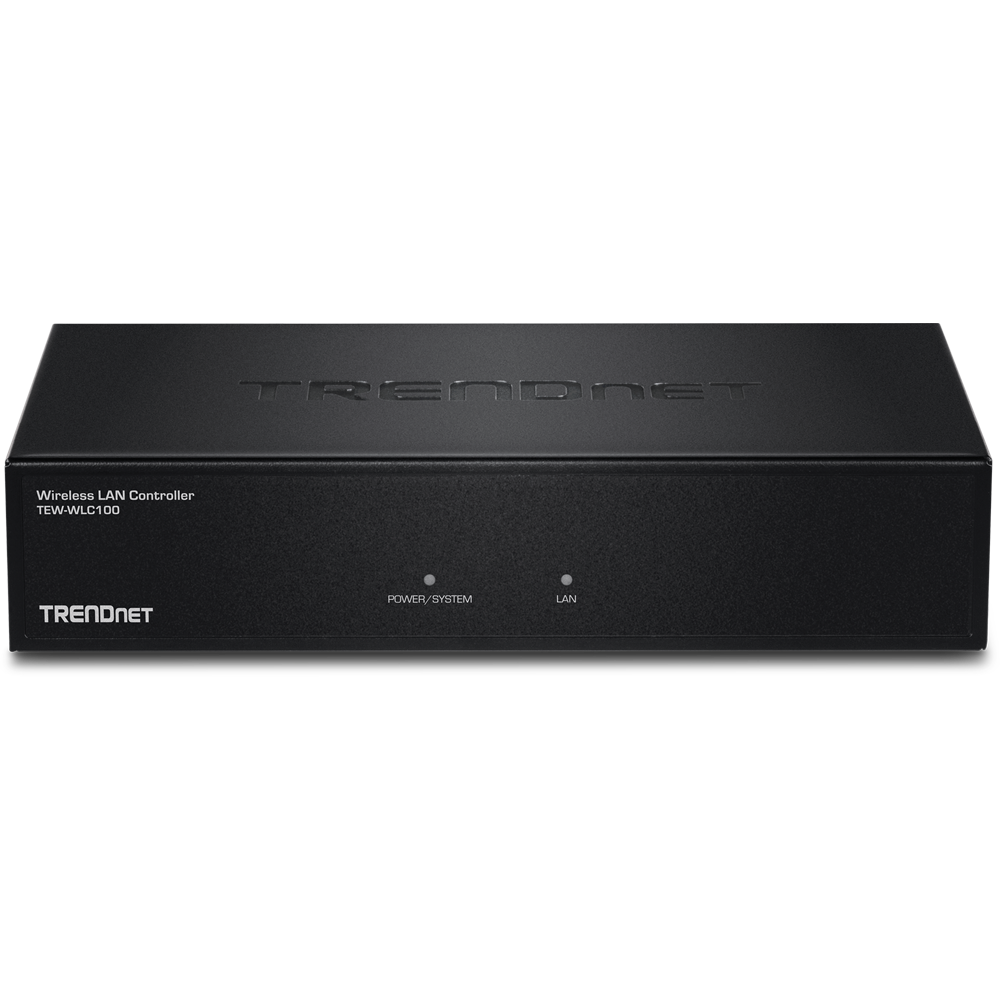

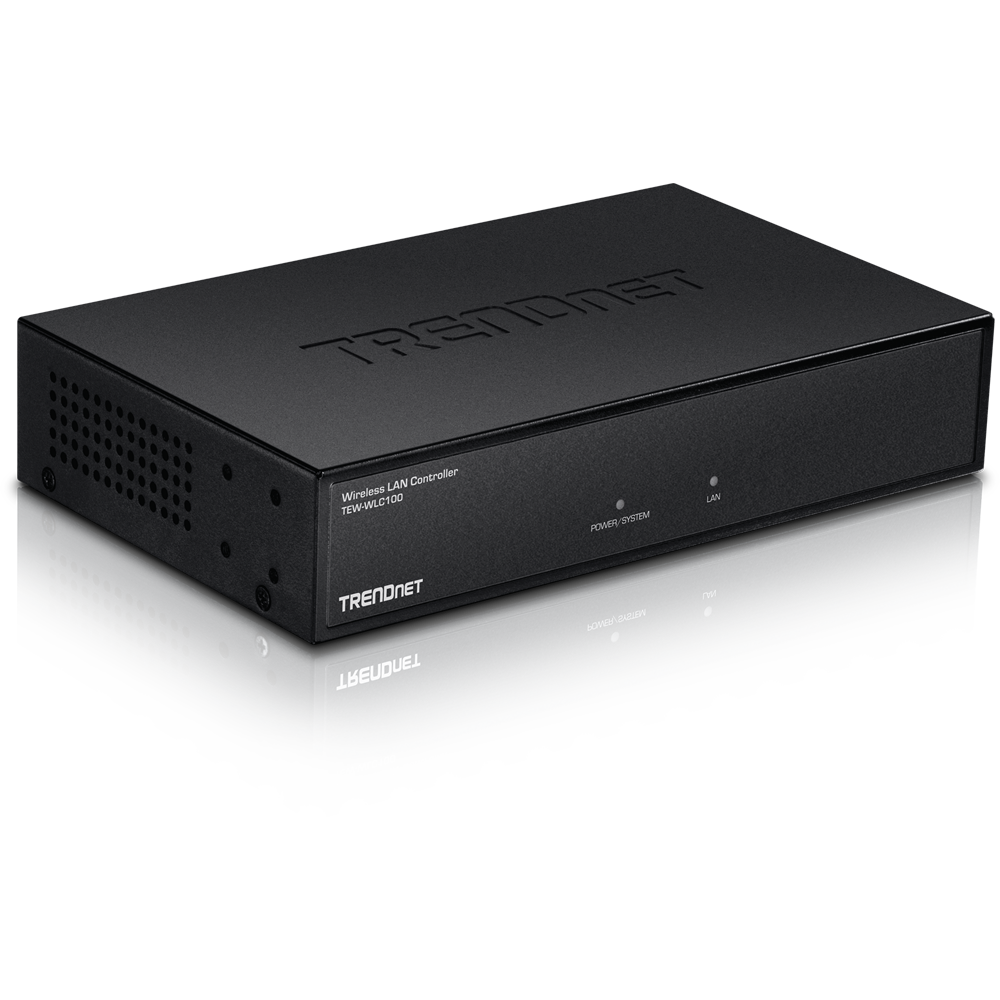

1 x TEW-WLC100 wireless LAN controller

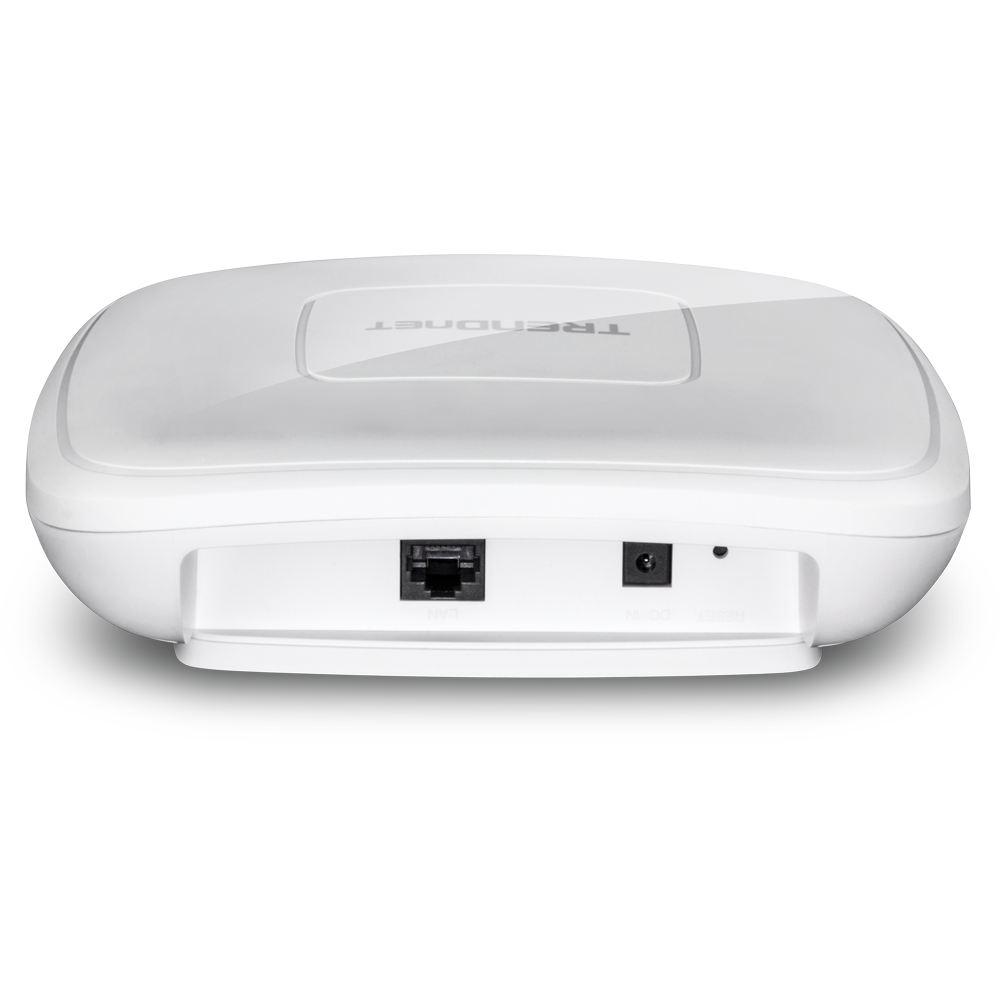

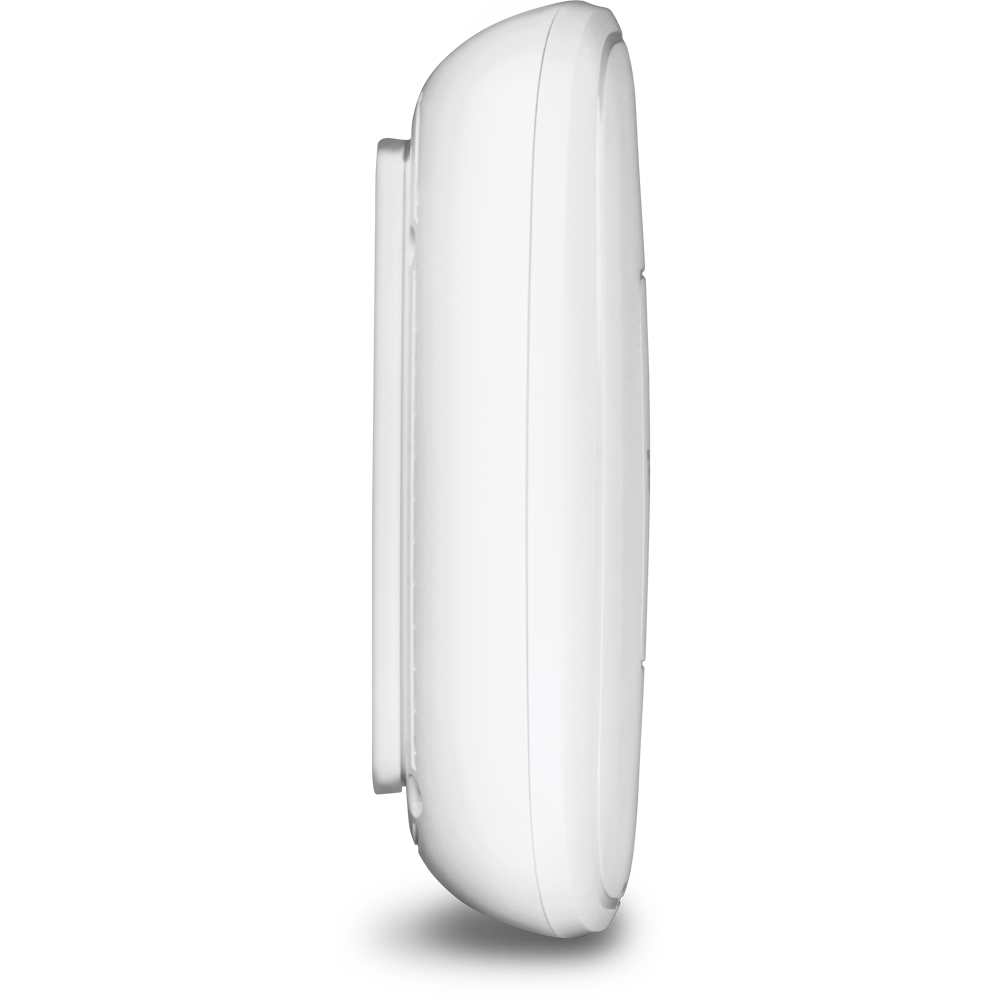

2 x TEW-821DAP AC1200 PoE access points

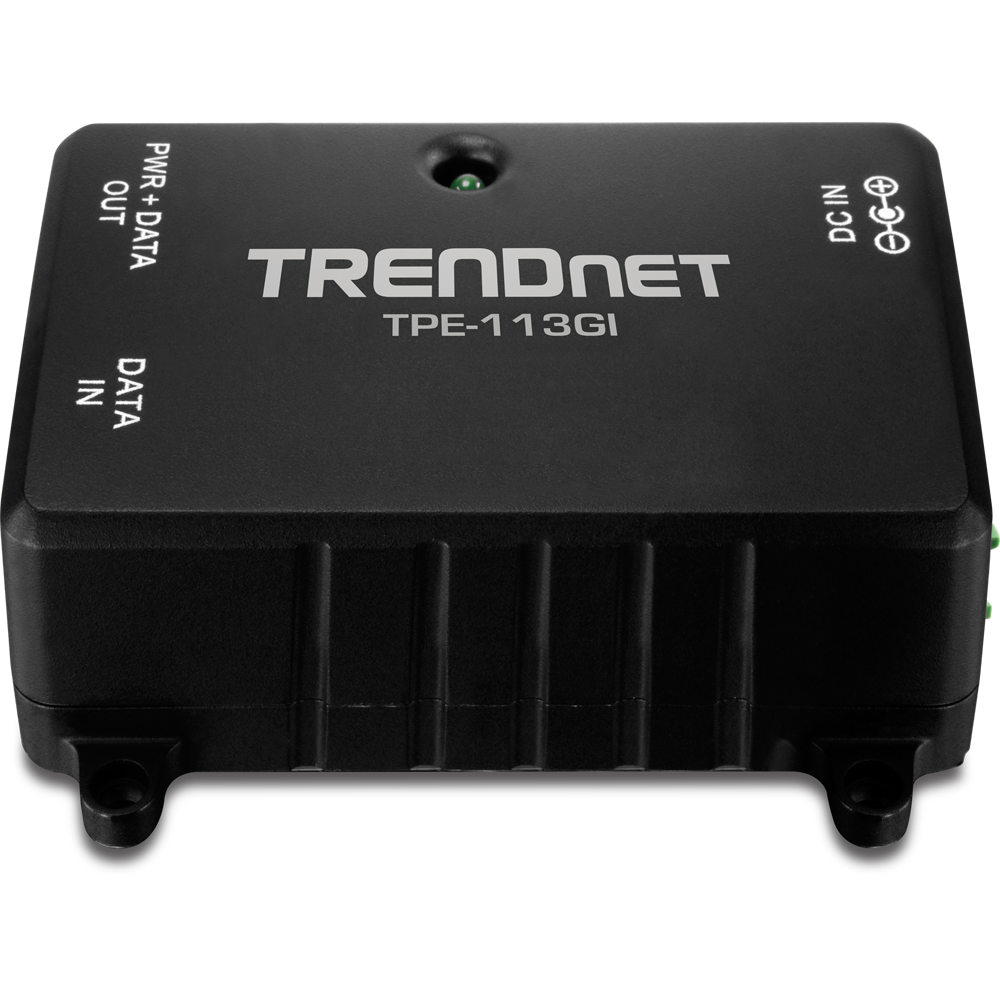

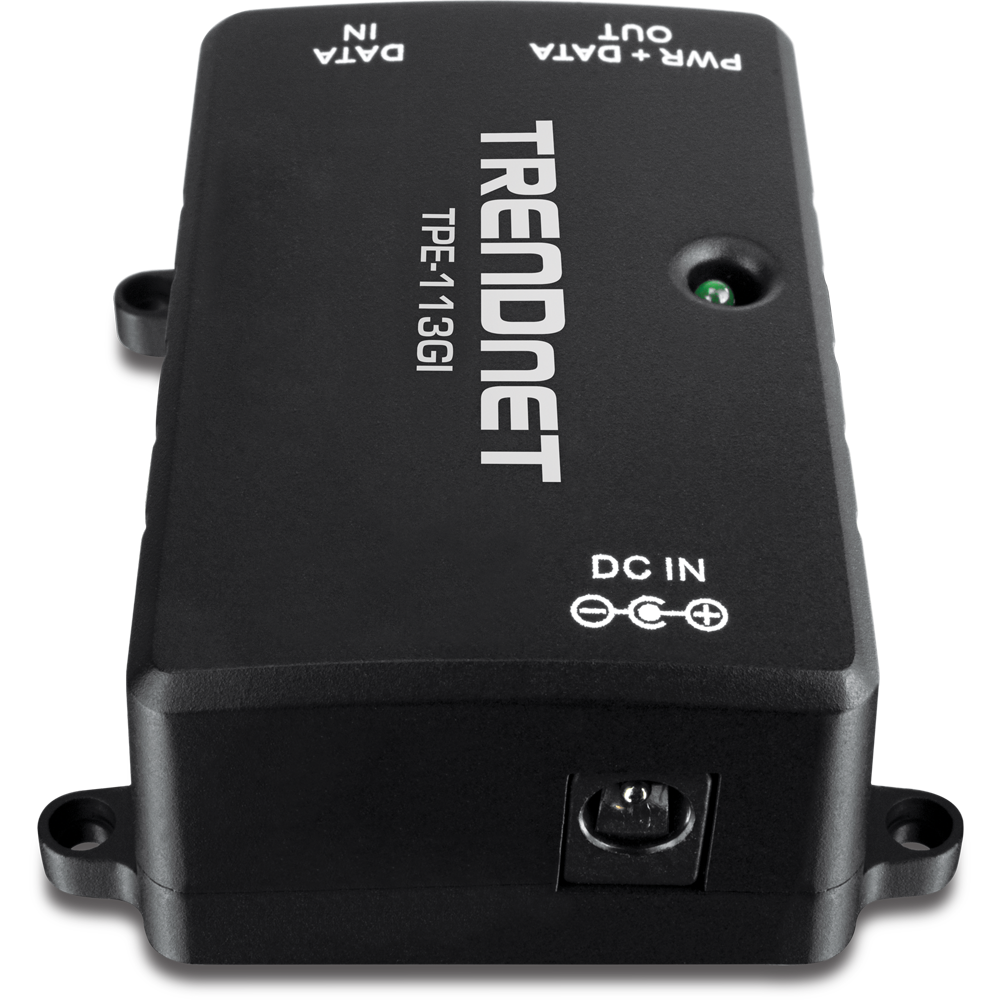

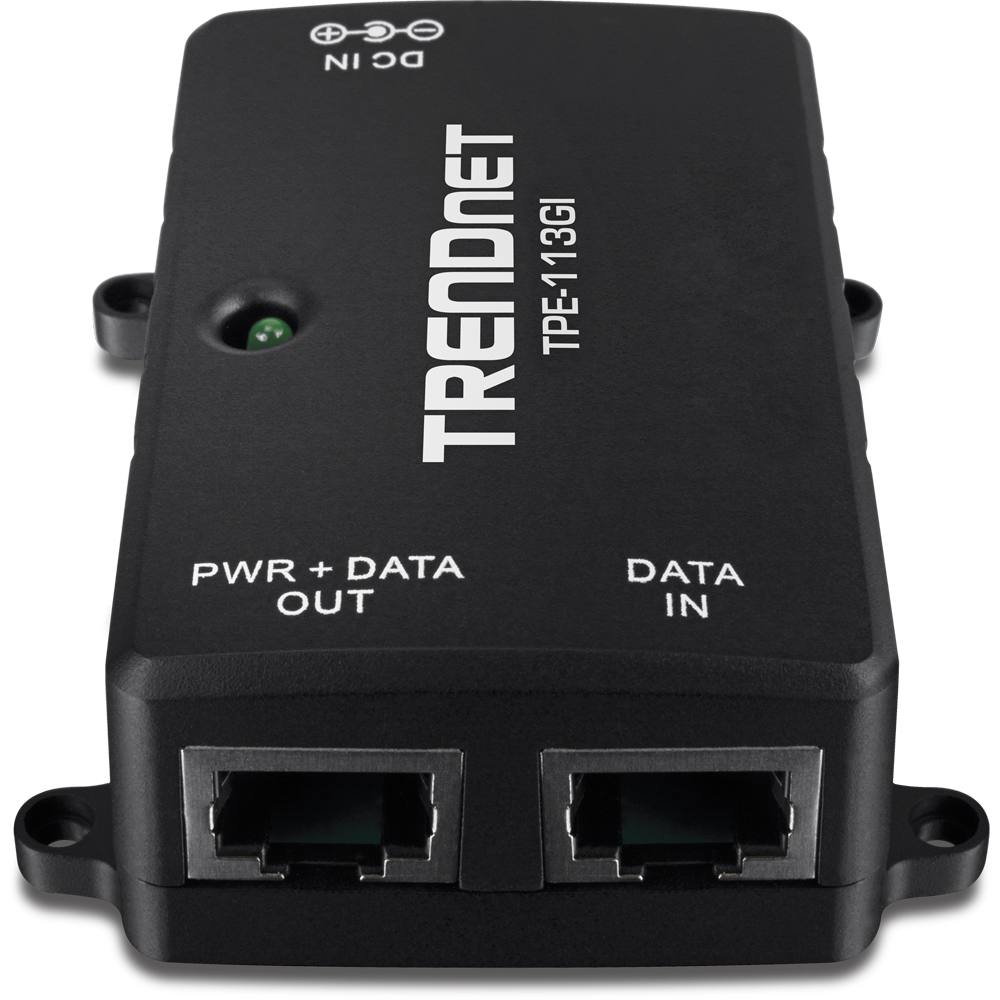

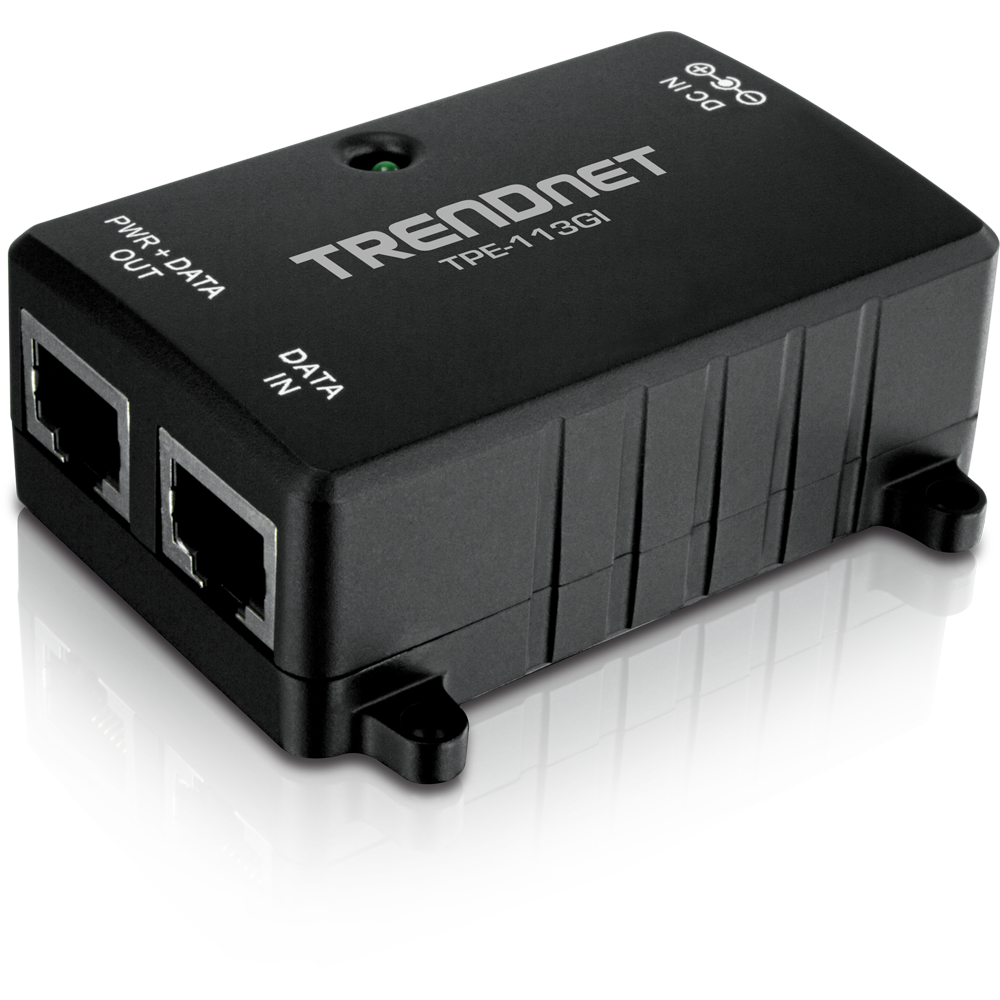

2 x TPE-113GI 802.3af Gigabit PoE injectors
2 x Network cables (1.5 m / 5 ft.)
TEW-WLC100 power adapter (12 V DC, 1 A)
Quick Installation Guide
CD-ROM (User's Guide)
Controller rack mount kit

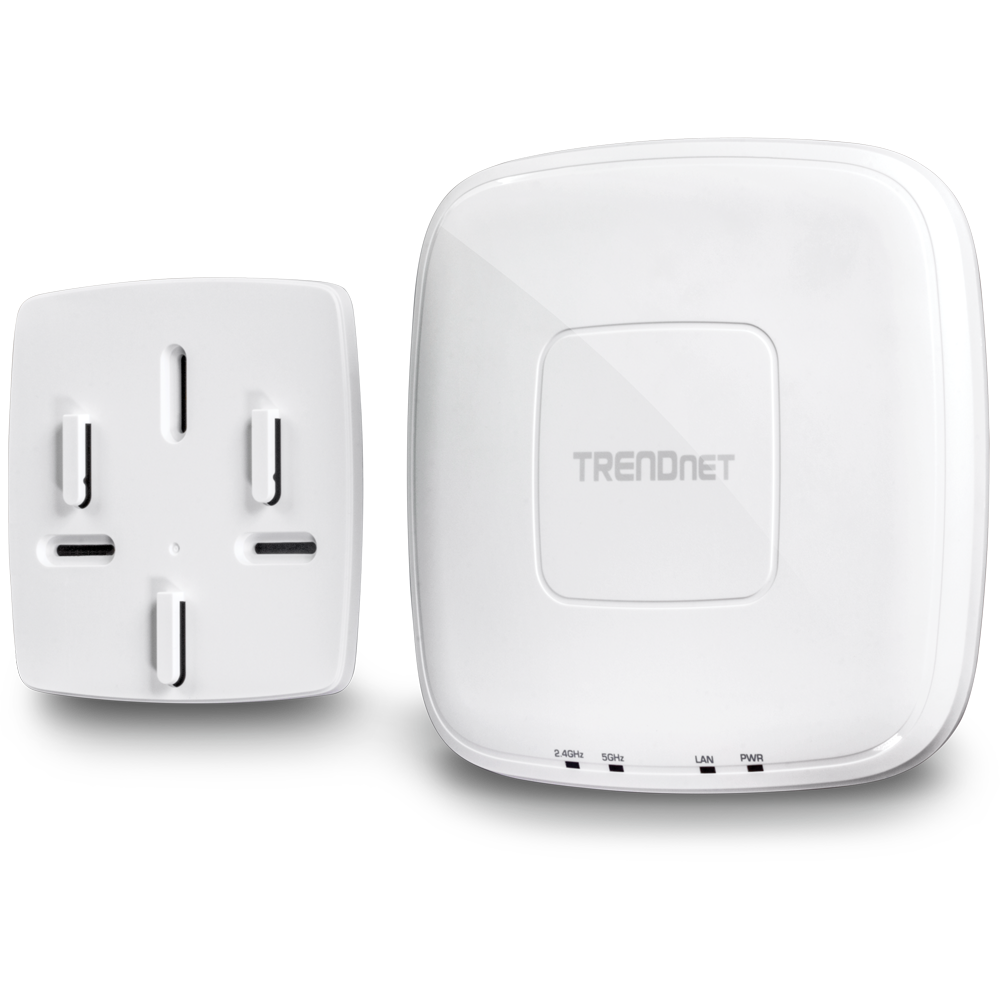

Access point mounting plates
*For wireless controller compatibility, access points must have the corresponding firmware versions listed below.
TEW-755AP (Firmware Version: 1.04 or above)
TEW-821DAP (Firmware Version: 1.06 or above)
TEW-825DAP (Firmware Version: 1.02 or above)
TEW-826DAP (Firmware Version: 1.00 or above)
**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter.
***Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
