16-Port 2.5G Desktop Switch

TEG-S3160   (Version V2)

   Select Another Version
  • 16 x 2.5G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • Fanless design eliminates noise
  • Rack mountable or wall mountable for installation flexibility
  • 80Gbps switching capacity
  • IEEE 802.3bz (2.5G) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface

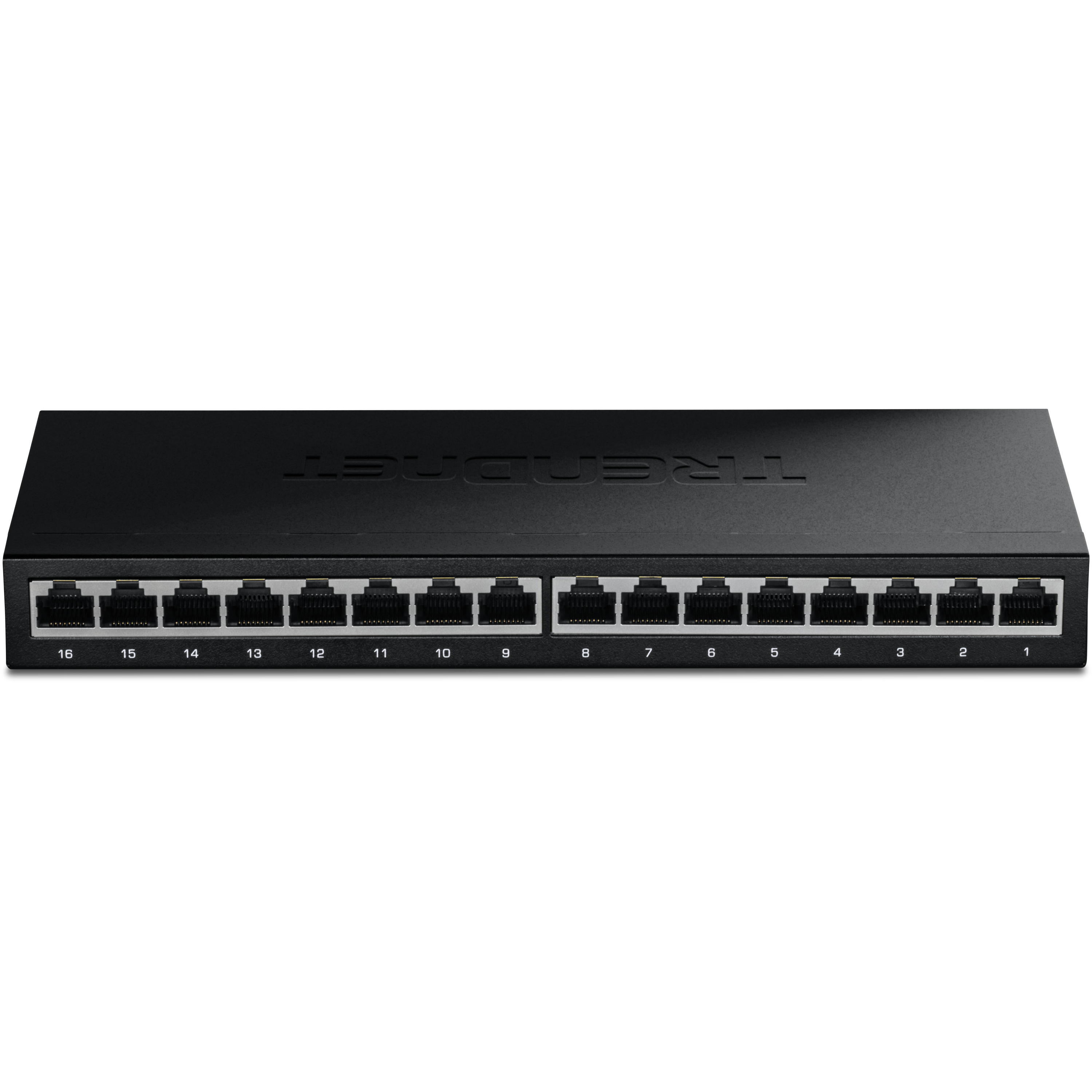

  • 16 x 2.5G RJ-45 ports (100Mbps/1Gbps/2.5Gbps)

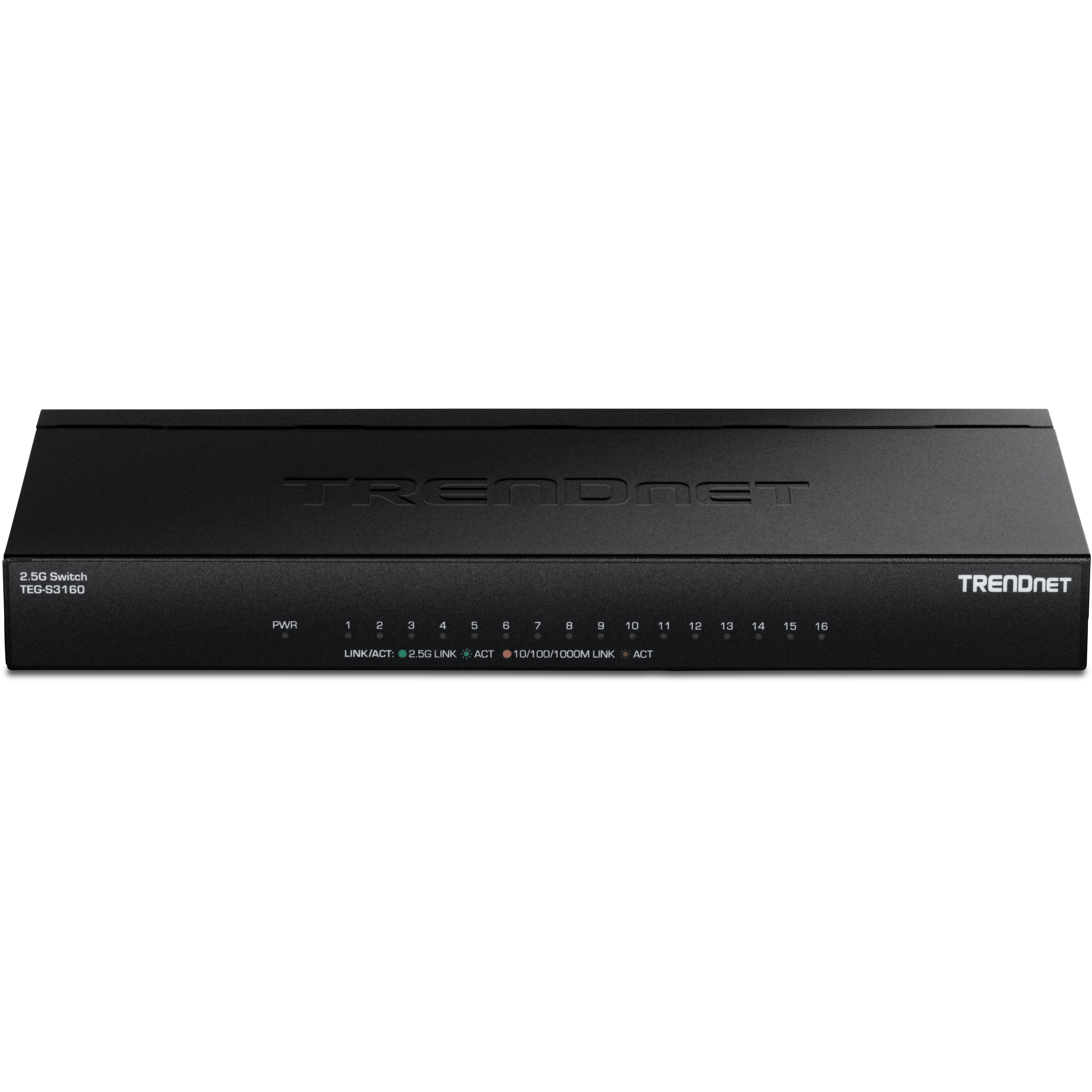

  • LED indicators
Performance
  • Switching Capacity: 80Gbps
  • RAM Buffer: 1MB
  • Jumbo Frames: 10KB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 59.52Mpps (64-byte packet size)
Special Features

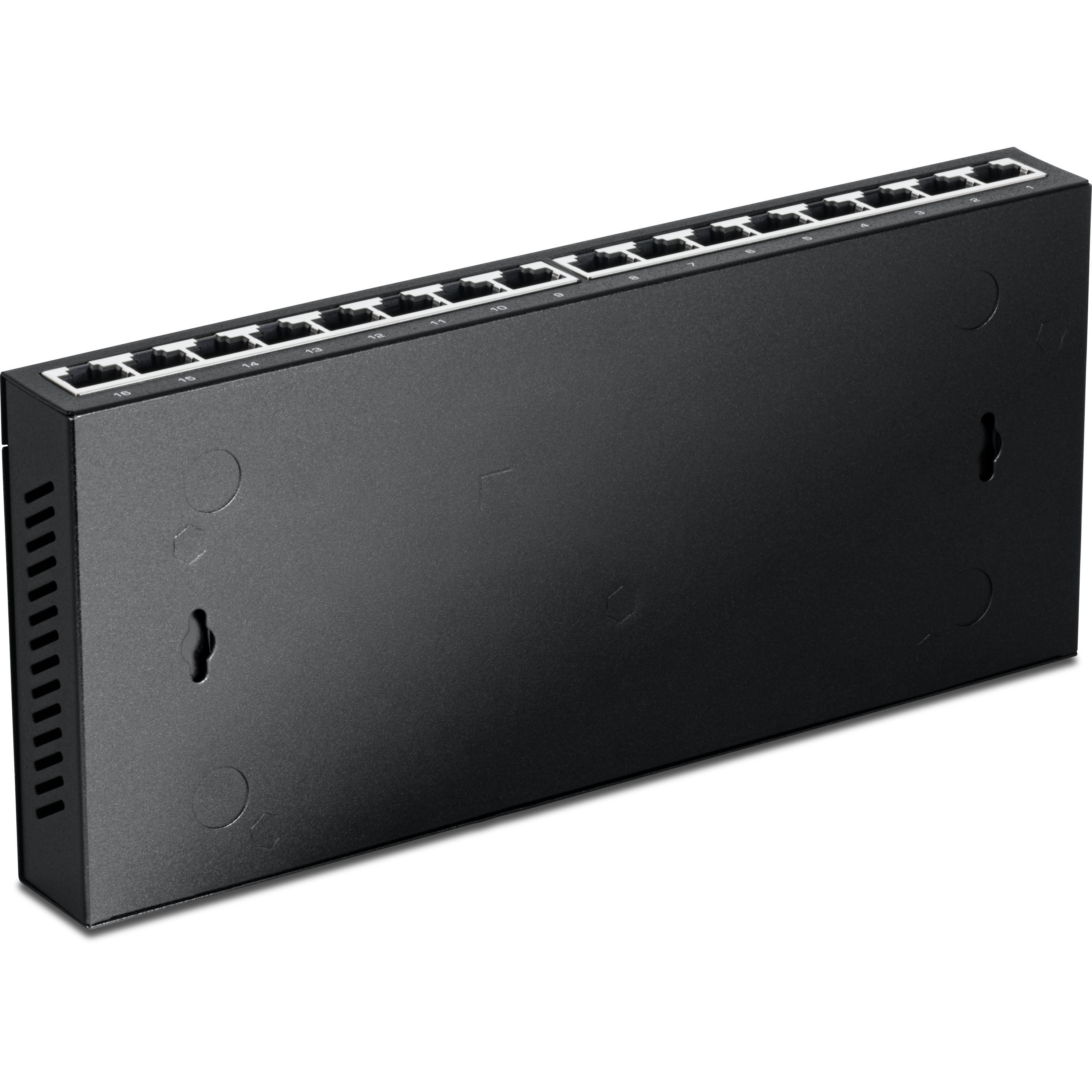

  • Wall mountable
  • Rack mountable
  • VLAN Passthrough
Power
  • Input: 90 – 264V AC, 47/63 Hz
  • Output: 12V DC, 2A
  • Max. Consumption: 12W
Fan/Acoustics

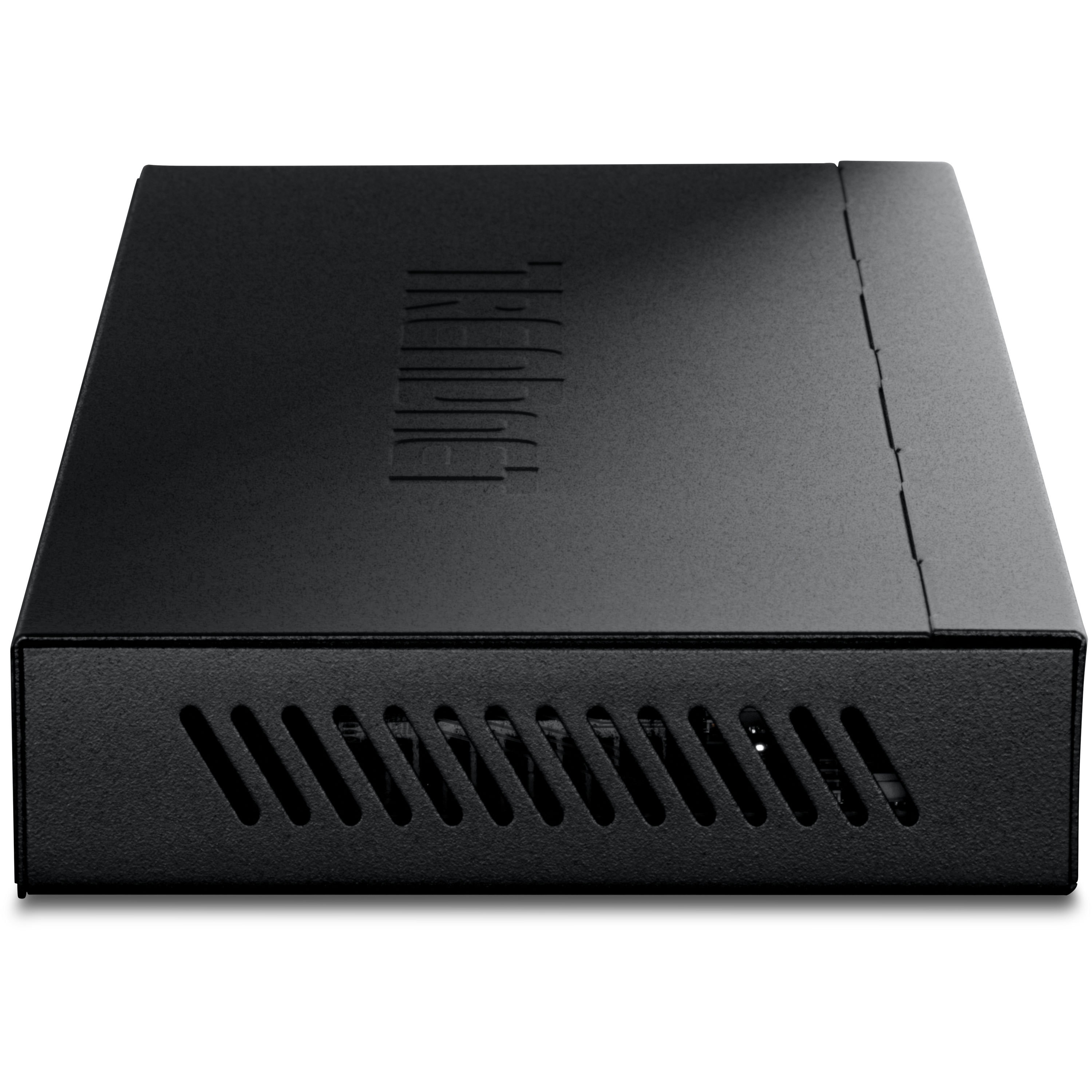

  • Fanless design
MTBF
  • 223,000 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 240 x 105 x 27mm (9,44 x 4,13 x 1,06 in.)
Weight
  • 694.56g (1.53 oz.)
Certifications
  • FCC
  • CE
Warranty

PACKAGE CONTENTS
  • TEG-S3160
  • Rackmount kit

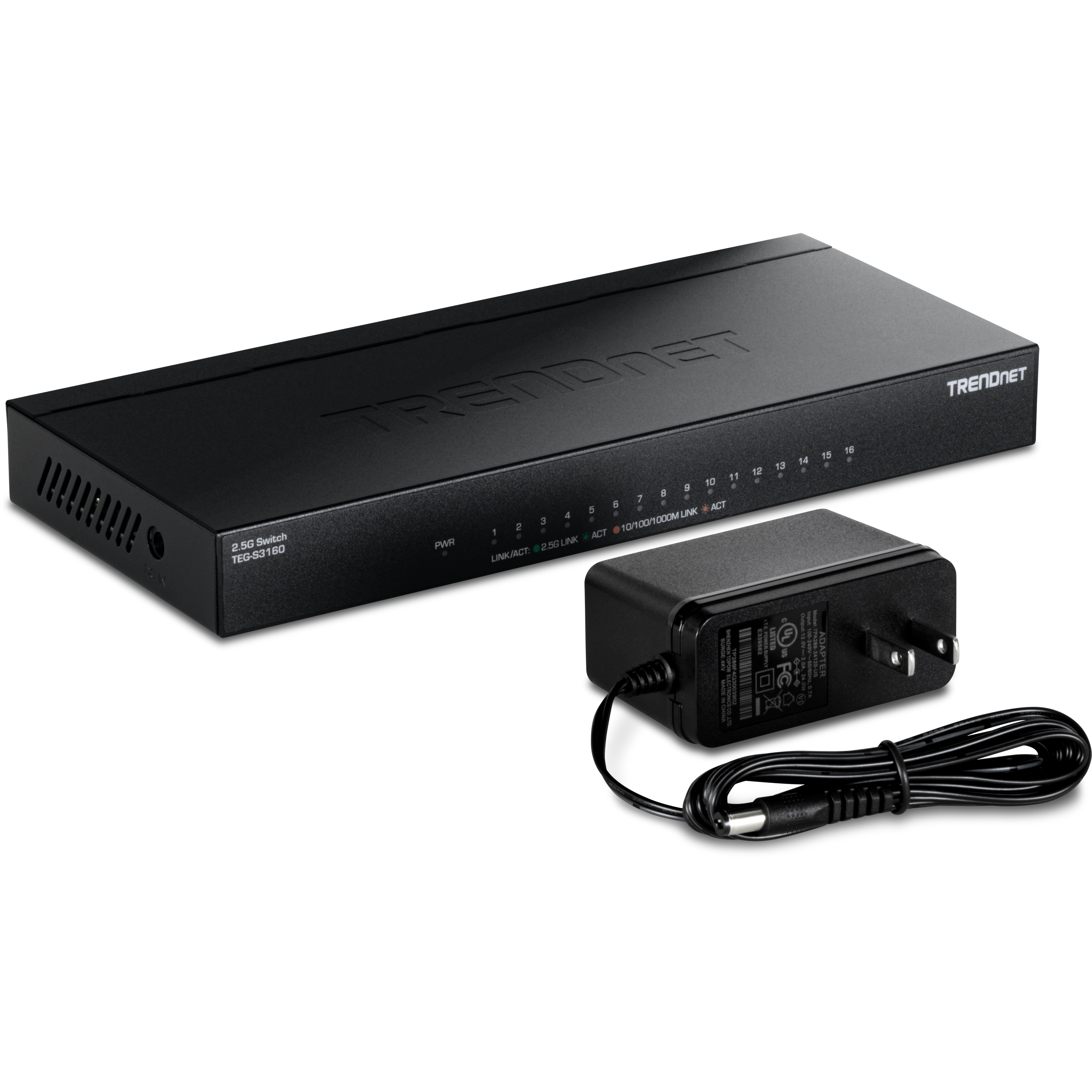

  • Power adapter (12V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
