PoE+ Wireless LAN Controller (Certified Refurbished)

RB-TEW-WLC100P   (Version v1.0R)

  • 4 x gigabit PoE+ ports, 1 x gigabit port
  • 60W PoE power budget
  • Centralized AP management
  • Manages up to 128 wireless access points
  • Compatible with TEW-755AP, TEW-821DAP and TEW-825DAP*
  • Supports IEEE 802.11k radio resource management and 802.11r fast roaming with Opportunistic Key Caching (OKC)
  • Captive portal for hotspot applications
  • Client and SSID bandwidth management
  • Upload floor plans to create WAP Maps™ for a visual overview of each access point's location
  • Airtime Fairness to equally balance WiFi client performance
Firmware
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Model: TEW-WLC100P
Hardware Version: v1.0R
------------------------------------------

Firmware Version:V2.08b01
Release Date: 10/2020
Release Note:

  • -Fixed security vulnerabilities

Filename: FW_TEW-WLC100P_v1(2.08b01).zip
SHA-1 Checksum: 47F18E9327CCA2C1BE5E0FB7F1FFBC6171C759B6
Date
10/9/2020
File Size
13.29 mb
Download
Datasheet
Datasheet (English)
Filename: EN_datasheet_TEW-WLC100P(v1.0R).pdf
Date
7/3/2018
File Size
1.73 mb
Download Email
Datasheet (Français)
Filename: FR_datasheet_TEW-WLC100P(v1.0R).pdf
Date
7/3/2018
File Size
1.73 mb
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TEW-WLC100P(v1.0R).pdf
Date
7/3/2018
File Size
1.78 mb
Download Email
Datasheet (Português)
Filename: PO_datasheet_TEW-WLC100P(v1.0R).pdf
Date
7/3/2018
File Size
1.74 mb
Download Email
Datasheet (Español)
Filename: SP_datasheet_TEW-WLC100P(v1.0R).pdf
Date
7/3/2018
File Size
1.73 mb
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TEW-WLC100P(v1.0R).pdf
Date
7/3/2018
File Size
1.73 mb
Download Email
Quick Installation Guide
Quick Installation Guide (English)
Filename: EN_Web_TEW-WLC100P(V1.0R).pdf
Date
11/7/2017
File Size
3.46 mb
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEW-WLC100P(V1.0R).pdf
Date
11/7/2017
File Size
3.88 mb
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEW-WLC100P(V1.0R).pdf
Date
11/7/2017
File Size
3.02 mb
Download
Quick Installation Guide (Português)
Filename: PT_Web_TEW-WLC100P(V1.0R).pdf
Date
11/7/2017
File Size
3.06 mb
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEW-WLC100P(V1.0R).pdf
Date
11/7/2017
File Size
3.13 mb
Download
Quick Installation Guide (Pусский)
Filename: RU_TEW-WLC100P(V1.0R).pdf
Date
4/5/2018
File Size
2.89 mb
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TEW-WLC100P(V1.0R).pdf
Date
11/7/2017
File Size
3.05 mb
Download
User's Guide
User's Guide
Filename: UG_TEW-WLC100P(v1).pdf
Date
11/7/2017
File Size
2.70 mb
Download

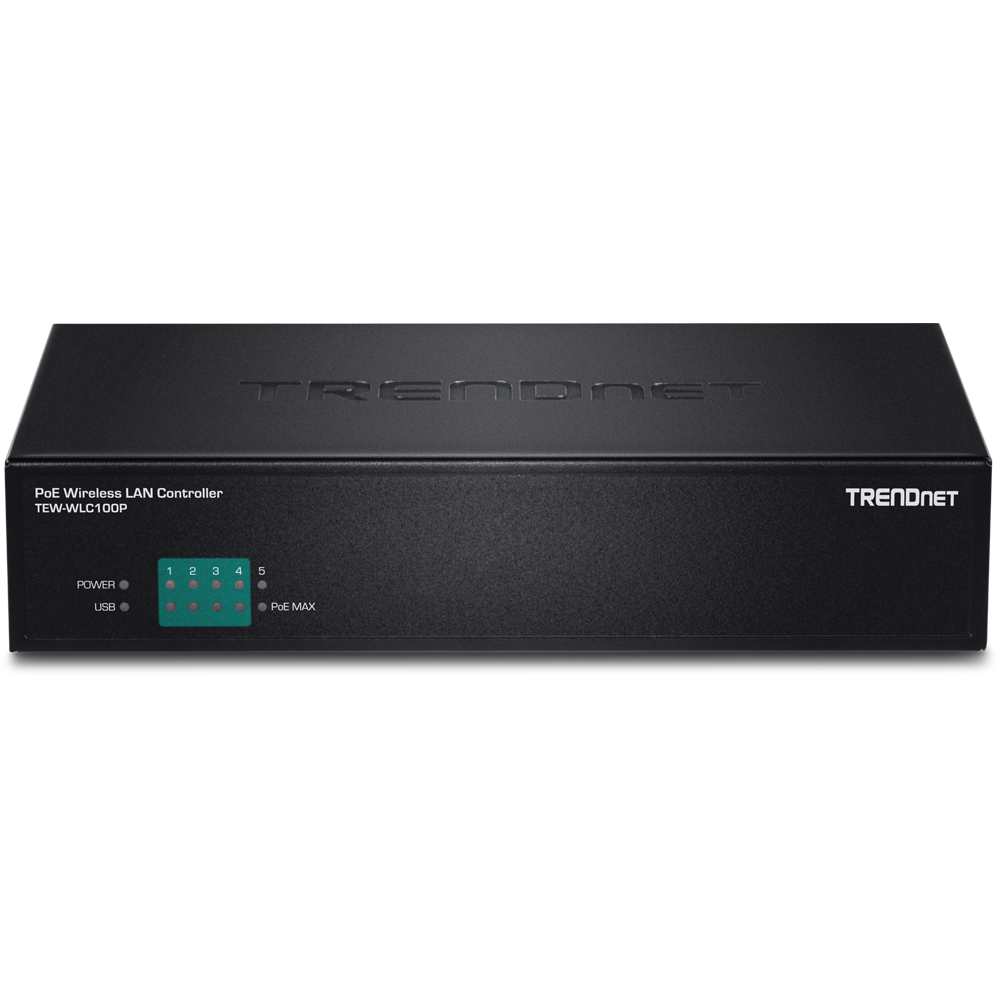

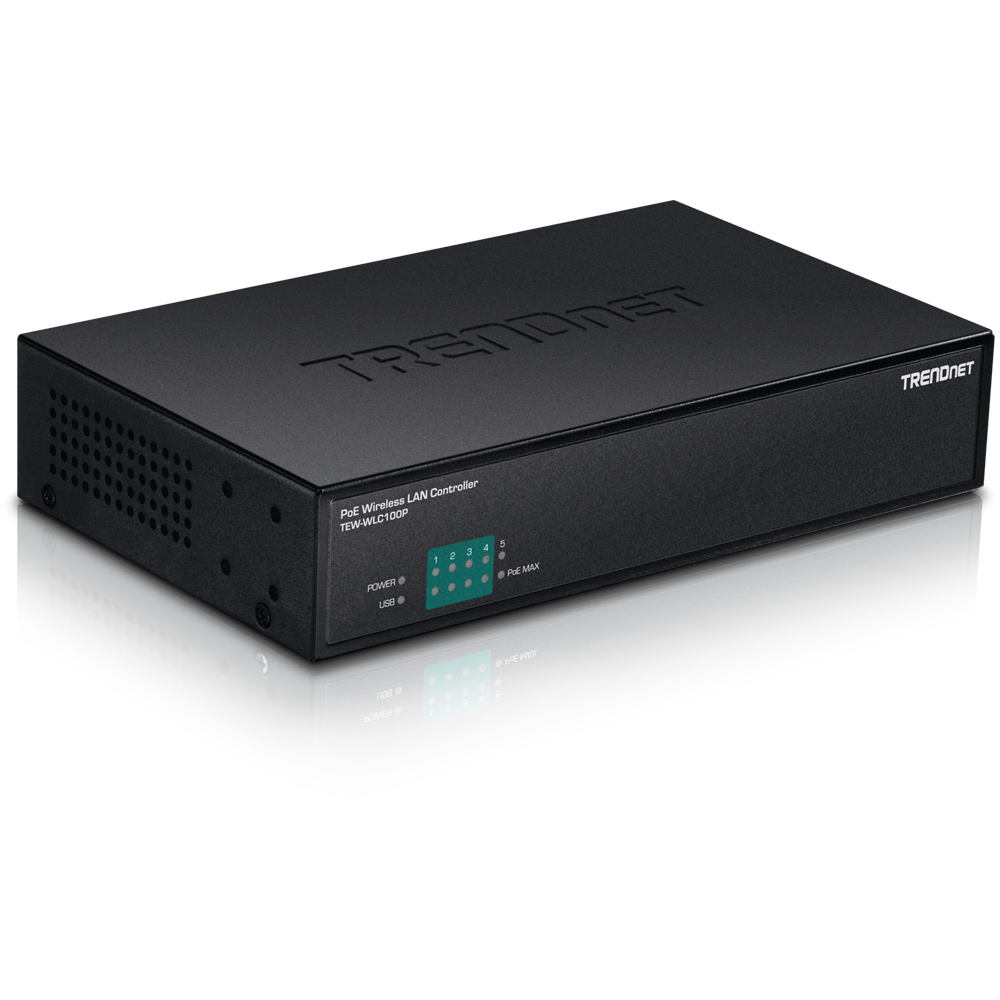

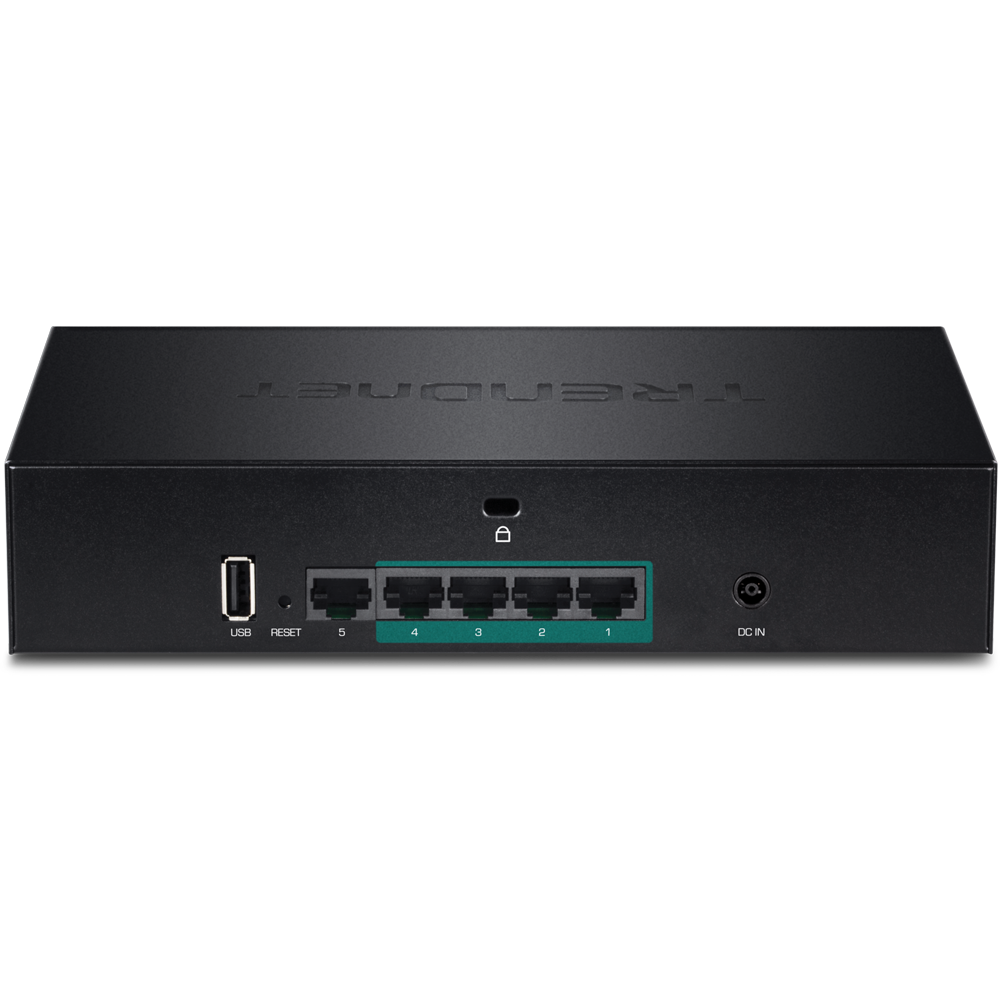

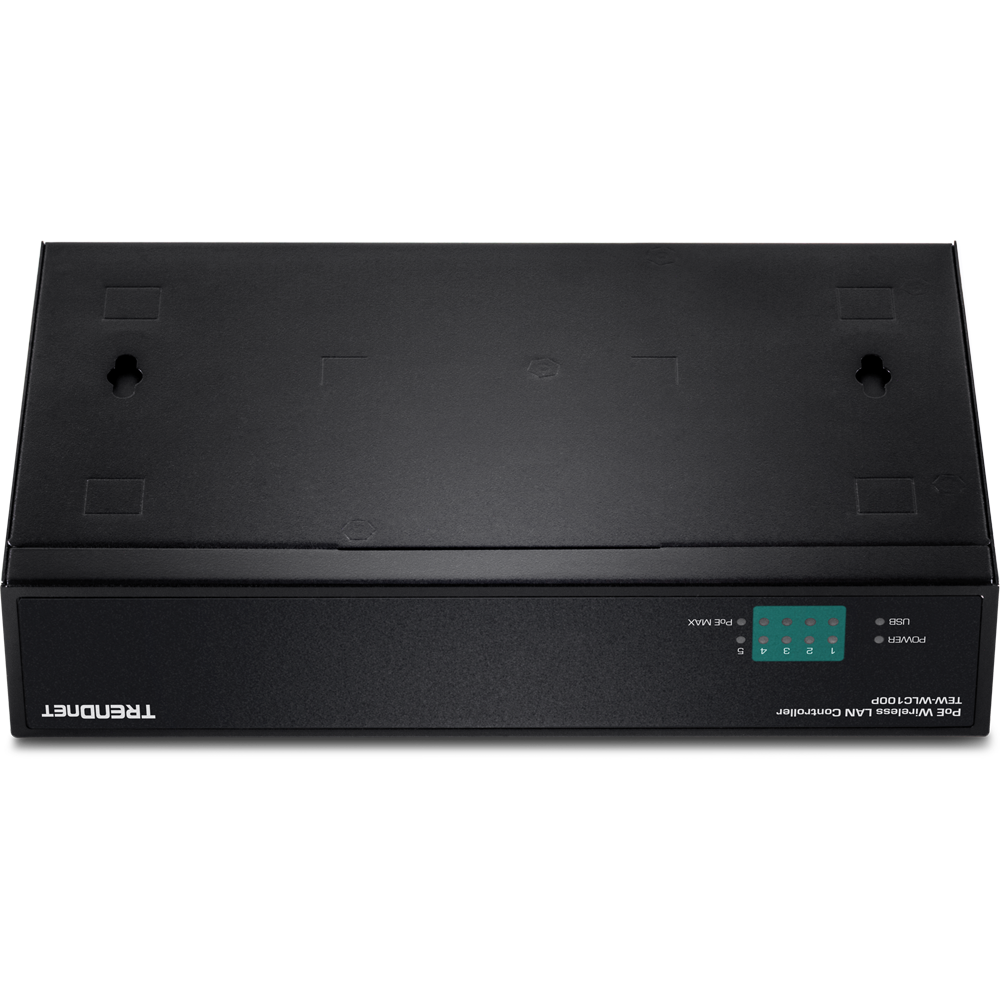

Product Images

PNG Image
File Size: 1.92 mb
Date: 11/7/2017
Download

PNG Image
File Size: 1.66 mb
Date: 11/7/2017
Download

PNG Image
File Size: 1.58 mb
Date: 11/7/2017
Download

PNG Image
File Size: 2.43 mb
Date: 11/7/2017
Download
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 1 x USB port (Firmware upgrade and configuration backup/restore)
  • On/Off Power button
  • LED indicators
  • Reset button
Management
  • HTTP Web based GUI
  • Local or online firmware upgrade
  • Internal log
  • Configuration Backup/Restore
  • NTP
Access Point Management
  • Manage up to 128 access points
  • IP address, gateway, and DNS settings
  • SSID/Network name
  • Wireless channel
  • Wireless encryption: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
  • 802.11 mode
  • Channel width
  • Transmit power
  • SSID broadcast
  • Bandwidth control (download limit per SSID & client, upload limit per client)
  • Set RSSI scanning/threshold
  • Seamless WiFi roaming using 802.11r and OKC (opportunistic key caching) protocols
  • 802.11k radio resource management
  • Band steering
  • Airtime Fairness
  • Access point/client statistics monitoring
  • Batch firmware upgrade deployment
  • Captive portal
  • Client blacklist
  • 802.1Q VLAN
  • Create multiple access point groups for management flexibility
  • Upload custom floor plans using WAP Maps™
Access Point Compatibility
  • TEW-755AP (Firmware Version: 1.04 or above)
  • TEW-821DAP (Firmware Version: 1.06 or above)
  • TEW-825DAP (Firmware Version: 1.02 or above)
PoE
  • Power budget: 62W
  • Pins 1,2 for power+ and pin 3,6 for power- (mode A)
  • Enable/disable PoE per port
  • PoE scheduling
  • PD auto/manual classification
  • PoE port priority
Power
  • Input: 100 – 240V AC, 50/60Hz
  • Output: 54V DC, 1.67A external power adapter
  • Max. consumption: 90W
Operating Temperature
  • 0 – 40° C (32 – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 215 x 130 x 44.45mm (8.27 x 6.3 x 1.73 in.)
  • Rack mountable 1U height
Weight
  • 762g (1.7 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 90-day limited
PACKAGE CONTENTS
  • TEW-WLC100P
  • Quick Installation Guide
  • CD-ROM (User's Guide)
  • Power adapter (54V DC, 1.67A)
  • Rackmount kit

*For wireless controller compatibility, access points must have the corresponding firmware versions listed below.
  • TEW-755AP (Firmware Version: 1.04 or above)
  • TEW-821DAP (Firmware Version: 1.06 or above)
  • TEW-825DAP (Firmware Version: 1.02 or above)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
