Indoor / Outdoor 5MP H.265 WDR PoE IR Bullet Network Camera

TV-IP316PI   (Version v1.0R)

  • 5MP HD resolution
  • Smart covert IR LEDs for night vision up to 30 meters (98 ft.)
  • Outdoor IP67 weather rating
  • Save on installation costs with Power over Ethernet (PoE)
  • 120dB Wide Dynamic Range image balancing
  • Program motion detection recording and email alerts
  • Micro SD card slot (up to 128GB)
  • Free iOS® and Android mobile apps


DISCONTINUED PRODUCT

The TV-IP316PI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP1318PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Filename: Camera_Utility.zip
SHA-1 Checksum: 679B96BB0EF1F0763DC23D01D670C8FC4E943004
Date: 10/27/2017
File Size: 20.98 MB

Drivers/Utility

Web plug-in for MAC OS

Release Date: 07/2018
Release Note:
  • Updated latest Mac OS 10.12 support

Filename: Mac_Plugin.zip
SHA-1 Checksum: 52A5EC411C0FC29CF41C3557E08437EA83AE5B16
Date: 7/31/2018
File Size: 3.66 MB

Firmware

DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.4.6 build 180418
Release Date: 4/2018
Release Notes:

  1. Addressed IP scan issue

Filename: FW_TV-IP313_316_317_318_319PI(5.4.6 180418).zip
SHA-1 Checksum: 114819D0680EAFED4652CB225686B8A7FA190A67
Date: 1/23/2020
File Size: 26.83 MB

Software

Release Note:

  1. Added TV-IP323PI, TV-IP460PI, TV-IP344PIv2, TV-IP345PIv2, TV-IP328PI, TV-IP329PI support
  2. Fixed TV-NVR408, TV-NVR416 detection issue
  3. Fixed PT speed on TV-IP420P, TV-IP440PI issue
  4. Removed offline activation option

Version 1.12.0

Product Information
Filename: TRENDnetView_EVO__x64_1.12.0.zip
SHA-1 Checksum: A4566734A9DBAE4DD283B85576AEB4E0FF8A0B96
Date: 2/14/2019
File Size: 372.89 MB

Release Note:

  1. Added TV-IP323PI, TV-IP460PI, TV-IP344PIv2, TV-IP345PIv2, TV-IP328PI, TV-IP329PI support
  2. Fixed TV-NVR408, TV-NVR416 detection issue
  3. Fixed PT speed on TV-IP420P, TV-IP440PI issue
  4. Removed offline activation option

Version 1.12.0

Product Information
Filename: TRENDnetView_EVO__x86_1.12.0.zip
SHA-1 Checksum: B9F07E9FAA203B8CA71FCB1489EAC236BF1D0E23
Date: 2/14/2019
File Size: 269.18 MB

Datasheet

Filename: EN_datasheet_TV-IP316PI_(V1.0R).pdf
Date: 11/2/2017
File Size: 725.06 KB
Filename: FR_datasheet_TV-IP316PI_(V1.0R).pdf
Date: 11/2/2017
File Size: 727.76 KB
Filename: GE_datasheet_TV-IP316PI_(V1.0R).pdf
Date: 11/2/2017
File Size: 728.07 KB
Filename: PO_datasheet_TV-IP316PI_(V1.0R).pdf
Date: 11/2/2017
File Size: 725.62 KB
Filename: SP_datasheet_TV-IP316PI_(V1.0R).pdf
Date: 11/2/2017
File Size: 726.79 KB
Filename: IT_datasheet_TV-IP316PI_(V1.0R).pdf
Date: 11/2/2017
File Size: 725.26 KB

Quick Installation Guide

Filename: EN_Web_TV-IP316PI_317PI(V1.0R).pdf
Date: 9/27/2017
File Size: 2.94 MB
Filename: FR_Web_TV-IP316PI_317PI(V1.0R).pdf
Date: 9/27/2017
File Size: 3.02 MB
Filename: GE_Web_TV-IP316PI_317PI(V1.0R).pdf
Date: 9/27/2017
File Size: 2.33 MB
Filename: PT_Web_TV-IP316PI_317PI(V1.0R).pdf
Date: 9/27/2017
File Size: 2.31 MB
Filename: SP_Web_TV-IP316PI_317PI(V1.0R).pdf
Date: 9/27/2017
File Size: 2.32 MB
Filename: ITA_Web_TV-IP316PI_317PI(V1.0R).pdf
Date: 9/27/2017
File Size: 2.30 MB

User's Guide

Filename: UG_TV-IP316PI_(v1.0R).pdf
Date: 9/27/2017
File Size: 4.27 MB

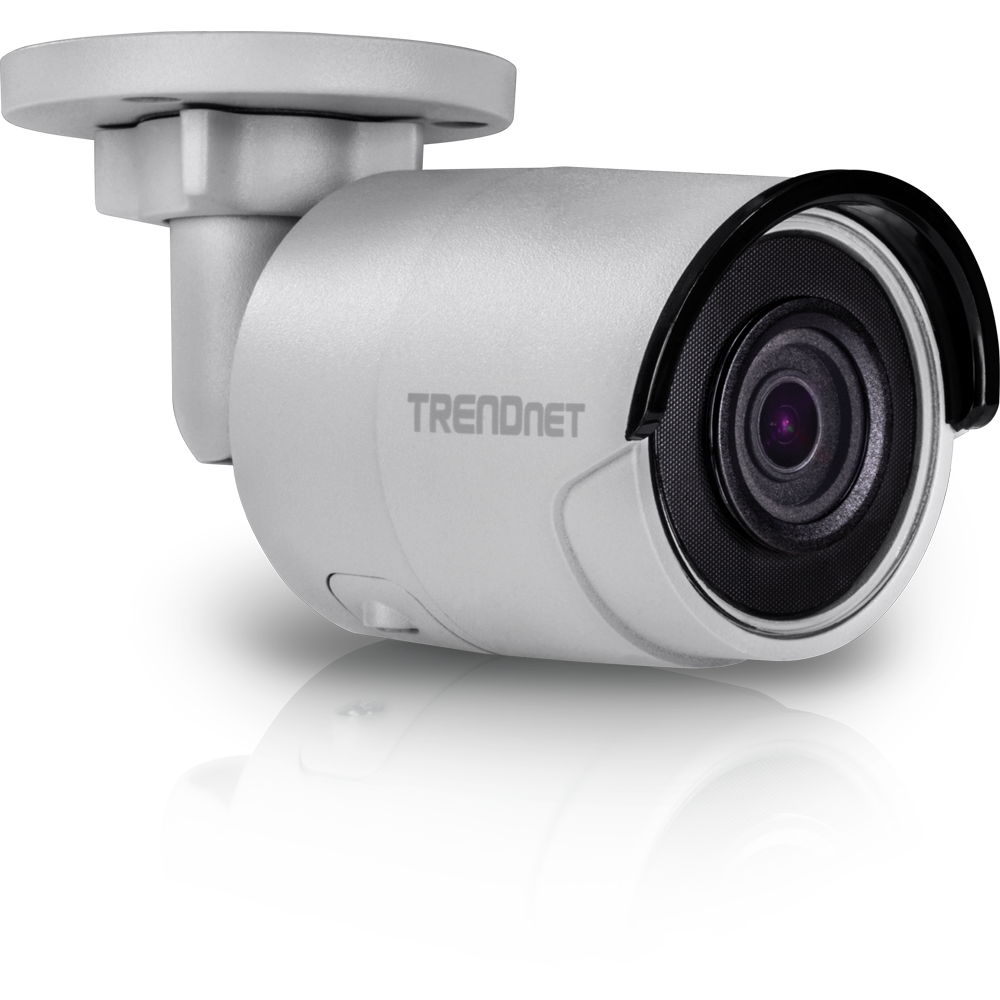

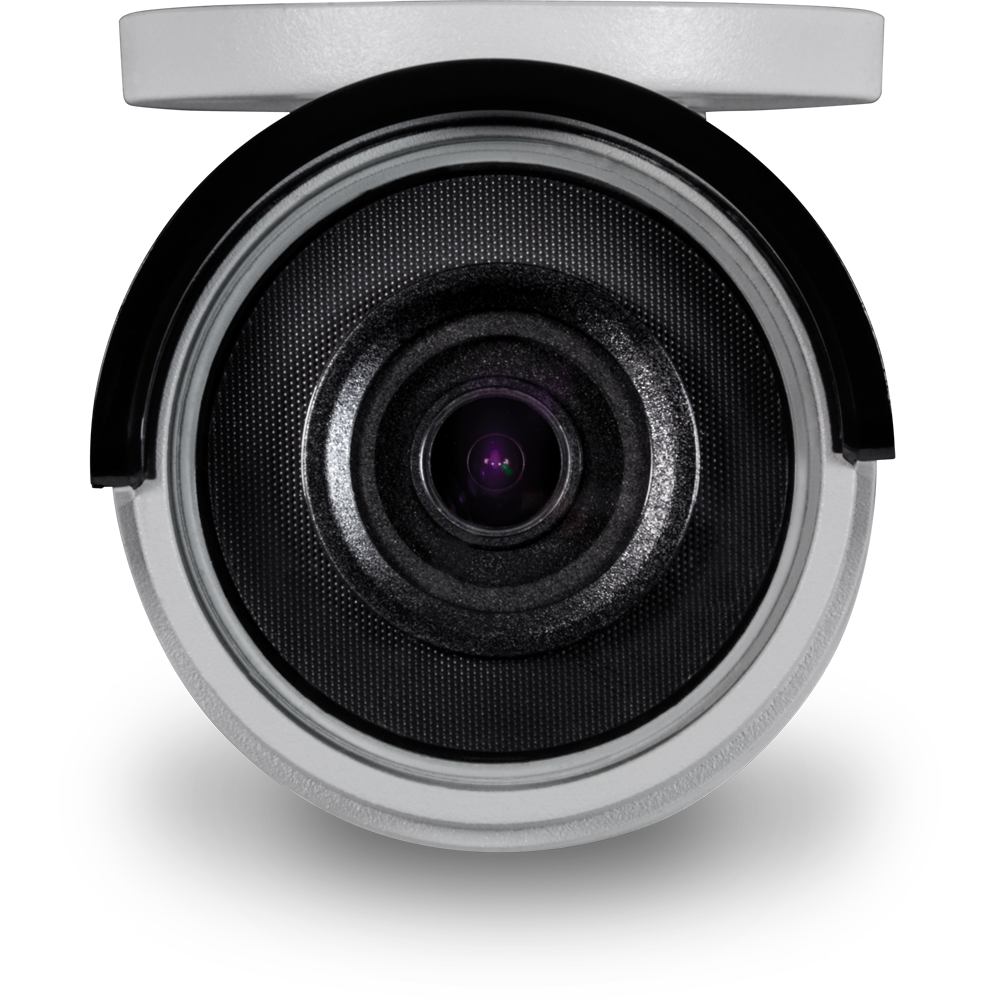

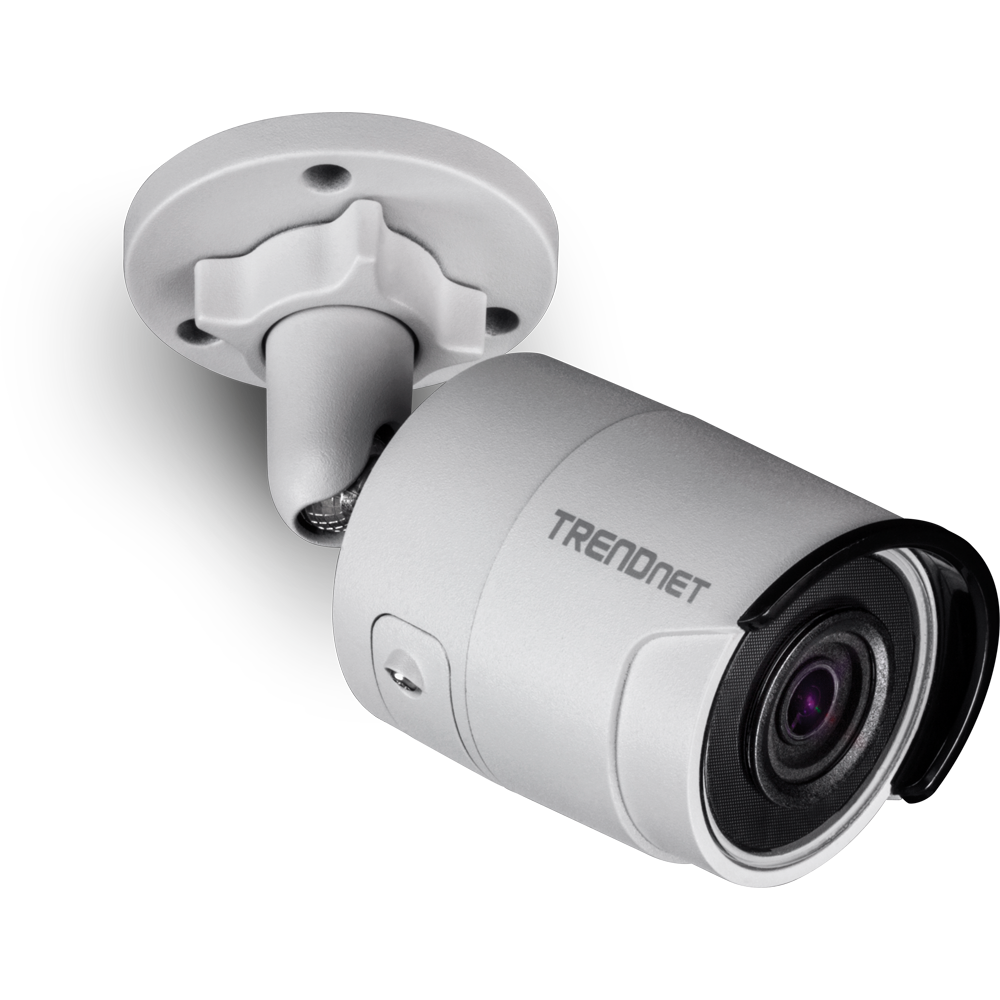

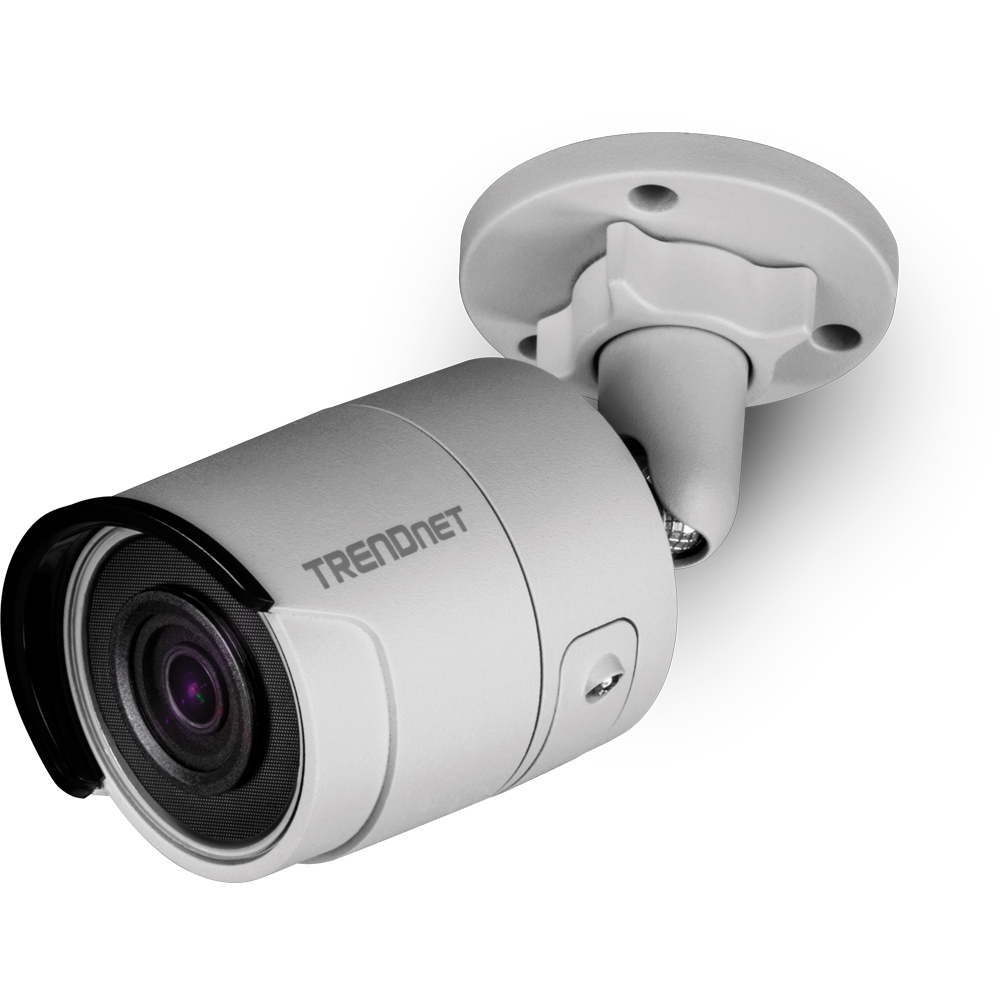

Product Images

PNG Image
File Size: : 3.01 MB
Date: : 9/27/2017
PNG Image
File Size: : 3.80 MB
Date: : 9/27/2017
PNG Image
File Size: : 2.50 MB
Date: : 9/27/2017
PNG Image
File Size: : 2.46 MB
Date: : 9/27/2017
ROHS compliant WEEE crossed-out bin symbol.
Lens
  • Focal length: 2.8mm @ F1.2
  • Sensor: 1/2.9” CMOS sensor
  • Digital zoom: 4x
  • WDR: 120dB
Viewing
  • Horizontal angle: 81˚
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • IR distance: 30m (98 ft.)
  • IR LED wavelength: 850nm
Compression
  • H.265+ / H.265
  • H.264+ / H.264
  • MJPEG
Resolution
  • Main stream: H.265+/H.265/H.264+/H.264: 2944 x 1656 up to 20 fps
  • Sub stream: H.265/H.264/MJPEG: 640 x 360 up to 30 fps
  • Third stream: H.265/H.264: 1280 x 720 up to 30 fps
Hardware Standards
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
Device Interface
  • 10/100Mbps PoE port
  • Micro SD card slot
  • Power jack
  • Reset button
Micro SD slot
  • Supports Micro SD/SDHC/SDXC (not included)
  • Up to 128GB
  • IP67 weather rated
Network Protocol
  • IPv4, IPv6, UDP, TCP/IP
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
Compliant Standard
  • ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Dimension
  • 155 x 70 x 70mm (6.1 x 2.75 x 2.75 in.)
Weight
  • 400g (0.9 lb.)
Operating Temperature
  • -30° – 60° C (-22° – 140° F)
Humidity
  • Max. 95% non-condensing
Power
  • Input: PoE
  • Consumption: Max. 7W
Power Adapter (optional model: 12VDC1A)
  • Input: 100 – 240V AC , 50/60Hz
  • Output: 12V DC, 1A external power adapter
Management Interface
  • Multi-language support: English, French, German, Spanish, and Portuguese
  • Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch. Smart Supplement Light (Smart IR), BLC, WDR, white balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard
  • WDR enhances video quality in high contrast daytime lighting
  • Digital Noise Reduction removes digital noise from the video signal
  • Recording: to computer, or SAMBA share
  • Time, date, and text overlay
  • IP Address Filter
  • Video Recording: scheduled, motion detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Privacy masks: define custom privacy masks
  • Tamper detection function: email notification
  • Snapshot: real time snapshot and motion triggered
  • Supported dynamic DNS services: dyn.com and no-ip.com
  • Supports remote management
  • Compatible browsers: Chrome or Firefox® (live view resolution up to 1280 x 720), Internet Explorer®
TRENDnetVIEW EVO Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, Windows Server® 2012, 2008
TRENDnet IPVIEW App
  • Free iOS® and Android apps
  • View live camera video on a mobile device
  • Take snapshots
  • Zoom
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS

  • TV-IP316PI
  • Weather seal
  • Quick installation guide
  • Camera mounting hardware
  • CD-ROM (Utility, Software, & User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
