| Standards | - HDMI 2.1
- DP 1.4
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- USB 2.0
- USB 3.0
- USB 3.2
|
|---|

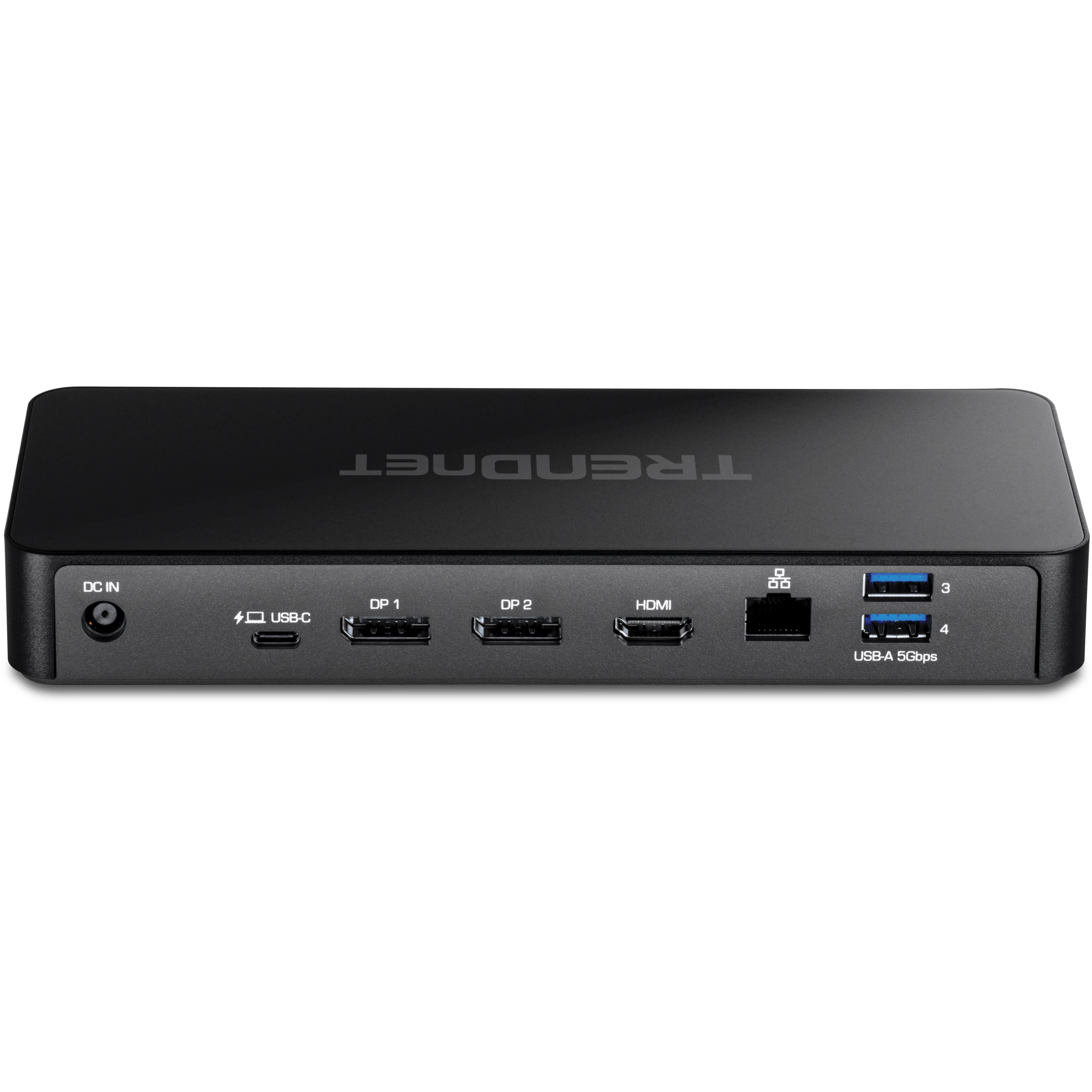

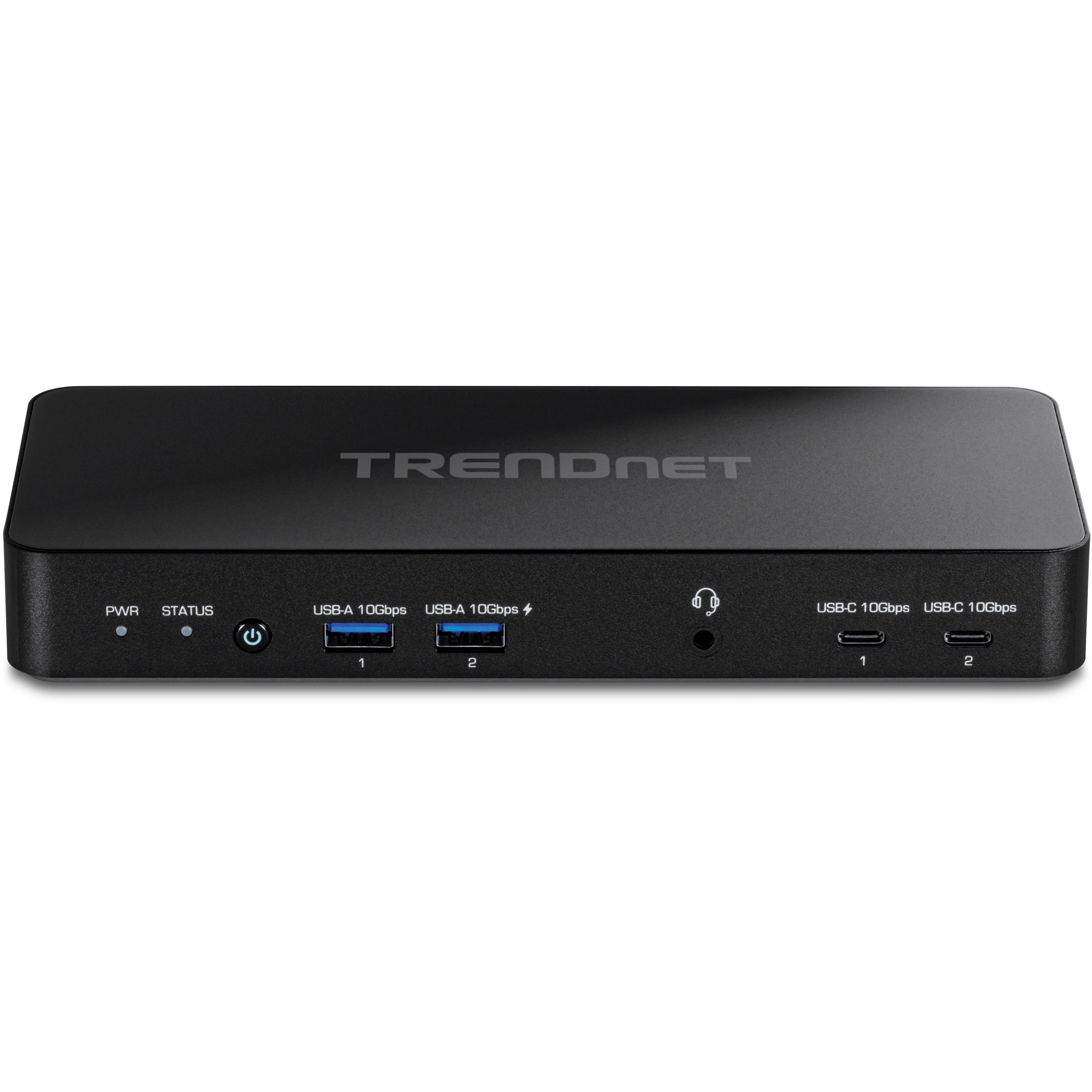

| Interface | - 1 x HDMI port
- 2 x DP ports
- 1 x Gigabit Ethernet port
- 1 x USB-C 10G upstream port
- 2 x USB-C 10G ports
- 1 x USB-A 3.2 Gen 2 10G port
- 1 x USB-A 3.2 Gen 2 10G port with BC1.2
- 2 x USB-A 3.0 5G ports
- 1 x TRRS audio jack
- 1 x Power jack
|
|---|
| Supported OS | - Windows® 10 or higher (Software)
- Mac® 12 or higher
|
|---|
| Resolution (HDMI or DP) | - 1 display: max. 7680 x 4320 @ 30Hz or 3840 x 2160 @ 120Hz
- 2 display: max. 3840 x 2160 @ 60Hz
- 3 display: max. 3840 x 2160 @ 30Hz
|
|---|
| Operating Temperature | - 0° – 40 °C (32° – 104 °F)
|
|---|
| Operating Humidity | |
|---|
| Power | - Input: 100 - 240 V AC, 50/60 Hz, 1.9 A
- Output: 20V DC, 6.75A external power adapter
- Max. consumption: 14.6W (no PD)
- Max. consumption: 155.2W (full load)
- Max. PD 3.0 charging: 96W
|
|---|
| Dimensions (L x W x H) | - 206 x 83.5 x 27.9mm (8.1 x 3.3 x 1.1 in.)
|
|---|
| Weight | |
|---|
| Warranty | |
|---|
| Certifications | |
|---|

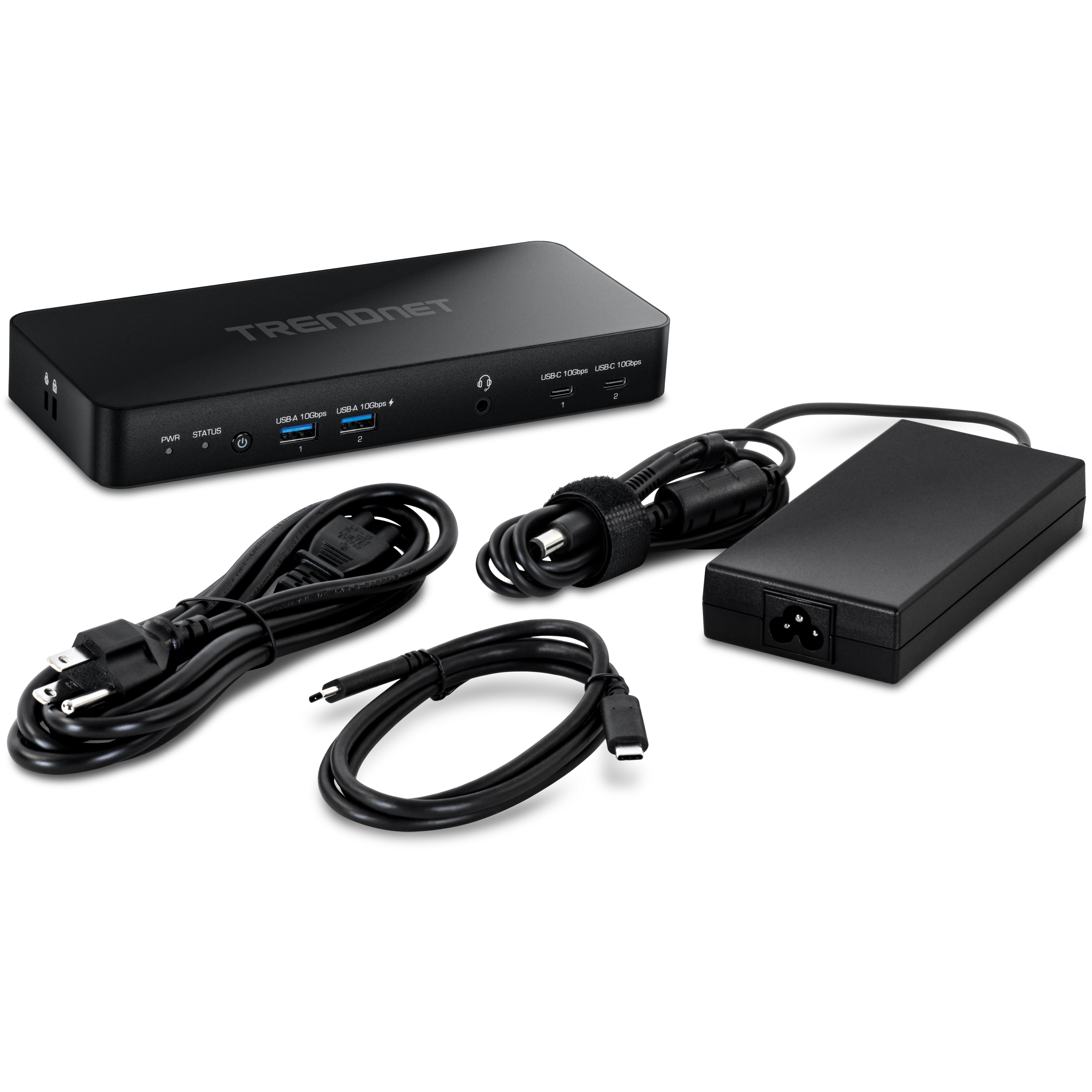

PACKAGE CONTENTS |
- TUC-DS2
- Power brick (20V DC, 6.75A)
- Power cable (1.5m / 4.9ft.)
- USB-C cable (98cm / 3.2 ft.)
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
