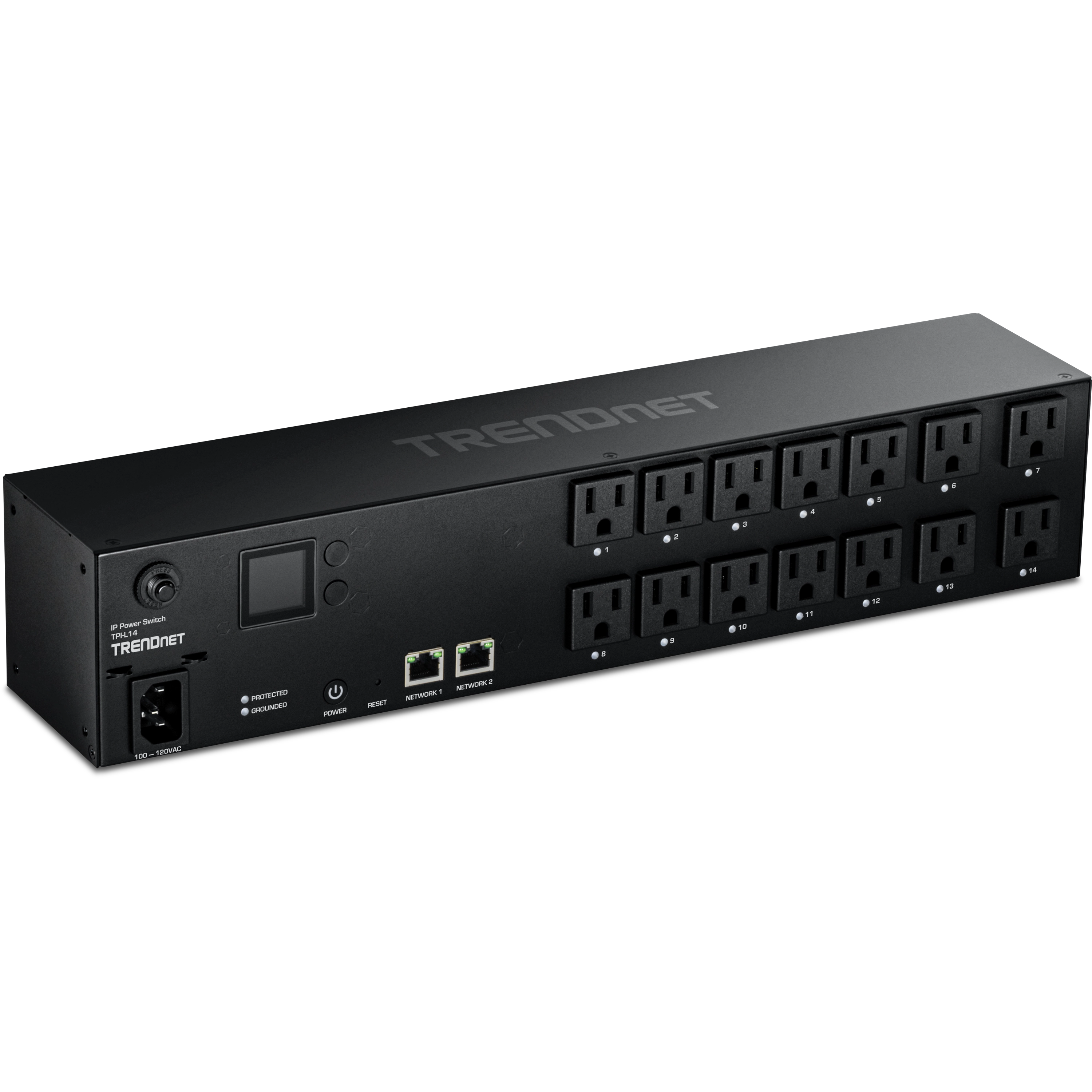

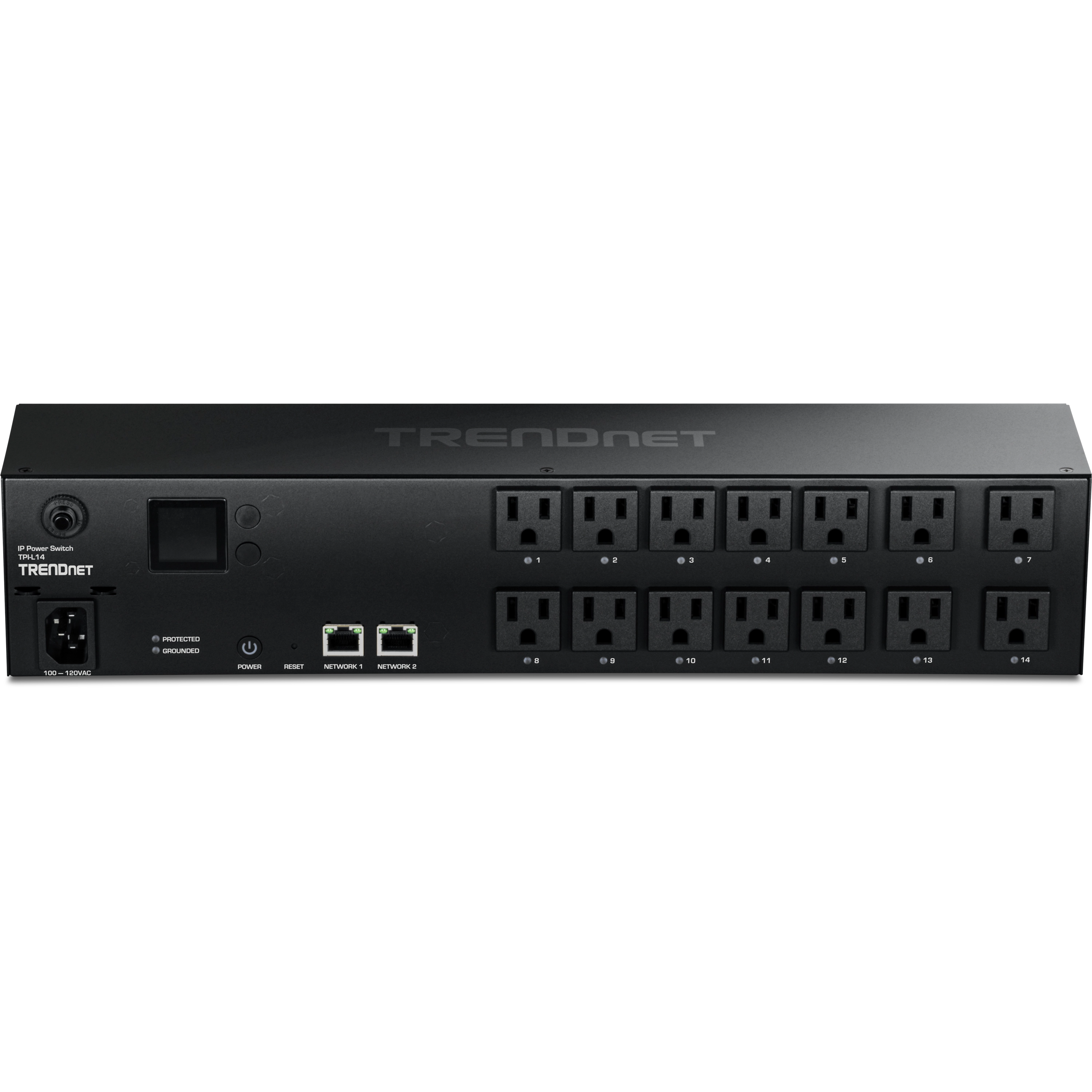

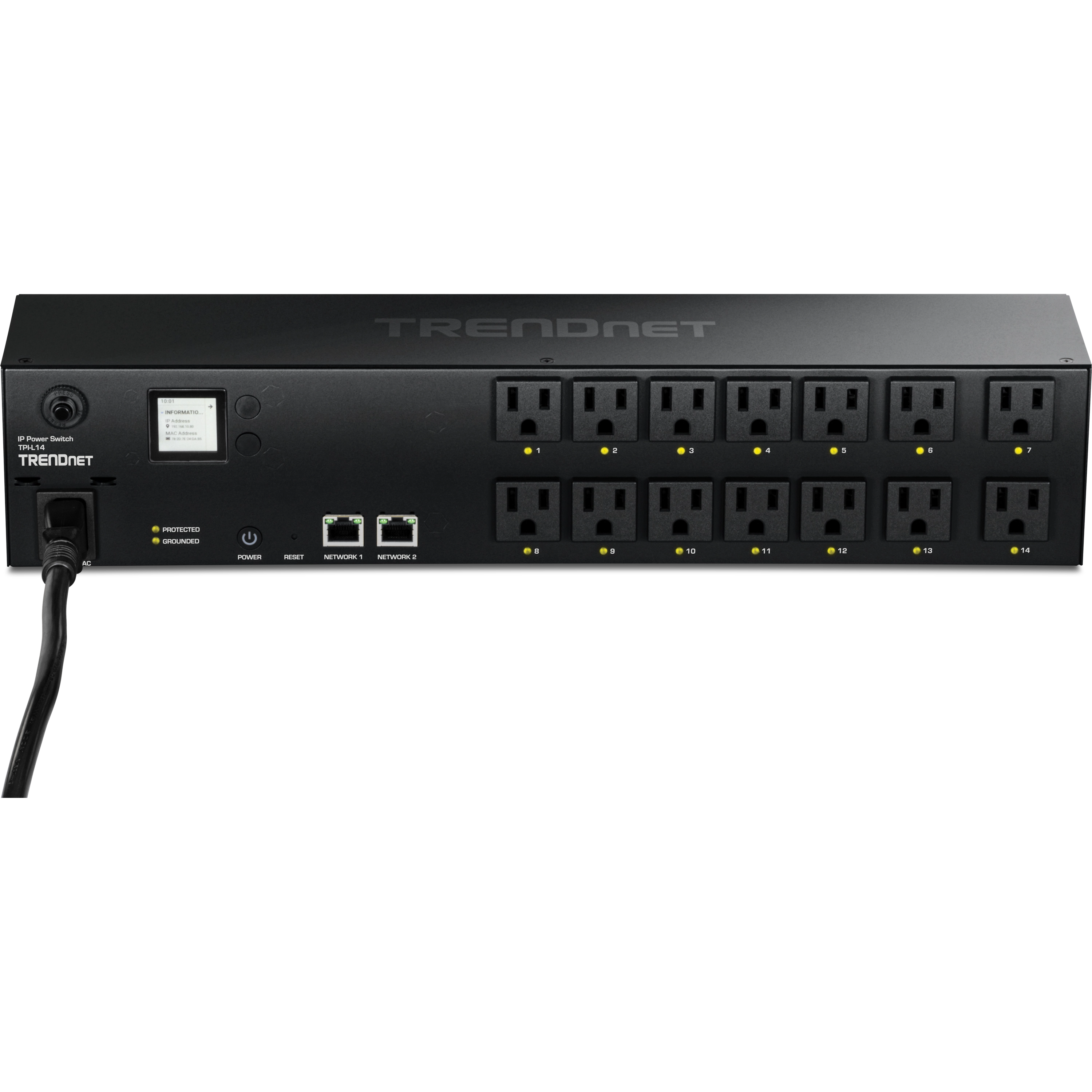

14-Outlet Managed 2U Rackmount Switched Power Distribution Unit

TPI-L14   (Version V1)

  • 14 x NEMA 5-15R managed power outlets
  • 2 x Gigabit ports
  • Supports STP/RSTP for network redundancy
  • Individual controllable outlets
  • Automate outlet reboot settings in case of connection loss
  • Port power on/off delay for custom applications
  • Manage outlet control and monitor power consumption
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • Protects connected equipment from power surges & dangerous voltage conditions
  • Filters AC for best electronics performance
  • LED indicators conveniently convey AC ground status, and outlet status
  • LCD screen conveniently displays power consumption, network information, and outlet controls
  • View per outlet energy usage via dashboard
  • Reduces excess energy consumption by creating power schedules
  • Event email notifications
  • 2U 19” Rack mountable
  • Input Voltage 100-120VAC
  • Certifications: UL 62368-1, IEC 61000-4-5 Class 3, and IEC 61000-4-2 Level 2
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Device Interface
  • 14 x NEMA 5-15R (15A max. @ 120V AC)
  • 2 x Gigabit port
  • LED indicators
  • LCD display with button controls
  • Reset button
Power Output
  • 100 – 120V, 50/60Hz
  • Max. 15A per outlet
  • 15A breaker overload protection
Power Input
  • 100 – 120V, 50/60Hz, internal power supply
  • Max. consumption: 14.11W (no PD load)
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC, Mac web browser or through an Android or iOS mobile device
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple PDUs
  • Event/hardware network monitoring (CPU/memory utilization)
  • Enable & disable power, set auto reboot check, configure power scheduling, and monitor power usage
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
Special Features
  • Fanless
  • Wall mountable
  • Adjustable depth rack mount
  • Cable retention clip
Operating Temperature
  • 0° - 40° C (23° - 104° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 440 x 88 x 88mm (17.32 x 3.46 x 3.46 in.)
Weight
  • 2.43kg (5.35 lbs.)
Warranty
  • 3-Year limited
Certifications
  • FCC
  • UL
  • Surge protection (IEC 61000-4-5 Class 3)
  • ESD Protection (IEC 61000-4-2 Level 2)

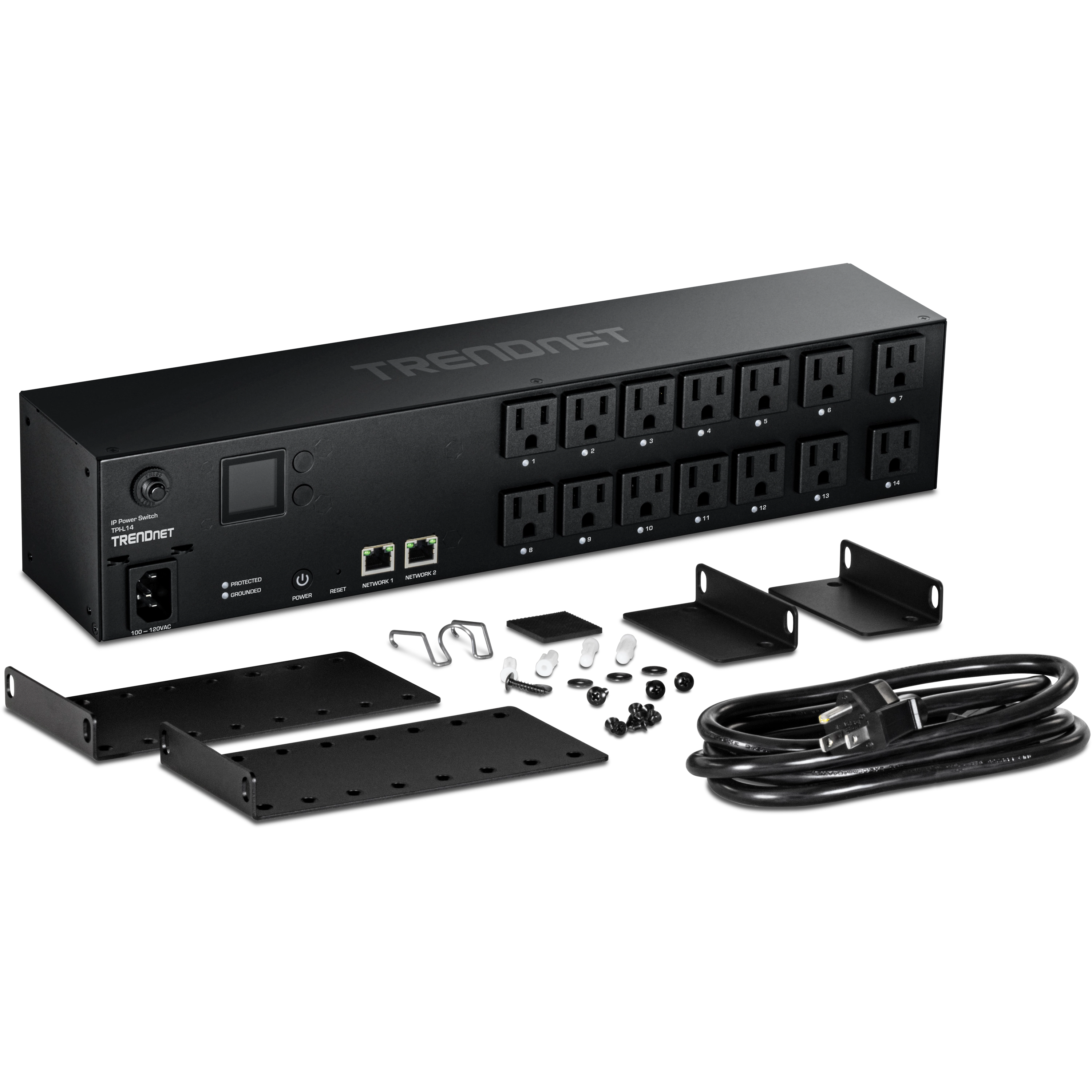

PACKAGE CONTENTS
  • TPI-L14
  • Power cord (1.8m / 6 ft.)
  • Rackmount kit
  • Wall-mount kit

*Disclaimer: Max rated total output current is 15A. This device is meant to add additional outlets. It does not change the amount of power being received from the main outlet.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
