5-Port 2.5G PoE++ Switch

TPE-BG350   (Version V1)

  • 4 x 2.5G RJ45 PoE++ ports
  • 1 x 2.5G RJ45 port
  • 135W PoE power budget
  • 25Gbps switching capacity
  • Compatible with existing Cat5e or better cabling
  • Fanless design
  • IEEE 802.3bz (2.5Gbps) and IEEE 802.3af/at/bt PoE++ compliant
  • Supports 802.1Q VLAN passthrough and 802.1p QoS passthrough
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 4 x 2.5GBASE-T RJ45 PoE++ ports (10/100/1000/2500Mbps)
  • 1 x 2.5GBASE-T RJ45 port (10/100/1000/2500Mbps)
  • LED indicators
Performance
  • Switch Capacity: 25Gbps
  • RAM Buffer: 1MB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 10 KB
  • Forwarding Rate: 18.6Mpps (64-byte packet size)
Power
  • Input: 100-240V AC, 50/60Hz, 2.5A
  • Output: 55V/2.73A DC
  • Max. consumption: 5.45W (no PoE load) / 140.45W (full PoE load)
Special Features
  • 802.1Q VLAN tag passthrough
  • 802.1p QoS CoS tag passthrough

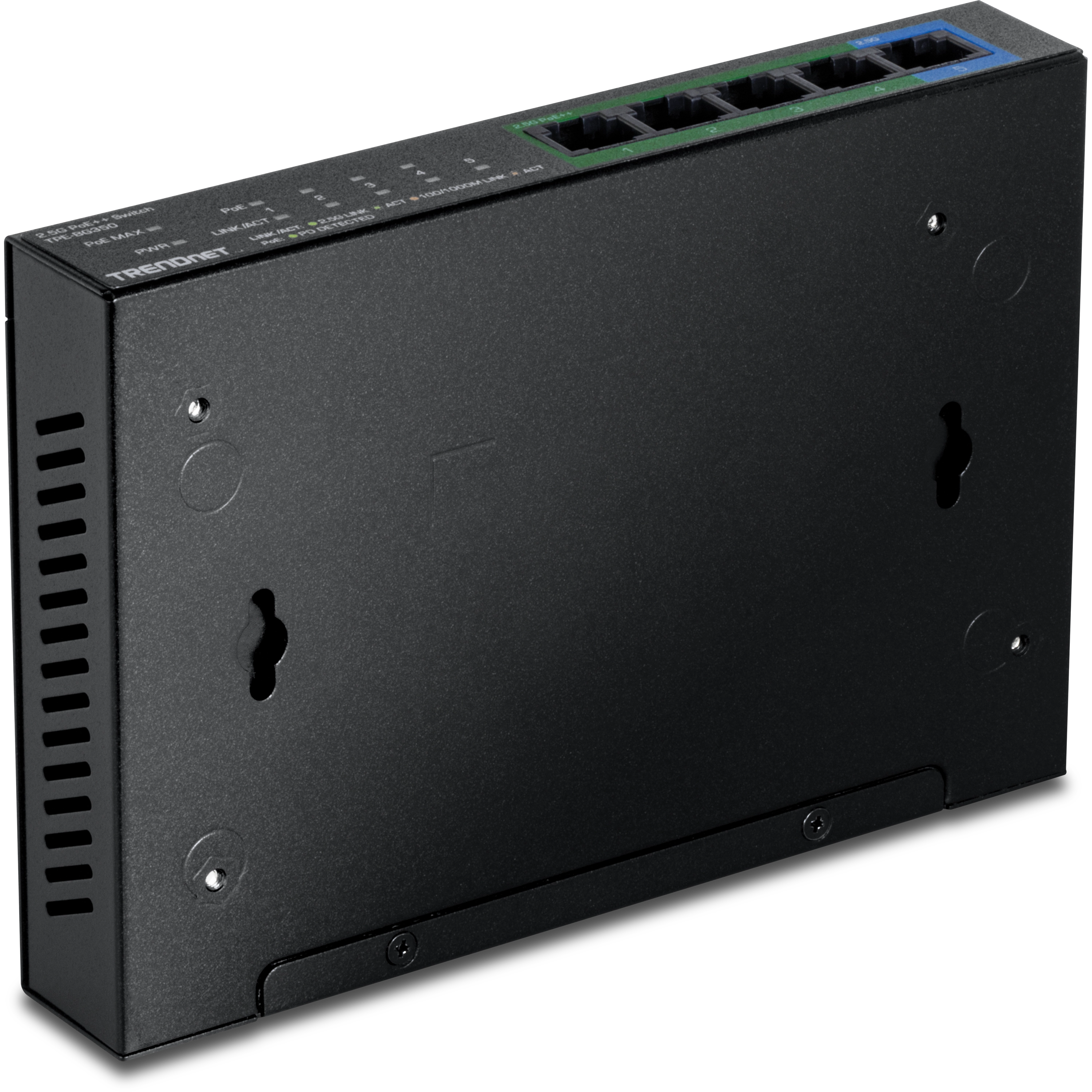

  • Wall mountable
PoE
  • PoE++ up to 95W
  • PoE budget: 135W
  • Pins 1,3,4,7 (–); 2,5,6,8 (+)
Fan/Acoustics
  • Fanless design
MTBF
  • 907,832 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 160 x 110 x 26mm (6.29 x 4.33 x 1.02 in.)
Weight
  • 424g (14.95 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • 3 year

PACKAGE CONTENTS
  • TPE-BG350

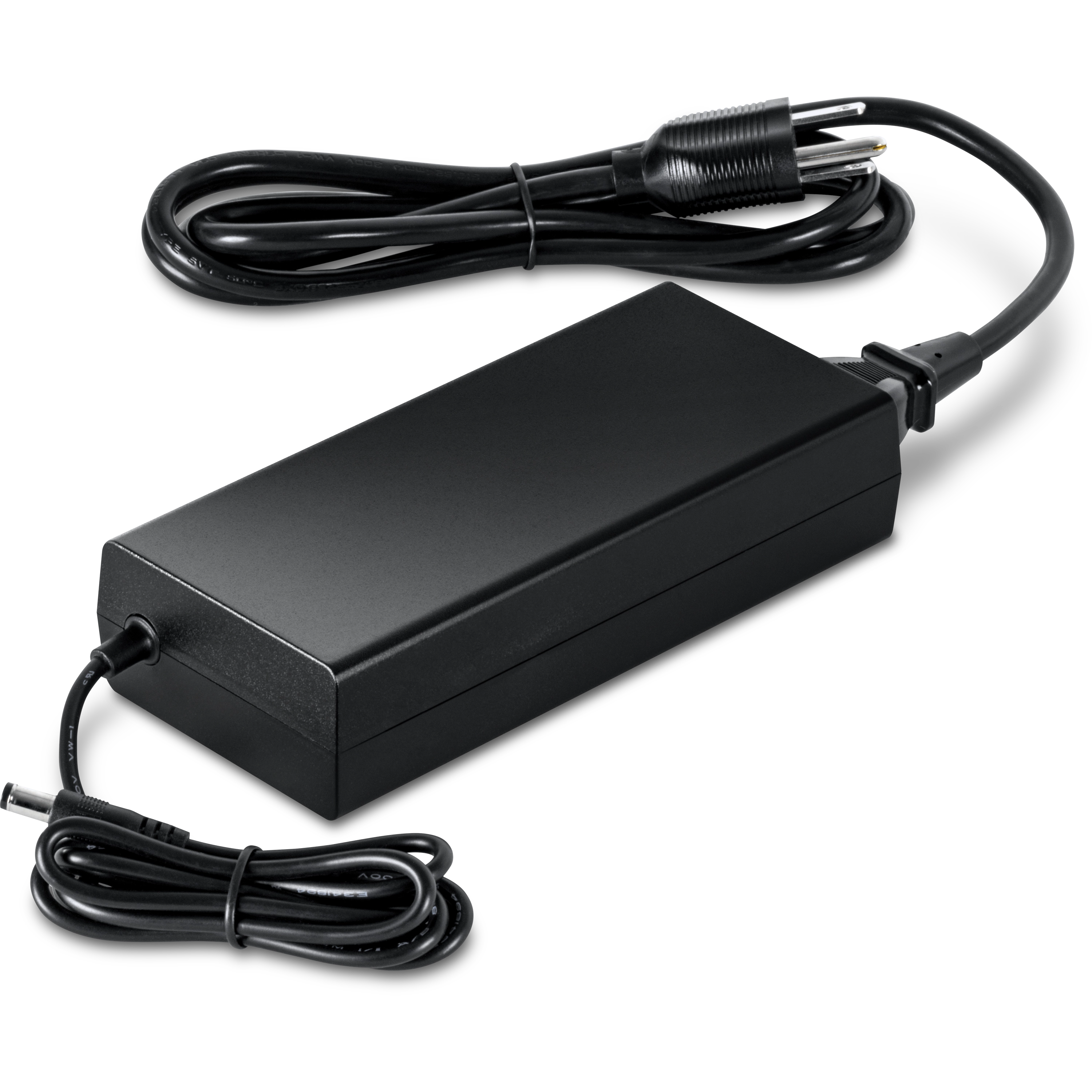

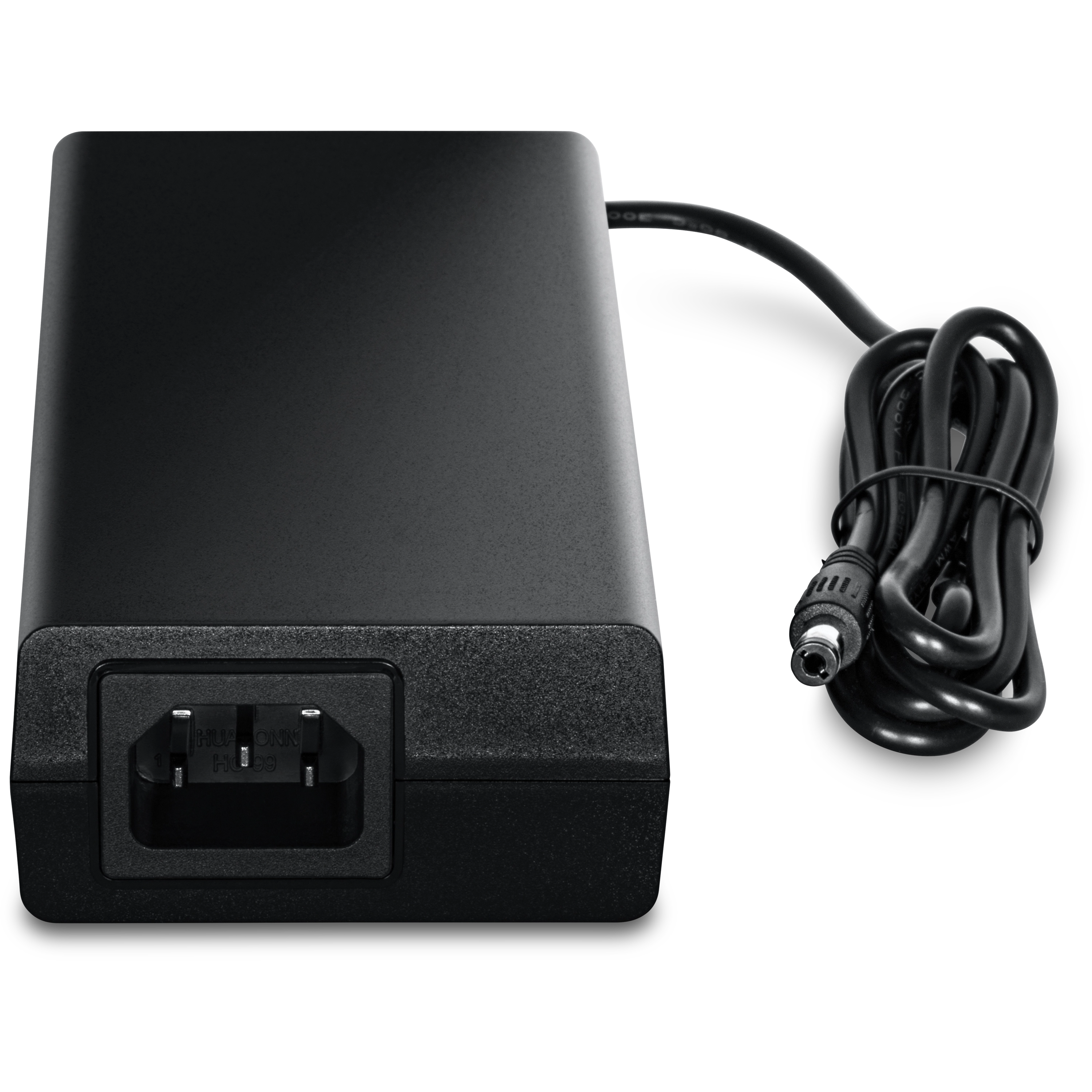

  • Power brick (54V, 2.78A)
  • Power cord (1.5m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
