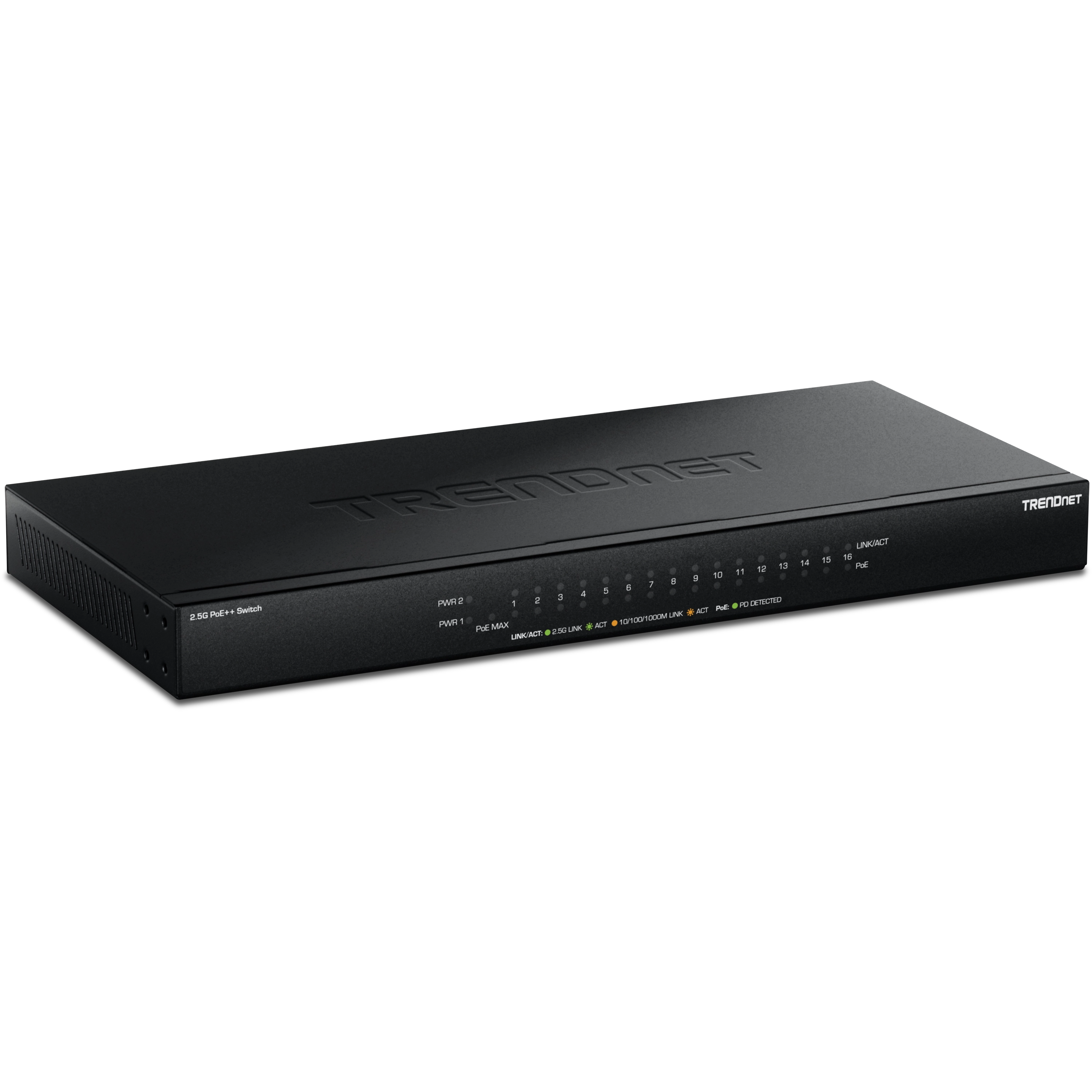

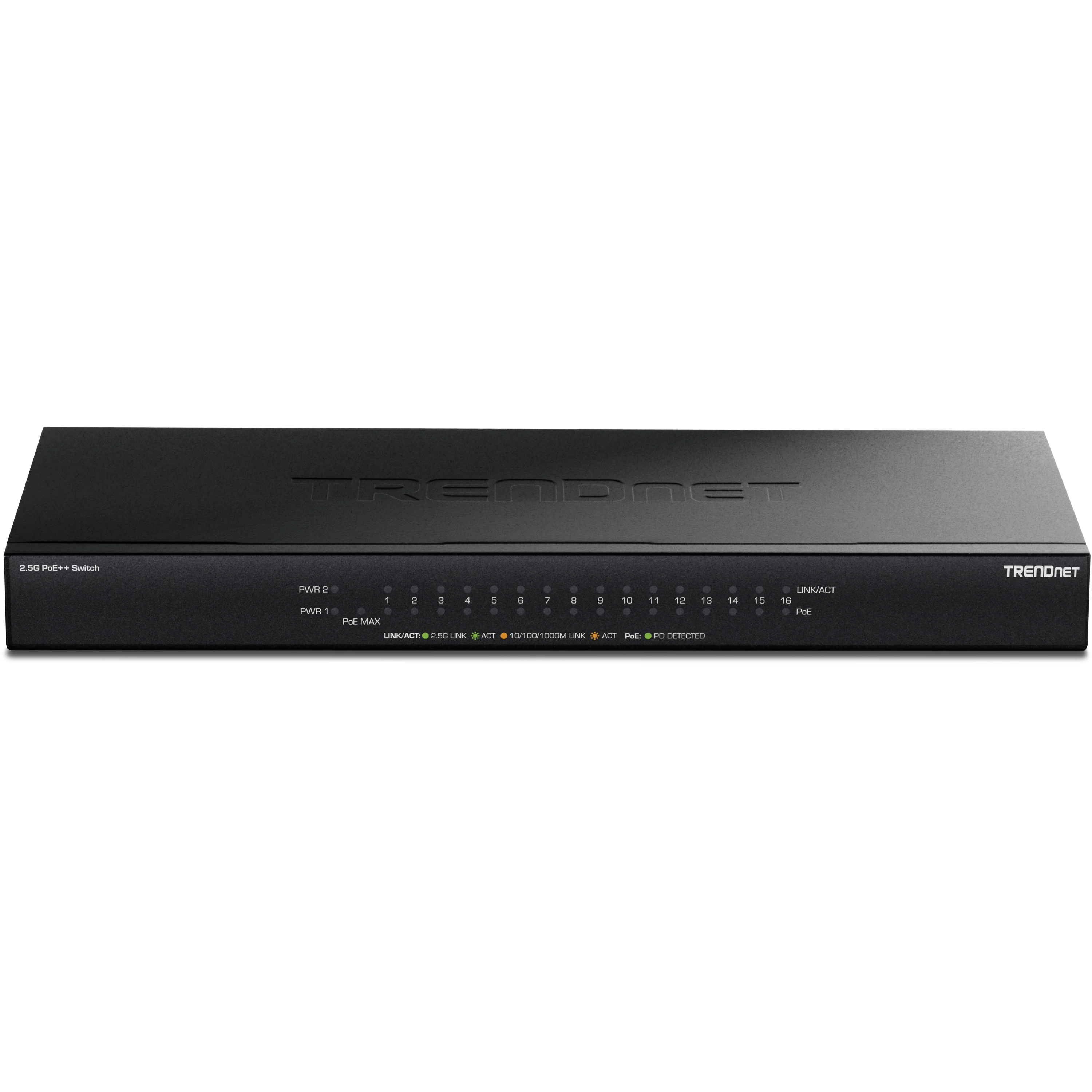

TPE-BG3160 Product Photo
TPE-BG3160 Product Photo TPE-BG3160 Product Photo TPE-BG3160 Product Photo TPE-BG3160 Product Photo TPE-BG3160 Product Photo

16-Port 2.5G PoE++ Unmanaged Switch

TPE-BG3160   (Version V1)

  • 16 x 2.5Gbps RJ45 PoE++ ports
  • 220W PoE power budget
  • 440W PoE power budget (additional power adapter sold separately, 54VDC4700)**
  • 80Gbps switching capacity
  • Compatible with existing Cat5e cabling
  • Fanless design
  • Supports 802.1Q VLAN passthrough and 802.1p QoS passthrough
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 16 x 2.5Gbps PoE++ ports (10/100/1000/2500Mbps)
  • LED indicators
Performance
  • Switch Capacity: 80Gbps
  • RAM Buffer: 1MB
  • MAC Address Table: 16K entries
  • Jumbo Frames: 10KB
  • Forwarding Rate: 18.6Mpps (64-byte packet size)
Power
  • Input: 100-240V AC, 50/60Hz, 3.9A
  • Output: 55V DC, 4.7A
  • Max. consumption: 5.45W (no PoE load)
Special Features
  • 802.1Q VLAN tag passthrough
  • 802.1p QoS CoS tag passthrough
  • Fast PoE

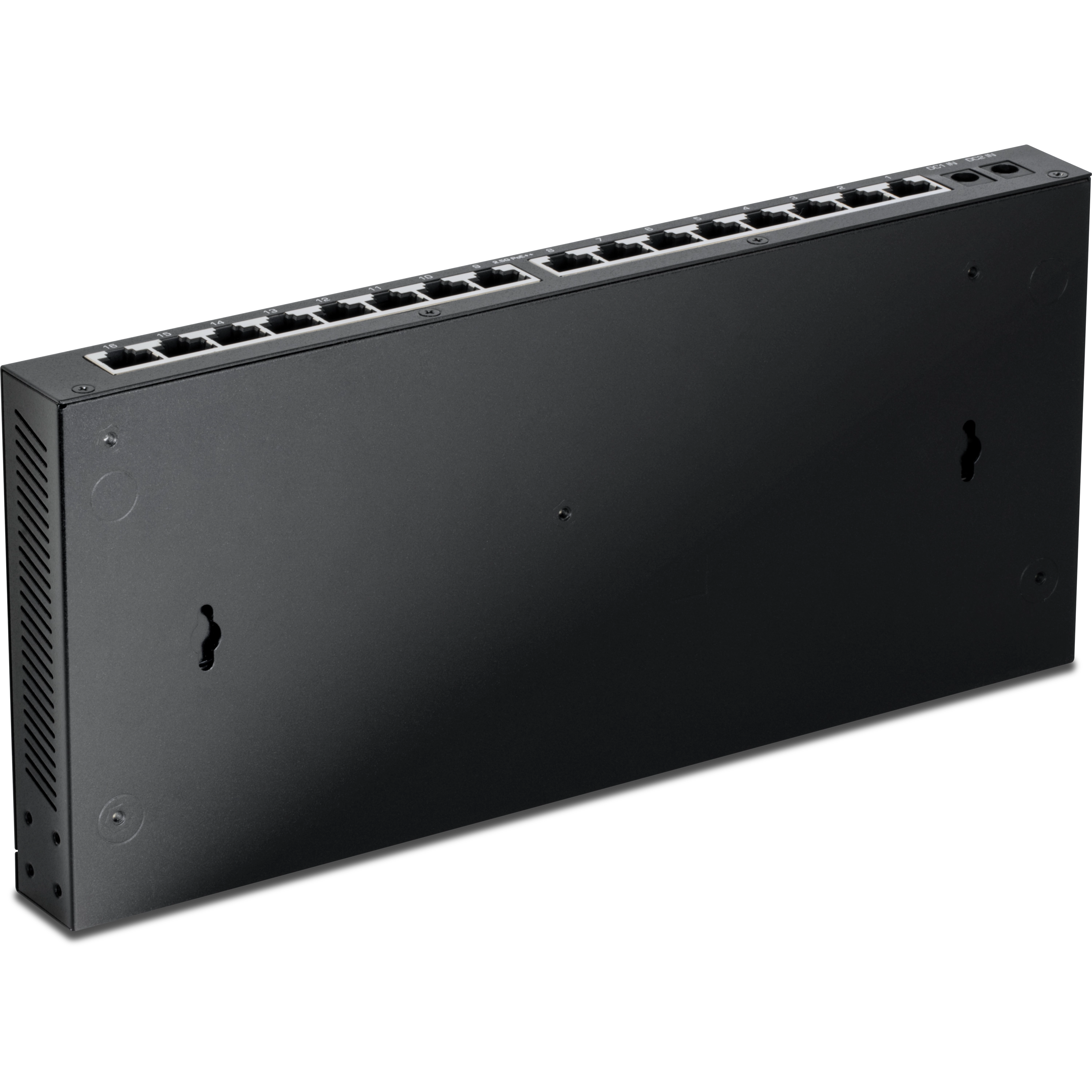

  • Wall mountable
PoE
  • PoE++ up to 95W
  • PoE budget:
    • 220 W Max. PoE budget
      • Max. operating temperature: 40°C (104°F)
      • Total power adapters needed: 1
    • 350 W Max. PoE budget
      • Max. operating temperature: 40°C (104°F)
      • Total power adapters needed: 2 (additional 54VDC4700 sold separately)**
    • 400 W Max. PoE budget
      • Max. operating temperature: 35°C (95°F)
      • Total power adapters needed: 2 (additional 54VDC4700 sold separately)**
    • 440 W Max. PoE budget
      • Max. operating temperature: 30°C (86°F)
      • Total power adapters needed: 2 (additional 54VDC4700 sold separately)**
  • Pins 1,3,4,7 (–); 2,5,6,8 (+)
Fan/Acoustics
  • Fanless design
MTBF
  • 907,832 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 286 x 128 x 27mm (11.26 x 5.03 x 1.06 in.)
Weight
  • 1.3kg (2.87 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TPE-BG3160

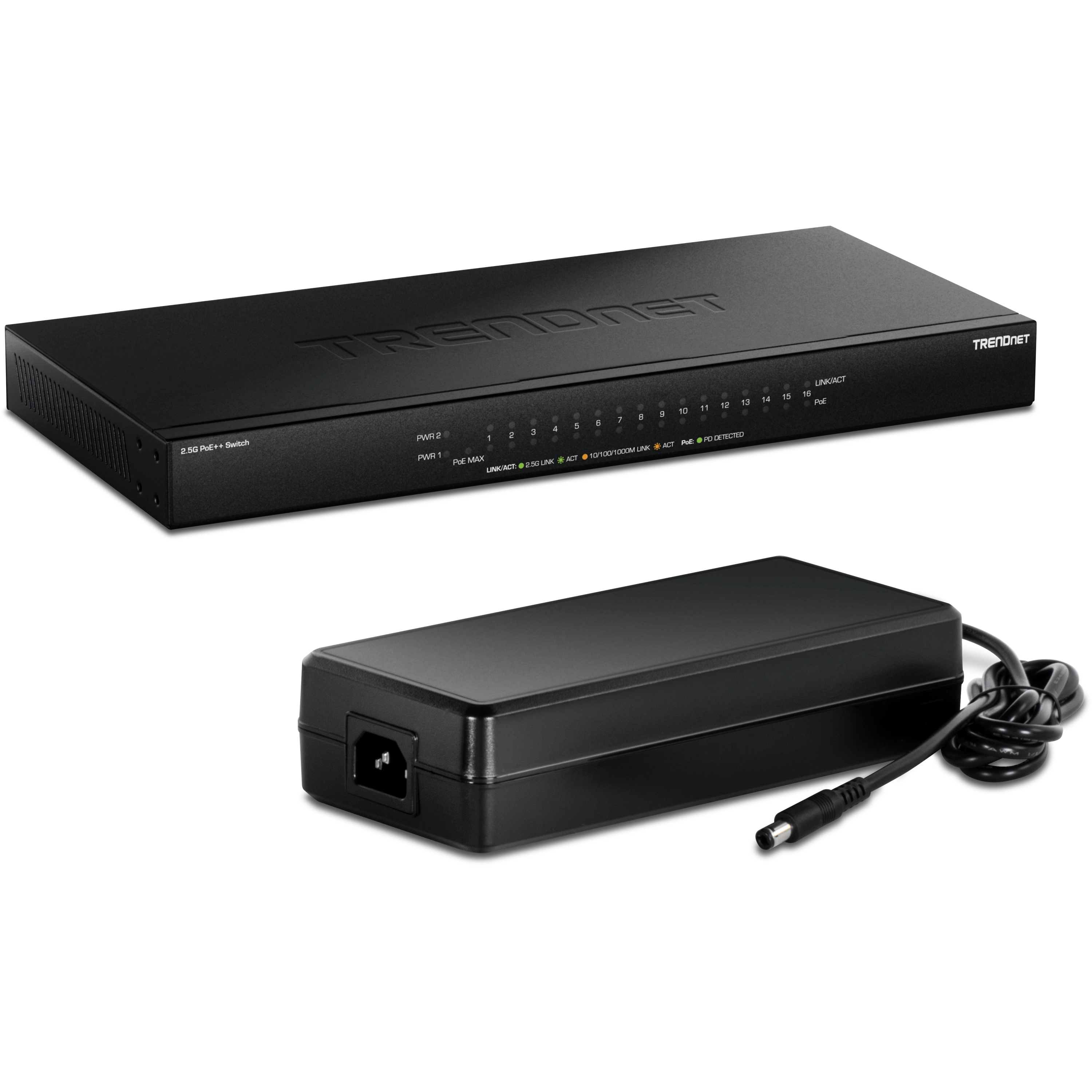

  • Power brick (54V, 4.7A)
  • Power cord (1.5m / 5 ft.)
  • Rackmount kit

**If the operating temperature is between 31° – 35° C (88° – 95° F), the max PoE budget will be 400W; and if the operating temperature is between 36° – 40° C (96.8° – 104° F), the max PoE budget will be 350W.

TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
