| Standards | - IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bt
- IEEE 802.3bz
|
|---|

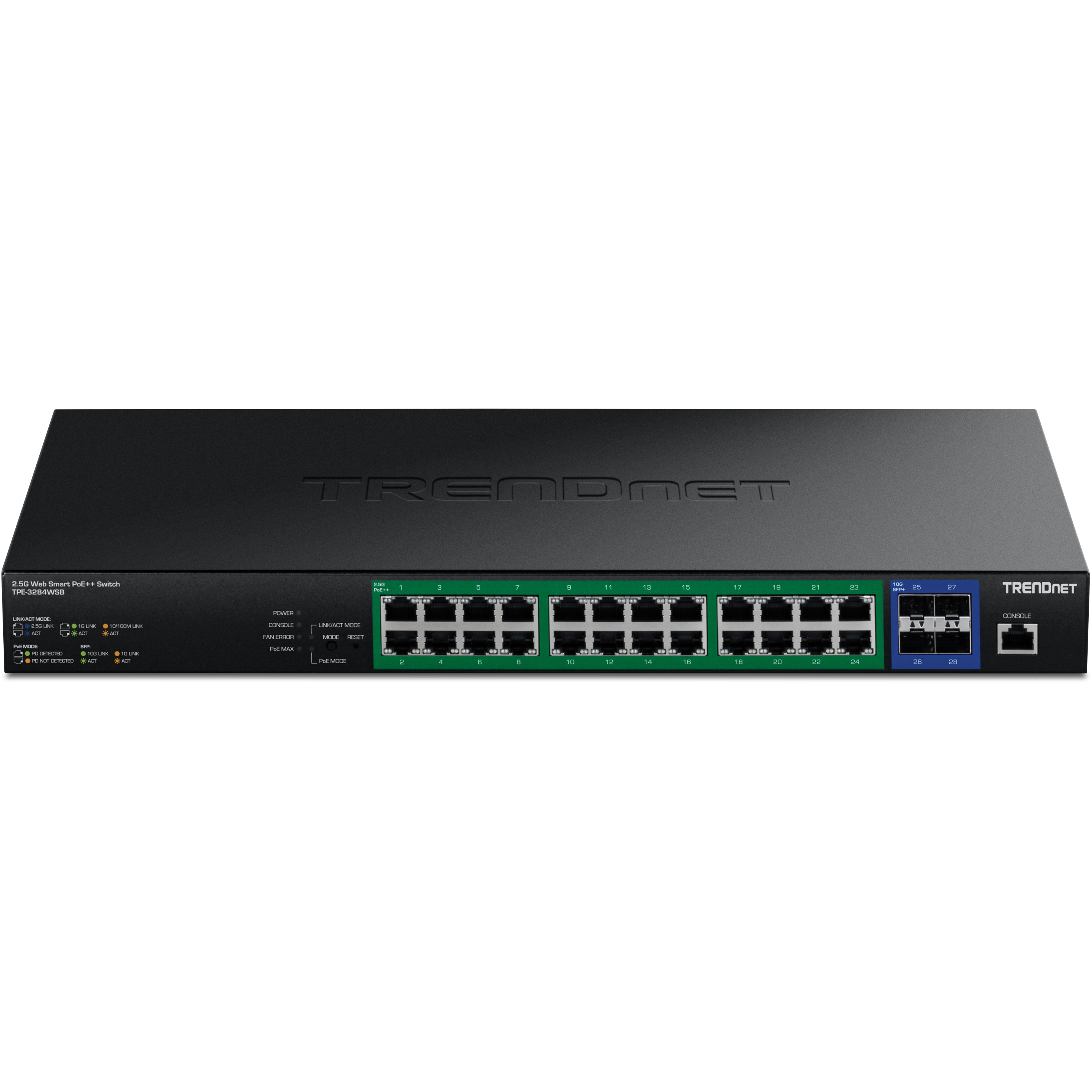

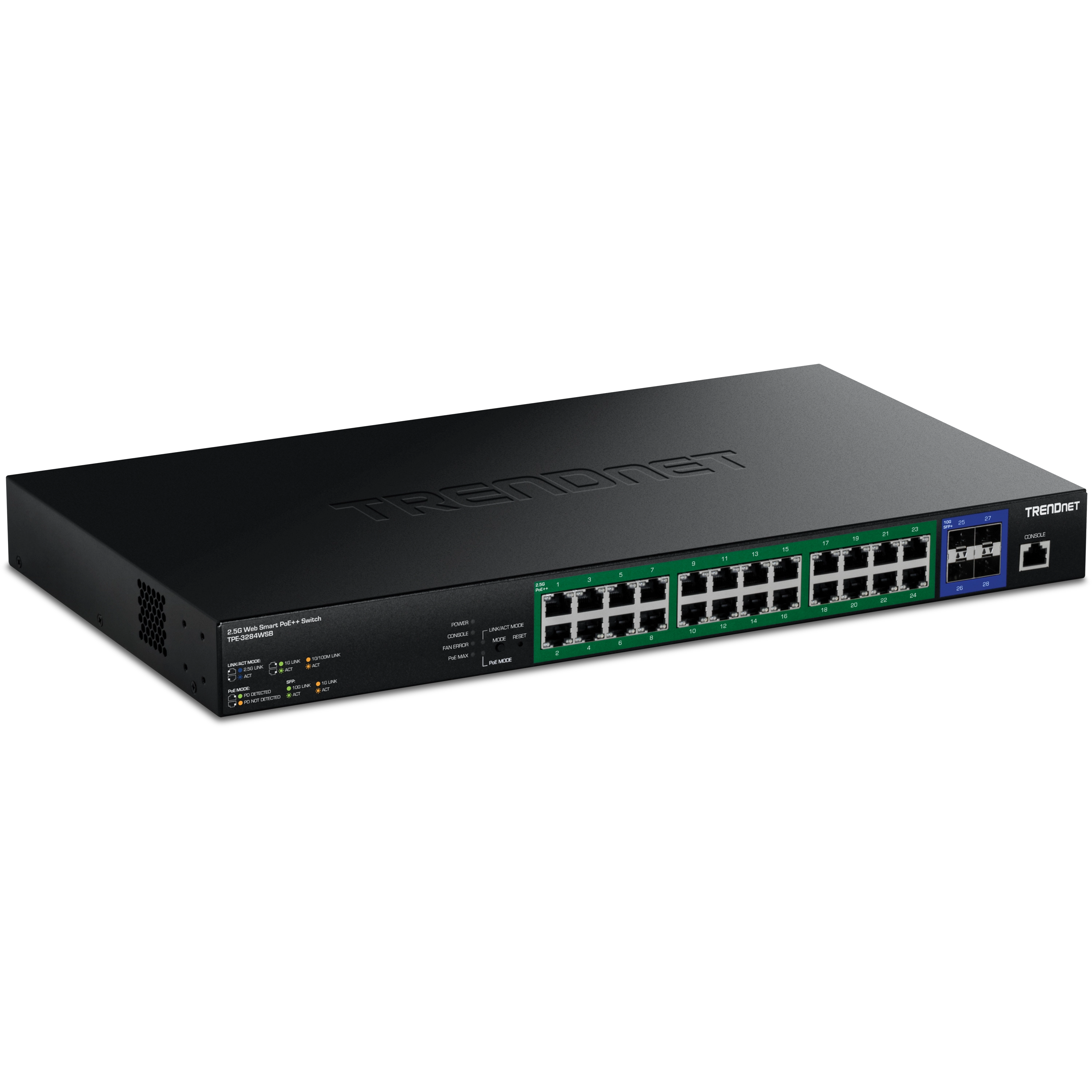

| Device Interface | - 24 x 2.5G PoE++ RJ45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
- 4 x 10G SFP+ ports (1Gbps/10Gbps)
- LED indicators
|
|---|
| Performance | - Switching fabric: 200Gbps
- RAM Buffer: 2MB
- MAC Address Table: 32K entries
- Jumbo Frames: 12KB
- HOL Blocking Prevention
- Forwarding rate: 148.91Mpps (64-byte packet size)
|
|---|
| Management | - CLI (Telnet / SSHv2) limited administration only
- HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
- SNMP v1, v2c, v3
- RMON v1
- Static Unicast MAC Address
- Enable/disable 802.3az Power Saving
- LLDP
- Virtual Cable Diagnostics Test
- IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
- Dual image
- Dual configuration
- TC Root/Protect
- Ping Watch Dog
|
|---|
| Hive Cloud Management | - Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser
- Multi-device management
- Provisioning through scheduled batch firmware or configuration updates for multiple switches
- Event/hardware network monitoring (CPU/memory utilization)
- Enable & disable PoE, set PD (powered device) alive check, configure PoE scheduling, and monitor PoE budget utilization (for PoE switches only)
- Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
|
|---|
| MIB | - IP FORWARD TABLE MIB RFC 1354
- IPV6 MIB RFC 2465
- GVRP MIB IEEE 802.1Q-VLAN
- LA MIB IEEE 802.3ad
- LLDP MIB IEEE 802.1AB
- SNMP MIB RFC 3415
- STP MIB RFC 4318
- PNAC MIB IEEE 802.1x
- VLAN MIB IEEE 802.1q
- ACL MIB
- BANDWIDTH CTRL MIB
- LBD MIB
- MIRROR MIB
- IPV6 NEIGHBOR MIB
- SNTP MIB
- STORM CTRL MIB
- STATISTICS MIB
- Tool MIB
- VOICE VLAN MIB
- DOS MIB
|
|---|
| Spanning Tree | - IEEE 802.1d STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
|
|---|
| Link Aggregation | - Static Link Aggregation
- 802.3ad Dynamic LACP
|
|---|
| Quality of Service (QoS) | - 802.1p Class of Service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth control per port
- Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
|---|
| VLAN | - Multiple management VLAN assignment
- Asymmetric VLAN
- 802.1Q Tagged VLAN
- Dynamic GVRP
- MAC-based VLAN
- Protocol-based VLAN
- Up to 256 VLAN groups, ID Range 1-4094
- Private VLAN (Protected Ports)
- Voice VLAN (10 user defined OUIs)
|
|---|
| Multicast | - IGMP Snooping v1, v2
- MLD Snooping v1
- IGMP fast leave
- MVR (Multicast VLAN Registration)
- Static Multicast Address
- Up to 256 multicast entries
|
|---|
| Port Mirror | - RX, TX, or Both
- Many to one
|
|---|
| Access Control | - 802.1X Port-Based Network Access Control, RADIUS, TACACS+
- Local Dial In User Authentication
- DHCP Snooping (per VLAN)
- Loopback Detection
- Duplicated Address Detection
- Trusted Host
- Denial of Service (DoS)
- IP MAC port binding
- Dynamic ARP inspection
- Block unknown multicast
|
|---|
| ACL IPv4 L2-L4 & IPv6 | - MAC Address
- VLAN ID
- Ether Type (IPv4 only)
- IP Protocol 0-255
- TCP/UDP Port 1-65535
- 802.1p
- DSCP (IPv4 only)
- IPv6 Address (IPv6 only)
|
|---|
| Layer 3 Features | - IPv4 / IPv6 static routing
- IP interfaces: Up to 8
- Routing table entries: Up to 32 (IPv4 / IPv6)
- ARP table (up to 128 entries)
- Inter-VLAN routing
|
|---|
| Compatibility | - Optional Software Utility: Windows® 11 & 10
|
|---|
| Power | - Input: 100 – 240V AC, 50/60Hz, internal power supply
- Max. consumption: 57.16W (no PoE load)
|
|---|
| PoE | - PoE budget: 740W
- 802.3bt: Up to 95W per port
- PoE++ Pins 3, 4, 5, 6 for power + and pins 1, 2, 7, 8 for power –
- PoE/PoE+ pins 3, 6 for power + and pins 1, 2 for power – (mode A)
- PD autoclassification
- Over current/short circuit protection
- PD alive check
- Fast PoE
- Perpetual PoE
|
|---|

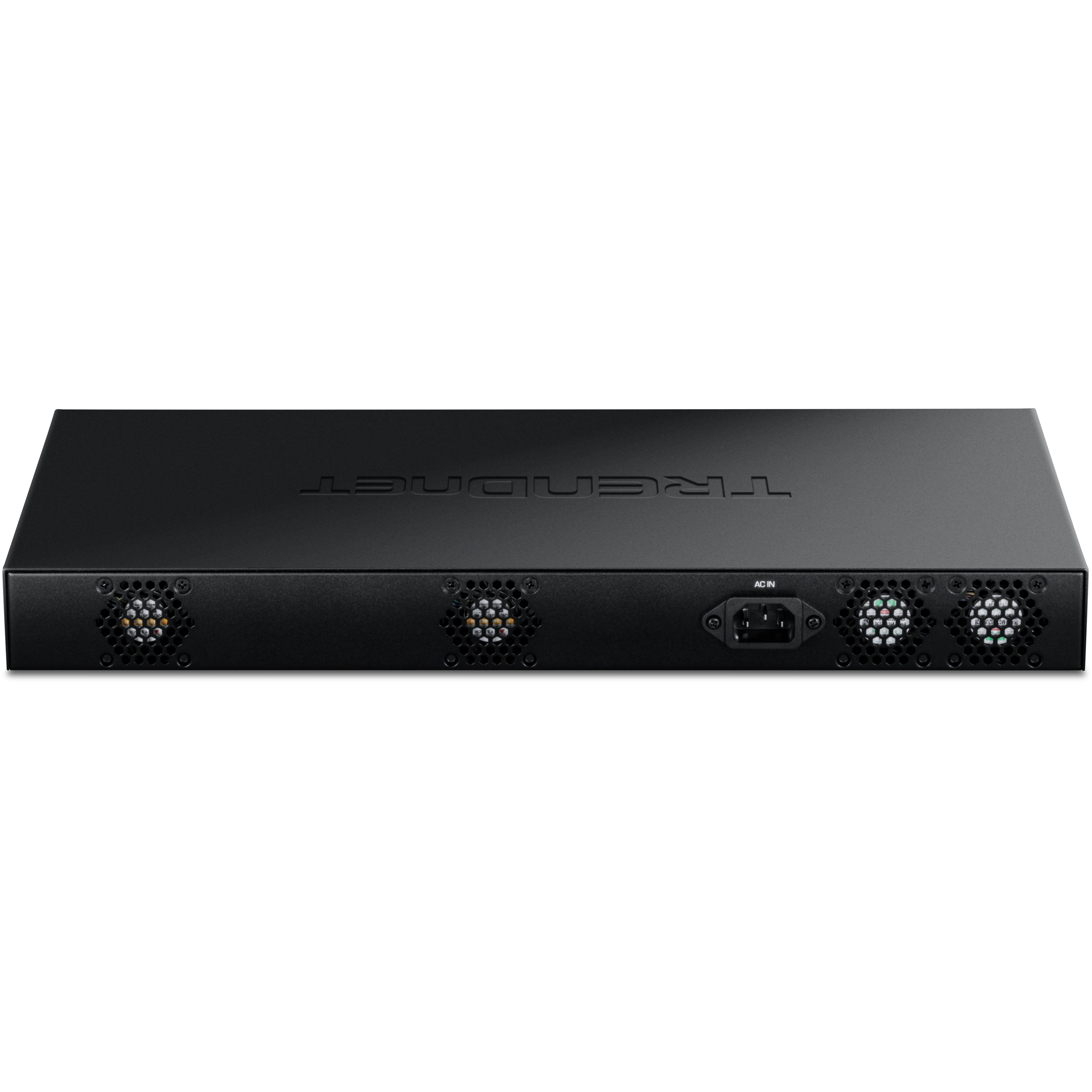

| Fan/Acoustics | - Quantity: 4
- Smart fans
- Max. noise level 51.1dBA
- Active cooling control
|
|---|
| MTBF | |
|---|
| Operating Temperature | - -5° – 50° C (23° – 122° F)
|
|---|
| Operating Humidity | |
|---|
| Dimensions | - 440 x 250 x 44mm (17.32 x 10.04 x 1.73 in.)
- Rack mountable 1U height
|
|---|
| Weight | |
|---|
| Certifications | |
|---|
| Warranty | |
|---|

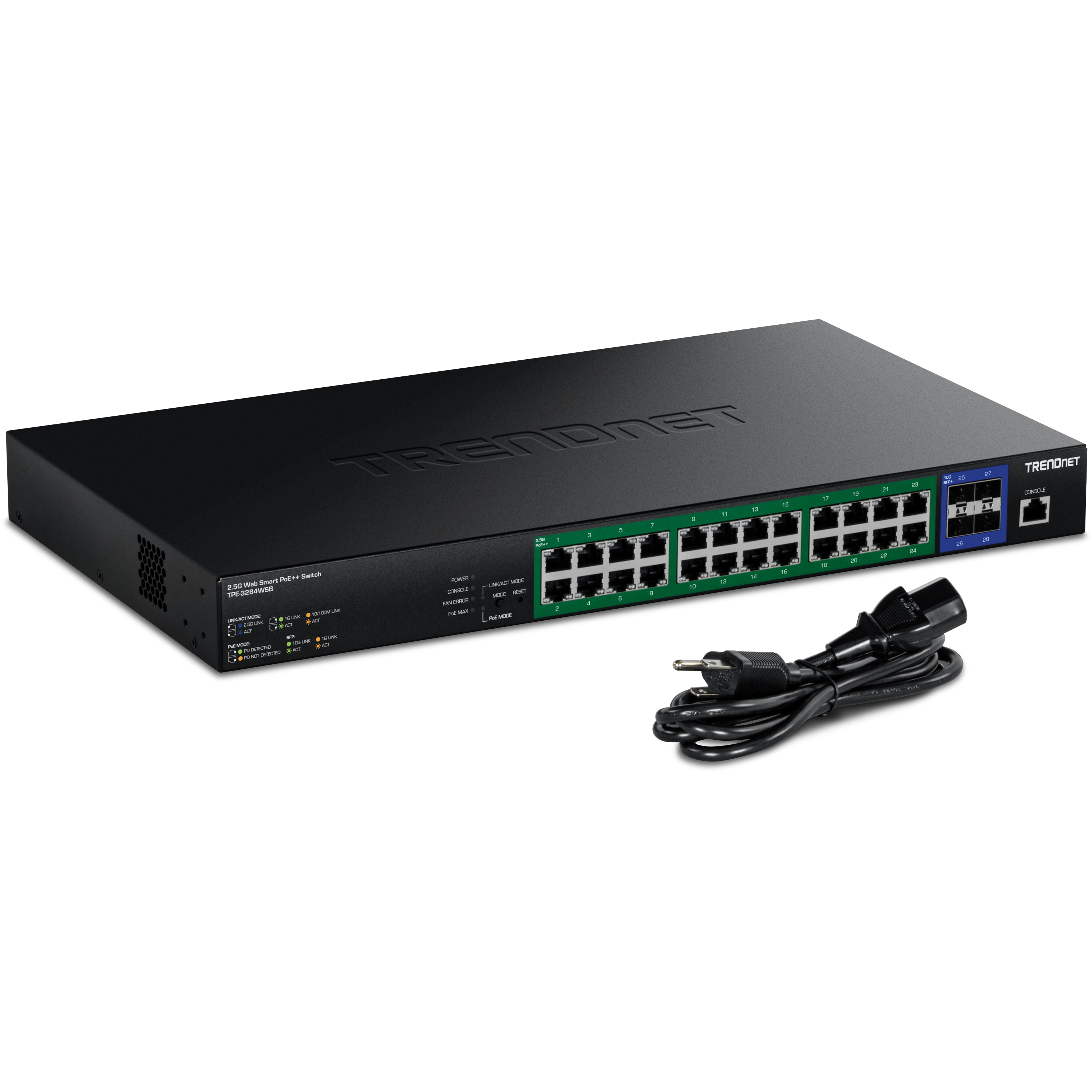

PACKAGE CONTENTS |
- TPE-3284WSB
- Power cord (1.8m/6 ft.)
- Rackmount kit
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
