12-Port Multi-Gig Web Smart PoE++ Switch

TPE-3124WSB   (Version V1)

  • 8 x 2.5G PoE++ ports
  • 4 x 10G SFP+ ports
  • 450W PoE budget
  • Perpetual PoE & Fast PoE minimize wait time for powering up PoE devices
  • PoE alive check automatically attempts to recover an unresponsive PoE device
  • Remote cloud management with TRENDnet Hive™ (Additional fee may apply)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.1ax
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3bz
  • IEEE 802.3bt
Device Interface
  • 8 x 2.5G PoE++ ports (100Mbps/1Gbps/2.5Gbps)
  • 4 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
Performance
  • Switch fabric: 120Gbps
  • RAM buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Jumbo Frames: 10KB
  • HOL Blocking Prevention
  • Forwarding rate: 89.2Mpps (64-byte packet size)
Management
  • CLI (Telnet / SSHv2) for basic administration
  • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable/disable 802.3az Power Saving
  • LLDP and LLDP-MED
  • Virtual Cable Diagnostics Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
  • Dual image and configuration
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  • Event/hardware network monitoring (CPU/memory utilization)
  • Enable & disable PoE, set PD (powered device) alive check, configure PoE scheduling, and monitor PoE budget utilization (for PoE switches only)
  • Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB
  • RMON MIB RFC 1271
  • LLDP MIB IEEE 802.1ab
  • RFC 1213 MIB II
  • RFC 1643 Ethernet intf MIB
  • RFC 1493 bridge MIB
Spanning Tree
  • IEEE 802.1d STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3
  • MLD Snooping v1, v2
  • IGMP fast leave
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • Many to one
Access Control
  • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
  • Local Dial-In User Authentication
  • DHCP Snooping
  • Loopback Detection
  • Trusted Host
  • Denial of Service (DoS)
  • IP MAC port binding
  • Block unknown multicast
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP/UDP Port 1-65535
  • 802.1p
  • TOS (IPv4 only)
  • IPv4 Address and Mask (IPv4 only)
  • IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features
  • IPv4 / IPv6 static routing
  • IP interfaces: Up to 6
  • Routing table entries: Up to 32 (IPv4 / IPv6)
  • ARP table (up to 128 entries)
  • Inter-VLAN routing
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 60W (No PD connected)
PoE
  • PoE budget: 450W
  • 802.3bt: Up to 95W per port
  • PoE++ Pins 3, 4, 5, 6 for power + and pins 1, 2, 7, 8 for power –
  • PoE/PoE+ pins 3, 6 for power + and pins 1, 2 for power – (mode A)
  • PD autoclassification
  • Over current/short circuit protection
  • PD alive check
  • Fast PoE
  • Perpetual PoE
Fan/Acoustics
  • Quantity: 3
  • Smart Fans
  • Noise Level: 44 dBa (max.)
MTBF
  • 315,000 hours @ 25° C
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 330 x 230 x 44mm (13 x 9.06 x 1.73 in.)
Weight
  • 2.8kg (6.18 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty

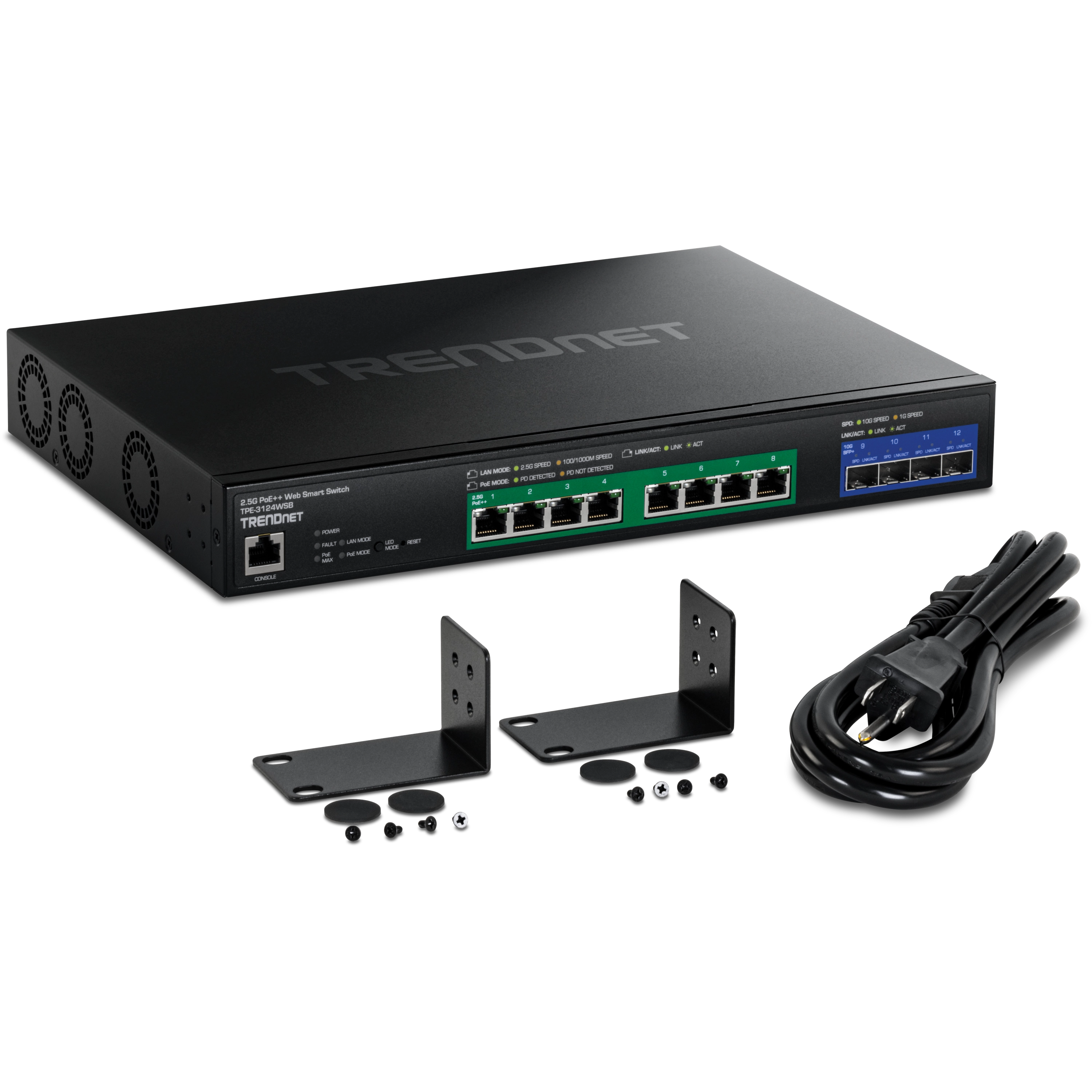

PACKAGE CONTENTS
  • TPE-3124WSB
  • Power cord (1.5m / 5 ft.)
  • Rackmount brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
