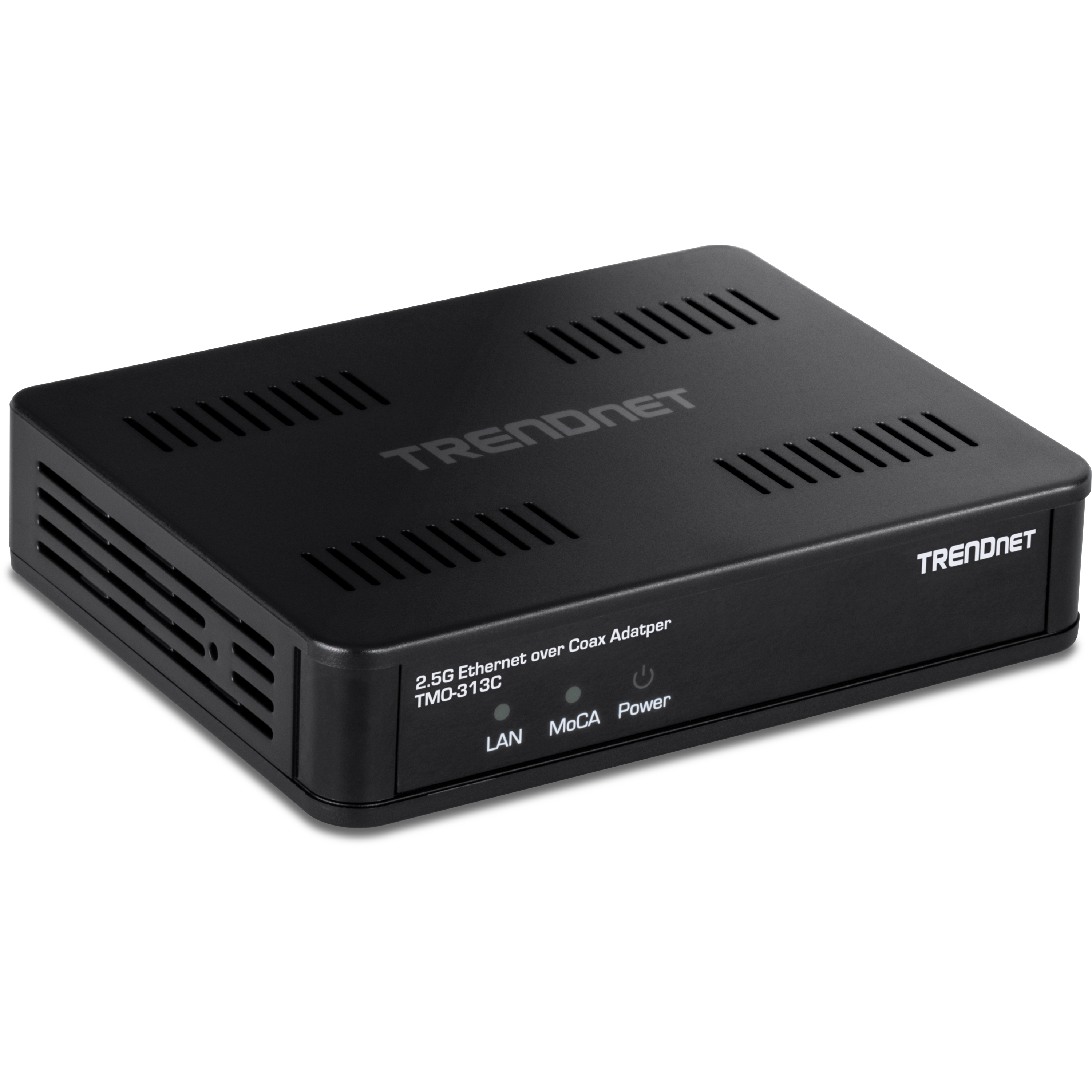

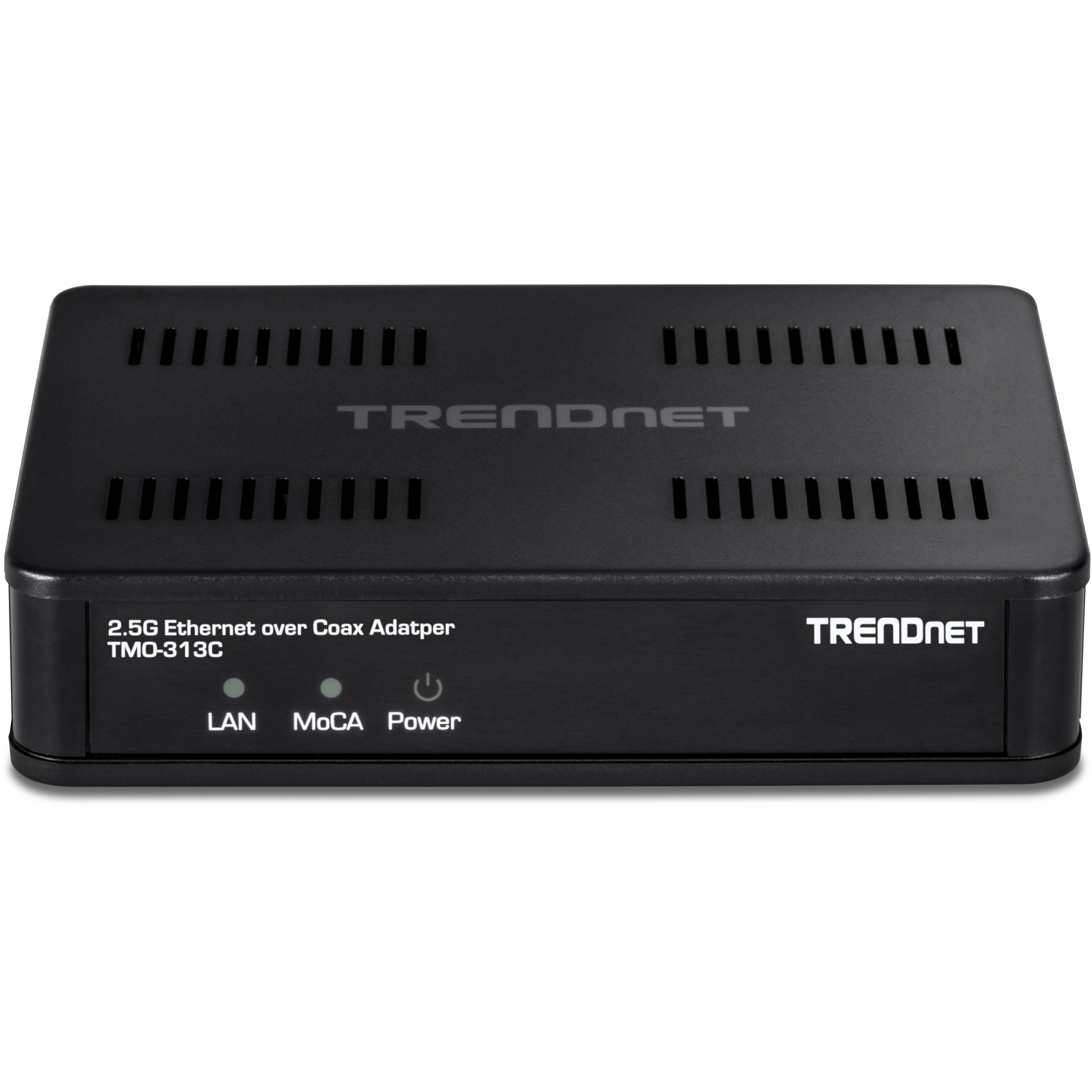

2.5Gbps Ethernet over Coax Adapter

TMO-313C   (Version V1)

    bulletsIncludes one MoCA 2.5Gbps Ethernet over Coax Adapter (TMO-313C)
  • Supports MoCA® 2.5 over coaxial cables
  • 1 x MoCA Coax: F-Type Female coax input
  • 1 x 2.5Gbps RJ45 LAN port
  • Backward compatible with MoCA 2.0/1.1/1.0 standards
  • Supports up to 16 nodes on one network
  • Bonded MoCA 2.5 channels provide a net throughput of up to 2.5Gbps
  • Designed to connect Ethernet devices to an existing MoCA compliant network
  • Not compatible with DirecTV, DISH Network, AT&T U-verse, or other non-MoCA compliant subscription services
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz
  • MoCA 1.1/1.0
  • MoCA 2.0
  • MoCA 2.5

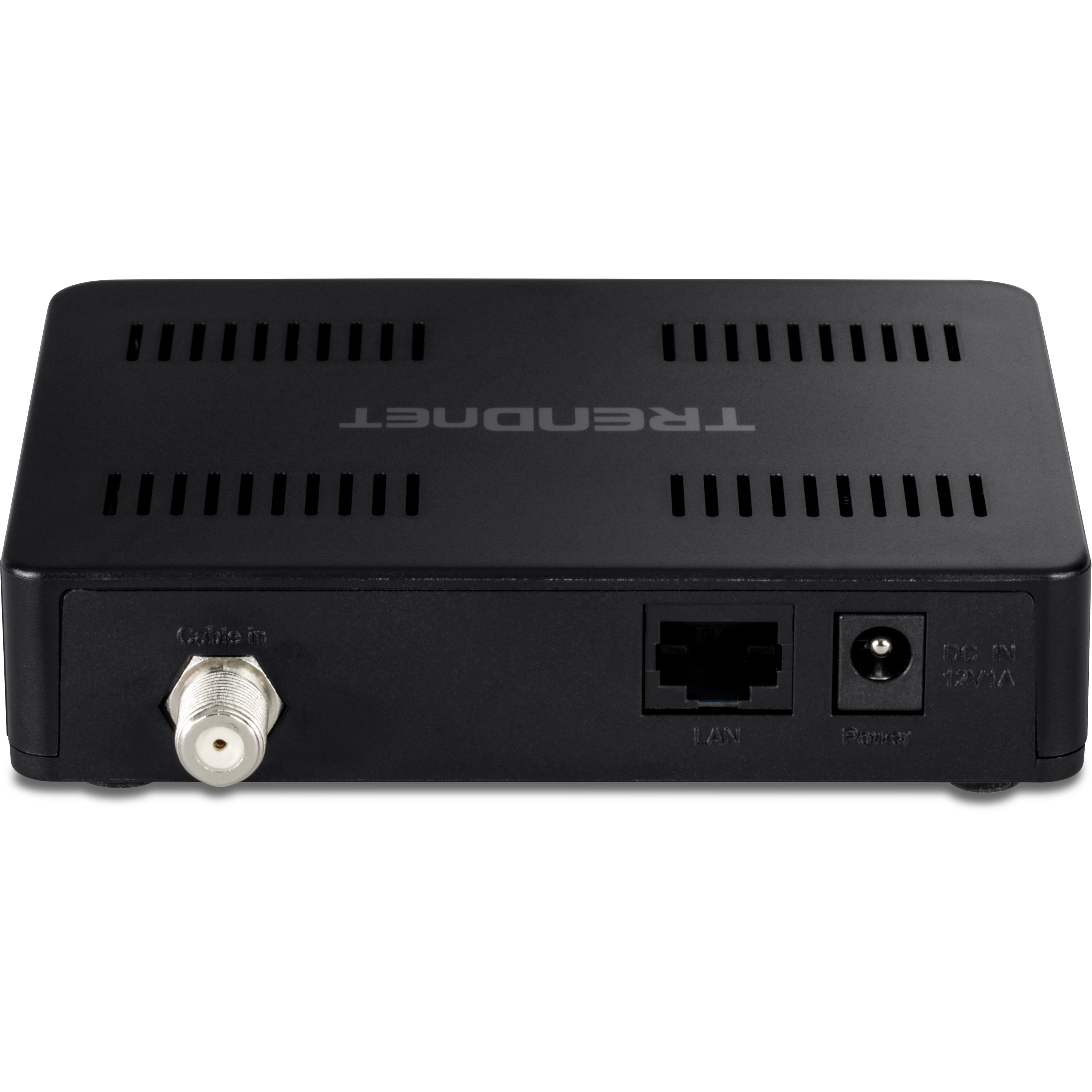

Device Interface
  • 1 x Coax cable in port (female) (up to 2.5Gbps)
  • 1 x 2.5Gbps RJ45 LAN port (10Mbps/100Mbps/1000Mbps/2.5Gbps)
  • Reset button
  • LED indicators
  • Power jack
Data Transfer Rate
  • MoCA 1.1: Single channel up to 225Mbps
  • MoCA 2.0: Single channel up to 600Mbps
  • MoCA 2.0: Two bonded channel up to 1.2Gbps
  • MoCA 2.5: Five bonded channel up to 3Gbps
  • MoCA MAC rate:
    • 16-node single channel: up to 400Mbps
    • 16-node 2 channel bonding: up to 800Mbps
    • 16-node 5 channel bonding: up to 2.5Gbps
MoCA Radio
  • Max. 16 MoCA 1.1 or 2.0/2.5 devices
  • Max. 8 MoCA 1.0 devices
  • Max. transmit power: +3 dBm typical
  • 1.1/1.0 channels: 8 with 50MHz bandwidth
  • 2.0 channels: 10 with 100MHz single channel, 225Mhz bonded channel
  • 2.5 channels: 5 with 100MHz bonded channel
  • 2.0/2.5 Edge-to-edge frequency: 1125-1675MHz
  • Default channel: 1150MHz
Compatible
  • Frontier/Verizon FiOS
  • Spectrum
  • Cox Communications
  • Comcast
  • Devices with Ethernet port
Not Compatible
  • DirecTV
  • DISH Network
  • Satellite TV
  • AT&T U-verse
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.5A
  • Output: 12V DC, 1A external power adapter
  • Max. consumption: 12W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 85% non-condensing
Dimensions
  • 112 x 88 x 25mm (4.4 x 3.5 x 1 in.)
Weight
  • 116g (4 oz.)
Certifications
  • FCC
Warranty
  • 3-year

PACKAGE CONTENTS
  • TMO-313C
  • Power adapter (12V, 1A)

** 2.5Gbps is the maximum theoretical MoCA 2.5 data rate when connecting bonded MoCA 2.5 devices. Data throughput may vary based on coax wire conditions or quality.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
