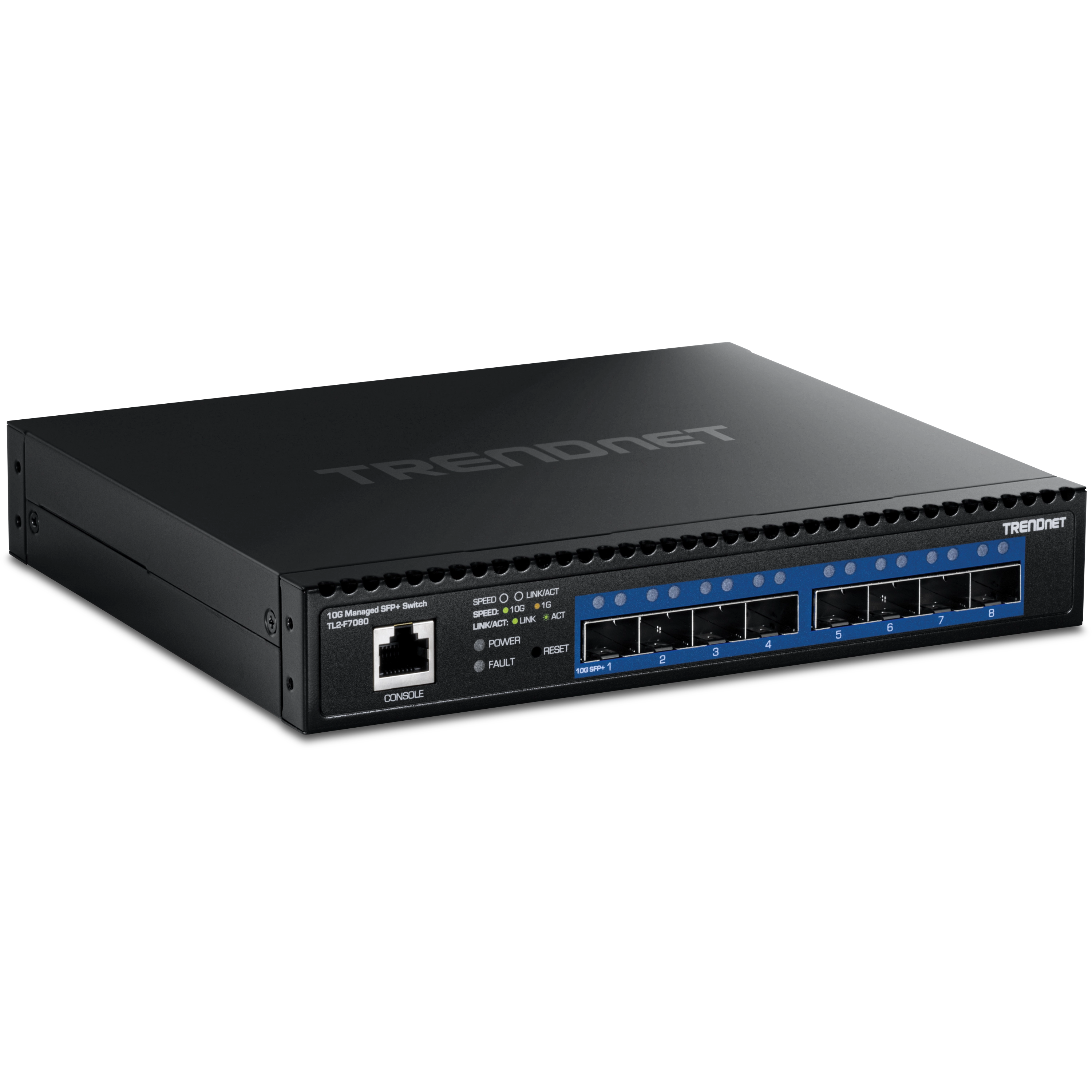

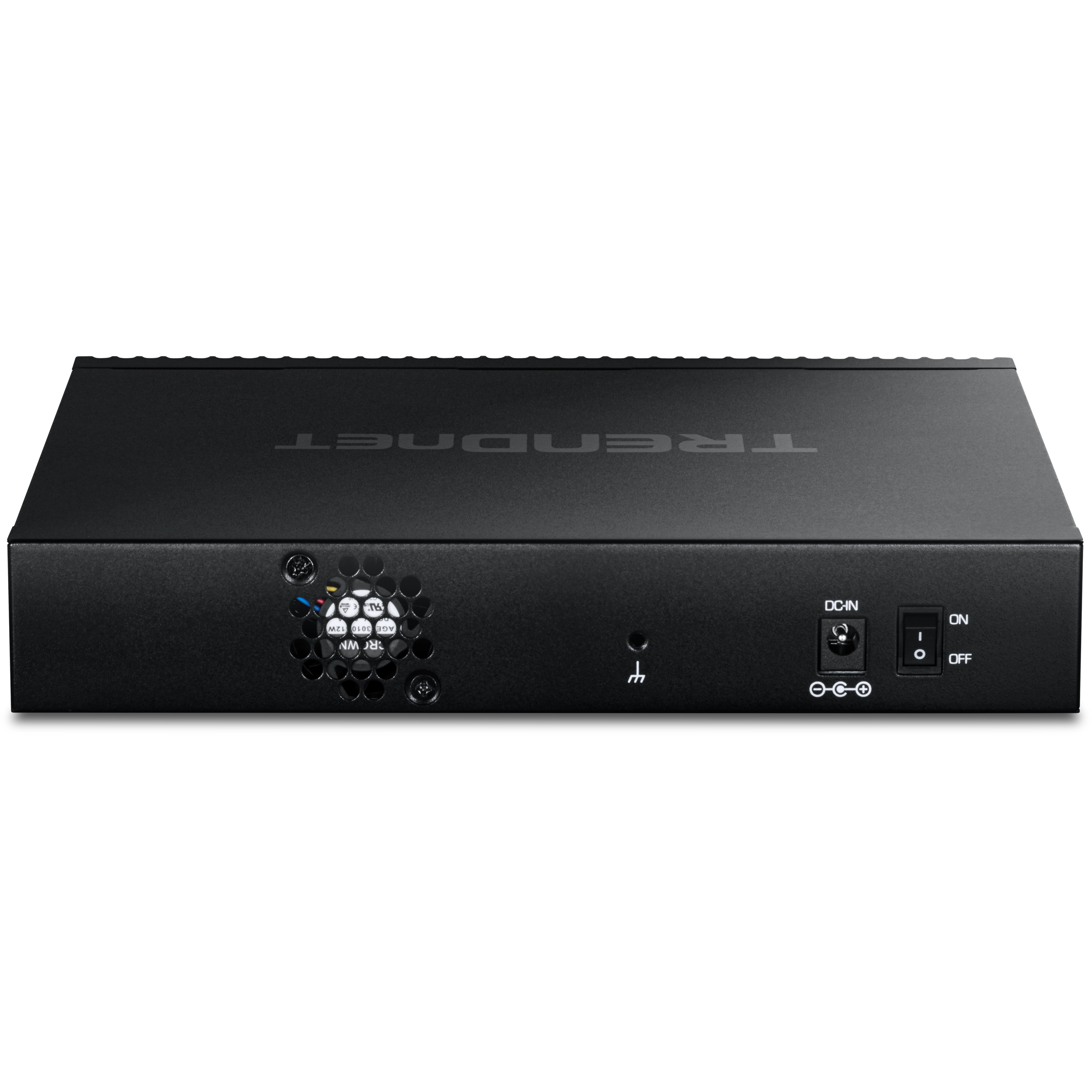

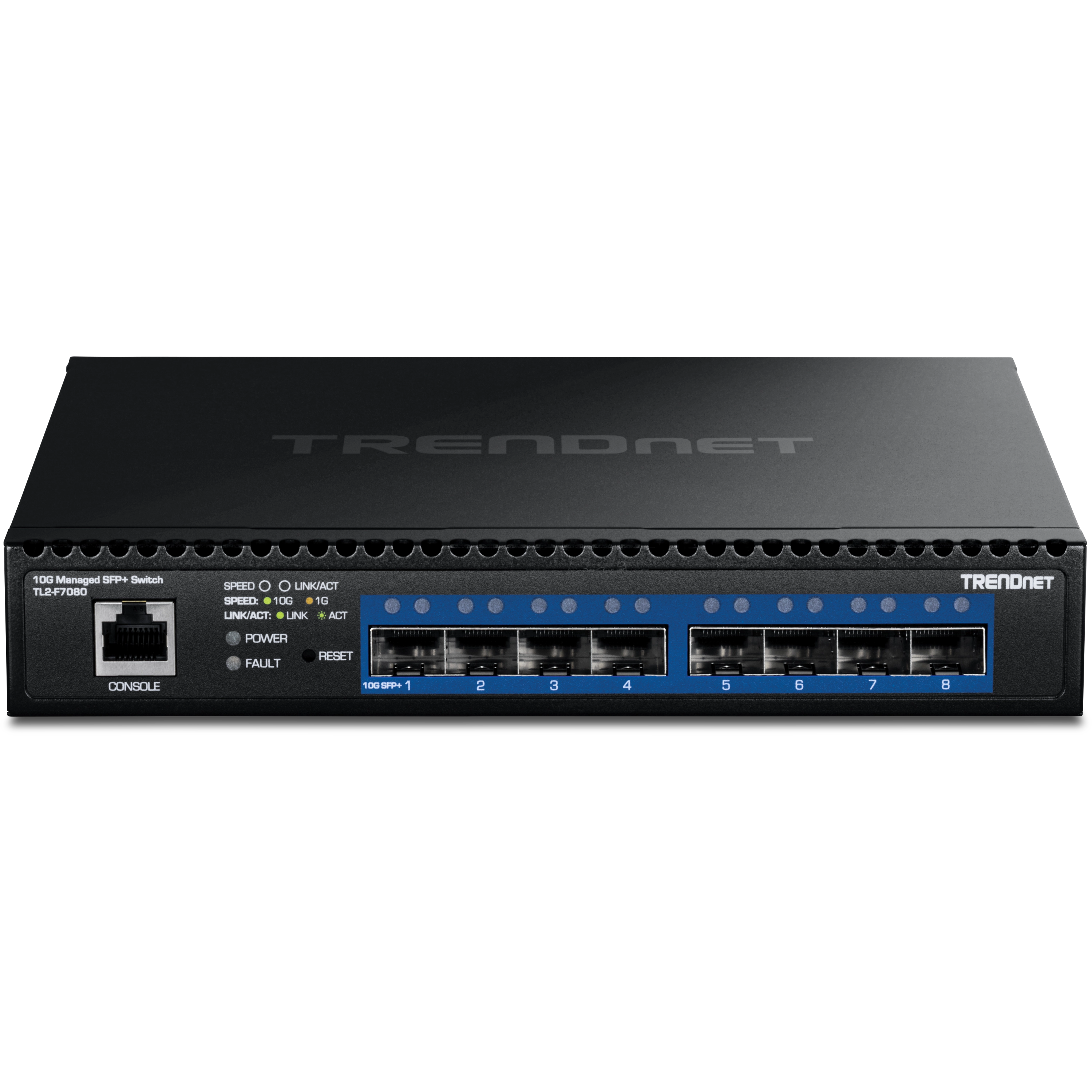

8-Port 10G Layer 2 Managed SFP+ Switch

TL2-F7080   (Version V1)

  • 8 x 10G SFP+ ports
  • Support 1Gbps / 10Gbps link speeds
  • Web-based management
  • CLI management
  • Supports IPv6, LACP, VLAN, and IGMP Snooping
  • 802.1Q tagged-based VLAN, GVRP, and Voice VLAN support
  • QoS with queue scheduling support
  • Supports inter-VLAN routing and IPv4/IPv6 static routing
  • 160Gbps switching capacity
  • Supports 10GBASE-X / 1000BASE-FX SFP fiber modules
  • Smart fan
  • Save rack space by mounting two TL2-F7080 into a single 1U space with the optional ETH-F72 dual mount bracket (sold separately)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Firmware

Firmware

Firmware Version: 1.00.06
Release Date: 9/2025

  • Updated SSL certificate
  • Updated RSA key length from 1024-bit to 2048-bit.
  • Fixed security vulnerabilities.
  • Fixed issue jumbo frame size not saving after device reboot.
  • Fixed error when creating a VLAN IP interface.

Filename: FW_TL2-F7080_v1(1.00.06).zip
SHA-1 Checksum: 9910DF43178F0F22B5679DA2166C78E7A261145F
Date: 9/17/2025
File Size: 20.44 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TL2-F7080_(v1.xR).pdf
Date: 6/3/2025
File Size: 3.85 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TL2-F7080_(v1.xR).pdf
Date: 6/3/2025
File Size: 4.03 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TL2-F7080_(v1.xR).pdf
Date: 6/3/2025
File Size: 4.02 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TL2-F7080_(v1.xR).pdf
Date: 6/3/2025
File Size: 4.09 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TL2-F7080_(v1.xR).pdf
Date: 6/3/2025
File Size: 4.03 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TL2-F7080_(v1.xR).pdf
Date: 6/3/2025
File Size: 4.04 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: Web_qig_TL2-F7080_v1.0R.pdf
Date: 6/3/2025
File Size: 10.97 MB
Download

Product Images

TL2-F7080 Product Photo (PNG Image 1)
PNG Image
File Size: : 2.85 MB
Date: : 6/3/2025
Download
TL2-F7080 Product Photo (PNG Image 2)
PNG Image
File Size: : 3.39 MB
Date: : 6/3/2025
Download
TL2-F7080 Product Photo (PNG Image 3)
PNG Image
File Size: : 3.22 MB
Date: : 6/3/2025
Download
TL2-F7080 Product Photo (PNG Image 4)
PNG Image
File Size: : 3.18 MB
Date: : 6/3/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.1ax
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3x
  • IEEE 802.3z
Device Interface
  • 8 x SFP+ ports (1Gbps / 10Gbps)
  • 1 x RJ45 console port (out-of-band)
  • LED indicators
  • Reset button
Performance
  • Switching capacity: 160Gbps
  • RAM buffer: 1.5MB
  • MAC address table: 16K entries
  • Jumbo frames: 12KB
  • Forwarding rate: 119.04 Mpps (64-byte packet size)
Management
  • CLI (Console / Telnet / SSH)
  • GUI (HTTP / HTTPS)
  • IPv4/IPv6
  • DNS
  • TFTP/HTTP firmware upgrade
  • TFTP/HTTP backup and restore configuration
  • SNMP v1, v2c, v3
  • SNMP trap
  • RMON groups 1/2/3/9
  • LLDP
  • ICMPv4/ICMPv6
  • Trace Route IPv4/IPv6
  • Virtual cable diagnostics test
  • Simple Network Time Protocol (SNTP)
  • Multi-User (Admin/User privilege)
  • Dual image (Active/Backup)
  • System Log (Local/Download/Remote Syslog)
  • MAC entries (Static/Dynamic)
  • ARP entries (Static/Dynamic)
  • IPv6 neighbor discovery entries (Static/Dynamic)
  • Port mirror (One to one, many to one)
  • Digital diagnostics monitoring (DDM) for SFP modules
  • Storm control: Broadcast, unknown multicast, unknown unicast (Min. limit: 16kbps)
  • Port statistics counter
  • Loopback detection
  • CPU/Memory Utilization
  • Real-time port statistics
MIB
  • RMON MIB RFC 1757
  • MIB II RFC 1213
  • Ethernet Interface MIB RFC 1643
  • Bridge MIB RFC 1493
Spanning Tree
  • Rapid spanning tree protocol (RSTP)
  • Multiple spanning tree protocol (MSTP) Up to 16 instances
Link Aggregation
  • Static link aggregation
  • Dynamic LACP (Up to 8 groups, 8 ports per group)
Quality of Service (QoS)
  • Class of service (CoS)
  • Differentiated Services Code Point (DSCP)
  • Bandwidth control per port/rate limiting
  • Queue scheduling: strict priority (SP), weighted round robin (WRR)
Storm Control
  • Broadcast (Min. limit: 16Kbps)
  • Unknown Multicast (Min. limit: 16Kbps)
  • Unknown Unicast (Min. limit: 16Kbps)
VLAN
  • Management access VLAN assignment
  • 802.1Q tagged VLAN
  • Dynamic GVRP
  • Port Isolation
  • Up to 256 VLAN groups, ID range 1-4094
  • Voice VLAN
  • Dynamic VLAN
L3 Features
  • IPv4 / IPv6 static routing
  • IPv4 interfaces: Up to 4
  • IPv6 interfaces: Up to 8
  • Routing table entries: IPv4: 63 max. / IPv6: 21 max.
  • Default route entries: 1 (IPv4 / IPv6)
  • ARP table (up to 192 entries)
  • DHCP IPv4 relay
  • Inter-VLAN routing
Multicast
  • IGMP snooping v1, v2, v3
  • MLD Snooping v1, v2
  • IGMP/MLD fast leave and querier
  • IGMP/MLD dynamic router port, and report suppression
  • Multicast filtering
  • Up to 256 multicast groups
Access Control
  • 802.1X authentication (Local, RADIUS IPv4, TACACS+ IPv4)
  • 802.1X RADIUS/Guest VLAN assignment, MAC-based authentication
  • DHCP snooping
  • Port Security/MAC address learning restriction (Up to 256 entries per port)
  • Denial of Service (DoS)
Power
  • Input: 100 – 240V AC, 50/60 Hz, 1A
  • Output: 12V DC, 2.5A external power adapter
  • Max. Consumption: 23.53W
Fan/Acoustics
  • Quantity: 1
  • Smart Fan
  • Noise Level: 35dBA (max.)
MTBF
  • 172,636 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 210 x 180 x 35mm (8.27 x 7.09 x 1.38 in.)
  • 1U Rack Mountable
  • Dual 1U rackmount kit option (ETH-F72 sold separately)
Weight
  • 906g (32 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

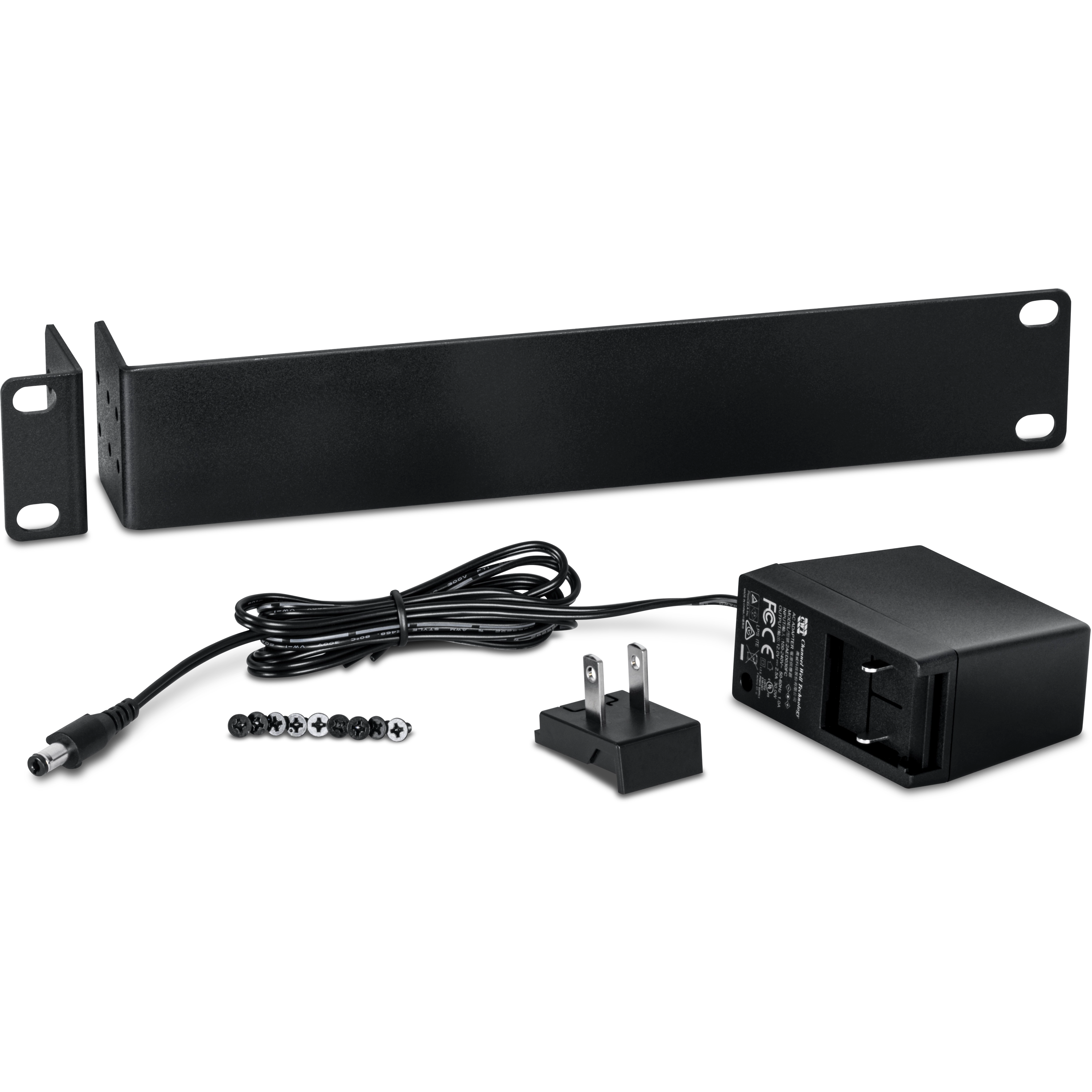

PACKAGE CONTENTS
  • TL2-F7080
  • Power adapter (12V DC, 2.5A)
  • RJ45 to RS-232 console cable (1.5m / 5 ft.)
  • Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
