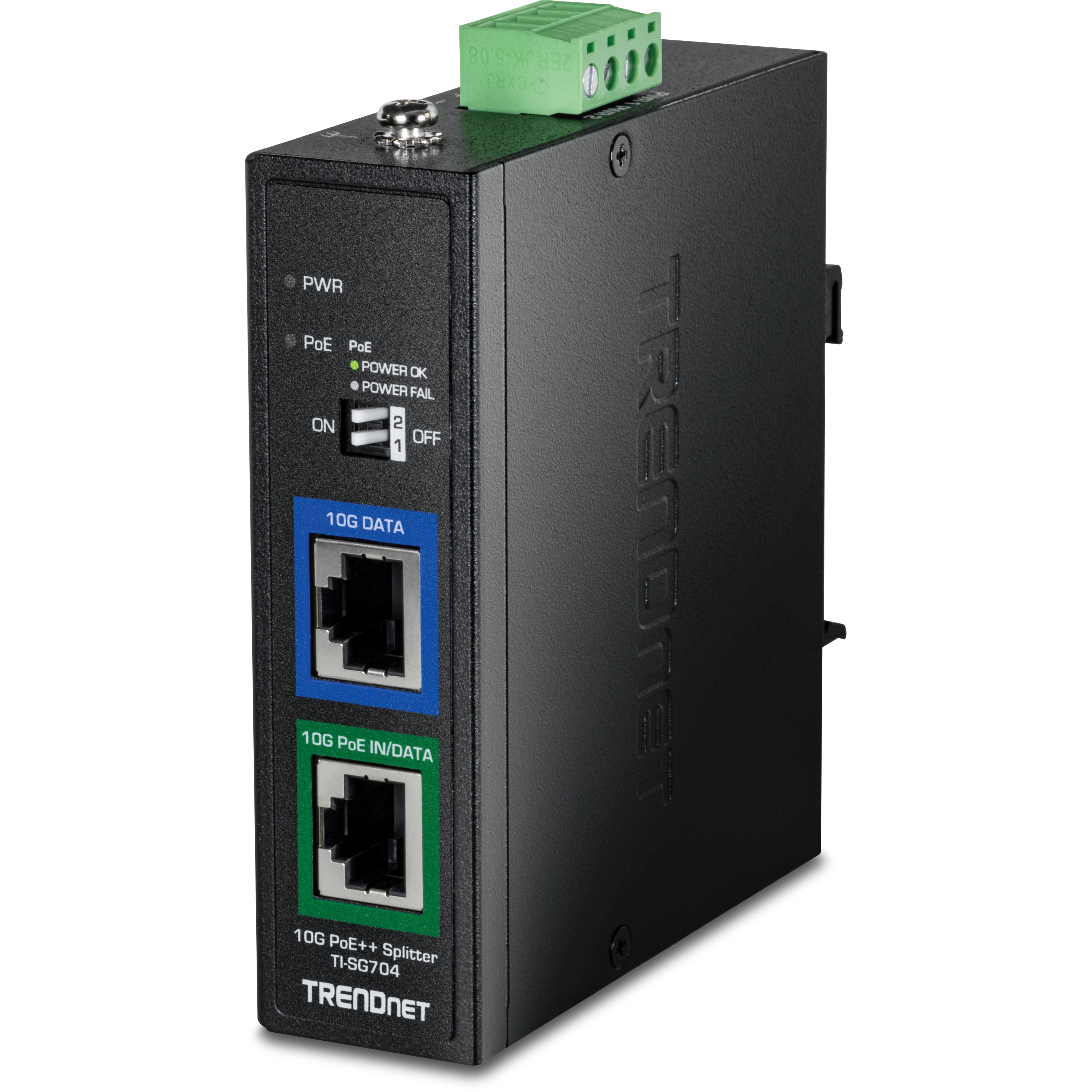

Industrial 10G PoE++ Splitter

TI-SG704   (Version V1)

  • Power a non-PoE device up to 100m (328 ft.) away from PSE
  • Splits a 10G 90W PoE++ signal into separate power and data sources
  • Adjustable voltage output supports 12V, 16V, 24V, or 48V devices
  • Extreme operating temperature range -40 to 75° C (-40 to 167° F)
  • IEEE 802.3bt compliant
  • For best performance pair with TRENDnet PoE++ switches or injectors
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-SG704_(v1.xR).pdf
Date: 8/19/2025
File Size: 4.23 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-SG704_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.32 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-SG704_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.34 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-SG704_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.37 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-SG704_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.37 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-SG704_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.33 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: Lineart_QIG_TI-SG704_v1.0R.pdf
Date: 8/19/2025
File Size: 3.31 MB
Download

Product Images

TI-SG704 Product Photo (PNG Image 1)
PNG Image
File Size: : 6.29 MB
Date: : 8/19/2025
Download
TI-SG704 Product Photo (PNG Image 2)
PNG Image
File Size: : 3.83 MB
Date: : 8/19/2025
Download
TI-SG704 Product Photo (PNG Image 3)
PNG Image
File Size: : 6.81 MB
Date: : 8/19/2025
Download
TI-SG704 Product Photo (PNG Image 4)
PNG Image
File Size: : 5.86 MB
Date: : 8/19/2025
Download
TI-SG704 Product Photo (PNG Image 5)
PNG Image
File Size: : 6.17 MB
Date: : 8/19/2025
Download
TI-SG704 Product Photo (PNG Image 6)
PNG Image
File Size: : 5.00 MB
Date: : 8/19/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz
  • IEEE 802.3an
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt

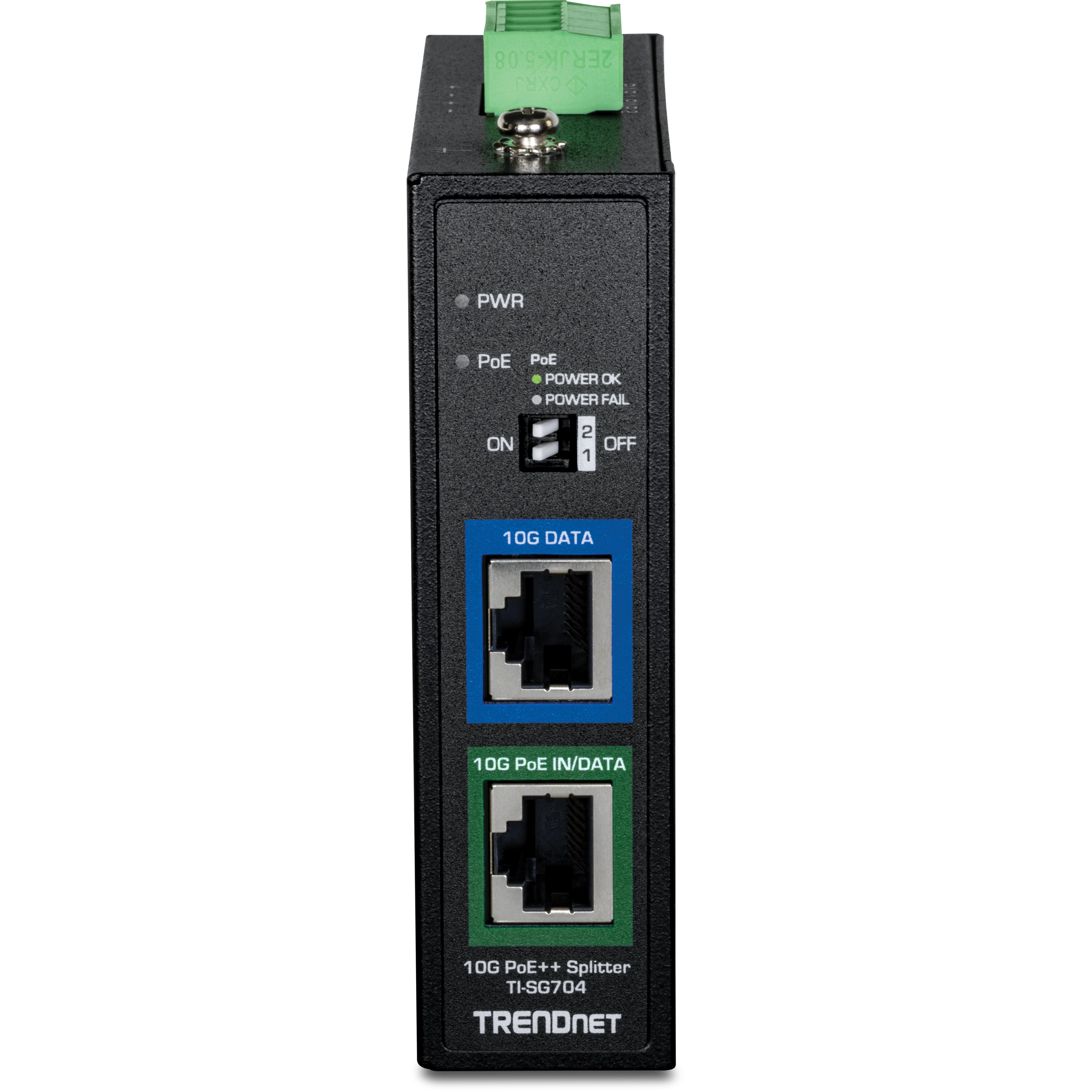

Device Interface
  • 1 x 10G port (10Mbps/100Mbps/1000Mbps/2.5G/10G)
  • 1 x 10G PoE++ in port (10Mbps/100Mbps/1000Mbps/2.5G/10G)
  • 4-pin removable terminal block (dual DC output)
  • Adjustable output power DIP switch (48V, 24V, 16V, 12V)
  • LED indicator
Power
  • Input: 15.4W/30W/60W/90W PoE power
  • Max. consumption: 1.13W (splitter only)
  • Max. combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A)
PoE Input Max. DC Output (split between two devices)
90W
  • 48V (1.25A) DC Output: 60W
  • 24V (2.3A) DC Output: 55W
  • 16V (2.3A) DC Output: 36.8W
  • 12V (2.3A) DC Output: 27.6W
60W
  • 48V (1.05A) DC Output: 50W
  • 24V (2.04A) DC Output: 49W
  • 16V (2.18A) DC Output: 35W
  • 12V (2.16A) DC Output: 26W
30W
  • 48V (0.52A) DC Output: 25W
  • 24V (0.95A) DC Output: 23W
  • 16V (1.37A) DC Output: 22W
  • 12V (1.83A) DC Output: 22W
15.4W
  • 48V (0.22A) DC Output: 10.6W
  • 24V (0.44A) DC Output: 10.7W
  • 16V (0.63A) DC Output: 10.2W
  • 12V (0.85A) DC Output: 10.2W

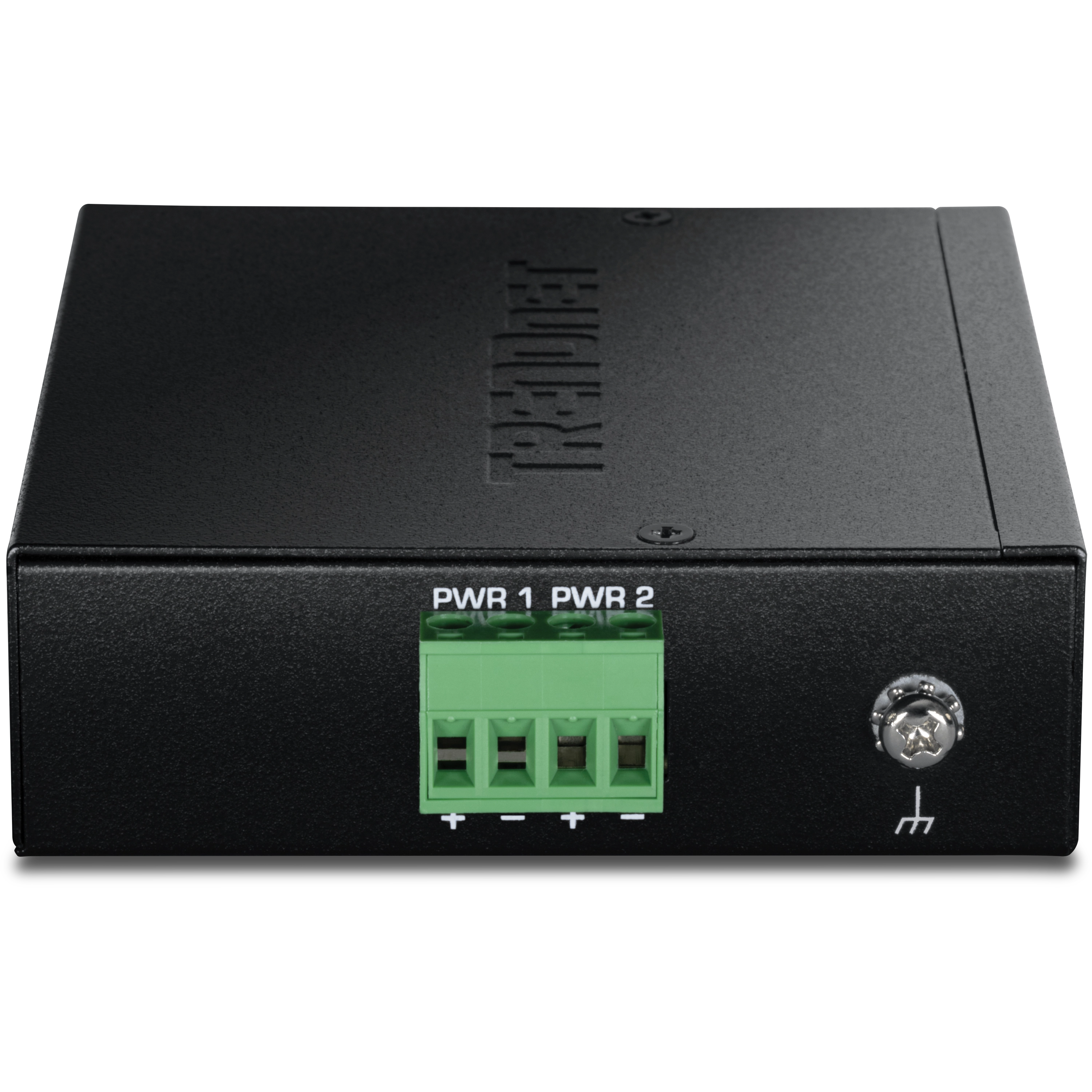

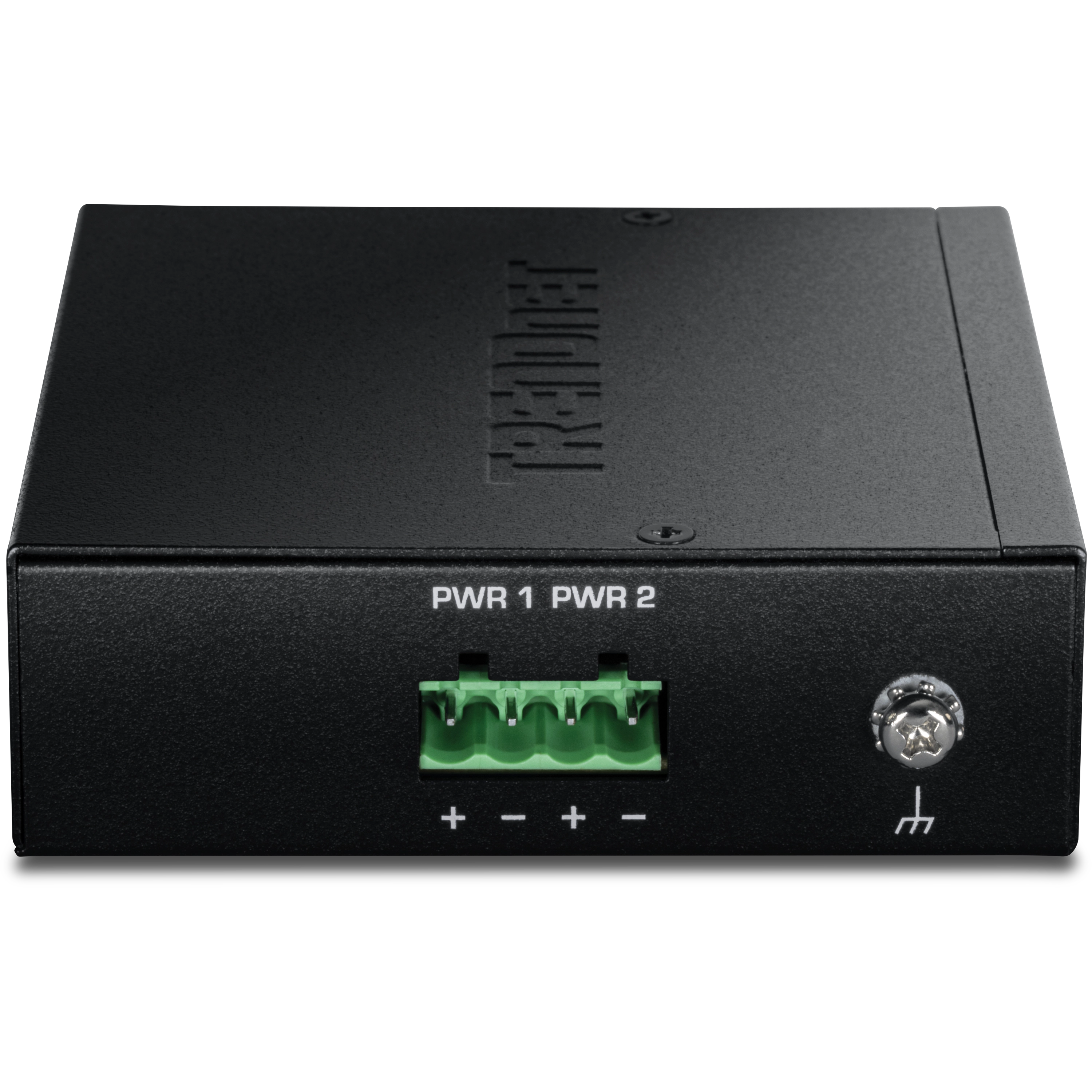

Terminal Block
  • Dual DC power outputs, 4 pin
  • Wire range: 0.75mm2 to 2.5mm2
  • Solid wire (AWG): 12-18
  • Stranded wire (AWG): 12-18
  • Torque: 3 lb. – In / 0.2Nm / 0.56Nm
  • Wire strip length: 6-7mm
DIP Switch*
DIP 1 DIP 2 Function
On On 48V DC (default)
On Off 24V DC
Off On 16V DC
Off Off 12V DC
MTBF
  • 812,314 hours @ 25° C
Housing
  • IP50 metal housing

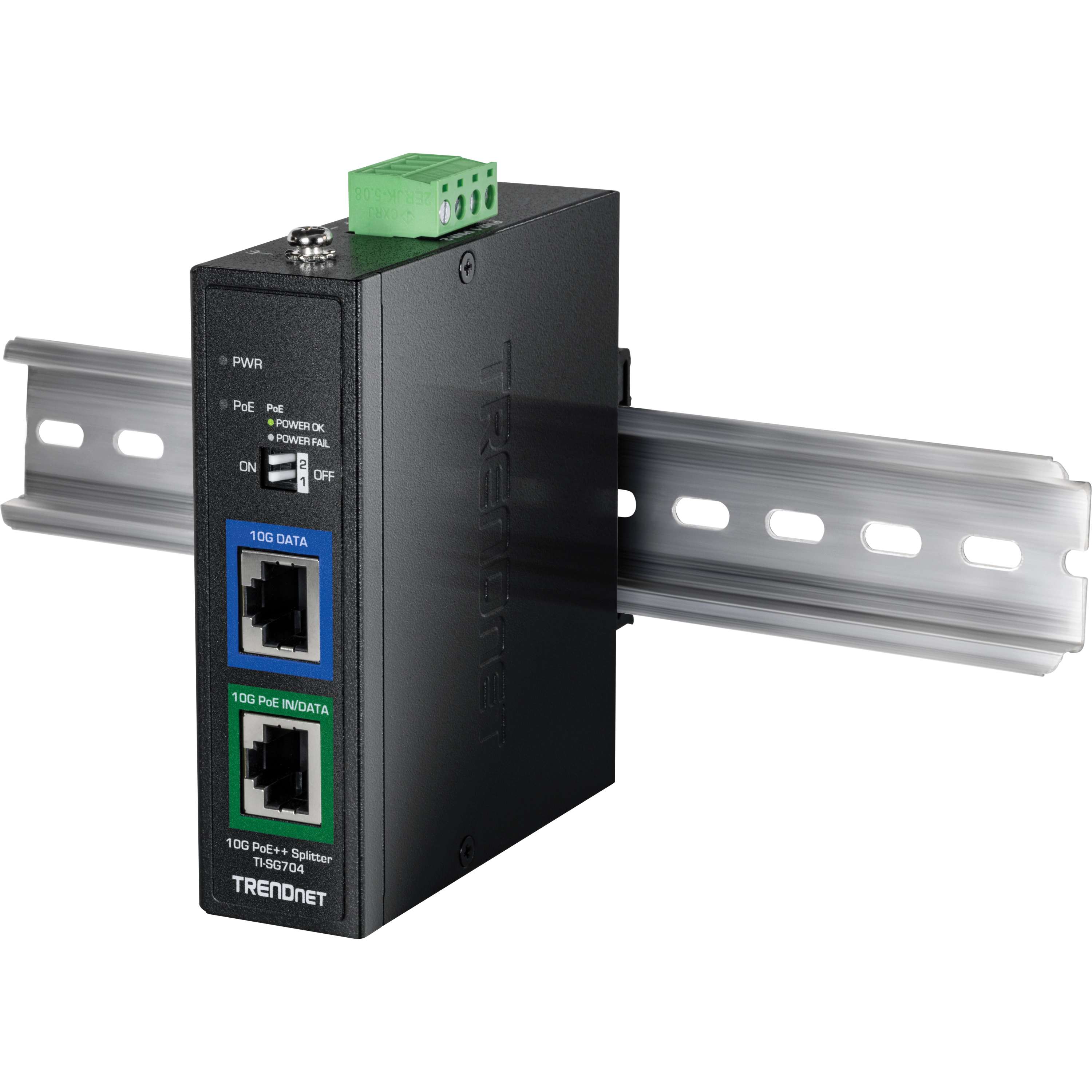

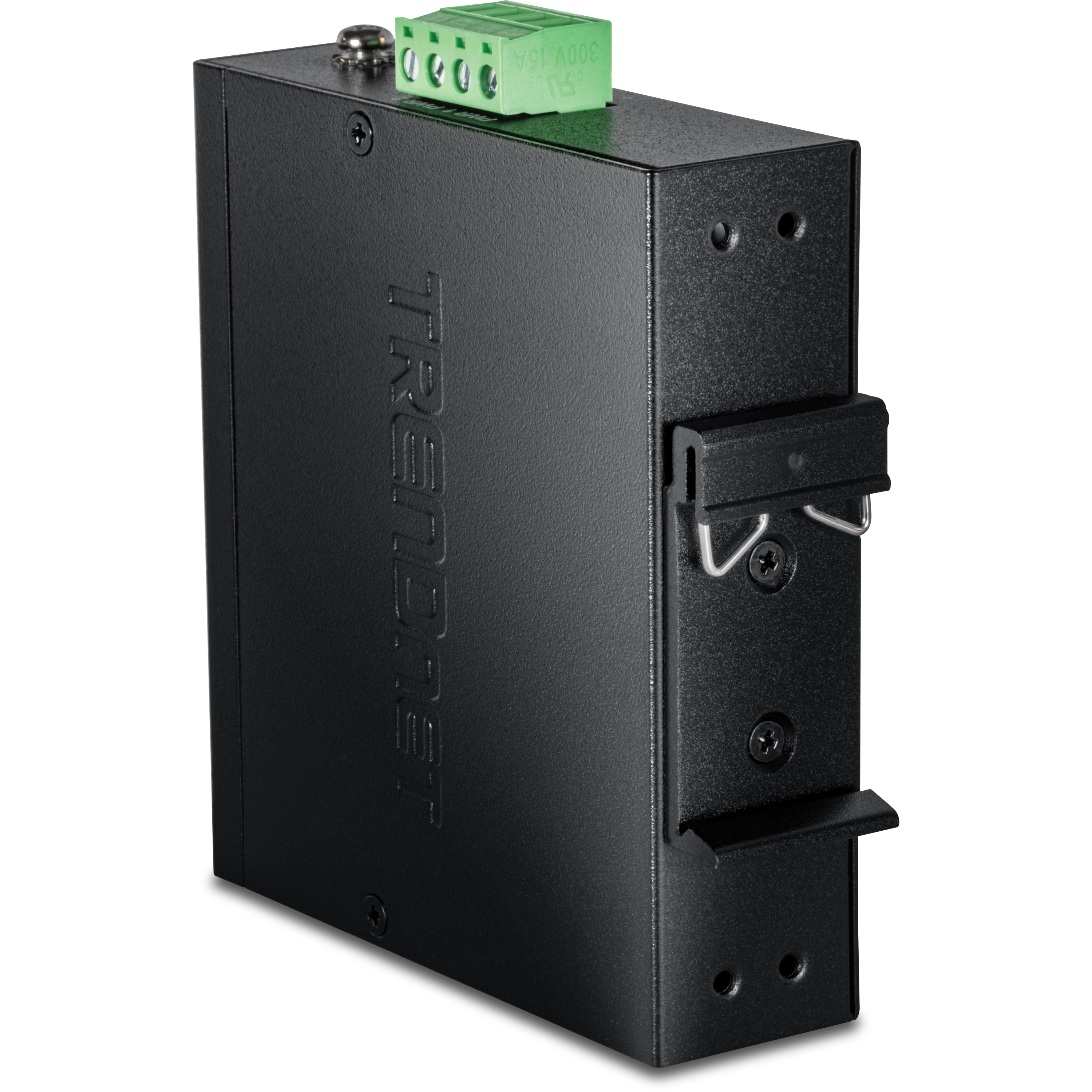

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 6kV surge protection
  • 6kV RJ45 protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 99 x 90 x 28mm (3.9 x 3.54 x 1.1 in.)
Weight
  • 432g (15.2 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-SG704
  • Removable terminal block
  • DIN-Rail and wall-mount kit

*Disclaimer: DIP switches will set the same voltage for both DC outputs
