DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: 1.0.17.S0
Release Date: 08/2024
Release Note:
- Added MSTP support
- Fixed SSL bug
Filename: FW_TI-PG102i_v1(1.0.17.S0).zip
SHA-1 Checksum: 0DD924566EFE689FE7D9B8719F1BE07040D84028
Date: 9/3/2024
File Size: 8.35 MB
Model: TI-PG102i
Hardware Version: v1.0R
MIB Version: 1.00
Release Date: 4/2021
Note:
Filename: MIB_TI-PG102i_v1(1.00).zip
Date: 3/1/2022
File Size: 7.36 KB
Filename: EN_datasheet_TI-PG102i_(v1.0R).pdf
Date: 3/6/2023
File Size: 877.41 KB
Filename: FR_datasheet_TI-PG102i_(v1.0R).pdf
Date: 3/6/2023
File Size: 888.64 KB
Filename: GE_datasheet_TI-PG102i_(v1.0R).pdf
Date: 3/6/2023
File Size: 887.26 KB
Filename: PO_datasheet_TI-PG102i_(v1.0R).pdf
Date: 3/6/2023
File Size: 917.11 KB
Filename: SP_datasheet_TI-PG102i_(v1.0R).pdf
Date: 3/6/2023
File Size: 888.09 KB
Filename: RU_datasheet_TI-PG102i_(v1.0R).pdf
Date: 3/6/2023
File Size: 919.52 KB
Filename: IT_datasheet_TI-PG102i_(v1.0R).pdf
Date: 3/6/2023
File Size: 886.29 KB
Filename: English_TI-PG1284i_TI-PG541i_TI-PG102i_TI-PG102i-M_TI-BG62i.
Date: 9/1/2021
File Size: 4.85 MB
Filename: French_TI-PG1284i_TI-PG541i_TI-PG102i_TI-PG102i-M_TI-BG62i.p
Date: 9/1/2021
File Size: 3.90 MB
Filename: German_TI-PG1284i_TI-PG541i_TI-PG102i_TI-PG102i-M_TI-BG62i.p
Date: 9/1/2021
File Size: 2.85 MB
Filename: Portuguese_TI-PG1284i_TI-PG541i_TI-PG102i_TI-PG102i-M_TI-BG6
Date: 9/1/2021
File Size: 2.95 MB
Filename: Spanish_TI-PG1284i_TI-PG541i_TI-PG102i_TI-PG102i-M_TI-BG62i.
Date: 9/1/2021
File Size: 2.94 MB
Filename: Russian_TI-PG1284i_TI-PG541i_TI-PG102i_TI-PG102i-M_TI-BG62i.
Date: 9/1/2021
File Size: 2.88 MB
Filename: Italian_TI-PG1284i_TI-PG541i_TI-PG102i_TI-PG102i-M_TI-BG62i.
Date: 9/1/2021
File Size: 2.91 MB
Filename: Industrial_Managed_UG_012924.pdf
Date: 11/5/2021
File Size: 6.12 MB
PNG Image
File Size: : 20.48 MB
Date: : 1/11/2019
PNG Image
File Size: : 1.67 MB
Date: : 1/11/2019
PNG Image
File Size: : 2.88 MB
Date: : 1/11/2019
Compatible power supplies for the TI-PG102i are the TI-S12024 (120W), TI-S24048 (240W), or TI-S48048 (480W) sold separately. You can also supply power to hardened devices with existing electrical systems. Be sure to check detailed product specifications on our website under the Products section for ...
Hardened PoE appliances will require 24 – 57 V DC. Hardened non-PoE appliances typically support 12 – 56 V DC. Always check detailed product specifications on our website under the Products section. Compatible power supplies for the TI-PG102i are the TI-S12024 (120W), TI-S24048 (240W), or TI-S48048 ...
Hardened products are designed to withstand harsh industrial environments. Check the product specifications for IP ratings, extreme operating temperature ranges and power options....
TRENDnet PoE switches will support 802.3af, 802.3at or both. Please check detailed product specifications under the Product section of our website. If your device is not standard PoE compliant it will not be compatible with TRENDnet PoE switches. Many non-standard PoE devices use passive or propriet...
You can find detailed product specifications on our website under the Products section. You can find a detailed dip switch legend under the product specifications and in the user's guide available for download from our website under the Support section. ...
Each switch will have a maximum amount of power that can be supplied to powered devices. This is the overall amount of power for the entire switch. Please check detailed product specifications for PoE budget under the Products sections of our website. The TI-PG102i power budget is determined by the ...
A switch cannot share an IP address provided by your ISP with multiple devices. You will need a router to share your Internet service with multiple devices. The switch can be used to expand the amount of available ports on your network....
Only managed or web smart PoE switches will have reset instruction. Unmanaged PoE switches are not configurable and do not have settings to reset. Your switch will have a reset button. This button is typically recessed and located on the front or the back of the switch. You will need a small pin or ...
Only managed or web smart PoE switches are configurable. Unmanaged PoE switches will not have management login information. You will find management login and default settings in the quick installation guide and user's guide. Included with the switch is a hard copy of the quick installation guide. T...
Standards | - IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab
- IEEE 802.1ax
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3az
- IEEE 802.3af
- IEEE 802.3at
|

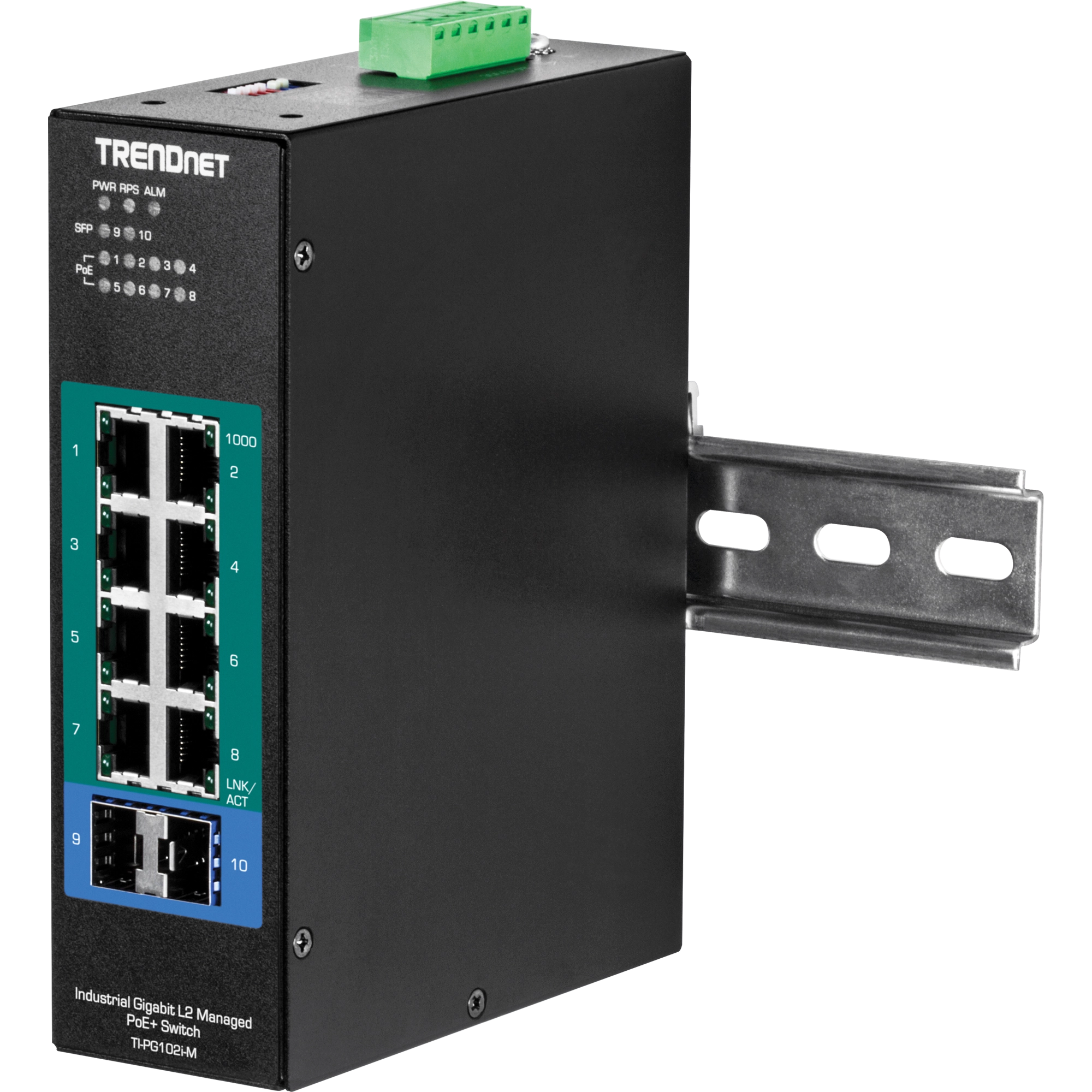

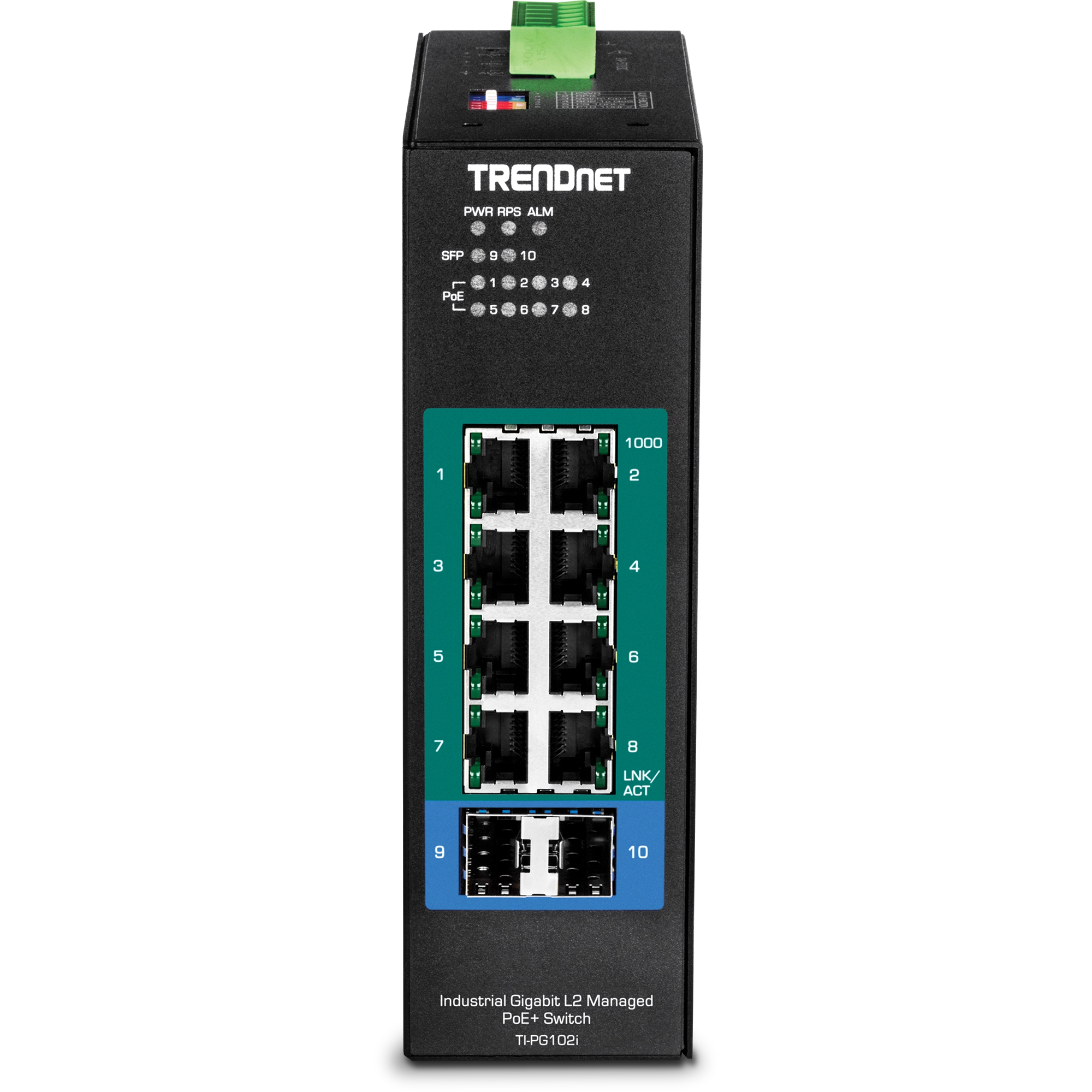

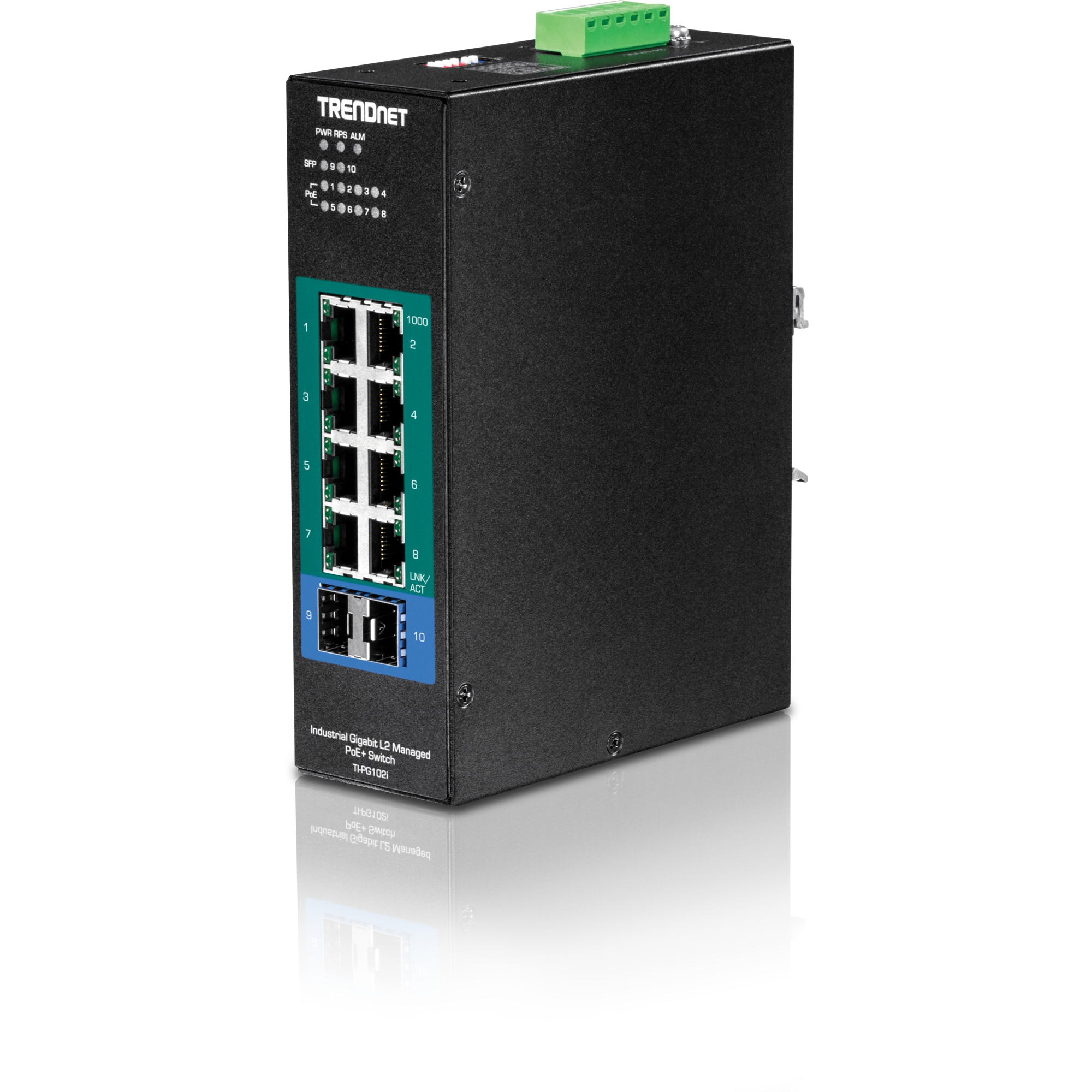

Device Interface | - 8 x Gigabit PoE+ ports
- 2 x 100/1000Mbps SFP slots
- 6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
- DIP switches
- LED indicators
- Reset button
|
Data Transfer Rate | - Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
|
Performance | - Switch fabric: 20Gbps
- RAM buffer: 512KB
- MAC address table: 8K entries
- Jumbo frames: 10KB
- Forwarding mode: store and forward
- Forwarding rate: 14.88Mpps (64-byte packet size)
|
Management | - HTTP web-based GUI
- CLI: Telnet / SSHv2
- SNMP v1, v2c, v3
- SNMP trap (up to 5 receivers)
- RMON groups 1/2/3/9
- Device configuration backup & restore, upgrade firmware, reboot, and reset to default
- Multiple administrative or read-only user accounts
- Enable or disable power saving mode per port
- Static MAC entries
- LLDP (Link layer discovery protocol)
- Netlite device map
- ONVIF device discovery
- SNTP
- SMTP alert
- Syslog
- Port statistics/utilization
- Traffic monitor
- Port mirror: one to one, many to one
- Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
- Loopback detection
- DHCP relay/option 82
- Modbus/TCP
- SFP DDMI (Digital Diagnostic Monitoring Interface)
- ERPS (Ethernet Ring Protection Switching) G8032v2
|
MIB | - MIB II RFC 1213
- Bridge MIB RFC 1493
- RMON (Group 1,2,3,9) RFC 2819 RFC 1757
|
Spanning Tree | - IEEE 802.1d STP (spanning tree protocol)
- IEEE 802.1w RSTP (rapid spanning tree protocol)
- BPDU filter, guard, and root guard
|
Link Aggregation | - Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)
|
Quality of Service (QoS) | - 802.1p Class of service (CoS)
- DSCP (Differentiated Services Code Point)
- Bandwidth control per port
- Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
|
VLAN | - 802.1Q tagged VLAN
- MAC-based VLAN
- Port isolation
- Up to 256 VLAN groups, ID range 1-4094
|
Multicast | - IGMP snooping v1, v2, v3
- IGMP querier
- IGMP fast leave
- Up to 256 multicast groups
- Static multicast entries
|
Access Control | - 802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
- DHCP snooping/screening
- Trusted host/IP access list for management access
- Port Security/MAC address learning restriction (Up to 100 entries per port)
- Static/dynamic ARP inspection
|
ACL | - Source/Destination MAC address
- Source/Destination IP address
- Source Interface
- VLAN ID
- EtherType
- TCP/UDP port 1-65535
|
Special Features | - Netlite device discovery and map display in GUI
- Port security: MAC address learning restriction per port
- DHCP relay/option 82 & DHCP server snooping/screening support
- Wide operating temperature range
- Redundant power inputs
- Alarm relay triggered by power failure
- Surge and ESD protection
|
Power | - PWR (Primary) terminal input: 24 – 57V DC
- RPS (Redundant) terminal input: 24 – 57V DC
- Compatible power supply: TI-S15052 (150W), TI-S24052 (240W), TI-S12024 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately
- Max. Consumption: 13W (no PoE load), 253W (full PoE load)
|
PoE | - PoE budget: 240W@48V DC input, 124W@24V DC input
- 802.3at: Up to 30W per port
- PoE Mode A: Pins 1, 2, 3, and 6 for power
- PoE auto classification
- PoE port priority/power scheduling/PD alive check
- Over current/short circuit protection
|
Terminal Block | - Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.5 mm^2 to 2.5 mm^2
- Solid wire (AWG): 12-26
- Stranded wire (AWG): 12-26
- Wire strip length: 10-11mm
|

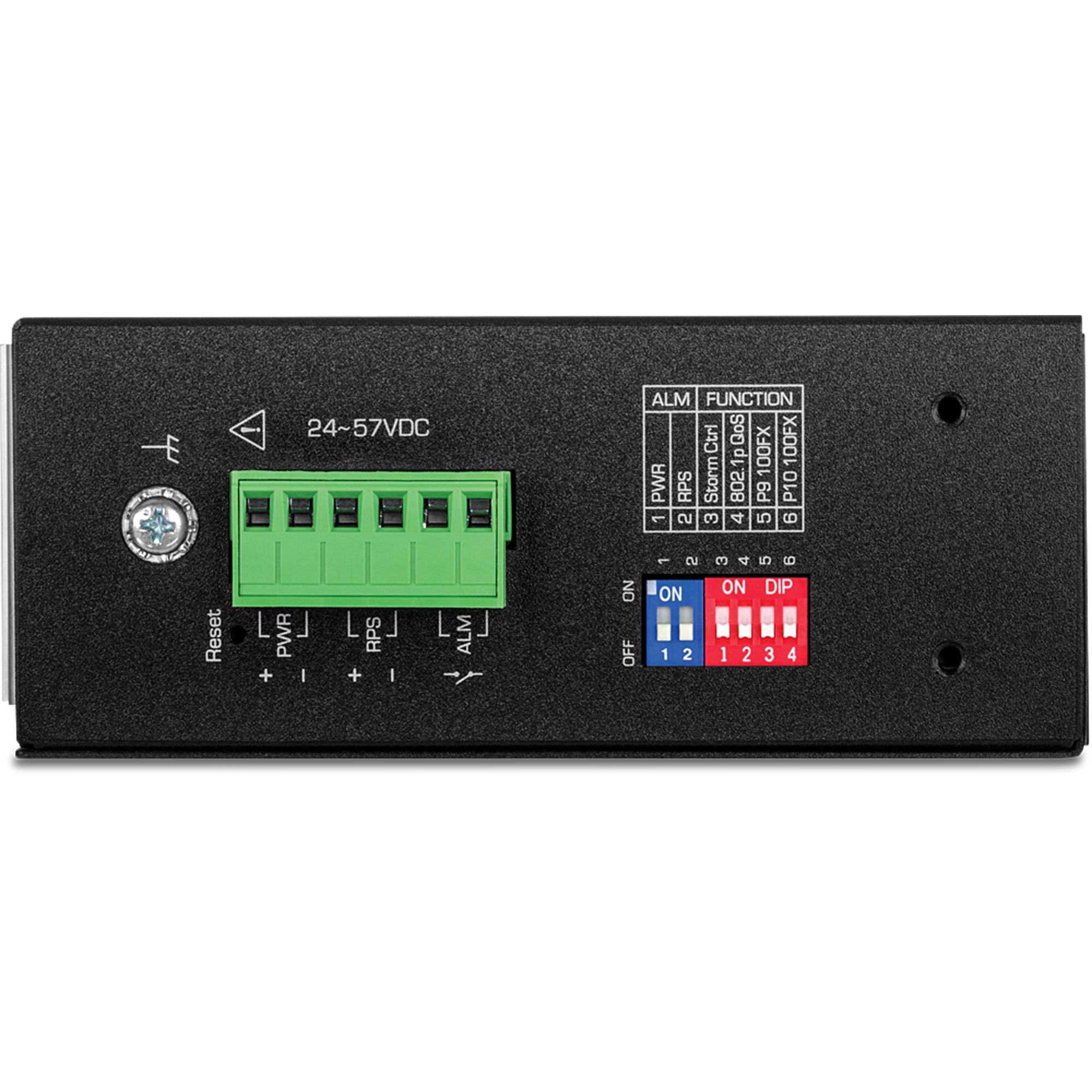

Dip Switch | Switch | Status | Function | 1 | OFF | Disable alarm relay for PWR power input | ON | Enable alarm relay for power failure on PWR power input | 2 | OFF | Disable alarm relay for RPS power input | ON | Enable alarm relay for power failure on RPS power input | 3 | OFF | Storm control managed by switch configuration | ON | Enable storm control (Broadcast and DLF rate set to 300pps) Takes precedence over storm control switch configuration | 4 | OFF | 802.1p QoS managed by switch configuration | ON | Enable 802.1p QoS on ports 1 and 2 (Set CoS priority to tag 4 on ports 1 and 2) Takes precedence over 802.1p QoS switch configuration | 5 | OFF | Port 9 SFP set to Gigabit speed full duplex | ON | Port 9 SFP set to 100Mbps speed full duplex | 6 | OFF | Port 10 SFP set to Gigabit speed full duplex | ON | Port 10 SFP set to 100Mbps speed full duplex |
|
Alarm Relay Output | - Relay output with current carrying capacity of 1A, 24V DC
- Short circuit mode when one power source is connected
- Open circuit mode when two power sources are connected
|
Enclosure | - IP30 rated metal enclosure
- Fanless passive cooling
- DIN-Rail mount
- Grounding point
- ESD (Ethernet) Protection: 8KV DC
- Surge (Power) Protection: 6KV DC
|
MTBF | - 562,234 hours @ 25° C
- 142,948 hours @ 75° C
|
Operating Temperature | - -40° – 75° C (-40° – 167° F)
|
Operating Humidity | |
Dimensions | - 160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
|
Weight | |
Certifications | - CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
|
Warranty | |
PACKAGE CONTENTS |
- TI-PG102i
- Quick Installation Guide
- Removable terminal block
- DIN rail mounting bracket
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
