Outdoor 2.5G PoE++ Ethernet Surge Protector
TI-OS300 (Version V1)
- Two 2.5Gbps RJ45 Ethernet ports and ground terminal
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices
- Operating temperature range of -40°– 75° C (-40° – 167° F)

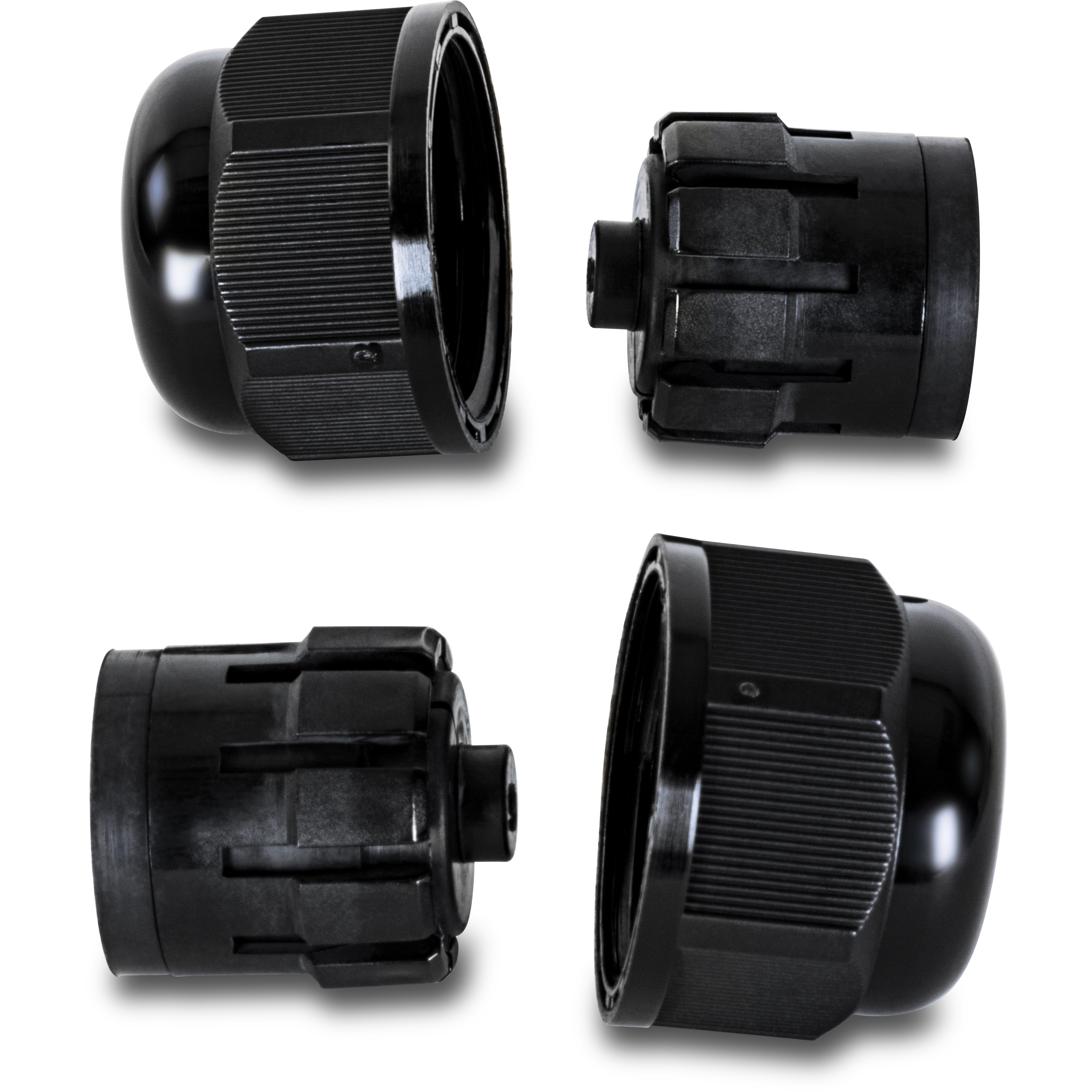

- IP67-rated metal enclosure and Ethernet cable glands
- Line to line and line to ground protection modes
- Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA and clamping voltage of 20V@1kA
- Compliant with shock, freefall, vibration, IEC 61643-21, and IEC 61000-4-5 standards
- Compact design with detachable mounting bracket
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
Datasheet
Filename: EN_datasheet_TI-OS300_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.78 MB
Filename: FR_datasheet_TI-OS300_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.77 MB
Filename: GE_datasheet_TI-OS300_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.66 MB
Filename: PO_datasheet_TI-OS300_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.79 MB
Filename: SP_datasheet_TI-OS300_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.78 MB
Filename: IT_datasheet_TI-OS300_(v1.xR).pdf
Date: 8/19/2025
File Size: 3.82 MB
Quick Installation Guide
Filename: lineart_QIG_TI-OS300_v1.xR_061625.pdf
Date: 8/19/2025
File Size: 3.39 MB

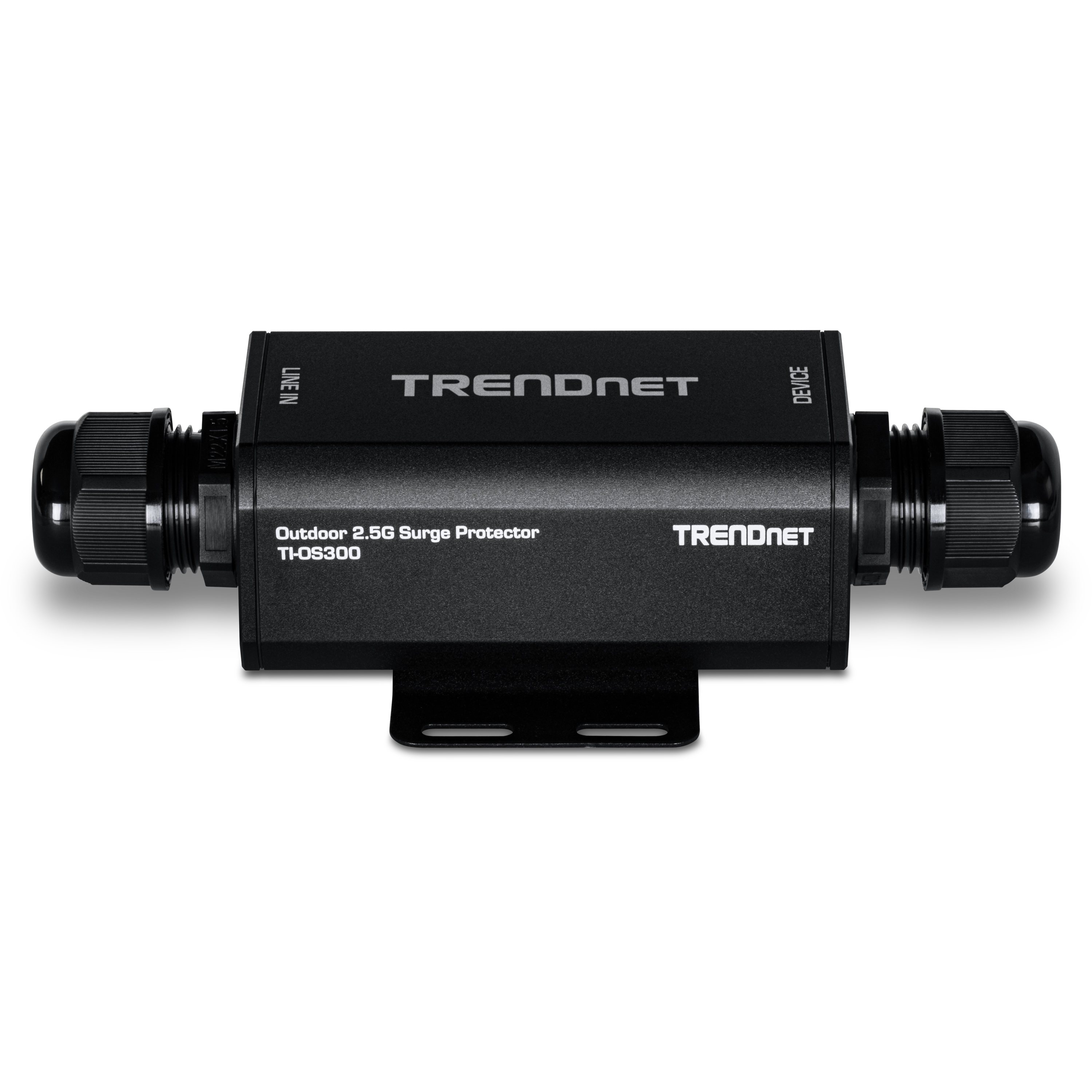

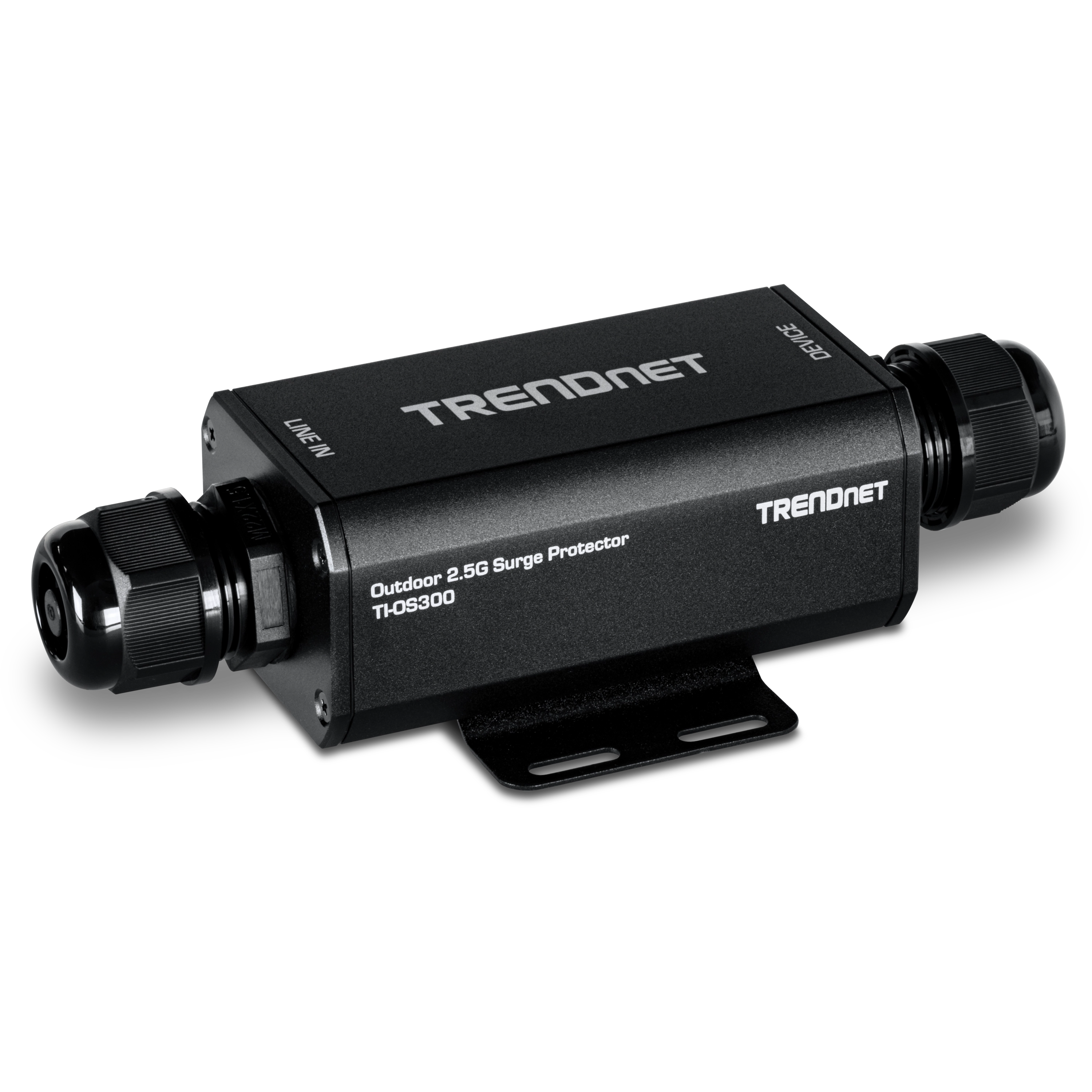

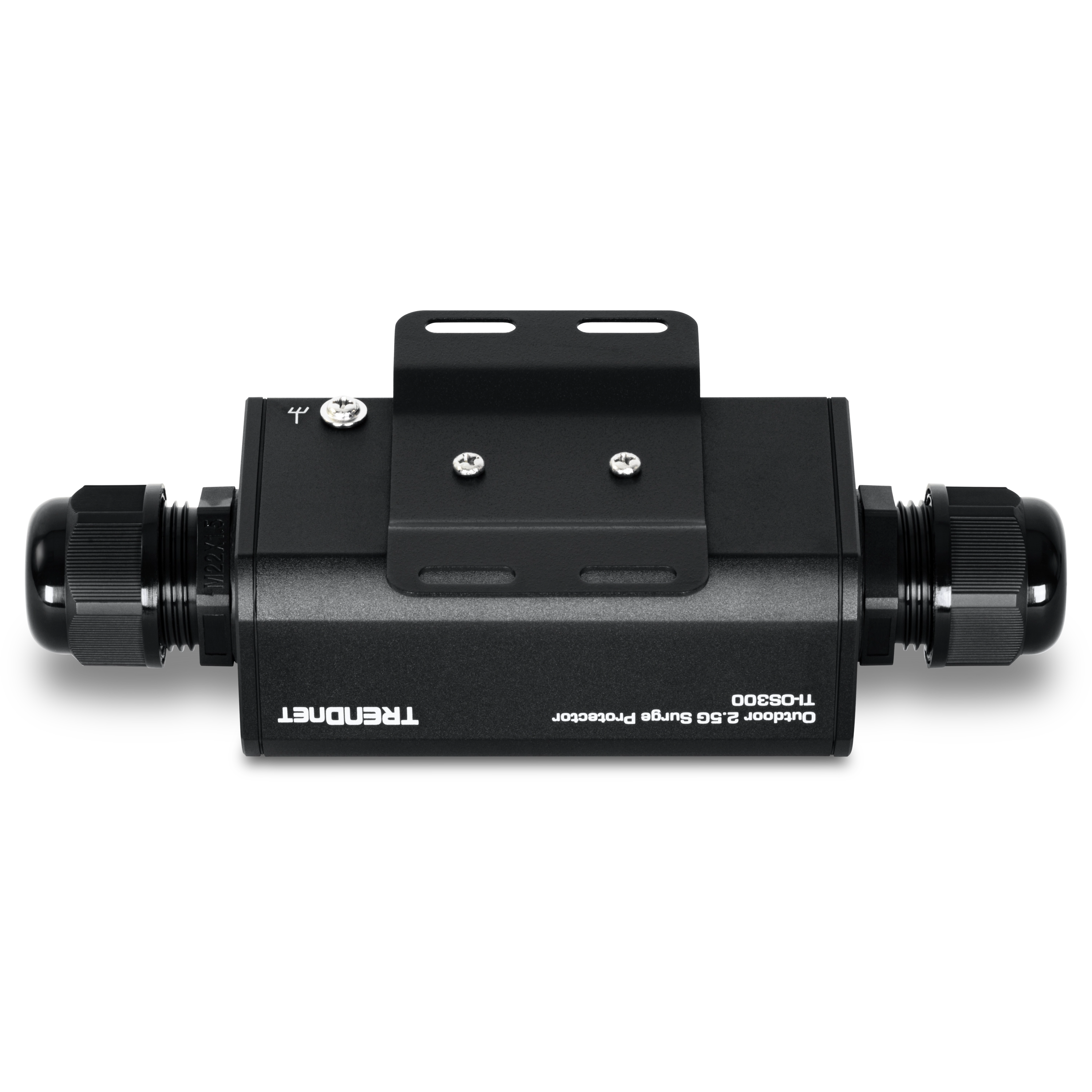

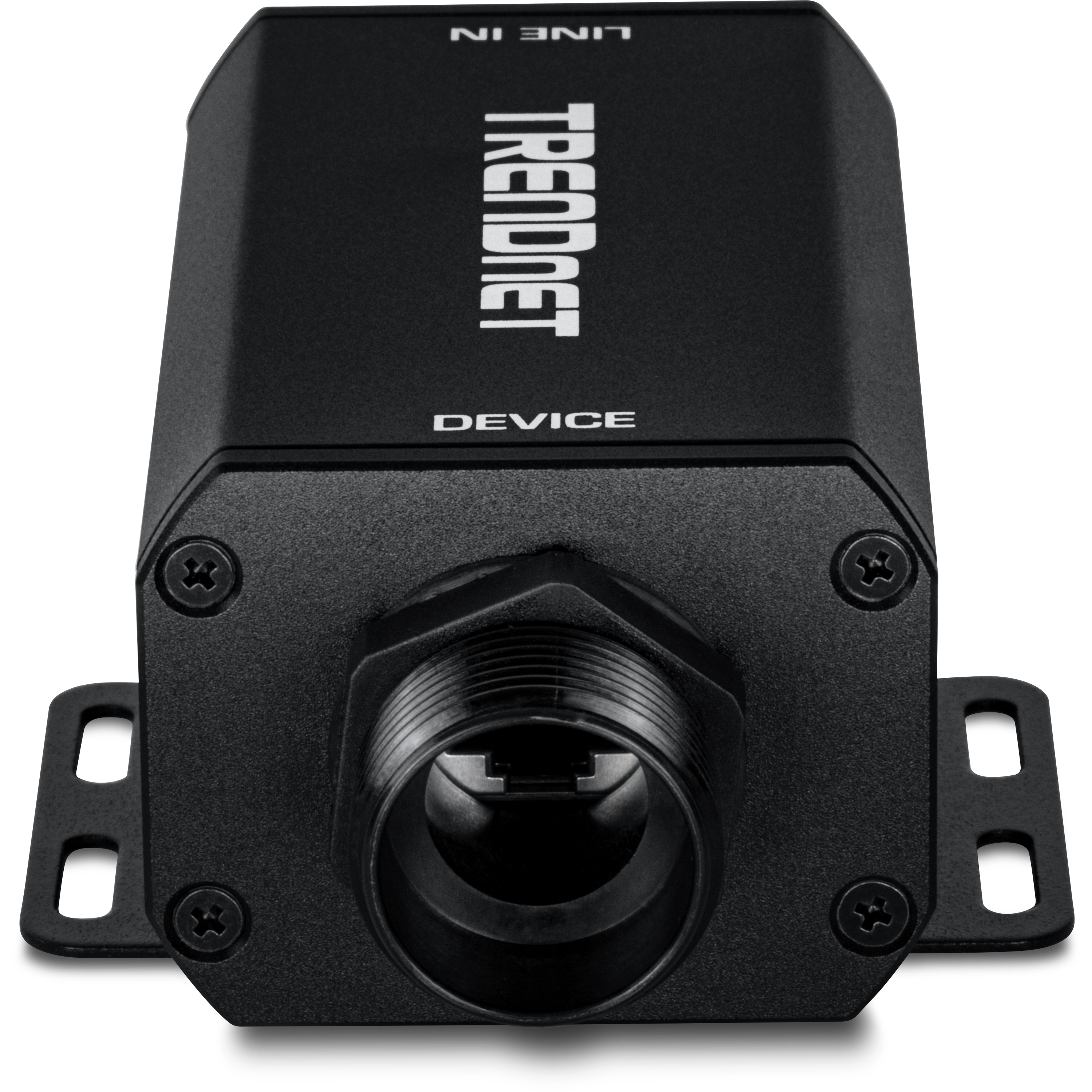

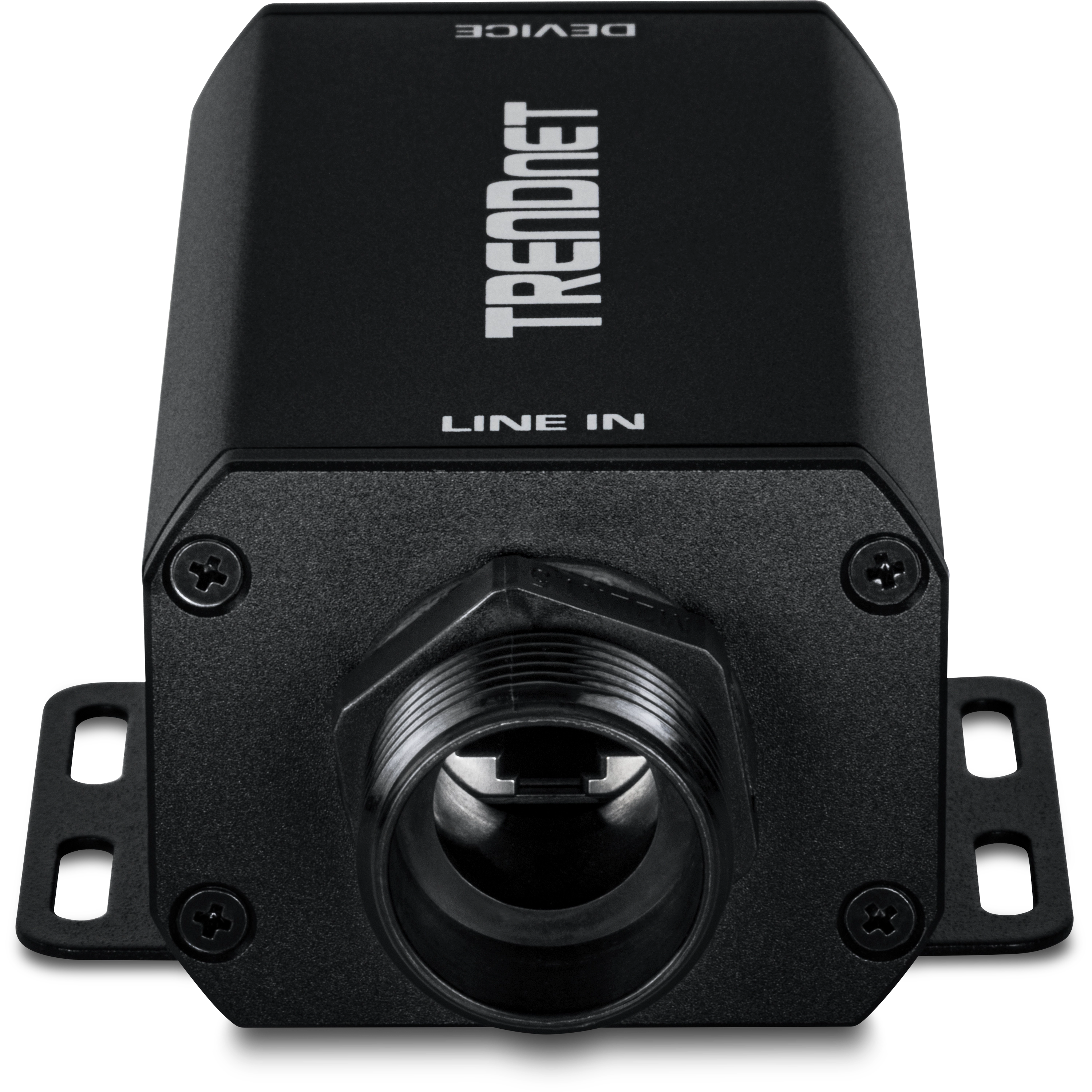

Product Images
| Device Interface |
|
|---|---|
| Nominal Discharge Current (8/20µs) |
|
| Nominal PoE Voltage |
|
| Cable Impedance |
|
| Clamping Voltage |
|
| DC Spark-Over Voltage |
|
| Impulse Spark-Over Voltage |
|
| Insulation Resistance |
|
| Surge Protector Type |
|
| Data Line Protection |
|
| Protection Modes |
|
| PoE |
|
| Enclosure |
|
| MTBF |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions (L x W x H) |
|
| Weight |
|
| Certifications |
|
| Warranty |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
