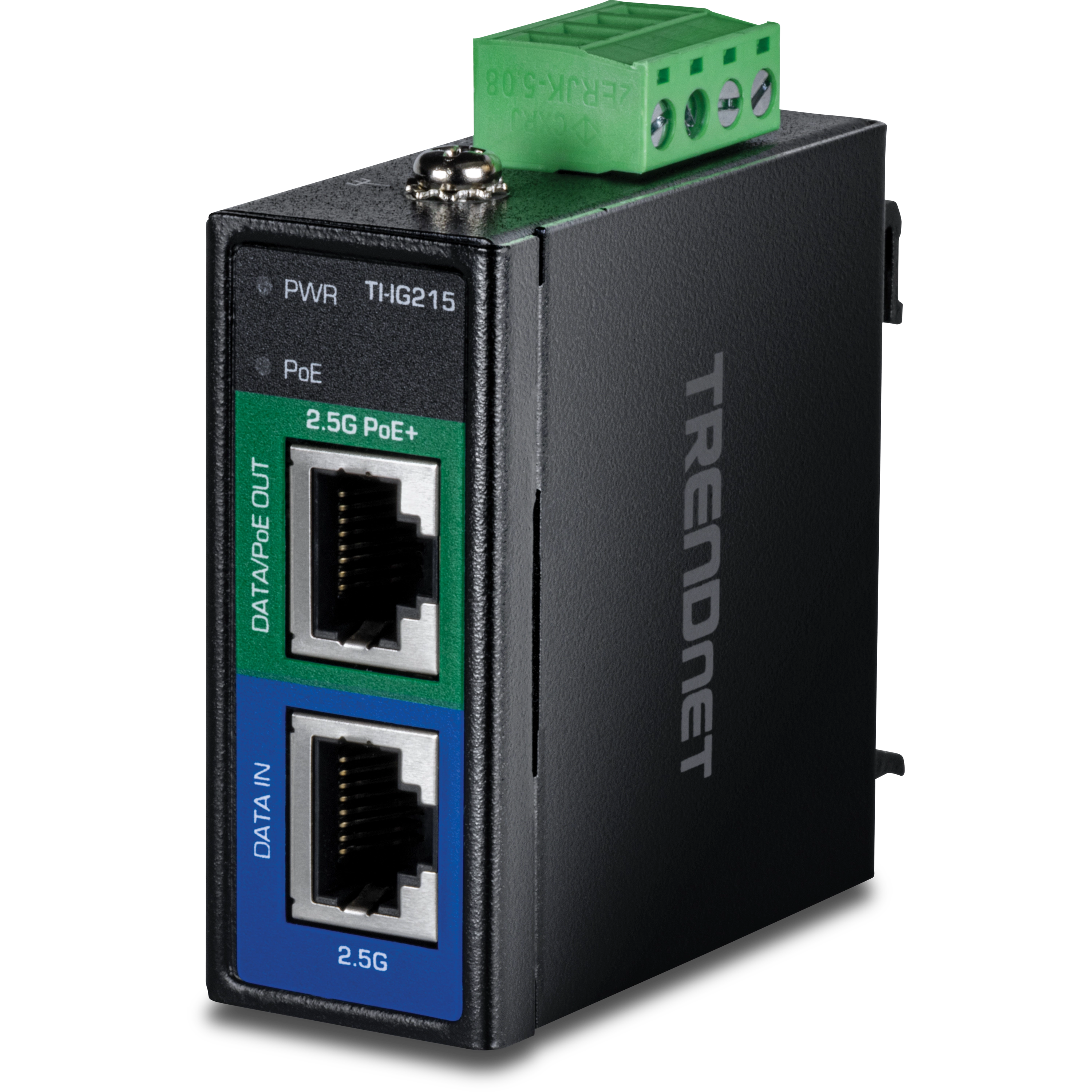

Industrial 2.5G PoE+ Injector

TI-IG215   (Version v1.0R)

  • 1 x 2.5G PoE+ port (Data + PoE out)
  • 1 x 2.5G port (Data in)
  • 30W PoE power budget
  • Supports PoE (15.4W) and PoE+ (30W) devices
  • Uses IEEE 802.3af and IEEE 802.3at industry PoE standards for greater device interoperability
  • Network a PoE device located up to 100m (328 ft.) away
  • Fanless design eliminates operating noise and lowers energy consumption
  • Extreme operating temperature range - 40° — 75° C (-40° — 167° F)
  • Redundant power inputs with overload current protection

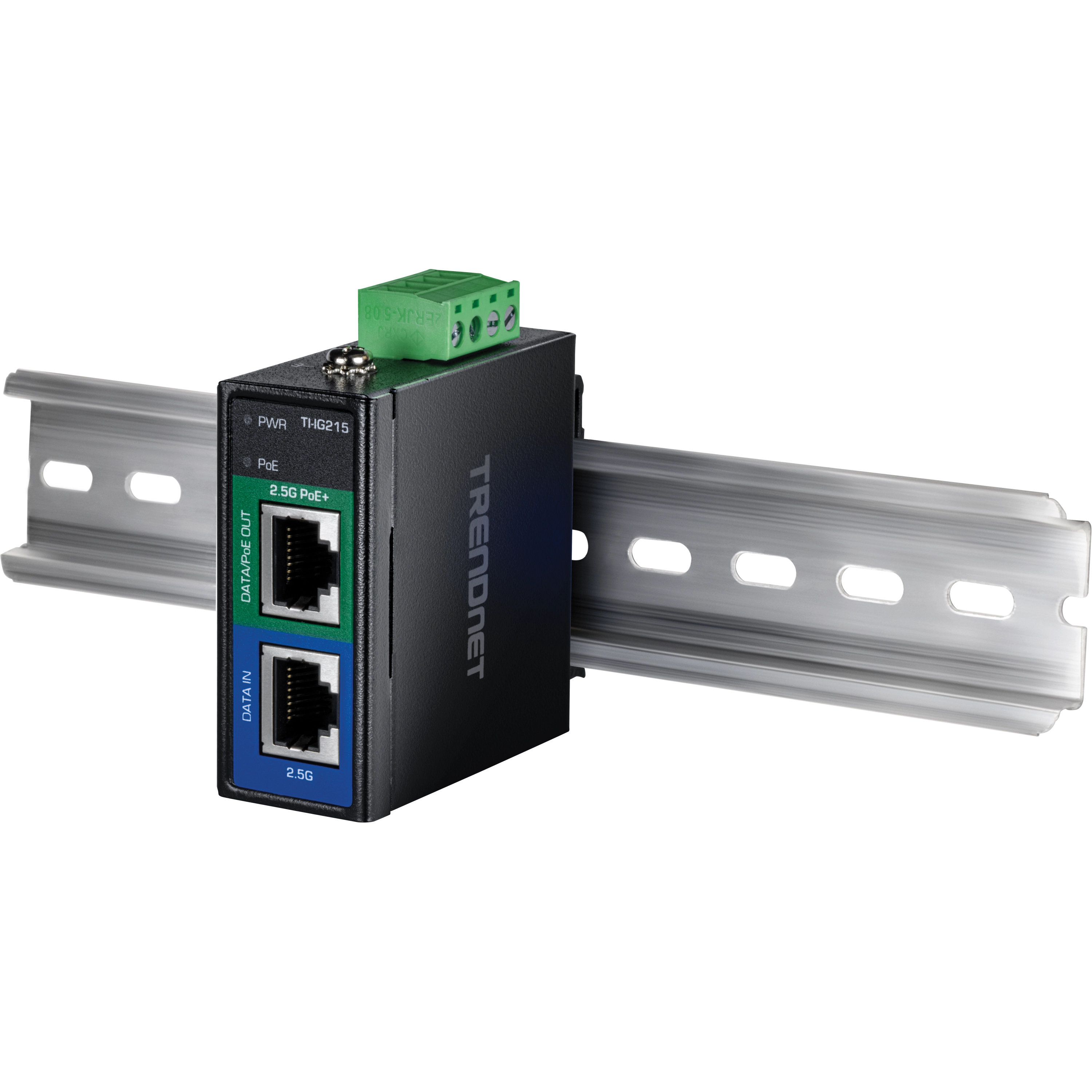

  • Includes DIN-Rail mount and wall mount
  • Power supply sold separately (model: TI-S15052)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-IG215_(v1.xR).pdf
Date: 4/29/2025
File Size: 3.51 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-IG215_(v1.xR).pdf
Date: 4/29/2025
File Size: 3.53 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-IG215_(v1.xR).pdf
Date: 4/29/2025
File Size: 3.52 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-IG215_(v1.xR).pdf
Date: 4/29/2025
File Size: 3.55 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-IG215_(v1.xR).pdf
Date: 4/29/2025
File Size: 3.55 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-IG215_(v1.xR).pdf
Date: 4/29/2025
File Size: 3.54 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: lineart_qig_TI-IG15_(v1.xR)_012325.pdf
Date: 4/29/2025
File Size: 4.86 MB
Download

Product Images

PNG Image
File Size: : 7.66 MB
Date: : 4/29/2025
Download
PNG Image
File Size: : 4.54 MB
Date: : 4/29/2025
Download
PNG Image
File Size: : 6.58 MB
Date: : 4/29/2025
Download
PNG Image
File Size: : 7.43 MB
Date: : 4/29/2025
Download
PNG Image
File Size: : 3.73 MB
Date: : 4/29/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bz
Device Interface

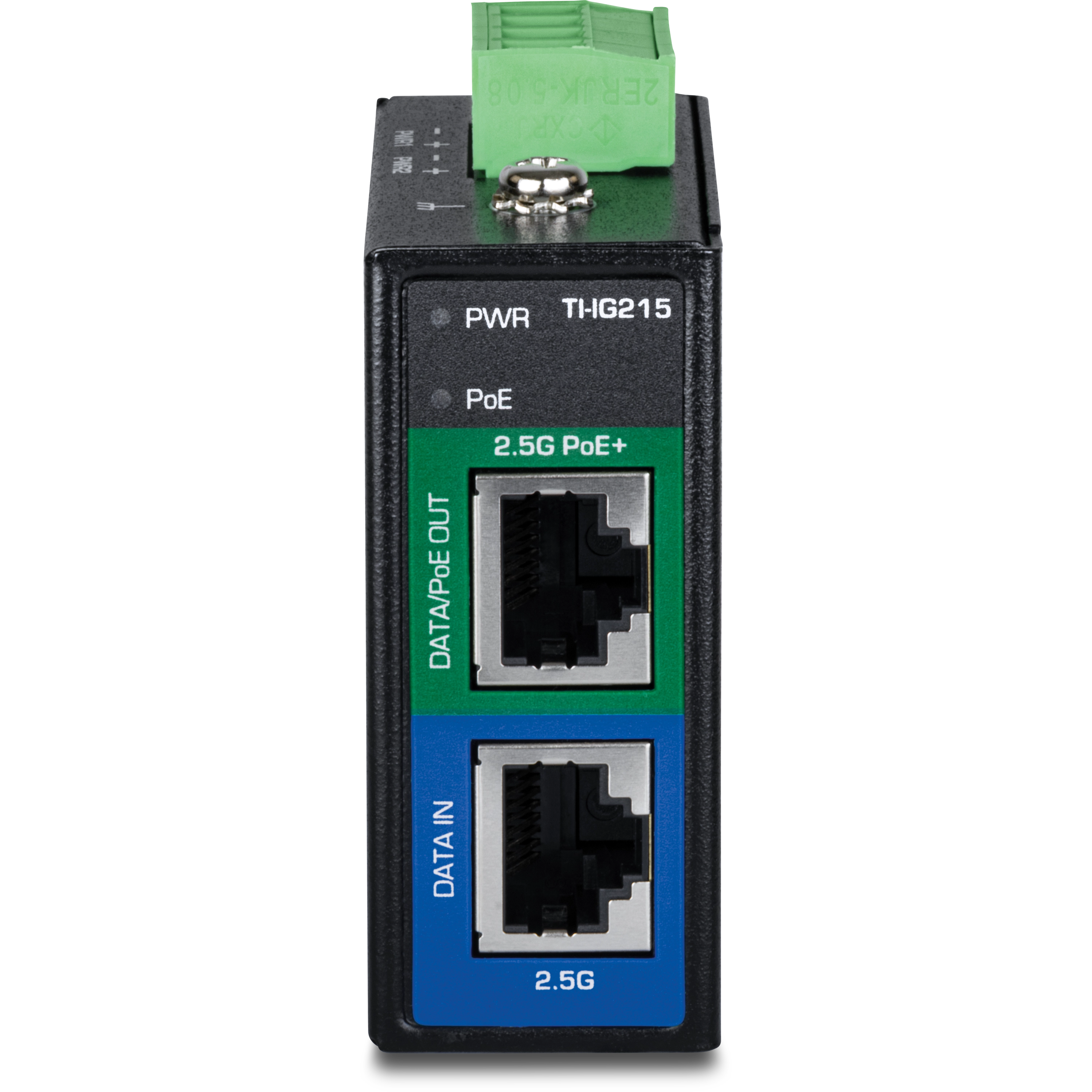

  • 1 x 2.5GBASE-T port (10M/100M/1G/2.5G)
  • 1 x 2.5GBASE-T PoE+ port (10M/100M/1G/2.5G)
  • 4-pin removable terminal block
  • LED indicators
Power
  • Input: 48 – 57V DC
  • Compatible power supply: TI-S15052 (sold separately)
  • Max. consumption: 4.3W @ 57V (with no PD connected)
PoE
  • PoE budget: 28 – 30W
  • Pins 1, 2, 3, and 6 for power (mode A)
Terminal Block

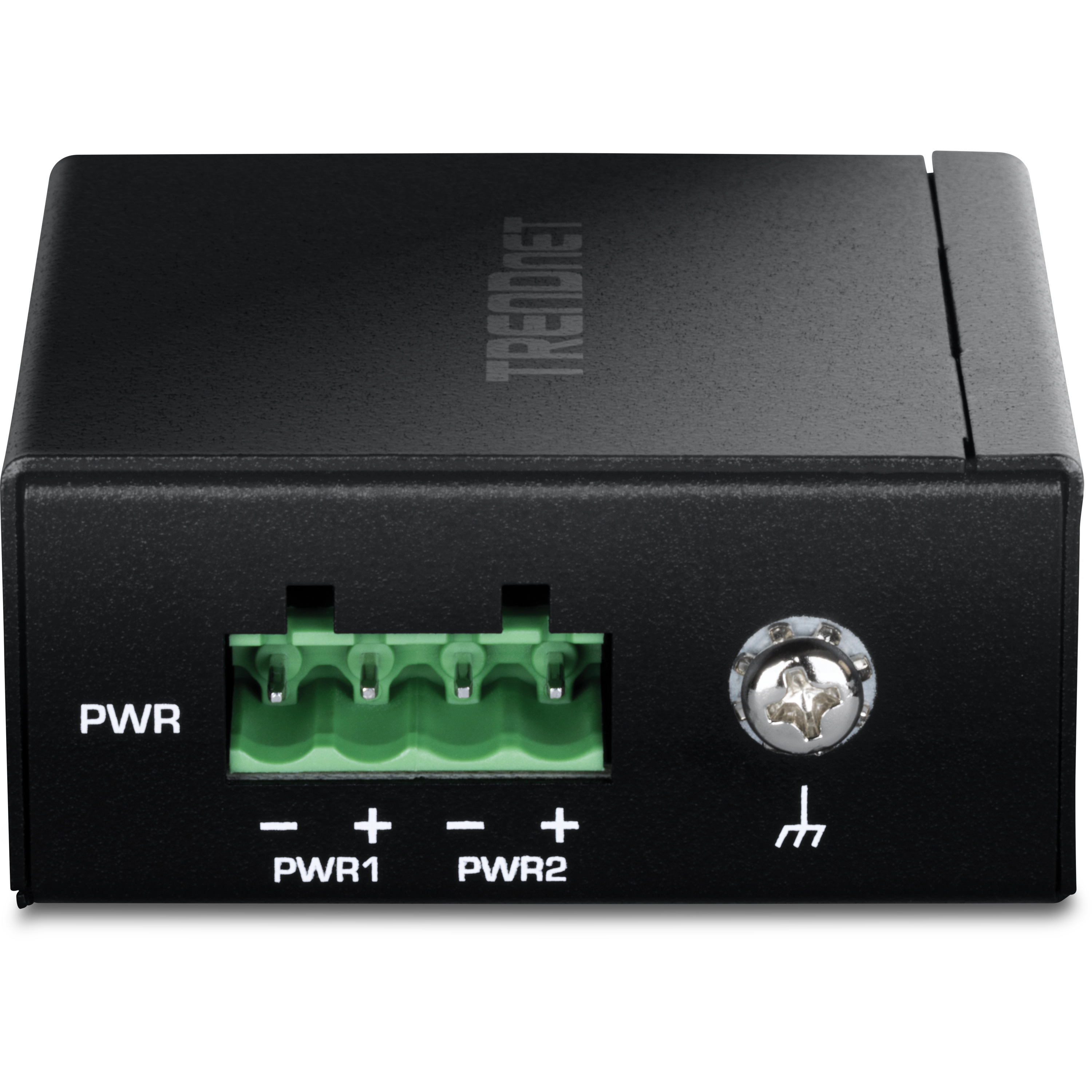

  • Redundant power inputs, 4 pin
  • Wire range: 0.34mm2 to 2.5mm2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
MTBF
  • 7,680,000 hours @ 25° C
Housing
  • IP50 metal case

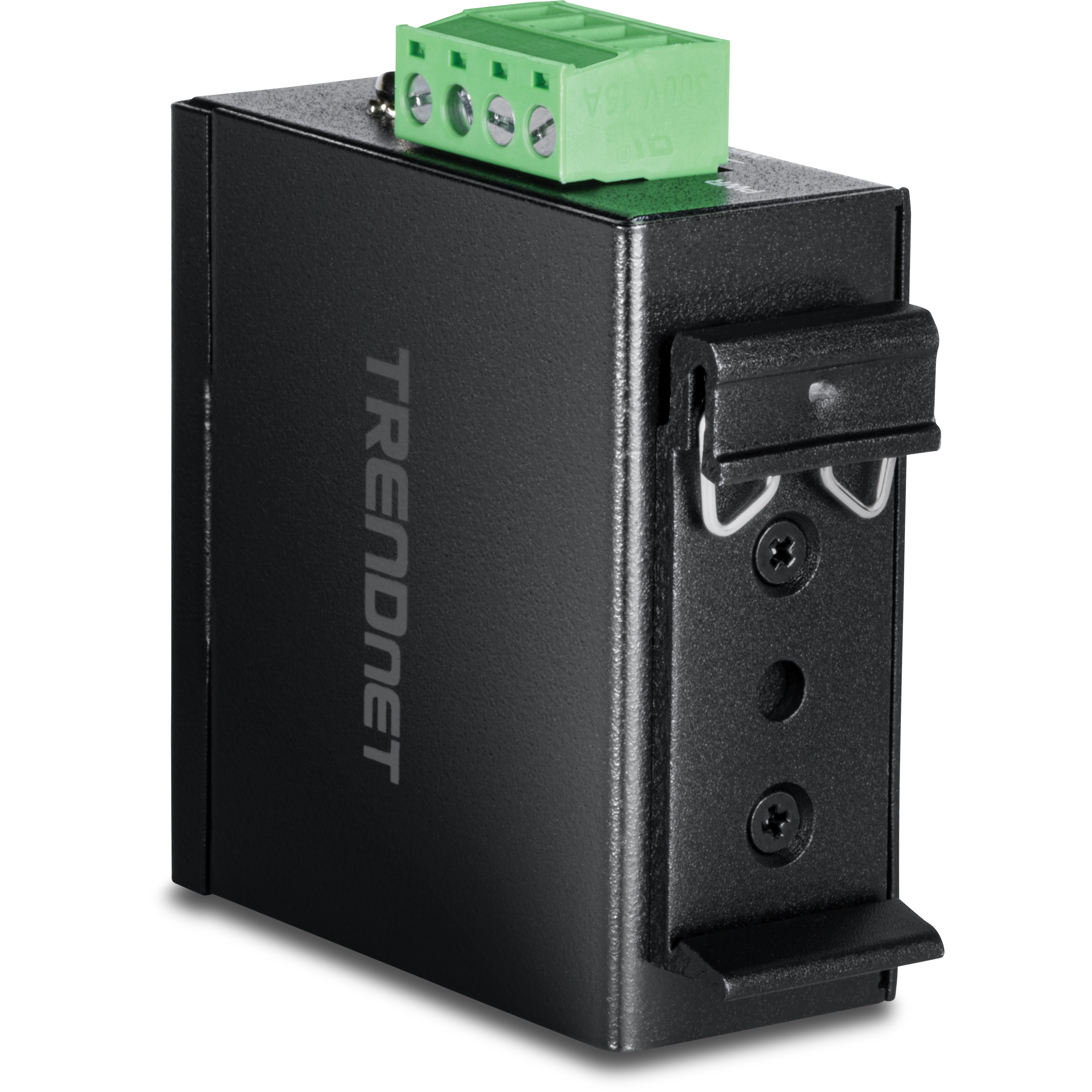

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • Contact 6kV/Air 8kV ESD protection
  • 6kV RJ45 surge protection
Operating Temperature
  • - 40° — 75° C (-40° — 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 60 x 58 x 26mm (2.36 x 2.28 x 1.02 in.)
Weight
  • 133g (4.7 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty
  • 3-year

PACKAGE CONTENTS
  • TI-IG215
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
