| Hardware | - IP68
- IK10
- Polycarbonate
- FIPFG sealing (Gasket material: Polyurethane foam)
- Hinged door
- Waterproof door lock

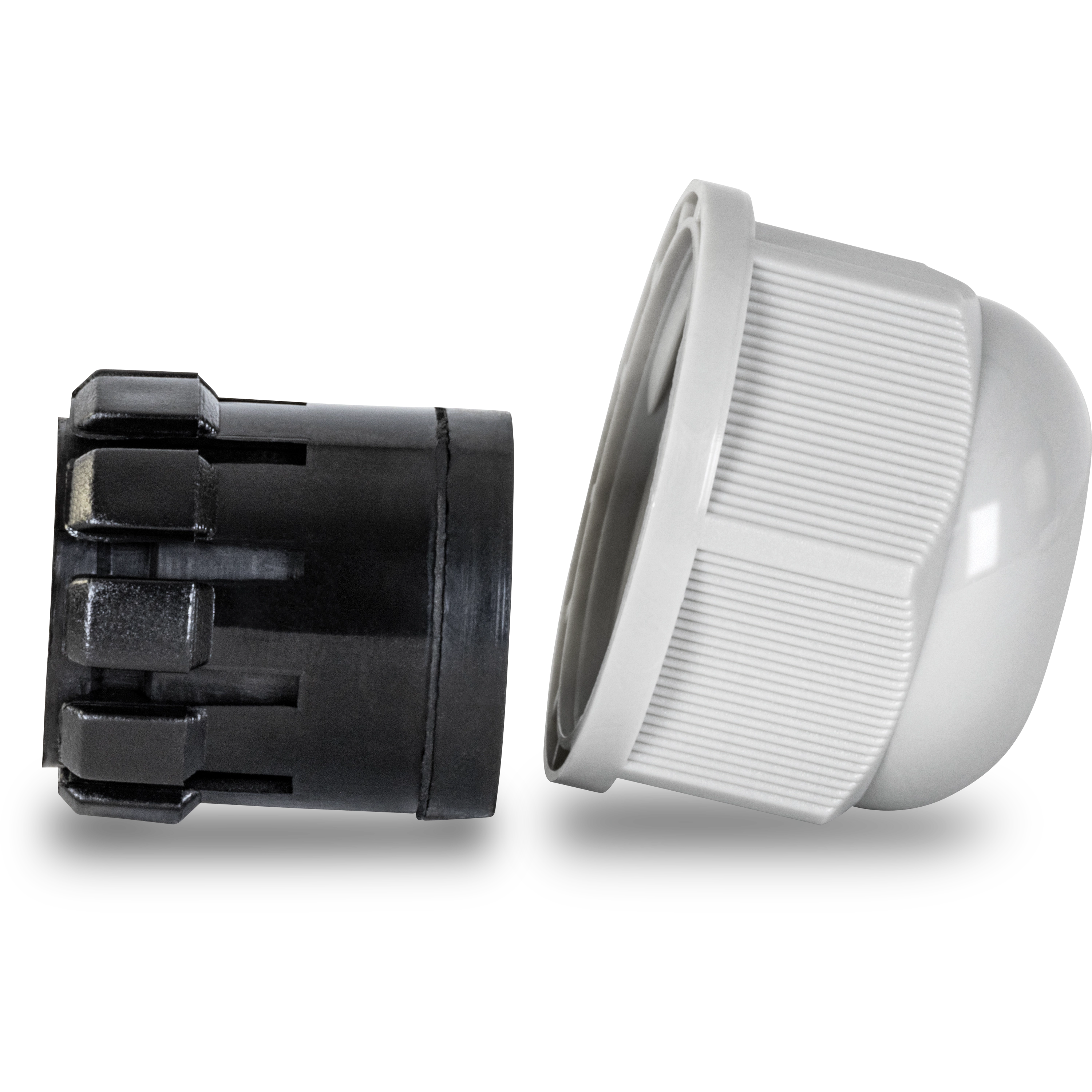

- 11 cable glands
- Wall mount
- Flammability: UL 94 V-0
- UV resistance: UL 746C
- Salt spray: IEC 60068-2-52
- Halogen free
|
|---|
| Power | - Input: 100-240V AC
- Output: 350W, 55V DC 6.3A
- DIN-Rail: TS-35/7.5 or 15
- Solid wire (AWG): 12-24
- Stranded wire (AWG): 12-24
- 18 AWG power cable included
|
|---|
| Operating Temperature | - -30° – 70° C (-22° – 158° F)
|
|---|
| Operating Humidity | |
|---|
| Dimensions | - 400 x 300 x 150mm (15.75 x 11.8 x 5.9 in.)
|
|---|
| Weight | |
|---|
| Surge Protector | | Maximum Continuous Operating Voltage | Current Impulse (8/20μs) | Voltage Protection Level (@ln) | Temporary Overvoltage | Working Current | | Uc (Vac) | Ucpv (Vdc) | In (kA) | Imax (kA) | Up (kV) | TOV (V/5s) | IPE (mA) | | 150 | 200 | 20 | 40 | <0.8 | 175 | <0.1 | |
|---|
| Certifications (for power supply) | - CE
- FCC
- UL 62368
- CB IEC 62368
|
|---|
| Warranty | - Case: Lifetime
- Power supply: 1 year
- Surge protector: 1 year
|
|---|
PACKAGE CONTENTS |
- TI-CA4K

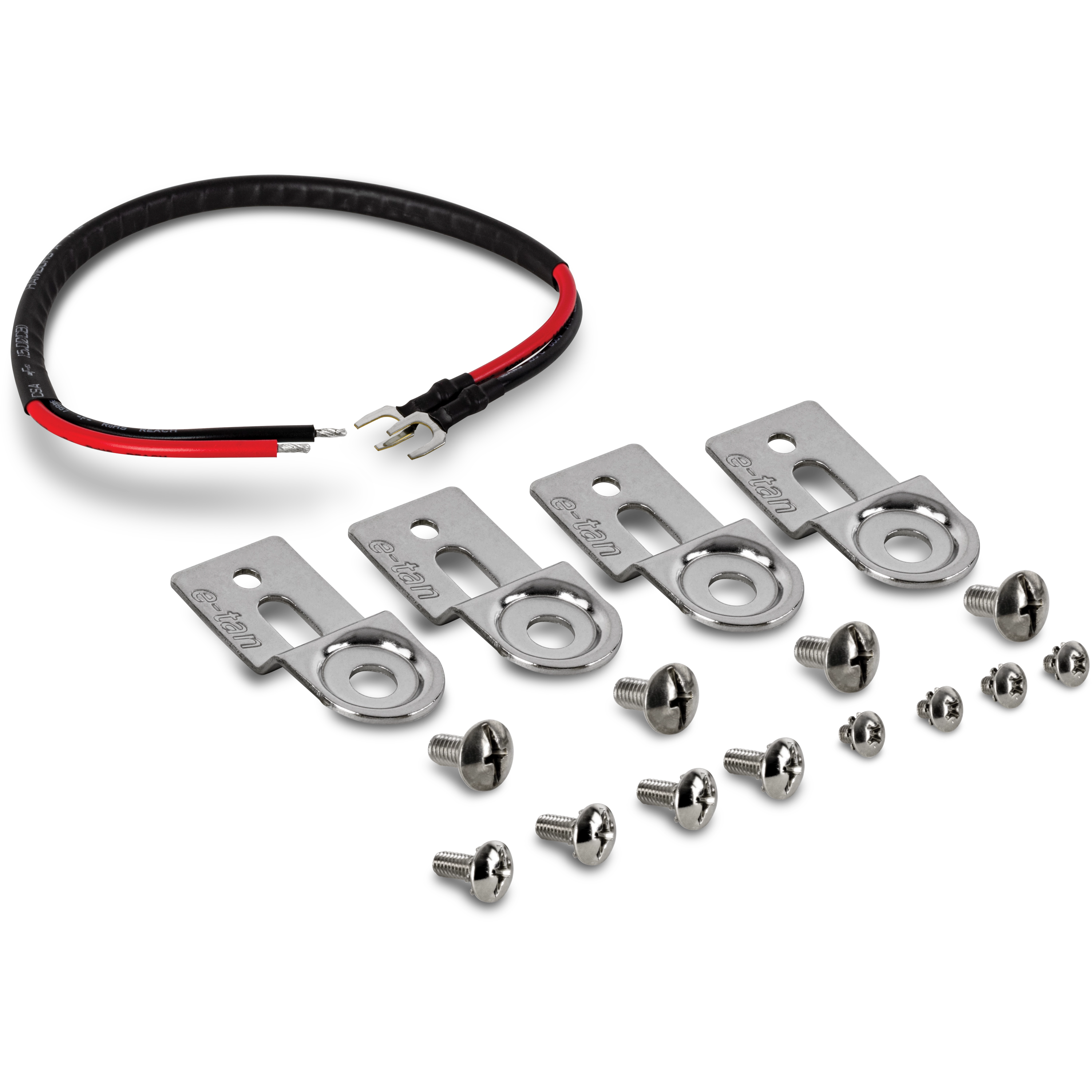

- Wall-mount accessories and power cable
|
