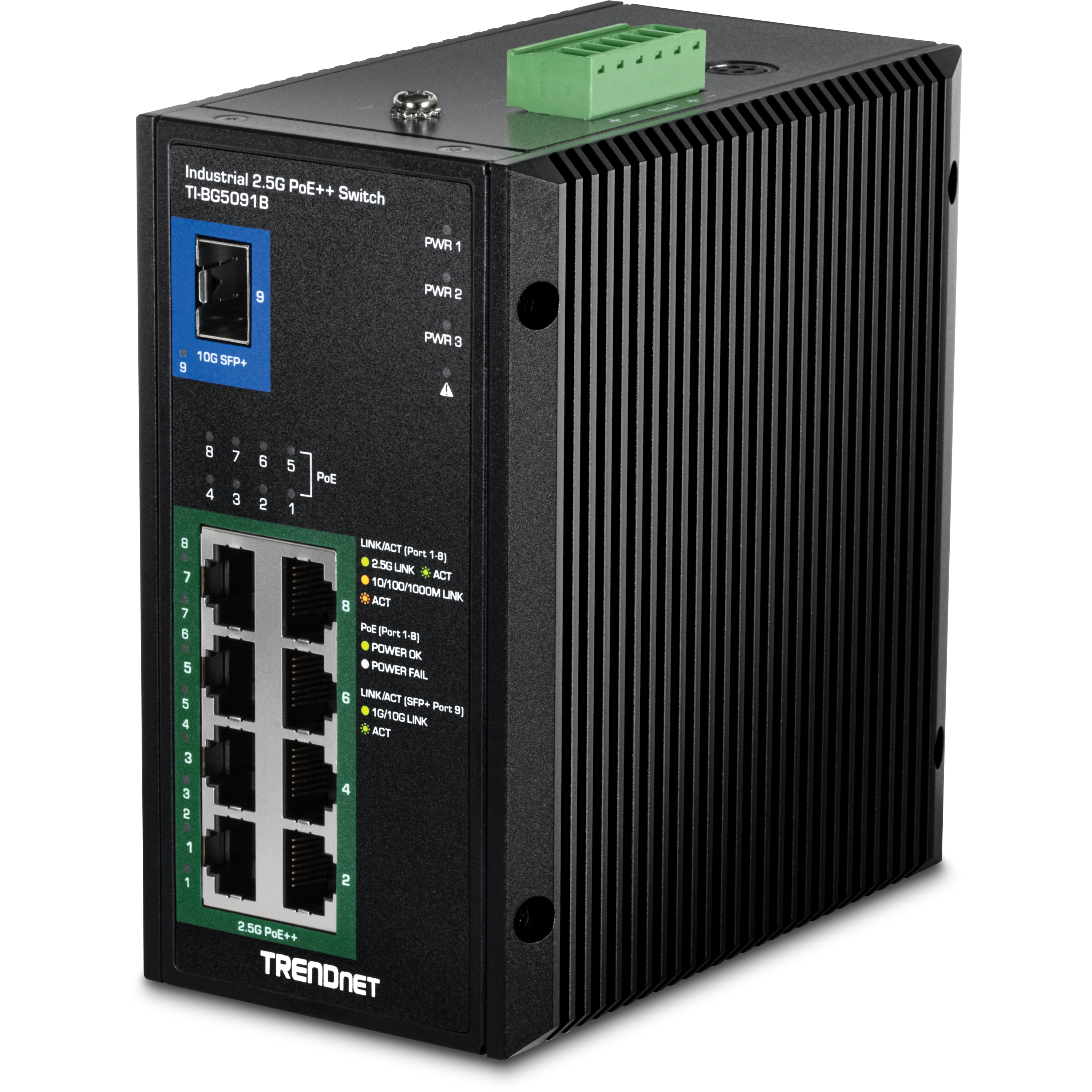

9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 – 57V)

TI-BG5091B   (Version v1.0R)

  • 8 x 2.5G PoE++ ports
  • 1 x 10G SFP+ port
  • Up to 480W PoE power budget
  • 60Gbps switching capacity
  • Hardened IP50 rated metal switch
  • Fast PoE minimizes wait time for powering up PoE devices

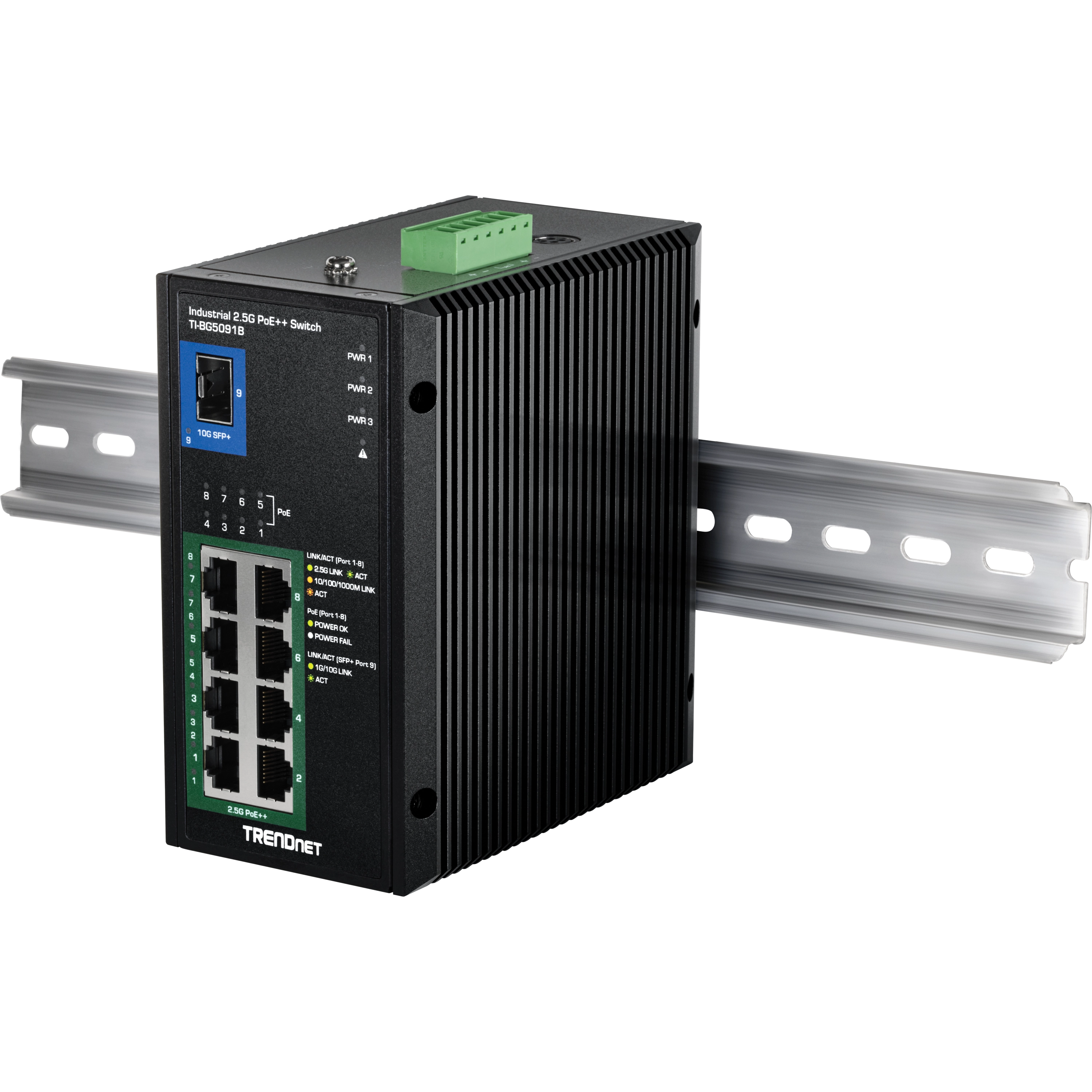

  • Includes DIN-Rail and wall mounts
  • Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
  • Multiple power inputs for redundancy
  • Alarm output triggered by power failure
  • Power supply sold separately (TI-S48048, TI-S24052, 48VDC3000)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3ae
  • IEEE 802.3af
  • IEEE 802.3an
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz

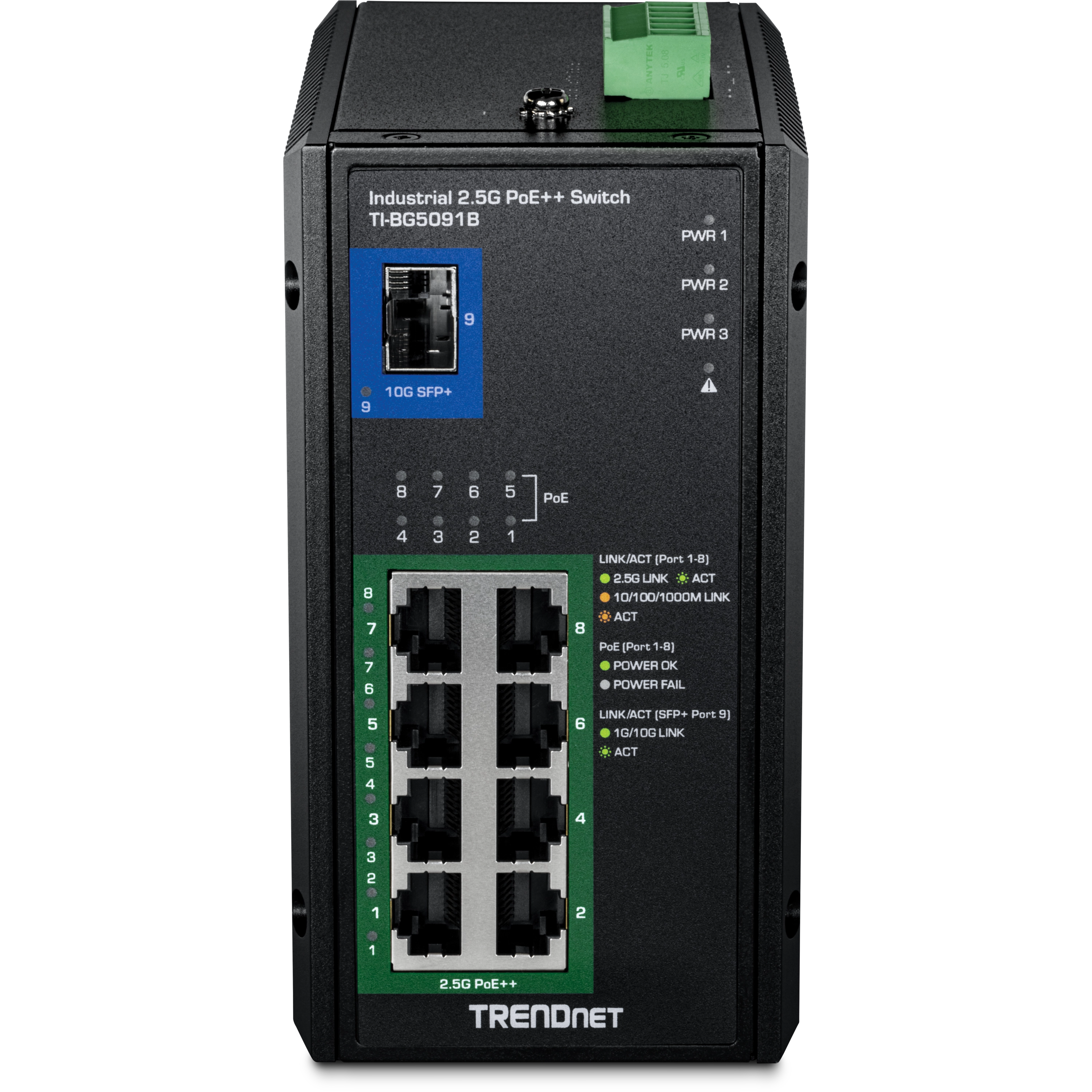

Device Interface
  • 8 x 2.5G PoE++ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
  • 1 x 10G SFP+ port (1Gbps/10Gbps)
  • 6-pin removable terminal block
  • LED indicators

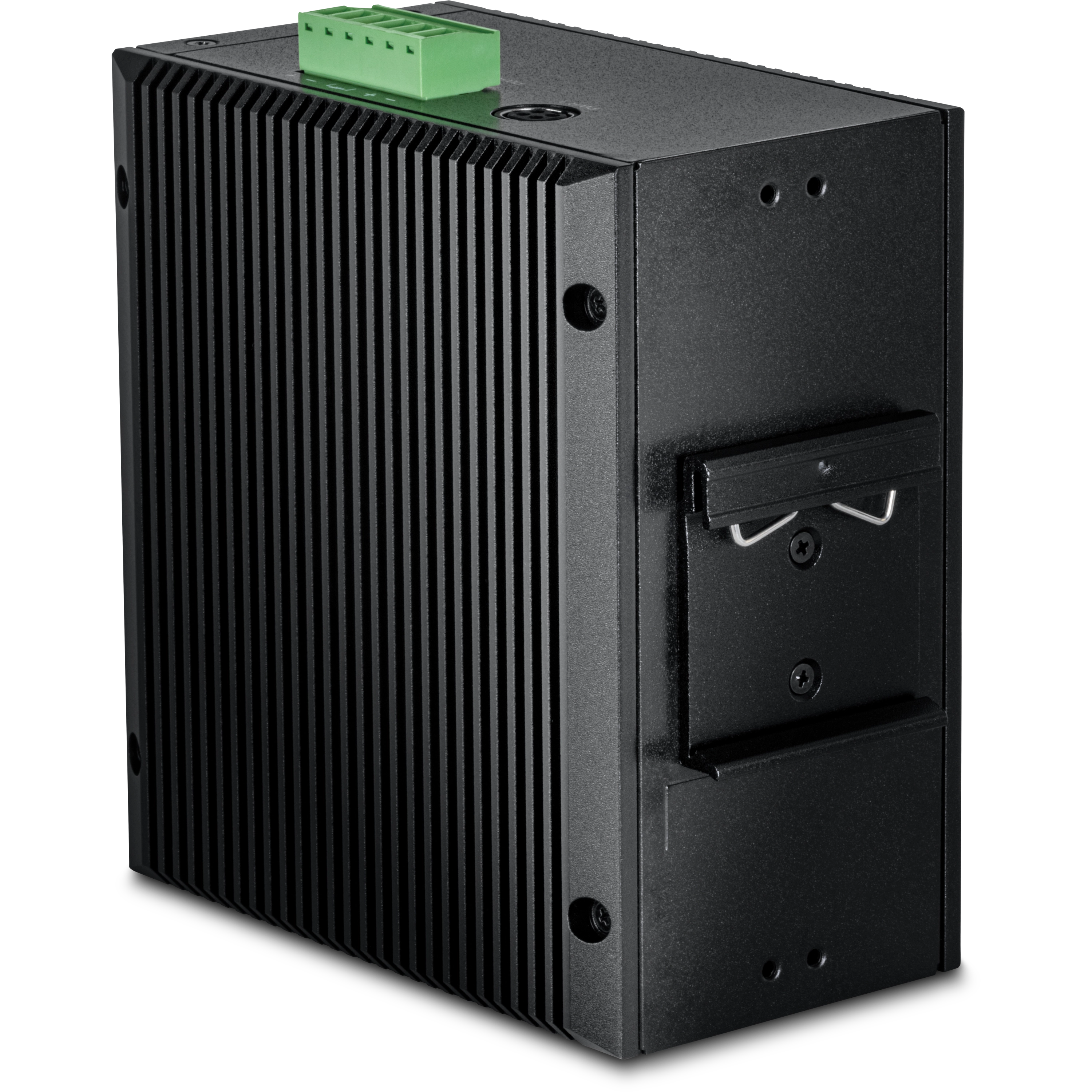

  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
  • 1G Fiber: 2Gbps (full duplex)
  • 10G Fiber: 20Gbps (full duplex)
Performance
  • Data RAM Buffer: 1MB
  • Switching Fabric: 60Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 12KB
  • Forwarding rate: 44.64Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Fast PoE
  • Multiple power inputs
  • Auto-Negotiation
  • Support VLAN pass through
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 6kV protection
DC Power
  • Input: 24 - 57V DC
  • Compatible power supply: TI-S24052, TI-S48048 (sold separately)
  • Max. consumption: 12.4W @24V (no PD)
AC Power
  • Input 100 – 240V AC, 50/60Hz, 2A
  • Compatible power adapter: 48VDC3000 (sold separately)
  • Output: 48V DC, 3.34A 160W max.
PoE
  • PoE: up to 15.4W per port
  • PoE+: up to 30W per port
  • PoE++: up to 95W per port
  • Power budget: 240W @ 24V
  • Power budget: 480W @ 56V

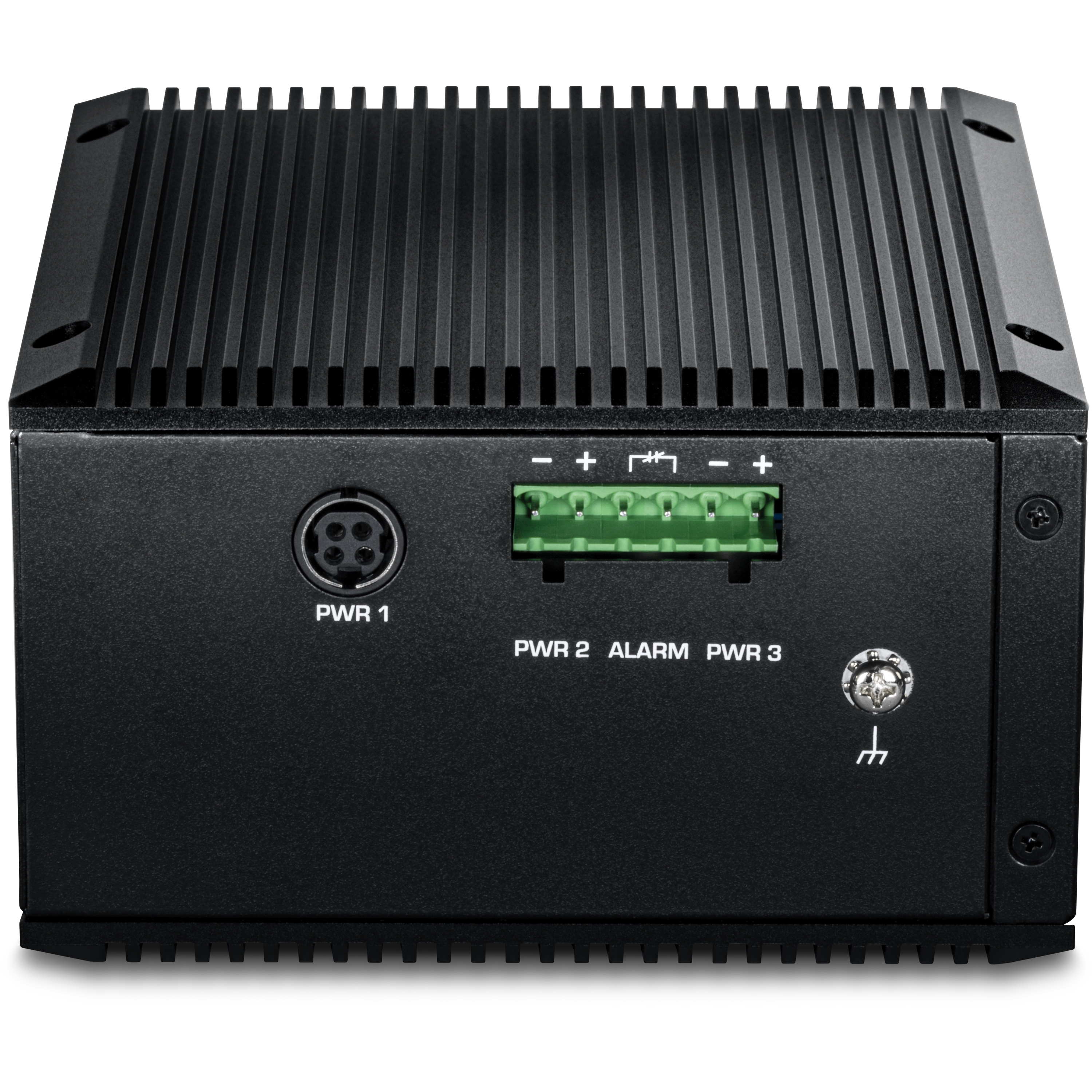

Terminal Block
  • 6-pin terminal block
  • Alarm relay contact
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 14-18
  • Stranded wire (AWG): 14-18
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Short circuit mode when two power sources are connected
  • Open circuit mode when only one power source is connected
MTBF
  • 1,1160,603 hours @ 25°C
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
Operating Temperature
  • - 40° – 75° C (-40 – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 134 x 124 x 73mm (5.3 x 4.88 x 2.87 in.)
Weight
  • 1.4kg (3 lb.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-6-2
  • IEC 61000-6-4
  • IEC 61000-4-5
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-BG5091B
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
