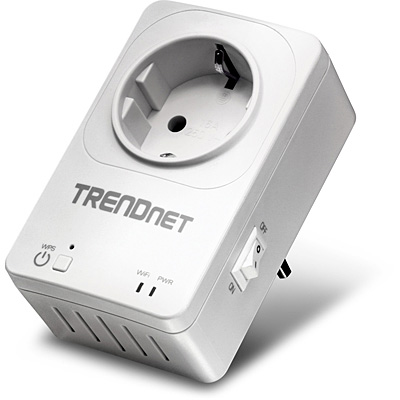

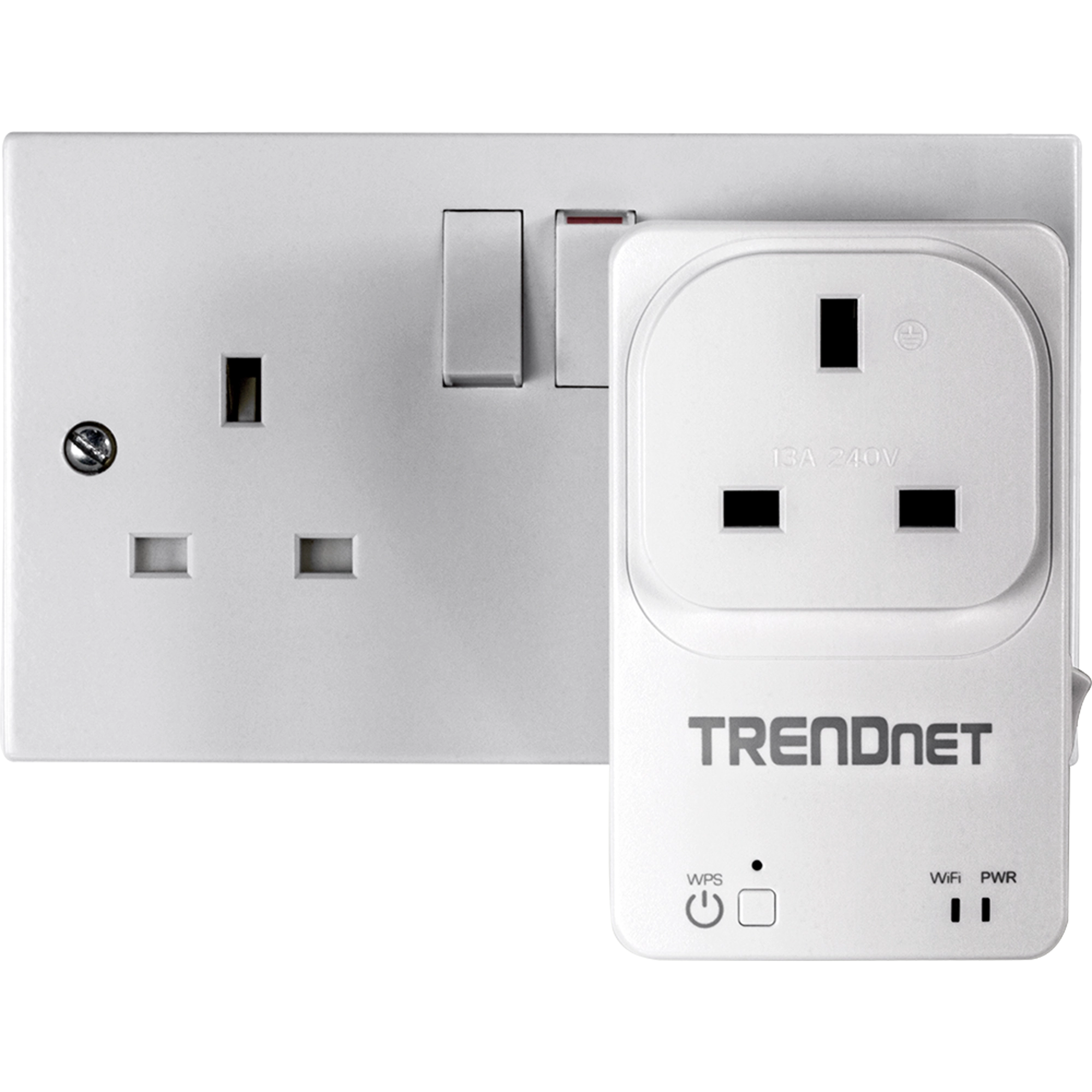

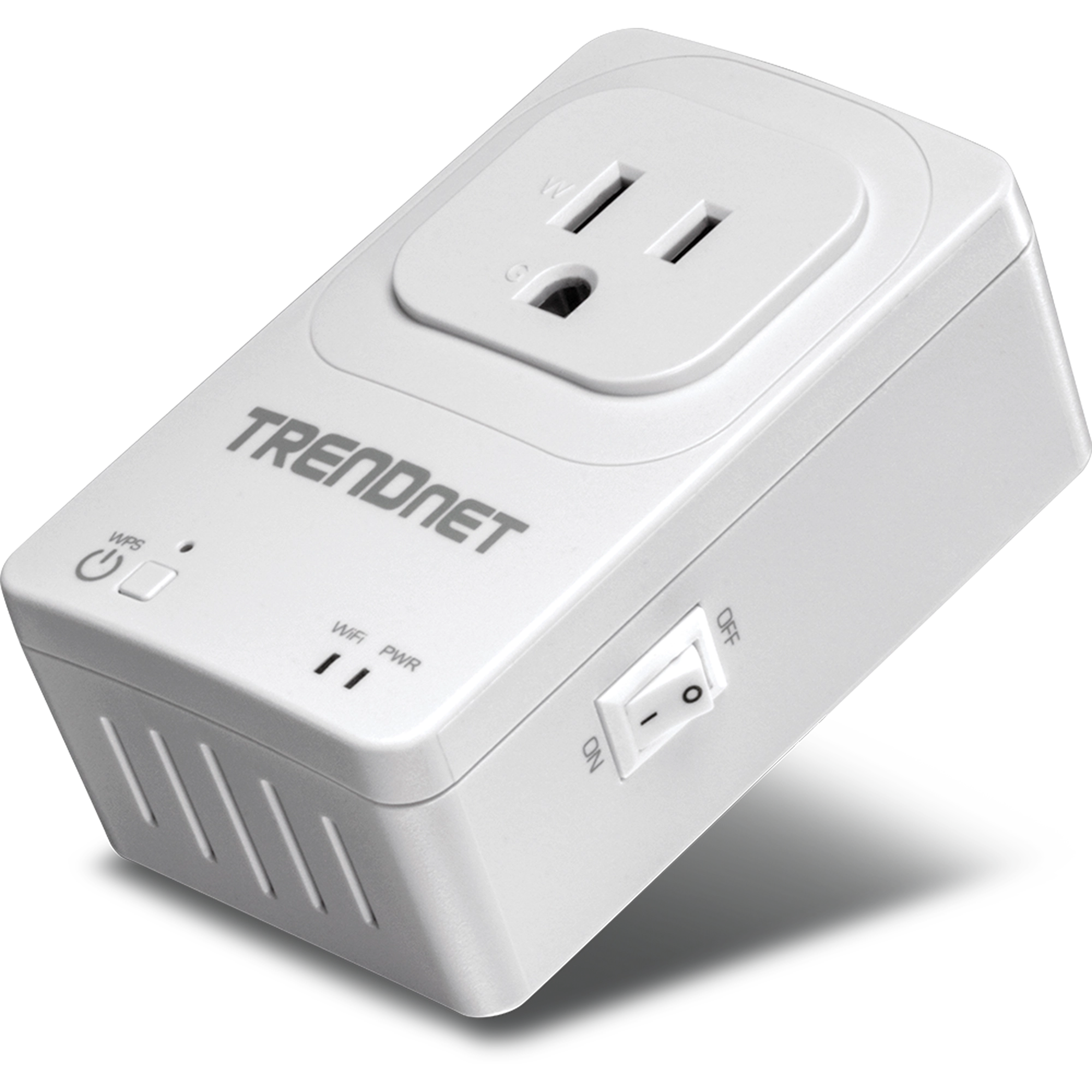

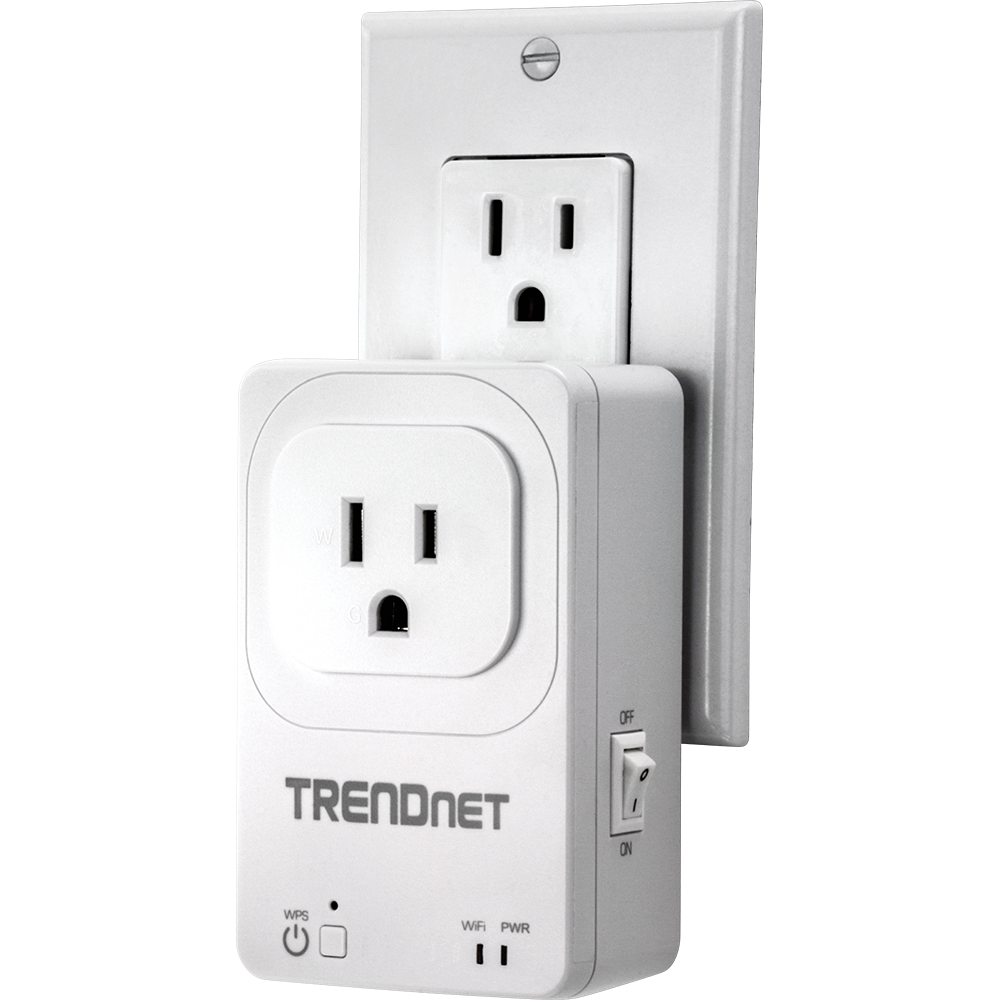

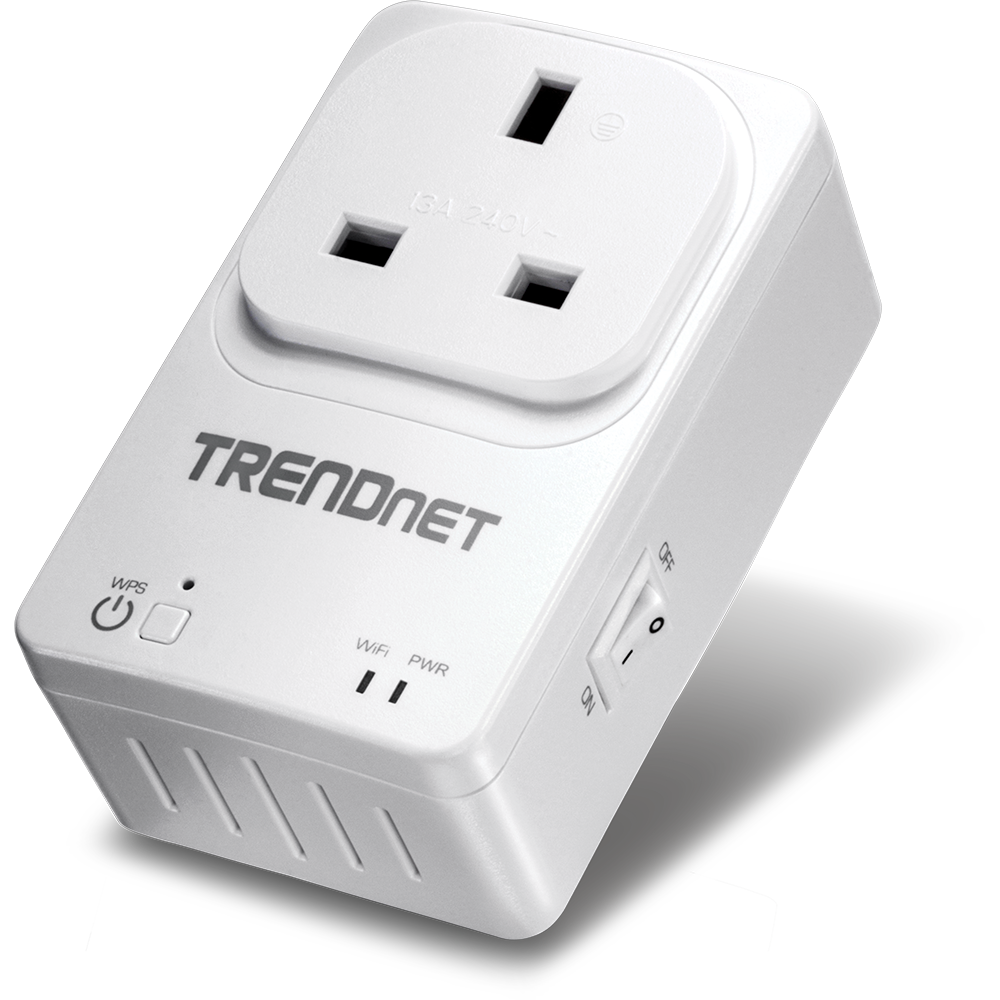

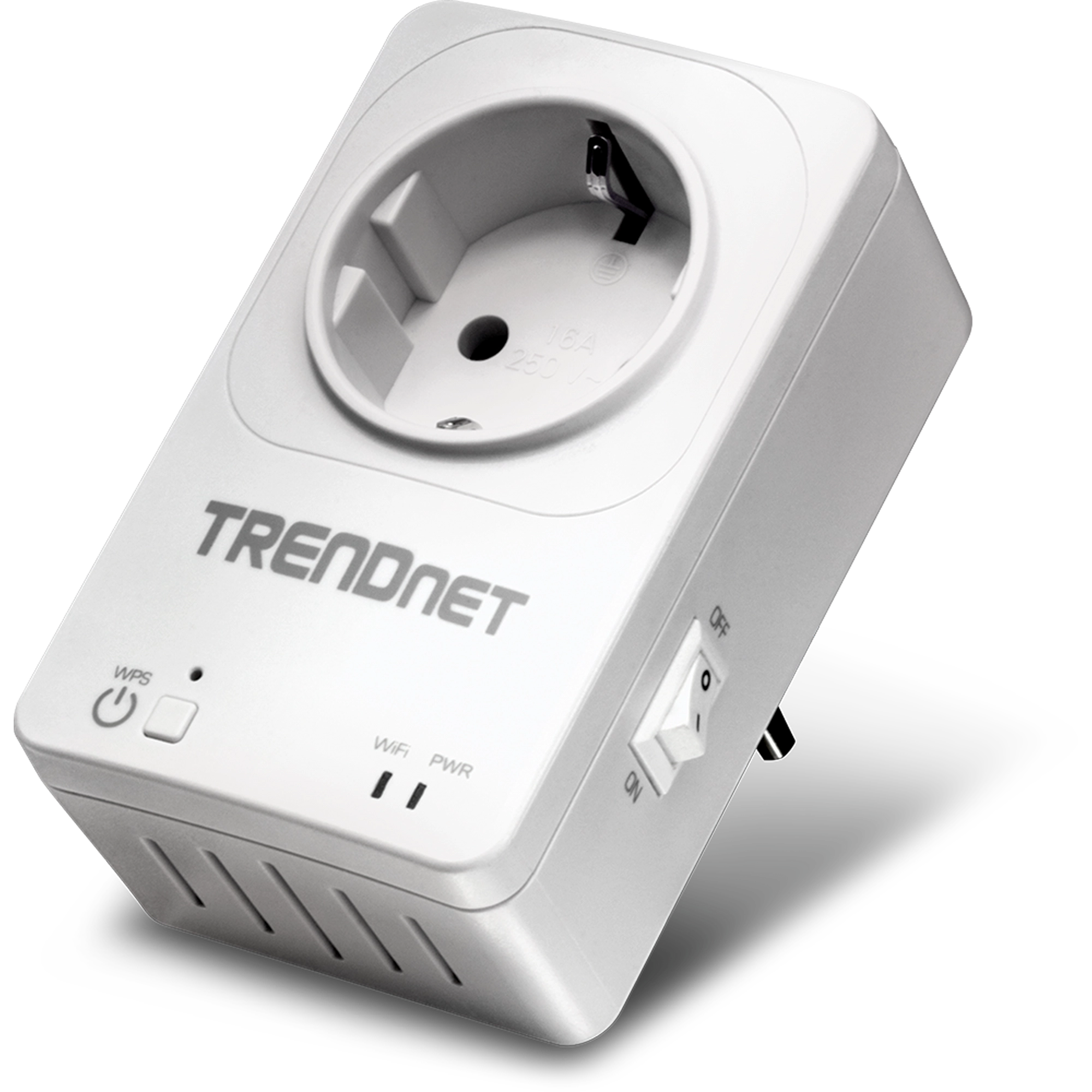

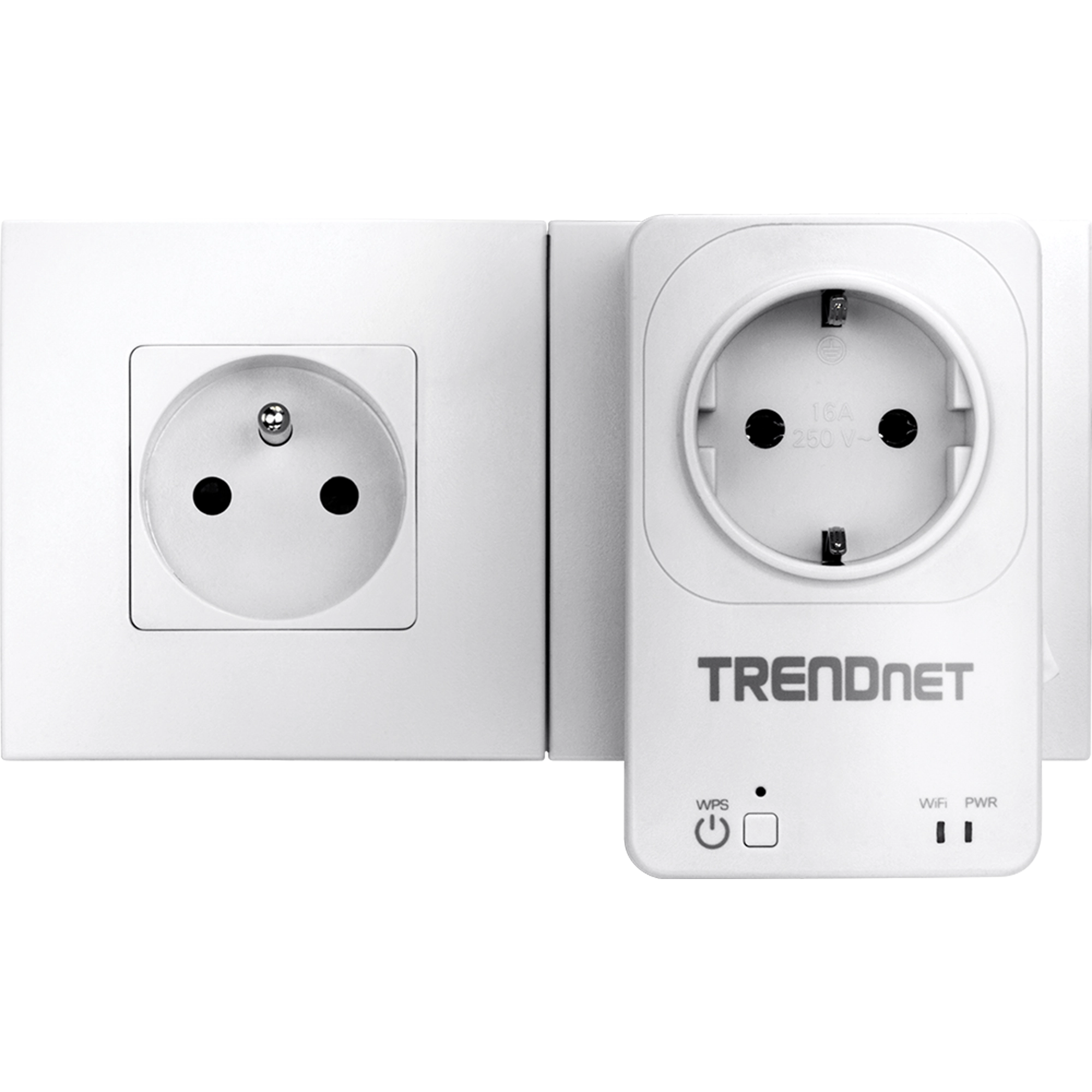

Home Smart Switch
(with Wireless Extender)

THA-101   (Version v1.0R)

  • Quick app-based setup
  • Turn a device on/off from any mobile internet connection
  • Powerful N300 wireless repeater extends your existing wireless network
  • Create a weekly on/off schedule
  • Free Apple® and Android™ app
  • Requires a home wireless network

DISCONTINUED PRODUCT

The THA-101 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Notes

Safety Note
Product Safety Notes
Filename: Safety_Note.pdf
Date: 10/14/2016
File Size: 436.14 KB
Download

Firmware

Firmware
Firmware Version: v1.03
Release Date: 05/2015
Notes:
  • Add Switch mode only (disable repeater function)
  • Add Static IP configuration

Filename: FW_THA-101(1.03).zip
SHA-1 Checksum: 7AF1603A9968E7BACBDF11D1B04722783145B960
Date: 7/28/2017
File Size: 4.66 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_THA-101(v1.0R).pdf
Date: 5/27/2015
File Size: 1.51 MB
Download Email
Datasheet (Français)
Filename: FR_spec_THA-101(v1.0R).pdf
Date: 12/4/2014
File Size: 1.51 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_THA-101(v1.0R).pdf
Date: 12/4/2014
File Size: 1.48 MB
Download Email
Datasheet (Português)
Filename: PO_spec_THA-101(v1.0R).pdf
Date: 12/4/2014
File Size: 1.48 MB
Download Email
Datasheet (Español)
Filename: SP_spec_THA-101(v1.0R).pdf
Date: 12/4/2014
File Size: 1.48 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_THA-101(v1.0R).pdf
Date: 12/4/2014
File Size: 1.52 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_THA-101(v1.0R).pdf
Date: 12/4/2014
File Size: 1.48 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.30 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.19 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.19 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.08 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.18 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.16 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.19 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.09 MB
Download
Quick Installation Guide (Polski)
Filename: POL_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.18 MB
Download
Quick Installation Guide (Român)
Filename: RO_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.15 MB
Download
Quick Installation Guide (Nederlands)
Filename: DUT_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.18 MB
Download
Quick Installation Guide (Magyar)
Filename: HUG_Web_THA-101(V1.0R).pdf
Date: 5/28/2015
File Size: 2.13 MB
Download

User's Guide

User's Guide
Filename: UG_THA-101(1.03).pdf
Date: 5/19/2015
File Size: 1.46 MB
Download

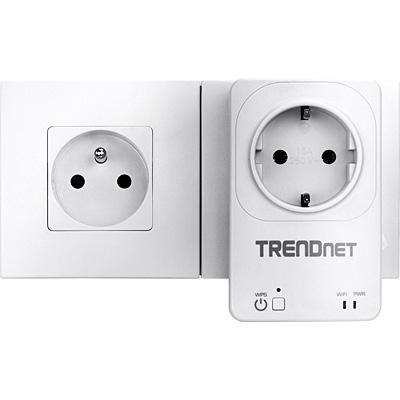

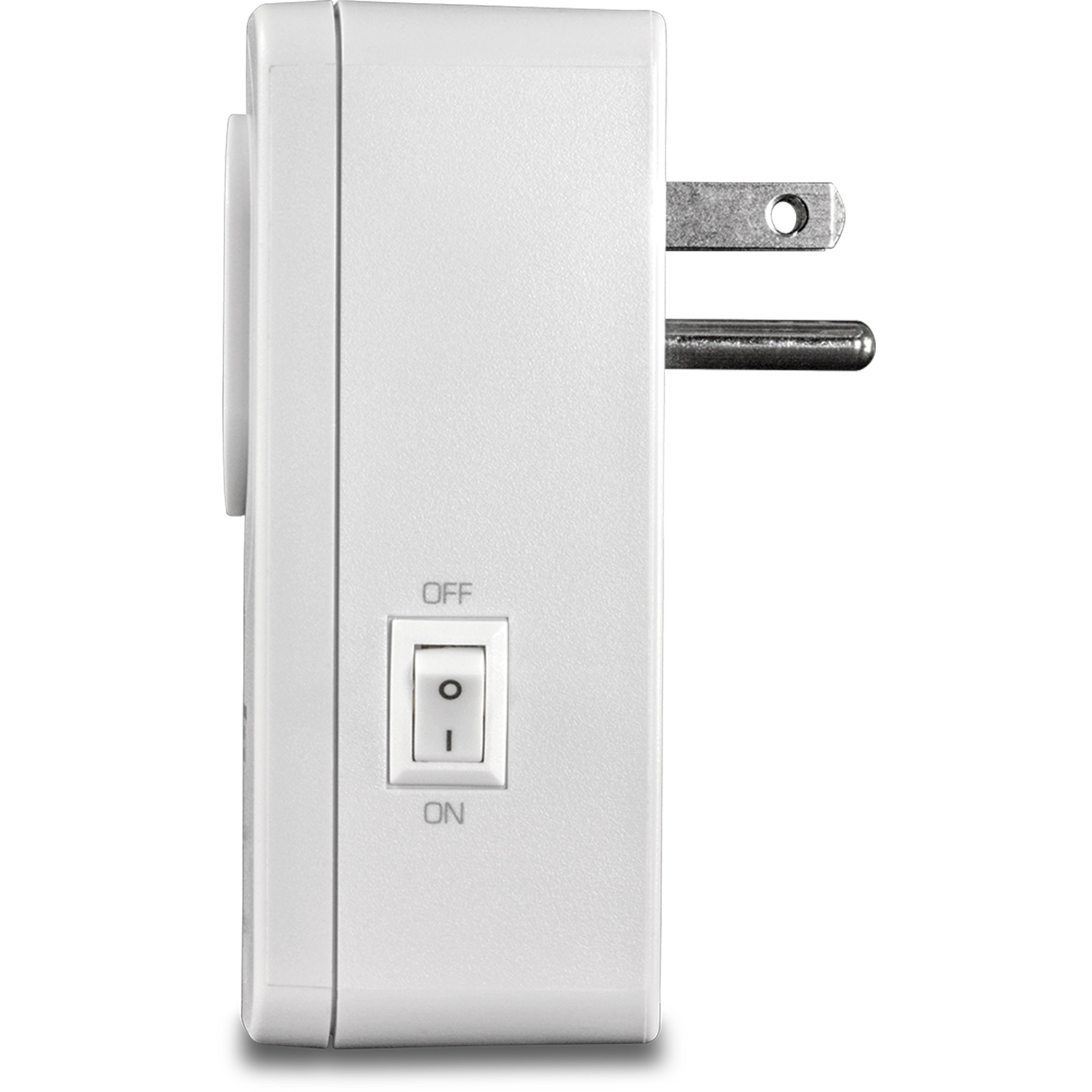

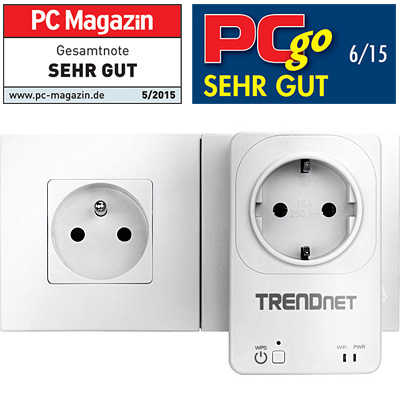

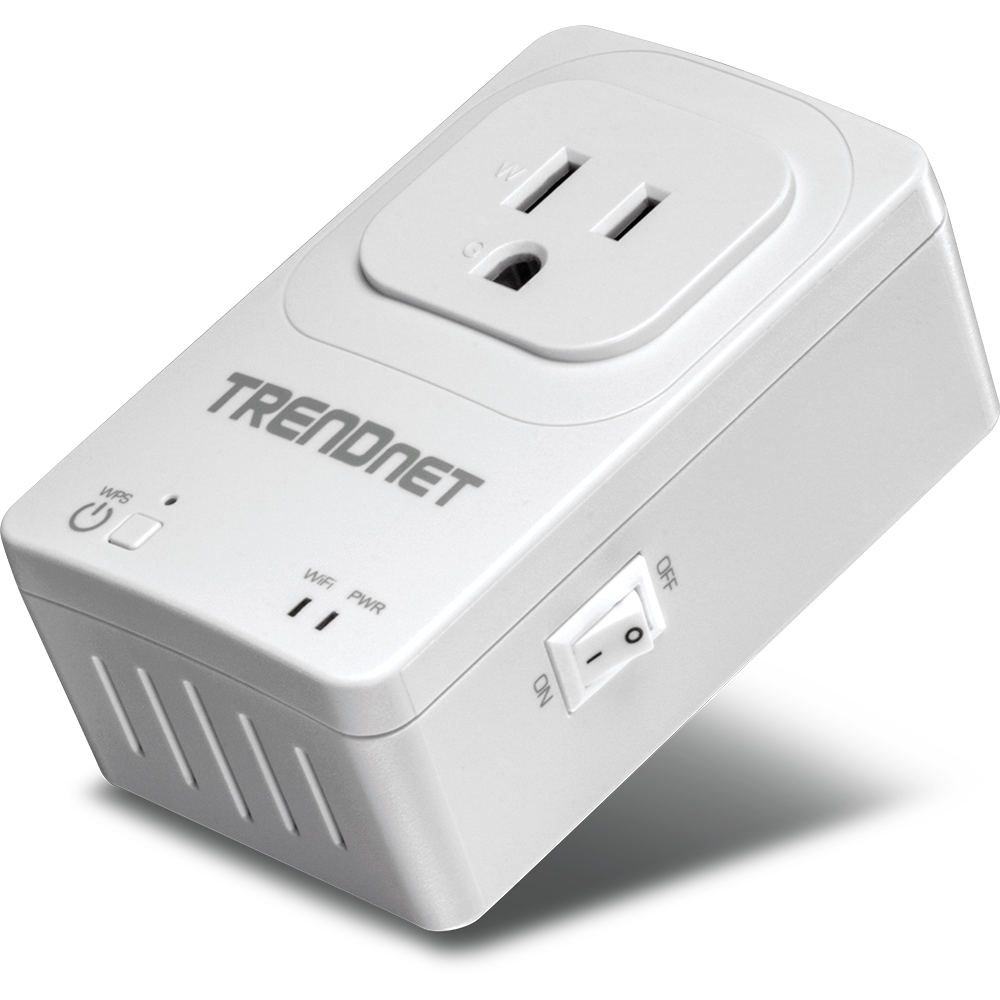

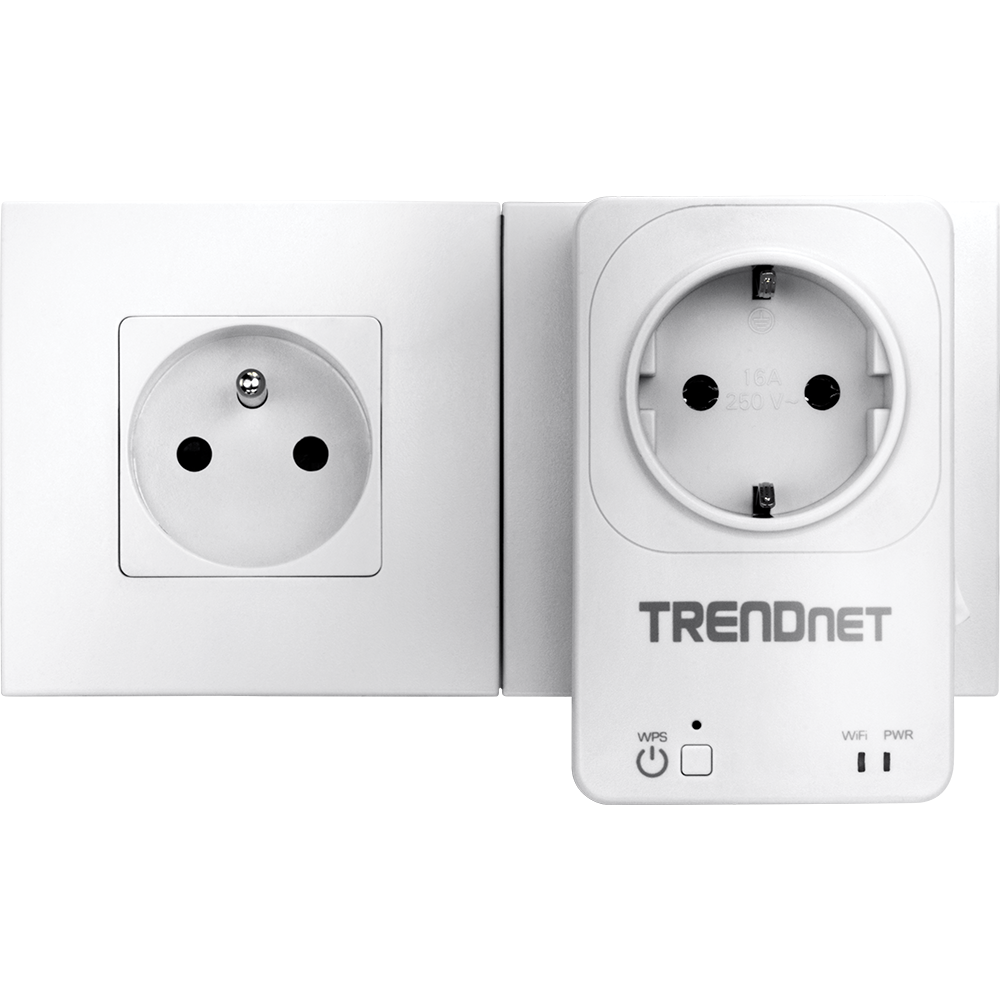

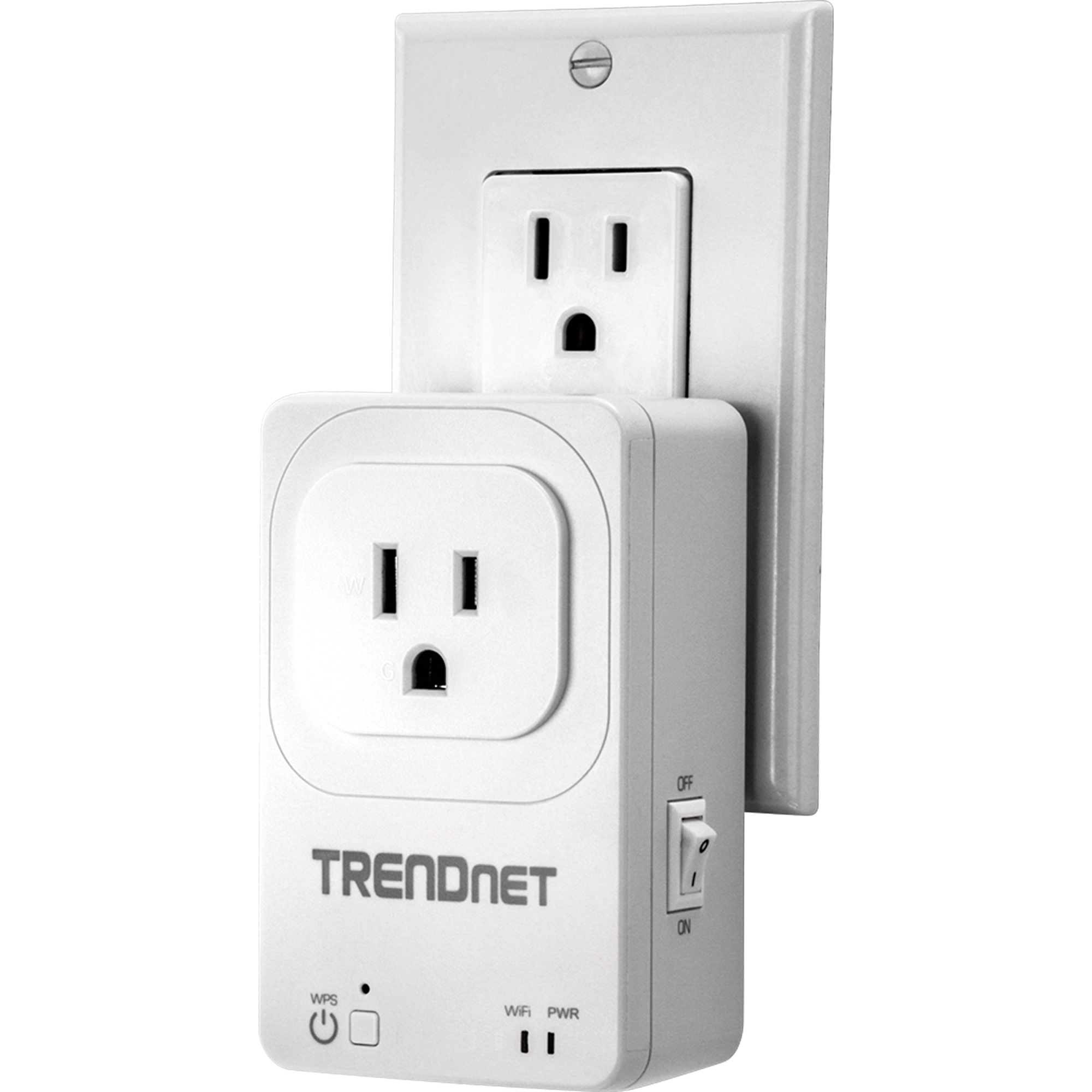

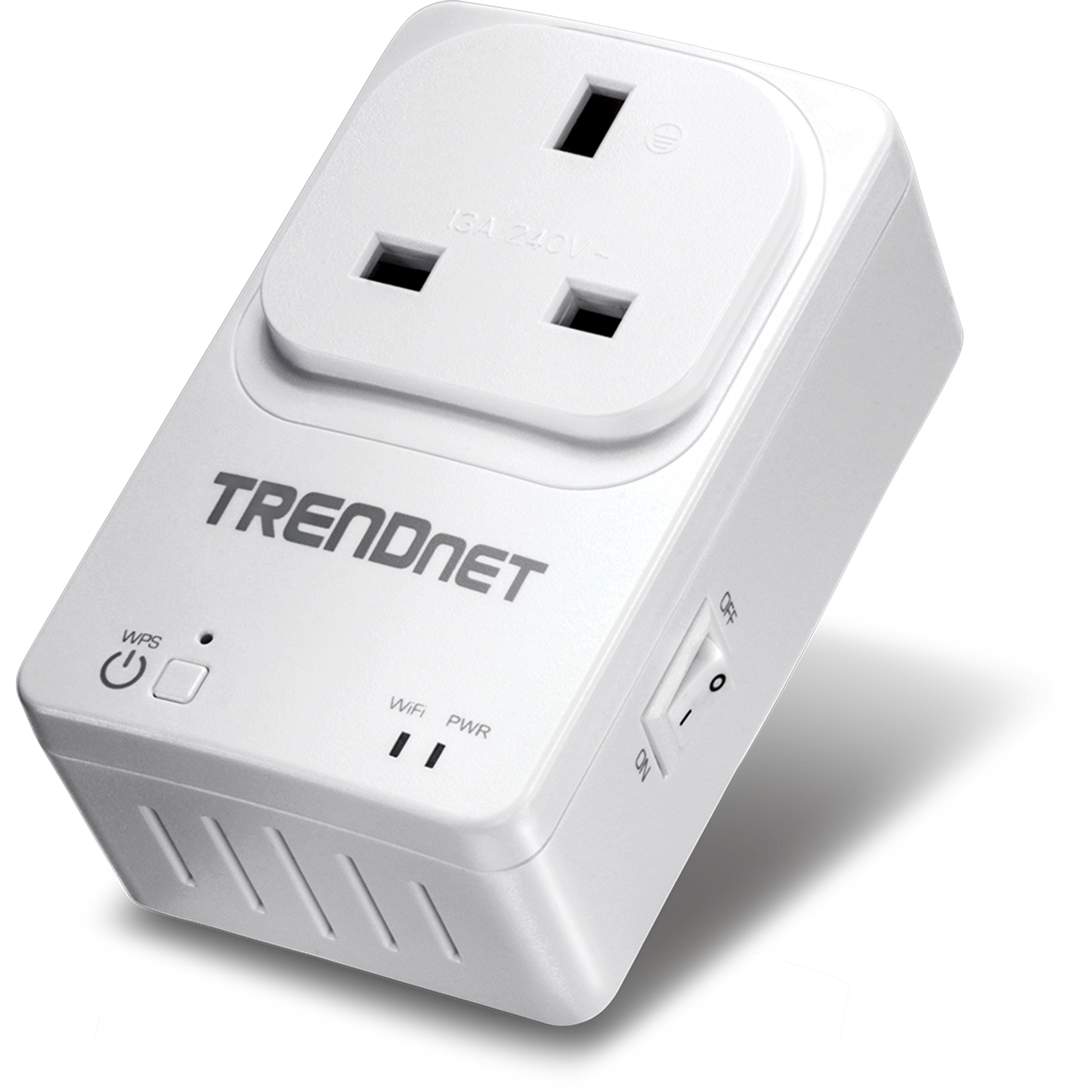

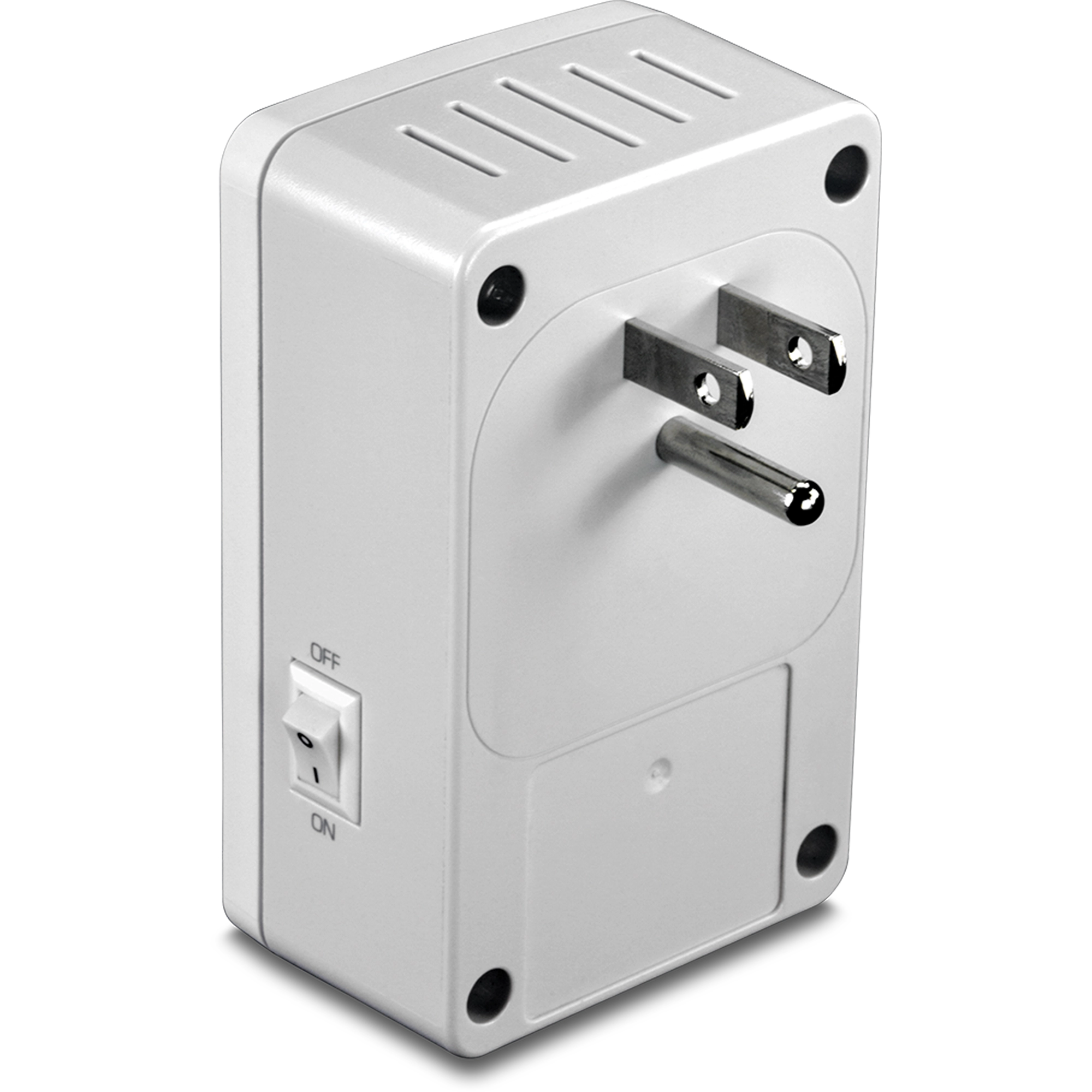

Product Images

JPEG Image
File Size: : 448.33 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 375.79 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 393.72 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 415.86 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 305.06 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 273.68 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 266.52 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 315.54 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 275.38 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 286.65 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 1.24 MB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 509.18 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 315.60 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 286.99 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 458.08 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 335.71 KB
Date: : 5/27/2015
Download
JPEG Image
File Size: : 366.20 KB
Date: : 5/27/2015
Download
ROHS compliant WEEE crossed-out bin symbol.
Smart Home App
  • Quick in-app THA-101 installation
  • Power on/off the electrical outlet from any internet connection
  • Create weekly on/off electrical outlet schedule
  • View real time power consumption: Energy (KWh), current (A), voltage (V), power (W)
  • Manage multiple THA-101 units from the app
Hardware Standards
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
Device Interfaces

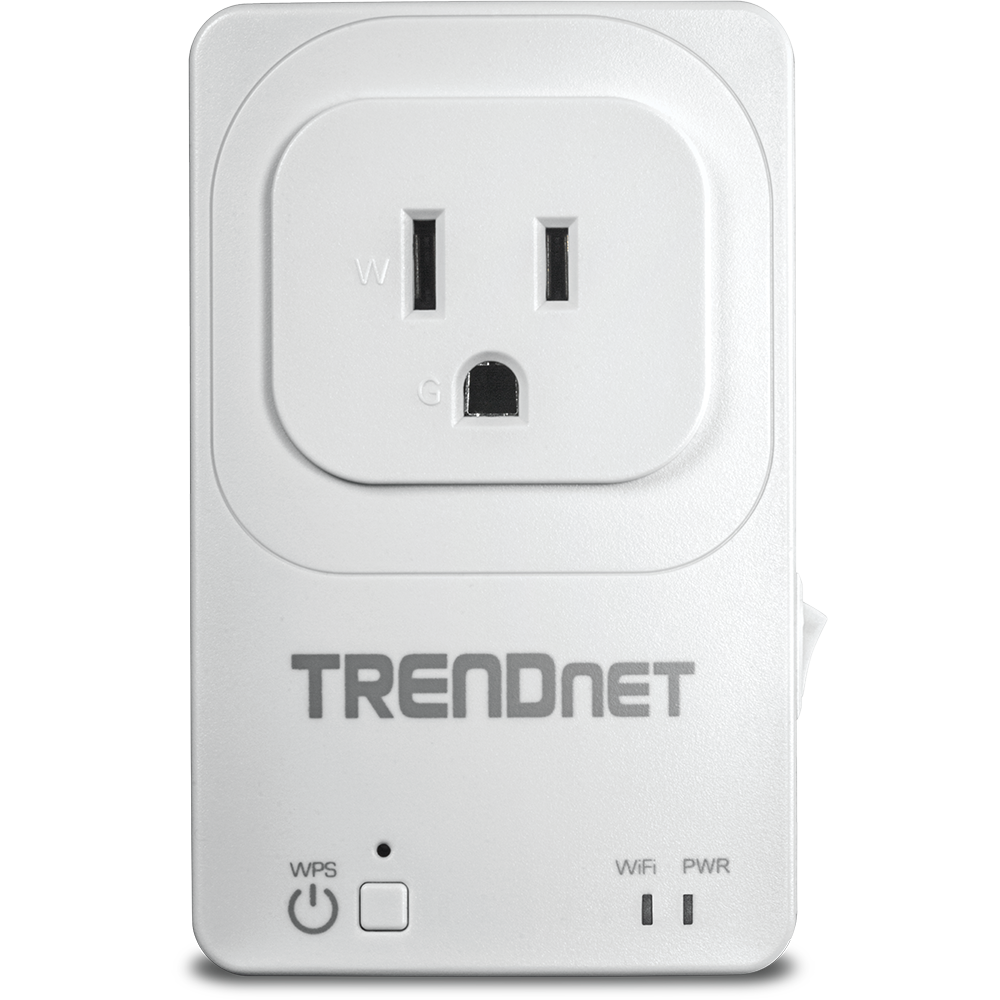

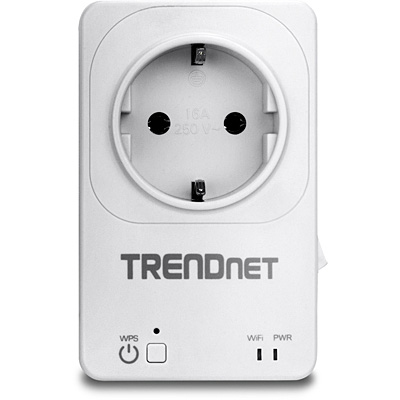

  • Electrical outlet
  • WPS button

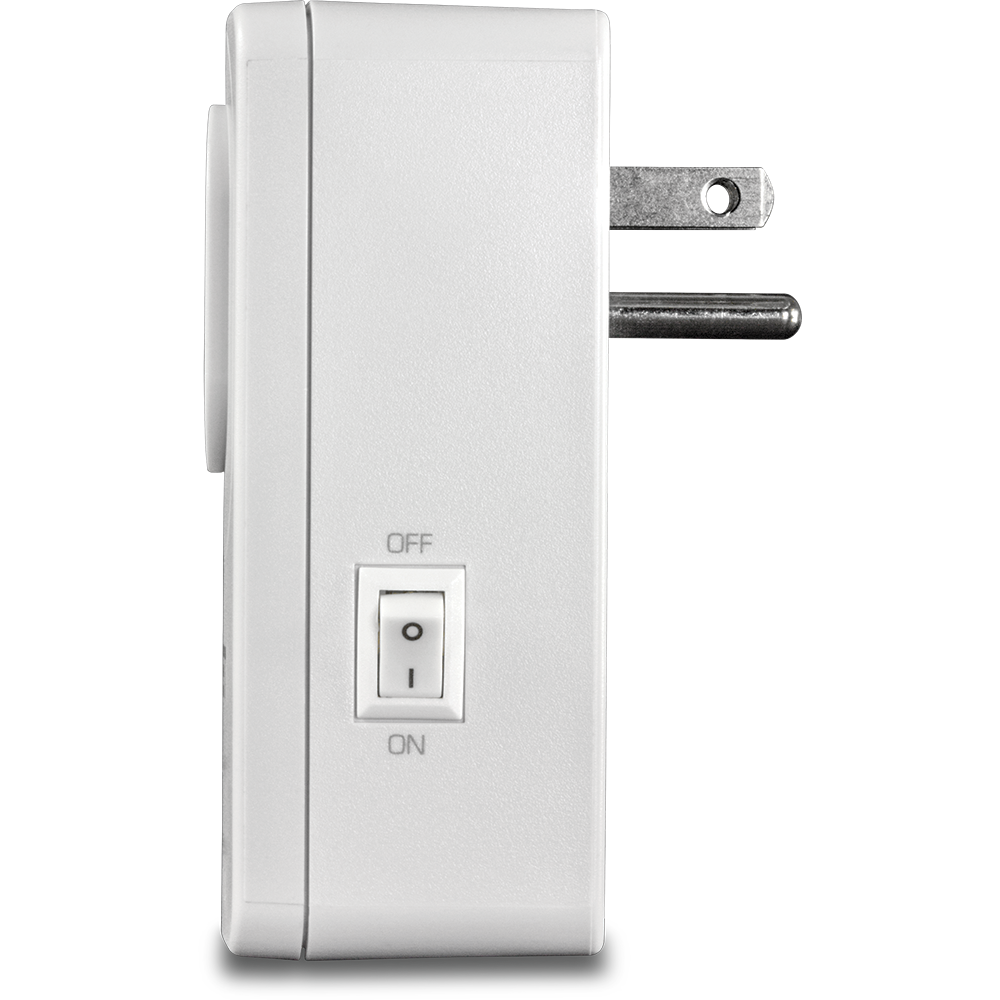

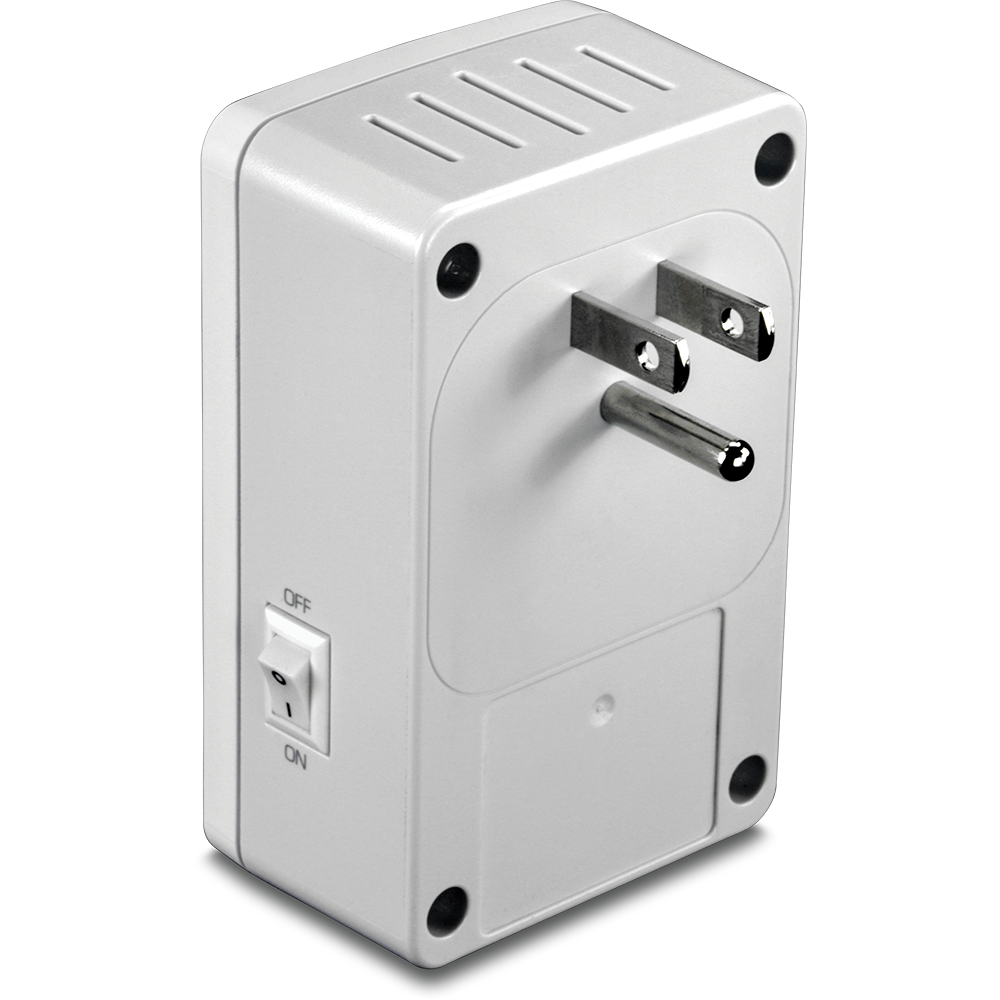

  • Power switch
  • LED indicators

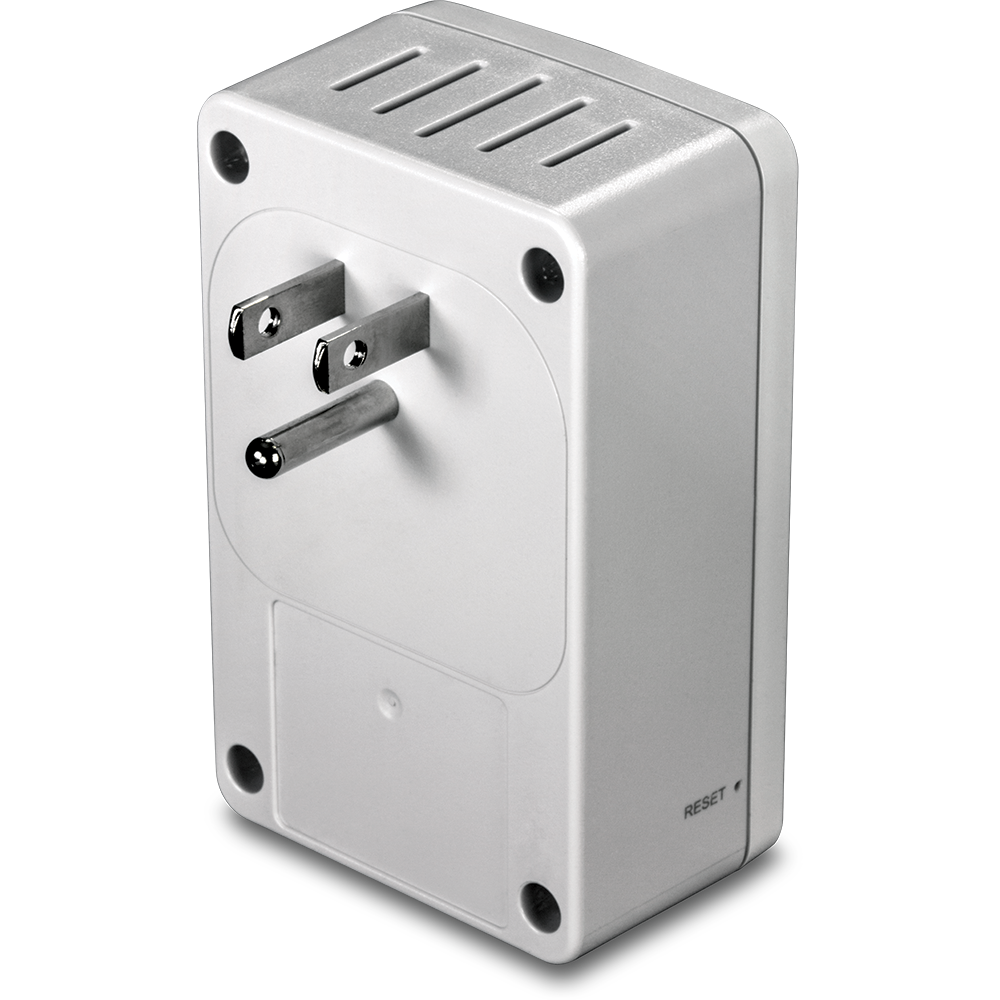

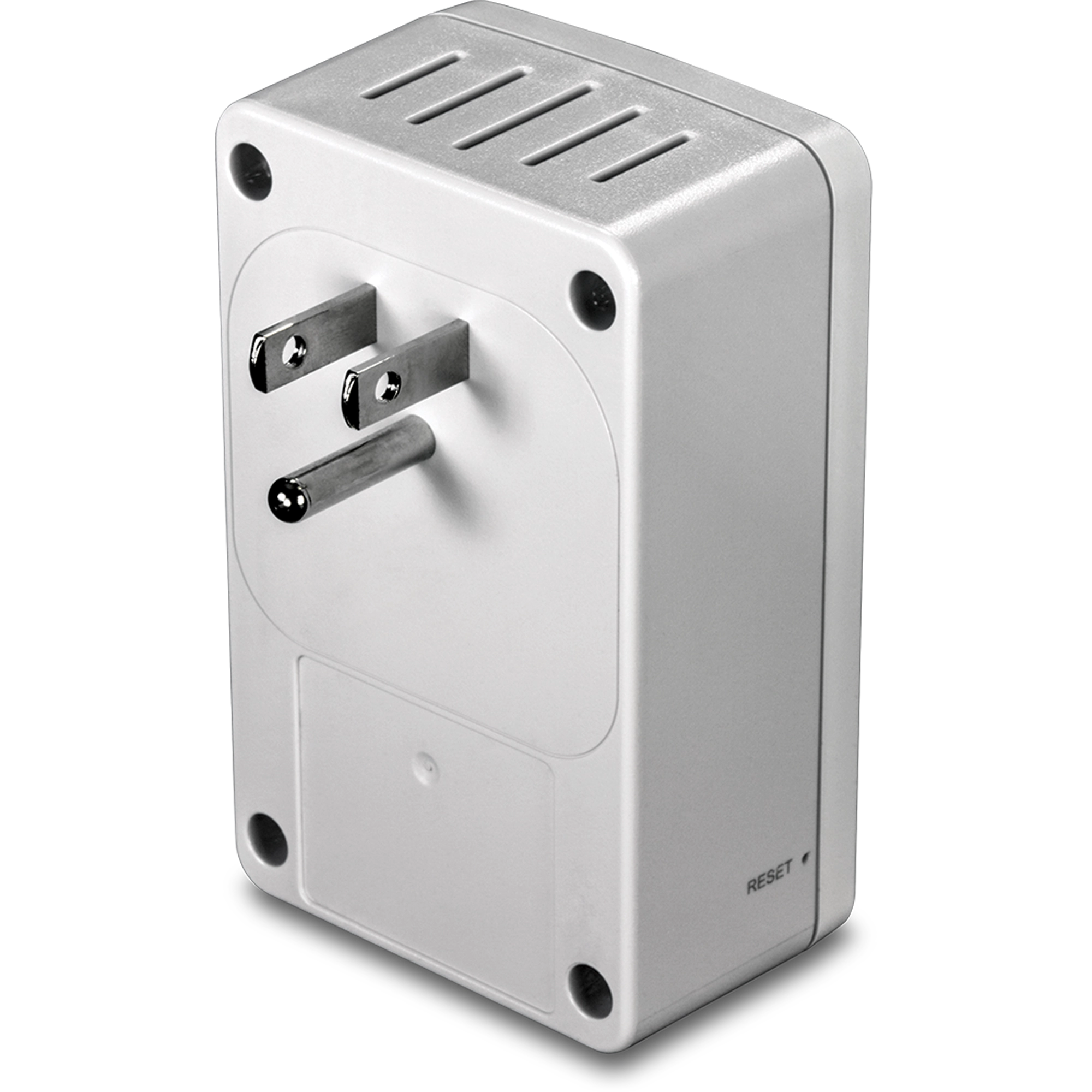

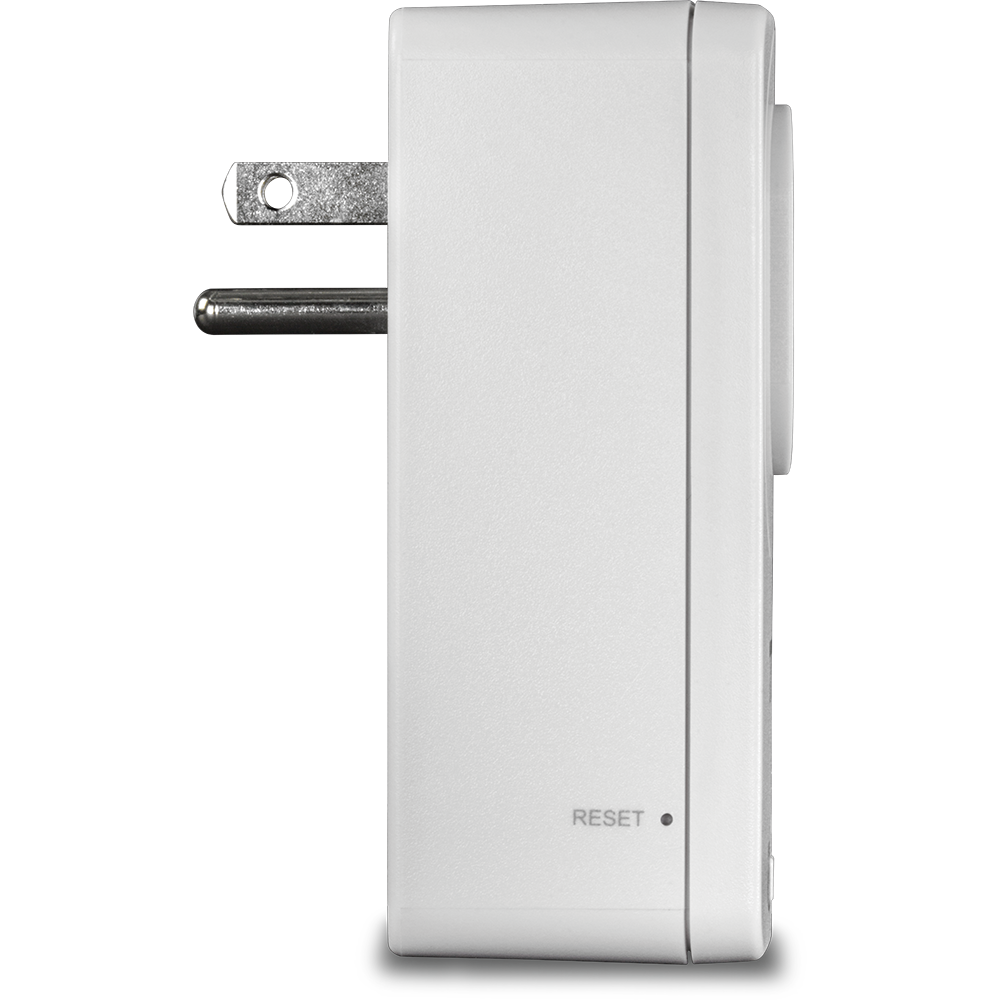

  • Reset button
Special Features
  • Overcurrent protection
  • Requires existing wireless network in order to function
Encryption
  • Wireless encryption: WEP, WPA/WPA2-PSK
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 2 x 2 dBi
Frequency
  • 2.412 - 2.484 GHz
Wireless Channels
  • FCC: 1-11, ETSI: 1-13
Modulation
  • 802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
  • 802.11g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Wireless Output Power (EIRP)/Receiving Sensitivity
  • 802.11b: 17 dBm (typical)/-84 dBm (typical) @ 11 Mbps
  • 802.11g: 14 dBm (typical)/-73 dBm (typical) @ 54 Mbps
  • 802.11n: 14 dBm (typical)/-70 dBm (typical) @ 300 Mbps
Power
  • 100 - 240 V AC, 50 /60 Hz
  • Consumption: 6 Watts max.
Power Capacity
  • US: 1800 Watts / 15 Amps
  • EU/UK: 3120 Watts / 13 Amps
Operating Temperature
  • 0 - 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 93 x 58 x 37 mm (3.7 x 2.3 x 1.46 in.)
Weight
  • US: 138 g (4.9 oz.)
  • EU: 156 g (5.5 oz.)
  • UK: 160g (5.6 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • THA-101
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
