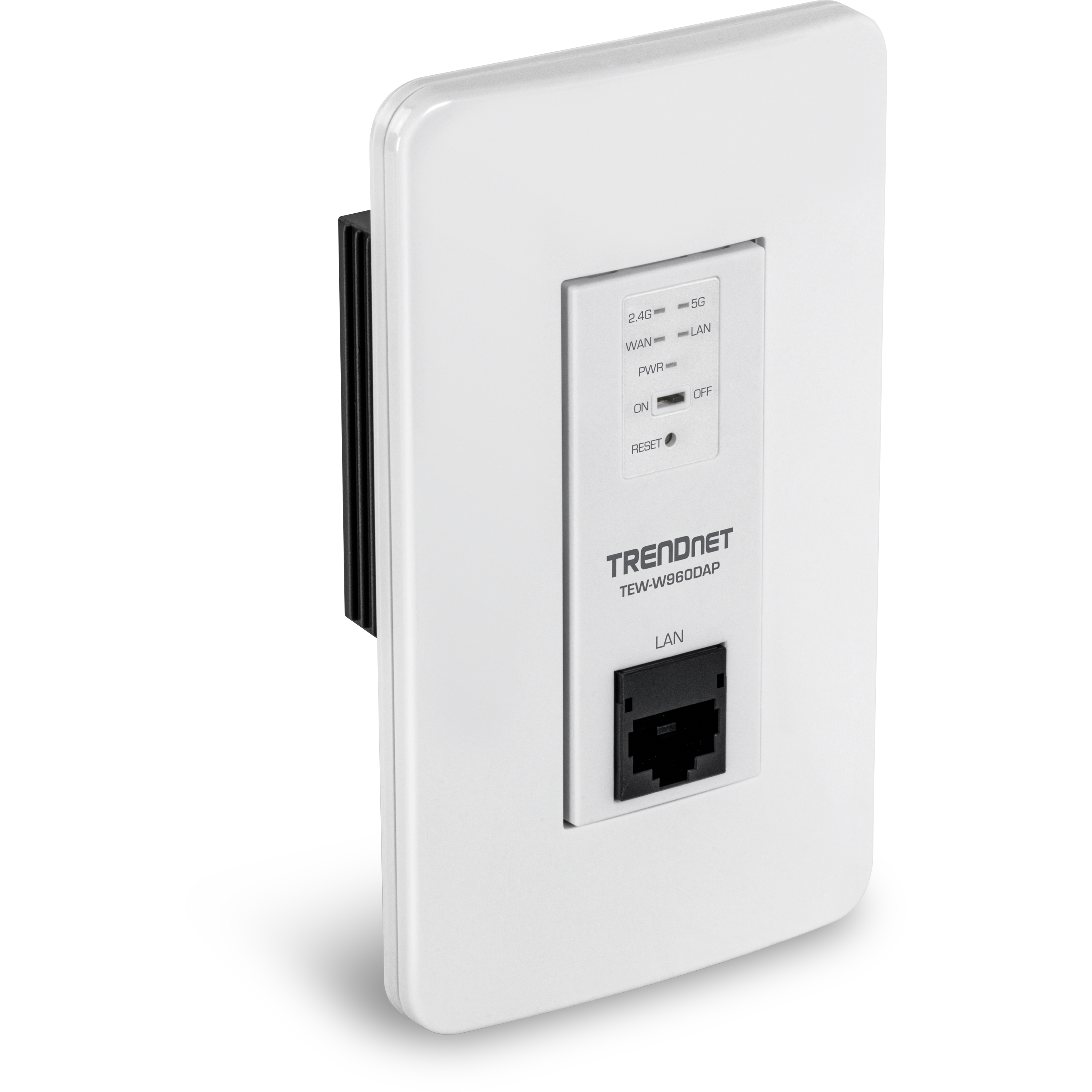

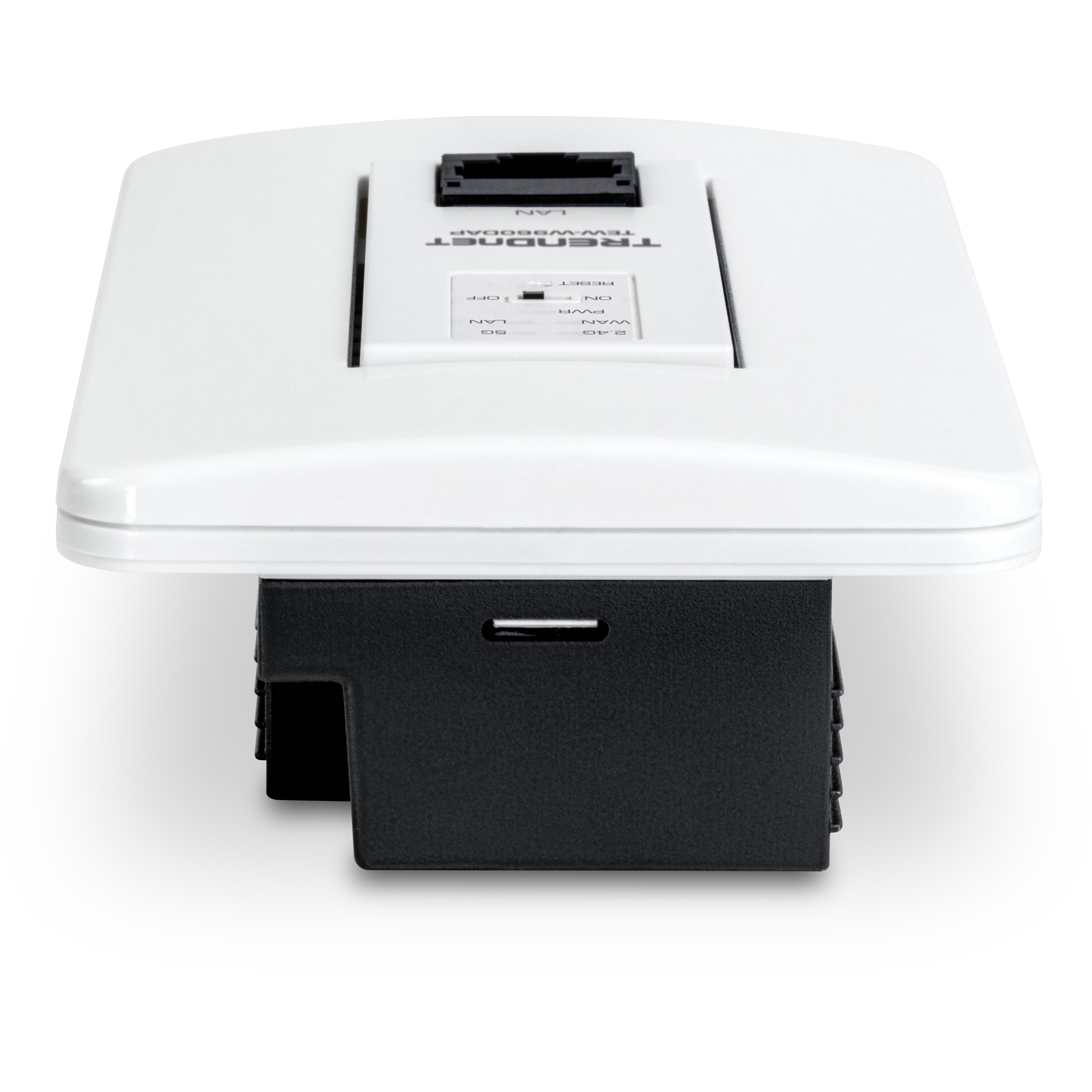

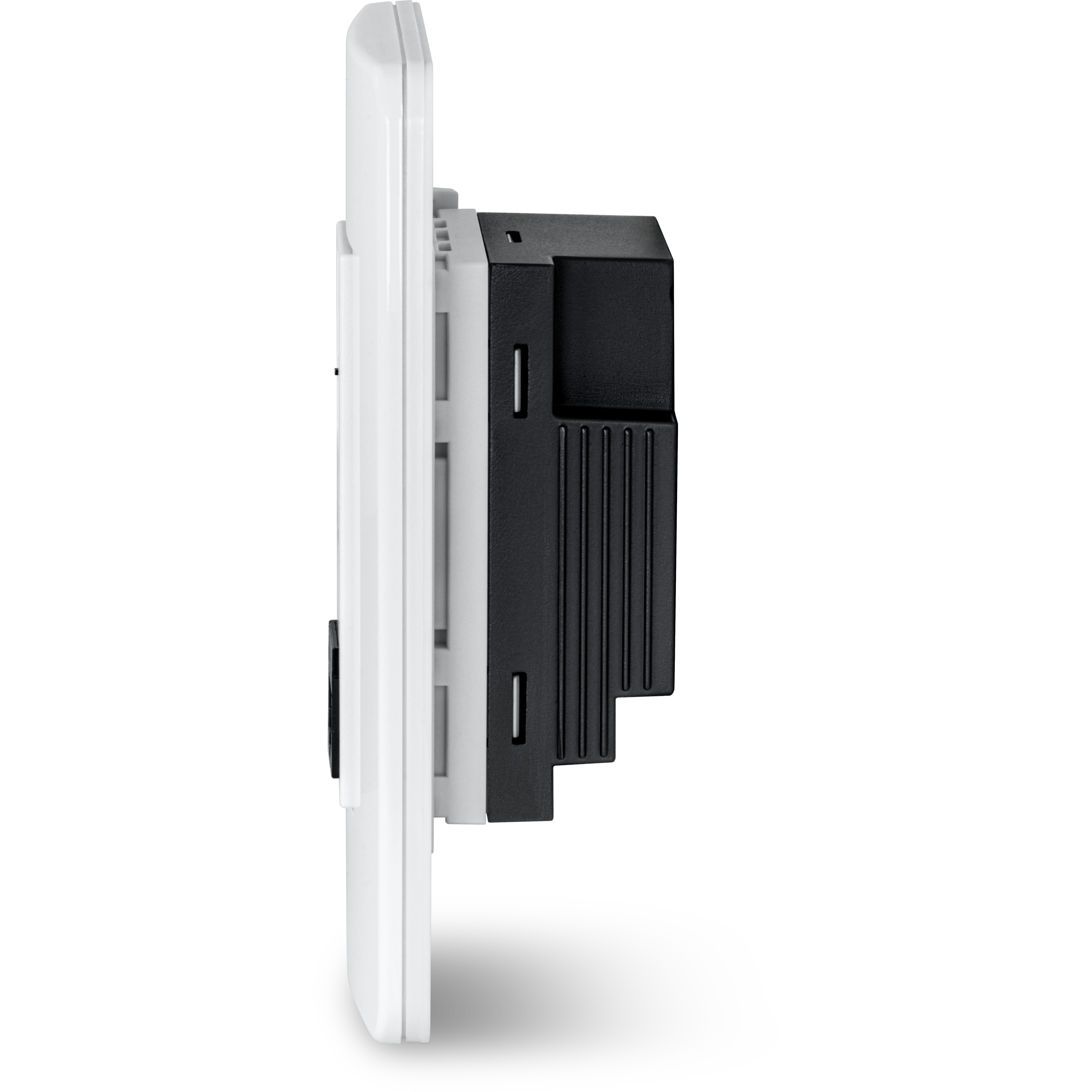

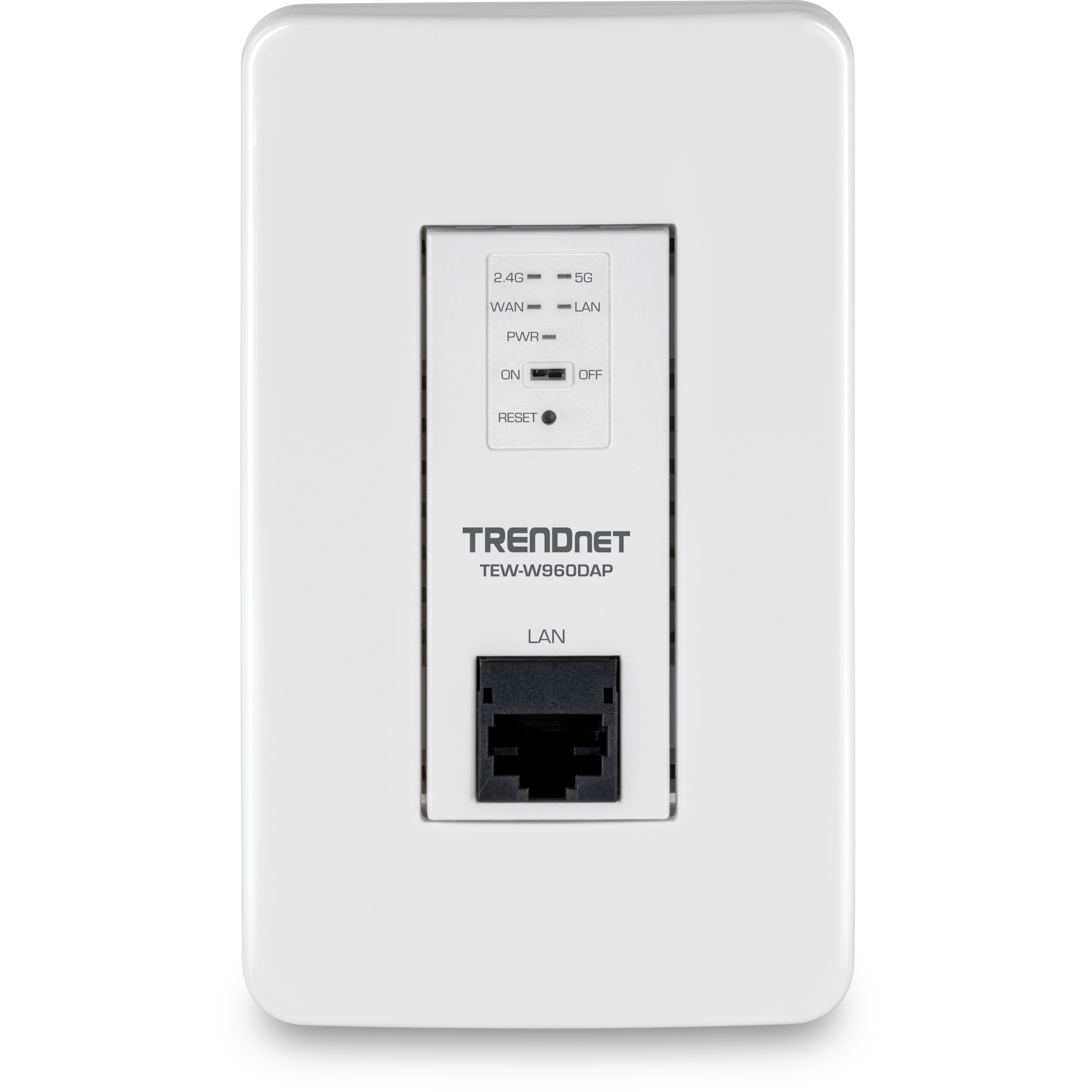

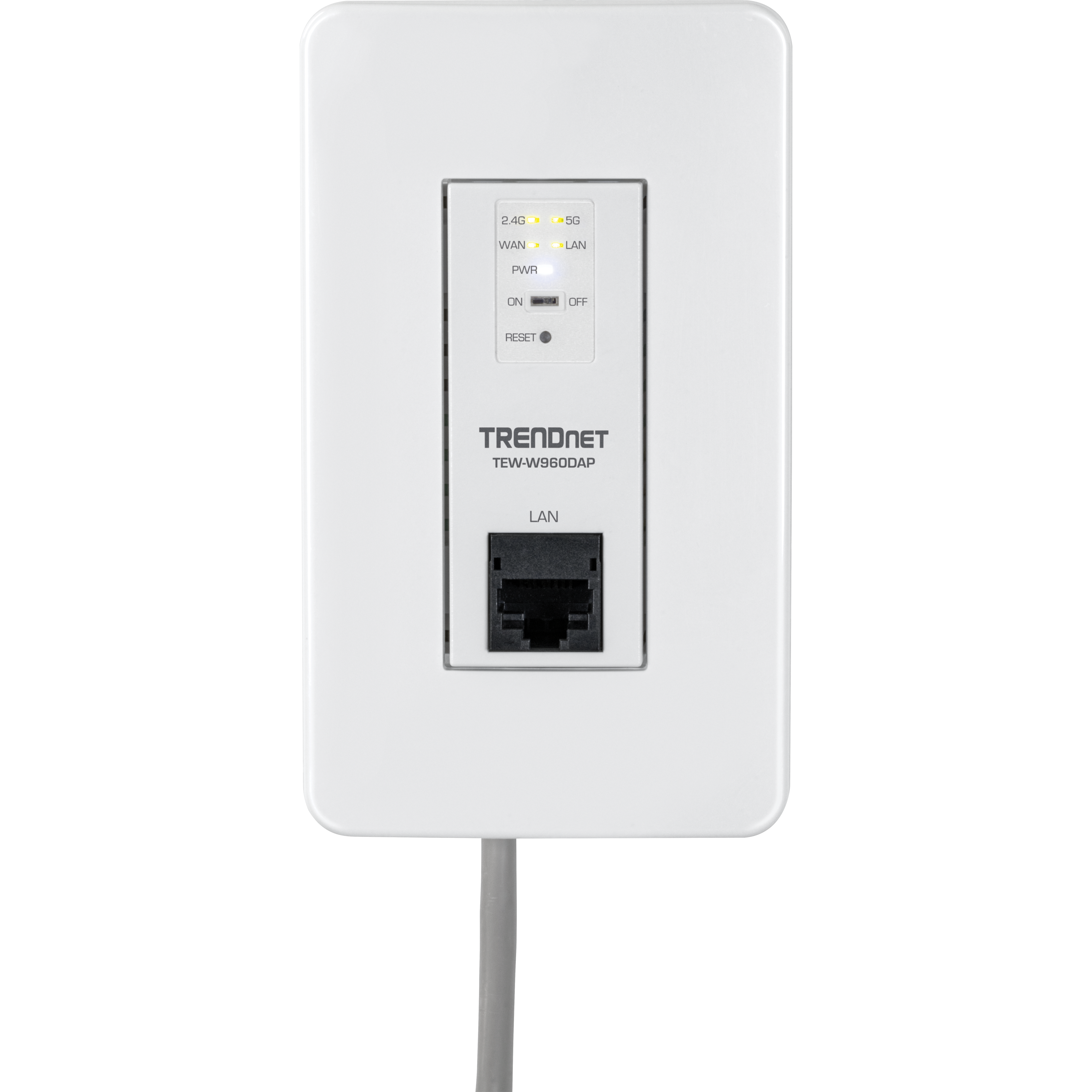

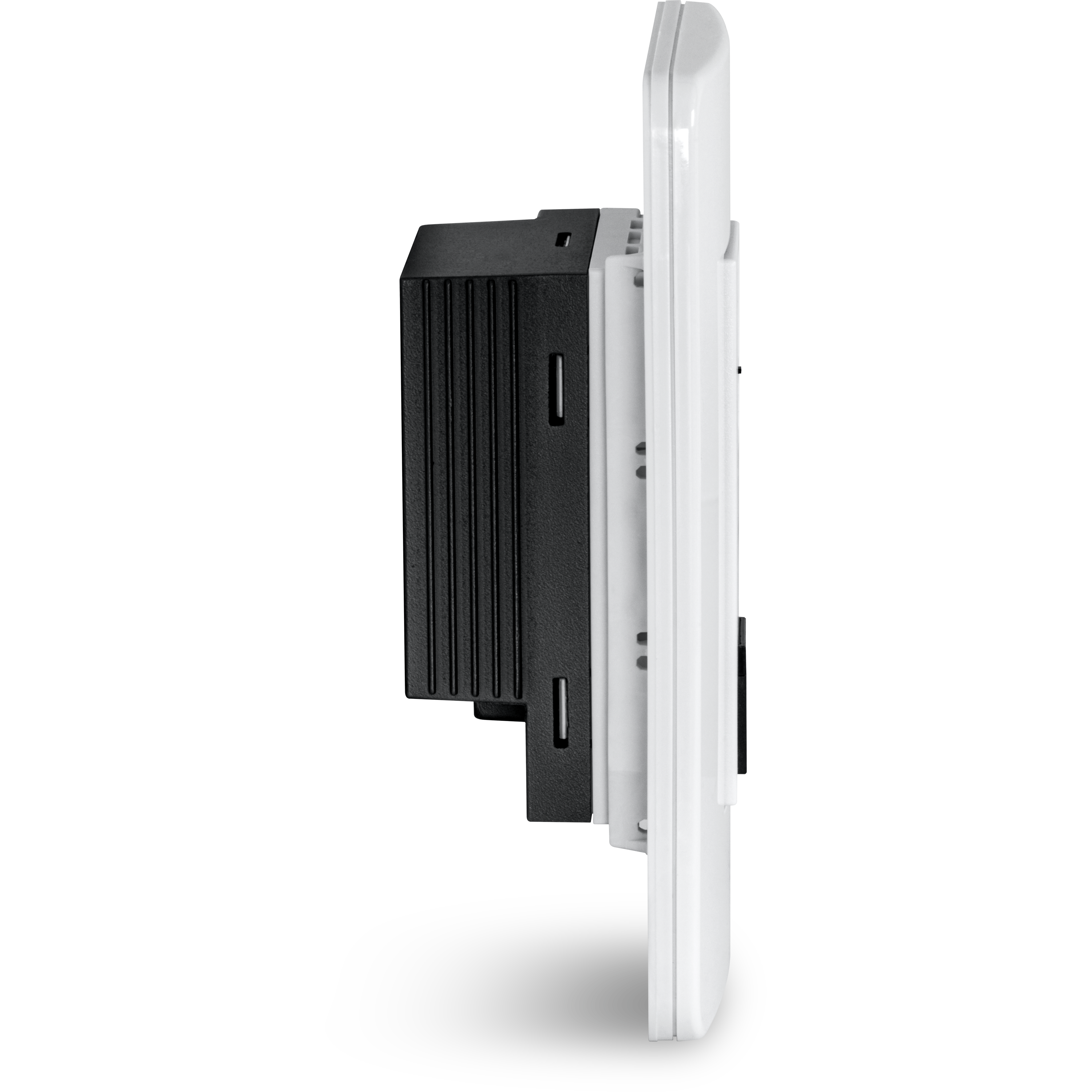

AX1800 Dual Band WiFi 6 PoE In-Wall Access Point

TEW-W960DAP   (Version V1)

  • High performance AX1800 PoE access point
  • AX1800 Dual Band: 1201Mbps (5GHz) + 573Mbps (2.4GHz) bands
  • Two concurrent WiFi bands maximize device networking speeds
  • OFDMA and MU-MIMO technology boosts performance in a busy environment
  • Supports up to WPA3 encryption
  • 1 x Gigabit PoE LAN port, 1 x Gigabit LAN port

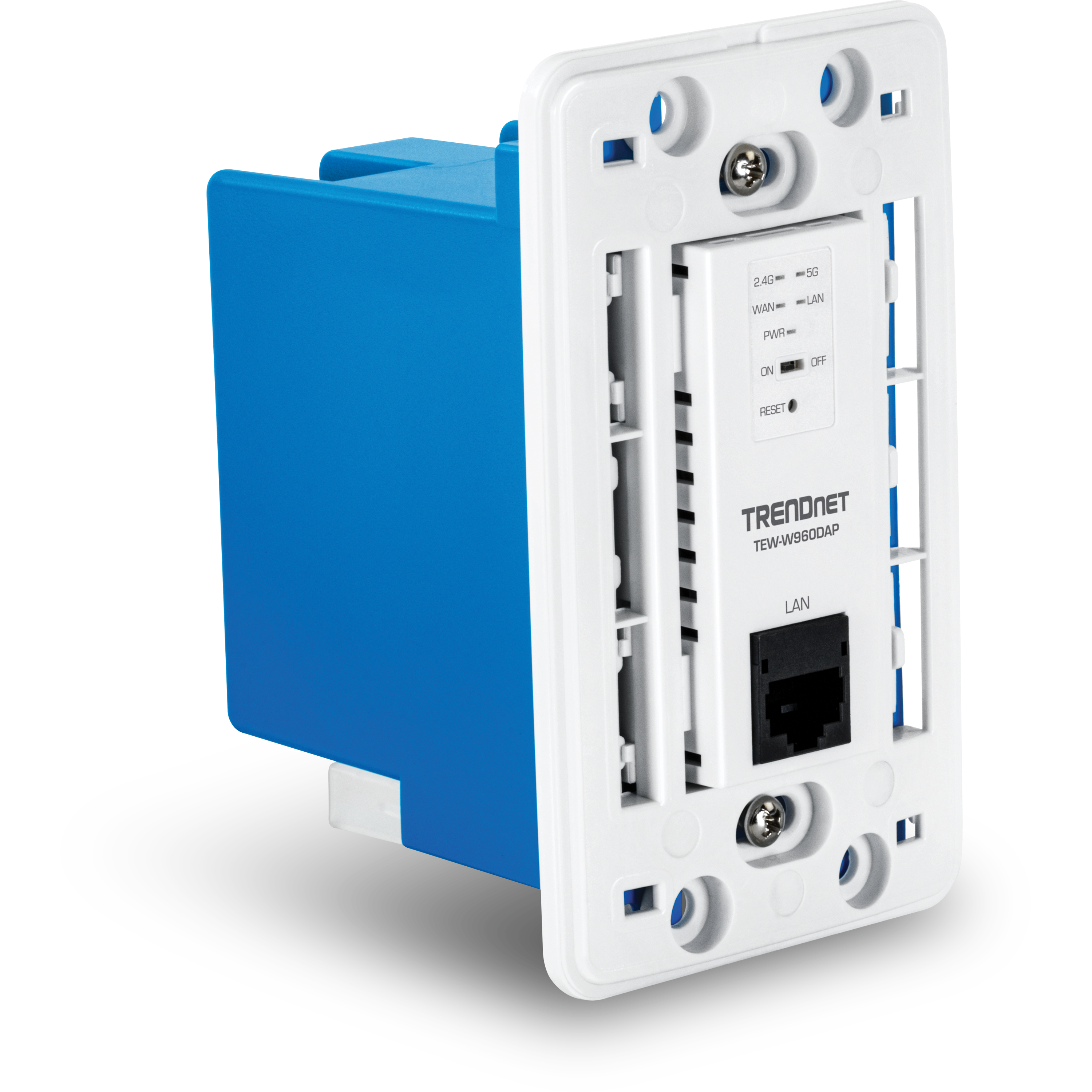

  • Discreet design blends into most environments

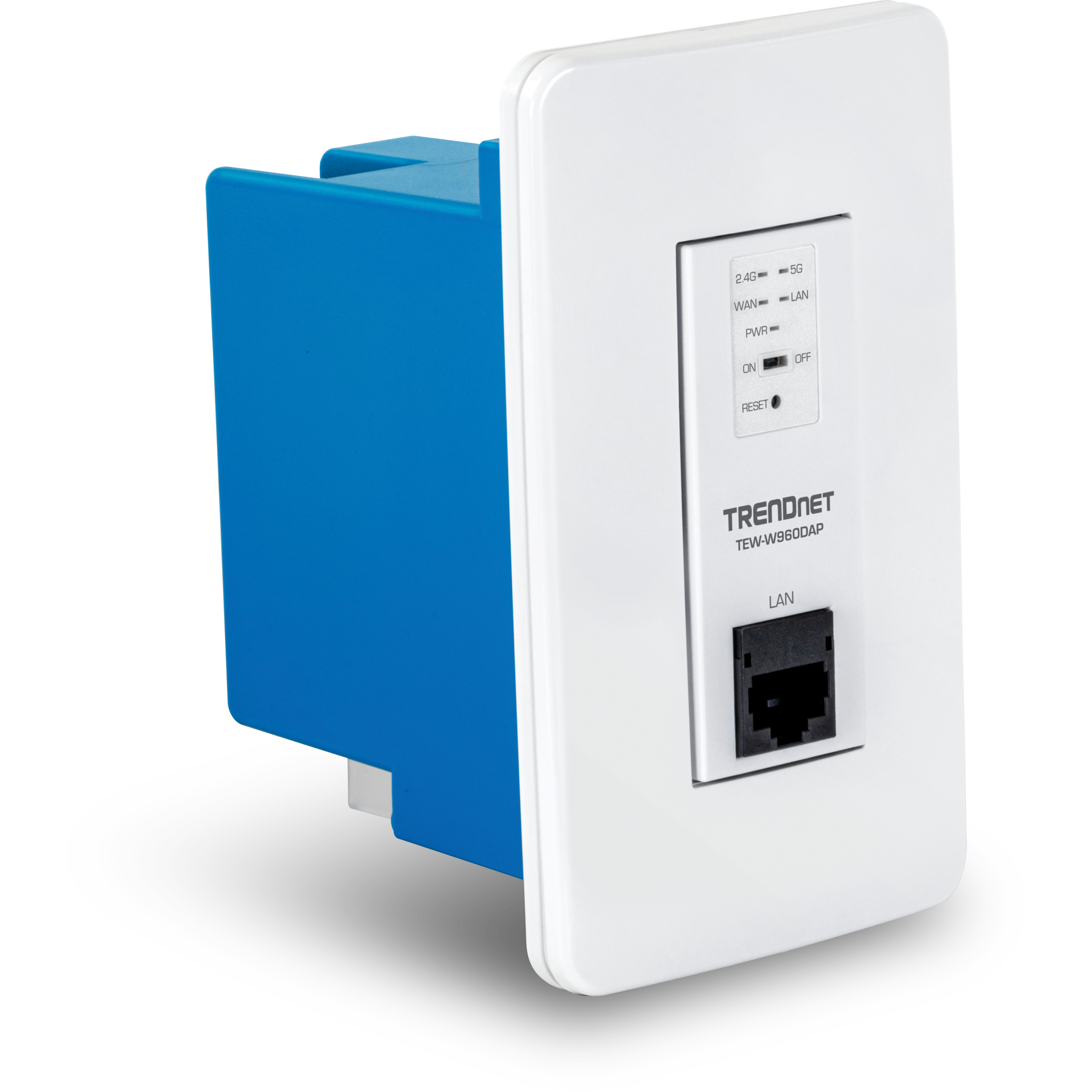

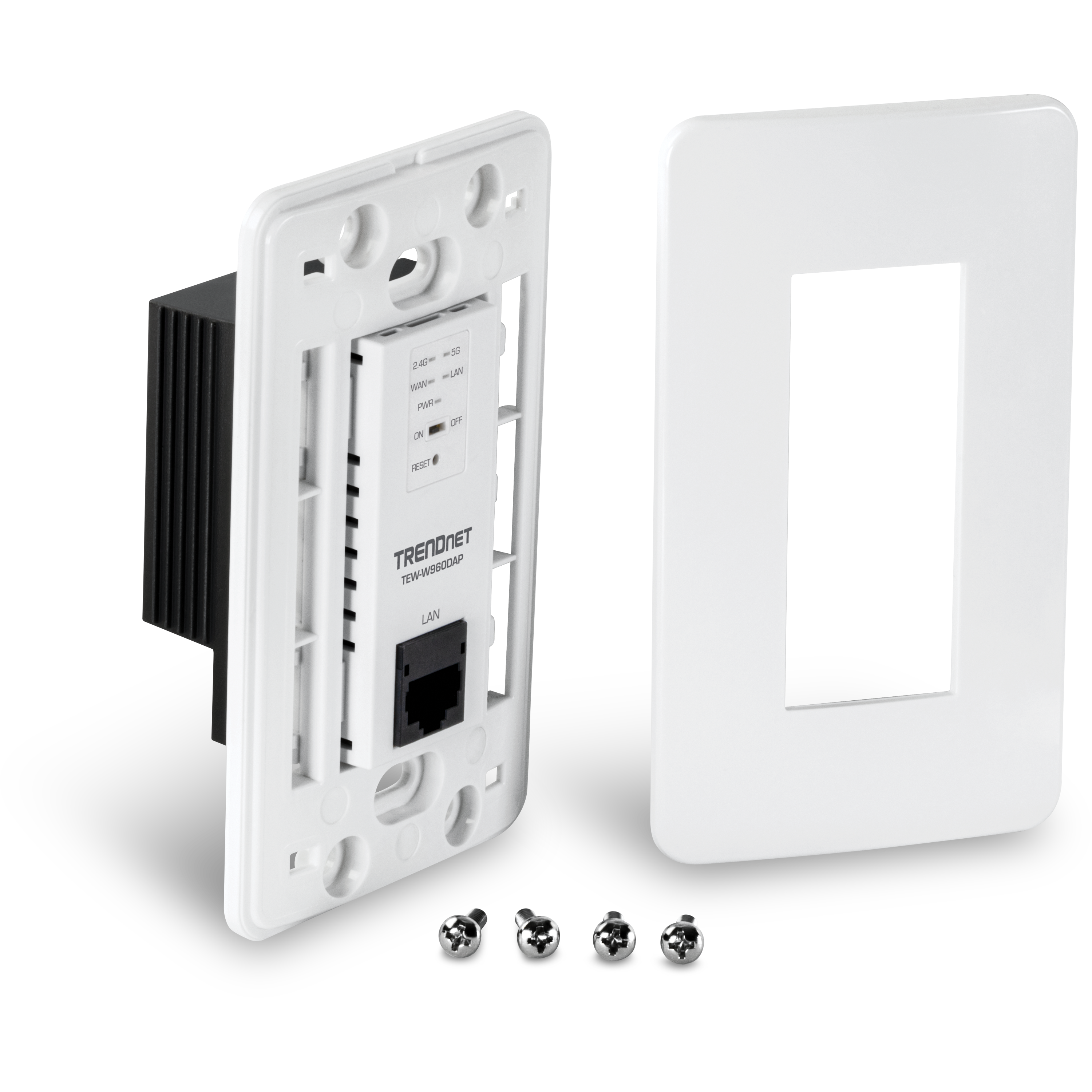

  • Includes wall plates for 1 gang installation
  • Remote cloud management with TRENDnet Hive™ (Additional fee applies)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11k**
  • IEEE 802.11n (up to 300Mbps)*
  • IEEE 802.11r**
  • IEEE 802.11v
  • IEEE 802.11ac (up to 867Mbps)*
  • IEEE 802.11ax (up to 1201Mbps on 5GHz, up to 573Mbps on 2.4GHz)*
Hardware Interface

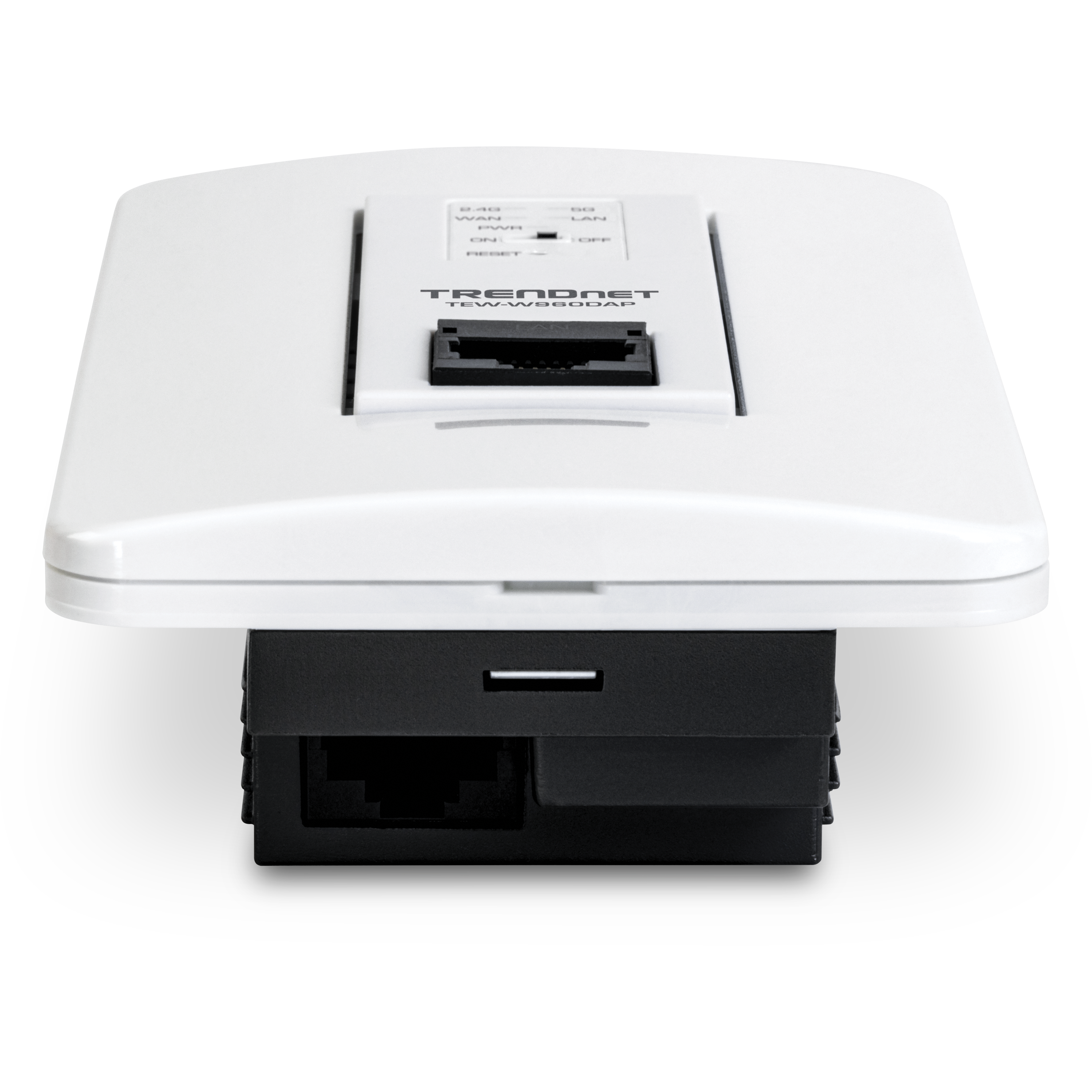

  • 1 x 802.3af PoE Gigabit LAN port (power input)
  • 1 x Gigabit LAN port (10/100/1000Mbps)
  • LED indicator
  • LED on/off switch
  • Reset button
Features
  • MU-MIMO
  • Band steering
  • 802.1Q VLAN assignment per SSID
  • IPv4 static/DHCP address assignment
  • UPnP/Bonjour
Operation Modes
  • Access Point
Management/Monitoring
  • Web based management (HTTP/HTTPS)
  • Command Line Interface (SSH)
  • SNMP v2c/v3
  • Spanning Tree Protocol (STP)
  • Event logging
  • Ping test
  • Traceroute
  • Schedule WiFi radio enable/disable
  • Ping watchdog/gateway connection monitor
  • Reboot & scheduled automatic reboot
  • Channel utilization scan
Hive Cloud Management***
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  • Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, WiFi settings, and LED control through cloud management
Access Control
  • Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal)
  • MAC filter with scheduling
  • Maximum client limit
  • Client isolation
QoS
  • Bandwidth control per SSID
SSID
  • Up to 8 SSIDs per wireless band (16 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz: 5.180 – 5.825GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11
  • 5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, and 165,
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique
Antenna Gain
  • 2.4GHz: 2 x 2 dBi internal
  • 5GHz: 2 x 4 dBi internal
Wireless Output Power
  • 802.11b/g/n/ac/ax (2.4GHz): FCC: 13 dBm (max.)
  • 802.11a/n/ac/ax (5GHz): FCC: 13 dBm (max.)
Receiving Sensitivity
  • 802.11a: -93 dBm (typical) @ 54Mbps
  • 802.11b: -98 dBm (typical) @ 11Mbps
  • 802.11g: -94 dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): -94 dBm (typical) @ 300Mbps
  • 802.11n (5 GHz): -92 dBm (typical) @ 300Mbps
  • 802.11ac: -93 dBm (typical) @ 867Mbps
  • 802.11ax (2.4GHz): -94 dBm (typical) @ 573Mbps
  • 802.11ax (5GHz): -93 dBm (typical) @ 1201Mbps
Power
  • IEEE 802.3af Type 2 PoE PD Class 4
  • Max. consumption: 8.54W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
Dimensions
  • 68 x 40 x 42mm (2.68 x 1.57 x 1.65 in.) (Unit with plate)
Weight
  • 118g (4.16 oz.) (Unit with plate)
Warranty:
  • 3-year

PACKAGE CONTENTS
  • TEW-W960DAP
  • Wall plates

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter. For maximum performance of up to 1201Mbps use with a 1201Mbps 802.11ax 5GHz wireless adapter. For maximum performance of up to 573Mbps use with a 573Mbps 802.11ax 2.4GHz wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

**Feature reserved for use when device is managed by TRENDnet Hive.


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
