4/6 dBi Surge Outdoor Dual Band Omni Antenna Kit

TEW-AO46S   (Version 1.0R)

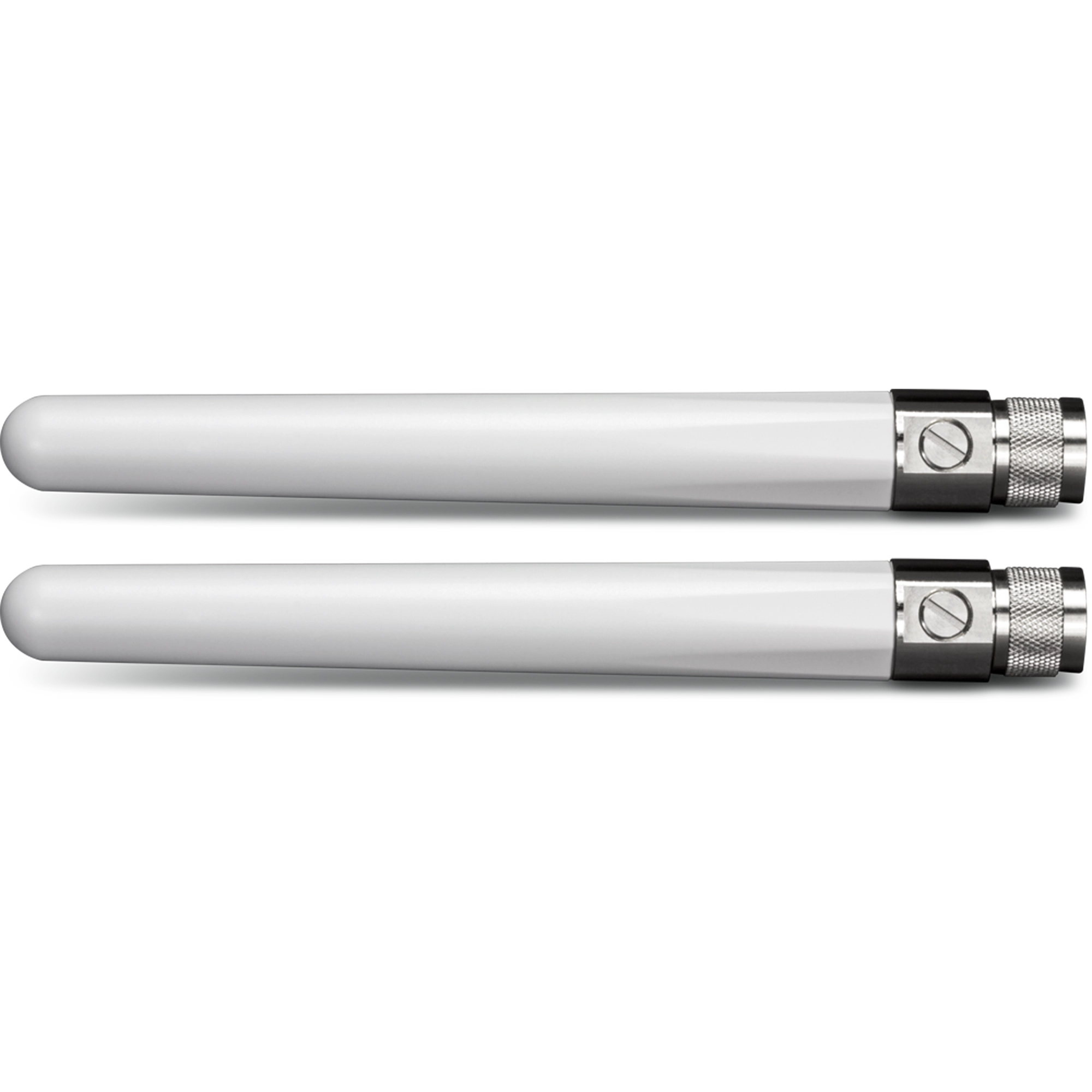

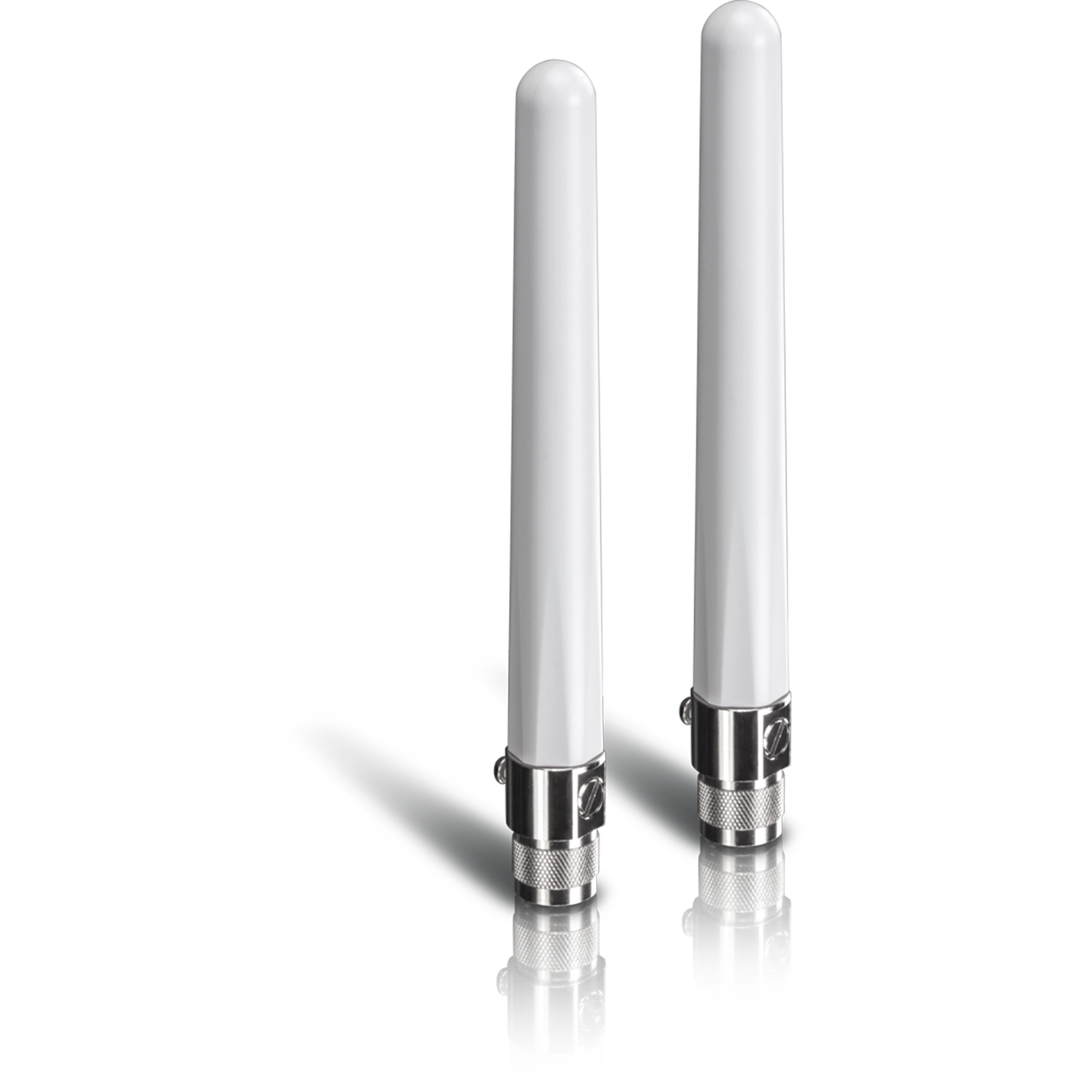

  • Pair of outdoor omni-directional dual band antennas
  • 2.4 GHz: 4 dBi
  • 5 GHz: 6 dBi
  • Replaceable surge protection fuse

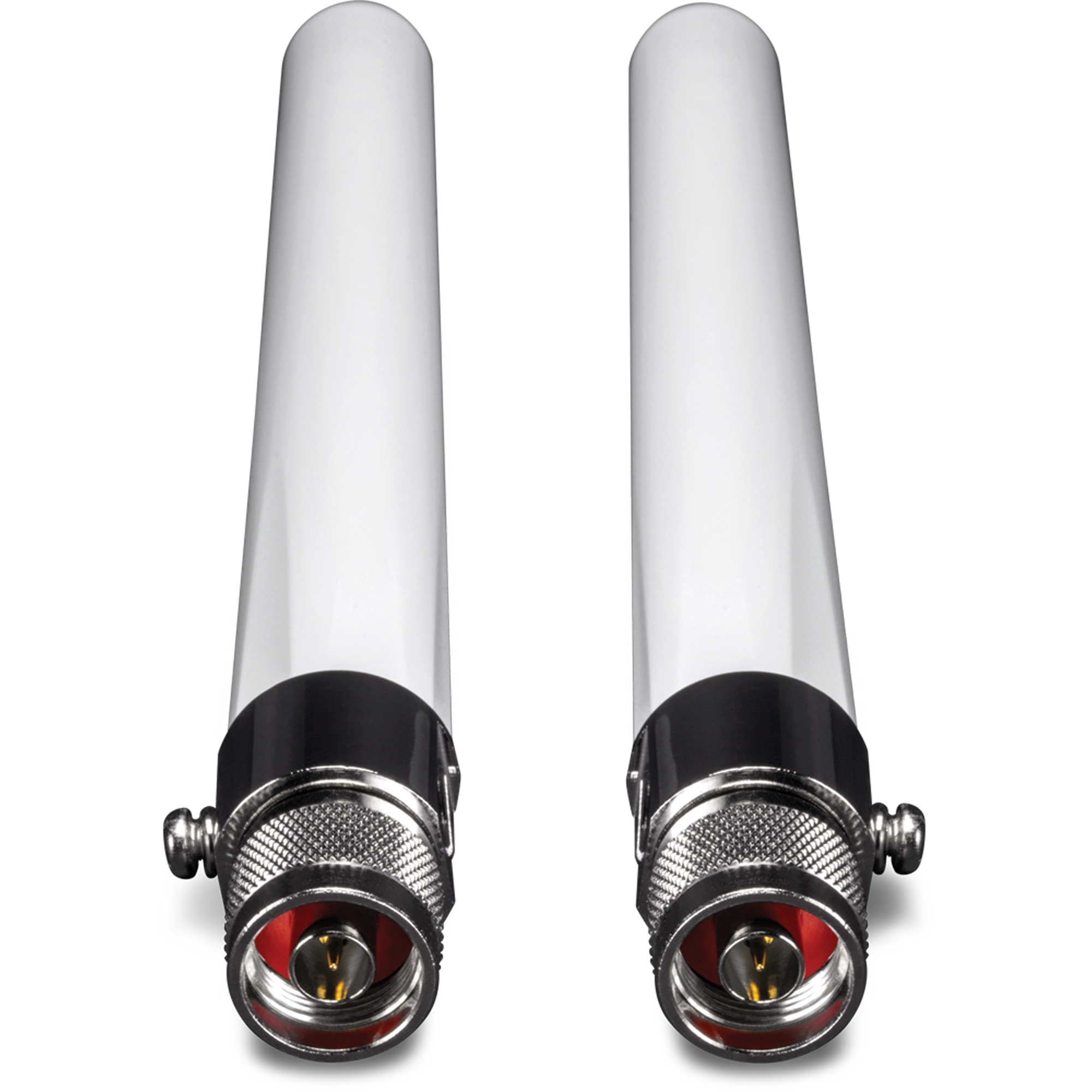

  • N-Type male connector
  • Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Datasheet
Datasheet (English)
Filename: EN_spec_TEW-AO46S(v1.0R).pdf
Date
9/22/2014
File Size
784.54 kb
Download Email
Datasheet (Français)
Filename: FR_spec_TEW-AO46S(v1.0R).pdf
Date
9/22/2014
File Size
789.52 kb
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEW-AO46S(v1.0R).pdf
Date
9/22/2014
File Size
792.54 kb
Download Email
Datasheet (Português)
Filename: PO_spec_TEW-AO46S(v1.0R).pdf
Date
9/22/2014
File Size
789.96 kb
Download Email
Datasheet (Español)
Filename: SP_spec_TEW-AO46S(v1.0R).pdf
Date
9/22/2014
File Size
783.63 kb
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEW-AO46S(v1.0R).pdf
Date
9/22/2014
File Size
773.22 kb
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEW-AO46S(v1.0R).pdf
Date
9/22/2014
File Size
785.24 kb
Download Email
Quick Installation Guide
Quick Installation Guide
Filename: Web_QIG_TEW-AO46S_TEW-AO57(V1.0R).pdf
Date
7/23/2014
File Size
1.62 mb
Download
Product Images

JPEG Image
File Size: 128.08 kb
Date: 5/28/2015
Download

JPEG Image
File Size: 189.07 kb
Date: 5/28/2015
Download

JPEG Image
File Size: 129.64 kb
Date: 5/28/2015
Download

JPEG Image
File Size: 351.86 kb
Date: 7/1/2015
Download
Antenna
  • Omni-directional dual band (2.4 + 5 GHz)
Frequency
  • 2.4 GHz: 2.4 - 2.5 GHz
  • 5 GHz: 5.15 – 5.88 GHz
Peak Gain
  • 2.4 GHz: 4 dBi (max.)
  • 5 GHz: 6 dBi (max.)
Polarization
  • Linear, Vertical
Connector type
  • N-Type male
Half-Power Beam Width (HPBW)
  • Horizontal: 360°
  • Vertical: 30°
Voltage Standing Wave Ratio (VSWR)
  • 2.0 max.: 1
Nominal Input Impedance
  • 50 Ohms
Power Handing
  • 2 Watts
Surge Protection
  • Replaceable surge protection fuse
  • Grounding point
Operating Temperature
  • -40 – 70 °C (-40 – 158 °F)
Operating Humidity
  • Max. 95 % non-condensing
Compatibility
  • Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors
Dimensions
  • Individual antenna: 20 x 220 mm (0.8 x 8.7 in.)
Weight
  • Both antennas: 224 g (8 oz.)
  • Individual antenna: 112 g (4 oz.)
Warranty
  • 3 year limited
PACKAGE CONTENTS
  • TEW-AO46S (2 x antennas)
  • Quick Installation Guide

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna align-ment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
