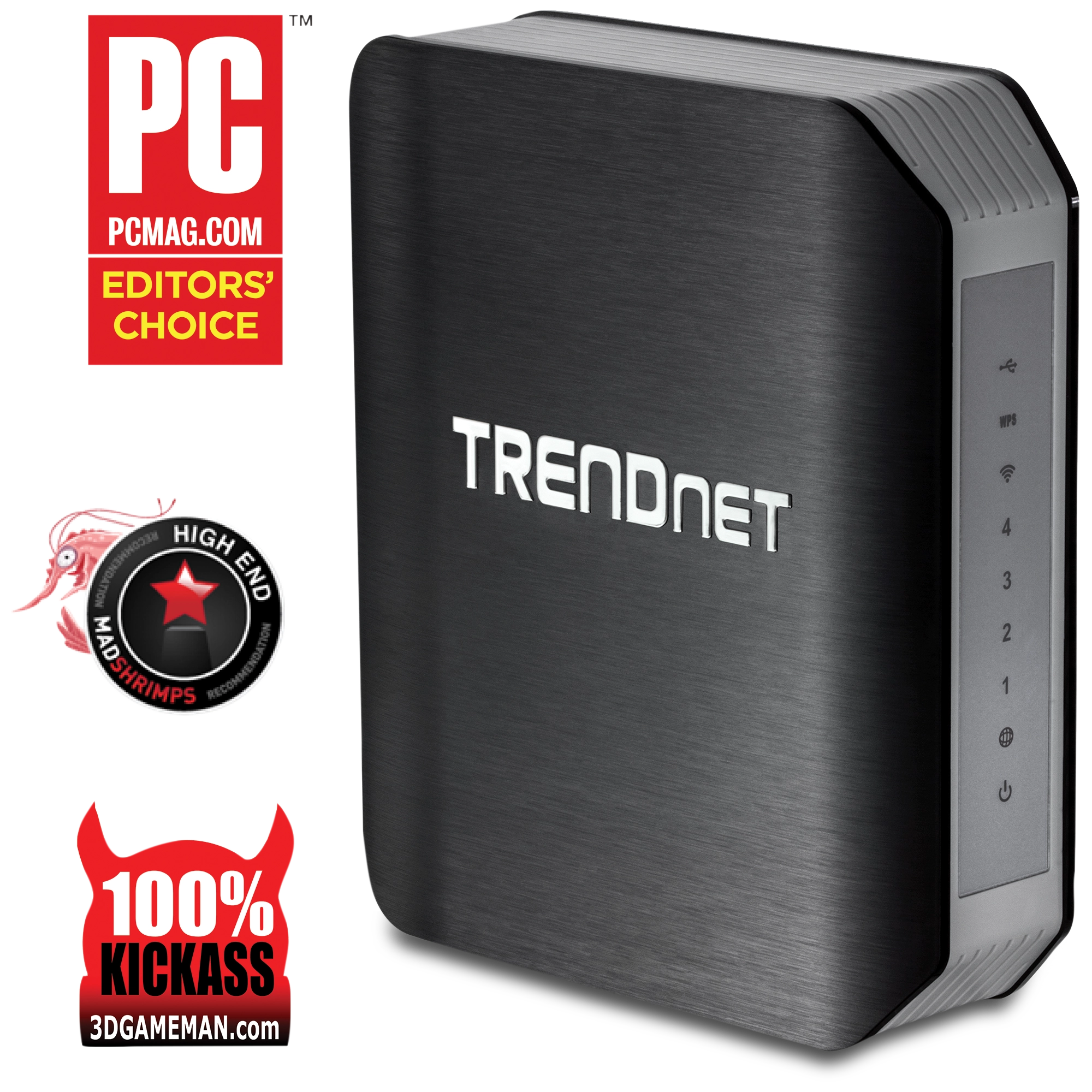

AC1750 Dual Band Wireless Router

TEW-812DRU   (Version v2.xR)

   Select Another Version
  • 1750 Mbps total wireless: 1300 Mbps AC + 450 Mbps N bands
  • High speed USB 3.0 share port
  • Pre-encrypted for your convenience
  • Create an isolated guest network
  • One touch network connection with the WPS button
  • All Gigabit wired ports
  • High power amplifiers extend wireless coverage
  • Compatible with DD-WRT Open Source Firmware***
DISCONTINUED PRODUCT
The TEW-812DRU (Version v2.xR) has been discontinued. It has been replaced by the TEW-829DRU (Version v1.0R). For a list of discontinued products, click here.
Drivers/Utility
Drivers/Utility (Mac)
Notes: Supports Mac OS 10.4/10.5/10.6/10.7/10.8/10.9
Filename: Utility(MacOS)_PrinterSharing(v2.21).zip
SHA-1 Checksum: F338F5FE980BF593D09B23F2442B5F08ED988E2C
Date
7/28/2017
File Size
2.41 mb
Download
Drivers/Utility (Windows)
Notes: Supports Windows 8.1, 8, 7, Vista and XP
Filename: Utility(Windows)_PrinterSharing(v2.41).zip
SHA-1 Checksum: A39F70B9EA2FE0895C61778D9A08C3F0D790FBA7
Date
7/28/2017
File Size
7.27 mb
Download
Firmware
Firmware (Open Source)

Note: Important note: The provided OpenSource firmware has no affiliation with, nor was it produced by TRENDnet. Using this firmware requires advanced knowledge and experience with OpenSource code. TRENDnet does not provide support for this firmware. Use of this firmware voids the product warranty. This firmware may damage your product, use at your own risk.


Filename: TEW-812DRUv2.0R_OpenSource.rar
SHA-1 Checksum: F7AC7508AEA033A5163B04E0D5EE4080216A84BA
Date
7/28/2017
File Size
7.34 mb
Download
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Version: 2.1.2.2
Date: 07/2018
Notes:

  1. Fixed authentication bypass vulnerability

Filename: FW_TEW-812DRU_v2(2.1.2.2).zip
SHA-1 Checksum: C71EC8C67DDFEFA95DBAC5B48926EB56541E8E16
Date
7/31/2018
File Size
7.71 mb
Download
Datasheet
Data Sheets (English)
Filename: EN_spec_TEW-812DRU(v2.0R).pdf
Date
8/20/2015
File Size
2.21 mb
Download Email
Data Sheets (Français)
Filename: FR_spec_TEW-812DRU(v2.0R).pdf
Date
8/20/2015
File Size
2.20 mb
Download Email
Data Sheets (Deutsch)
Filename: GE_spec_TEW-812DRU(v2.0R).pdf
Date
8/20/2015
File Size
2.22 mb
Download Email
Data Sheets (Português)
Filename: PO_spec_TEW-812DRU(v2.0R).pdf
Date
8/20/2015
File Size
2.21 mb
Download Email
Data Sheets (Español)
Filename: SP_spec_TEW-812DRU(v2.0R).pdf
Date
8/20/2015
File Size
2.23 mb
Download Email
Data Sheets (Pусский)
Filename: RU_spec_TEW-812DRU(v2.0R).pdf
Date
8/20/2015
File Size
2.19 mb
Download Email
Data Sheets (Italiano)
Filename: IT_spec_TEW-812DRU(v2.0R).pdf
Date
8/20/2015
File Size
2.21 mb
Download Email
Quick Installation Guide
Quick Installation Guide (English)
Filename: EN_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.37 mb
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.38 mb
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
2.85 mb
Download
Quick Installation Guide (Português)
Filename: PO_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.07 mb
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
2.85 mb
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.45 mb
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.12 mb
Download
Quick Installation Guide (Polski)
Filename: POL_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.85 mb
Download
Quick Installation Guide (Român)
Filename: RO_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.68 mb
Download
Quick Installation Guide (Nederlands)
Filename: NL_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.09 mb
Download
Quick Installation Guide (Magyar)
Filename: HU_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.71 mb
Download
Quick Installation Guide (български)
Filename: BUL_Web_TEW-812DRU(V2).pdf
Date
10/31/2013
File Size
3.65 mb
Download
User's Guide
User's Guide
Filename: UG_TEW-812DRU(v2.0R).pdf
Date
10/31/2013
File Size
2.61 mb
Download
Product Images

JPEG Image
File Size: 303.12 kb
Date: 2/19/2014
Download

JPEG Image
File Size: 169.79 kb
Date: 2/19/2014
Download

JPEG Image
File Size: 788.01 kb
Date: 2/19/2014
Download

JPEG Image
File Size: 361.26 kb
Date: 2/19/2014
Download

TIFF Image
File Size: 6.12 mb
Date: 2/19/2014
Download

TIFF Image
File Size: 2.50 mb
Date: 2/19/2014
Download

TIFF Image
File Size: 2.51 mb
Date: 2/19/2014
Download

TIFF Image
File Size: 3.53 mb
Date: 2/19/2014
Download
How do I setup a Guest network on the TEW-812DRU?
Answer: Log in to the TEW-812DRU by entering http://TEW-812DRU or http://192.168.10.1 into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bot...
How do I configure my wireless settings, change my Wi-Fi key or turn off a wireless radio?
Answer: Log in to the TEW-812DRU by entering http://TEW-812DRU or http://192.168.10.1 into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bot...
How do I log into the router and configure the TEW-812DRU?
Answer: Log in to the TEW-812DRU by entering http://TEW-812DRU or http://192.168.10.1 into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bot...
How do I forward ports in the TEW-812DRU?
Answer: Log in to the TEW-812DRU by entering http://TEW-812DRU or http://192.168.10.1 into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bot...
What are the default settings on the TEW-812DRU?
For added security, the router is preconfigured with unique management and wireless passwords. The default settings are located on a sticker on the front of the router and on the bottom label....
How do I reset the TEW-812DRU?
Answer: The reset button is located on the bottom of the TEW-812DRU. Press and hold in the reset button for 10 seconds to reset your router to default settings. The default settings are located on a sticker on the front of the router and on the bottom label. ...
When I attempt to connect to the router I am prompted for a PIN. Where is this located?
Answer: Connect a computer to one of the LAN ports on the TEW-812DRU. Log in to it by entering http://TEW-812DRU or http://192.168.10.1 into the address line of your browser. The username is admin. For added security, the router is preconfigured with a unique password. You can find the p...
How do I connect to the TEW-812DRU at 802.11ac speeds?
Answer: To connect at 802.11ac performance you must have an 802.11ac adapter, for example the TEW-805UB. https://www.trendnet.com/products/product-detail.asp?prod=100_TEW-805UB&cat=7 Please also ensure the router is secured using WPA2 encryption levels. By default the TEW-812DRU is preconfi...
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 450 Mbps)
  • IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)

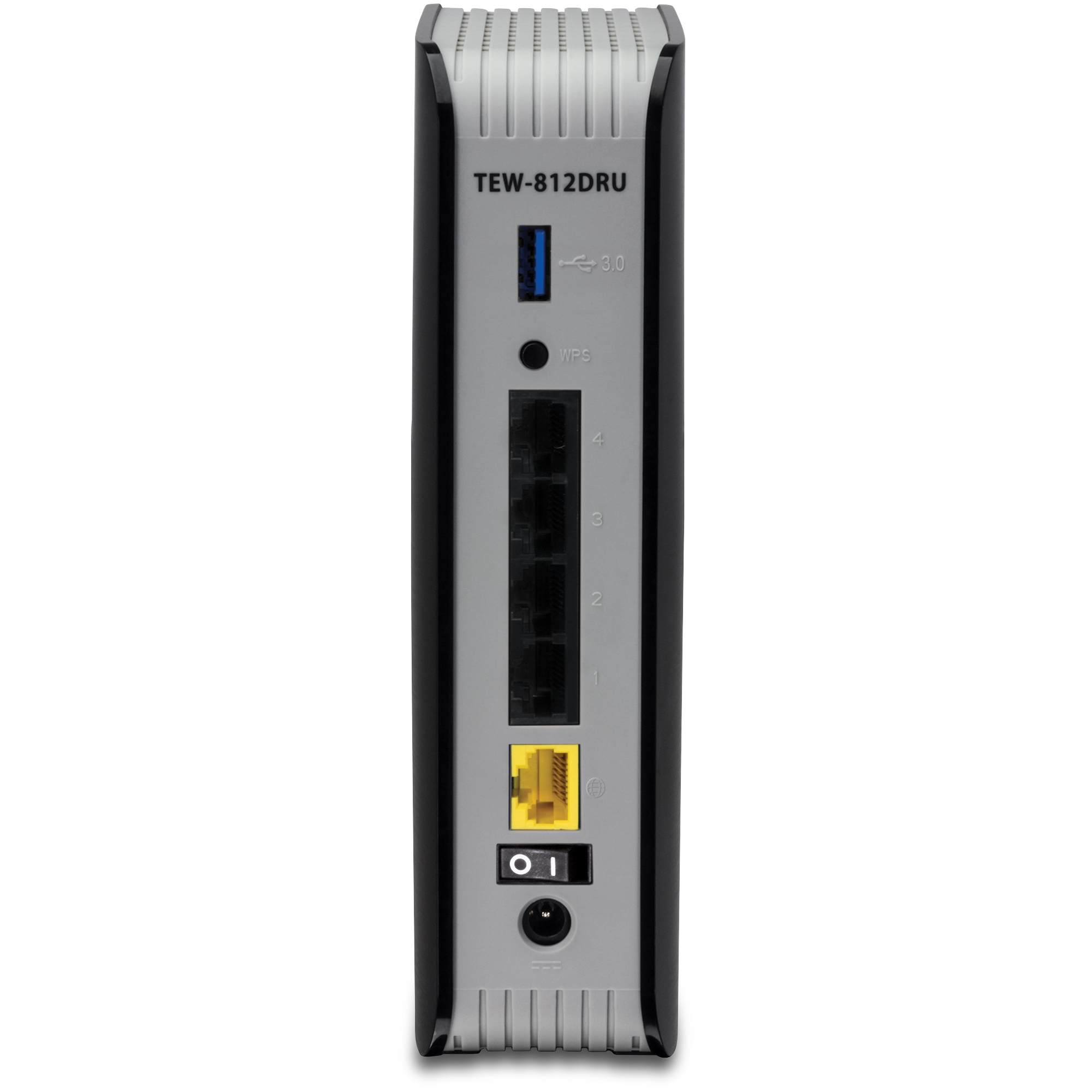

Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • USB 3.0 (Storage FTP, Samba, Printing)
  • Power switch (EU only)
  • WPS button

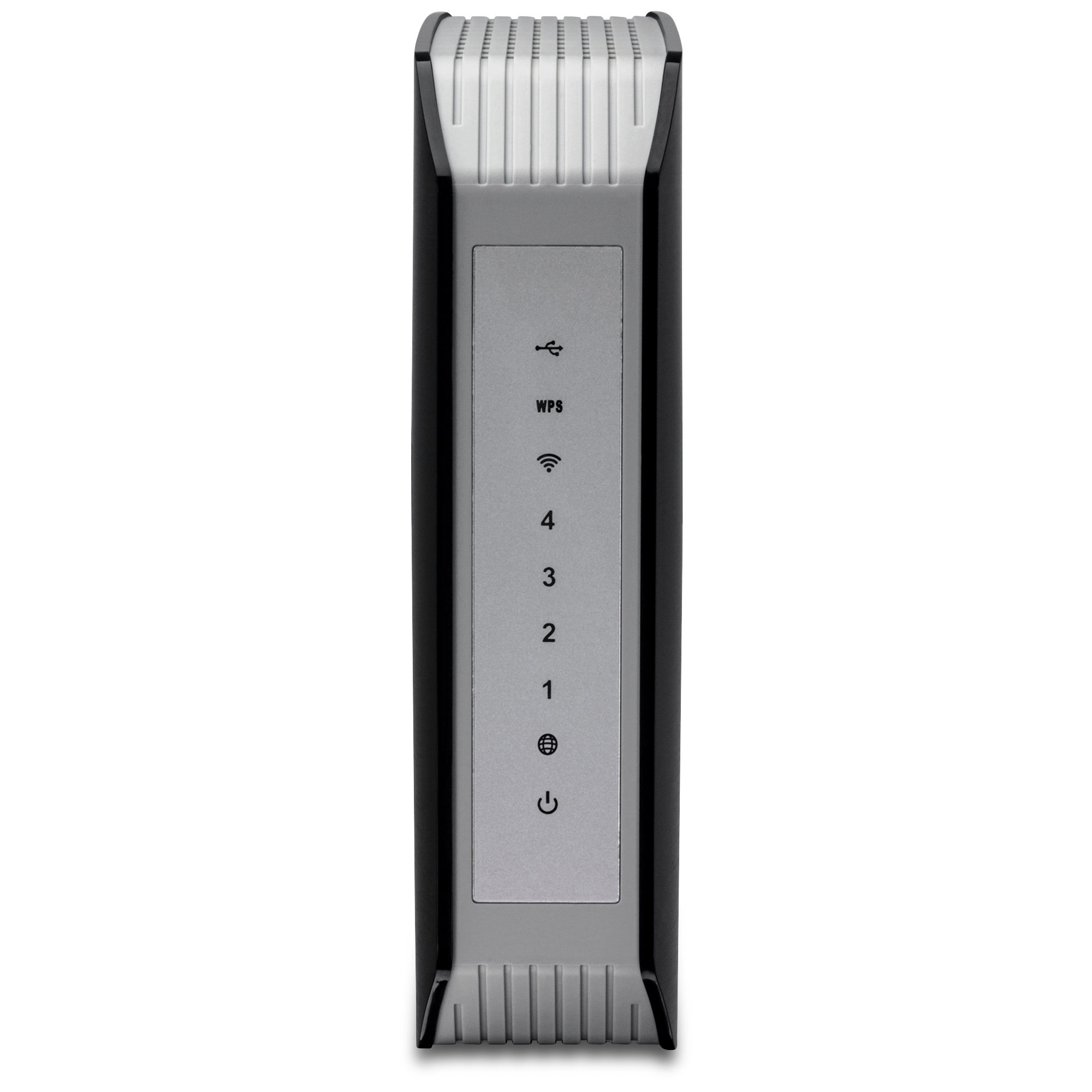

  • LED indicators
Encryption
  • Wireless encryption up to WPA2
  • Firewall: NAT, SPI
  • Parental (Access) Controls: MAC, URL, IP Filter
System Requirements
  • Optional USB Printing utility: Windows: 8.1, 8, 7, Vista, XP, Mac OS X: 10.8, 10.7, 10.6, 10.5, 10.4
Special Features
  • QoS Management
  • IPv6 support (6to4 and Native)
  • WDS support
  • Up to 3 multiple SSID per band
  • 1 guest network per band with option for Internet access only
  • DDNS support for dyn.com & no-ip.com
  • Samba/FTP server support
  • Multi-Language interface: English, French, Spanish, German, Russian
Open Source
  • Compatible with DD-WRT Firmware
Antenna Gain
  • 2.4 GHz: 6 dBi (Max) internal/5 GHz: 6 dBi (Max) internal
Wireless Output Power/Receiving Sensitivity
  • 802.11a: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 54 Mbps
  • 802.11b: 19 dBm (Max) /-84 dBm (typical) @ 11 Mbps
  • 802.11g: 18 dBm (Max) /-72 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 18 dBm (Max) /-68 dBm (typical) @ 450 Mbps 2.4 GHz
  • 802.11n: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 450 Mbps 5 GHz
  • 802.11ac: FCC: 23 dBm, CE: 19 dBm (Max)/-55 dBm (typical) @ 1.3 Gbps
Power
  • Input: 100 - 240 V, 50 – 60 Hz, 0.8 A
  • Output: 12 V DC, 2 A
  • Consumption: 21 Watts (Max)
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Operating Humidity
  • Max 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions/Weight
  • 48 x 155 x 180 mm (1.8 x 6.1 x 7.1 in)
  • 395 g (14 oz.)
Warranty
  • 3 year limited
PACKAGE CONTENTS
  • TEW-812DRU
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V, 2 A)
