7-Port Unmanaged Multi-Gig Switch

TEG-S5702   (Version V1)

  • 5 x 2.5G RJ45 ports
  • 2 x 10G SFP+ ports
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 5 x 2.5G RJ45 ports (100Mbps/1Gbps/2.5Gbps)
  • 2 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
Performance
  • Switching Capacity: 60Gbps
  • RAM Buffer: 1MB
  • Jumbo Frames: 10KB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 59.52Mpps (64-byte packet size)
Special Features

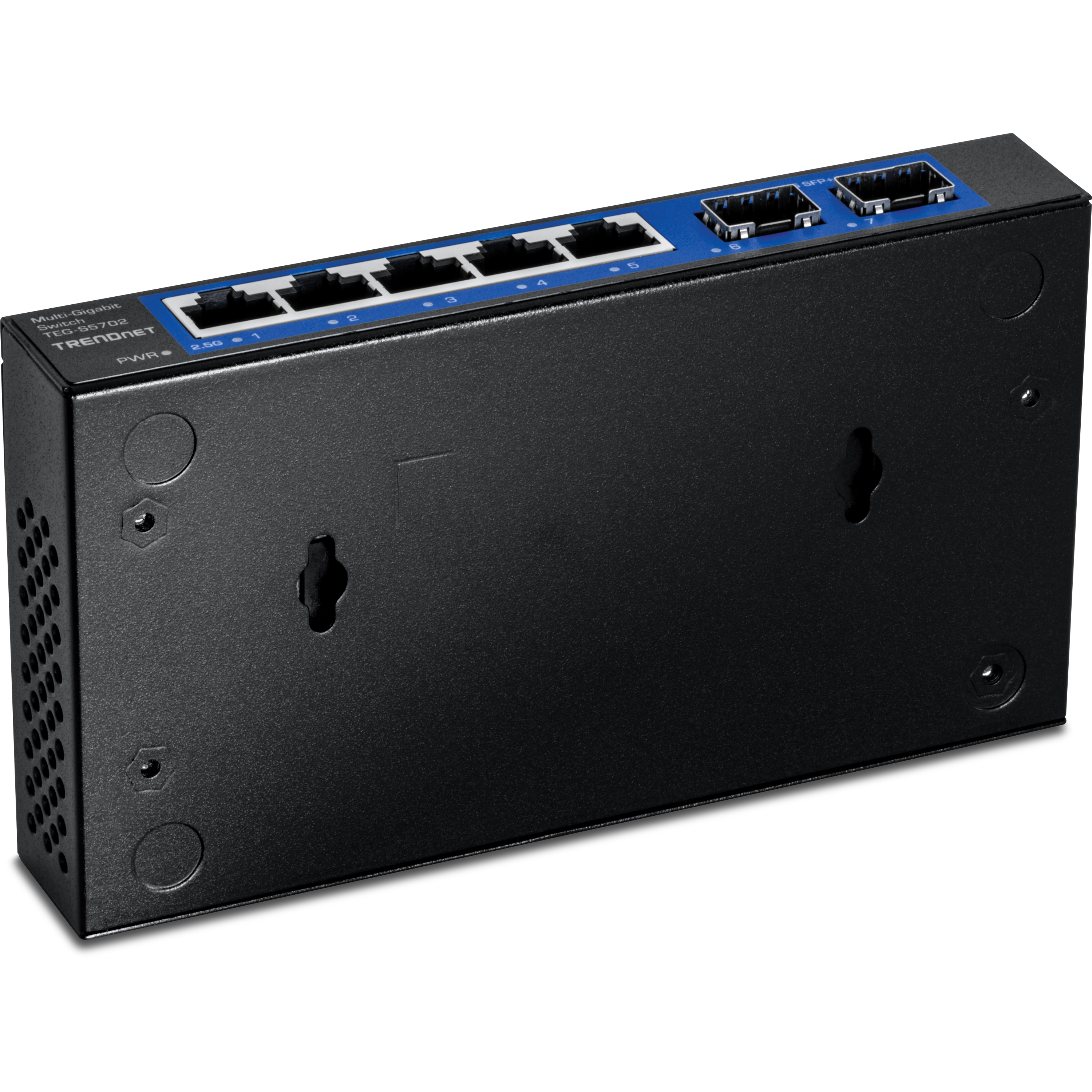

  • Wall mountable
  • VLAN Passthrough
  • IGMP Snooping v1, v2, v3
  • Loop prevention
Power
  • Input: 90 – 264V AC, 47/63 Hz
  • Output: 12V DC, 1A
  • Max. Consumption: 12W
Fan/Acoustics
  • Fanless design
MTBF
  • 223,000 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 154.5 x 85 x 26mm (6.08 x 3.34 x 1.02 in.)
Weight
  • 694.56g (1.53lbs)
Certifications
  • FCC
  • CE
Warranty

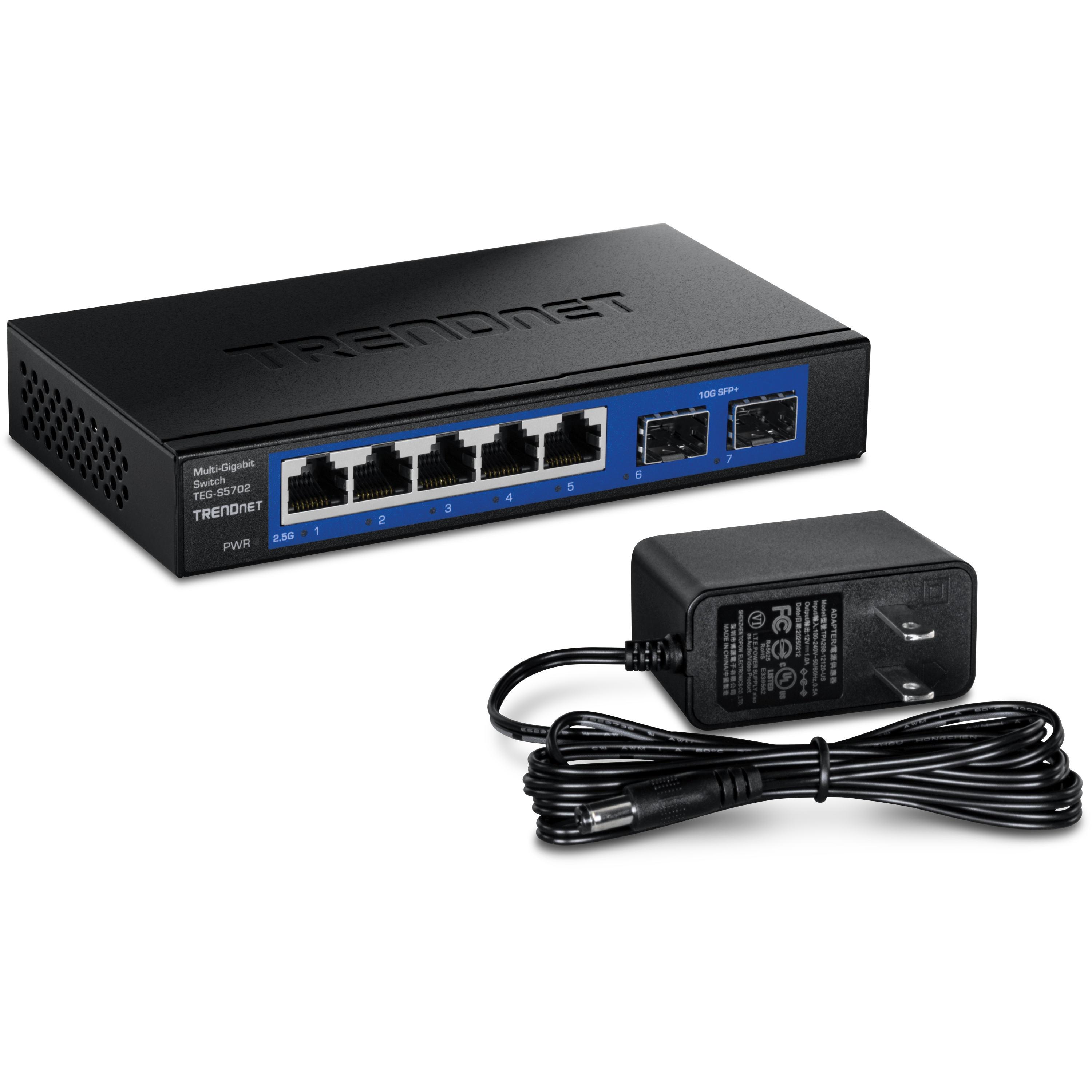

PACKAGE CONTENTS
  • TEG-S5702
  • Power adapter (12V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
