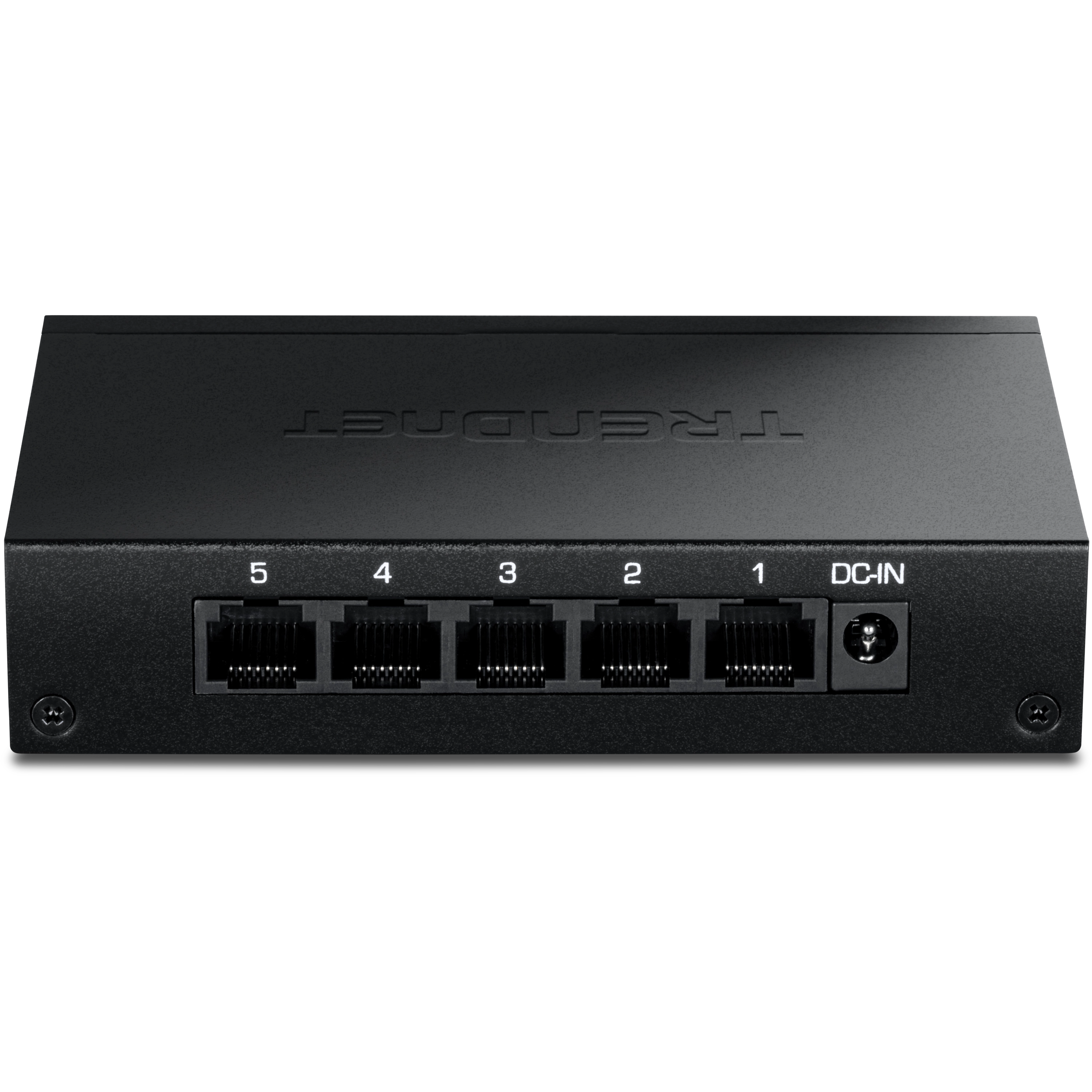

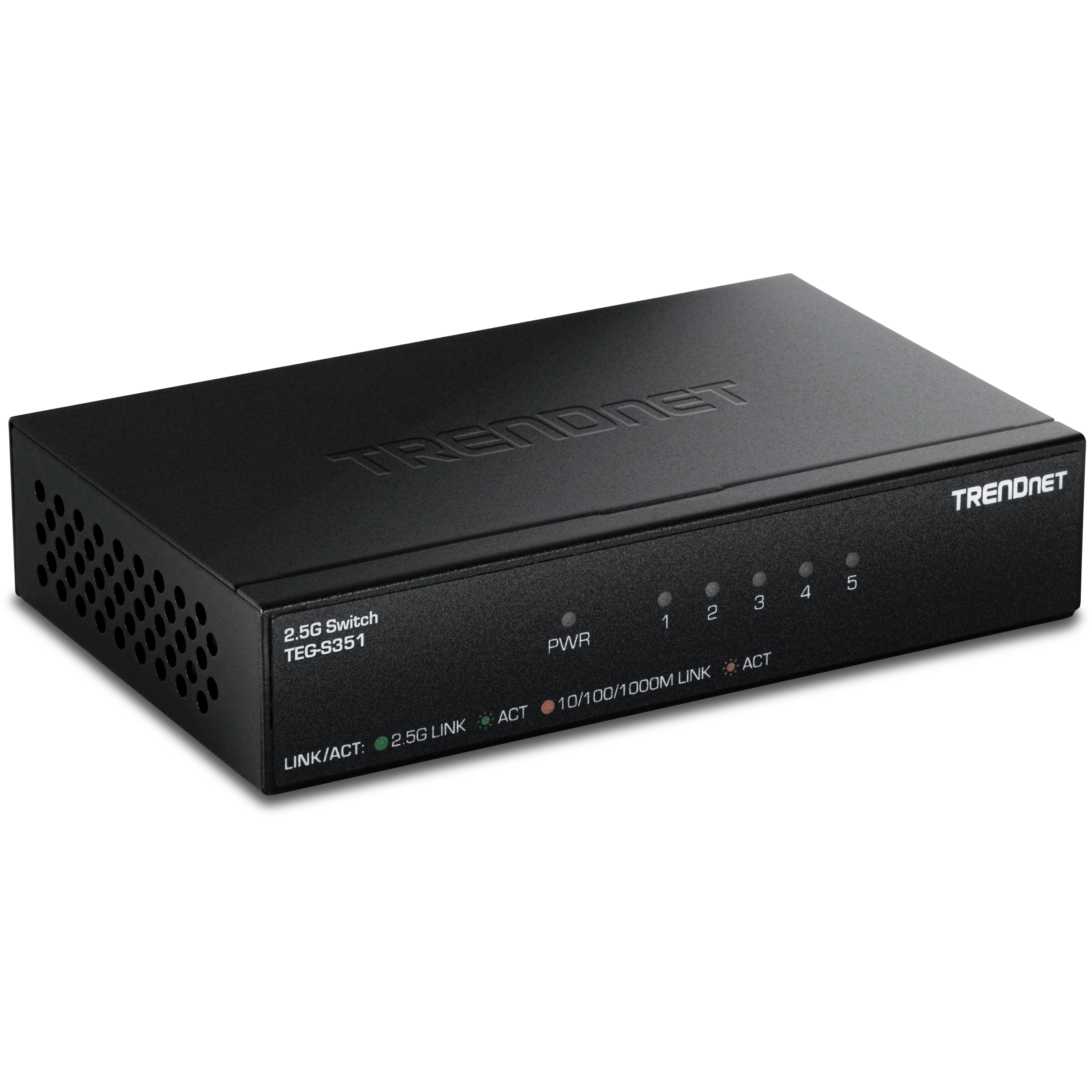

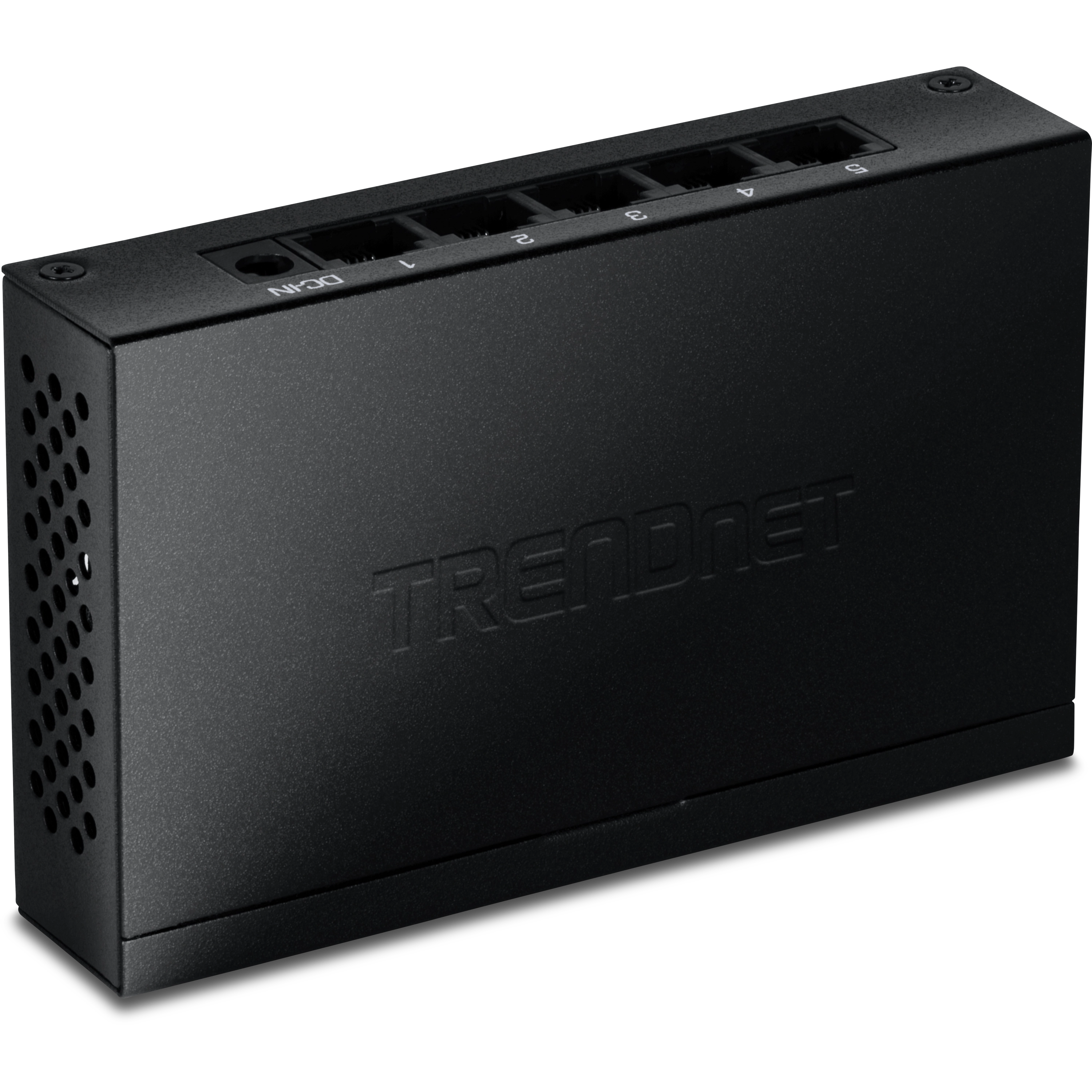

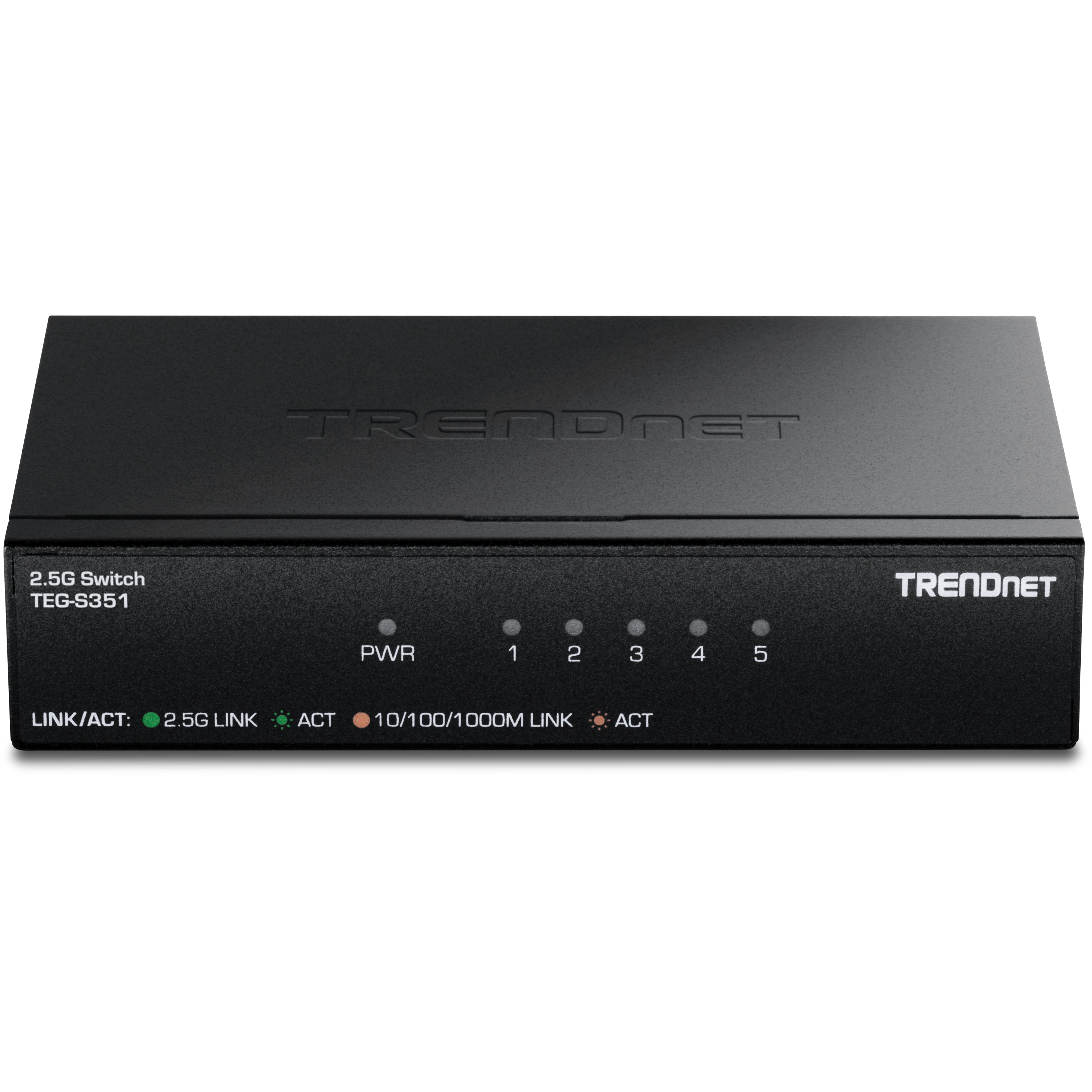

5-Port 2.5G Switch

TEG-S351   (Version v1.0R)

  • 5 x 2.5G RJ45 ports
  • Compatible with existing Cat5e or better cabling
  • 25Gbps switching capacity
  • Backwards compatible with 100/1000Mbps devices
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • IEEE 802.3bz (2.5G) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz
  • IEEE 802.3az
  • IEEE 802.3x
Device Interface
  • 5 x 2.5G RJ45 ports (100M/1G/2.5G)
  • LED indicators
Performance
  • Switching Capacity: 25Gbps
  • RAM Buffer: 1MB
  • MAC Address Table: 16K entries
  • Jumbo Frames: 10KB
  • Forwarding Rate: 18.6Mpps (64-byte packet size)
Power
  • Input: 90 – 264V AC, 47/63 Hz, 0.5A
  • Output: 12V DC, 1A external power adapter
  • Max. Consumption: 4.5W
Fan/Acoustics
  • Fanless design
MTBF
  • 975,762 hours @ 25° C
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
Weight
  • 230g (8.1 oz.)
Certifications
  • FCC
  • CE
  • LVD
Warranty

PACKAGE CONTENTS
  • TEG-S351
  • Power adapter (12V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
