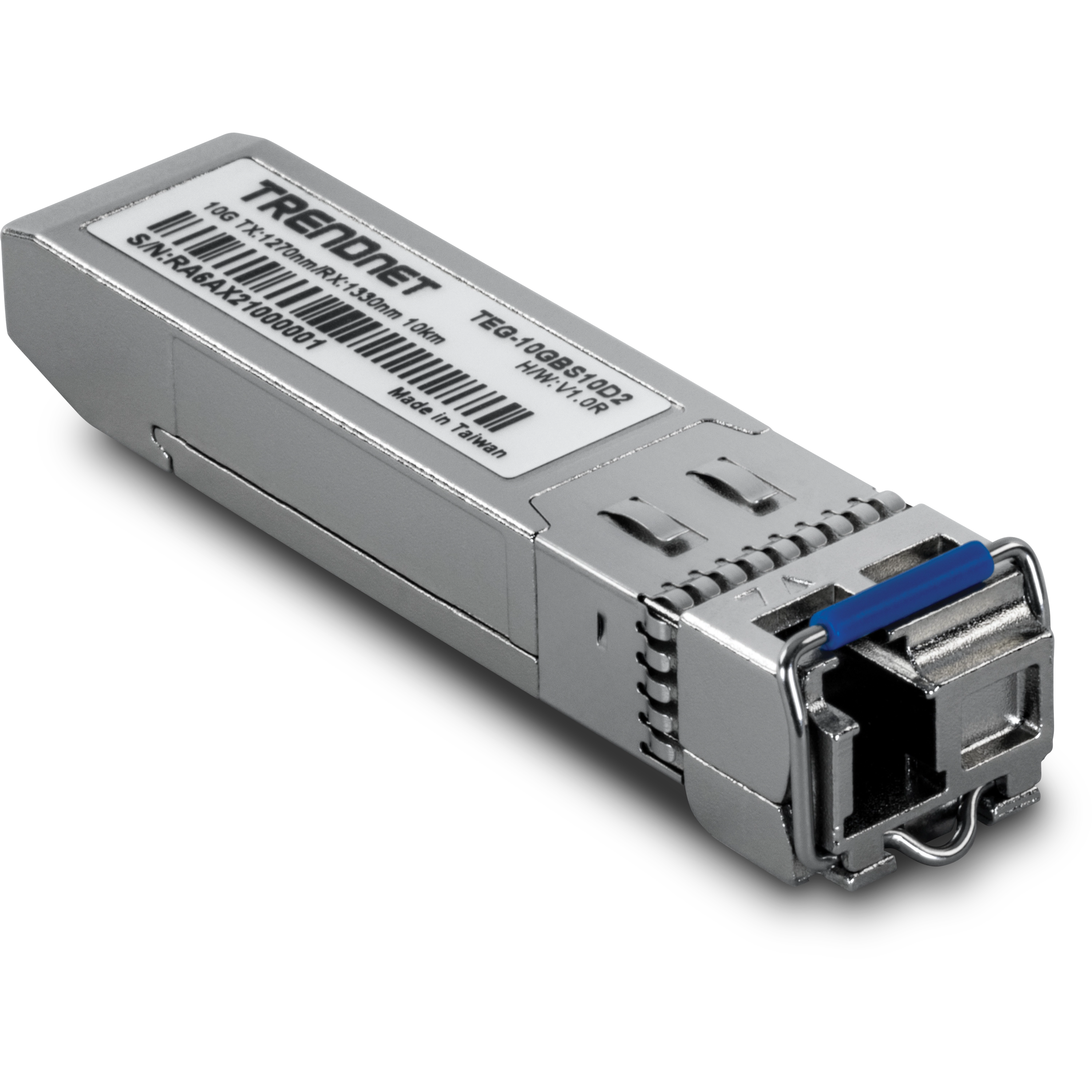

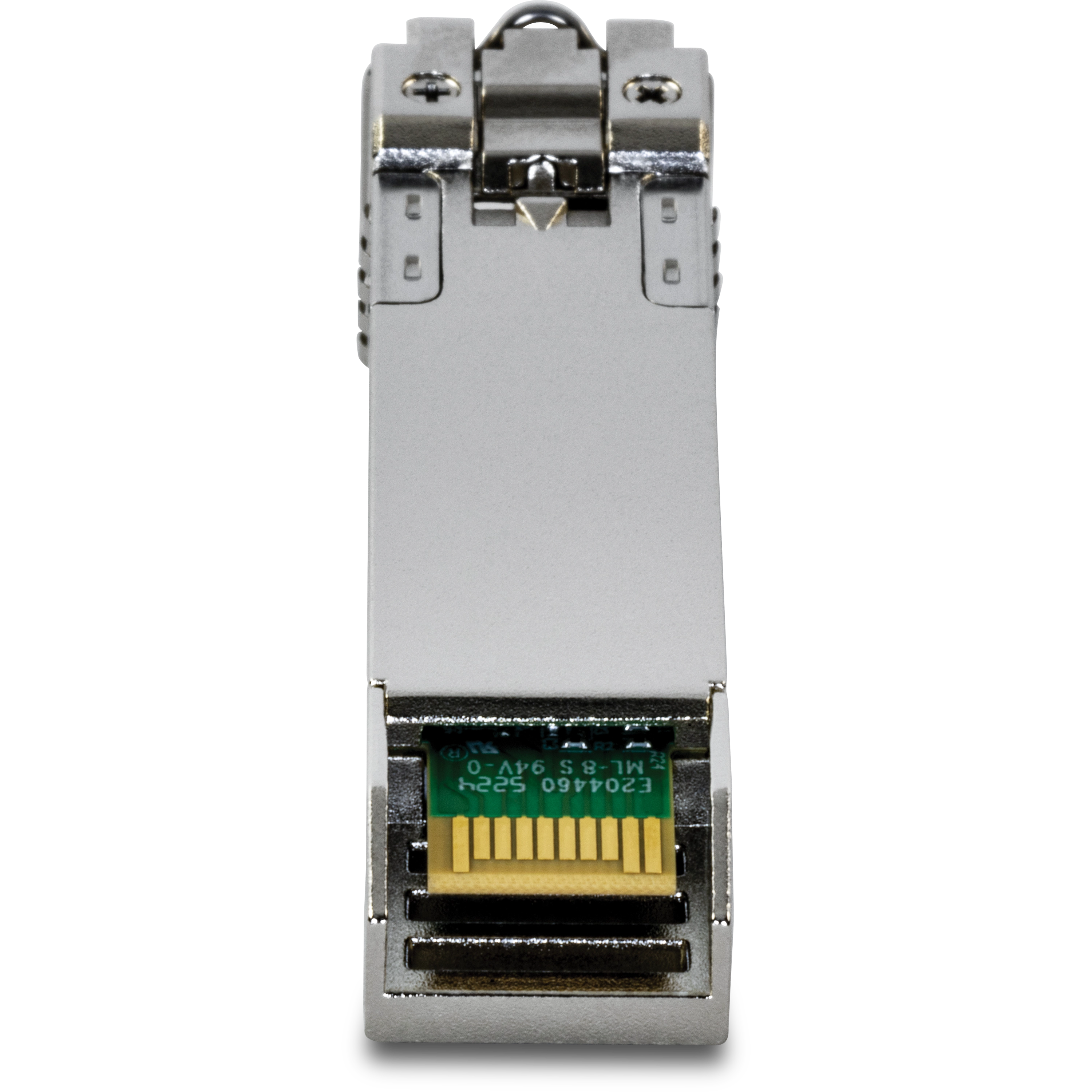

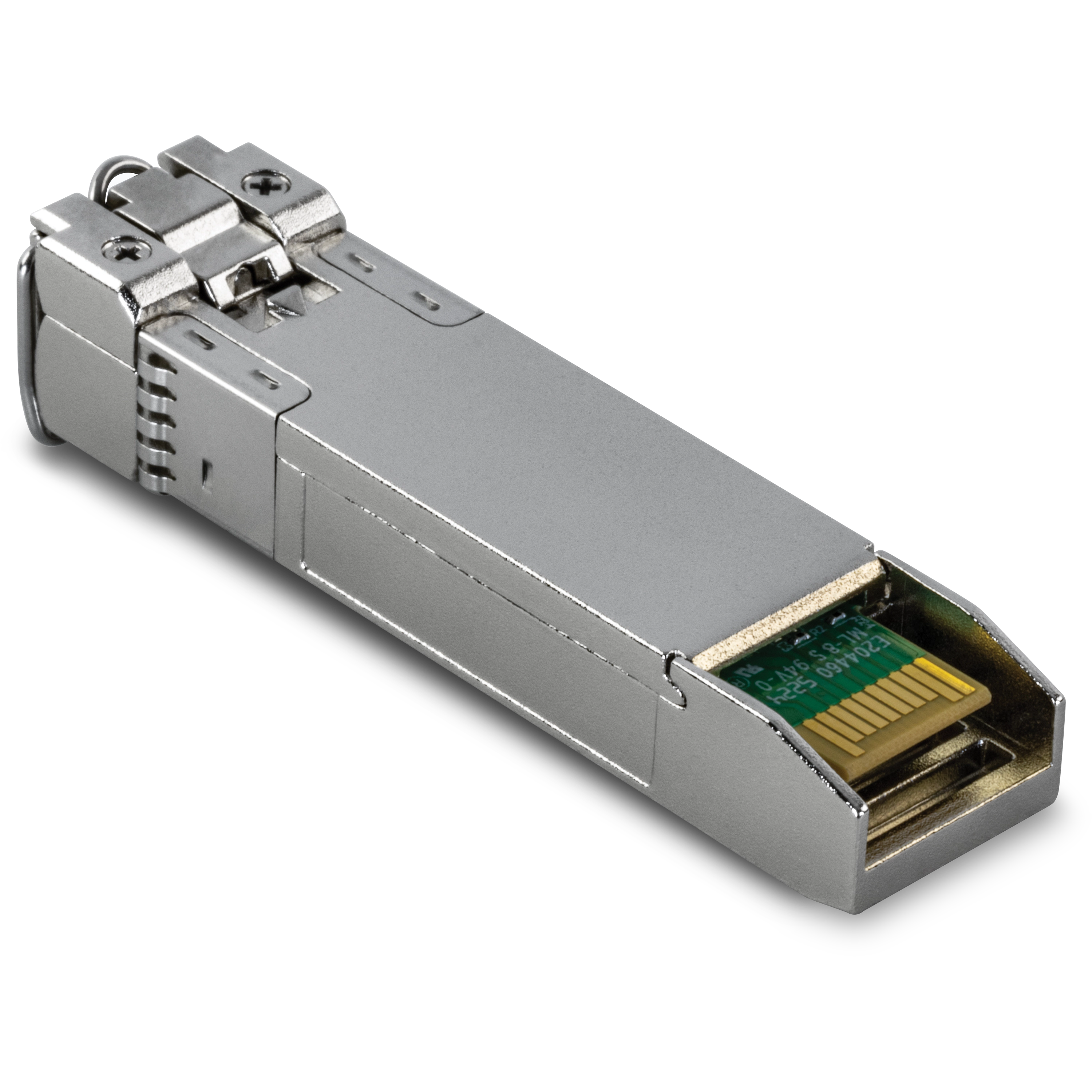

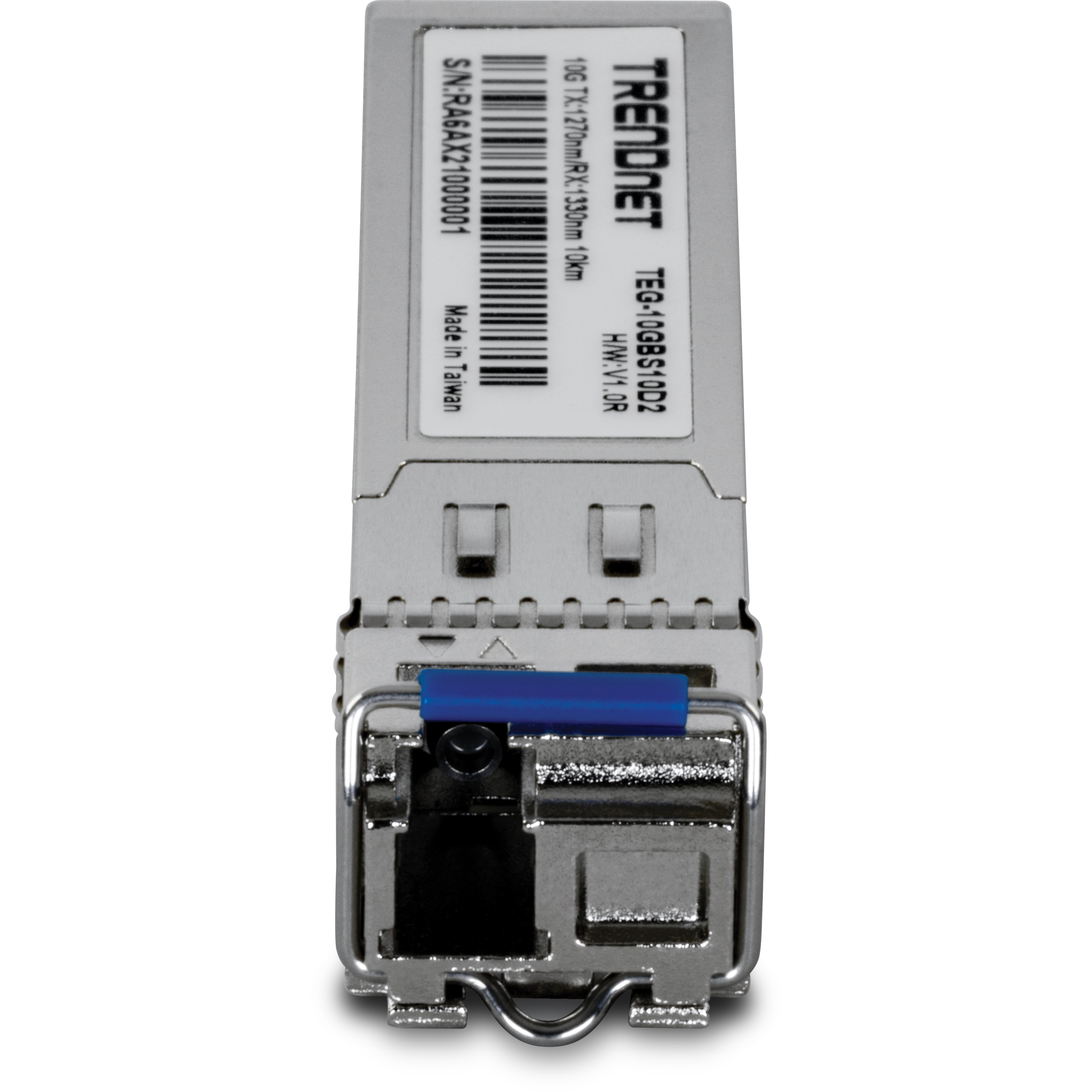

TEG-10GBS10D2 Product Photo
TEG-10GBS10D2 Product Photo TEG-10GBS10D2 Product Photo TEG-10GBS10D2 Product Photo TEG-10GBS10D2 Product Photo

10G SFP+ Dual Wavelength Single Mode LC Module (10km)

TEG-10GBS10D2   (Version V1)

  • Transmission distance of up to 10km (6.21 mi.)
  • Simplex LC optical interface
  • Supports data rates of up to 10.31Gbps
  • Supports Transmit: 1270nm / Receive: 1330nm
  • Digital Diagnostics Monitoring (DDM) support
  • Must be paired with TEG-10GBS10D3
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3z
  • IEEE 802.3ae
  • 10GBASE-LR
Device Interface
  • SFP+ MSA Compliant
  • LC duplex connector
Data Transfer Rate
  • 10.31Gbps
Wavelength
  • Tx: 1270nm
  • Rx: 1330nm
Optical Output Power
  • -8.2 ~ 1 dBm
Distance
  • 10km (6.2 mi)
Sensitivity
  • -14.4 dBm
Power
  • Max. consumption: 1W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 85% non-condensing
Dimensions (L x W x H)
  • 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 21.5g (0.76 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEG-10GBS10D2

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
