AC1750 Dual Band Wireless Access Point (Certified Refurbished)

RB-TEW-815DAP   (Version V1.0R)

  • High performance concurrent dual band Wireless AC access point
  • AC1750: 1.3 Gbps Wireless AC + 450 Mbps Wireless N bands
  • Access Point (AP), Client, Repeater, WDS, and WDS + AP modes
  • Gigabit LAN port
  • Connect devices with one-touch Wi-Fi Protected Setup (WPS)

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.0.2.0
Release Date: 05/2014

Note:
  • Initial Release

Filename: TEW-815DAPv1_(FW1.0.2.0).zip
SHA-1 Checksum: A7FCBC7AC854B2F9278373AFE06AC7B7440CFDE3
Date: 7/28/2017
File Size: 5.12 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TEW-815DAP(v1.0R).pdf
Date: 7/21/2014
File Size: 1.44 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TEW-815DAP(v1.0R).pdf
Date: 7/21/2014
File Size: 1.42 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEW-815DAP(v1.0R).pdf
Date: 7/21/2014
File Size: 1.44 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TEW-815DAP(v1.0R).pdf
Date: 7/21/2014
File Size: 1.42 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TEW-815DAP(v1.0R).pdf
Date: 7/21/2014
File Size: 1.42 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEW-815DAP(v1.0R).pdf
Date: 7/21/2014
File Size: 1.38 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEW-815DAP(v1.0R).pdf
Date: 7/21/2014
File Size: 1.42 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 2.22 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 2.20 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.51 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.49 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.51 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.63 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.49 MB
Download
Quick Installation Guide (Polski)
Filename: POL_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.54 MB
Download
Quick Installation Guide (Român)
Filename: RO_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.58 MB
Download
Quick Installation Guide (Nederlands)
Filename: NL_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.49 MB
Download
Quick Installation Guide (Magyar)
Filename: HU_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.49 MB
Download
Quick Installation Guide (български)
Filename: BUL_Web_TEW-815DAP(V1.0R).pdf
Date: 6/27/2014
File Size: 1.61 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-815DAP(v1.0R).pdf
Date: 6/27/2014
File Size: 1.44 MB
Download

Product Images

RB-TEW-815DAP Product Photo (JPEG Image 1)
JPEG Image
File Size: : 377.89 KB
Date: : 7/9/2014
Download
RB-TEW-815DAP Product Photo (JPEG Image 2)
JPEG Image
File Size: : 177.34 KB
Date: : 7/9/2014
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 450 Mbps)
  • IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)

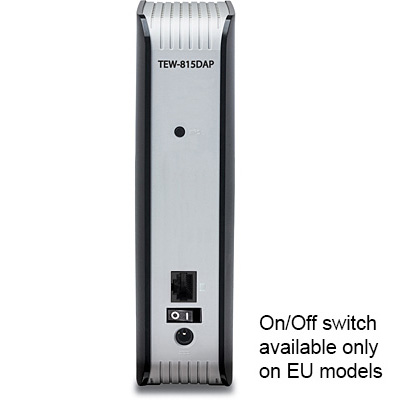

Hardware Interface
  • 1 x Gigabit port
  • Power switch (EU model only)
  • WPS button
  • LED indicators
Operation Modes
  • Access Point (AP), AP + WDS
  • Wireless Distribution System (WDS)
  • Repeater
  • Client
Special Features
  • Concurrent dual band access point
  • 1-to-2 repeater feature: repeats a single wireless band (Ex: 2.4 GHz) to both wireless bands (Ex: 2.4 and 5 GHz)
  • IPv6 support (Static IPv6 and Auto-Configuration (SLAAC/DHCPv6))
  • Multi-Language interface: English, French, Spanish, German, Russian
SSID
  • Up to 4 SSIDs per band (AP mode)
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS (AP mode)
  • Access Controls: MAC Filter
Frequency
  • 2.4GHz: FCC 2.412 - 2.462 GHz, ETSI: 2.412 – 2.472 GHz
  • 5GHz: FCC 5.180 – 5.240 + 5.745 – 5.825, ETSI: 5.180 – 5.240 GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM sub carrier with OFDM
  • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256QAM with OFDM
Wireless Channel
  • 2.4 GHz: FCC: 1-11, ETSI: 1 - 13
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 159, 157, 161 and 165, ETSI: 36, 40, 44, 48
Antenna Gain
  • 2.4 GHz: 6 dBi (max.) internal PIFA
  • 5 GHz: 6 dBi (max.) internal PIFA
Wireless Output Power/Receiving Sensitivity
  • 802.11a: FCC: 22 dBm, CE: 18 dBm (max.)/-68 dBm (typical) @ 54 Mbps
  • 802.11b: 19 dBm (max.)/-84 dBm (typical) @ 11 Mbps
  • 802.11g: 18 dBm (max.)/-72 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 18 dBm (max.)/-68 dBm (typical) @450 Mbps 2.4 GHz
  • 802.11n: FCC: 22 dBm, CE: 18 dBm (max.)/-68 dBm (typical) @ 450 Mbps 5 GHz
  • 802.11ac: FCC: 23 dBm, CE: 19 dBm (max.)/-55 dBm (typical) @ 1.3 Gbps
Power
  • Input: 100 – 240 V, 50 – 60 Hz, 0.8 A
  • Output: 12 V DC, 2 A
  • Consumption: 20 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 85% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 48 x 155 x 180 mm (1.9 x 6.1 x 7.1 in.)
Weight
  • 340 g (12 oz.)
Warranty
  • 90-day limited

PACKAGE CONTENTS
  • TEW-815DAP
  • Multi-language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V DC, 2 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
