AC1200 Dual Band PoE Access Point

TEW-821DAP   (Version v1.0R)

   Select Another Version
  • High performance AC1200 PoE access point
  • AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands
  • Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Included software utility aides WiFi network management
  • Gigabit PoE LAN port
  • Off-white low profile housing blends into the environment

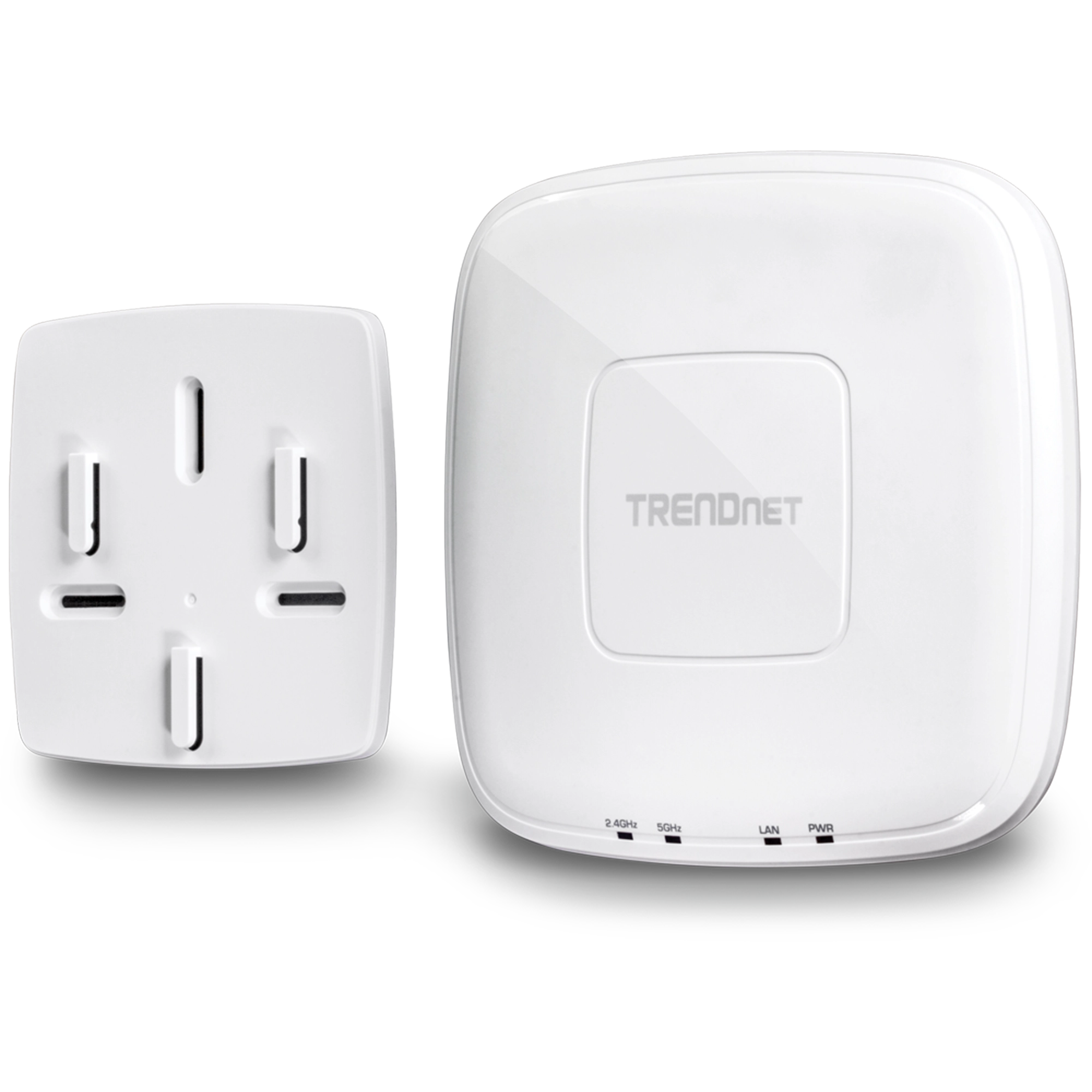

  • Mounting plate

DISCONTINUED PRODUCT

The TEW-821DAP (Version v1.0R) has been discontinued. It has been replaced by the TEW-821DAP (Version v2.5R). For a list of discontinued products, click here.

Utility

Utility
Utility Version: 1.60
Release Date: 10/2018
OS Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server

Note:
  • Fixed issue uploading AP configuration files
  • Fixed issue upgrading firmware 1.07B07 to 1.08B04 on model TEW-821DAP H/W:v1.XR
  • Added support for TEW-826DAP H/W: v1.XR

*Any previous AP utility versions must be completely uninstalled before installing version 1.60 or above.*


Filename: Utility_APUtility(v1.60).zip
SHA-1 Checksum: 3B6FE7BEEFF0767B0E3A6DB74A16EDADC4813328
Date: 10/10/2018
File Size: 24.79 MB
Download

Firmware

Firmware
Important Note: It is required to reset the device to factory default after upgrading from firmware version 1.XX.

*(Firmware version 1.07B07 and above) TRENDnet AP models TEW-755AP(H/W:v1.XR) / TEW-821DAP(H/W:v1.XR) / TEW-825DAP(v1.XR) can now use the same firmware file image to upgrade any of the 3 models. (ex. 755AP FW: 1.07B07 firmware file can be used to upgrade TEW-821DAP/TEW-825DAP and vice versa)*

**Prerequisites: APs must be upgraded to firmware version 1.13B01 first before upgrading to version 2.02B01 or above.
APs must be upgraded to firmware version 1.07B07 first before upgrading to version 1.08B04 or above.(Firmware 1.07B07 is included in this download)**

Firmware Version: 2.02B01
Release Date: 03/2023
Note:
  • Updated GUI
  • Fixed security vulnerabilities

Filename: FW_TEW-821DAP_v1(2.02B01).zip
SHA-1 Checksum: CE1670E81C4F4DB6E79EA42F67162DBC967EEDB1
Date: 4/3/2023
File Size: 50.45 MB
Download

Other

MIB
MIB Version: 1.00.01
Release Date: 6/2017
  • Initial Release

Filename: MIB_TEW-821DAP_825DAP_v1(1.00.01).zip
Date: 7/28/2017
File Size: 13.49 KB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TEW-821DAP(1.0R).pdf
Date: 5/17/2018
File Size: 3.54 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TEW-821DAP(1.0R).pdf
Date: 5/17/2018
File Size: 1.19 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TEW-821DAP(1.0R).pdf
Date: 5/17/2018
File Size: 3.69 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TEW-821DAP(1.0R).pdf
Date: 5/17/2018
File Size: 3.64 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TEW-821DAP(1.0R).pdf
Date: 5/17/2018
File Size: 3.67 MB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TEW-821DAP(1.0R).pdf
Date: 5/17/2018
File Size: 4.36 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TEW-821DAP(1.0R).pdf
Date: 5/17/2018
File Size: 3.70 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: English_TEW-821DAP(V1.0R).pdf
Date: 2/27/2018
File Size: 1.86 MB
Download
Quick Installation Guide (Français)
Filename: French_TEW-821DAP(V1.0R).pdf
Date: 2/27/2018
File Size: 1.80 MB
Download
Quick Installation Guide (Deutsch)
Filename: German_TEW-821DAP(V1.0R).pdf
Date: 2/27/2018
File Size: 1.71 MB
Download
Quick Installation Guide (Português)
Filename: Portuguese_TEW-821DAP(V1.0R).pdf
Date: 2/27/2018
File Size: 1.72 MB
Download
Quick Installation Guide (Español)
Filename: Spanish_TEW-821DAP(V1.0R).pdf
Date: 2/27/2018
File Size: 1.58 MB
Download
Quick Installation Guide (Italiano)
Filename: Italian_TEW-821DAP(V1.0R).pdf
Date: 2/27/2018
File Size: 1.71 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-821DAP(v1).pdf
Date: 9/18/2017
File Size: 3.64 MB
Download

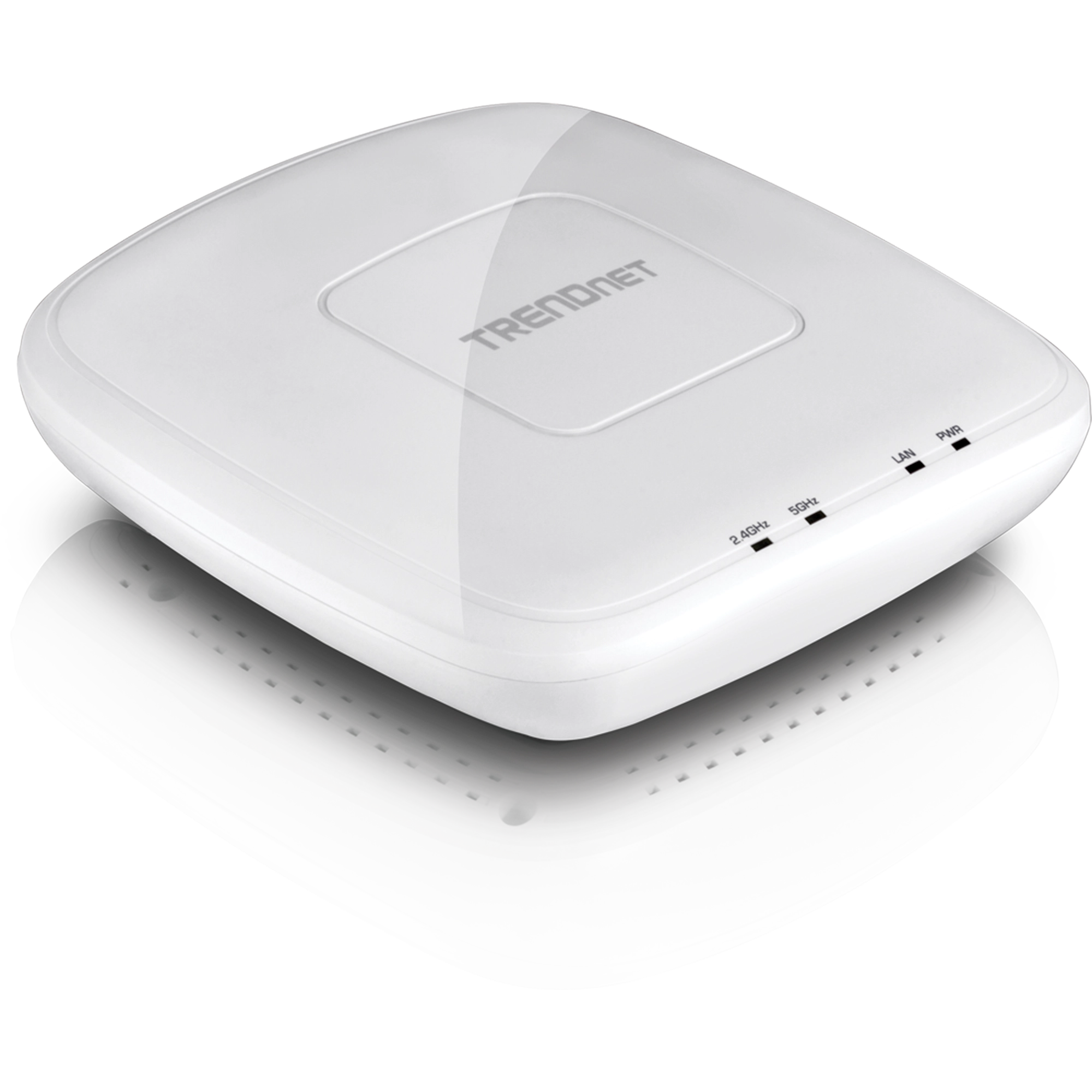

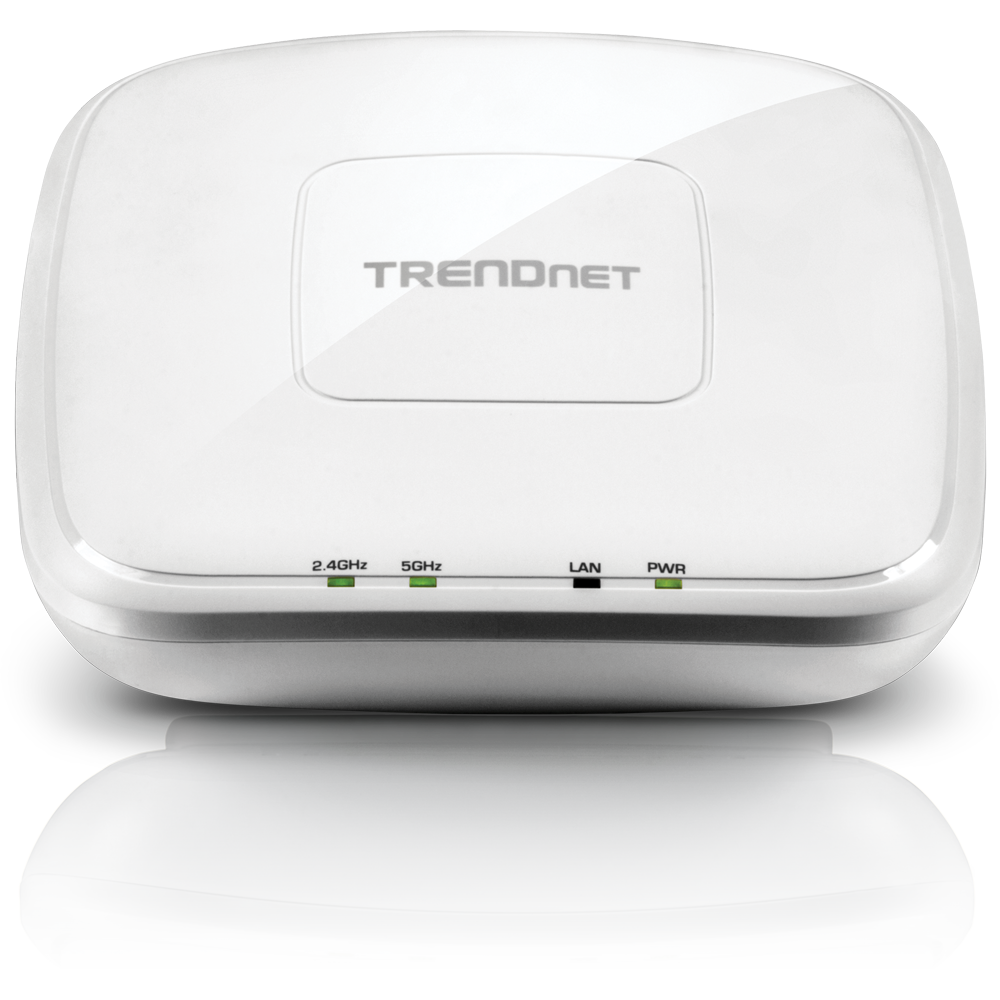

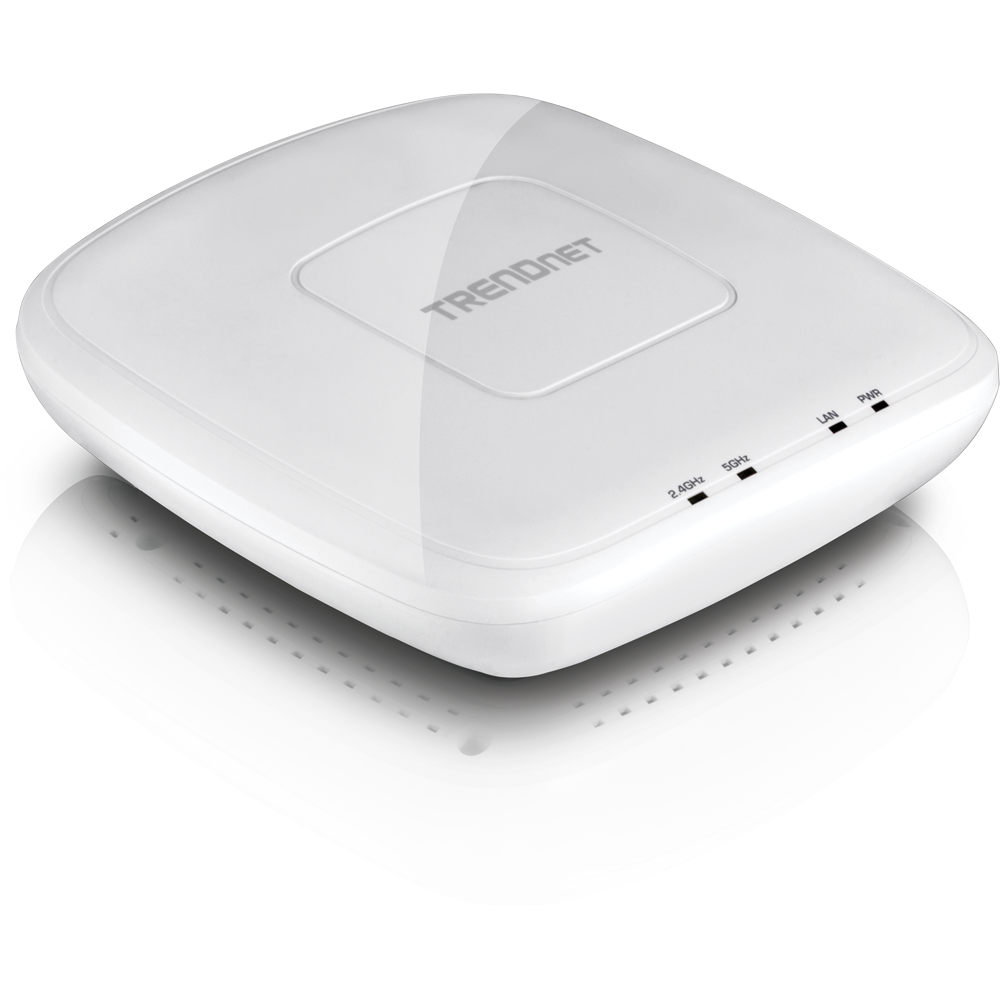

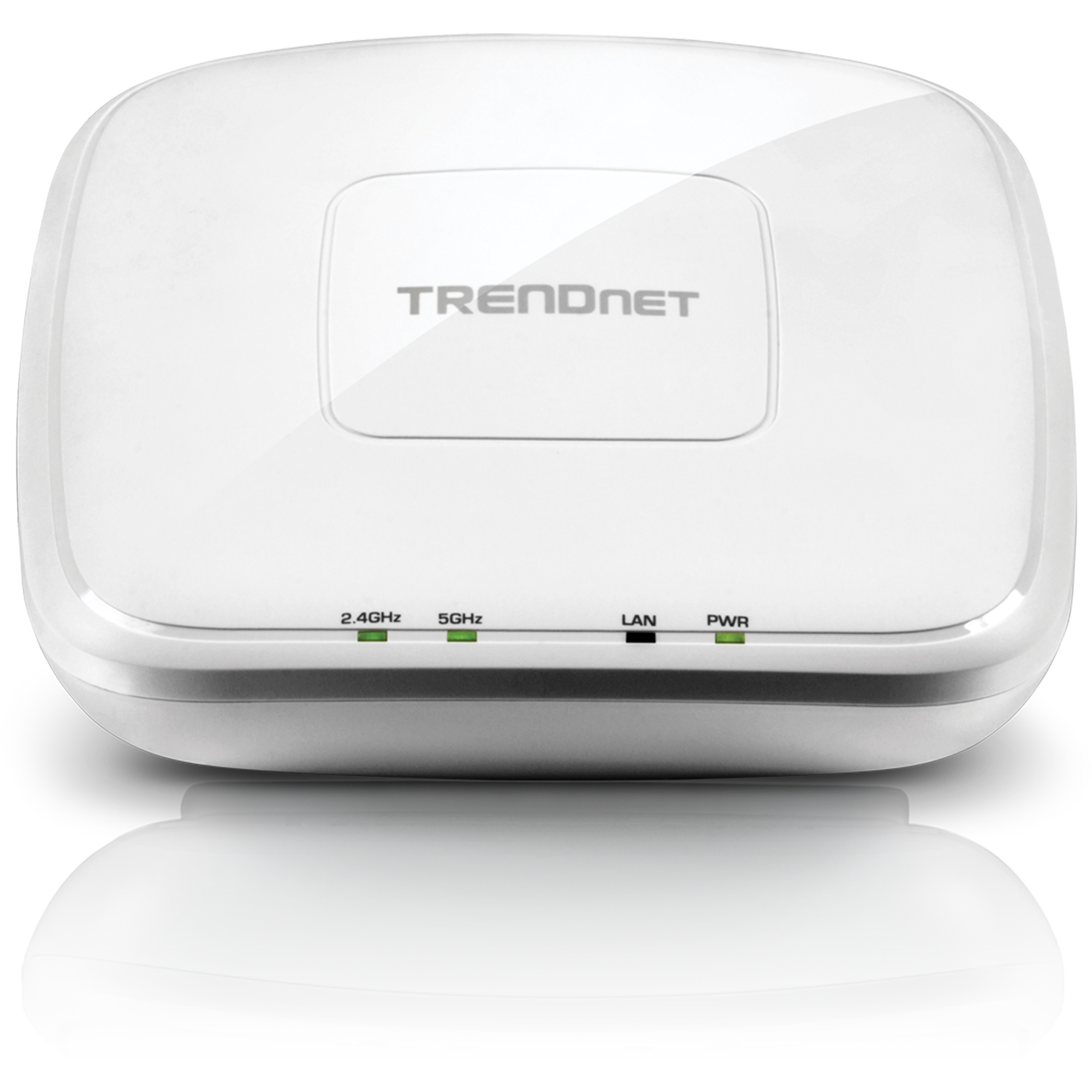

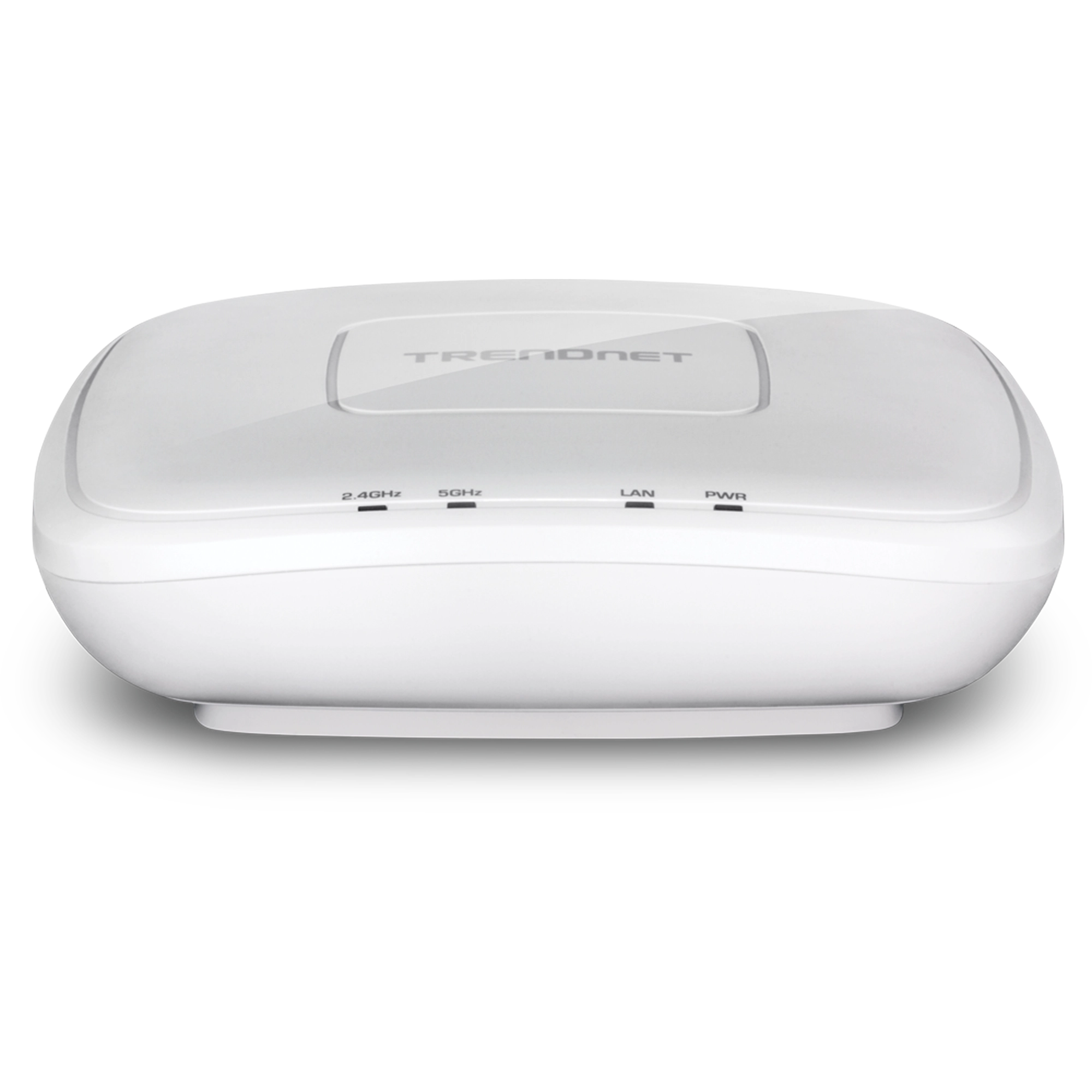

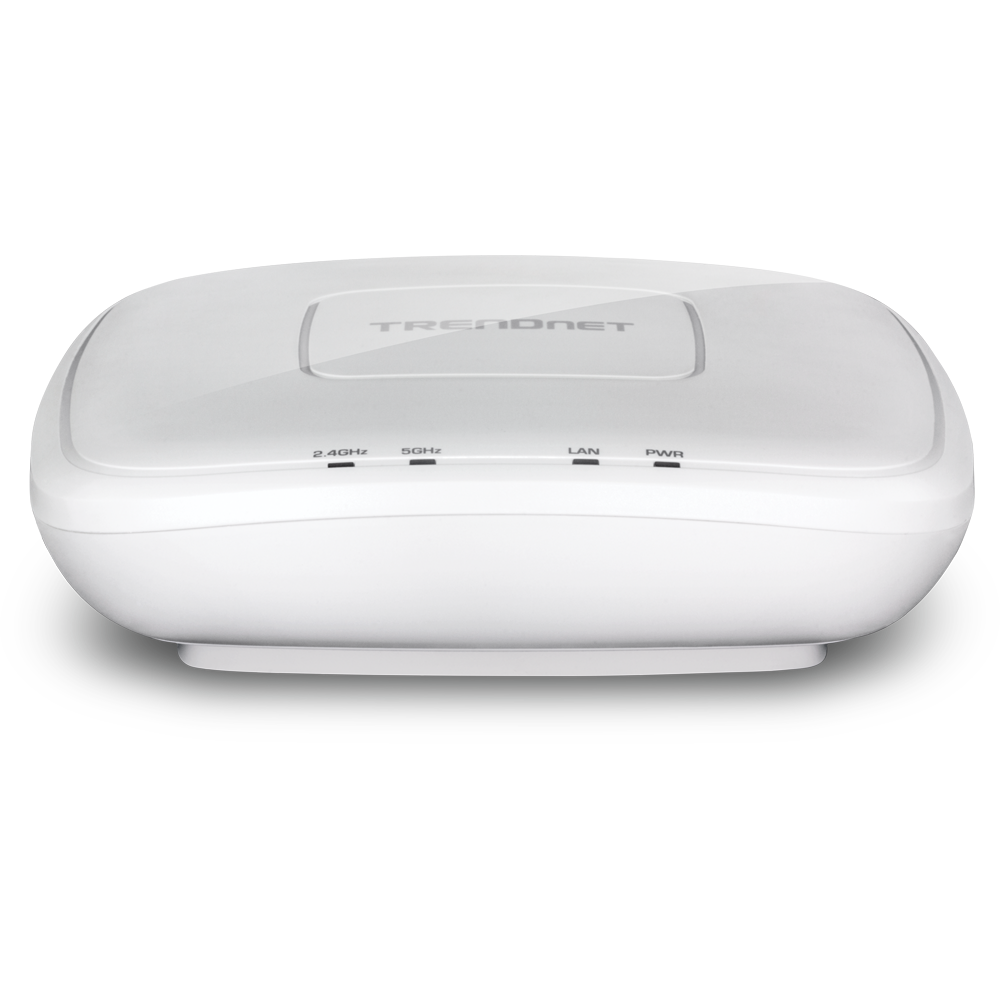

Product Images

JPEG Image
File Size: : 1.13 MB
Date: : 6/18/2015
Download
JPEG Image
File Size: : 789.39 KB
Date: : 6/18/2015
Download
JPEG Image
File Size: : 630.03 KB
Date: : 8/5/2015
Download
JPEG Image
File Size: : 613.87 KB
Date: : 6/18/2015
Download
JPEG Image
File Size: : 389.87 KB
Date: : 6/18/2015
Download
JPEG Image
File Size: : 833.68 KB
Date: : 6/18/2015
Download
JPEG Image
File Size: : 831.61 KB
Date: : 10/14/2015
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 802.11ac (up to 867 Mbps)
Hardware Interface

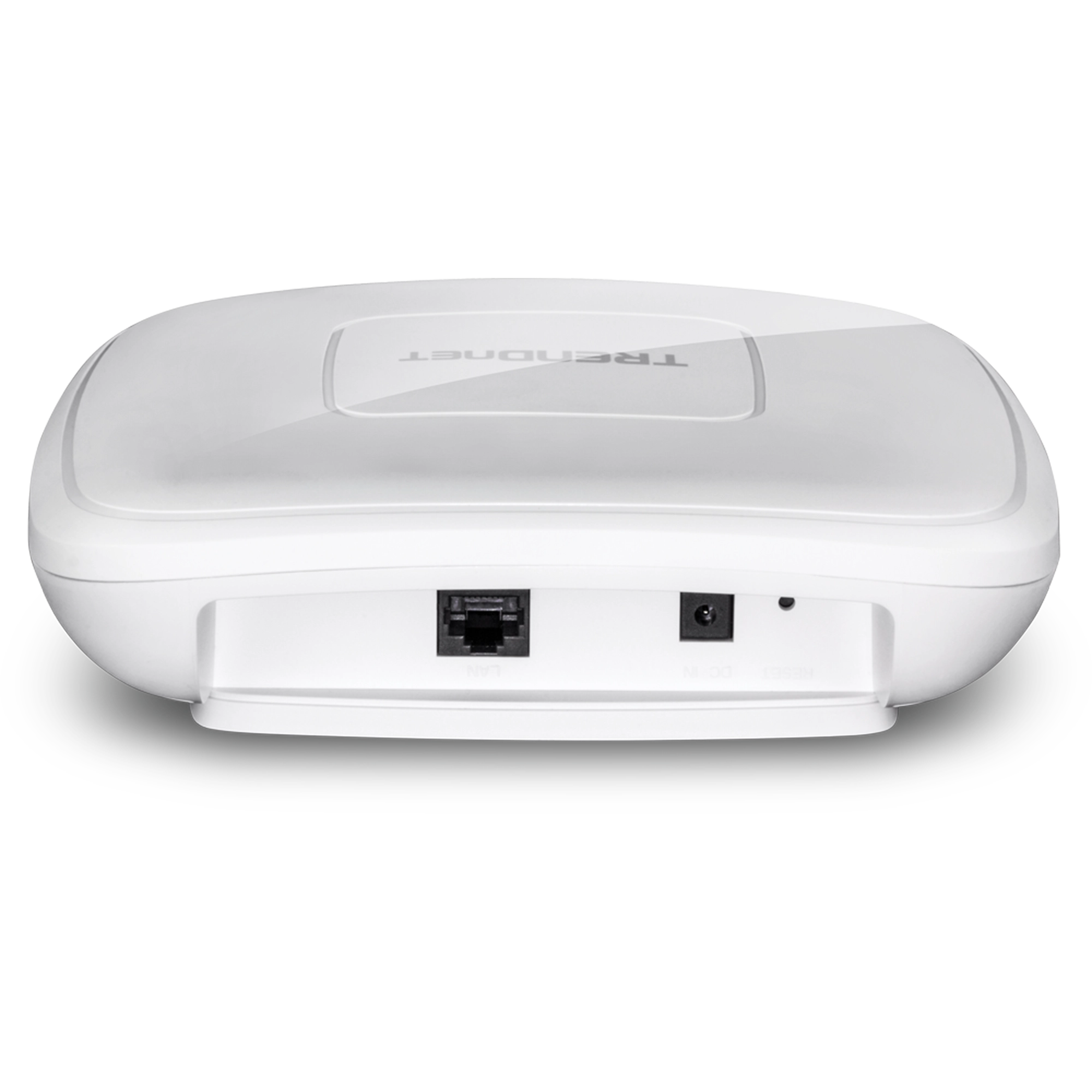

  • 1 x PoE Gigabit LAN port
  • Power port (optional non-PoE installation)
  • Reset button
  • LED indicators
  • Mounting plate
Special Features
  • IP30 rated housing (with mounting plate installed)
  • Concurrent Dual band
  • Band Steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • Captive Portal (External Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • 802.11k roaming assistance support
  • RSSI Scanner (Client signal strength and tolerance)
  • Airtime Fairness
Operation Modes
  • Access Point
  • Client
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web based management
  • Software utility
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • CLI
Utility OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Traffic shaping per SSID
SSID
  • Up to 8 SSIDs per wireless band (16 total)
Frequency
  • 2.4 GHz: 2.412 – 2.472 GHz
  • 5 GHz: 5.180 – 5.8525 GHz
Wireless Channels
  • 2.4 GHz: FCC: 1 – 11, ETSI: 1 – 13
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain
  • 2.4 GHz: 2 x 4 dBi
  • 5 GHz: 2 x 4 dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11a: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
  • 802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max), IC: 23 dBm (Max.) / -83 dBm (typical) @ 11 Mbps
  • 802.11g: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.), IC: 19 dBm (Max.) / -64 dBm (typical) @ 300 Mbps 2.4 GHz
  • 802.11n: FCC: 24 dBm (Max.), CE: 22 dBm (Max.), IC: 24 dBm (Max.) / -61 dBm (typical) @ 300 Mbps 5 GHz
  • 802.11ac: FCC: 15 dBm (Max.), CE: 22 dBm (Max.), IC: 19 dBm (Max.) / -51 dBm (typical) @ 866 Mbps
Power
  • 12 V / 1 A consumption: 9.6 Watts Max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)
Weight
  • 408 g (14.4 oz.)
Warranty:
  • 3 year limited

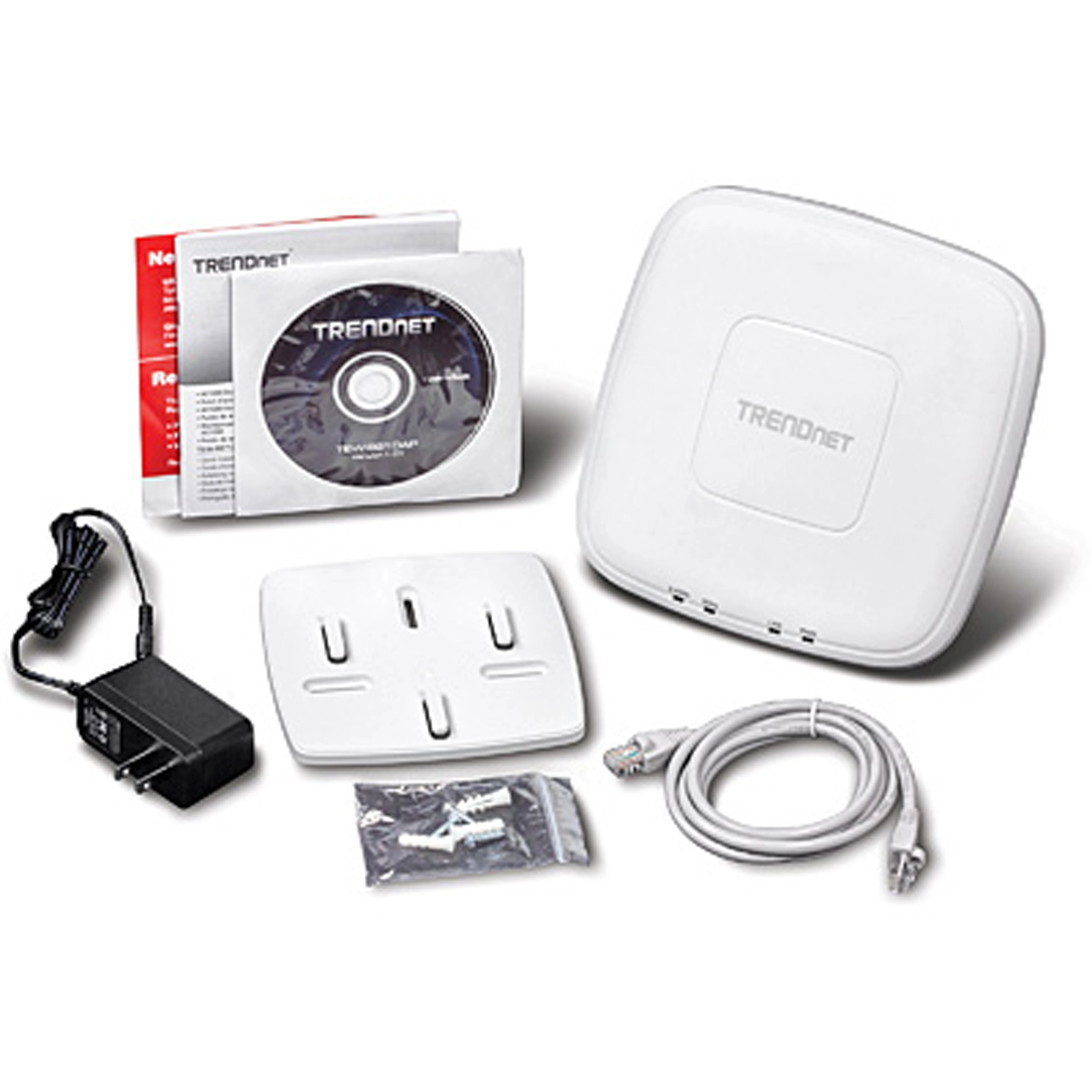

PACKAGE CONTENTS
  • TEW-821DAP
  • 5 ft. (1.5 m) network cable
  • CD-ROM (Utility and User's Guide)
  • Quick Installation Guide
  • Power adapter (12 V DC, 1 A)
  • Mounting Plate

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter.
**Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
