5-Port USB PCI Adapter

TU2-H5PI (Version v1.xR)

  • Add 5 high speed USB ports to your PC
  • Transfer data at high speeds of up to 480Mbps
  • Use with TRENDnet TBW-101UB for instant Bluetooth communication


This 5-Port USB 2.0 Host PCI Adapter gives your Desktop PC five USB 2.0 ports so you can easily connect your peripherals and enjoy the benefits of high-speed USB 2.0!

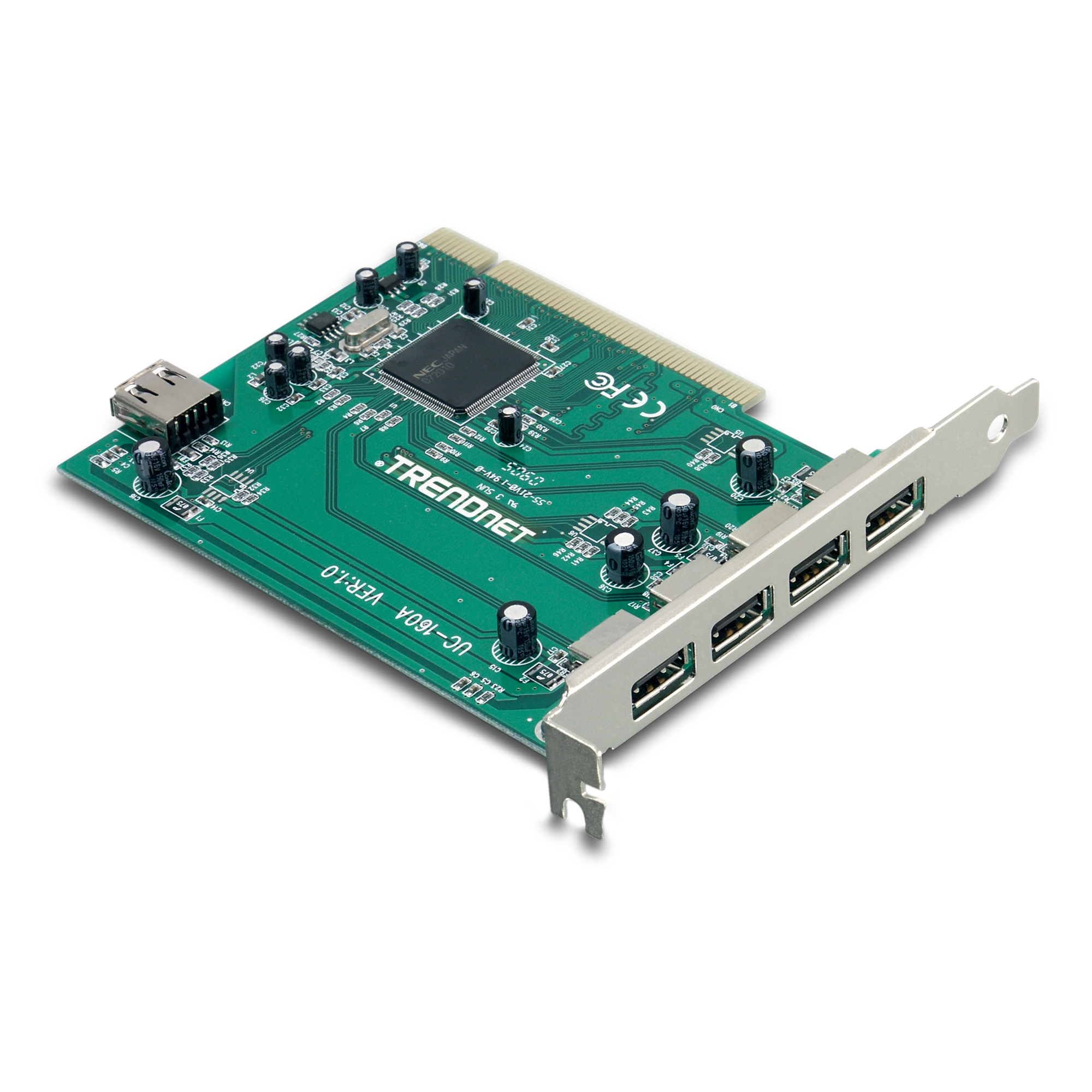

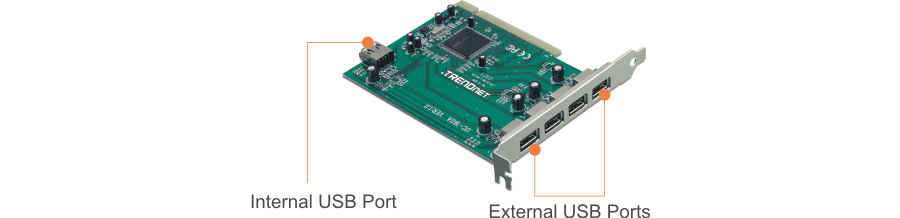

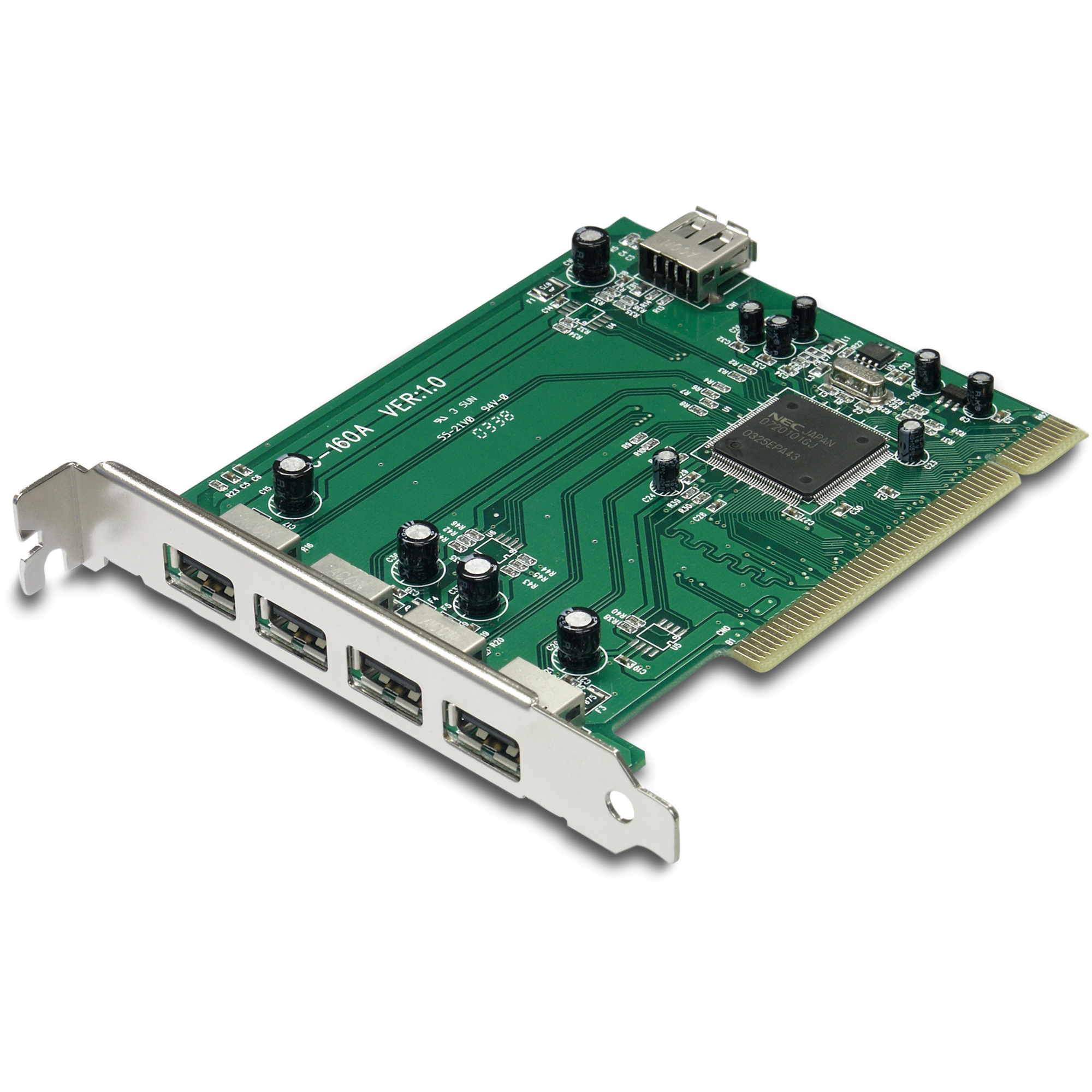

The image shows a 5-Port USB PCI Adapter, model TU2-H5PI. This adapter installs in a computer’s PCI slot to provide additional USB ports. It includes one internal USB port on the circuit board and four external USB ports accessible from the back of the computer once installed. This adapter expands the number of available USB connections for peripherals and devices.
  • 4 x External Type A USB 2.0 Ports
  • 1 x Internal Type A USB 2.0 Port
  • 32-bit 33Mhz Host Interface Compliant to PCI Specification 2.2
  • Supports PCI-Bus Power Management Interface Specification 1.1
  • Compliant with USB 2.0 and USB 1.1 Specifications
  • OHCI 1.1 (Open Host Controller Interface) Compliant
  • EHCI .95 (Enhanced Host Controller Interface) Compliant
  • Supports all USB speeds: Low-Speed (1.5Mbps), Full-Speed (12Mbps) and High-Speed (480Mbps)
  • Switches to the Peripheral's Highest Supported Speed Automatically
  • Fully Forward and Backward Compatible with USB 1.1 Devices
  • Supports up to 127 USB Devices
  • Compatible with Windows 98SE/ME/2000/XP/Vista/2003 Server and Mac OS 10.1~10.4
  • Supports Plug & Play and Easy Installation
  • 2-year limited warranty
Hardware
Interface
  • 32-bit PCI rev. 2.2
USB Controller:
  • OHCI, EHCI
Standards
  • USB 2.0 & USB 1.1
Ports
  • 4 x External USB 2.0 Ports
  • 1 x Internal USB 2.0 Port
System Compatibility
  • Windows® 8.1, 8, 7, Vista, XP
  • Mac OS® 10.4-10.9
Data Rate
  • High-Speed: 480 Mbps
  • Full-Speed: 12 Mbps
  • Low-Speed: 1.5 Mbps
Supported OS
  • Windows 8.1, 8, 7, Vista, XP, 2003 Server, 2000, ME, 98SE
  • Mac: 10.1 - 10.8
Power Consumption
  • 500mA (max) per port
Dimensions (LxWxD)
  • 134 x 121 x 21.6mm (5.2 x 4.76 x 0.85 inches)
Weight
  • 70 g. (0.15 lbs)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 45° C (14° ~ 113° F)
Humidity
  • 85% (Non-Condensing)
Certifications
  • FCC, CE
System Requirements
  • PC with Supported Operating Systems
  • Available PCI Version 2.2 Slot
  • CD-ROM Drive for Driver Installation

PACKAGE CONTENTS
  • TU2-H5PI
  • Quick Installation Guide
  • CD-ROM (Driver & User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
