4-Channel HD PoE NVR (Certified Refurbished)

RB-TV-NVR104 (Version v1.1R)

Standalone 4-Channel PoE network video recorder
Plug and play up to 4 PoE cameras*
Concurrent 720p video recording for all channels
A 3.5” SATA I/II bay supports up to a 6 TB HDD / SSD (sold separately)
Four weeks of continuous 720p recording**
Advanced video playback
Supports ONVIF compliant network camera

TRENDnet's standalone 4-Channel 720p HD PoE NVR, model TV-NVR104, offers a comprehensive video display, storage, and management solution. The NVR networks and powers up to four PoE cameras* and auto-recognizes select TRENDnet cameras. Install up to a 6 TB hard drive (sold separately) to record four weeks of continuous video from four 720p PoE cameras**. Quickly review and export archived video with advanced playback.

Standalone 720p HD NVR

This standalone 720p HD NVR supports up to 6 TB of storage and powers up to four PoE network cameras (hard drive, cameras, and display sold separately).

Plug-and-Play Installation

The NVR auto-recognizes and powers TRENDnet PoE cameras* – simply connect compatible TRENDnet PoE cameras and start recording surveillance video.

Intuitive Interface

Users will find the management interface intuitive and easy to use – quickly navigate live view preferences, recording schedules, and advanced playback options.

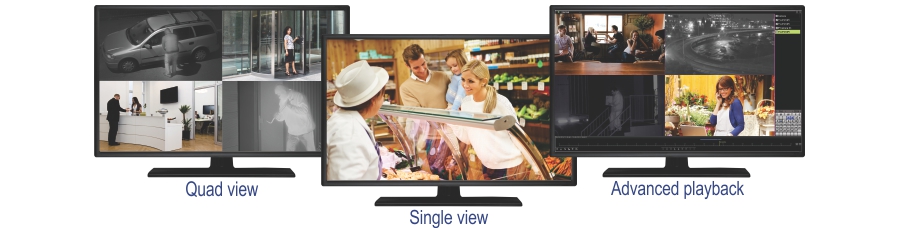

Three monitors display different surveillance camera feeds. The left monitor shows four feeds: a car, a person at an entrance, a person at a reception desk, and a person in a hallway. The middle monitor shows a deli counter with three people interacting. The right monitor shows advanced playback with four feeds: a group of people at a table, a street view at night, a staircase, and a person in a store.

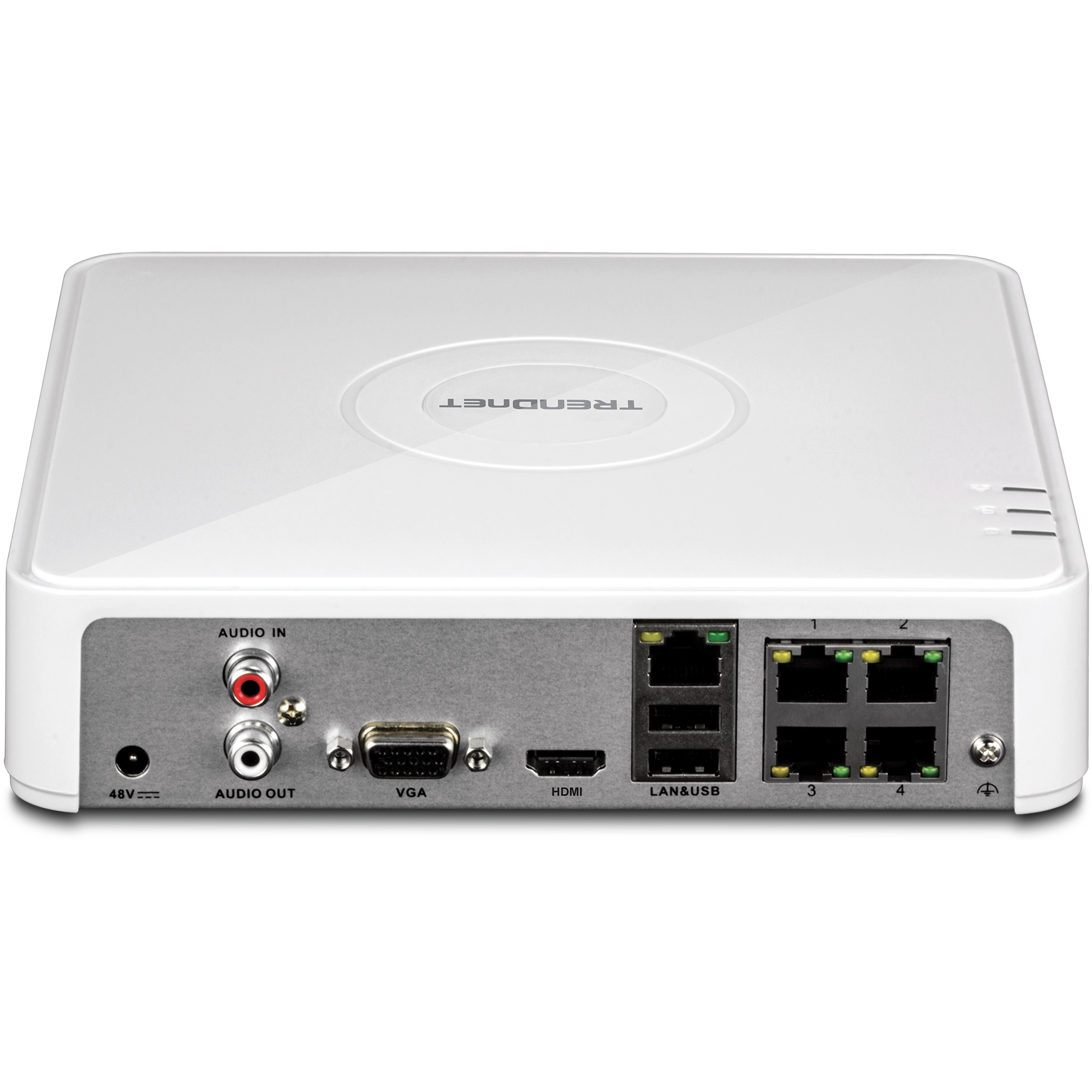

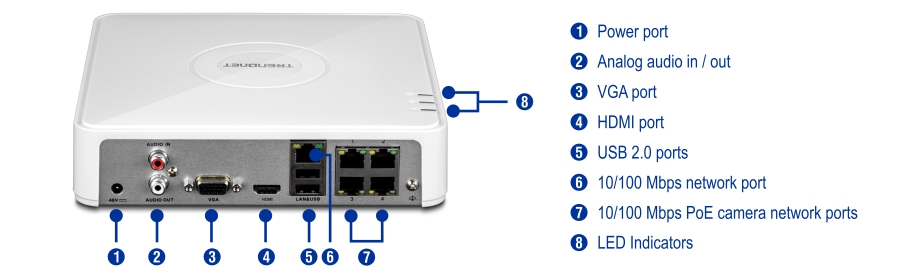

The back panel of a TRENDnet device with various ports includes a power port, analog audio in/out, VGA port, HDMI port, USB 2.0 ports, a 10/100 Mbps network port, 10/100 Mbps PoE camera network ports, and LED indicators, all on a metallic back panel.

TV-NVR104 Hardware

PoE Ports

Plug and play TRENDnet PoE network cameras* to the four PoE (IEEE 802.3af) ports with a total PoE budget of 35 Watts

Storage Bay

A 3.5” SATA I/II bay supports up to a 6 TB HDD/SSD (sold separately)

Network Port

Ethernet network port

Display Ports

HDMI and VGA display ports

Audio Ports

Audio in and out ports

USB Ports

One USB port for the included mouse and one for configuration backup and firmware upgrade

Mouse Included

Includes a mouse and does not require a keyboard

TV-NVR104 Management

Mobile App

See live video on a mobile device with the free iOS^®and Android^™apps

Remote Access

Access the NVR over the internet

Camera Setup

Auto-recognizes compatible TRENDnet cameras* and works with most PoE network cameras

Live View

Single camera and quad-view modes with variable-time auto-scan function

Camera Management

For each camera, manage on screen display, image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss

Video Recording

Record up to 720p HD video at 30 fps in H.264 compression

Recording Time

Four weeks of recording per camera with a 6 TB HDD (sold separately) and four 720p cameras at 30 fps (medium VBR)

Scheduled Recording

Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full

Advanced Playback

Advanced archived video playback with a quick reference timeline and calendar

Video Export

Quickly export specific video types over a specified time

Dynamic DNS Support

Support for dyn.com and NO-IP.org

IPv6

IPv6 support

ONVIF

Supports ONVIF compliant network camera

Video Input	4 PoE channels
Video Output	HDMI and VGA display outputs Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 758 @ 60Hz
Audio	Analog audio in/out (1.0 Vp-p, 1kΩ)
Storage	One 3.5" SATA I/II HDD or SSD up to 6 TB storage (sold separately)
Network Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Device Interface	10/100 Mbps network port 4 x 10/100 Mbps PoE camera network ports 2 x USB 2.0 ports HDMI port VGA port Analog audio in port Analog audio out port Power port LED indicators (Power, Storage, and Network) Grounding point
Network Protocol	IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2 DHCP, NTP, DNS, DDNS, SMTP, FTP HTTP, UPnP, RTSP, RTP, RTCP
Power	Input: 100 – 240 V AC, 50/60 Hz, 1.5 A Output: 48 V DC, 1 A Consumption: 50 Watts (with HDD and Max. PoE PD PoE power budget: 35 Watts
Operating Temperature	-10 - 55 °C (14 - 131 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	199 x 199 x 47 mm (7.8 x 7.8 x 1.8 in.)
Weight	584 g (20.6 oz.)
Management Interface	Live view: Single camera or quad-view Camera management[i]: On screen display: camera name, date, week, and date format Image quality: brightness, contrast, saturation, hue, mirror PTZ: pan, tilt, zoom, focus, iris, preset points, pattern, cruise, patrol Motion detection: define custom motion detection areas, motion sensitivity, and triggering channels Privacy masks: define custom privacy mask areas Video tamper detection: trigger actions if the viewing field darkens suddenly Video loss detection: trigger actions if the setup video is lost Scheduled recording: continuous and motion detection Video recording: Record up to 720p HD video Holiday scheduling for custom recording schedules during observed holidays Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag Video export: tag, cut, and export video clips HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email USB external storage: firmware upgrade, import/export configuration file and logs, export recorded video files, search and playback videos directly from external storage Local live view settings: define screen layout and channel viewing sequence Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions Supported dynamic DNS services: Dyn.com and NO-IP.com Management Setting: maximum 32 user accounts Traffic chart and statistics for network management IPv6 support Supports ONVIF compliant network camera
Remote Viewing and Management	User interface compatible with Internet Explorer^® 9.0 or higher, Safari^® 4.0 or higher
Warranty	90-day

PACKAGE CONTENTS

TV-NVR104
Network cable (1.8 m / 6 ft.)
Optical mouse
CD-ROM (User's Guide)
Multi-Language Quick Installation Guide
Power adapter (48 V DC, 1A)

*Features applies only to integrated cameras. Please see the compatible camera list on http://www.trendnet.com/products/nvr-solutions for more detail. ** Four weeks of recording per camera with a 6 TB HDD (sold separately) and four 720p cameras at 30 fps (medium VBR).

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
