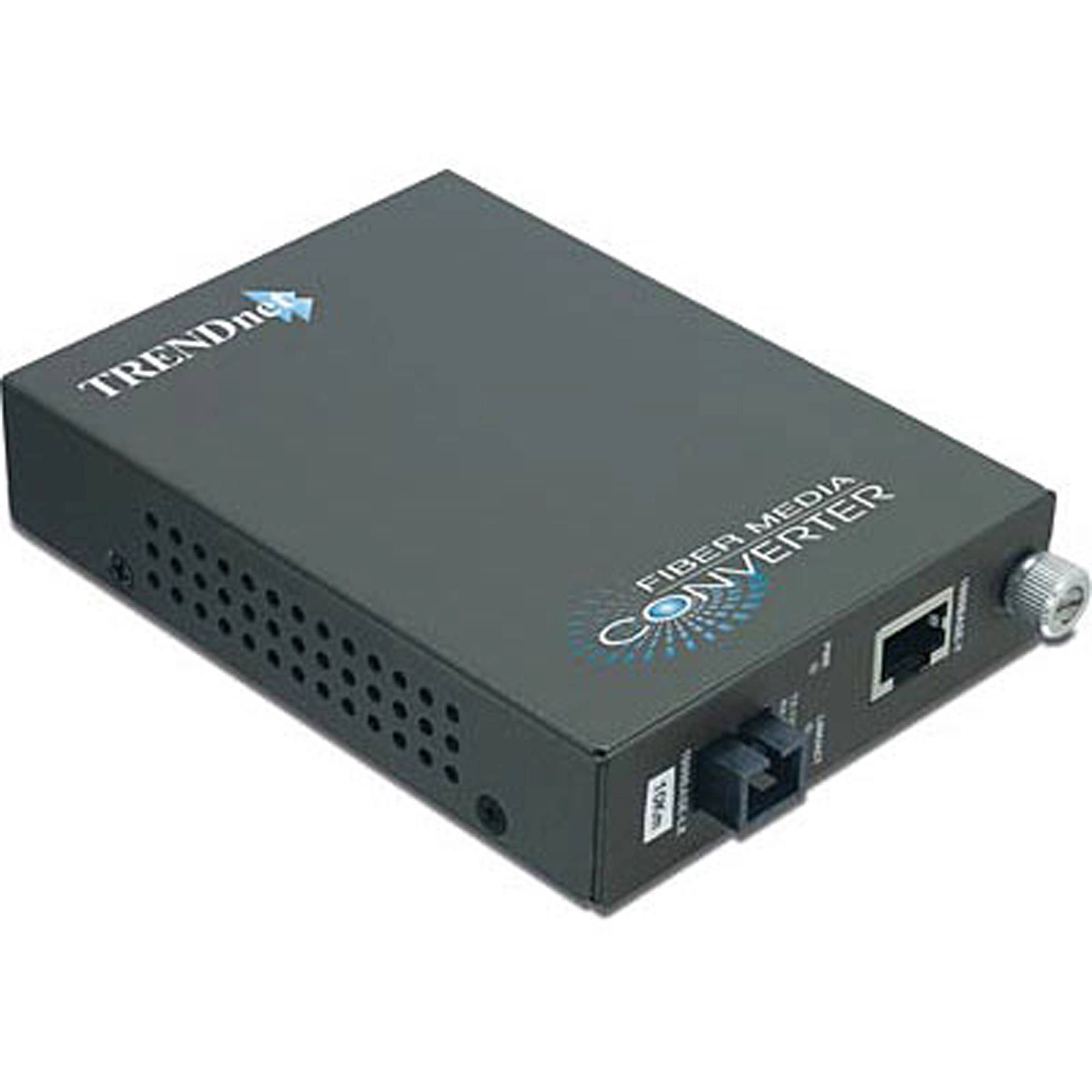

Intelligent 1000Base-TX to 1000Base-FX Dual Wavelength Single Mode SC Fiber Converter TX1310 (Certified Refurbished)

RB-TFC-1000S40D3 (Version V1.0R)

  • Must use with TFC-1000S40D5
  • SC-type dual-wavelength single-mode fiber port connects over distances of up to 40km
  • 1000Base-T Gigabit copper port supports Full-Duplex mode
  • Supports port level SNMP management
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis

The TFC-1000S40D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 40km (24.9 miles). This module must be used with the TFC-1000S40D5 module. Ports include 1 x 1000Base-TX (RJ-45) port and 1 x 1000Base-FX (SC Simplex Type) port.

  • Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX Standards
  • Provides Dip Switch for Fiber (Auto/Manual), LLR (Enable/Disable)
  • Support LLCF (Link Loss Carry Forward, Link Pass Through)
  • Supports LLR (Link Loss Return) for FX Port
  • Supports Full-Duplex and Auto-Negotiation Mode for Fiber Port
  • Single-Strand Fiber Optic, Hot Pluggable & Wall-Mountable
  • Optional 19” System Chassis (TFC-1600) holds up to 16 Media Converter
  • 90-day limited warranty
Model Name
  • TFC-1000S40D3
Wavelength
  • TX: 1310nm; RX: 1550nm
Pout
  • -9dBm
Sensitivity
  • -21dB
Power
  • 12dBm
Hardware
Standard
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-LX
Network Media
  • 1000Base-TX: UTP Cat. 5, EIA/TIA-568 100-ohm STP, up to 100meters
  • 1000Base-LX: 10/125μm Single-Fiber Optic Cable, up to 40km
Protocol
  • CSMA/CD
Ports
  • 1 x 1000ase-T RJ-45 Port
  • 1 x 1000Base-LX Single-Fiber Bi-Directional Port SC Connector
Dip Switch
  • TX: Duplex Mode, Auto Negotiation or Manual, Speed, LLCF (enable/disable)
  • FX: Duplex Mode, LLR (enable/disable), LLCF
Transfer Rate
  • 1000Base-T : 2000Mbps (Full Duplex)
Diagnostic LED
  • Per Unit : Power
  • Per Port : Link/Activity
Power Adapter
  • 7.5V DC, 1.5A External Power Adapter
Power Consumption
  • 5.5 watts (max)
Dimensions
  • 120 x 88 x 25mm (4.7 x 3.46 x 0.98 inches)
Weight
  • 354g (12.5oz)
Temperature
  • Operating : 0° ~ 40° C (32° ~ 104° F)
  • Storage : -25° ~ 70° C (-13° ~ 158° F)
Humidity
  • 5% ~ 90% RH
Safety Emissions
  • FCC,CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
