Fast Ethernet PoE+ Ports
Up to 200Mbps full-duplex per port and total switching capacity of 1Gbps with total power budget of 90W.

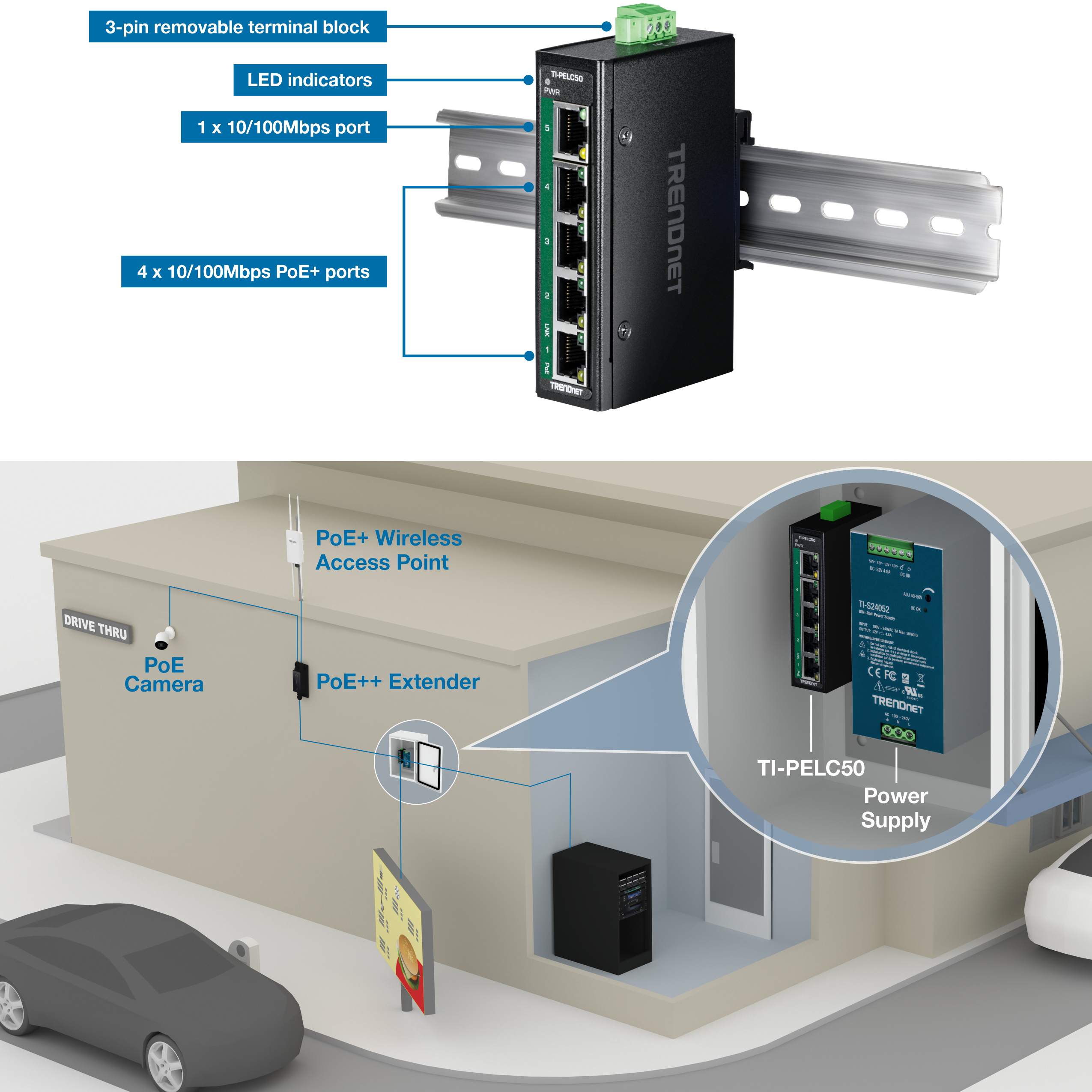

TRENDnet’s 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch, model TI-PELC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Fast Ethernet DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features four Fast Ethernet PoE+ ports and one Fast Ethernet port for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+ Switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
Up to 200Mbps full-duplex per port and total switching capacity of 1Gbps with total power budget of 90W.
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).
With a compact metal housing design, this mini network switch is well-suited for installations into most environments.
Up to 200Mbps full-duplex per port and total switching capacity of 1Gbps
Supplies up to 30W of PoE/PoE+ power per PoE+ port with a power budget of 90W
IP30 rated metal enclosure on the industrial switch, with included DIN-Rail mount and wall mount hardware
Compact and sturdy metal housing
An operating temperature range of -40° – 75° C (-40° – 167° F) allows for the installation of the industrial switch in environments with extreme hot or cold conditions
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV
The industrial switch features a grounding point for protection against external electrical surges
Standards |
|
Device Interface |
|
Data Transfer Rate |
|
Performance |
|
Special Features |
|
Power |
|
PoE |
|
Terminal Block |
|
MTBF |
|
Housing |
|
Operating Temperature |
|
Operating Humidity |
|
Dimensions |
|
Weight |
|
Certifications |
|
Warranty |
|
PACKAGE CONTENTS |
|
