8-Port Industrial Gigabit PoE+ DIN-Rail Switch (24 – 56V)

TI-PG80B (Version v2.0R)

  • 8 x Gigabit PoE+ ports
  • PoE power budget 120W@24V – 200W@56V
  • Dual 24 – 56V DC power inputs for redundancy
  • Hardened IP50 rated metal switch
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • 16Gbps switching capacity
  • Includes DIN-Rail and wall mounts
  • Power supply sold separately (models: TI-S24052, TI-S15052)
  • NDAA / TAA compliant (U.S. only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Price: $329.99
Quantity:
Wishlist

TRENDnet’s 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 24 – 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.

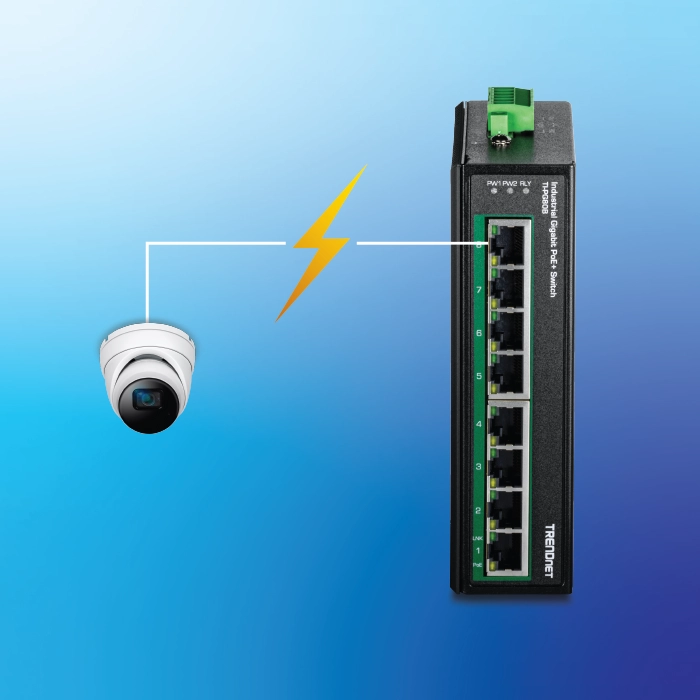

A security camera is connected to a network switch labeled TRENDnet, which has 8 ports, one of which is connected to the camera. A yellow lightning bolt symbol indicates the use of Power over Ethernet technology

PoE Power

The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.

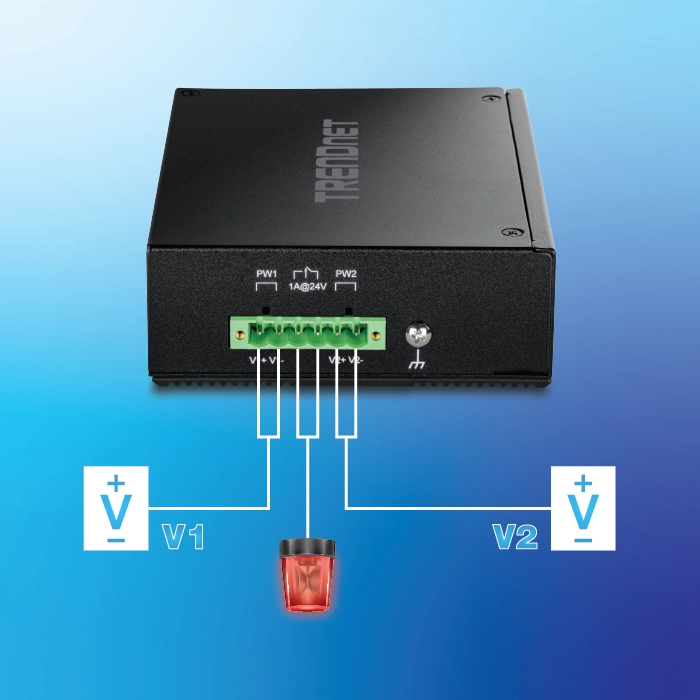

A TRENDnet device with redundant power inputs and an output alarm relay is shown. It has a black rectangular casing with the TRENDnet logo on top. On the front panel, there are two power input ports labeled PW1 and PW2, each rated at 1A@24V. Below these ports, there is a green terminal block with connections labeled V1+, V1-, V2+, and V2-. A red alarm relay indicator is below the terminal block.

Fault Tolerance

The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.

icons of phone, temperature, lightning & IP50.

Industrial Design

Equipped with a rugged IP50 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

A TRENDnet TI-PG80B device is mounted on a DIN-Rail, featuring a grounding point, LED indicators, a 6-pin removable terminal block, and eight Gigabit PoE+ ports. Below, a warehouse setting includes a PoE camera, PoE extender, and power supply connected to the TI-PG80B. A conveyor belt, several boxes, and a forklift are present in the foreground.

PoE+ Power

Supplies up to 30W of PoE+ power per port on the industrial variable voltage switch with a 200W PoE power budget

Network Ports

8 x Gigabit PoE+ ports

DIN-Rail/Wall Mounts

DIN-Rail and wall mount hardware included

IP50 Rated Housing

IP50 dust-protected metal enclosure

Switching Capacity

16Gbps switching capacity

Redundant Power

Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies sold separately, models: TI-S24052, TI-S15052)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch

Extreme Operating Temperature

Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point on the industrial variable voltage switch protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
DC Power
  • Input: 24 – 56V DC
  • Compatible power supply: TI-S24052 or TI-S15052 (sold separately)
  • Max. consumption: 5W (no PoE)
  • Max. consumption: 135.6W (with PoE)
PoE
  • Max. power budget: 200W @56V DC
  • Max. power budget: 120W @24V DC
Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34mm2 to 2.5mm2
  • Solid wire (AWG): 12-24
  • Stranded wire (AWG): 12-24
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
MTBF
  • 513,100 hours
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 142 x 105 x 39.5mm (5.6 x 4.1 x 1.56 in.)
Weight
  • 610g (1.34 lb.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty

PACKAGE CONTENTS
  • TI-PG80B
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
