Hardened Industrial Gigabit PoE+ Injector

TI-IG30 (Version v1.0R)

  • Hardened IP30 rated Gigabit PoE+ Injector
  • High power PoE+
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Dual redundant power inputs with overload current protection
  • Includes DIN-rail and wall mounts
  • Power supply sold separately (model TI-S15052, TI-S12048)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
DISCONTINUED PRODUCT
The TI-IG30 (Version v1.0R) has been discontinued. It has been replaced by the TI-IG30 (Version V2). For a list of discontinued products, click here.

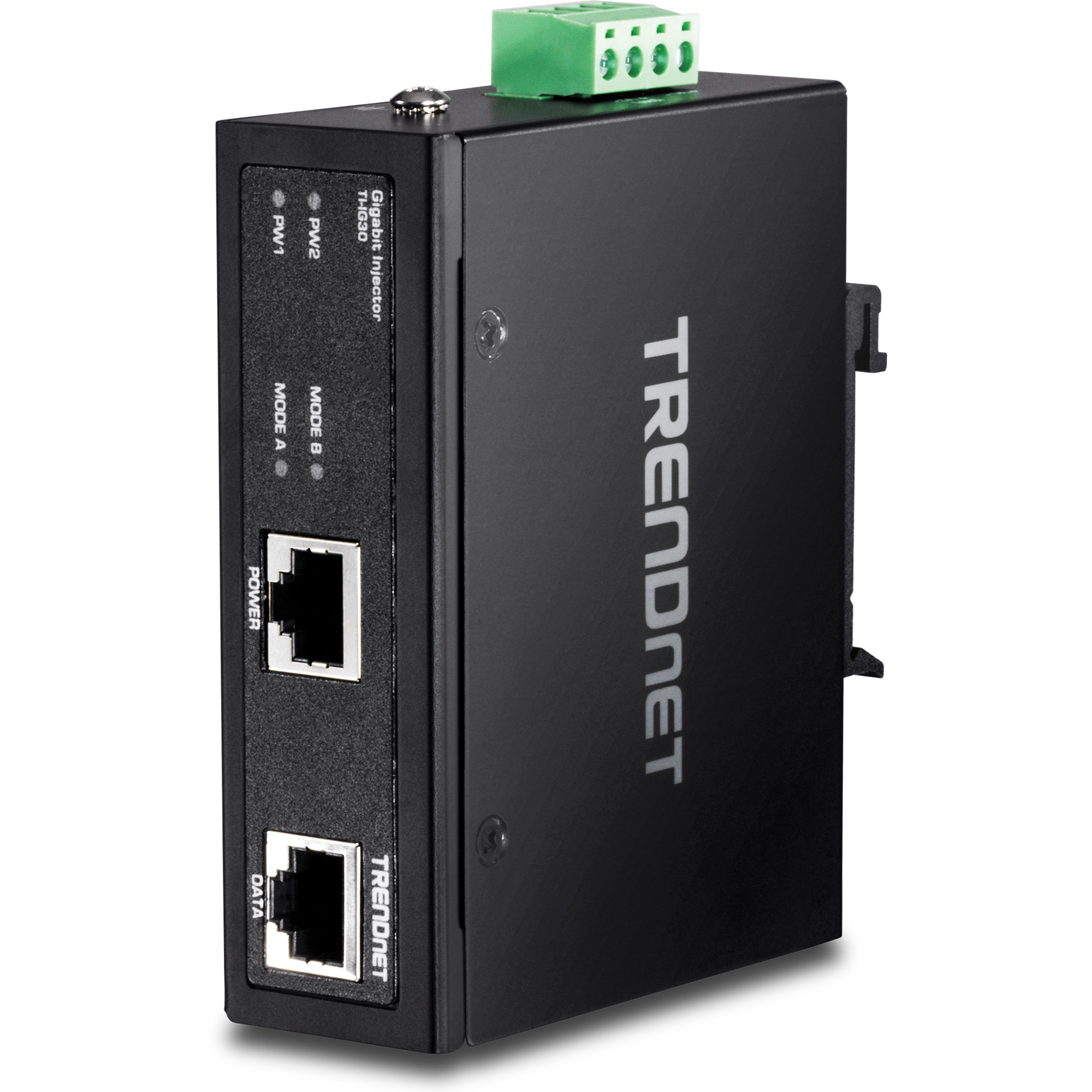

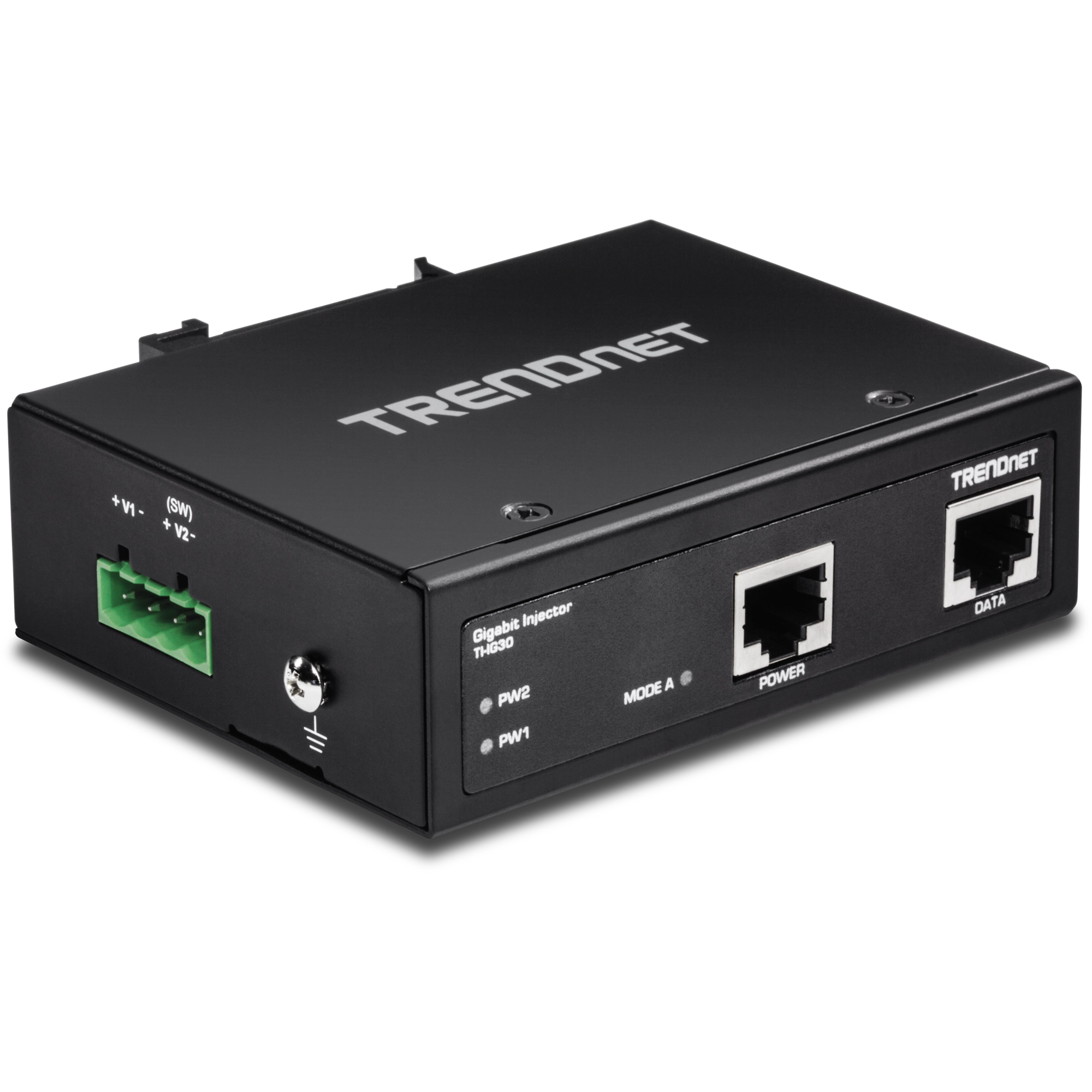

TRENDnet's TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or high power PoE+ device. Dual redundant power inputs (power supply sold separately: TI-S15052, TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.

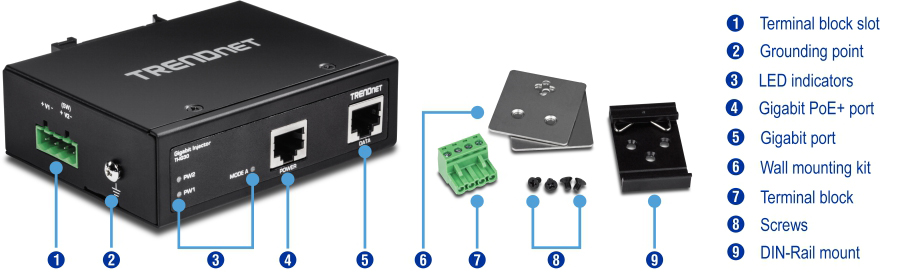

The illustration shows the TI-IG30 front angled view labeled with terminal block slot, grounding point, LED indicators, a Gigabit PoE+ port, and a Gigabit port. Separate parts are labeled wall mounting kit, terminal block, screws, and DIN-Rail mount.

Plug and Play

Plug and play PoE network devices

PoE/PoE+

Supplies power to a PoE (up to 15 W) and PoE + (up to 30 W) device

Gigabit Ports

1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port

Extension Distance

Extends a PoE network connection up to 100 meters (328 ft.)

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)

Extreme Temperatures

Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

LED indicators

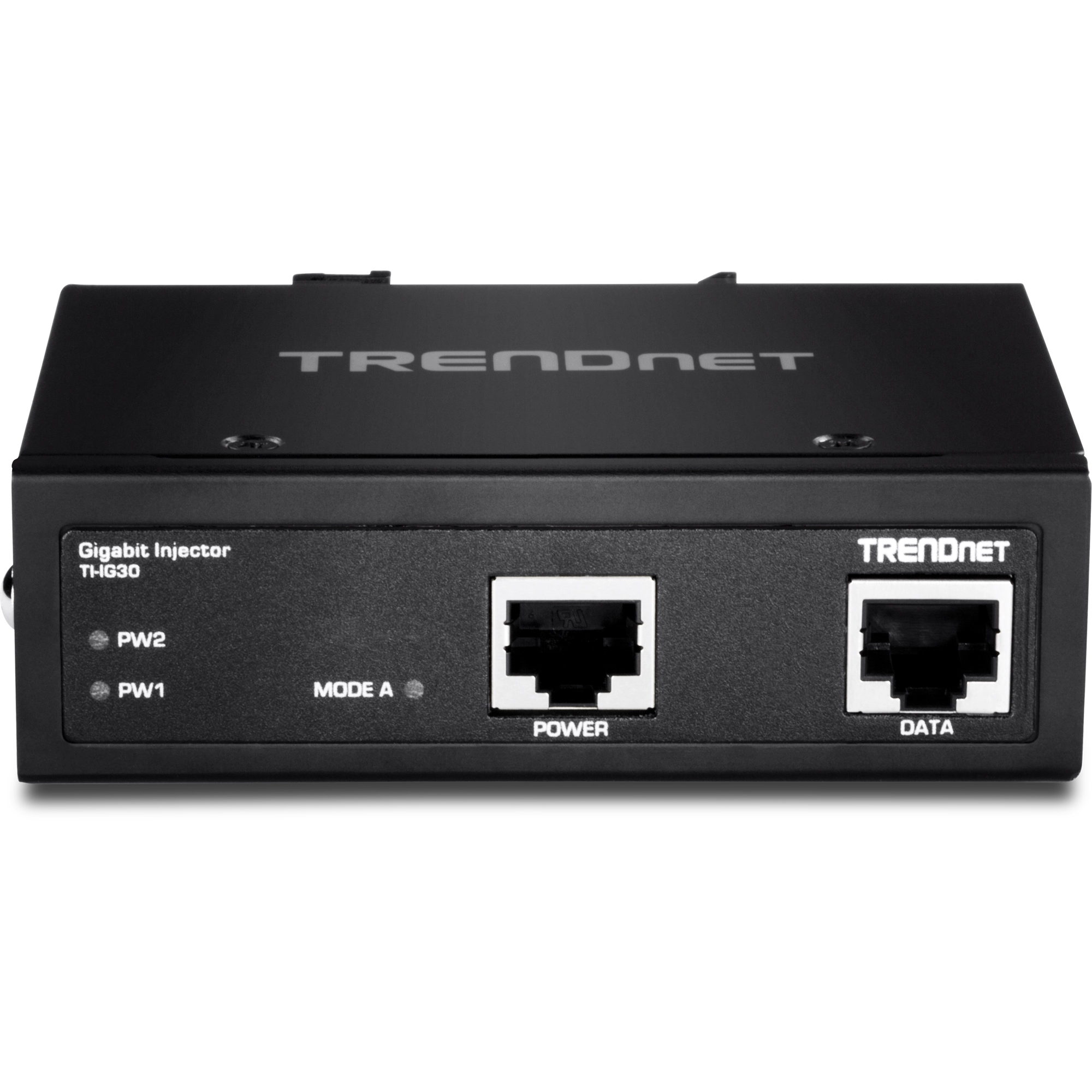

LED indicators confirm PoE and network connectivity

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 1 x Gigabit port
  • 1 x PoE+ Gigabit port
  • 4-pin removable terminal block
  • LED indicators

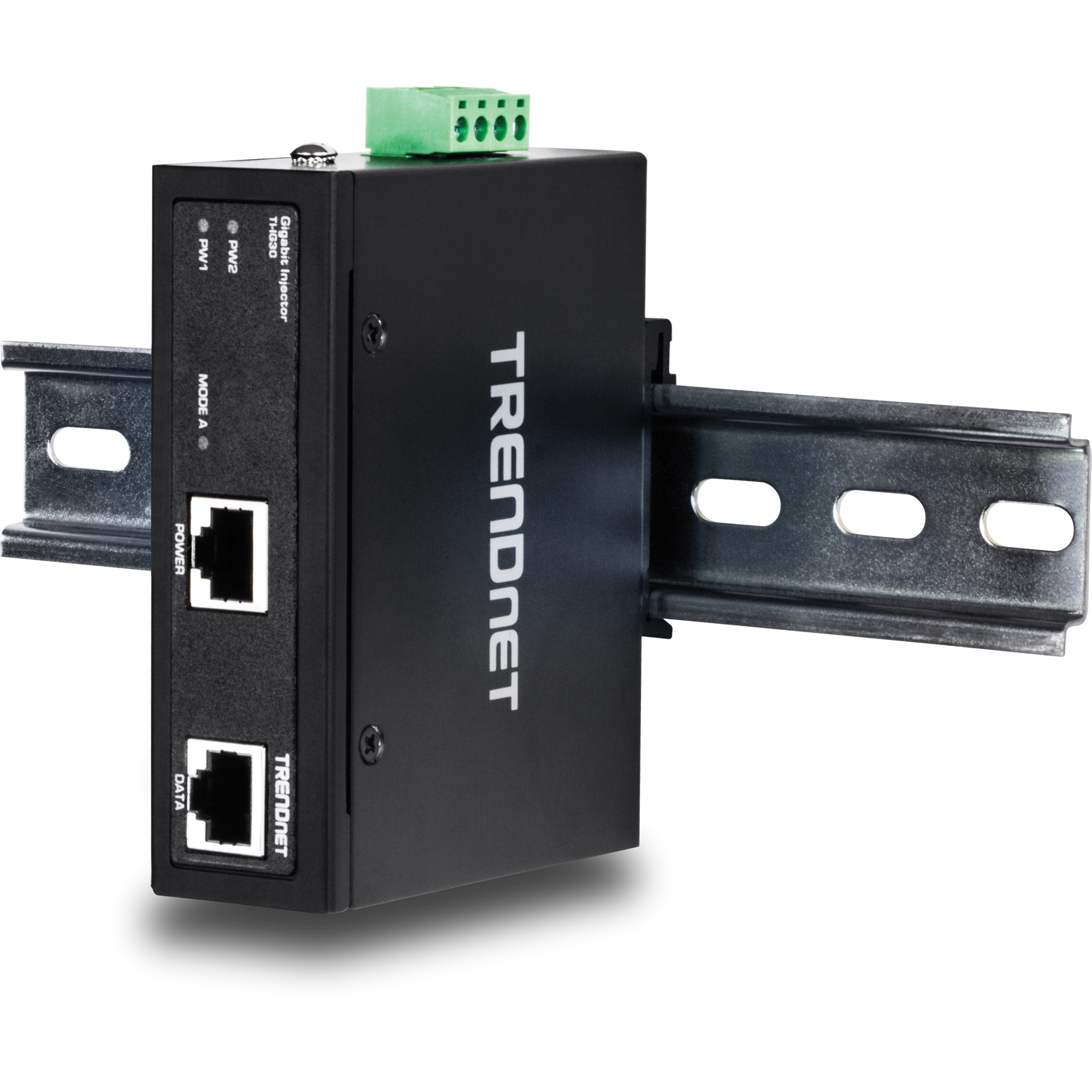

  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Auto-Negotiation
  • ESD 8 KV and Surge 6 KV protection
Power
  • Input: 48 – 56 V DC
  • Compatible power supply: TI-S15052, TI-S12048 (sold separately)
  • Consumption: Max. 36 Watts
PoE
  • PoE budget: 30 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7 – 8 mm
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV surge protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 104 x 82 x 32 mm. (4.1 x 3.2 x 1.2 in.)
Weight
  • 134 g (4.7 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-IG30
  • Quick Installation Guide
  • Removable terminal block

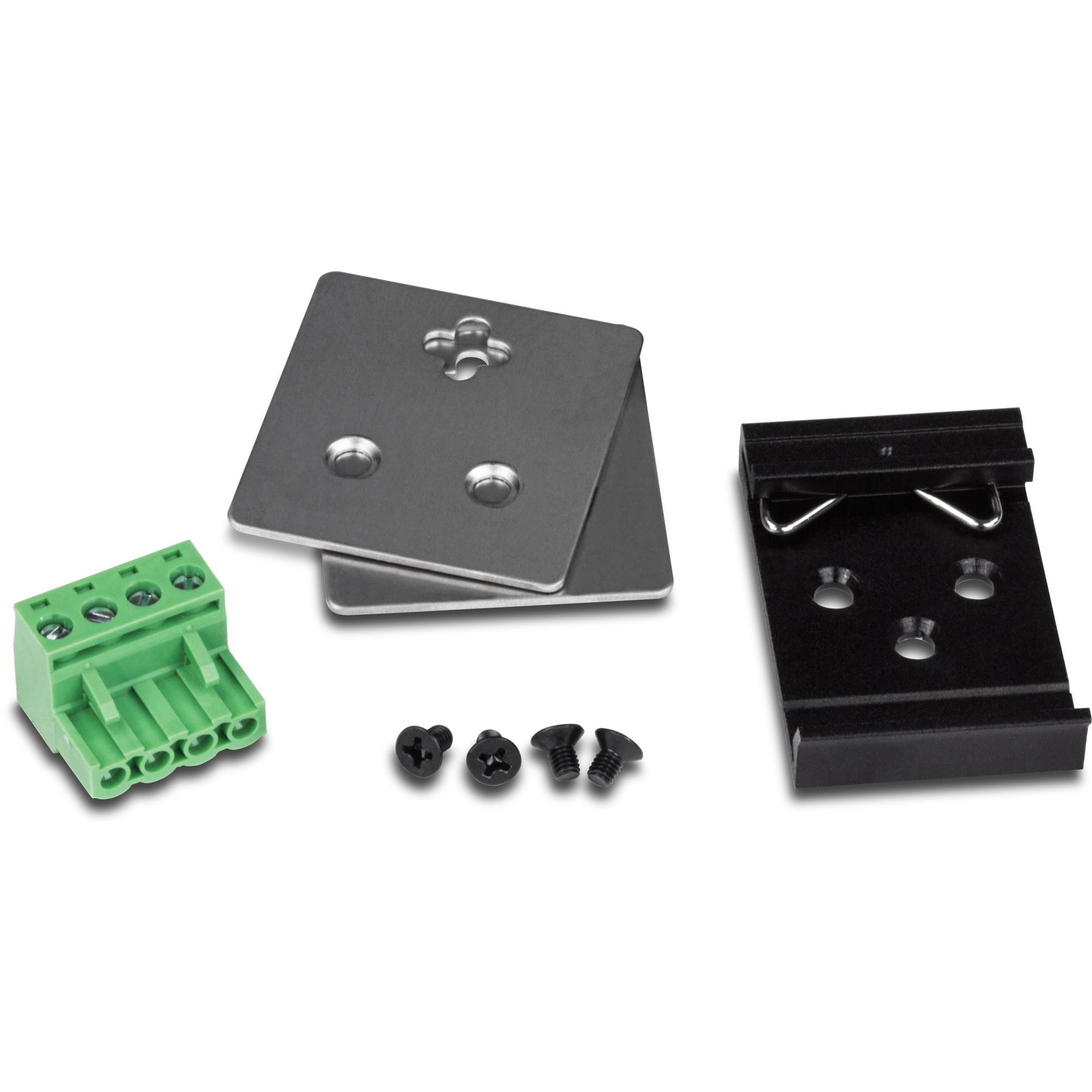

  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
