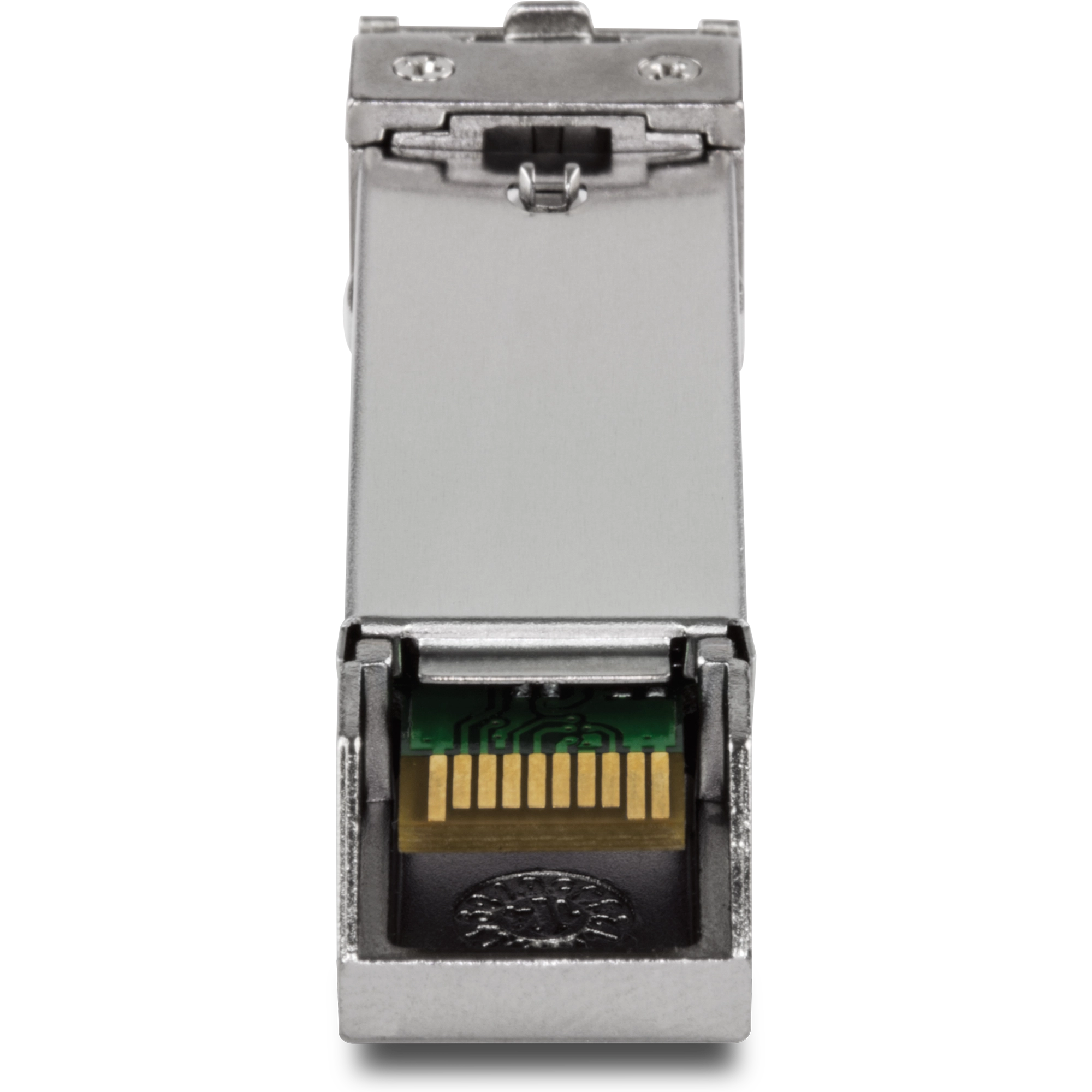

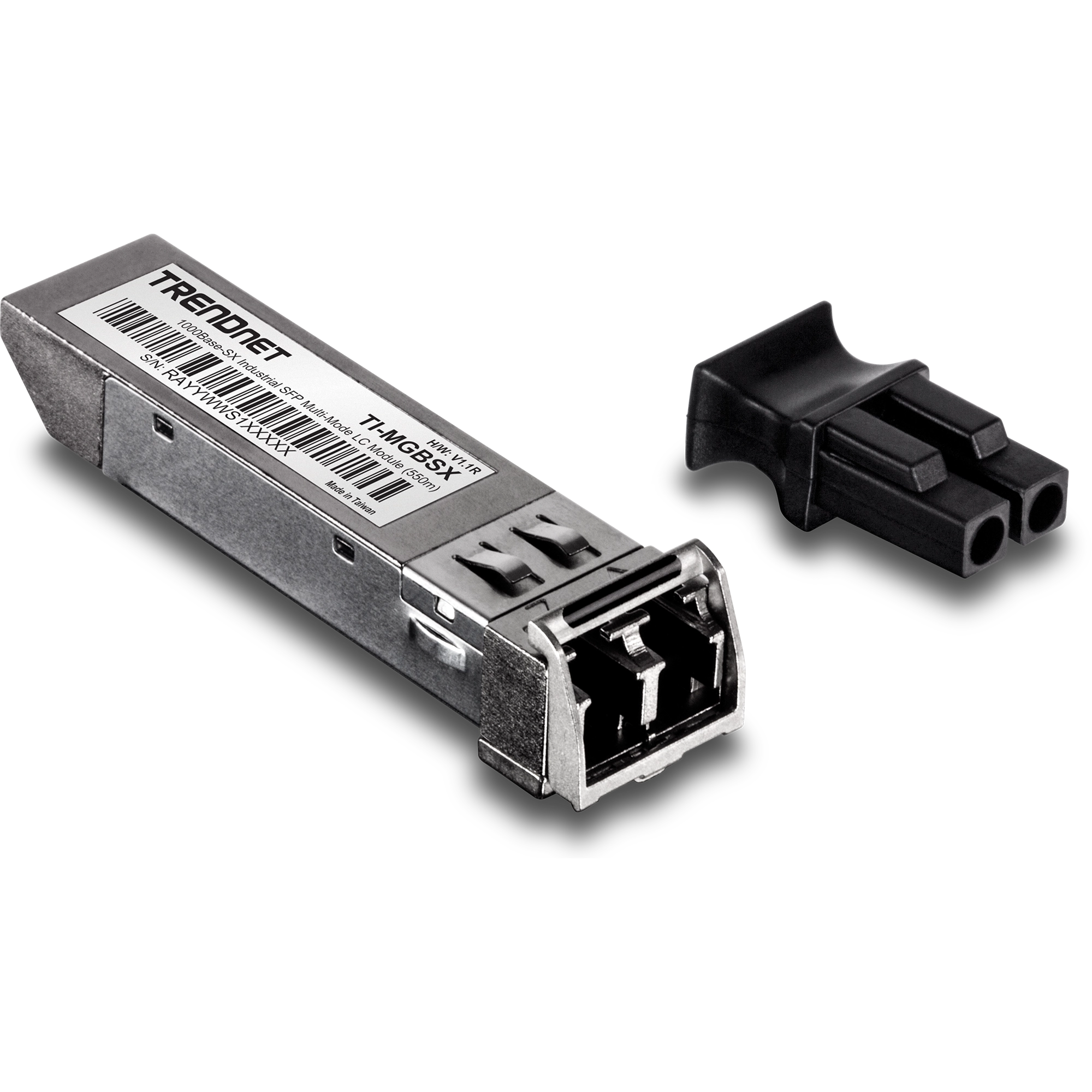

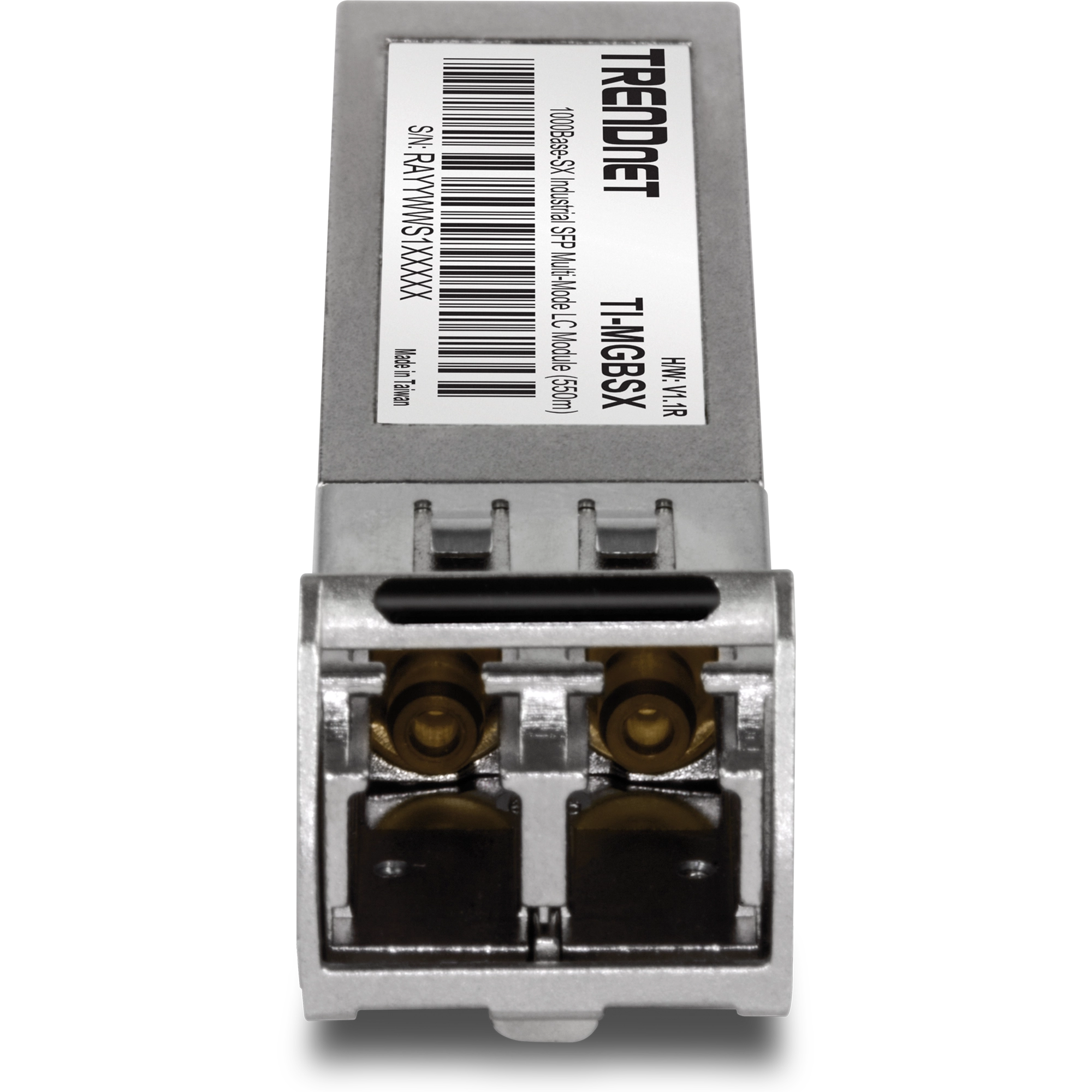

The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBSX is compatible with Duplex LC fiber connector types and supports gigabit multi-mode fiber connections at distances of up to 550 m (1804 ft.).
Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications.
Fiber Mode / Distance
Multi-Mode transceiver spans distances up to 550 m (1804 ft.) and supports up to 1.25 Gbps.
Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
Hot-pluggable SFP transceiver compatible with a MSA compliant SFP slot
Compatible with multi-mode 850 nm transmissions
Supports networking for distances up to 550 m (1804 ft.)

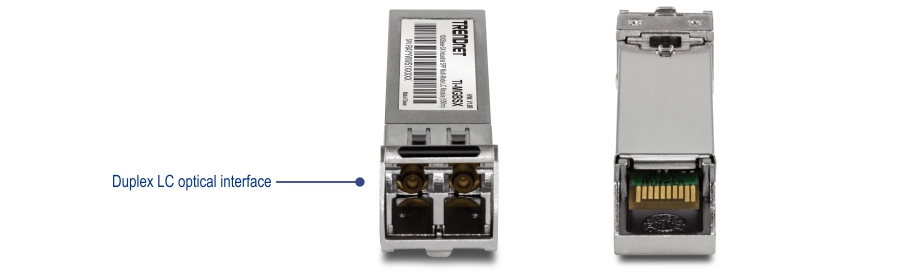

LC-type duplex connector
Rated for an operating temperature range of -40°– 85 °C (-40° – 185 °F)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
