Hardened Industrial 100Base-FX Single-Mode SC Fiber Converter (30 km, 18.6 mi.)

TI-F10S30 (Version v1.0R)

  • Hardened IP40 rated compact housing
  • 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 mi.)
  • SC-type fiber port
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Overload current protection
  • Includes DIN-rail and wall mounts
  • Power supply sold separately (model TI-M6024)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Price: $131.99
Quantity:
Wishlist

TRENDnet's TI-F10S30 is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates long distance networking with 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately: model TI-M6024.

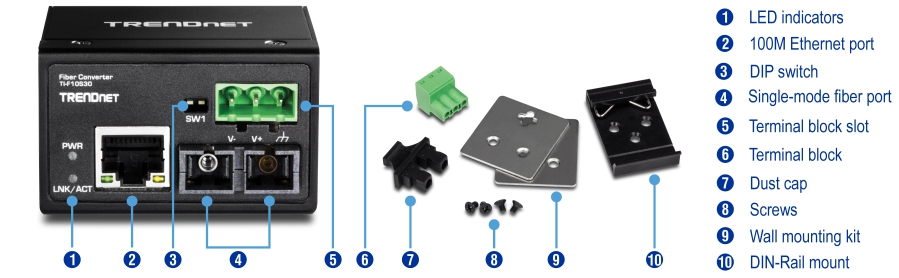

The visual shows the front view of the TI-F10S30 Fiber Converter. It's labeled with numbered components: LED indicators, 100M Ethernet port, DIP switch, two single-mode fiber ports, and a terminal block slot. Separately, it labels the terminal block, dust cap, screws, wall mounting kit, and DIN-Rail mount.

Network Ports

1 x 10/100 Mbps Ethernet port and 1 x 100Base-FX SC-type fiber port

Fiber

100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles)

Dip Switches

  • Dip Switch 1: Enable/disable Link Fault Pass Through (LFP) support
  • Dip Switch 2: Converter mode or switch mode

DIN-Rail/Wall Mounts

IP40 rated metal enclosure with included DIN-rail and wall mount hardware

Extreme Temperatures

Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

LED indicators

LED indicators confirm network connectivity

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Device Interface
  • 1 x 10/100 Mbps port
  • 1 x 100Base-FX port (SC-type)
  • 3-pin terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Special Features
  • Hardened components rated for extreme temperatures
  • Auto-Negotiation
  • Link Fault Pass Through (LFP)
  • Converter mode, switch mode
  • ESD 8 KV and Surge 6 KV protection
Fiber
  • Media: Single-mode SC connector
  • Cable: 9 / 125 µm
  • Wavelength: 1310 nm
  • Optical Output Power (dBm): -15 ~ -8
  • Optical Input Power (dBm): -34 ~ 0
  • Power Budget: 7
  • Distance: 30 km
Power
  • Input: 12 – 60 V DC or 18 – 36 V AC
  • Compatible power supply: TI-M6024 (sold separately)
  • Consumption: Max. 1.92 Watts
Terminal Block
  • Redundant power inputs, 3 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7 – 8 mm
MTBF
  • 510,304 hours
Housing
  • IP40 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV surge protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 60 x 50 x 35 mm. (2.4 x 2 x 1.4 in.)
Weight
  • 90 g (3.2 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TI-F10SC30
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
